Half Assembled Alignment Tool


Top Fuel ZX

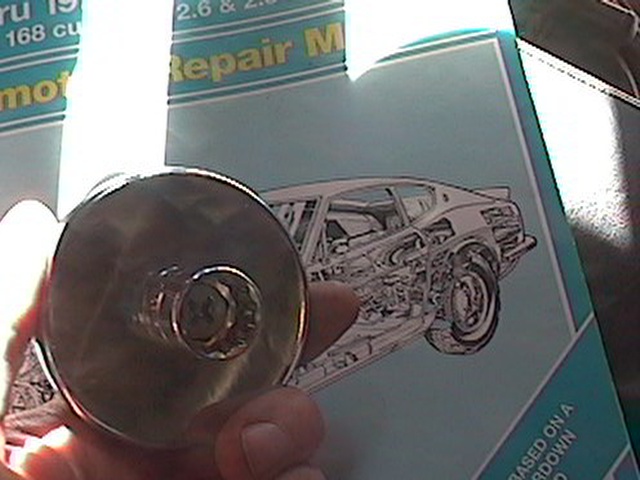

This is a partly assembled laser alignment tool that I used when puting in the LT1/4l60E and the R230.



This photo is the smaller magnet and the socket gets bolted to the magnet. The larger magnet has the socket epoxied or welded to it.
