Wilwood emergency/parking brake brackets


  • Please log in to reply
193 replies to this topic

#1 05plsrt4

05plsrt4
  • LocationOntario

Posted 18 May 2013 - 02:40 PM

I started this project a few months ago after trying to buy a set of Woza's brackets, but since he stopped making them I had to do it myself.



Started off making the steel brackets to use the wilwood mechanical spot calipers (120-2280,2281) I made the brackets and mocked everything up. I was unable to figure out a way to stop the calipers from rattling (I hate rattles) so I scrapped that idea and decided to make a new set using wilwood's new MC4 mechanical parking brake calipers.



Attached File  CIMG7648 (Large).JPG   72.98KB   105 downloads



Made from 6061 aluminum, they are much lighter than my original steel design.



Attached File  CIMG7644 (Large).JPG   65.68KB   167 downloads



My brake hats are JSK hats which have a 24.5mm offset so the brackets should work with other kits that run the same offset.



I made the first set for myself, and am happy with the way they turned out. Would anyone else be interested in a set?



Attached File  CIMG7646 (Large).JPG   108.15KB   172 downloads



#2 tooquick260

tooquick260
  • LocationOrlando, FL

Posted 18 May 2013 - 03:20 PM

Very nice!


1974 Datsun 260Z L26 bored out to L28, 8.1 to 1, 280Z turbo, MS3Pro, 500cc Injectors. Inter cooler, Schneider's custom cam, TTT3 Front & rear coilovers  with Z32 front and rear brakes, S15 6 speed tranny, Q45 rear diff 3.53. Using Z32 16" wheels. My build http://forums.hybrid...echnotoytuning/<p>


#3 nullbound

nullbound
  • LocationRoswell, GA

Posted 18 May 2013 - 07:39 PM

Defintely interested!



#4 takayuki

takayuki
  • LocationEdmonton, Alberta

Posted 19 May 2013 - 07:50 AM

Interested!

#5 05plsrt4

05plsrt4
  • LocationOntario

Posted 20 May 2013 - 05:02 AM

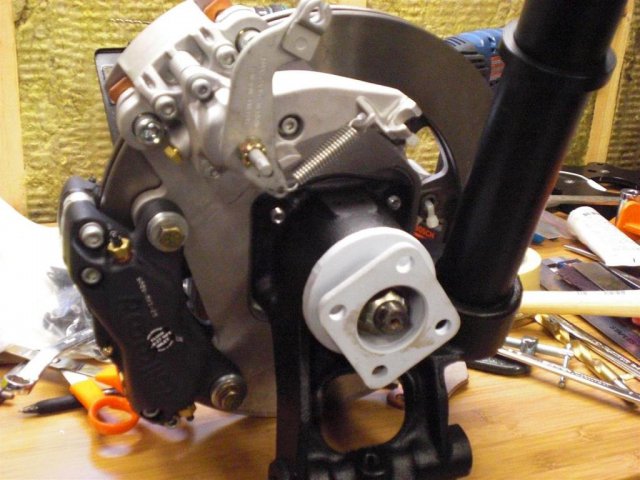

Another picture

Attached Files



#6 rodizzle

rodizzle
  • LocationLos angless

Posted 20 May 2013 - 05:42 AM

I am also interested!



#7 05plsrt4

05plsrt4
  • LocationOntario

Posted 20 May 2013 - 06:13 AM

According to Z Fire, the AZC hats have a 24mm backspace/offset which is pretty close to my JSK hats.



It uses a Lokar universal ebrake cable also, which ended up being much cheaper than a custom cable. My stock/aftermarket ebrake cable reaches but I was unable to find the correct size Eclip to clip the cable into the caliper.



#8 05plsrt4

05plsrt4
  • LocationOntario

Posted 20 May 2013 - 02:50 PM

If anyone is actually interested in purchasing them, I can sell them for $300 US plus $20 shipping in Canada or US. That price is for both left and right brackets.



My machinist will make them but I require a minimum order of 5 people (10 parts).



#9 brianZortiz

brianZortiz
  • LocationLos Angeles, CA 90057

Posted 20 May 2013 - 04:54 PM

Interested. I've been talking to you 05plsrt4. I'll be looking into this forum and see if AZC works.


1973 260z GC coilovers 200f/225r tokico illumina. 3.9 LSD+extra clutches. ZG flares. upcoming engine L28et SDSem46f.
1972 240z no engine. in storage. Just waiting.

#10 rudypoochris

rudypoochris
  • LocationOakland, CA

Posted 22 July 2013 - 08:27 PM

I am in. I have the JSK rears and stupidly got rid of my parking brake mechanicals under the car. What would I need cable wise to get this to work? Can you confirm those are 12.2"x0.81" disks (my calipers are Forged Billet Superlites and look different than yours)?



Thanks for taking the lead on this.



1. Rudypoochris

2.

3.

4.

5.


Edited by rudypoochris, 22 July 2013 - 08:29 PM.

1972 240z - Ford 302... Barely Running


#11 smoorenc

smoorenc
  • LocationLincolnton, NC

Posted 09 September 2013 - 05:17 AM

I have Arizona Z's brake kit. Do you know if I can replace Dave's mounting bracket with this one and still use the Arizona Z brakes? I would be very interested if so!


280Z LS1 conversion

www.4moores.com


#12 05plsrt4

05plsrt4
  • LocationOntario

Posted 15 September 2013 - 12:39 PM

I am going to talk to the machinist about making some more of these brackets.



They use the Wilwood Dynalite caliper and the MC4 parking brake caliper with a 12.2 inch 0.81 thick rotor

The ebrake cable I used was a Lokar cable (EC-80WU) meant for those wilwood calipers.



I will likely send the brackets out with a bunch of shims that will allow you to shim the bracket out for various different brake setups (AZC or JSK)



#13 EF Ian

EF Ian
  • LocationPortrush - Northern Ireland

Posted 16 September 2013 - 10:44 AM

Nice setup. How much power does the parking brake have? it looks rather small.



#14 05plsrt4

05plsrt4
  • LocationOntario

Posted 16 September 2013 - 01:39 PM

Its a parking brake. Its not meant for anything else.



#15 EF Ian

EF Ian
  • LocationPortrush - Northern Ireland

Posted 16 September 2013 - 02:03 PM

In the yearly MOT's over here they test the parking brake quite hard, I need to have a look and see exactly what the requirements are.



#16 Rob L

Rob L
  • LocationOttawa, Canada

Posted 18 December 2013 - 12:16 PM

So whats going on with these any feedback ...is it possible now to have willwood brakes on all 4 with a parking brake capabilitiy now?



#17 Krinkov

Krinkov
  • LocationSF Bay Area

Posted 18 December 2013 - 11:43 PM

tagging along for more info as well! :)



#18 Woza01

Woza01
  • LocationMandurah, WA, Australia

Posted 15 January 2014 - 08:59 PM

Haha..well well....



I remember you contacting me about my brackets !



I too hate the rattle that comes from the Spot calipers used in my kit, and also the pad area is VERY small, resulting in not a huge clamping force. They are constantly requiring adjustment too. In retrospect, I shoudl have used them for sometime before selling kts, however everyone simply 'had to have a set now' ! lol



I have been toying with the idea of re-designing using teh MC4 calipers, but you have spared me the work ! thanks !



So, in a nutshell...I WANT A SET ! haha....where are we at with numbers etc ?



Cheers



Warren (Woza01)



#19 RB26powered74zcar

RB26powered74zcar
  • LocationLouisiana, 70601

Posted 15 January 2014 - 11:39 PM

I am also interested!


.











RB26dettZ pics



th_April_2012006.jpg ®


#20 alainburon

alainburon
  • LocationHouston, Texas

Posted 23 January 2014 - 08:07 PM

I'm interested as well, can these be used with 15" wheels?
