Some of you might have seen my post about wanting to buy this car. I've been a huge fan of Z cars since I was about 12 years old. I finally had the opportunity to buy a 280z at a ridiculously low price and I went for it. It has a clean title and an engine that'll start and that was about it.



For those reading, the intent of this car is not to build a show quality car, or a performance monster; just me trying to apply all the things I've learned and been reading about for the last 7 years of trolling around online and staring at build threads and S30 pictures. It's also a learning experience for me, since I bought it dirt cheap and it has some rust issues and all that jazz I'm not afraid to tear into stuff.

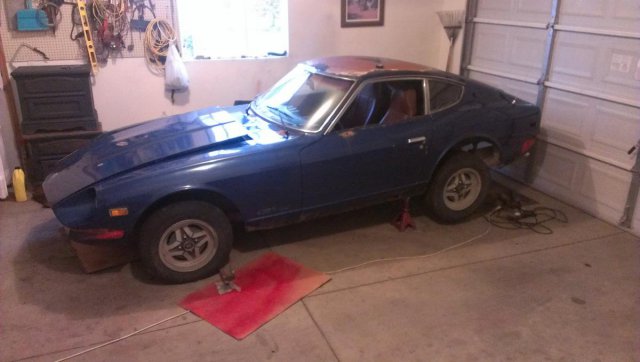

Pulled it home with my dad's tiny little Toyota pickup he uses as a daily to get to work about 3 minutes from home.

Attached File  IMAG00951.jpg   176.14KB   2 downloads



This is the first problem I have to address with the car. And probably the only reason I got the car for $300 (Some people lack both patience to do things right, and the resources to pay someone else to do it right)



Attached File  IMAG01081.jpg   82.21KB   1 downloads



The spare wheel well was cut out (very poorly) and a different tank was installed off some unknown car from a local junkyard. They didn't even bother to get one with a feeder line on the side, just went with what they got and left the fuel inlet hanging to the side. On the bright side, they did wire a nice Walbro fuel pump to it. Unfortunately that was jimmy-rigged too. The cables were attached after the fact and went straight to the battery and a switch in the cabin. The setup works for running the engine, but it's totally unusable. I'm not too bummed though, I'll probably be picking and buying the fuel tank from my brother-in-law's F-body Camaro.



I removed the fuel pump switch and wired it to the stock connections. Worked perfectly and engine ran smooth. No idea why they didn't just do that the first time. Much easier. I removed all the old breather hoses from the mystery tank to clean things up, cut some of the excessively long fuel lines and started properly cutting the spare wheel area (on the bottom right of the pic you can see how much metal was left hanging down) so I could rig up the tank as it is while I work out other things in the engine until I get my hands on the Camaro tank and do a proper job.



Attached File  IMAG01341.jpg   90.45KB   2 downloads







Pardon the long post that was catch-up/initial thoughts on the car. More to come from today's work in the next post.


Edited by Zetsaz, 03 May 2014 - 08:43 PM.


#2 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 03 May 2014 - 08:43 PM

I removed some of the interior panels so I could work on the fuel lines in the back easier and figure how I'll hook up the filler hose properly later.

Removed all the emblems and saved them for after I get to doing some body work. Tried bleeding the clutch, but it still won't fully disengage, I'll have to figure some more out tomorrow.

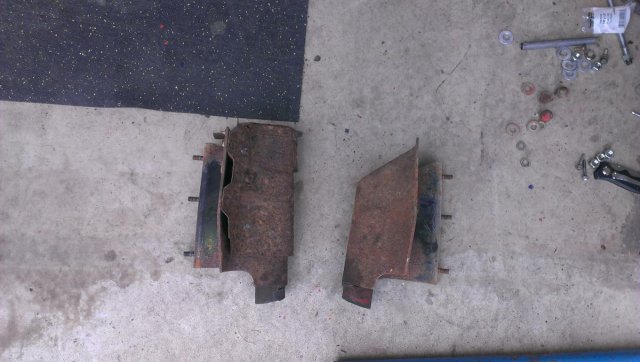

Removed the rusty old cutoff bumper mounts. Pretty easy to get to since my tank is already dropped.

Attached File  IMAG01161.jpg   123.94KB   1 downloads



Mandatory shot next to my daily driver. A 91 Toyota Celica ST with 276k miles.

Attached File  IMAG01201.jpg   72.34KB   2 downloads



Put the back end on jack stands to work more comfortably around the fuel tank area. This also gives you a better view of the body. Most of the car is surface rust (especially the roof where all the paint is gone). Driver side rocker panel will be replaced in due time, along with the passenger side dogleg, and both of the lower rear fenders. Fortunately the wheel wells are all in tact.

Attached File  IMAG01231.jpg   84.14KB   1 downloads



Finished cutting up the spare wheel area. (Pic of me excitedly jumping in the back with a grinding tool because I don't have any more fun shots.

Attached File  IMAG01241.jpg   28.5KB   3 downloads



That's about it for now. I was going to properly bleed the clutch, but I was tired of having to jump the car so I took the battery to autozone. Might be bad. It's on a trickle charger until the morning.



When I start the engine the car won't go into reverse, the gears just grind, and if I let go of the clutch entirely the rear wheels will still spin a bit. I'll adjust the clutch when I get my battery back and figure out what the deal is, bleeding, or something in the cabin.


Edited by Zetsaz, 03 May 2014 - 08:44 PM.


#3 dirtbiker194

dirtbiker194

    Newbie

  • Members
  • Pip
  • 17 posts
  • LocationLos Angeles

Posted 04 May 2014 - 03:03 PM

Not bad for 300 bucks, even if it is a very demanding project car. Looking forward to your progress!



#4 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 13 May 2014 - 10:21 PM

Not much work done on the fuel tank. Camaro tank is too much of an uncertainty and would require a little to much tampering for my interests right now. I think I'm gonna head to a junkyard nearby where I know there's a Z and rip the old spare wheel well, tank, and straps, then weld the wheel well back into my own car and bring it back to stock. Realistically I could go with a fuel cell, but the inconvenience and amount of custom fab work is something I'd rather put into patching up the body.

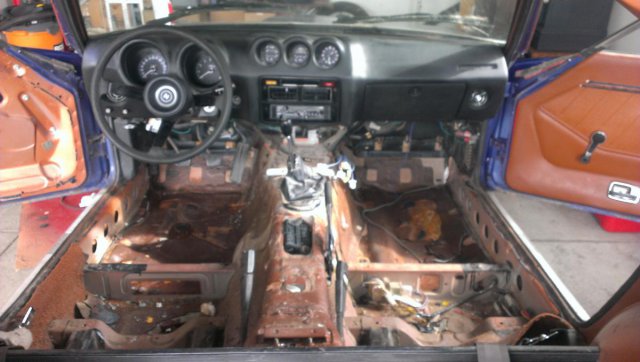

Gutted the interior.



Attached File  IMAG0141.jpg   97.97KB   1 downloads

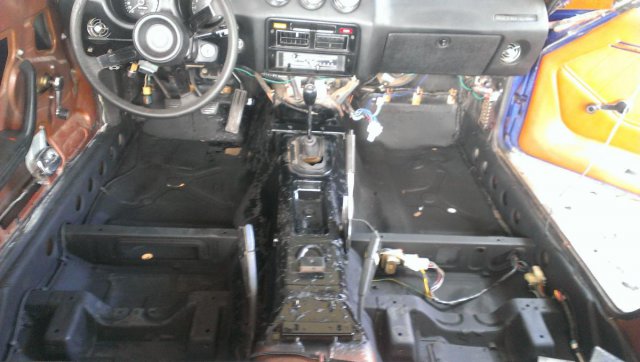

The floors were actually mostly in tact until I started tearing out the factory sound proofing. I found a few extra rusty bits and cut them to delay any future problems, then ghetto patched them with some sheet metal and rivets in the style of Crazyoctopus

Attached File  IMAG0154.jpg   102.5KB   1 downloads

If you look closely in the picture, at the front by the gas pedal you'll what looks like wet metal. I'm pretty sure that's fluid leaking out of my clutch master cylinder. I tried to bleed it with... meh results. That'll be one of the first things that gets replaced once I get an original tank back in.

That's all the updates for now, until I head back to the junkyard to strip the 280 there for the tank, straps, spare wheel well, headlight buckets and maybe a few random other bits.


#5 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 28 July 2014 - 10:36 PM

No picture updates currently. I replaced the clutch master cylinder and then the clutch slave cylinder and realized that there might be a problem with the clutch itself figuring that out this week. Slave cylinder's piston is moving plenty when the clutch is pressed, but there's no change in pressure and I still can't shift so I'm looking at the clutch itself.



No progress for a while because I couldn't figure out what to do about the fuel tank situation. I finally settled on a custom setup with a 2002 Camaro fuel tank, because going back to OEM would have been more expensive and even more work (since the wheel well was already gone from the previous owner).



Snagged a sweet deal on a tank with fuel pump assembly included $100 on fleabay plus shipping. The guy actually found out it had a Racetronix fuel pump in it after the fact and said he was shipping it as is either way even though he normally would have sold the whole setup for $300. Guess it's my lucky day. I also finally found a decent price on a replacement door panel for my driver side that I was missing. $80 used, but in good condition. Should be here in a few days.



Updates to come as I get the clutch worked out and get the fuel tank installed.



#6 gorillaman2012

gorillaman2012

    Moving Up

  • Members
  • PipPip
  • 48 posts
  • LocationPittsburg, Ks

Posted 15 August 2014 - 06:53 PM

If you are still having clutch problems I have a solution. It was the same issue on my 73 z that had been sitting for years. Previous owner replaced all clutch hydrolics and still unable to shift into gear while running. The clutch disk is stuck on the input shaft. Usually it's greased so it can slide and when you press the clutch everything frees up. But since it had been sitting and no one pressed the clutch everything dried up and froze. Here's what to do to fix it. Get the rear end up off the ground. Get the tires off the ground and have the front wheels chocked and make sure it's solid so it won't move. Throw the trans in a high gear like 3rd or 4th press the clutch and then start the engine. Sometimes just a bump of it will get things to free up sometimes it takes cranking it a bit. You will notice when it let's go when the rear tires don't move when you try to start it. Either that or you will be able to shift gears with the clutch pressed. If that doesn't get it let me know! I've got a few others that might work also.

#7 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 10 November 2014 - 08:27 PM

If you are still having clutch problems I have a solution. It was the same issue on my 73 z that had been sitting for years. Previous owner replaced all clutch hydrolics and still unable to shift into gear while running. The clutch disk is stuck on the input shaft. Usually it's greased so it can slide and when you press the clutch everything frees up. But since it had been sitting and no one pressed the clutch everything dried up and froze. Here's what to do to fix it. Get the rear end up off the ground. Get the tires off the ground and have the front wheels chocked and make sure it's solid so it won't move. Throw the trans in a high gear like 3rd or 4th press the clutch and then start the engine. Sometimes just a bump of it will get things to free up sometimes it takes cranking it a bit. You will notice when it let's go when the rear tires don't move when you try to start it. Either that or you will be able to shift gears with the clutch pressed. If that doesn't get it let me know! I've got a few others that might work also.



I had no idea this was an option. I'll try that as soon as I get the tank back in and before I try dropping the tranny.

For those who are curious, the project is definitely still going but at a snail's pace because I haven't been working and I'm finishing my last year of college. The custom straps and rails for the 2002 Camaro fuel tank are welded and and I've test fit them on the tank. It's holding pretty snug. Just a couple welds to go then I'll be welding the rails I made to the car's frame. I have pictures, but I'll be doing a big dump as soon as the tank is in, the hoses are routed and the filler is fitted, that way it looks more like a write-up on how to do it. I know there are quite a few guys on here that have done the tank swap before, but I've only found a couple that went into any real detail.



Pictures and updates to come... very slowly. (Patience is a virtue ^_^



#8 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 19 January 2015 - 09:25 PM

Huge progress made today. The rails I made for the '02 Camaro fuel tank were finally welded to the car's frame. I can't seem to find most of the pictures I had of them, so these will have to do for now. Remember, this is just one way to do it that I think will work for my purposes. Others have tried other ways successfully. Unless some other way doesn't actually work, no person that has done this is necessarily more correct than another.
(I will edit this post in the future if I come across more images, and will turn it into more of a write-up when I have time to make more diagrams with approximate measurements)

Each piece is two 1" square tubing pieces welded together. There is a bolt on only the rear end closest to the back of the car. The 2" wide barstock is welded directly onto the tubing until the spot in towards the front of the car where the tank's shape starts to curve downward (closest to the welder in the picture). The bolts are about 4" long and are welded in the centers about 2" from the end of the tubing.
Attached File  IMG_20141028_115520.jpg   59.7KB   0 downloads



Friend hard at work, getting it done even despite the horribly awkward angles he was welding at:

Attached File  IMG_20150119_175108.jpg   37.58KB   0 downloads

The centers of the two rails are about 17 1/4" apart from each other. They will seem sharply offset to the right because of the position of the spare wheel well. In reality they are only offset 2 or 3" to the right of center to allow a buffer zone between the tailpipe/muffler and the actual tank once mounted.
Attached File  IMG_20150119_193159.jpg   74.57KB   0 downloads

Super quick video explanation. Pardon the very quiet audio, filmed kinda late and my dad wakes up at 3:30 am, so I was trying not to be too loud. My phone is also 3 years old and doesn't pick up everything very well.


I painted over them earlier with some flat black Rustoleum automotive enamel I had lying around the garage, then waited for the paint to dry before mounting. I'm no professional, and I think the rails got bumped slightly at some point, making this a super tight fit. Not quite the super clean fit I hoped for, but it feels incredibly sturdy. Here's more detailed pictures.



Driver and passenger sides

Attached File  IMG_20150119_225050.jpg   75.46KB   0 downloadsAttached File  IMG_20150119_225108.jpg   71.65KB   0 downloads



Underside, a closer view at the covers I welded over the barstock for a cleaner look, and the L brackets on the end with side covers.

Attached File  IMG_20150119_225144.jpg   94.31KB   0 downloadsAttached File  IMG_20150119_225227.jpg   93.98KB   0 downloadsAttached File  IMG_20150119_225242.jpg   74.54KB   0 downloads



Top and bottom view after mounting. (including a nice look at my rusty paint :P)

Attached File  IMG_20150119_234311.jpg   80.14KB   0 downloadsAttached File  IMG_20150119_234348.jpg   82.01KB   0 downloads



If it looks a bit far back it's because it is. If it was any closer forward it would almost be touching the tailpipe.

Attached File  IMG_20150119_235022.jpg   52KB   0 downloadsAttached File  IMG_20150119_235104.jpg   54.38KB   0 downloads


Edit: Video is now up. New pictures posted. Also added a random picture of my buddy in the process of welding.


Edited by Zetsaz, 19 January 2015 - 11:18 PM.


#9 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 09 February 2015 - 07:53 PM

Minor Milestone:



Student teaching and travel for conferences screwed me for the weekend, but I finally got a chance to take a look at the clutch.

The clutch works! Pedal still feels soft and crappy but gorillaman's trick actually worked.  :D



This weekend I'm gonna go check out the '78 Z in a junkyard nearby and gut the smaller unleaded fuel filler neck from it so I can actually route a filler hose to the tank. I'm thinking I won't even bother wiring the internal pump on the Camaro tank for a while. I'll just be using the external walbro I have for now while I focus on getting the rest of the car running, then maybe some random weekend when my older brother's in town I'll get the Ractronix pump working properly.



In the mean time. Engine seems to be running have decently, all lights are working, transmission is shifting. To get it on the road I just need to replace a couple flat tires, route the filler hose and neck, then close up the giant hole over the tank in the back.



#10 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 07 March 2015 - 05:30 PM

Major update:



Last few weeks haven't been so great. Had to put my little dog down just a few days ago, he had diabetes and went completely blind from some cataracts that developed pretty quickly. Been focused on that so not much has happened to the Z.



I figured out what I'm doing with the fuel filler, details to come as soon as it's finished.



And the major update... my dad surprised me with a nice gift today. The gift of almost ever replacement panel I need to fix the rust on this thing. New rocker panels, lower rear fender panels, and doglegs for both sides along with a pair of bad dog framerails. The floors will probably just be patched with some sheetmetal, but I'm incredibly excited to get going. Cheap temporary tires should be on this week and a new battery so I can move the car to a friends for the welding once the filler is on and the panels arrive.



Stay tuned for updates :)



#11 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 03 April 2015 - 12:24 PM

Semi-big update:



My dad was on a trip to visit family in Mexico and decided to take the seats with him since re-upholstery is significantly cheaper there. Today my seats were finished and he picked them up. They're looking pretty sweet if I do say so myself.  :D



Not much has happened to the car itself, the last several weeks I've kinda considered and "acquisition phase."



Lots of new parts purchased including some stuff from the junkyard:



Seats reupholstered

Old

Attached File  IMG_20150320_192617.jpg   99.74KB   0 downloads

New

Attached File  11136375_10153164620228361_2057331068_o.jpg   80.23KB   0 downloads



Passenger headlight bucket at a steal from the junkyard (Old on was bent out of shape)

Attached File  IMG_20150403_143034.jpg   90.26KB   0 downloads



Taillights sans burned plastic (Picture doesn't do the new ones justice)

Attached File  IMG_20150403_143205.jpg   48.36KB   0 downloads



Both plastic seat-belt strut tower covers

Top is the only one that was in when I bought the car...

Attached File  IMG_20150403_143301.jpg   28.63KB   0 downloads

... And it wasn't even the original color

Attached File  IMG_20150403_143308.jpg   36.99KB   0 downloads



Fuel door (Lousy pic, but it shows how bad the original one was better)

Attached File  IMG_20150403_143124.jpg   54.84KB   0 downloads



Louvered hood (also a steal, only $40. A few small dents should be no huge issue)

Attached File  IMG_20150403_143143.jpg   41.93KB   0 downloads



I've also committed myself to do SOMETHING about my filler neck situation. Won't update on that until I actually finish it though, no empty promises to strangers :P Dad should be back in about a week and after that I'll be getting a start on making this thing move and getting the biggest rust issues resolved before my dad helps me sandblast the whole thing.


Edited by Zetsaz, 03 April 2015 - 12:58 PM.


#12 RebekahsZ

RebekahsZ

    Life Member

  • Donating Members
  • PipPipPipPipPipPipPipPip
  • 5354 posts
  • LocationFlorence, Alabama

Posted 04 April 2015 - 09:02 AM

Seats look great, and American laborers wonder why all their jobs went to Mexico!

1972 240z, purchased in 1991 for $900. Bone stock LS2/T56/DBW from 2006 GTO, swap completed in 2011. 400rwhp/435 rwtq. 2400# minus driver. JCI swap, Mantic ER2 clutch kit, JTR headers, single exhaust, Borla muffler, MGW shifter, M2 Differentials shortened Z31 CV axles, Z31 CLSD R200, Chequered Flag Racing billet stubs and companion flanges. MSD 2-step, Hurst roll control, both operated from switches on clutch pedal. 9" Hoosier drag slicks on Weld Draglites, 245/45/16 Hoosier A6/R6 on 16X8+10 Rota RBR. 225/250 sectioned coilovers, Koni 8610-1437RACE shocks, DP and EMI camber plates, MM shortened rear control arms, TTT front control arms, poly and aluminum bushings. Top speeds: Ohio Mile 174mph, C/GMS class record holder, best 1/8 mile 6.96 at 100mph, best 1/4-mile 11.0 at 126mph, best 60' 1.43, best 1/2-mile 148mph at GA 1/2-mile. Home Track-Jake's Dragway, Moulton, AL. SCCA autocross club - TVR, Huntsville, AL. Lets race!


#13 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 05 April 2015 - 07:41 PM

Seats look great, and American laborers wonder why all their jobs went to Mexico!



No kidding! High quality labor at really great prices. I don't get how the stereotype of Mexicans working hard all the time, and having nice yards, and knowing how to work and cars and all that is somehow negative. I've been poked fun at sometimes for being Mexican and also enjoying car work, and I just think, "how is that a bad thing?!" Those are valuable skills  :P But when friends need help with car problems they know who they're going to haha.



Anyway, I figured I'd at least do some little things while my dad gets back next weekend to start on metal work, so I repainted the rear taillight trim. I'll have a picture up tomorrow when there's better lighting to take it in and see the side-by-side with the old ones.


Edited by Zetsaz, 05 April 2015 - 07:41 PM.


#14 RebekahsZ

RebekahsZ

    Life Member

  • Donating Members
  • PipPipPipPipPipPipPipPip
  • 5354 posts
  • LocationFlorence, Alabama

Posted 05 April 2015 - 11:23 PM

My LS2 was made in Mexico! There's a sticker on it that says so! And it is bad-ass. I better quit or we will get in trouble-adios!

Edited by RebekahsZ, 05 April 2015 - 11:25 PM.

1972 240z, purchased in 1991 for $900. Bone stock LS2/T56/DBW from 2006 GTO, swap completed in 2011. 400rwhp/435 rwtq. 2400# minus driver. JCI swap, Mantic ER2 clutch kit, JTR headers, single exhaust, Borla muffler, MGW shifter, M2 Differentials shortened Z31 CV axles, Z31 CLSD R200, Chequered Flag Racing billet stubs and companion flanges. MSD 2-step, Hurst roll control, both operated from switches on clutch pedal. 9" Hoosier drag slicks on Weld Draglites, 245/45/16 Hoosier A6/R6 on 16X8+10 Rota RBR. 225/250 sectioned coilovers, Koni 8610-1437RACE shocks, DP and EMI camber plates, MM shortened rear control arms, TTT front control arms, poly and aluminum bushings. Top speeds: Ohio Mile 174mph, C/GMS class record holder, best 1/8 mile 6.96 at 100mph, best 1/4-mile 11.0 at 126mph, best 60' 1.43, best 1/2-mile 148mph at GA 1/2-mile. Home Track-Jake's Dragway, Moulton, AL. SCCA autocross club - TVR, Huntsville, AL. Lets race!


#15 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 06 April 2015 - 08:30 PM

Weird random story:



My dad's still in Mexico for another few days, I took this picture in the Summer of '09 which was the last time I was there. This was back when I only dreamed of a project car, but I thought the car looked pretty good.



Attached File  10398382_118802790635_6722522_n.jpg   70.33KB   0 downloads



This is my dad next to the same car earlier today!



Attached File  11131835_687259528068992_1329400665_n.jpg   94.19KB   0 downloads


Edited by Zetsaz, 06 April 2015 - 08:30 PM.


#16 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 09 April 2015 - 01:54 PM

Minor update:



I repainted the taillight panels last weekend. I still want to take them apart again to resand and recoat a couple spots that are still a bit rought rough but they look quite nice now compared to before. The bezel around the lights is a gloss black and the rest is a satin black.

Attached File  IMG_20150407_153218.jpg   46.45KB   0 downloads

Attached File  IMG_20150407_153133.jpg   82.85KB   0 downloads


Edited by Zetsaz, 09 April 2015 - 01:55 PM.


#17 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 12 April 2015 - 11:13 AM

Dad got home at 2 in the morning yesterday. Got a chance to grab my seats and console lid to see how it all fit together. I'm pretty happy with the result. It almost looks like a proper interior now.  :D

Attached File  Snapchat-1228127390859335897.jpg   121.13KB   0 downloads

Attached File  Snapchat--2365470396836543229.jpg   144.72KB   0 downloads



#18 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 23 April 2015 - 03:58 PM

Finally got a semi-permanent solution for the filler neck going. Update in next post once it's installed and I have some pictures. It involves the top half of a late model filler neck, the rim from my original neck, and the lower half of the Camaro filler to narrow it down into the hose I'm using. Gotta cut off a couple inches on this hose and adjust the rim so it screws on properly. The upper portion will need to be cleaned up later for appearance sake and in case of spills but it'll work quite well for now.



#19 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 25 April 2015 - 11:32 AM

Here are some pics of the filler neck I made for the Z to keep it semi-oem looking.



Attached File  IMG_20150424_181012.jpg   30.19KB   0 downloadsAttached File  IMG_20150424_181034.jpg   29.57KB   0 downloadsAttached File  IMG_20150424_181052.jpg   28.21KB   0 downloadsAttached File  IMG_20150424_181109.jpg   37.36KB   0 downloads



Looks like a frankenstein of a filler neck, but the welds are really well done where it counts (where the bottom of the camaro tank meets the top of the '78 filler)



If you have a late model Z (77-78), this is actually not a bad option if you're going for the camaro tank. All it takes is cutting the top of the camaro neck, an inch or two off the bottom of the Datsun neck, and then joining them together. I cut the lower bend from the camaro filler, but I almost wish I'd figured out a way to angle the camaro piece towards the tank because right now the filler hose is in a really tight S bend to get the whole thing to work, but it's not bad so far.



Here are a few not so great pictures from when I installed it after getting home from my last concert as an undergraduate trumpet player.



Attached File  IMG_20150424_232751.jpg   47.4KB   0 downloadsAttached File  IMG_20150424_232628.jpg   55.97KB   0 downloads



Cap ended up a bit offset from center but I'm not too concerned about that. And yes the hole from the pipe at the top that would originally lead to the vapor tank will be plugged.



Edit: Also... ignore the weird paint at the filler.... that will be fixed when the metal work is done and I start paint haha.



Edit 2: There was a small kink in the hose from the tight S bend by the original opening in the car where the hose is routed. Solution: extra hose clamp did the trick :D


Edited by Zetsaz, 25 April 2015 - 01:06 PM.


#20 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 26 April 2015 - 07:34 AM

Used some test leads yesterday to check the Racetronix pump that came in the Camaro tank. It's working beautifully, the guy that last did the job did a terrible splicing job. I'm redoing wiring later today and seeing if the stock connectors on the pump assy aren't busted as well. If not, I removed the evap sensor and ran the wires through the hole. I'll do some more custom stuff to make that work with some quick disconnect cables. It's satisfying knowing that pump is working though, shouldn't have any pump issues for a long time even with an engine swap.



Will update post with my final wiring when I get to it later tonight.



Update: Pins on the pump assembly were busted  or at least bent enough that the original connection wasn't making proper contact. Fed the wires through the hole where the evap pressure sensor used to be (since I can't use it anyway), and respliced them to some quick disconnect ends. Cut the hoses down to a more appropriate size too now that I know I'm using the internal pump and put the interior trim back over the filler. Looks much more complete than before, just need to make a cover for the spare wheel hole.



Attached File  IMG_20150426_190730.jpg   37.17KB   0 downloads



With that, the fuel delivery is pretty much done. :D Will be wiring the sending unit next before I put the cover on. Won't be accurate until down the road when I get new gauges, but this will work for now.


Edited by Zetsaz, 26 April 2015 - 05:25 PM.





0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users
