Air to Water IC Intake Manifold Idea


  • Please log in to reply
13 replies to this topic

#1 z-ya

z-ya

    Member

  • Members
  • PipPipPipPipPipPipPip
  • 2982 posts
  • LocationBuzzards Bay

Posted 12 August 2014 - 01:50 PM

I've been studying up on air to water intercoolers, and I think they are a great alternative for street cars, and the make for a much cleaner install. I've already done the air to air in the past, so I am looking to try something new.

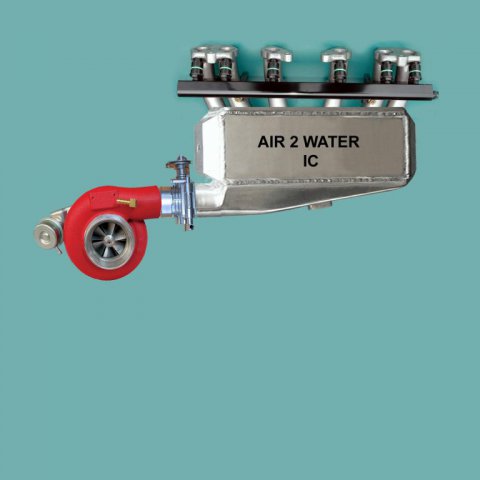

So I have been thinking about how to integrate the A2W IC into an L6 manifold some how. I've attached a photoshopped rendition. Keep in mind the orientation of the IC will probably change to clear the fender well. The TB may also be located under the IC so it is a straight shot from the turbo. I'm looking for a clean install, with minimal plumbing.



I've also considered ITBs between the IC and intake. But a single TB would certainly be cheaper and a lot less moving parts.



Comments?

Attached Files


Edited by z-ya, 09 August 2016 - 05:23 AM.

"I finally found my old blue jeans. I could tell that they was mine from the oil and the gasoline."

- ZZ Top

#2 ctc

ctc

    Junior Member

  • Members
  • PipPipPipPip
  • 290 posts
  • LocationLos Angeles

Posted 12 August 2014 - 03:59 PM

Wasn't there a thread on this about two years ago? I know TonyD chimed in on it. I'll try to dig it up.

#3 rejracer

rejracer

    HybridZ Supporter

  • Donating Members
  • PipPipPipPip
  • 424 posts
  • LocationRoseville, CA

Posted 12 August 2014 - 05:22 PM

I like the idea, I want to do something similar on my setup.



#4 Tony D

Tony D

    Wiki D

  • Donating Members
  • PipPipPipPipPipPipPipPipPip
  • 9978 posts
  • LocationReno NV & Lucena Quezon, Philippines

Posted 14 August 2014 - 03:43 PM

Upsize the BOV accordingly to accommodate the hot airflow on drop-throttle. No recirc to turbo inlet on that setup.
At least one size larger than venting inter cooled airflow...at least one size larger...
Misanthropic Anthroparion Class 5 Hoarder, aspiring to posthumous fame as my containers are cut open and the market floods with crap I've squirrelled away over the years! I endeavour to persevere...

#5 ctc

ctc

    Junior Member

  • Members
  • PipPipPipPip
  • 290 posts
  • LocationLos Angeles

Posted 14 August 2014 - 05:18 PM

This was the thread I was thinking about. Not exactly what you asked, but may provide ideas.

http://forums.hybrid...cooler-concept/

#6 z-ya

z-ya

    Member

  • Members
  • PipPipPipPipPipPipPip
  • 2982 posts
  • LocationBuzzards Bay

Posted 09 August 2016 - 05:26 AM

Bumping this. I am starting to think about this again. From what I read there is no issues having the throttlebody upstream of the IC, as long as the IC plumbing is short. I am thinking that I would weld partitions between the runners where the IC meets the intake manifold. I'm thinking that this would simulate longer runners.



Ideas, thoughts?


"I finally found my old blue jeans. I could tell that they was mine from the oil and the gasoline."

- ZZ Top

#7 Chickenman

Chickenman

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 668 posts
  • LocationCanada

Posted 10 August 2016 - 10:23 AM

TB before IC? Done all the time on Turbocharged V8 engines. Short run to IC is the key as you mention. Nice design you've made!!



Nelson racing engines build a Ton of  BIG HP Turbocharged motors using Air to Water Intercoolers. Have a look at their combination AW Intercooler and Intake manifold combo for LS1 engines:



http://www.nelsonrac...l-Injector.html






#8 z-ya

z-ya

    Member

  • Members
  • PipPipPipPipPipPipPip
  • 2982 posts
  • LocationBuzzards Bay

Posted 12 August 2016 - 06:37 AM

NIce! I'll be making one for sure.


"I finally found my old blue jeans. I could tell that they was mine from the oil and the gasoline."

- ZZ Top

#9 jacky4566

jacky4566

    Always Here

  • Members
  • PipPipPipPip
  • 125 posts
  • LocationCalgary, AB

Posted 31 October 2016 - 06:51 PM

Jackson Racing did something similar for the B18c.  Supercharger feeds directly into A2W block then down the runners.






#10 1969honda

1969honda

    Always Here

  • Donating Members
  • PipPipPipPip
  • 358 posts
  • LocationNear: Logan, Utah, United States

Posted 01 November 2016 - 04:13 AM

That essentially how your new SS Cobalt/mustang/camaro/Corvette/Hellcat cars all work. Supercharger blows directly into the A-W aftercooler and then down a short runner into the cylinder head.

Google laminova intercoolers and you'll see all kinds of designs for different inline 6 BMW intercooler ideas.

#11 skirkland1980

skirkland1980

    Junior Member

  • Members
  • PipPipPipPipPip
  • 880 posts
  • LocationMarietta, GA

Posted 02 November 2016 - 10:49 AM

What about building a sealed compartment on top of the intake to hold dry ice? I'm not sure how long dry ice would last though. I know it lasts about 24 hours at room temp.
:1983 280zx turbo, L28ET, custom cam grind, 96 saab 900 intercooler w/2.50" piping, 3" mandrel bent exhaust, megasquirt II v3.57, 540cc injectors, walbro gsl392 255lph fuel pump, aeromotive regulator, -6 supply lines, custom fuel rail, MSD ignition wires, MSD 8202 coil, homemade boost controller, Garrett TC4305 turbo, 70mm throttle body, Godzilla BOV, Turbonetics wastegate, custom intake, custom turbo header, Cooling Mist H2O/meth injection, 20psi boost, all stock body, stock interior and weld draglite wheels, TH350 trans 4000 stall with B&M 'street stick' shifter and hughes trans brake, nitto nt555R drag radials, best 1/8 mile of 7.53@ 98 mph

#12 skirkland1980

skirkland1980

    Junior Member

  • Members
  • PipPipPipPipPip
  • 880 posts
  • LocationMarietta, GA

Posted 02 November 2016 - 10:50 AM

And I didn't mean completely sealed by the way. Of course dry ice has to breathe.
:1983 280zx turbo, L28ET, custom cam grind, 96 saab 900 intercooler w/2.50" piping, 3" mandrel bent exhaust, megasquirt II v3.57, 540cc injectors, walbro gsl392 255lph fuel pump, aeromotive regulator, -6 supply lines, custom fuel rail, MSD ignition wires, MSD 8202 coil, homemade boost controller, Garrett TC4305 turbo, 70mm throttle body, Godzilla BOV, Turbonetics wastegate, custom intake, custom turbo header, Cooling Mist H2O/meth injection, 20psi boost, all stock body, stock interior and weld draglite wheels, TH350 trans 4000 stall with B&M 'street stick' shifter and hughes trans brake, nitto nt555R drag radials, best 1/8 mile of 7.53@ 98 mph

#13 jacky4566

jacky4566

    Always Here

  • Members
  • PipPipPipPip
  • 125 posts
  • LocationCalgary, AB

Posted 03 November 2016 - 02:03 PM

Is there something magical about the laminova design? I don't see how its better than a regular Air to water core. I suppose your adding more turbulence.



#14 1969honda

1969honda

    Always Here

  • Donating Members
  • PipPipPipPip
  • 358 posts
  • LocationNear: Logan, Utah, United States

Posted 05 November 2016 - 05:56 AM

I think it's just the surface area and turbulence
