Harada MQ-1 Semi Automatic Power Antenna in Datsun 280Z


socorob

Recommended Posts

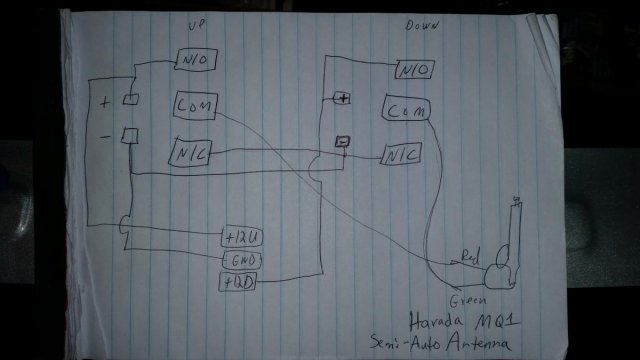

This may have been done already, but I couldn't find any info. I wanted to put in a power antenna with manual operation being able to use the stock Z switch. I used a Harada MQ1 antenna and 2 SPDT relays. Here's the wiring diagram if anyone is interested. It uses all existing wires from the harness without needing to run any more wires to the back of the car. When you're looking at the plug that's inside the fender by the rear marker light, the bottom sideways connection is ground, the right is up and the left is down.


Link to comment
Share on other sites

  • 8 years later...
On 2/12/2015 at 10:26 PM, socorob said:

Forgot to attach the relay wiring.post-37191-0-76484800-1423801401_thumb.jpg



Is that antenna fully manual, as in you have to stop pressing the button and it stops or does it have internal limit switches that will stop the motor running when full up or down?
