#1 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 23 June 2015 - 08:24 AM

so about two weeks ago I tracked down my first 240z, I found her in the bushes in Blackfoot Idaho, a bit of a drive but she was a great deal and for whatever reason she has almost no rust on her, considering she's an idaho car.

I am shooting to be done with this by September, as far as aesthetically is concerned.

I have a bunch of photos I've been taking along the way and I am uploading them now, will post soon.


EDIT:

here is a direct link to all my photos, rather than photo bucket links

http://forums.hybrid...971-240z-build/


Edited by Jboogsthethug, 06 July 2015 - 06:52 PM.

Step by step



IMG 7725





#2 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 24 June 2015 - 01:10 PM

alright, finally got some photos uploaded, still looking for a better method but for now this will do.

so here are a few pics of my babe when I got her and when I got home.



IMG 1175
IMG 1176
FullSizeRender











THe body itself, for being out of idaho, is almost 100 percent rust free, other than the rear fenders. Luckily those will be cut out for fender flares and life will be much better then!

IMG 1178
IMG 1216
IMG 1184
IMG 1186

I was happy to find out that the original jack, tools, and wheel stops were still with the car. I was told an old man had the car in his garage for years (1st owner), a second owner bought it then later on sold it to a kid who I bought it from, with nothing really being done by either of those two to it, as far as I could tell.

IMG 1179











I immediately began doing the prep work to get this bad boy painted, starting with sanding down the front drivers side fender and the rear spoiler, just to get things moving. I have a short attention span so I move fromthings to things in a pattern to keep me going



IMG 1181
IMG 1187



engine all intact and runs great, new alternator was a nice find

IMG 1215





also began taking off the bumpers, at least the front one as I hear the rear is a pain so that will be soon enough.

IMG 1217
IMG 1218

I also have already ordered the flares (silverline motors - the wide zg flares), a performance odyssey battery, and a carb rebuild kit from the zstore.



the carb rebuild kit came in the mail so I got to work on removing the carbs

IMG 1232
IMG 1224



thoe hoses in case I get confused putting them back together haha



IMG 1215
IMG 1225
IMG 1226
IMG 1227
IMG 1228
IMG 1230
IMG 1231

no more air filter box cover







this thing was interesting to figure out. its the throttle bracket thing, couldn't figure out how to remove it





but then figured out the answer. my friend said it would pop off if I pulled hard enough but I wasn't brave enough to try



the answer: unscrew the end bolt things









and after a bit I have this:





removed from the panel

IMG 1234
IMG 1235
IMG 1233

good ole engine degreaser (does anyone know if the degreaser harms the gaskets in any way? wasn't sure but wasnt too worried as I would be replacing them anyways, just for future info?)

IMG 1237



a bit dirty, better than I expected




dissassembly




old vs new:




finished product







battery showed up

as well as the flare mount bolts, I got a special kit from Pegasus auto racing, they actually bolt the thread inserts into the panel rather than screwing into the panel, I figured it'd be a bit cleaner.





so far this is where I am, I'm about to start on the second carb and then continue the tear down soon, although I plan on getting a few really cool shots for a video before I do to show the before and after. I have a guy who will be painting it a gunmetal dark grey metallic paint, very sexy. soon to come hopefully.



will post more later


Edited by Jboogsthethug, 07 August 2015 - 07:25 AM.

Step by step



IMG 7725





#3 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 29 June 2015 - 08:37 AM

So this week I really got to work on the teardown of the interior in prep for paint.

th_A2EA14CB-44BC-43B0-B1B3-99A8F567FCE0_



the paneling is all in pretty good shape

th_6CD5A04D-BDFC-460E-9571-22F52B0D936B_



out come the seat rails

th_6CB10912-29F5-4874-AA8D-36D8F518BF4C_



th_F2015830-E80A-42D3-A51F-625A79914A53_



the metal under the sheets is in fantastic shape and I am stoked!

th_47B2ADDC-924F-498B-A807-1126029FDCA7_



dash started it's way out

th_946DF450-A6C1-4A45-B6AA-93A15BACFFBF_



clean metal interior

th_7D03B421-0A79-40E4-923A-553162A74C14_



front bumper off

th_52A452A3-10F3-47BA-83E4-9EA5CDA2EA5A_

th_50A4BCDD-4C12-467C-B9CF-20C204496769_



anyone know where to find a new overfill? mine has a tip broken off

th_835D4F76-F5ED-4B07-AA2C-2F736DE84E11_



the thing I'm most stoked on is the fact that this vinyl is in INCREDIBLE shape, it all peeled off very easily and I will easily be able to re glue it, I am stoked!

th_47A0DD2F-4C01-4615-9B30-9E0DB2E239CE_



th_69603DCE-496B-4973-AADC-0868B3DD0166_



th_7467DAE7-7EF5-4AC5-9AFB-74014AB27B70_



th_951D4D87-E03A-41A9-9F81-FCF0C2C0308D_



the top of the fender is almost completely sanded down. I'm going to need to find a better sanding method.

th_AE510A0A-872A-4CEB-9B9A-2AFC0657C58E_



also, back to the carbs!



so I finished cleaning and rebuilding them, here they are all polished up!

th_D7F4269F-A4A4-4BC4-B7A8-06EADA3FDBC5_



during myself installing the new gaskets and the carbs my uncle went to town to change the battery terminals for the new battery!

th_F7A7DE82-DB16-4FBC-8469-0467AC29655D_



(the next day I had to cut some off of the terminals to fit these better, turned out pretty good.

th_D0BE40E6-6168-4E24-A0B9-7A5F35D8F09E_



he also installed my new fuel filter, the other one was bollucks and disgusting

th_577EED93-3DB1-4B5D-93E8-C4ABC9DB7B01_



here are the carbs mounted in, definitely the cleanest part of the engine.

th_865AB6A7-BBA6-4947-99FE-23DB5BD13851_





so I installed them up and we had ourselves a good go at trying to get them tuned up but for whatever reason we couldnt dial it down. I hadn't messed with any nternal adjustments but to be sure I pulled off my float cover and started checking things out. first:



the new jet looks identical on the outside in comparison to the old jet, minus the 2.0 on the side.

th_BF543BFB-3F4B-46C1-8BB0-9539E801BBB3_



but further digging in I find this:

th_EF4B84DF-DFE5-43C8-A6CF-492F9E3D660B_



definitely not the same as the stock jet. Not only are they obviosuly different mechanisms, (the new one has a spring loaded internal piece whereas the old one was spring loaded in the middle, not sure if that makes a huge difference) but if you look at the tips you can see the slimmer cone of the old one in comparison to the new one. This might be for performance reasons, if somebody has input let me know but we were having no success with the instructions that came with the rebuild kit.



either way I just cleaned up the old ones as they were working fine before and I reinstalled them.



I also adjusted the float height as per the directions that came with the kit.



th_725199A0-A7D7-4618-8E0F-22A5F69FF441_



th_AB9F3F9A-2D69-4302-846F-BD10F983A86C_



It says 10.31mm gap, I think mine was more along the lines of 10.5-10.75 mm but it was way better than when I began (15mm??). hopefully these directions are good!



more updates soon as I go!

justice



Step by step



IMG 7725





#4 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 30 June 2015 - 11:10 AM

I recently purchased the wide z flares from http://www.silverminemotors.com and they showed up in the mail yesterday night! so stoked, held them on my body and they look so good so I hope to install them sometime this week!




more updates soon!

justice

EDIT: I am not sure if they still sell their flares, I can't seem to find them online anymore.


Edited by Jboogsthethug, 07 August 2015 - 07:26 AM.

Step by step



IMG 7725





#5 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 30 June 2015 - 11:12 AM

Also,

How can I post the pictures and have them pop up on this site rather than redirecting you to photobucket when you click on them? sorry for the inconvenience, any help would be appreciated.


Step by step



IMG 7725





#6 ryanabab

ryanabab

    Moving Up

  • Members
  • PipPip
  • 27 posts
  • LocationArizona

Posted 30 June 2015 - 11:19 AM

Same flares that I bought!  They are a nice addition, still haven't put mine on yet, but soon.  The way I have been putting my pictures up is to upload them into a gallery on my profile and then simply clicking my media in the reply part (next to the smiley face) and then clicking the ones I want to use.  Not sure if this is how everyone else does it but it does work great for me



#7 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 04 July 2015 - 08:23 PM

Ryan! Thanks for the advice I'll try that this next time! I'll probably upload everything into it as well just to get it together here! And I plan on getting them on not next week but the week after so wish me luck I don't screw it up! I'll post pics when I do, glad to see others with the same good taste in flares ;)

Step by step



IMG 7725





#8 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 07 August 2015 - 07:13 AM

It's been a bit since I posted, here are a few updates.

I've been focusing a bunch on the flooring, chiseling out all of the old sound proofing. I'm trying to get it all out of there so I can check the condition of the metal underneath. Sadly, I've found a few spots on the passenger side where it's rusted through, but luckily the driver's side is perfect! also, it seems somebody tried to jack the car up from the middle of the passenger side and bent the floorboards up and part of the trans tunnel out, dummies. oh well, I'll fix that too.



had to get a few screws out with some clamps but no worries.



As you can see, it cleans up nicely!

IMG 1390
IMG 1391

 you can compare the two sides pretty easily, I will probably cut out those spots and weld new metal in the specific spots rather than do a full new floorpan. I can't find any place where they sell single sides, I can only find sets. anybody know of a place?





IMG 1431
IMG 1435
IMG 1436

as you can see I pulled the dash out. I have a chevelle that I am working on as well and I made the mistake of not marking each wire, not this time though! It took a few hours because of how meticulous I was being but it will be worth it putting it back in.



IMG 1467
IMG 1468
IMG 1469
IMG 1470

I also finally got around to putting my rear flares on, I still haven't done the cutting but I figured I'd bolt it all on and check it out before doing any cutting. screw holes are easier to fix than a whole sheet.

hoping to get the fronts on later today, wish me luck.

j




Edited by Jboogsthethug, 10 October 2016 - 05:24 AM.

Step by step



IMG 7725





#9 psdenno

psdenno

    Member

  • Members
  • PipPipPipPip
  • 201 posts
  • LocationSoCal Desert

Posted 11 August 2015 - 07:17 PM

You mention looking for a "new overfill" tank. That's a vapor recovery tank, not a fuel holding tank. What's broken on it?
Dennis
1971 240Z Original Owner

#10 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 19 August 2015 - 11:16 AM

You mention looking for a "new overfill" tank. That's a vapor recovery tank, not a fuel holding tank. What's broken on it?
Dennis



Hey Dennis,



Good to know, I haven't found any repro's yet. one of the stems broke off at the base and got lodged in the hose, I hoped to get it out and possibly repair it but in getting it out the stem was damaged beyond repair so I am looking for a replacement. Know of any that match up? Even one that isn't original but has the same amount of inlets will work for me.


Step by step



IMG 7725





#11 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 19 August 2015 - 11:56 AM

This week I went the distance and cut my fenders. It was pretty terrifying to think about but once I started I realized as long as I didn't royally screw up I'd be ok as it would all be covered by my flares. I did my best to get them perfectly asymetrical  when I placed the lares on and drew the outer lines. I used those outer lines as guides and with a measuring tape marked an inch inward all the way around (although I have seen other people use a half inch to 3/4in, my flares have a wider edge so I opted for an inch for extra room to bend them up), then on the edges went straight down with the cut as best I could. My best go at making a upside down U.

IMG 1526
IMG 1527
IMG 1528
IMG 1529
IMG 1530
IMG 1531
IMG 1532
IMG 1533


Now on to the welding and pounding of the rear fenders!

Edited by Jboogsthethug, 19 August 2015 - 11:56 AM.

Step by step



IMG 7725





#12 88dangerdan

88dangerdan

    Always Here

  • Donating Members
  • PipPipPipPip
  • 249 posts
  • LocationStockton Ca

Posted 19 August 2015 - 12:34 PM

I have a couple of different styles of the recovery tanks laying around. If you want to send me a picture of yours and are willing to pay shipping costs you can have it. Pm me if interested.
Daniel

#13 AkRev

AkRev

    Always Here

  • Members
  • PipPipPipPip
  • 186 posts
  • LocationUtah

Posted 20 August 2015 - 03:28 AM

Glad to see another Z in the area. Good work with your car.

#14 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 20 August 2015 - 08:28 PM

Glad to see another Z in the area. Good work with your car.

Yeah it's always sweet to see other z's, I'm going to check out your beaut in a sec as soon as I'm done with this post, yours look quite pretty!



anyways,



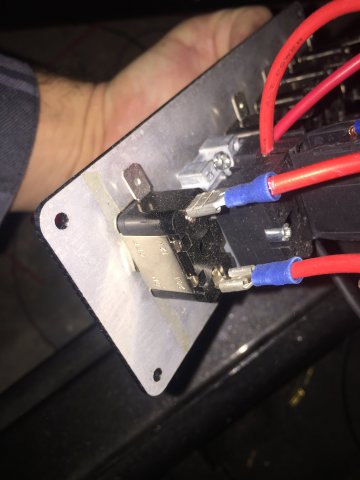

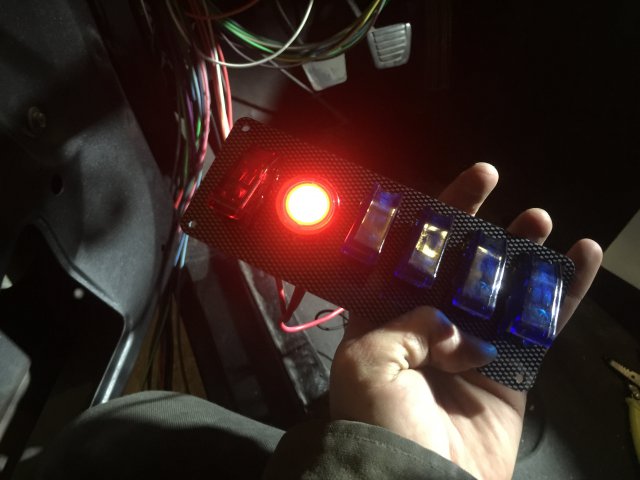

today I focused on the tank, rear bumper, and the wiring and side lights, along with a bunch of smaller parts in the engine bay. I marked all my wiring with blue tape with specific names on every end and part so I'd know where to put it all when I'm done, as well as I've taken all these photos to help me remember when I forget. hopefully this helps anyone seeking some help in the wiring department.




IMG 1539
IMG 1540
Here are a few pictures for dan, this is the tank I broke! I emailed you these as well but if you've got anything like this I'll gladly pay the shipping costs.

IMG 1541
IMG 1542
IMG 1543
IMG 1544
IMG 1545
IMG 1546
IMG 1547
IMG 1548
IMG 1549
IMG 1550
IMG 1551
IMG 1552
IMG 1553
IMG 1554
IMG 1555
IMG 1556
IMG 1557
IMG 1558
IMG 1559
IMG 1560

Edited by Jboogsthethug, 20 August 2015 - 08:29 PM.

Step by step



IMG 7725





#15 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 30 August 2015 - 08:34 AM

So this week I've focused on getting the body ready for paint. First things first, I need to get those rear flares welded together. I started by ripping out the sealant, it turned out to be pretty easy. I was able to get inside the car and go behind the whee; wells and use my hammer and chisel to scrape both sides of the sealant and push it out through the gap in the fenders.


IMG 1574


I also did the same on the outside for the front sides of the flares, but after scraping them i pivoted the chisel to pry the pieces out

IMG 1573
IMG 1572



be careful when doing this, I slipped and it cut my finger pretty dang good, but this whole process took me 15 minutes tops.

after that, I grabbed a sheet of metal from my local store, picked up glavanized without thinking about it, my bad. for those of you not familiar if you weld this and breathe in the fumes it will make you super sick.



IMG 1661

so I went back for some cold steel, ended up cutting the crap out of myself with that sheet, took out a chunk of my thumb but after I put the piece back in place then gauze padded that beast all is well.

I went to work by wire wheeling all the spots I needed to weld, including the holes in the side for the door trim.
IMG 1662
IMG 1663
IMG 1664

My brother is a welder by trade and so I got him to do most of the welding done so far. here we are deleting the  rear bumper indents with sheets we've cut out, trying to make it as flush as possible then finishing up the rest with filler. NOTE: we tried initially cutting that piece and pulling it out rather than welding a new sheet on to cover it, that didnt work as it is part of the main body and would leave a gap on the inside of the car, so an extra sheet was cut.


IMG 1665
IMG 1673
IMG 1674



I also cut out a few of these circles by cutting squares then rounding them to delete the door mirrors and the antenna. turned out pretty good, held it in place with some decent magnets so we could tack.



IMG 1669
IMG 1670



Thats all for now, I will update more in a few days. really stoked on how it's going. hope to have the body work done and get it painted in the next month.


Step by step



IMG 7725





#16 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 31 August 2015 - 07:03 PM

I got around to doing a few things today with my sexy babe today, aka my z!



so first of all, I am terrible at welding. Don't judge the welds, I am slowly getting better and this definitely has been good practice for me. but some of them turned out good after grinding so I am happy! This is what my welds to fill the trim holes ended up looking like:



IMG 1685



not bad at all considering previous weld jobs I've done.



I also began pounding the inner fender of my rear fenders and Tack welding those. Mind you, my tack welds look like I was trying to weld, whereas I was actually just trying to get a good tack. This is what the pounding looked like. I'm trying to get the inner fender to touch the outer fender. once it got close I started on the next part.



IMG 1683
IMG 1684

the next part being the tack welds. as you can see, my initial welds I had to grind out, that was also right handed. I decided to try it left handed on the left and the welds came out a lot cleaner and stronger. weird.

IMG 1687

I also cut out some cancer and scooped out some of the original fender sealant that had fallen down. I'll do the same tomorrow on the other side and get some new sheets put back in.

IMG 1686

Also, big shout out to 88DangerDan on here, he saw my need for the resevoir tank as mine was broken and he sent one over to me after I sent him some money for the shipping. Very cool thing to do, thanks mate!!
IMG 1688

More tomorrow!






Step by step



IMG 7725





#17 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 09 September 2015 - 07:32 AM

I guess it's been a few days, sorry I lied to you all haha. I've been working on the z every chance I get, I am almost finished with all the welding and I'm happy with the outcome so far. I may have touched on this in the past post but I've decided to shave the rear bumper indents on the side of the z. So far I've only welded the new plate on the passenger side (I tried to cut through the drivers side and then just pull it out, but I found out it overlaps the flooring on the inside of the body, so I had to re weld and the next step is clean that up and cover it up with a different sheet I've already cut out.

IMG 1693
IMG 1695

I do feel a lot more confident in my welding abilities as time progresses, and after messing with the welder settings my brother and I think we've hit a good point (we are only using 110v so it's been tricky to figure out).

I also took a few pictures to send to the guy who I plan on doing my body work, these are the mistakes that need fixing. I've been trying to get most of it out the old way, with a hammer, but I am not super proficient at it yet so I will keep trying. the one that worries me the most is probably the dent in the rear valance, that needs some pounding out. Am I a wuss for not wanting to get under my car and have all those cobwebs fall on me? haha I hate cobwebs. Spiders are ok, but when webs are on me I can't tell if a spider is lurking about and that's really what trips me out.

IMG 1694
IMG 1696
IMG 1697
IMG 1698
IMG 1699
IMG 1700

I also started putting my new flare rivets into the body, I ordered them from pegasus racing, they're the 10/32 nuts I showed at teh end of my second post. they are kind of a pain, I have stripped a ton of bolts. I would recommend the lighter duty version, I got the heavier duty flanges or whatever and they are a pain to squish down. I'm going to weld an allen onto a bolt so it will work, that's where I'm at right now after stripping so many. they do come with a  couple bolts in case you do strip them but not enough, and I bought some more from Cal-ranch (do they have that outside of utah?).

IMG 1704
IMG 1705
IMG 1706
IMG 1712

as you can see by the third picture my bolts aren't holding up. anybody got a better way of doing these??

I also went through a few areas with a wire brush and one of those sponge looking brush things that don't last too long (but are amazing while they do last!). I went over a few spots on the outside that had surface rust beginning to form from me  exposing the metal to weld, as well as the door jambs (I want to go over those more, some cancer still lurking there), and the rear hatch area. I had pulled out most of the dead and dry water proofing crap but the residue was still left over, so I wirebrushed the crap out of that and after I wirebrushed all the things I went over it with some spray can primer for the time being, to keep the rust gnomes at bay.
IMG 1707
IMG 1708
IMG 1709
IMG 1710
IMG 1711


These things, they're great. paint stripping brush?



I also got around to doing the rear passenger flare a lot more. so far it's just tacked a bunch (tack it down, pound out the next inner flare area, tack that down, pound, tack, pound, etc.), my brother thinks we shouldn't weld the whole thing, rather leave it tacked as is and then use a sealant (I plan on the sealant either way, just for safety measures against water seeping through and rusting my fenders). What do you all think? Weld the whole way or just sealant the rest shut??



IMG 1723

I also cut the excess off in preparation to finishing it up. looks a lot cleaner now!
IMG 1726
IMG 1728
IMG 1730

As you can see I used some 24 gauge metal to patch up some cancer! first time I've ever done patches, and I have yet to grind down the welds but I was pleased, although I would recommend 22 or 20 gauge for future reference, 24 seemed a little thin in comparison to the rest of the body's metal. I used my super fancy wrench to help bend the shape, I got it more refined than this before I installed, I was pleased with how it turned out!

IMG 1724



before:

IMG 1686

after:

IMG 1725
IMG 1729

very cool stuff, this body work!

anyways, That's all for now. I'm planning on finishing up both rear flares today, wish me luck.

also, I've found these around the internet, very helpful little diagrams! figured I'd post them for reference.
post 4148 14150795389651
diagram fendermirrors
11896555 10207628674824136 6303172549141624657 O
11143232 10207628662623831 1686957262133023776 O



justice.




Step by step



IMG 7725





#18 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 11 September 2015 - 07:41 PM

so first and foremost, I found a video and the original ad from when I bought my z, I thought it would be rad to show it, as well as the video the kid sent me of it starting up. It really is a strong engine even still.


IMG 1002
IMG 1004

I've been trying to get these freakin studs in, they are too think or something and they literally won't bend like they're supposed to. after stripping multiple bolts I decided to weld the allen key into one to stop the stripping. I ended up breaking the allen key, so I think I'm going to email pegasus and see if there's some sort of trick top these things.

IMG 1738
IMG 1735

as you can see. my allen key was no match for these super strength inserts!!
IMG 1737

anyways, I had a spot or two that I needed to get fixed up in my flooring.
IMG 1736

I had some bending upwards on the passenger side as well, somebody must've jacked the car up using hte frame rail and it bent up, so I got in and just jumped on the bend as hard as I could. luckily my 200 pounds of fleshy blubber was able to straighten that out for now, but I will definitely look into the mad dog frame rails to strengthen them up.

Does anyone have any other recommendations??

here is a pic of one of my patches. I am a terrible welder, I pretty much just try and tack it in and tell my brother to finish it off.

IMG 1741

I also got around to the other fender. those are all my own tacking and pounding, I am proud of my little fender! stoked to see I am actually getting better.
IMG 1739



I also am getting a bit better at the whole cutting out the cancer and replacing the sheet metal thing. I was almost spot on with my bends this time in comparison to last time (spot on in my own way, of course). I took a few pictures to show how I bend everything into the shapes I need.

here is my sheet metal cutouts:

IMG 1743

sophistication at its finest.
IMG 1744
IMG 1745
IMG 1747

not too shabby for a one eyed kid!
IMG 1748



after that, I tacked the couple of pieces into the body! turned out decent!


IMG 1749
IMG 1751



so before:

IMG 1742


and after:

IMG 1750

pretty stoked, I've got all tomorrow to work on her and I am stoked!

also, Found this diagram as well, check it out!
Datsun 240Z cutaway By Shin Yoshikawa.84212358

more soon!
justice!








Step by step



IMG 7725





#19 AkRev

AkRev

    Always Here

  • Members
  • PipPipPipPip
  • 186 posts
  • LocationUtah

Posted 12 September 2015 - 05:10 AM

I have only had to use those rivet nuts once. We used a socket Allen with an impact turned down to get it. Let me know if you want to try that. I am out of town until Monday, but I live not to far from you at the base of G mountain.

Edited by AkRev, 12 September 2015 - 05:11 AM.


#20 Jboogsthethug

Jboogsthethug

    Regular

  • Members
  • PipPipPip
  • 76 posts
  • LocationAmerican Fork, utah

Posted 12 September 2015 - 10:20 AM

I have only had to use those rivet nuts once. We used a socket Allen with an impact turned down to get it. Let me know if you want to try that. I am out of town until Monday, but I live not to far from you at the base of G mountain.

Not a shabby idea! I actually leave Tuesday afternoon for a week, but what might be a good idea is I go buy some of those today at home depot! I'll try taht out because I am having no luck with this so far haha. do you know if they make like star head bolts the same size as the allen key bolts? something like this: http://i00.i.aliimg...._head_bolts.jpg

I want some bolts that wont be as easy to remove, and I don't think every person has a star bolt sockets, I just haven't found any the right size haha


Step by step



IMG 7725








0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users
