Fender flare position


  • Please log in to reply
24 replies to this topic

#1 gacksen

gacksen

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationGermany

Posted 26 June 2015 - 11:18 PM

Had been working on the car again since months and stuck one of the fender flares on the rear

in position. can someone guide me if this is correct or does it look misaligned ?









#2 Hypertek

Hypertek

    Member

  • Members
  • PipPipPipPip
  • 312 posts
  • LocationCalifornia

Posted 29 June 2015 - 06:50 AM

11295717_10153081856963557_7803820981251

11254499_10153117011053557_3222225473164



My pics probably suck I know, but what I did was look at all my favorite JDM Z cars with flares on and compare them. My flares are marugen shoukai, so the good fitment made it a little easier, just matched up to where it fit the best. I think the front of your flare looks good. The rear portion was the tricky part, as there is no body crease to rest it on. What I did was look at that rear bottom rivet point, match it to around the bottom of the rear bumper area.



10169202_328987320600170_509643776626896

10442373_10152535654408557_4487654246081


994373_542335672507469_933666333_n.jpg?o



#3 rturbo 930

rturbo 930

    Porschephile

  • Members
  • PipPipPipPipPipPip
  • 1604 posts
  • LocationNJ

Posted 29 June 2015 - 09:59 AM

The rear of your flare looks like it needs to be pulled forward more. The way it is now makes the big gap that S30s have behind the rear even more noticeable.


Owen | 1976 280Z | 1986 Jetta | 1953 CJ3B

A car is a hole in the air, suspended there by four rubber doughnuts which you can not eat.
Into this hole, you throw money, which you will never see again.

Buy my stuff: CLICK HERE


#4 gacksen

gacksen

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationGermany

Posted 29 June 2015 - 11:07 AM

thx for the input. the front portion sits very good and snugs just over the edge. will try to bend the rear part more inwards and get new pictures. problem on the rear part had been the edge of the fender. will take a look at it the next days. bought the fenders from rhd japan and manufacturer is restored.jp your marugen look nice. perfect fit



just finished most of the wiring today





Edited by gacksen, 29 June 2015 - 11:11 AM.


#5 fyanrudger

fyanrudger

    Always Here

  • Members
  • PipPipPipPip
  • 141 posts
  • LocationSan Diego

Posted 29 June 2015 - 02:51 PM

The rear of your flare looks like it needs to be pulled forward more. The way it is now makes the big gap that S30s have behind the rear even more noticeable.

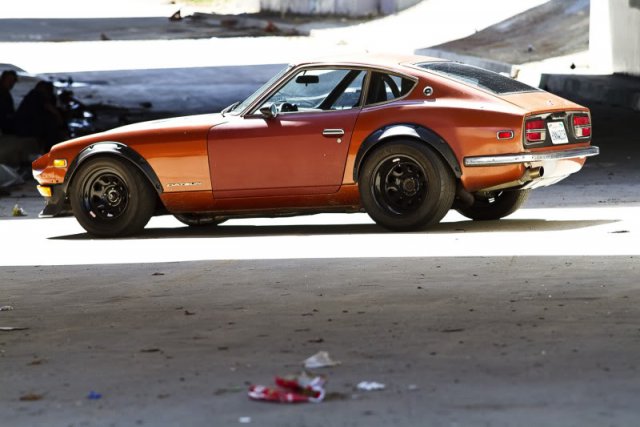

Yeah, forward. Not a fan of when the back sits further back. Here's mine a few years back...

Attached Files



#6 gacksen

gacksen

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationGermany

Posted 02 July 2015 - 11:35 PM

Yeah, forward. Not a fan of when the back sits further back. Here's mine a few years back...



looking good :) played around yesterday a bit with the position and if i want to close the rear gap with the fender flare my bolt position

woulnt be any more on the flat metal part it would be almost on top of the fender lip edge.



#7 rturbo 930

rturbo 930

    Porschephile

  • Members
  • PipPipPipPipPipPip
  • 1604 posts
  • LocationNJ

Posted 03 July 2015 - 10:45 AM

When you cut your fenders, you can just get rid of the lip. Could even add a little metal for the flare to mount to if you wanted.


Owen | 1976 280Z | 1986 Jetta | 1953 CJ3B

A car is a hole in the air, suspended there by four rubber doughnuts which you can not eat.
Into this hole, you throw money, which you will never see again.

Buy my stuff: CLICK HERE


#8 JMortensen

JMortensen

    Retired Admin.

  • Donating Members
  • PipPipPipPipPipPipPipPipPipPip
  • 12452 posts
  • LocationSeattle area, WA

Posted 03 July 2015 - 11:22 AM

Read 240hoke's FAQ post in the Paint/Body section. He did it wrong and then had to redo it and showed both attempts. I did something pretty similar. Seems like 95% of people with ZG flare have them mounted too low.


Jon Mortensen, owner/operator www.petdoorstore.com


#9 JMortensen

JMortensen

    Retired Admin.

  • Donating Members
  • PipPipPipPipPipPipPipPipPipPip
  • 12452 posts
  • LocationSeattle area, WA

Posted 03 July 2015 - 11:23 AM

Link: http://forums.hybrid...here-zg-flares/


Jon Mortensen, owner/operator www.petdoorstore.com


#10 gacksen

gacksen

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationGermany

Posted 05 July 2015 - 01:54 AM

just read the thread with the zg ones. youre right mine are way to low. have found a picture

of 240hokes car with the first attempt i guess.






if you compare front and rear height quite a difference. my wheels are not that

special with beeing 16x8 et0. will put some spacers under front rear to adjust ones

flares are fitted. will need to sort an issue with the wiring of the greddy gauage today.

didn´t think it could be that complicated to find +- and ign power. took + from the clock

power supply. put in a new line for - to the batt that the gauage will read fine and hooked

up the ign power to the solid yellow cable of the old water oil gauge. when ign is turned

on gauge reads perfect and updates values right away. once the engine is running

gauage sort of hangs up and just updates values every 30 or 50 seconds. suspect it has

something to do with the ign power of the old gauage. maybe some sort of voltage regulator

inbetween.



#11 gacksen

gacksen

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationGermany

Posted 05 July 2015 - 04:19 AM

hm quite strange. thought i wire it the easy way via the fusebox but same issue. with just ignition on gauge works perfect and shows values straight away. with engine running gauge does not update values.

ign i took from the fuse box now green solid cable. continious mains from horn circut at the fuse box and minus direct from the batt.

if the wiring would be wrong the gauge shouldnt work at all with ignition on ?

#12 RebekahsZ

RebekahsZ

    Life Member

  • Donating Members
  • PipPipPipPipPipPipPipPip
  • 5406 posts
  • LocationFlorence, Alabama

Posted 05 July 2015 - 04:47 AM

There are two justifications for fender flares: looks and tire clearance. The guys who install for looks put them low and run small diameter wheels and tires and get all worried about having too much clearance between the tire and the flare. The guys who do them for tire clearance do a max resection of sheetmetal, then use the flares to un-Mad-Max the car and make it look like a Z again. After a max resection of sheetmetal, I can fit 28" tall tires at a reasonable ride height. I still had to cut the leading edge of the flare down due to the forward position of the tire in the wheel well, which has already been discussed.

1972 240z, purchased in 1991 for $900. Bone stock LS2/T56/DBW from 2006 GTO, swap completed in 2011. 400rwhp/435 rwtq. 2400# minus driver. JCI swap, Mantic ER2 clutch kit, JTR headers, single exhaust, Borla muffler, MGW shifter, M2 Differentials shortened Z31 CV axles, Z31 CLSD R200, Chequered Flag Racing billet stubs and companion flanges. MSD 2-step, Hurst roll control, both operated from switches on clutch pedal. 9" Hoosier drag slicks on Weld Draglites, 245/45/16 Hoosier A6/R6 on 16X8+10 Rota RBR. 225/250 sectioned coilovers, Koni 8610-1437RACE shocks, DP and EMI camber plates, MM shortened rear control arms, TTT front control arms, poly and aluminum bushings. Top speeds: Ohio Mile 174mph, C/GMS class record holder, best 1/8 mile 6.96 at 100mph, best 1/4-mile 11.0 at 126mph, best 60' 1.43, best 1/2-mile 148mph at GA 1/2-mile. Home Track-Jake's Dragway, Moulton, AL. SCCA autocross club - TVR, Huntsville, AL. Lets race!


#13 gacksen

gacksen

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationGermany

Posted 05 July 2015 - 11:26 AM

fixed the greddy gauage problem. chinese crap :D fault had been the greddy control unit. if each sensor get´s connected

with one wire to the greddy loom and with the other one to ground no problem. inital wiring had been correct. normally

would need to replace the control unit but it seems an easy fix and i dont have to sent it back where i bought it overseas.



as for the flares tried it today with some tape and pushed them around. no problem to adjust them higher but getting away

of the hole behind the wheel is not possible without welding plates in to get the look with the rear wheel in the middle. if you put

metal in would bring me to antoehr paint job :(



need to put on the front fender first to have an impression with the raised rears. at a higher position the fender flare

is almost aligned perfectly with the regular lip but of course still the gap on the rear.


Edited by gacksen, 05 July 2015 - 11:30 AM.


#14 RebekahsZ

RebekahsZ

    Life Member

  • Donating Members
  • PipPipPipPipPipPipPipPip
  • 5406 posts
  • LocationFlorence, Alabama

Posted 08 August 2015 - 07:12 PM

.

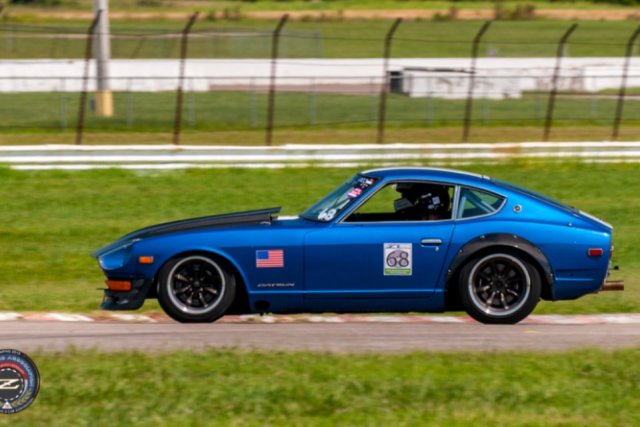

Attached Files


1972 240z, purchased in 1991 for $900. Bone stock LS2/T56/DBW from 2006 GTO, swap completed in 2011. 400rwhp/435 rwtq. 2400# minus driver. JCI swap, Mantic ER2 clutch kit, JTR headers, single exhaust, Borla muffler, MGW shifter, M2 Differentials shortened Z31 CV axles, Z31 CLSD R200, Chequered Flag Racing billet stubs and companion flanges. MSD 2-step, Hurst roll control, both operated from switches on clutch pedal. 9" Hoosier drag slicks on Weld Draglites, 245/45/16 Hoosier A6/R6 on 16X8+10 Rota RBR. 225/250 sectioned coilovers, Koni 8610-1437RACE shocks, DP and EMI camber plates, MM shortened rear control arms, TTT front control arms, poly and aluminum bushings. Top speeds: Ohio Mile 174mph, C/GMS class record holder, best 1/8 mile 6.96 at 100mph, best 1/4-mile 11.0 at 126mph, best 60' 1.43, best 1/2-mile 148mph at GA 1/2-mile. Home Track-Jake's Dragway, Moulton, AL. SCCA autocross club - TVR, Huntsville, AL. Lets race!


#15 bjhines

bjhines

    HybridZ Supporter

  • Members
  • PipPipPipPipPipPip
  • 1905 posts
  • LocationCary, NC

Posted 10 August 2015 - 06:00 AM

I have done a few sets, both bonded and bolted on. There is no right way to do them. I have always needed them for tire clearance and fit them according to the positions of the tires.



A general rule seems to be that the lower edge of the flares can be the same height as the original fender edges. You place the tip of the flare so the it starts at the lower body detail/fillet line and set it so the inner edge is even with the original height. On the fronts; make sure your tires don't hit the front edge of the flares or the airdam sides(this is a typical problem area).



With that said, Many folks have changed the positions of the wheels under the body with increased caster up front and increased toe in under the rear. That has lead to many RE-DOs of fender flares in the past. I have seen so many people get the car out for the first time and then find that the flares are not in the right place for clearance and looks.

With any car build you need to have your suspension and tires figured out first. then modify the bodywork to fit them.



Tire rub inside wheel well. This is with typical fender rolling work and the suspension is bound against the halfshafts. We need more room.






Layout for placement.






Initial cut.








Cut and filler strip.






Welded and trimmed.







Temporary clamping screw for glue.

Media%20dump%20May%202015%20406_zpsxbpt1





Fillet

Media%20dump%20May%202015%20412_zps6jgxj





Screws removed and fillets done

Media%20dump%20May%202015%20440_zpsdxuvs





Ready for paint

Media%20dump%20May%202015%20450_zpsf05cn





Off to the races

Media%20dump%20May%202015%20726_zpspt5pb





and they still hit just slightly under hard acceleration, uphill, apexing over the gators. dammit, but this is not a problem with the flares just a little more metal relief to do.

Media%20dump%20May%202015%20760_zpskf4it


Edited by bjhines, 10 August 2015 - 10:55 AM.

Definitely on the Dark Side

#16 RebekahsZ

RebekahsZ

    Life Member

  • Donating Members
  • PipPipPipPipPipPipPipPip
  • 5406 posts
  • LocationFlorence, Alabama

Posted 12 August 2015 - 02:36 PM

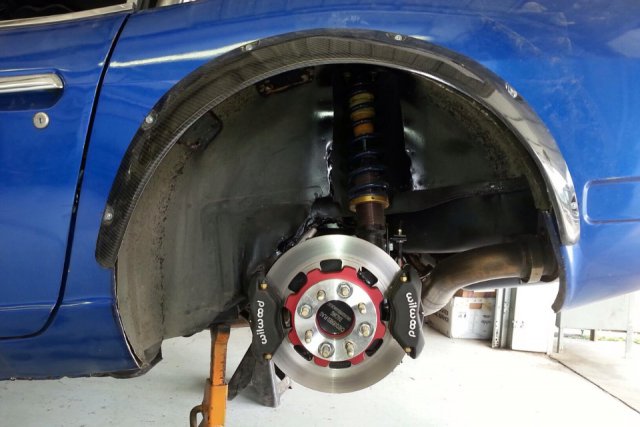

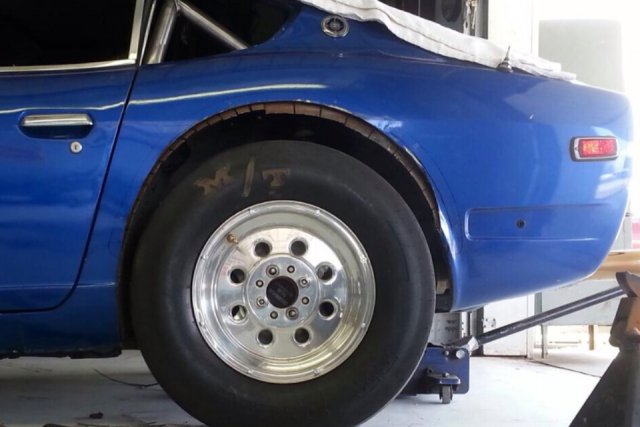

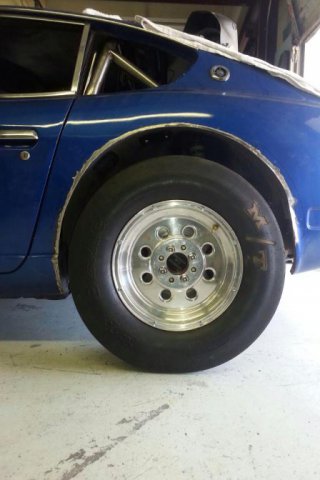

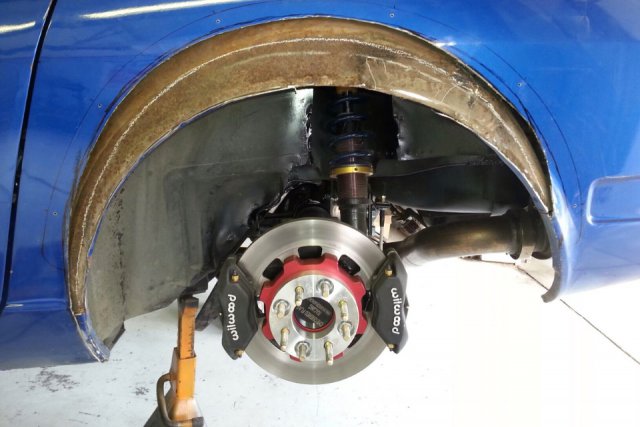

We cut mine so that the roof of the inner fender was completely flat. I can run 28" slicks. As BJ suggested, ya gotta have the tires on it that you intend to run. My pic below may look extreme, but this is the same flare position shown in the road race photo above.

Attached Files


Edited by RebekahsZ, 12 August 2015 - 02:40 PM.

1972 240z, purchased in 1991 for $900. Bone stock LS2/T56/DBW from 2006 GTO, swap completed in 2011. 400rwhp/435 rwtq. 2400# minus driver. JCI swap, Mantic ER2 clutch kit, JTR headers, single exhaust, Borla muffler, MGW shifter, M2 Differentials shortened Z31 CV axles, Z31 CLSD R200, Chequered Flag Racing billet stubs and companion flanges. MSD 2-step, Hurst roll control, both operated from switches on clutch pedal. 9" Hoosier drag slicks on Weld Draglites, 245/45/16 Hoosier A6/R6 on 16X8+10 Rota RBR. 225/250 sectioned coilovers, Koni 8610-1437RACE shocks, DP and EMI camber plates, MM shortened rear control arms, TTT front control arms, poly and aluminum bushings. Top speeds: Ohio Mile 174mph, C/GMS class record holder, best 1/8 mile 6.96 at 100mph, best 1/4-mile 11.0 at 126mph, best 60' 1.43, best 1/2-mile 148mph at GA 1/2-mile. Home Track-Jake's Dragway, Moulton, AL. SCCA autocross club - TVR, Huntsville, AL. Lets race!


#17 gacksen

gacksen

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationGermany

Posted 14 August 2015 - 10:18 PM

thx for the pictures. i do get the point now in moving them upwards that they won´t sit as low.

had to much regular work the last weeks so could not motivate myself to get back working on the car.

got it back from the paintshop two weeks ago that got rid of some overpainted old rubber seals and

in the meantime fabbed up new TB for my rover v8






#18 RebekahsZ

RebekahsZ

    Life Member

  • Donating Members
  • PipPipPipPipPipPipPipPip
  • 5406 posts
  • LocationFlorence, Alabama

Posted 15 August 2015 - 05:05 AM

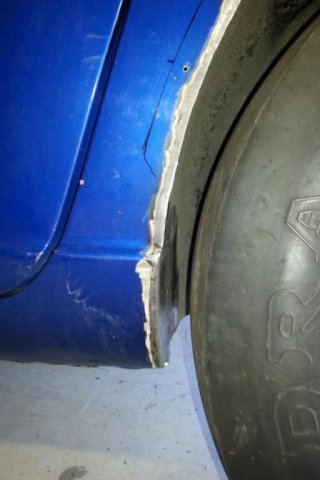

Very cool! I'm not sure we mentioned this, but the interference point for tire rub is actually a little FORWARD of the apex of the fender arch. So if you can, cheat your flares toward the front of the car. You will notice in my last pictures that I have eliminated a good portion of the "dog leg" of the rocker panel. Same for the front. When/if you go to reslly wide front tires, they will conflict with the front of the fender arch and the rear edge of the airdam. SunnyZ's car shows how far forward you should cheat the front fender flare. If I can find a pic I will post it. Might as well eliminate the front side markers-they are in the way if you do flares "right". I think SunnyZ is running 17x9.5 with 275/45/17 tires. You only have to cheat forward if you plan to turn your steering wheel. It's not necessary if your car is a static display.

Attached Files


Edited by RebekahsZ, 15 August 2015 - 05:09 AM.

1972 240z, purchased in 1991 for $900. Bone stock LS2/T56/DBW from 2006 GTO, swap completed in 2011. 400rwhp/435 rwtq. 2400# minus driver. JCI swap, Mantic ER2 clutch kit, JTR headers, single exhaust, Borla muffler, MGW shifter, M2 Differentials shortened Z31 CV axles, Z31 CLSD R200, Chequered Flag Racing billet stubs and companion flanges. MSD 2-step, Hurst roll control, both operated from switches on clutch pedal. 9" Hoosier drag slicks on Weld Draglites, 245/45/16 Hoosier A6/R6 on 16X8+10 Rota RBR. 225/250 sectioned coilovers, Koni 8610-1437RACE shocks, DP and EMI camber plates, MM shortened rear control arms, TTT front control arms, poly and aluminum bushings. Top speeds: Ohio Mile 174mph, C/GMS class record holder, best 1/8 mile 6.96 at 100mph, best 1/4-mile 11.0 at 126mph, best 60' 1.43, best 1/2-mile 148mph at GA 1/2-mile. Home Track-Jake's Dragway, Moulton, AL. SCCA autocross club - TVR, Huntsville, AL. Lets race!


#19 bramagedained

bramagedained

    Always Here

  • Members
  • PipPipPipPip
  • 122 posts
  • LocationMN

Posted 21 September 2015 - 12:39 PM

@rebekahsz



Which flares from which vendor do you use and what is the offset of your drag wheels?



I know I'm going to need flares, I'm just not 100% on which ones.  I'll be going with wfritts911's IRS rear setup.



I was looking at maybe a 17x9.5 -20 for the rear with a 275/40 and 17x8.5 -10 front with a 245/45.



Mostly those wheel sizes because the Rota RKR come in 4x114.3 and 5x114.3.



My napkin math makes it look like the wheels will clear the suspension, and the extra width dealt with by flares.  The rears would stick out ~2.5" over the stock wheels/tires I have now.


Edited by bramagedained, 21 September 2015 - 12:50 PM.


#20 gacksen

gacksen

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationGermany

Posted 22 September 2015 - 11:58 AM

will go also with the RKR but with smaller tyre sizes like 225 and 245



didnt do much those days due to regular work. put in more interior and hazzled around with the headliner. finally got it in but it felt as you need 10x hands to get it done properly. sides had been way more easy with the heat gun.

front windscreen is back in now. exchanged the gearbox to a fresh rebuilt one with perfect synchros and still not shifting properly. bled the clutch and it was not getting better. have taken a deeper look into this and it seems

a wrong master slave combo had been used on the car. currently in is the regular 240z master and the slave with the adjustable pushrod of the 240z. ordered the pathfinder one and a 3/4 master of a toyota and will switch rods to

make it fit. hopfully will have enough throw after that.






btw. one of you guys is familiar with the dizzy curves on a L28 ? just have taken a look at the 123 tune that had been on it and it looks like the all in advance is quite late ?





Edited by gacksen, 22 September 2015 - 12:12 PM.
