240Z Pro-Touring Build


  • Please log in to reply
44 replies to this topic

#1 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:35 AM

I decided to start a build thread for my project to document and share the process. I hope to get some valuable insite from forum members and maybe it will help someone else along the way. My car is a 1973 240Z I’ve owned for 30 years, my high school car. I recently brought this old girl in to give her a full makeover. The plan is a Pro-Touring/G-machine type build. I don’t want a stripped down race car. There are some excellent examples of those here and I really respect those builds but that is not what I am after. I also want something with breath taking performance and extremely light weigh. No, I won’t be using full carbon body work and titanium fasters. I’d love to but the project has to have a budget. I will be using top quality parts and materials. Fiberglass and 4130 aren’t out of the question.



Ok, for the driveline. I’ll get this out of the way and just say to all of those out there that yes, it would be easier to just do an LS. I intimately familiar with the engine, controls, all of it and had originally planned on using a really healthy LS3 based engine. That said, I have always loved the sound and high revving engine that is in there. I have a 2.6L (280 block, 240 crank) with triple DCOE Webers, Tri-Y exhaust, ported, balanced, cammed, etc. engine. I would like to keep those two traits with 3 times the power in a lightweight. I know there are Nissan purists or other import options out there. I respect those builds too. However, Ford had to go and introduce a new flat plane crank engine “Voodoo” version of the Coyote. So, as much as I have never been a Ford guy, this new engine is just too good to pass on. So, Voodoo it is with a Tremec T56 Magnum 6 speed and a Ford 8.8 in the rear.  I will be doing full upgrades of chassis, suspension, paint, and the works. She needs to be comfortable so power windows and locks and a replacement HVAC including A/C that actually works. Weight will be minimized and safety addressed. Though not a track car, track days are in the vision and will weigh out each option to best fit the intended vision.



I have the Tremec Magnum in the wide ratio version and Modular bellhousing. A Coyote may have to be used initially until the Voodoo is available. The Voodoo is based on a Coyote and with the right “buy” on a Coyote, I should be able to make money on the deal rather than lose on that. I would start with a truck Coyote, replace pistons, rods (already have a set of Manley “H” beams) and cams. The wiring and programming I would do myself on both. An aluminum 8.8 will be used with rear CV joints and shafts probably the Porsche 930/935 variety. Hubs will be aluminum 5 lug and source will depend on the suspension choices.

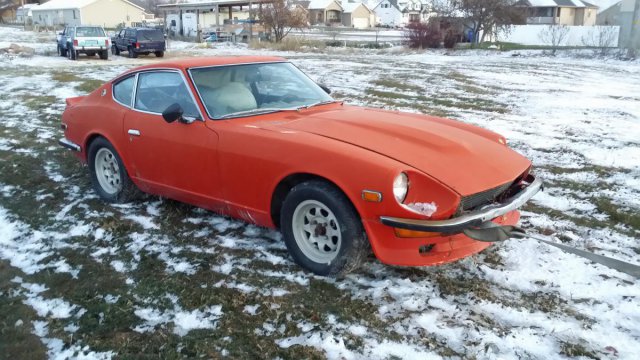

This car is NOT the best starting point for a project. I will be doing complete floors, supports and front frame rails. But, she’s part of the family and that means something to me. I have a rotisserie ready to assemble but will need to get everything at least structurally sound enough to sit in the rotisserie before it goes on there. So I will most likely be replacing the parts and tack welding in first then up to fully weld everything in. All the structure will be tied together front to back. I have debated buying the Bad Dog products or just fabricating things. Maybe even out of 4130, thinking of using 2x3 tubing up front and then split for the supports along with thinner for the floor and integrate that into the roll bar/cage/seat mounts as well as the transmission mount underneath.



I will be doing flush glass, shaved gutters and a lot of other “clean-up” details while I am in there. The bodywork will be a full set from John at ZTrix/Reaction Research consisting of Subtle Z fenders, air dam, hood, solid cowl, early style fiberglass bumpers,  YZ rear fenders,  doors, hatch, a 2-taillight rear cap and then a Motorsport  Classic rear spoiler like the car has now but in fiberglass that may be built up a bit. I have quite a few ideas for some clean venting and details on these parts. We’ll see where it goes. I’ll play with the aerodynamics as much as I can with the platform to get some solid downforce and clean things up where I can. Wheels and tires will be Michelin Pilot Super Sport 245/35R18 front and 295/35R18 rear on either a 5 or split 5 spoke wheel.



Brakes will be a Tilton/Wilwood style aluminum pedal setup with 3 master cylinders. At the wheels will be 6 or 4 piston calipers and the biggest rotor on aluminum hats that I can make work. Possibly a Woodward aluminum column if I can make that do what I want. I will consider electric power steering but will replace the rack with a new aluminum version either way.



Suspension and hubs will be replaced with 5 lug aluminum versions. I am toying with a double wishbone setup just from the standpoint of I’m already re-doing all the structure anyway and it would be easier to adjust. If not, then coilovers and new strut assemblies of a lighter and much more rigid variety. With the way all this is packaged I don’t know what the best way to set that part of it up will be yet.



Interior will have a new A/C unit, power windows and locks. Lizard skin soundproofing like I used on my last project. New gauges, probably Speed Hut, completely new wiring, console, etc. It will still be discernable as a 240Z but pretty much everything will be upgraded. I have 1-1/2” 0.095 wall 4130 for the roll bar/cage. I’m not sure yet how extensive that will get but it will tie everything in the back together and the forward part is not fully decided. I won’t do full door bars because the car will still be a driver but maybe a combination of the two. Sound system will be Polk MM6501 front, MM651 rear (neodymium magnet/composite cones - they weigh just over 1lb and have incredible sound) and a good head unit. Thinking the new Sony high power and do away with the amp and sub to save 20lbs. I have the 10” Alpine SWR-T10 Sub for my Jeep with the neodymium magnets but that with an amp still adds about 20lbs. On this car, that’s 4-5 horsepower, not sure it’s worth it, we’ll see.



This isn’t going to happen overnight but it will be done right. I have a climate conditioned, well-equipped shop/garage including MIG/TIG as well as Ocy/Acetylene, plasma cutter, sheet metal brake, tubing bender, etc. I can fab most stuff on site and have access to CNC machining as necessary. I’ve been at this stuff a long time. I appreciate feedback and suggestions but please don’t muddy up the thread with off topic or tactless comments.



I’m going to try and at least start this out in an orderly fashion. I’ll follow with posts detailing the systems of the car that I just wrote about. I don’t know how long the site will allow editing but I’ll keep these first posts up to date as long as I can.



Thanks for sharing the ride…



Dave



Attached Files


-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#2 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:35 AM

Future content - Summary


Edited by jpndave, 19 October 2015 - 08:57 AM.

-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#3 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:35 AM

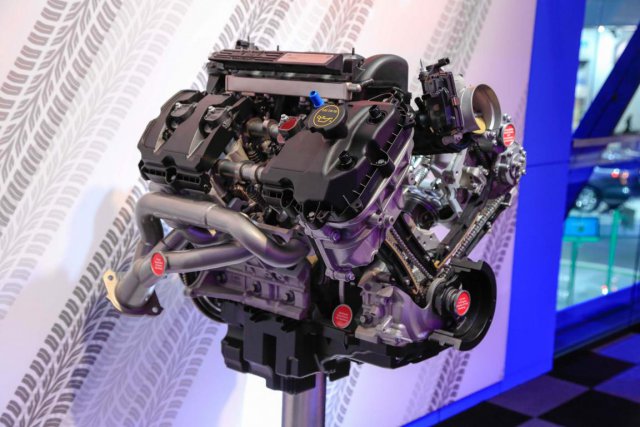

Engine Details

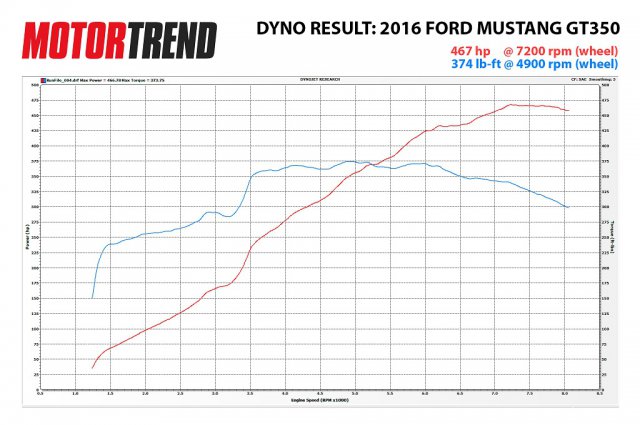

Voodoo Specs:



5.2L DOHC flat plane crank 4 valve heads with VVT 94mm bore x 93mm stroke

SAE Net Horsepower @ RPM 526 @ 7500

SAE Net Torque @ RPM         429 @ 4750

8250rpm redline



Update: These appear to respond REALLY well to long tube headers, open exhaust and a tune. Mustang boys are reporting over 500rwhp with only minor adjustments so far, projecting over 600+ at the flywheel fairly easily.

Attached Files


Edited by jpndave, 24 May 2016 - 07:25 PM.

-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#4 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:36 AM

Transmission

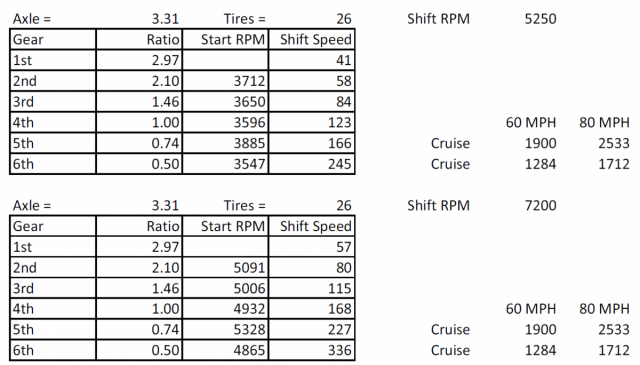

Tremec T56 Magnum wide ratio with Modular Bellhousing. I chose the wide version because all of the ratio spreads are very close to the same and all easily fit in the Voodoo power band which is very wide. The first chart shows short shifting at the crossover for torque/hp which keeps it in the big flat area of the torque curve you can see above and the 2nd shifting at peak HP. 1st gear at redline would be 65 mph with 3.31 gears, 57 mph with 3.73.

Attached Files


Edited by jpndave, 24 May 2016 - 05:43 PM.

-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#5 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:36 AM

Rear End



Ford "Super 8.8" Aluminum housing from 2015 up Mustang, Torsen T2R differential with 3.73 ratio, 34 spline

Attached Files


Edited by jpndave, 24 May 2016 - 07:41 PM.

-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#6 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:36 AM

Future content - Suspension


Edited by jpndave, 19 October 2015 - 08:58 AM.

-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#7 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:36 AM

Future content - Body


Edited by jpndave, 19 October 2015 - 08:58 AM.

-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#8 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:36 AM

Future content - Interior


Edited by jpndave, 19 October 2015 - 08:58 AM.

-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#9 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:36 AM

Future content


-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#10 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:37 AM

Future content


-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#11 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 08:39 AM

Future content


-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#12 98blackbell

98blackbell

    Always Here

  • Donating Members
  • PipPipPipPip
  • 170 posts
  • LocationGa. Isle of Hope

Posted 19 October 2015 - 12:03 PM

Wow.. will be watching this.
Father to tooquick260, part time mechanic and co-driver.

Our build since 2012, never ending but soon to be a master piece.
http://forums.hybrid...echnotoytuning/

#13 johnc

johnc

    Administrator

  • Administrators
  • 9739 posts
  • LocationLa Habra, CA, USA

Posted 19 October 2015 - 12:14 PM

Good luck with your build. There are a number of contradictions in your plan but there always are any of these projects. Compromise is the name of the game. Focus on the ultimate goal when making the small decisions.
----- John Coffey, Fabricator at Benton Performance, LLC

#14 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 19 October 2015 - 05:25 PM

Yes there are always compromises on any project. I'll just lay out the plan and try to make the best of it.
-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#15 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 24 May 2016 - 09:11 AM

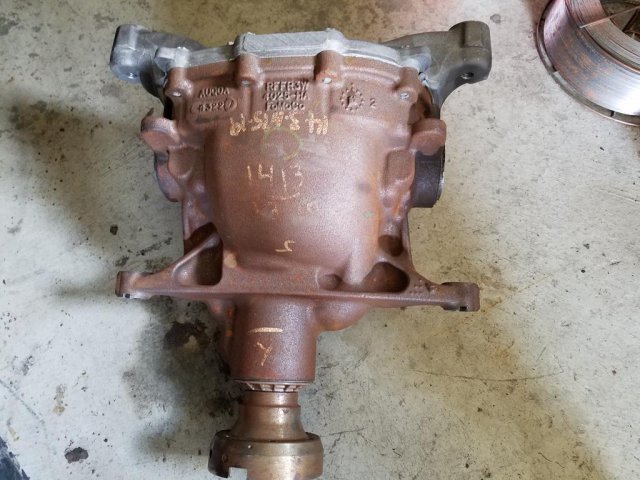

So this just showed up...

Attached Files


-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#16 1969honda

1969honda

    Always Here

  • Donating Members
  • PipPipPipPip
  • 317 posts
  • LocationNear: Logan, Utah, United States

Posted 24 May 2016 - 02:13 PM

Deleted, double post sorry

Edited by 1969honda, 24 May 2016 - 02:16 PM.


#17 1969honda

1969honda

    Always Here

  • Donating Members
  • PipPipPipPip
  • 317 posts
  • LocationNear: Logan, Utah, United States

Posted 24 May 2016 - 02:14 PM

8.8", what ratio are you going to run?

#18 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 24 May 2016 - 04:28 PM

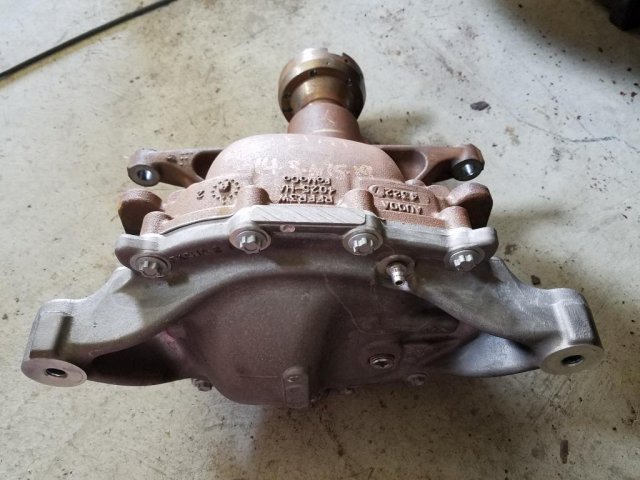

That is a 3.73 with a Torsen T2R from a 2015-16 Mustang with the track pack. I would like to get an aluminum housing to save some weight but can mock up with this one and even run it a while if necessary.

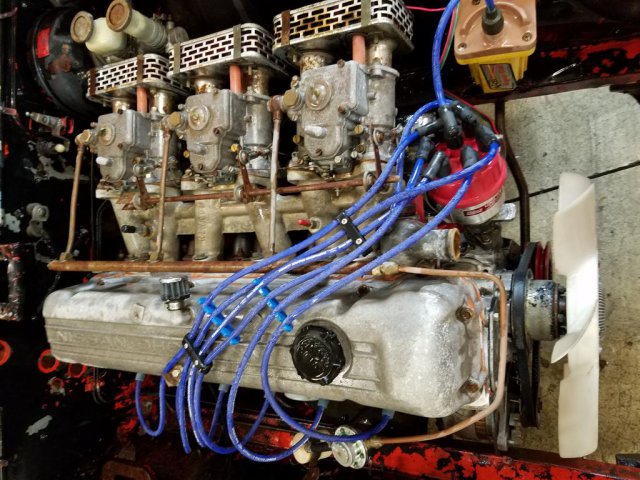

Just about ready to pull the engine and transmission out. Know anyone that wants a hot stock setup? Cam, triples, balanced, 280 block, 240 crank, Tri-Y headers, unilite, etc.

Attached Files


Edited by jpndave, 24 May 2016 - 05:08 PM.

-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build

#19 1969honda

1969honda

    Always Here

  • Donating Members
  • PipPipPipPip
  • 317 posts
  • LocationNear: Logan, Utah, United States

Posted 24 May 2016 - 04:30 PM

I can definitely ask around, text me your asking price and specifics when you get a chance

#20 jpndave

jpndave

    Always Here

  • Donating Members
  • PipPipPipPip
  • 140 posts
  • LocationHyde Park, UT

Posted 24 May 2016 - 05:20 PM

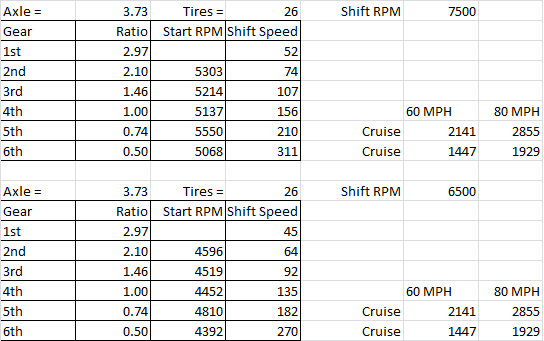

So that will yield these results with Voodoo first, Coyote (if I can't get a hold of the Voodoo initially) 2nd.

Attached Files


Edited by jpndave, 24 May 2016 - 05:24 PM.

-73 240Z owned for 30yrs(my high school car). Dragged the old girl out from storage for a full makeover, Voodoo engine/T56 Magnum transmission/"Super 8.8", A-arm Suspension, Brakes, etc. http://forums.hybrid...-touring-build/

-2007 Jeep JK Unlimited "Bumblebee", LS3 (6.8L stroked, ported, VVT cammed)/6L80E/242AMG http://www.rme4x4.co...3-quot-GM-build
