73Fairlady's 240z Build *heavy pics*


  • Please log in to reply
97 replies to this topic

#1 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 20 October 2015 - 06:47 AM

Hi i have been lurking around on Hybridz for years and years for info but just recently joined. I have been around cars forever but just recently started a z project finally! I love these cars and have wanted one for years. I figured a good way to get myself out there was to start a build thread. I have had this car for a little over a year now, previously my dad owned it since 2006 but its been sitting for a few years. I started working on it last winter so i will try and catch up to where I am now.





This is as of 2006 when my dad got the car.

6F03A28D-794E-48BD-A510-3DE4E952C8DA_zps







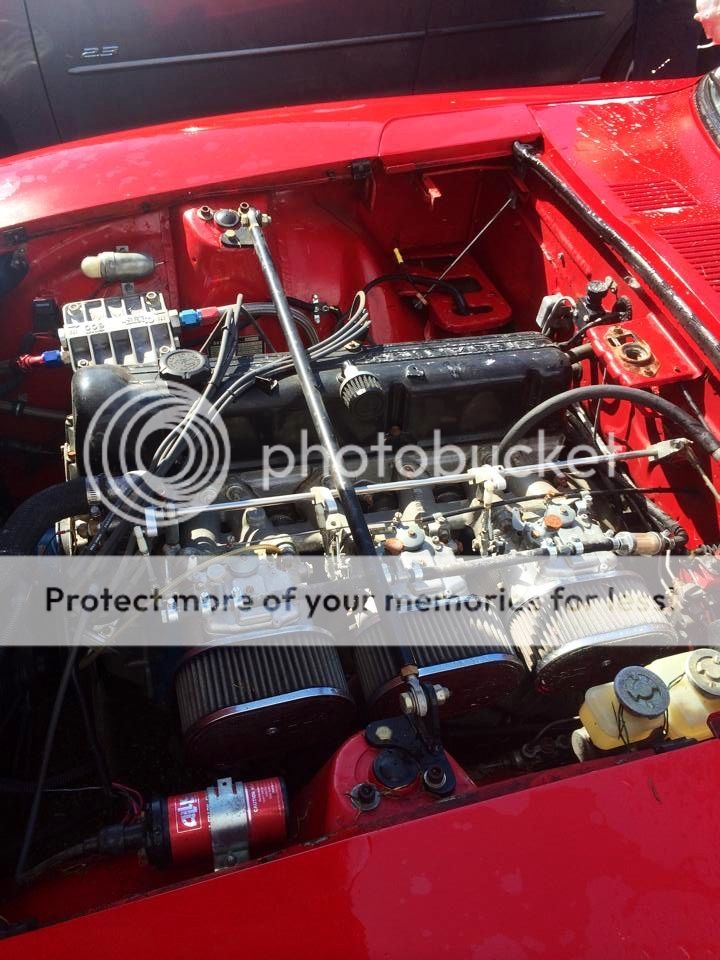

and this is when i got the car last summer

A68F4E5C-2574-4A2F-80A4-C7DE868B0DEE_zps0481AF3E-8E8B-4598-B282-43FA9D9CD7B6_zps959D2D1F-75D5-456A-80DF-6AA85A7CF090_zpsC9C2889A-87F2-420E-8D69-66331A9F65D5_zps



#2 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 20 October 2015 - 07:02 AM

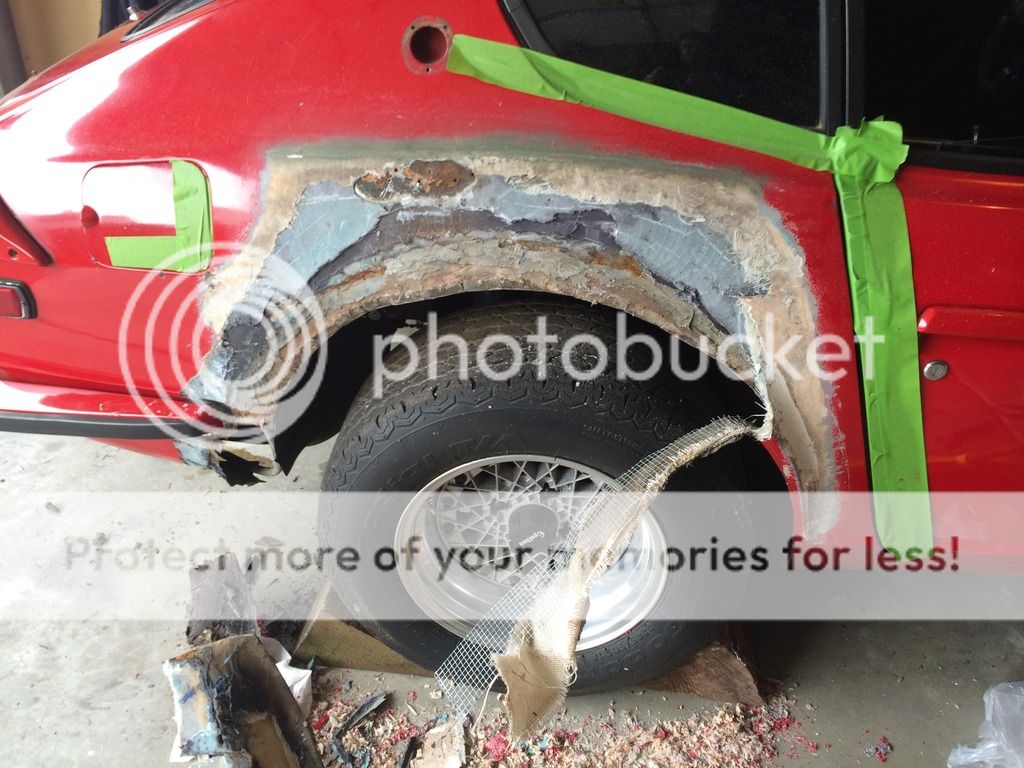

once i got it home i was in the middle of another project. I didnt really get started on this one until January of 2015. I started stripping down the car.



B56CA7DC-D763-424B-93C2-6CC7BD84234F_zpsEA45BDB1-F1C7-4867-AD62-6EBA03ECF7F3_zps250D1B4A-1150-4D2F-8BF3-DA9F1509C641_zps



Whomever originally did the car did some questionable things that will have to be fixed, the fenders looked like hell...



#3 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 20 October 2015 - 07:06 AM

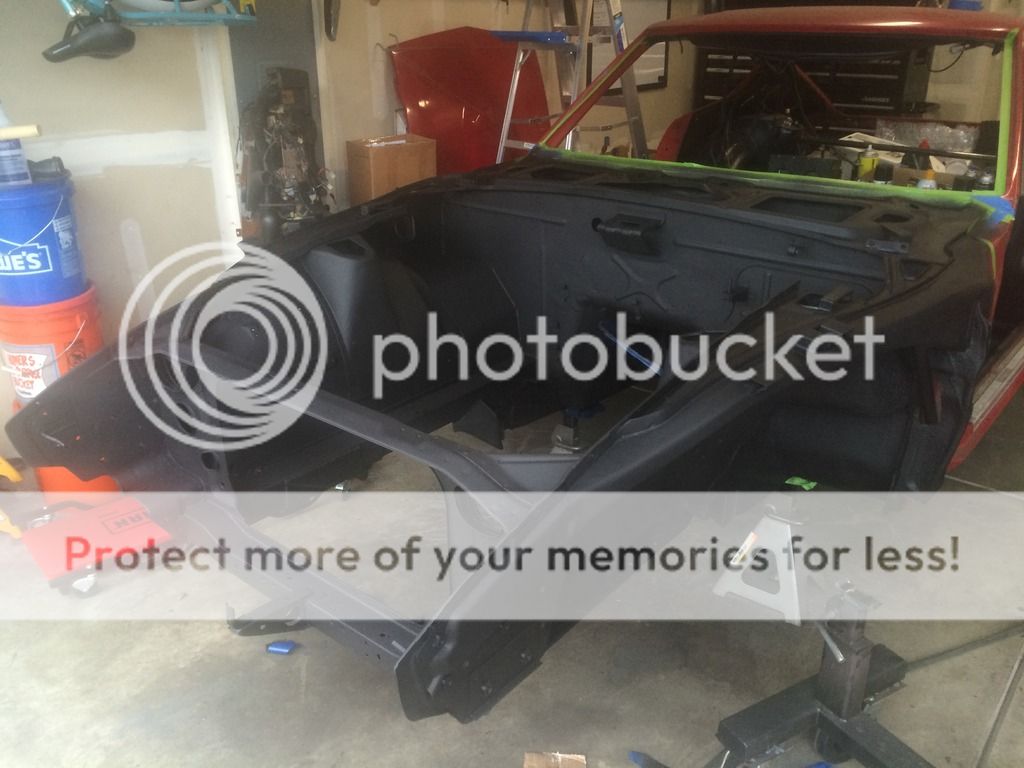

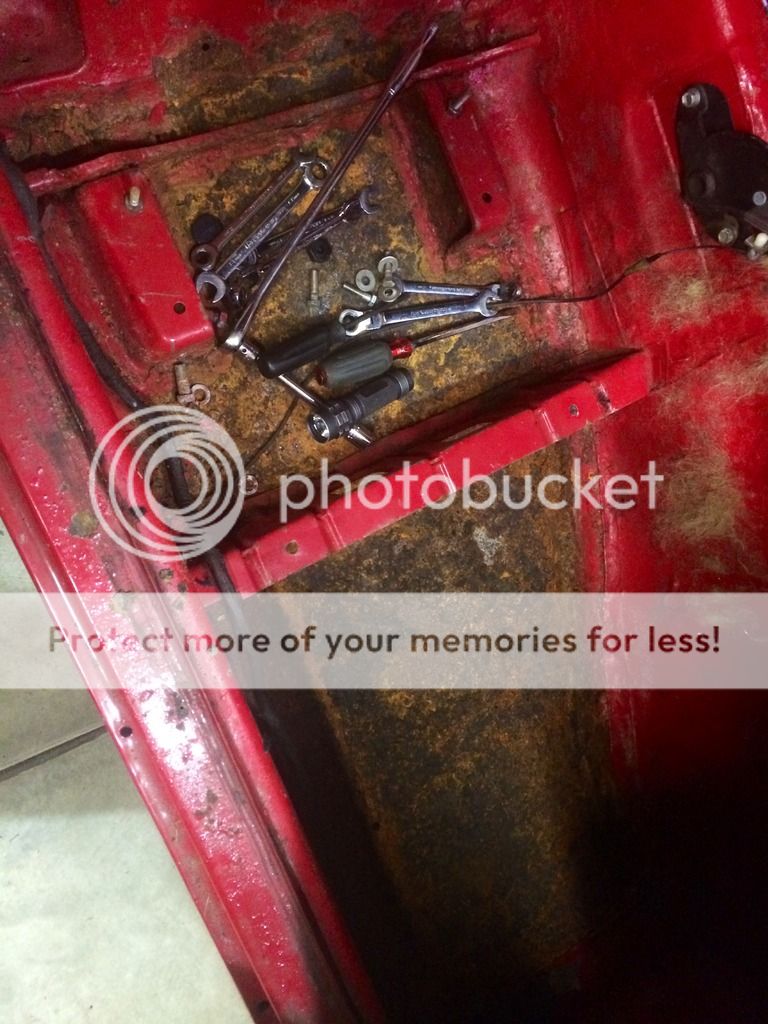

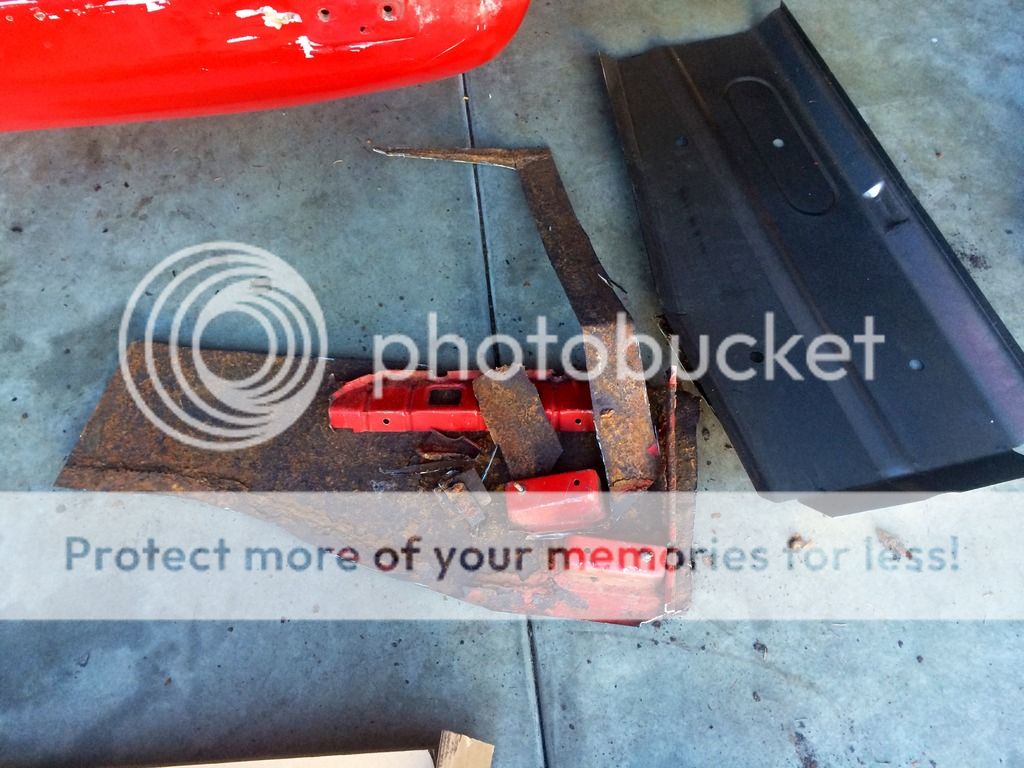

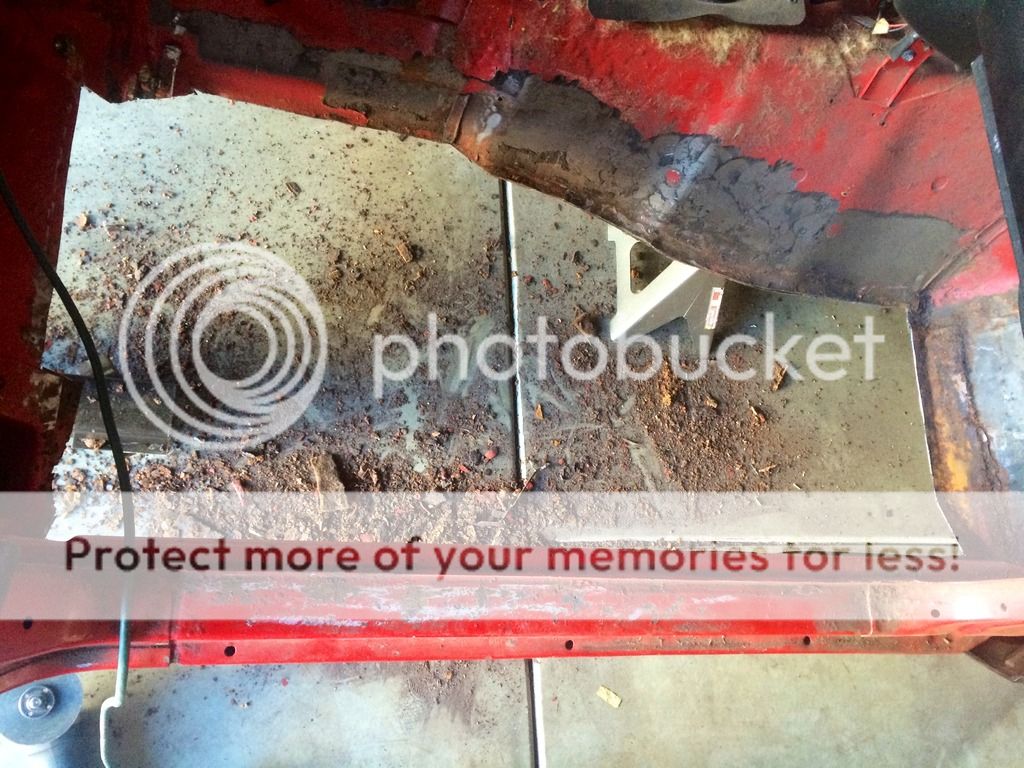

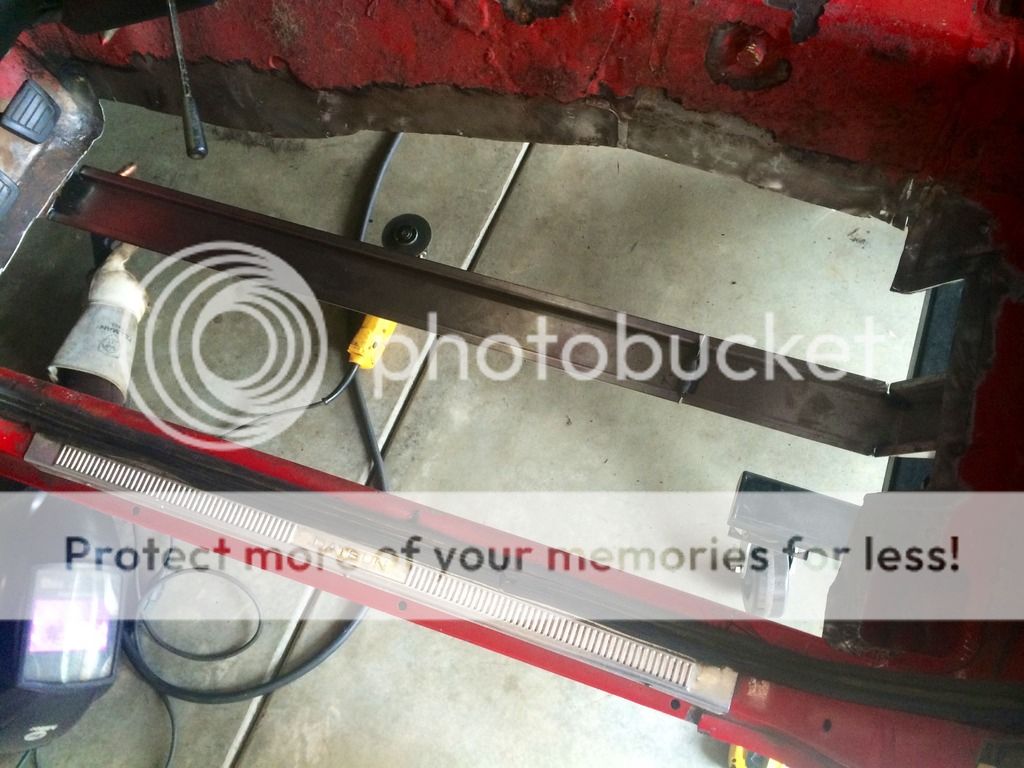

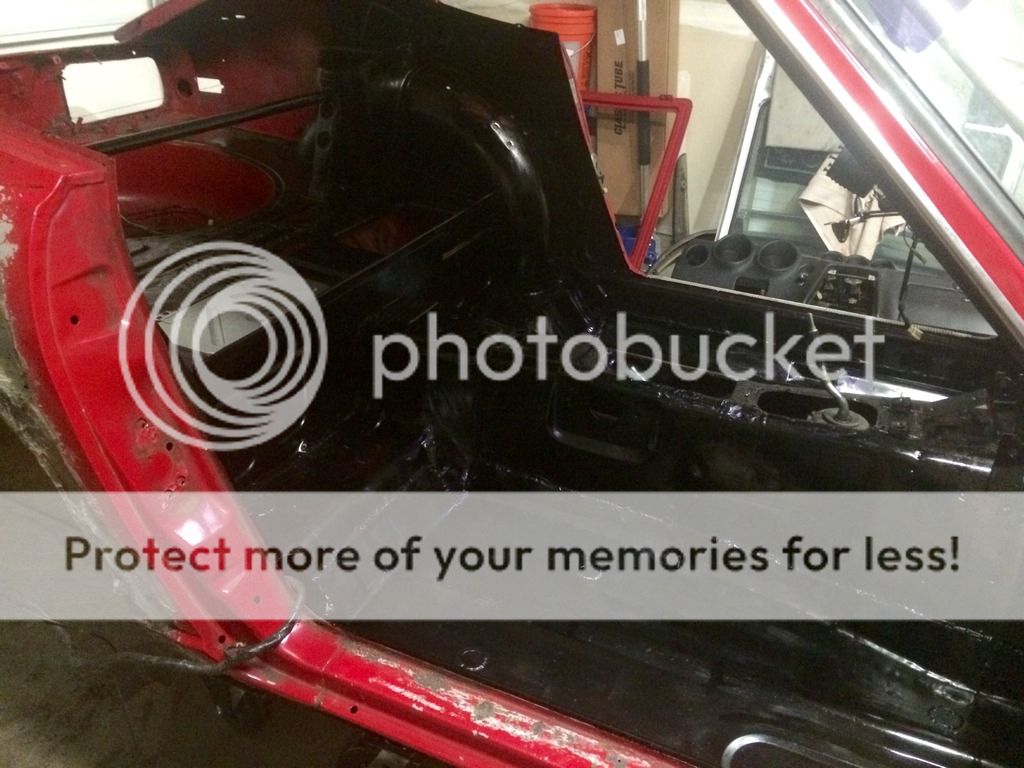

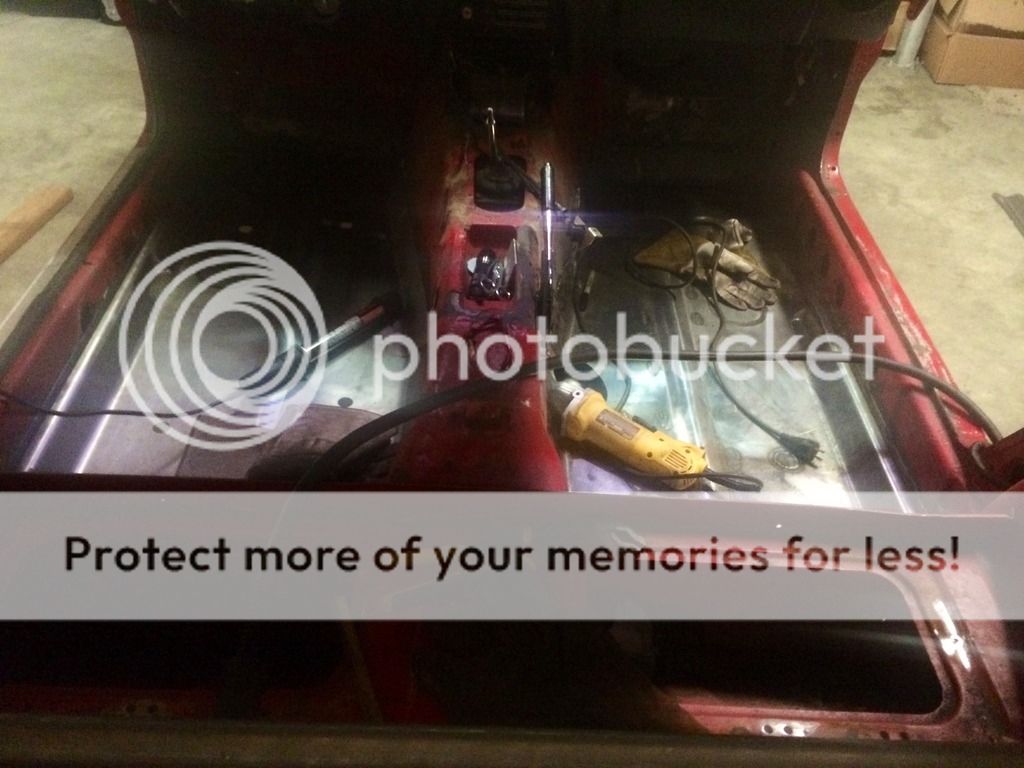

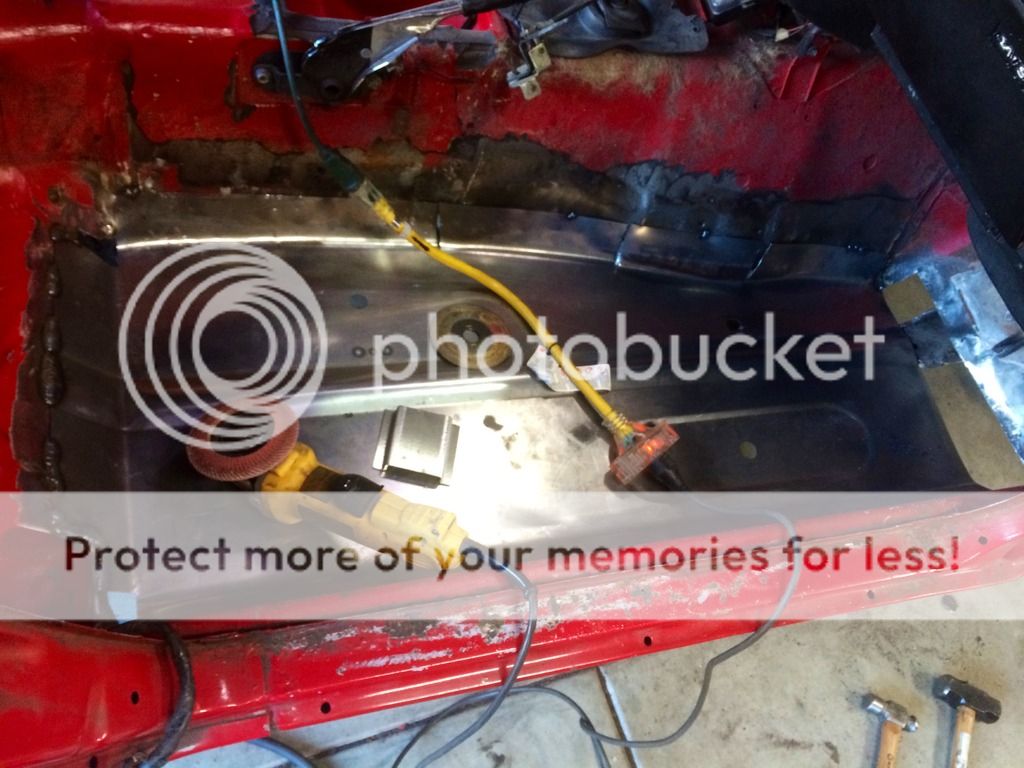

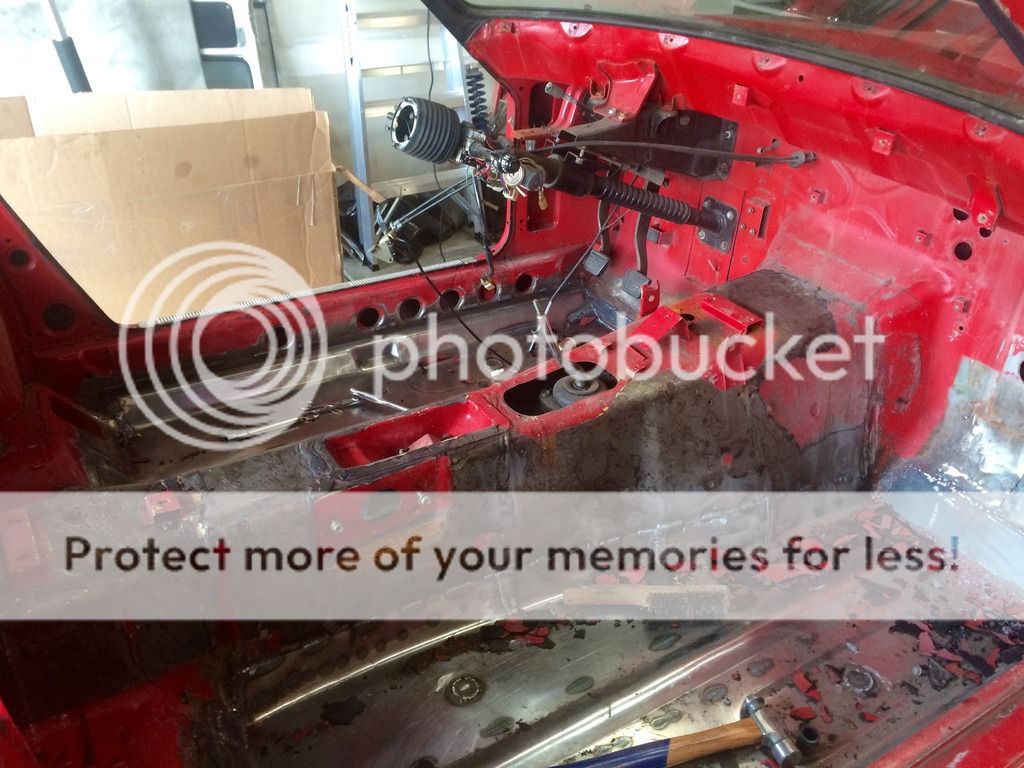

from there i tore the rest of the car appart to see how bad rust issue was, ended up doing floors and frame rails.



D9B56B2F-DBD8-43CA-86EF-78DC5FFEE5C5_zps0D90DF36-5B4E-43CB-BB8E-520D3E253DD1_zps50783C72-5E38-409F-84A4-30351E0C3569_zps5624BC3B-684B-49EE-B2C9-8695C7E50DBB_zpsEA74F4FC-17AD-4FA5-BF9F-2D872177D8F6_zpsBA44E8C4-63D4-425C-8C91-08CAFE21AB4C_zps6B3AF896-2A6B-434B-955F-90ED1A9E9A1E_zpsF726F685-E804-4B2A-A33B-8027A4E4B4BF_zps



#4 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 20 October 2015 - 07:11 AM

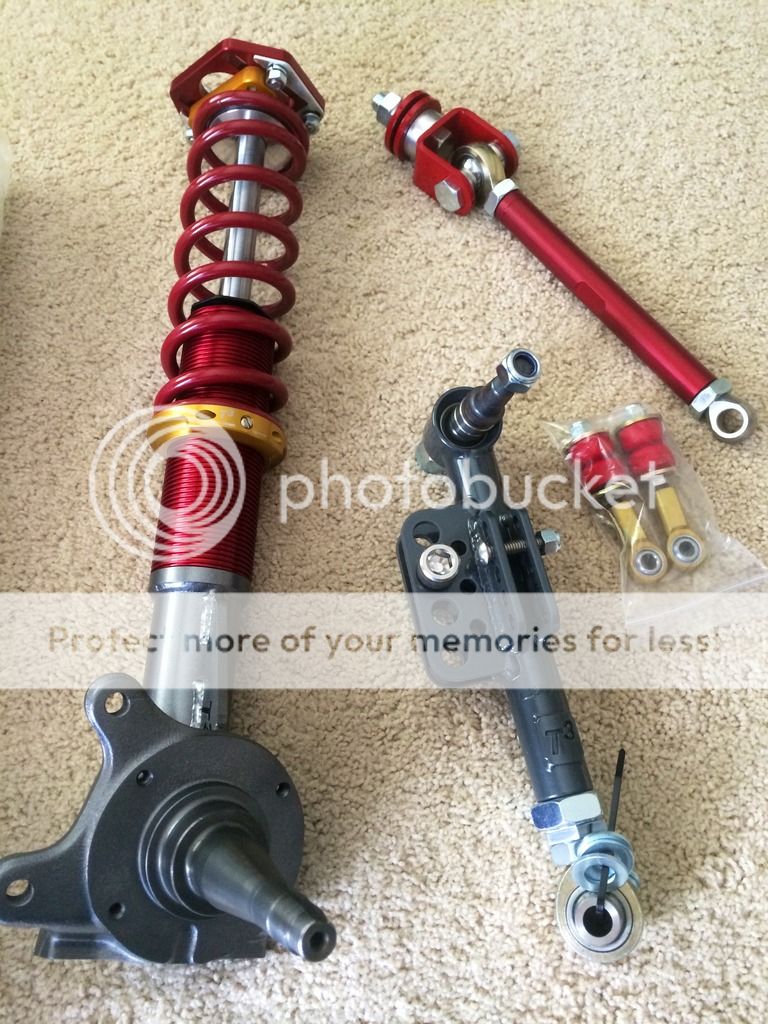

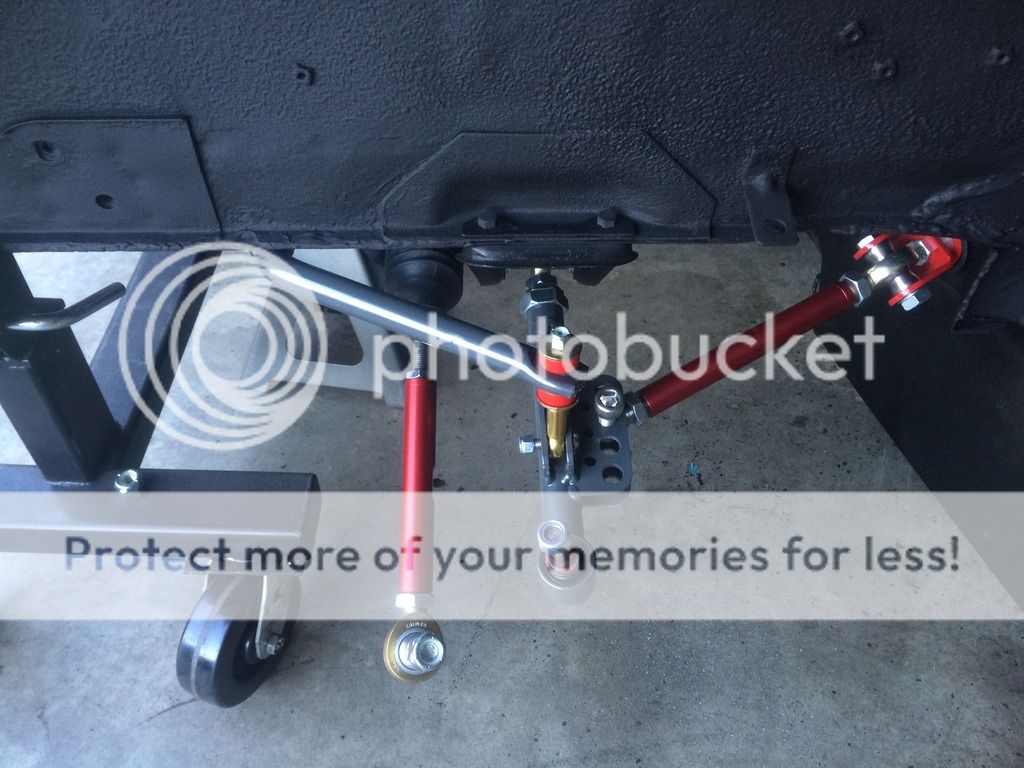

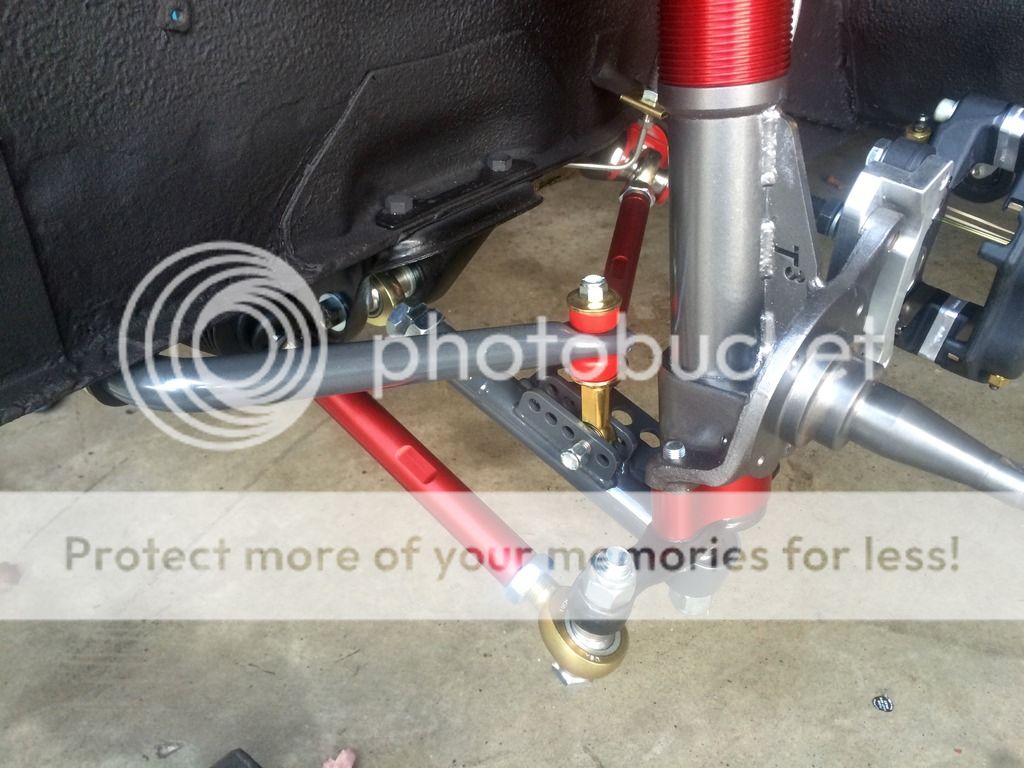

at that point i started ordering parts, full suspension, brakes, etc.



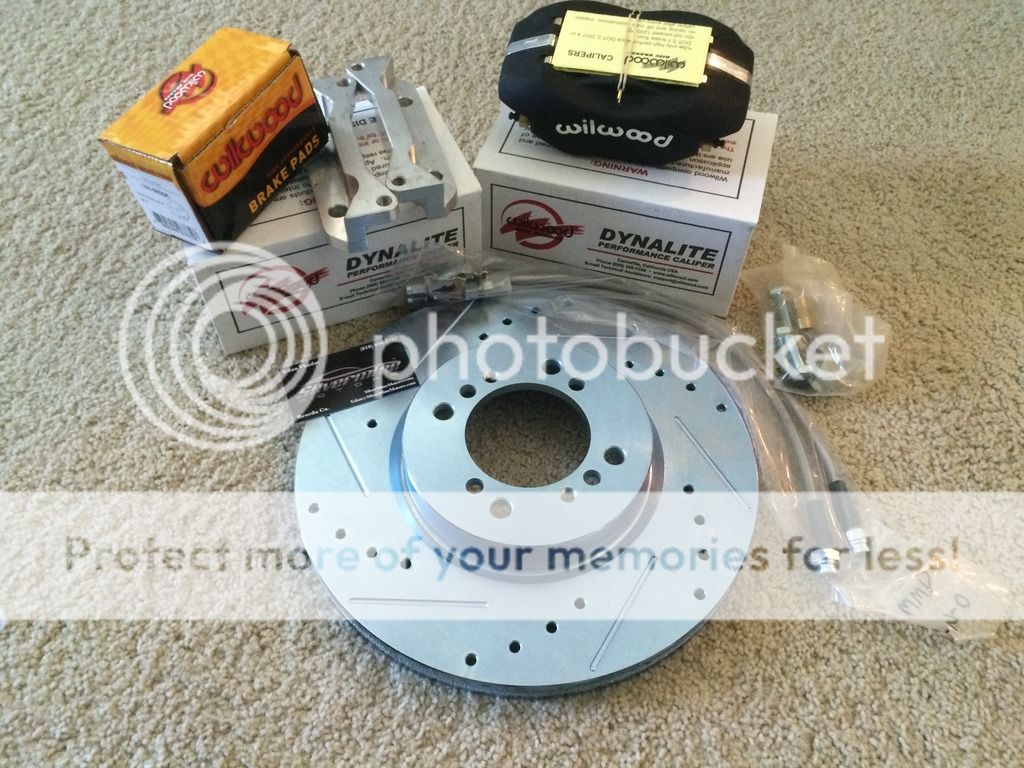

CF6C3A13-4063-4BB1-8DB8-EE2DE7D8C3EA_zps

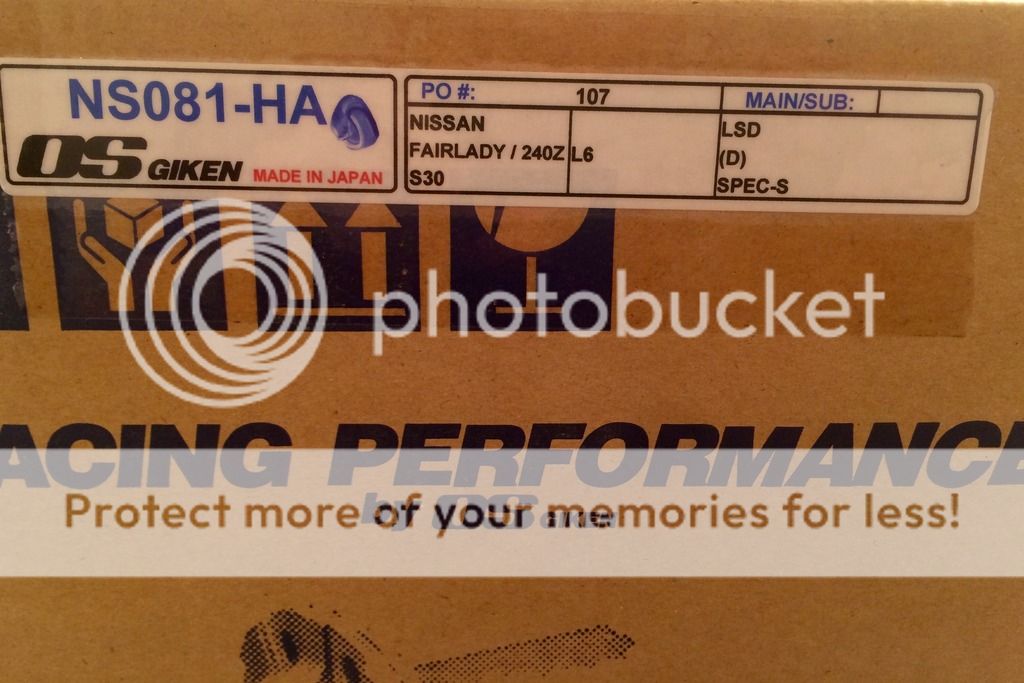

605D8A2C-EE87-4371-A85C-A9390E50A63B_zps01FB4393-7B06-4012-97BC-5D0F455CC7CB_zps

CE68E091-DCEA-49C2-B8D9-2E96F1813952_zps

CED61431-40C0-4DD1-882C-5D580470064C_zps

18F61E68-F957-45FF-B9DA-AB36D6925FA8_zps

268FA861-1C96-4995-8B50-0556F943AF4D_zps





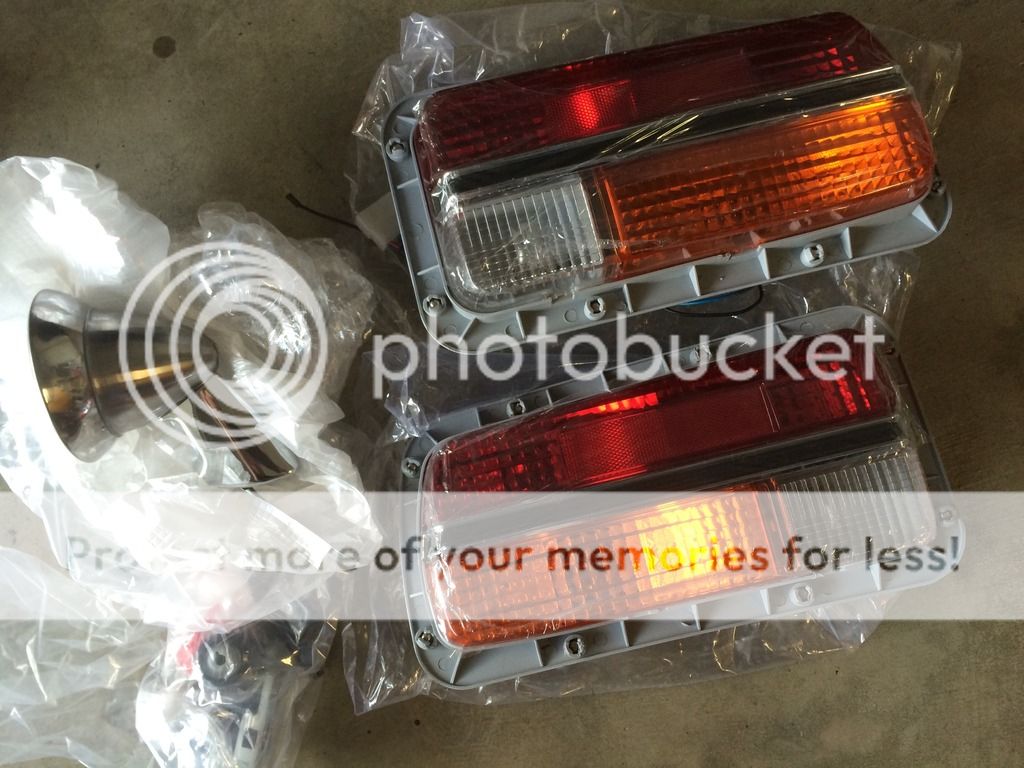

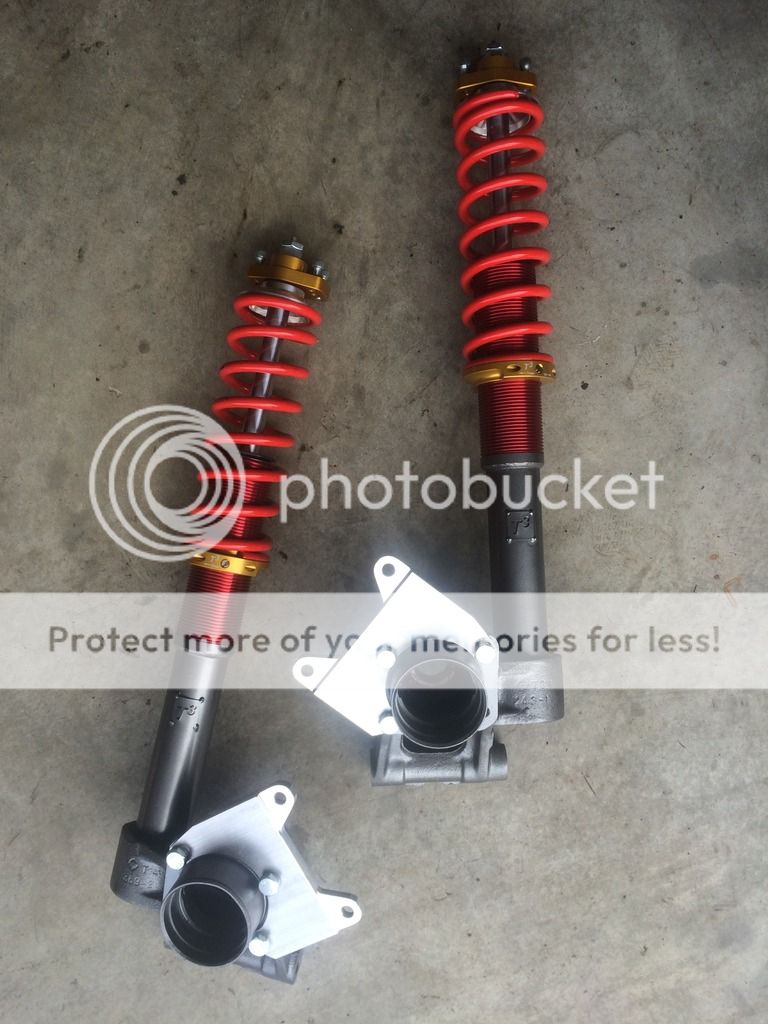

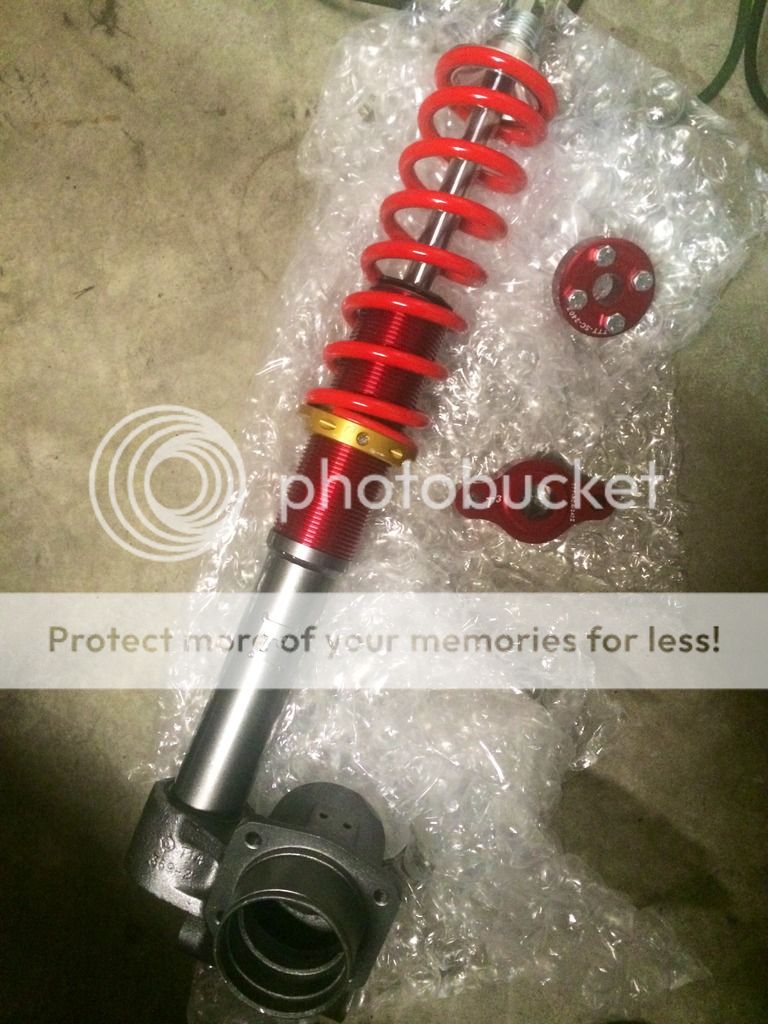

all of the suspension is pretty much from techno toy tunning. Summit racing heater, JDM taillights and mirrors.



#5 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 20 October 2015 - 07:49 AM

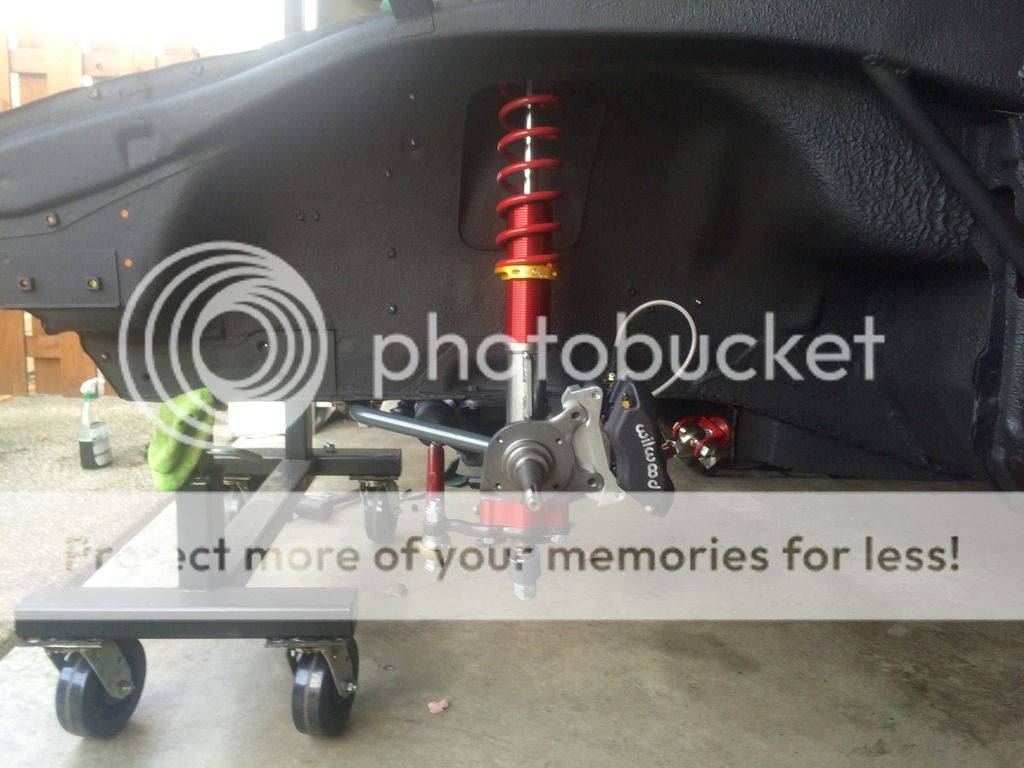

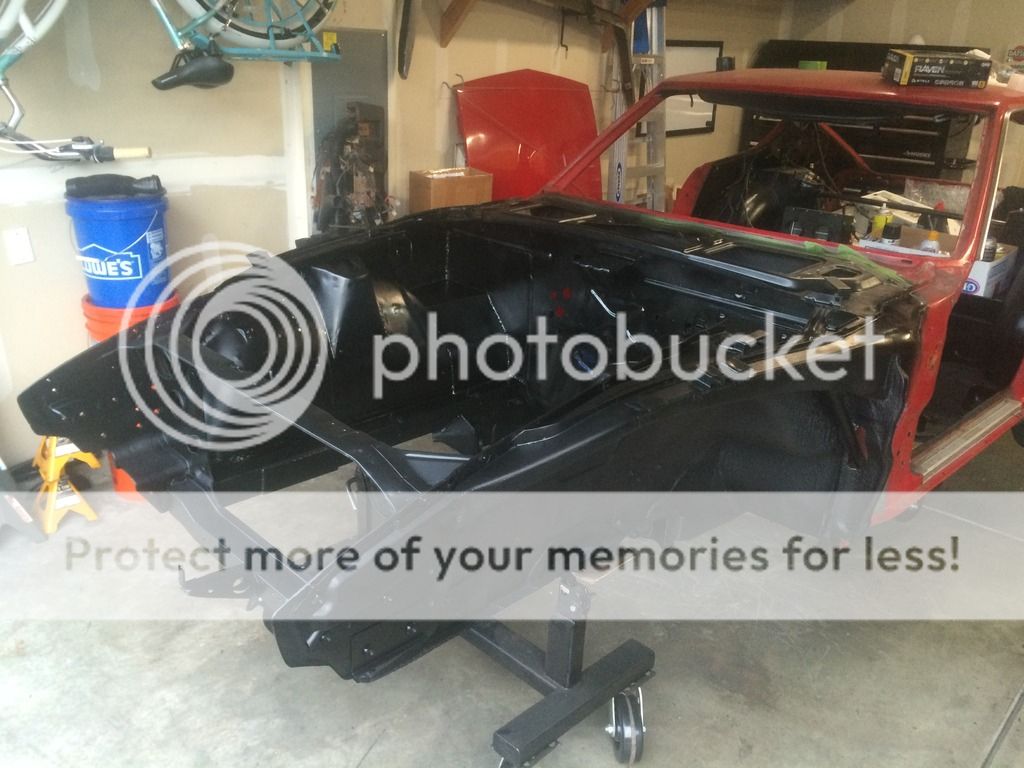

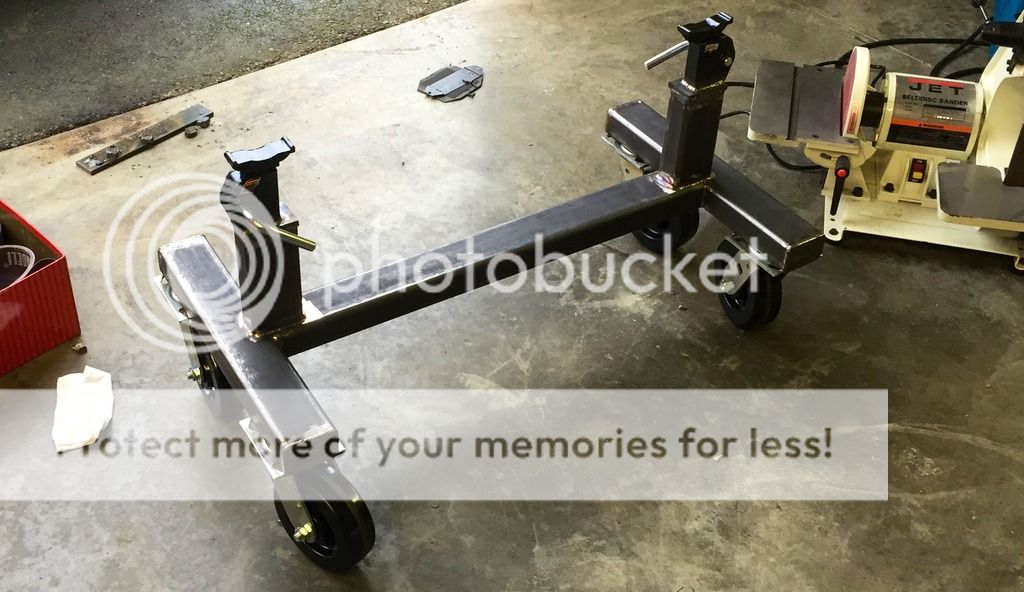

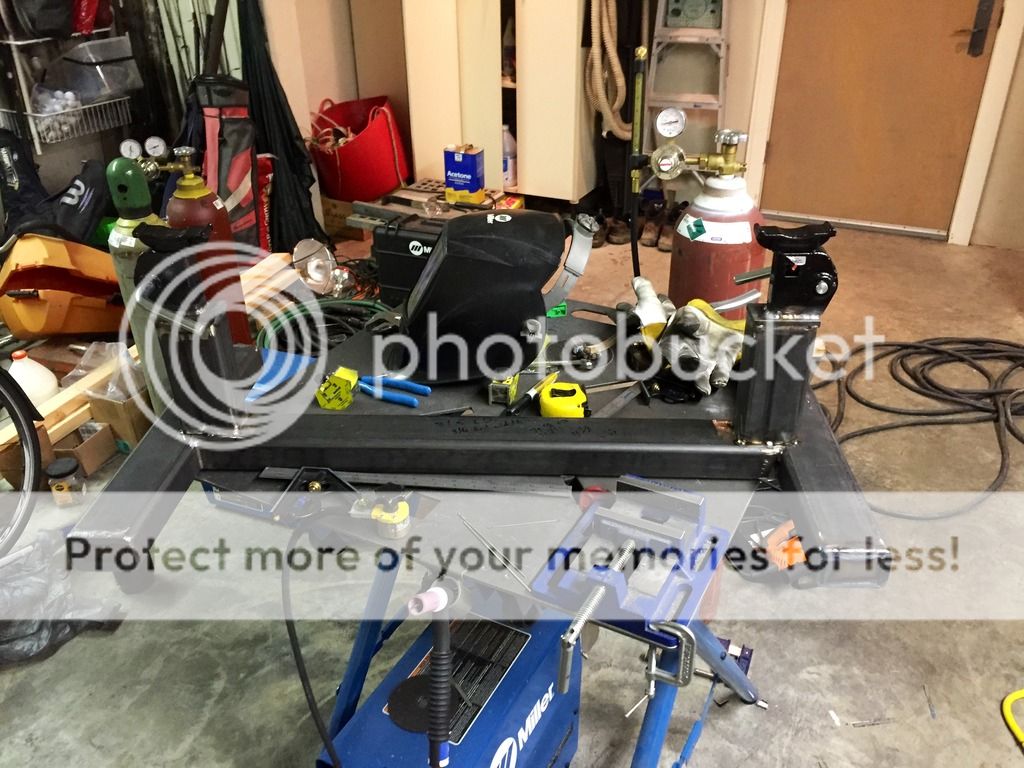

after that we built some rolling stands to make it easier to work on in the small garage



44E8EF6D-3158-4BB5-93AB-0CBE9BA14EC0_zps

01C6193A-42AC-42D6-9693-1E2C2B6B7108_zps

E58F1C4F-6934-4057-93FE-735A3D84BBFD_zps



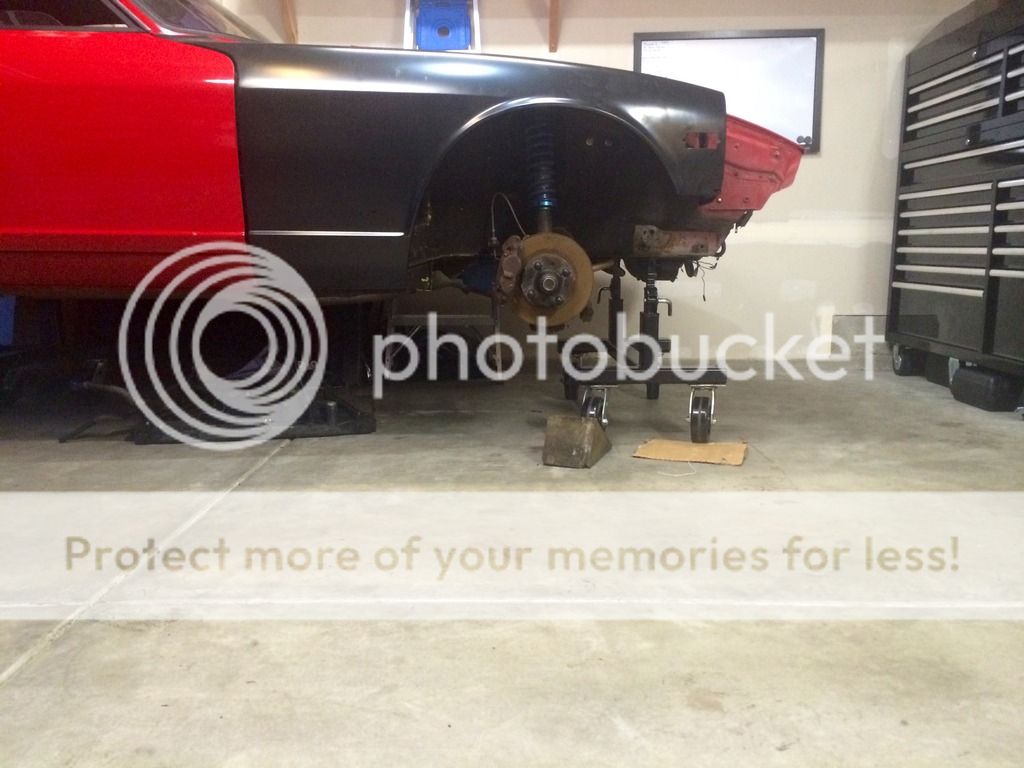

Oh I got new fenders too.









From there i started working on the rear end



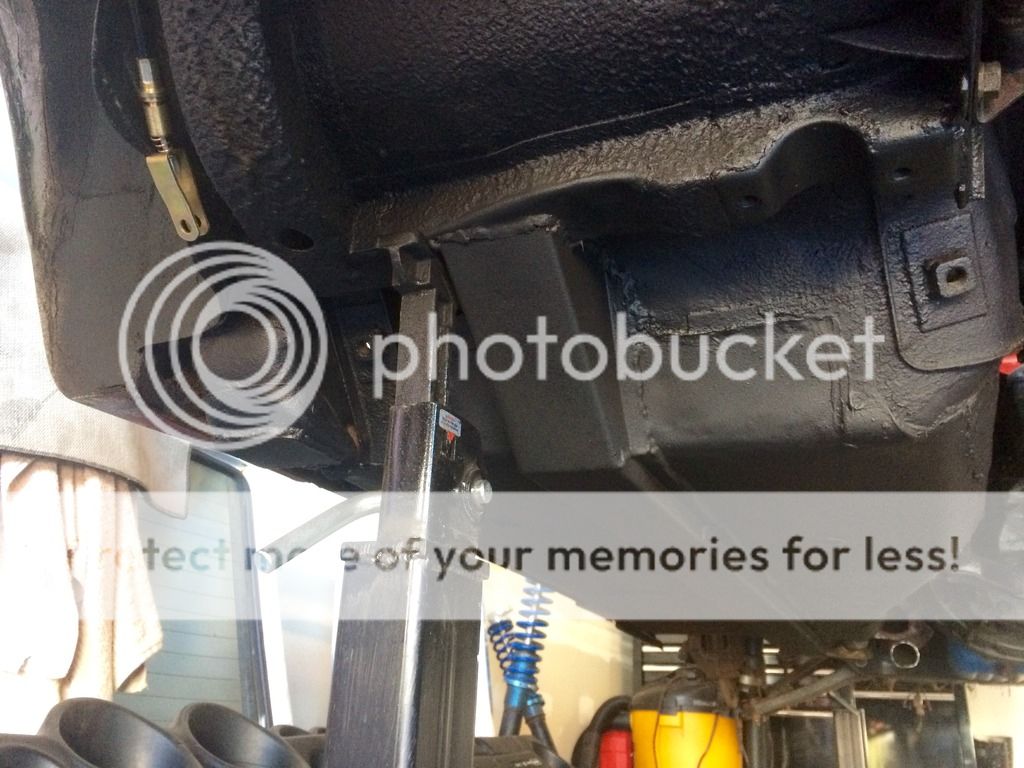

100B1B3B-31FF-465B-8667-9C5D090BA1D1_zps

E0456E22-2D48-4C8A-8202-0F1EE947BB5E_zps



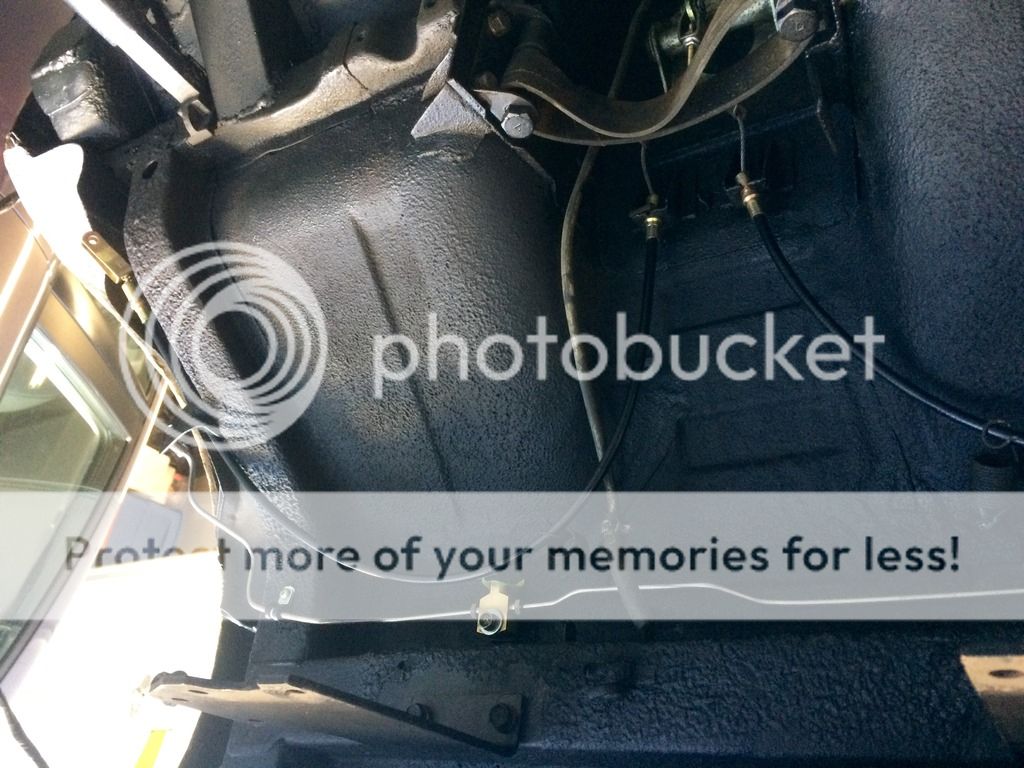

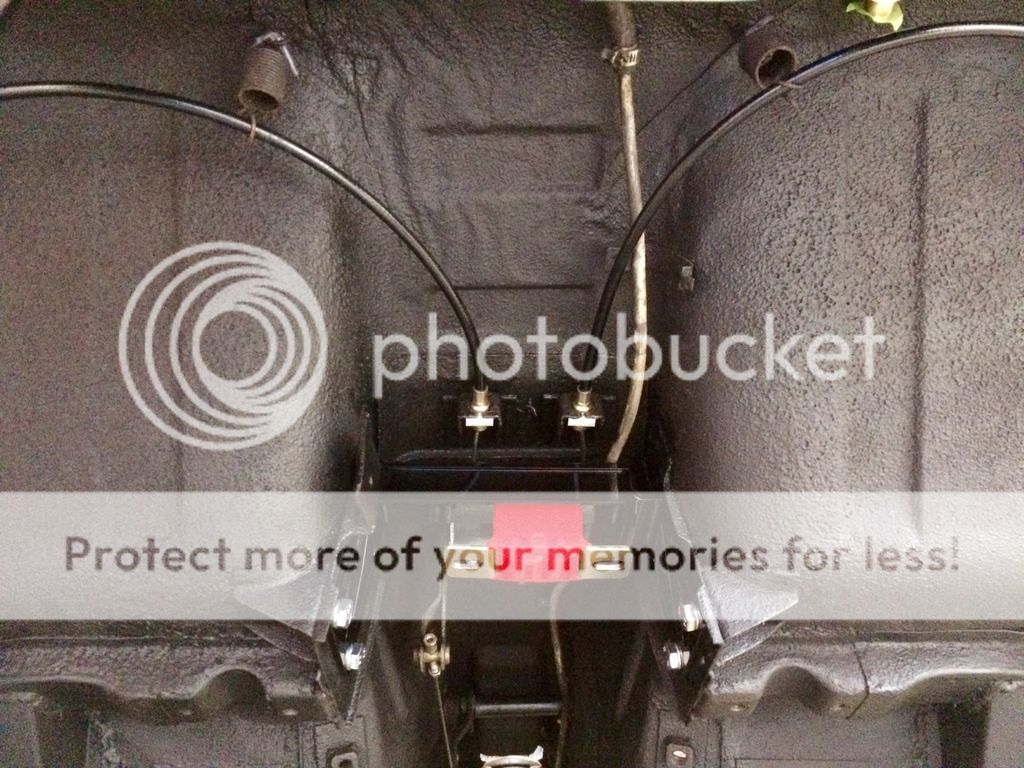

all brand new SS brake lines



3687BC3E-79BF-48D2-98C4-13323AE63373_zps

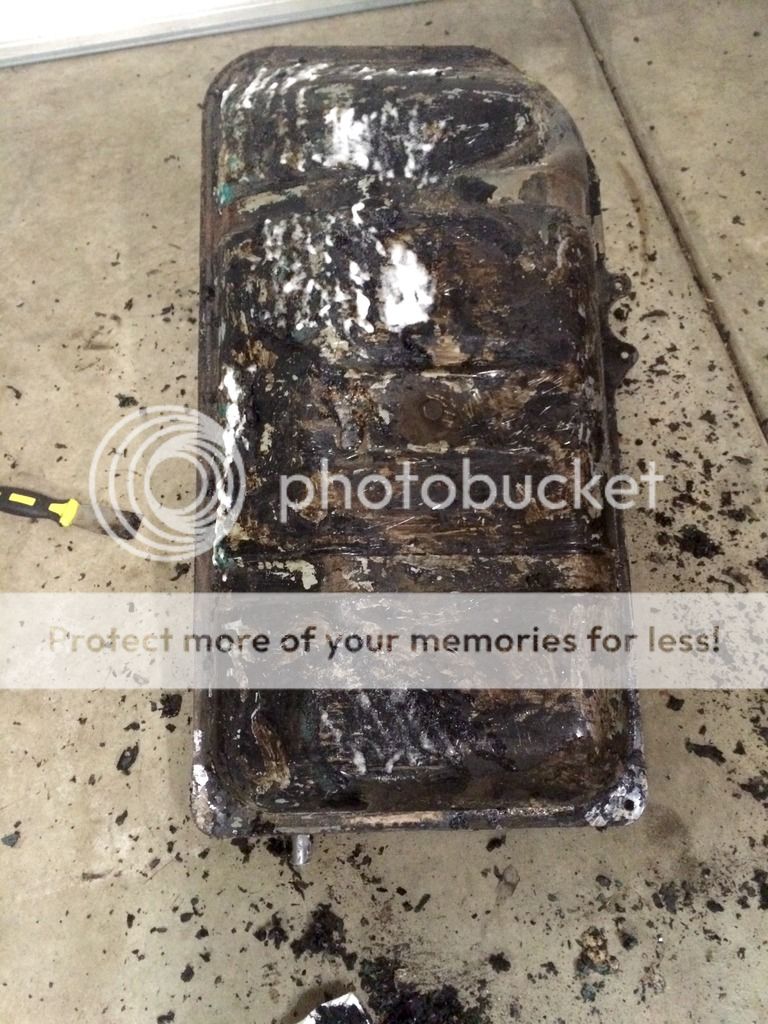

ED4B1A07-C699-4CDD-A81C-0D65FA6A5F1A_zps

EB1BEB8B-B9C0-48E7-908B-E7BF18584F8A_zps

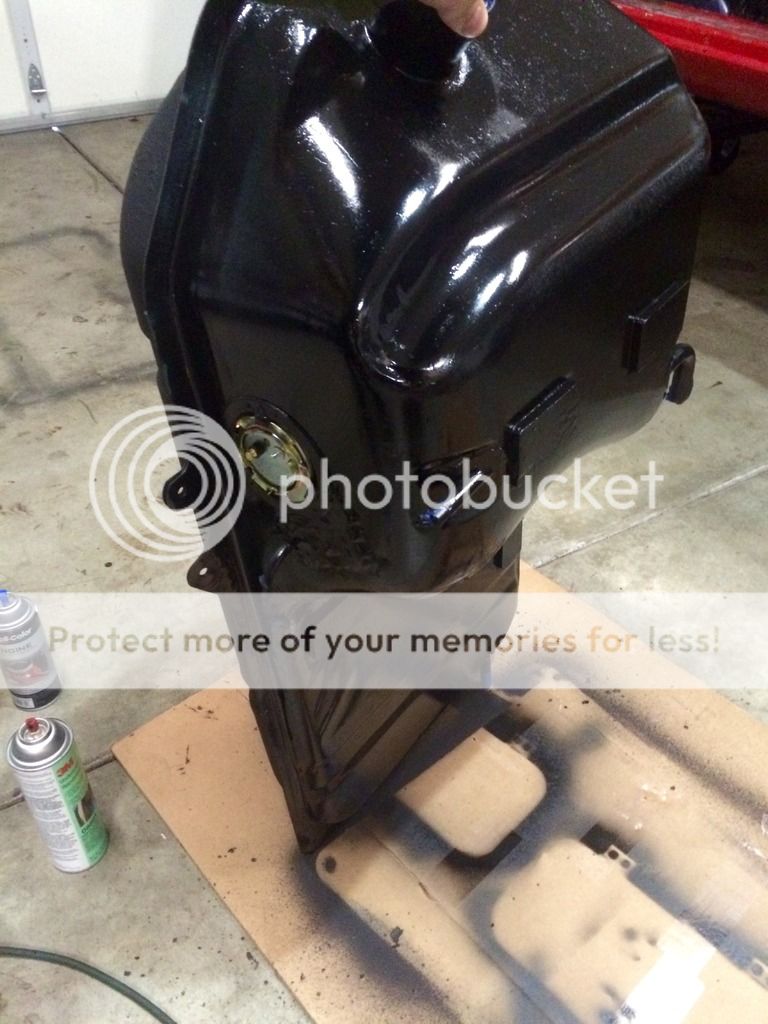

511E87BD-3D81-4AEE-8109-1DB1B5764DFF_zps





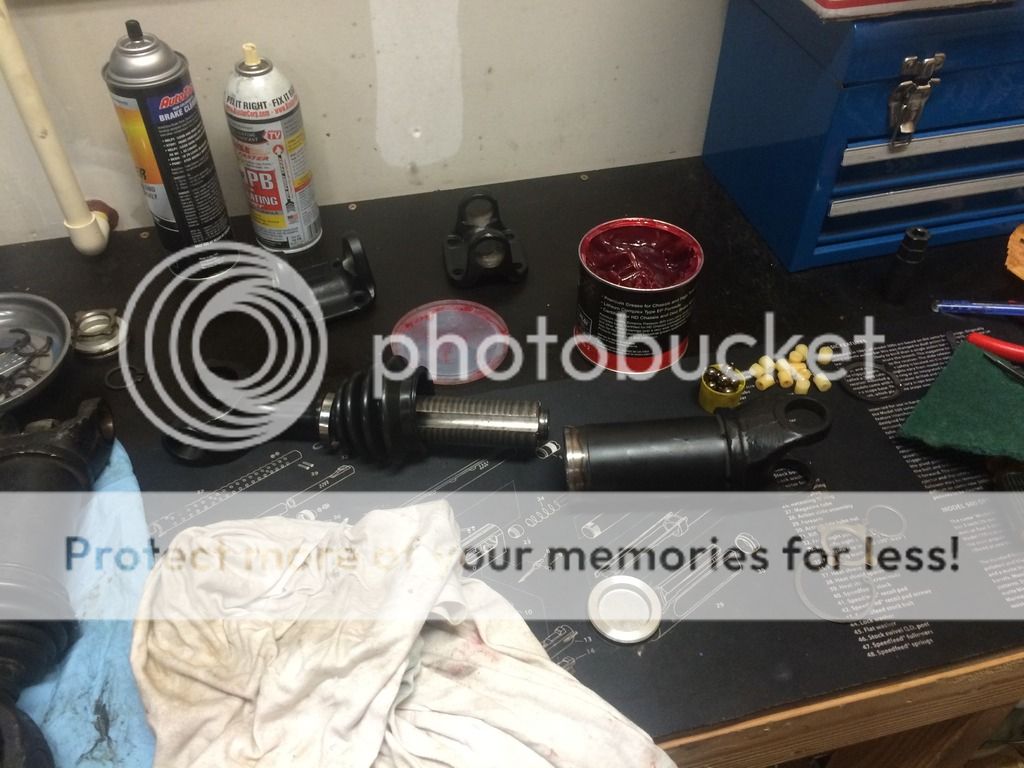

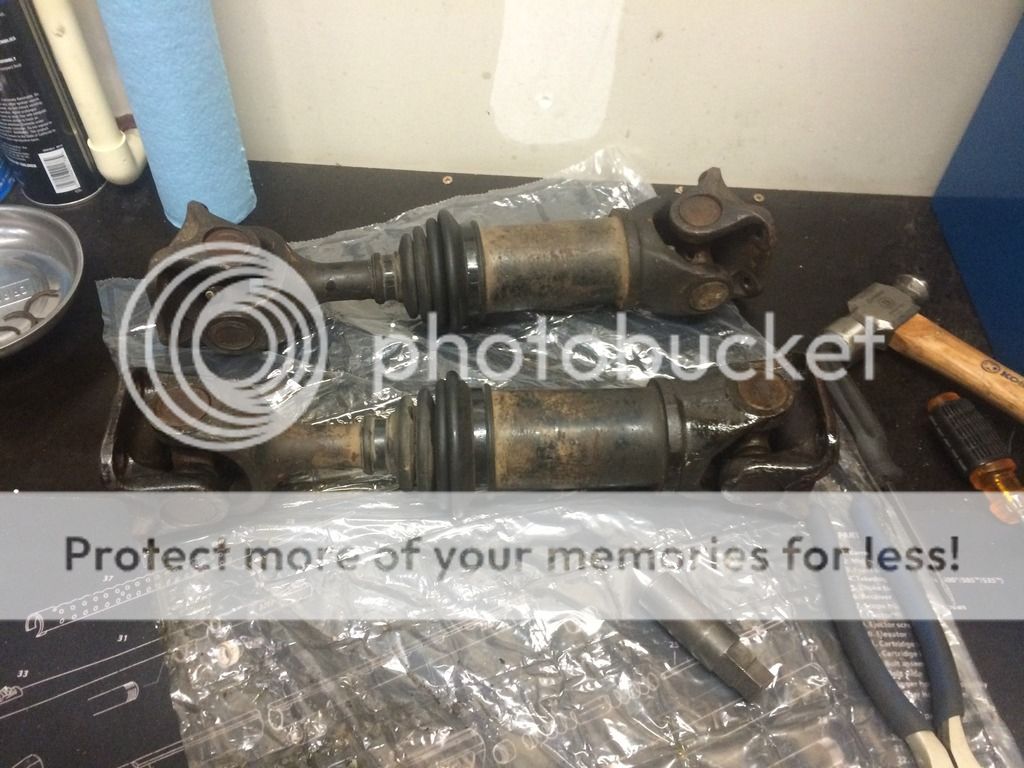

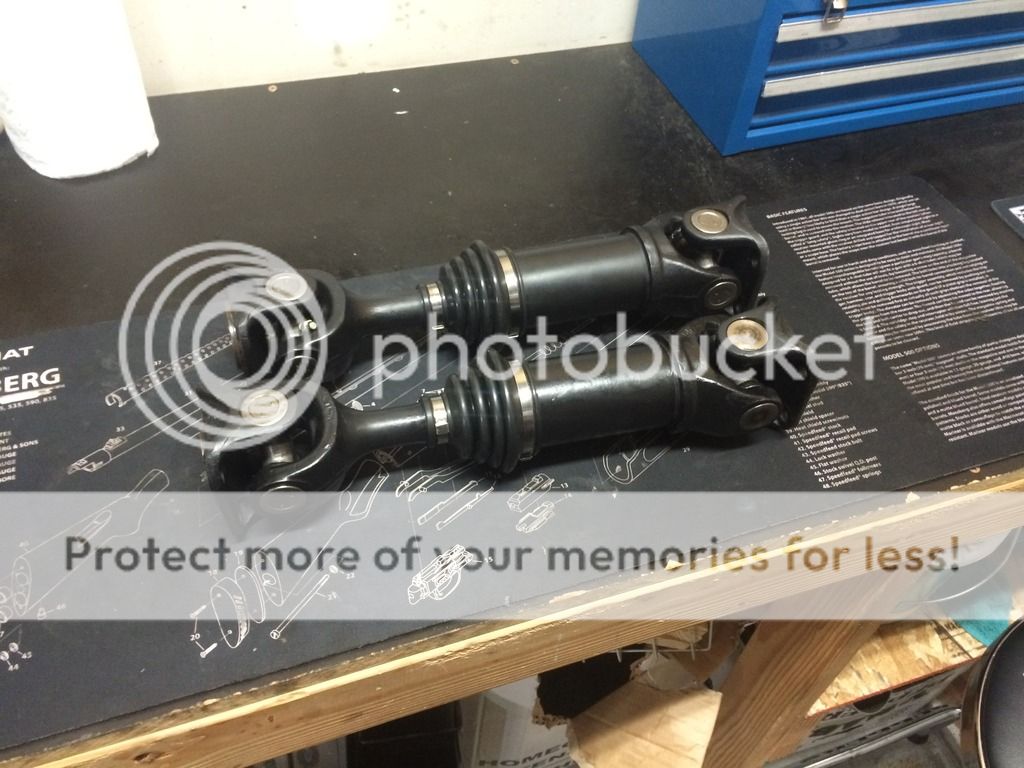

rebuilt rear half shafts



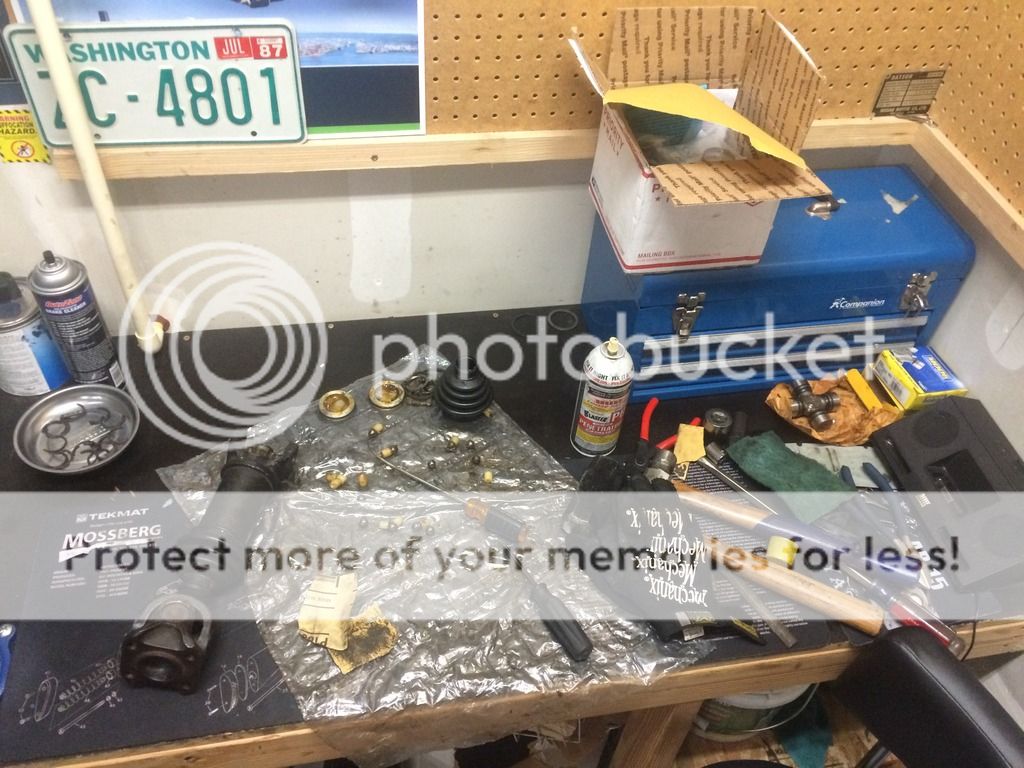

E5345A11-0FD7-4531-BF96-F0DDD493E1DB_zps

3B569980-C605-418F-9392-27AEAC58B150_zps

CD682C3E-1DE5-4778-8D43-8CFE31D7F8D5_zps

9130069C-D9F9-4581-AFB0-9F739EA04651_zps



#6 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 20 October 2015 - 07:54 AM

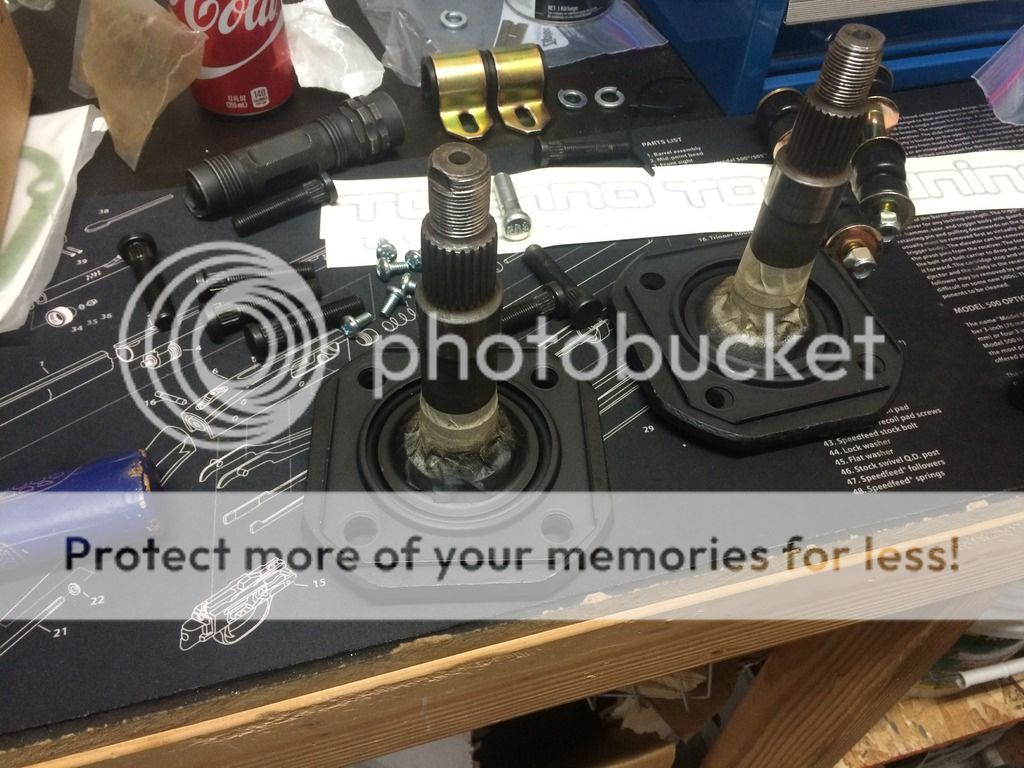

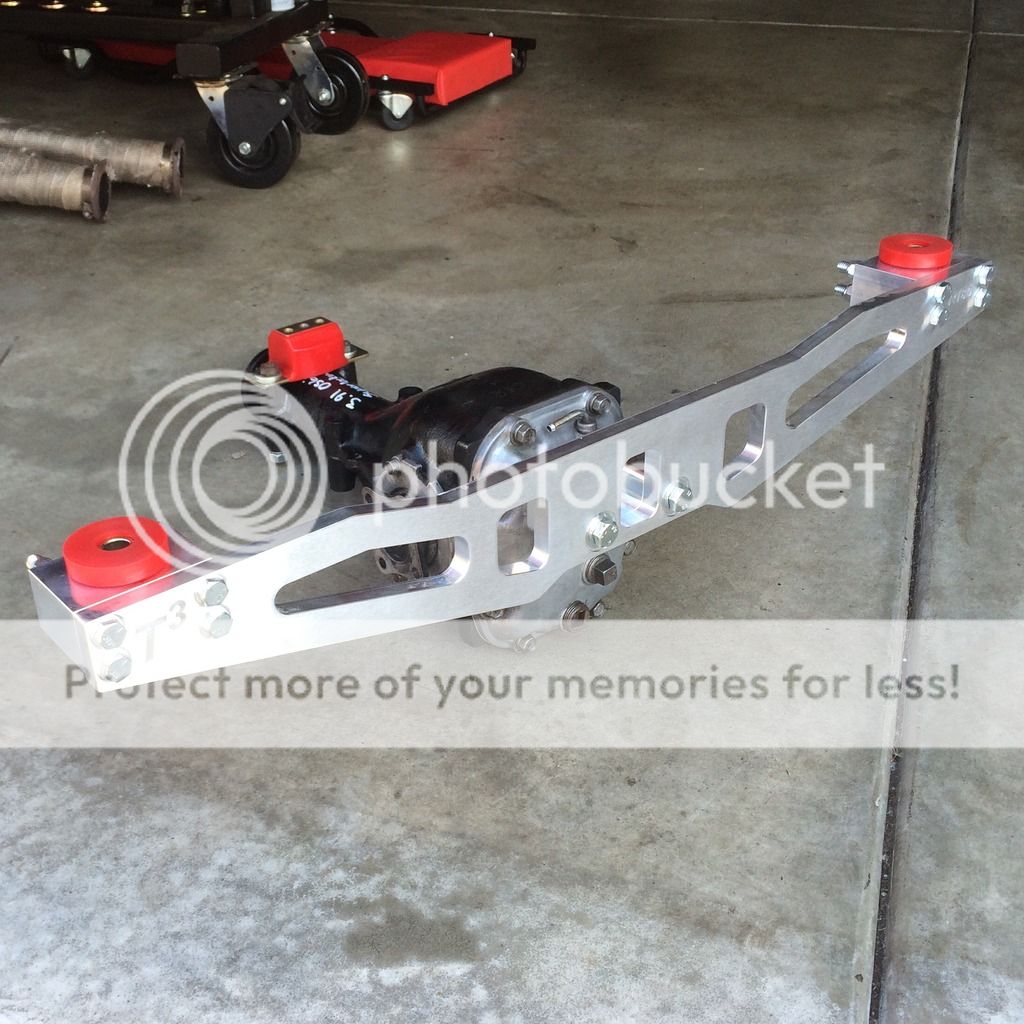

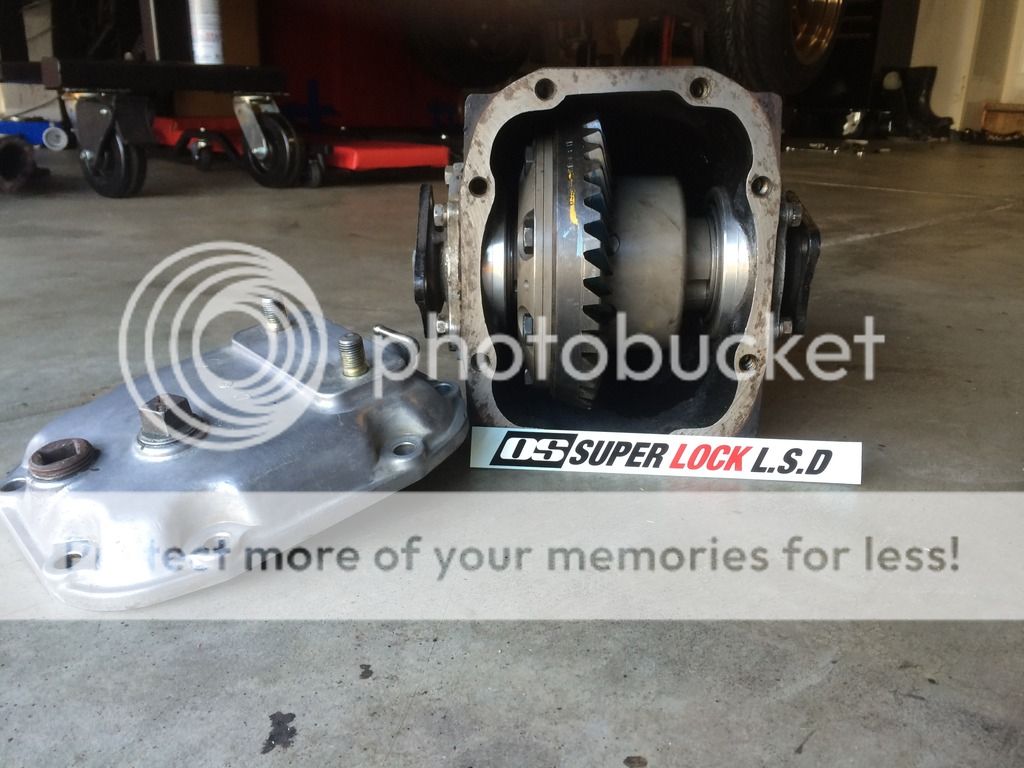

got a 3.9 rear pumpkin and put the OS Giken superlock LSD in



7038ED1A-F598-49D4-8B5A-2CC5399FFC1B_zps

97D6D5E2-73A5-4500-8EC0-36FB0C4C45C7_zps



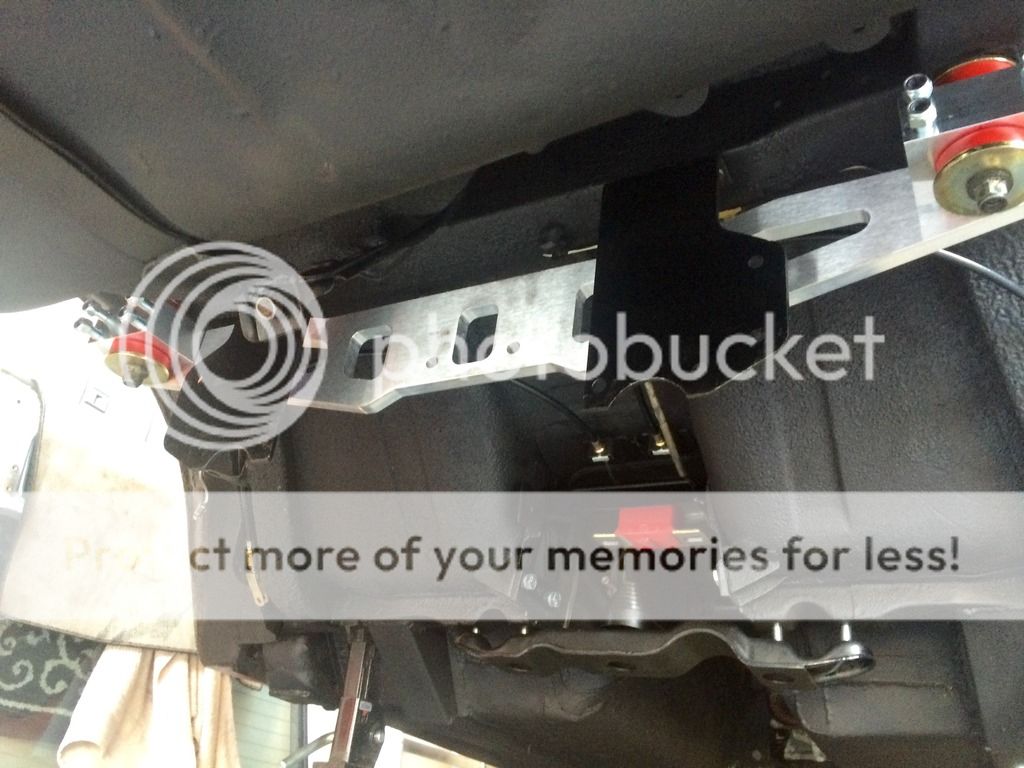

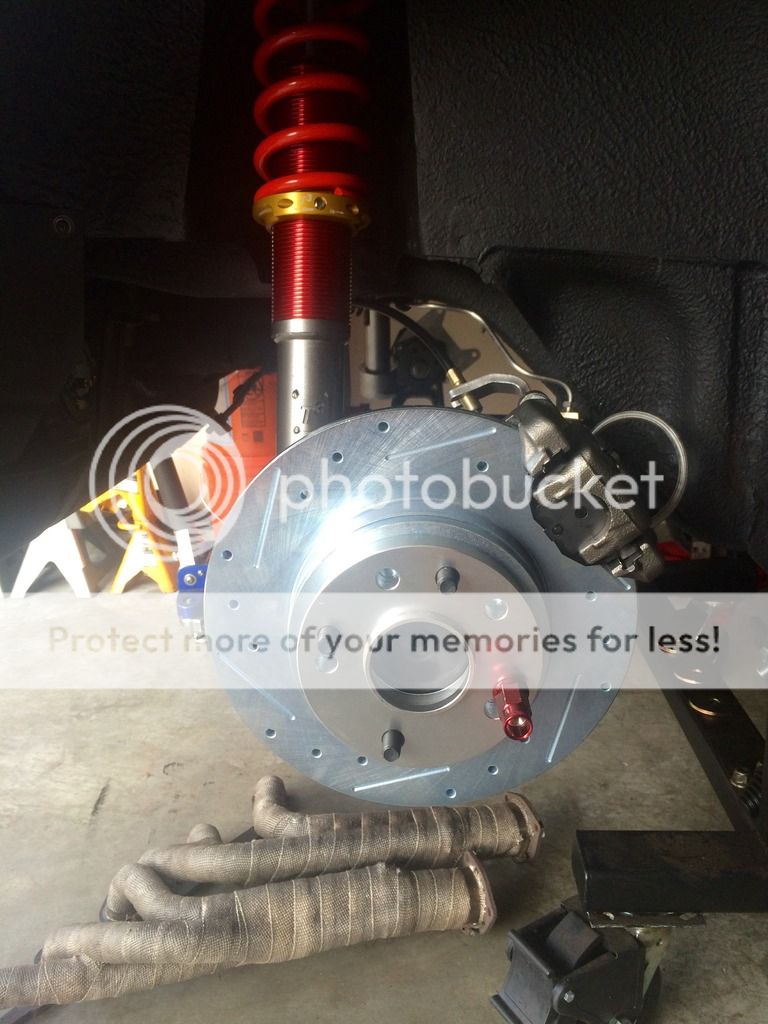

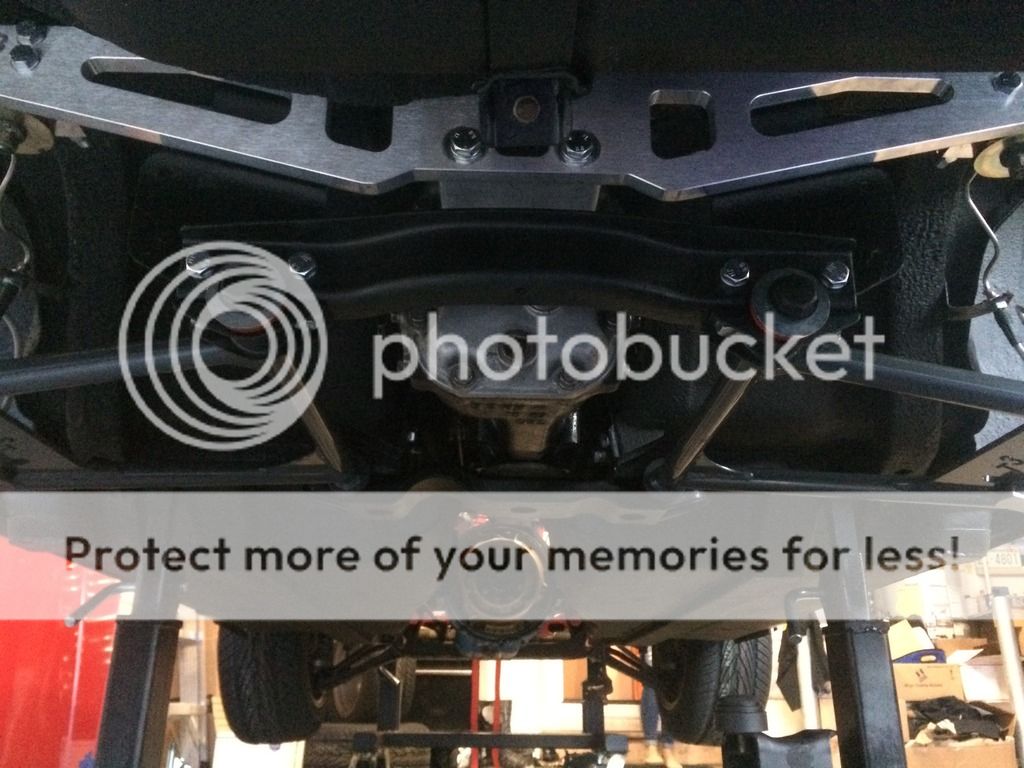

put the rest of the rear together



9EC6AB75-7D7D-4A0D-92F0-6C6A063D0C85_zps

60D3FE11-1B45-4F44-BCC4-3CDE58F96B7A_zps

A4E869A9-A4BB-4C90-A517-E280A030751D_zps

511E87BD-3D81-4AEE-8109-1DB1B5764DFF_zps

1976072D-BD56-43C2-AD48-7D166BCE5EBD_zps

3EAB465D-E4B5-4FEF-BD16-DB301FF9EC50_zps





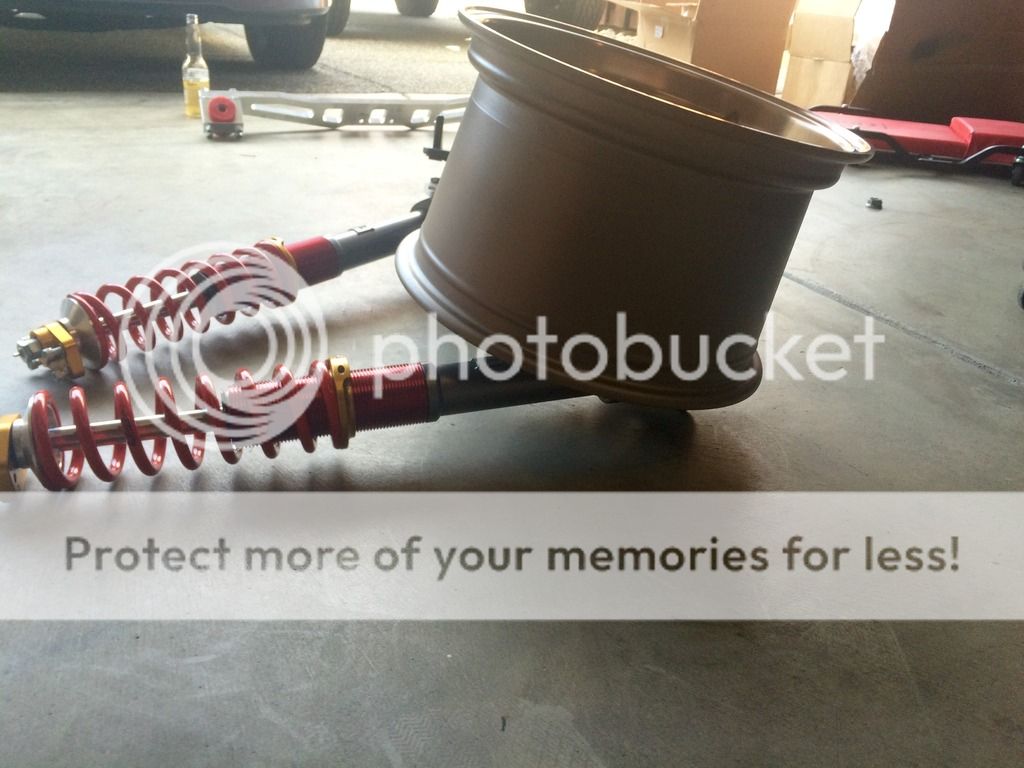

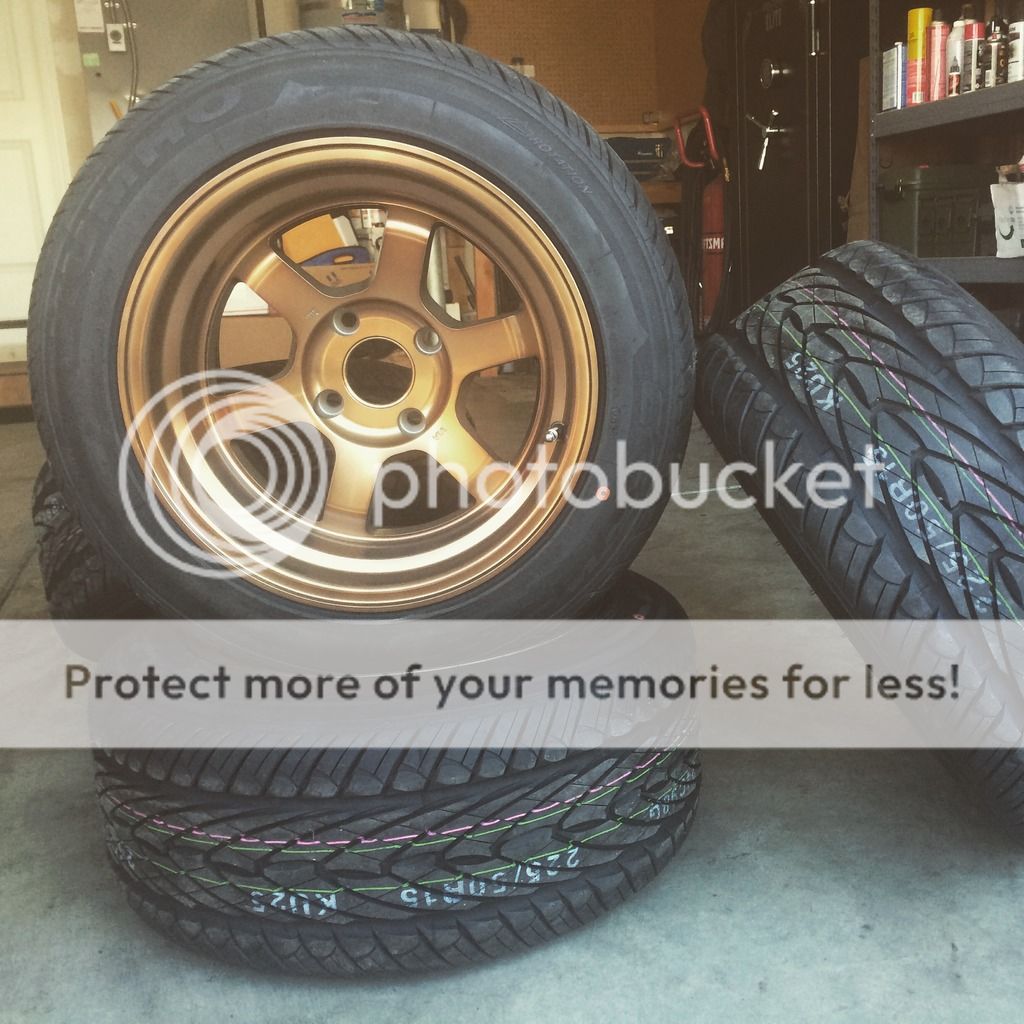

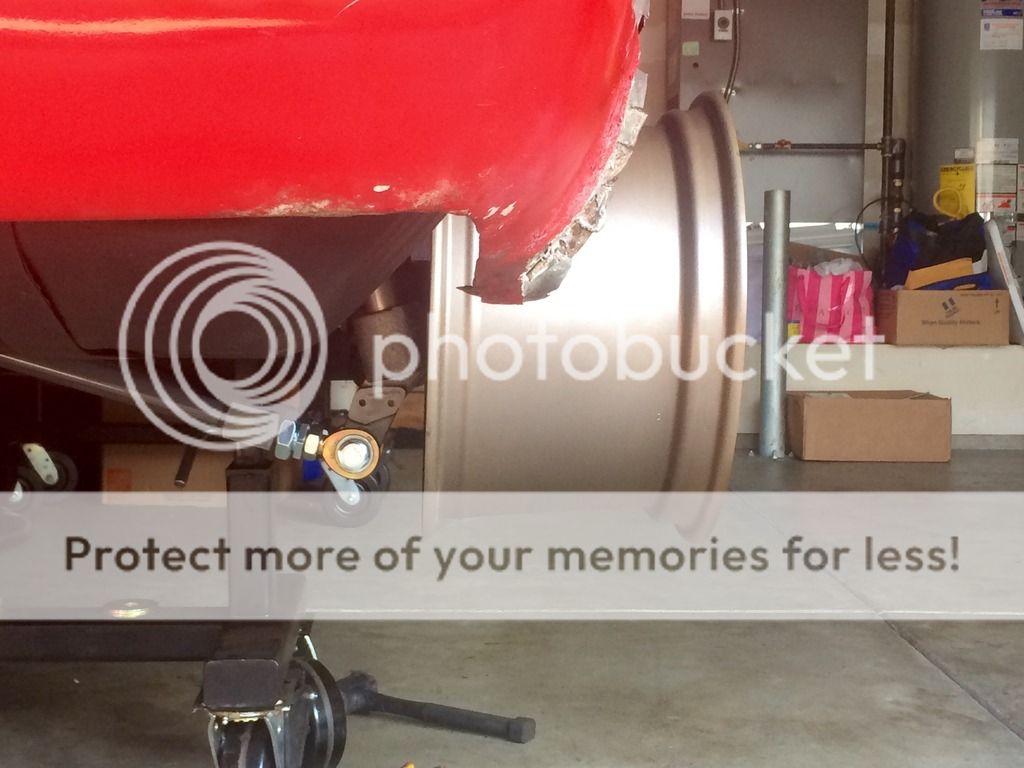

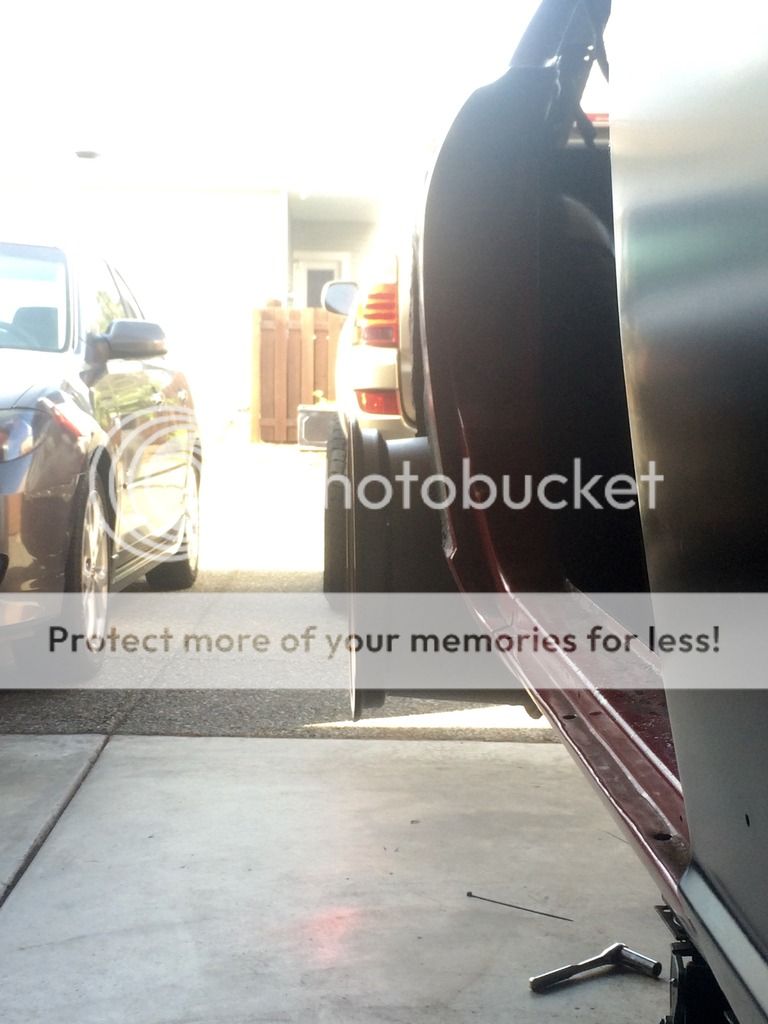

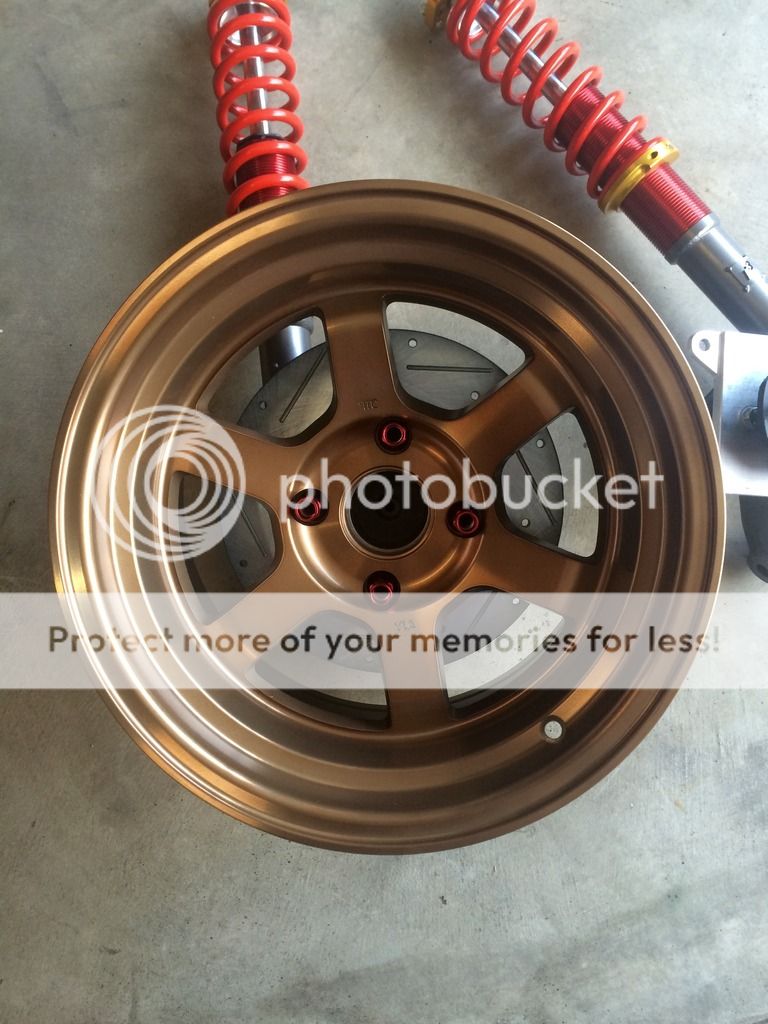

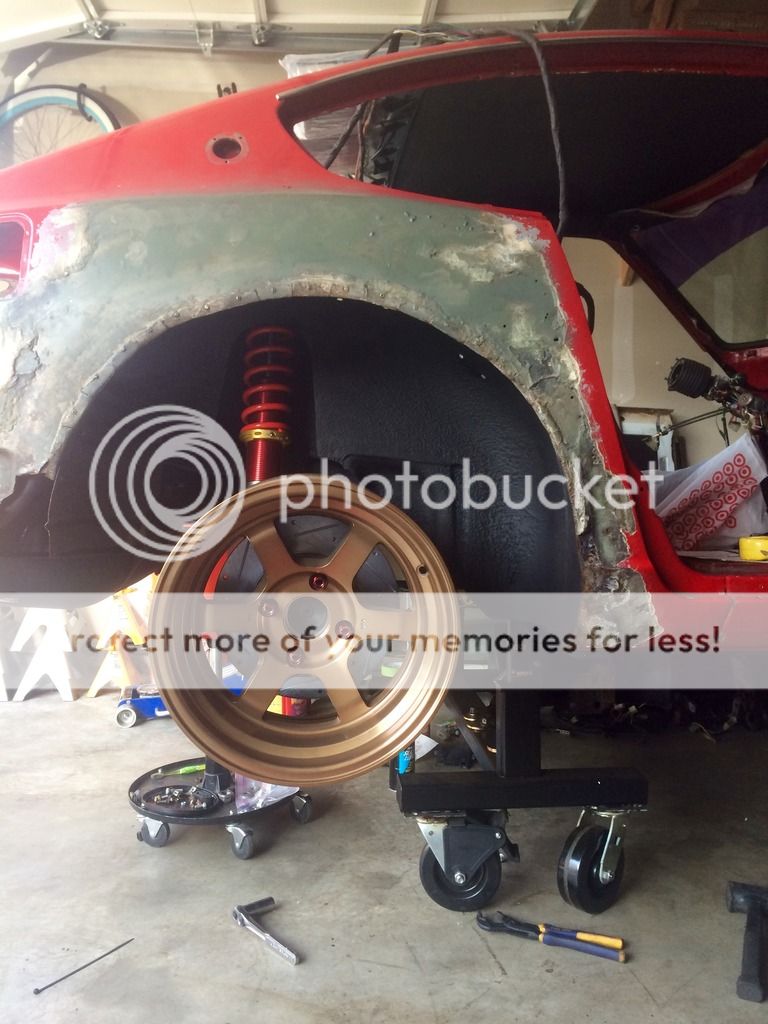

test fitting clearance on wheels



1558EC71-B135-4E2D-B62E-A2C07A241742_zps

7030AB06-1567-4DED-AB78-D759749BDACD_zps

0FC1D4A5-998E-4017-8F2F-9BDA9E94C020_zps

872E6756-D6B9-49DC-A823-0D4F7F23C84B_zps

AFC4F02D-17FF-4283-B687-8016B00C7B6A_zps

2D2F7D42-6506-4531-A9D0-FB0F3752AEB9_zps

817DD602-ABC1-42B1-9DA8-E8D188B1B2E5_zps



#7 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 20 October 2015 - 09:03 AM

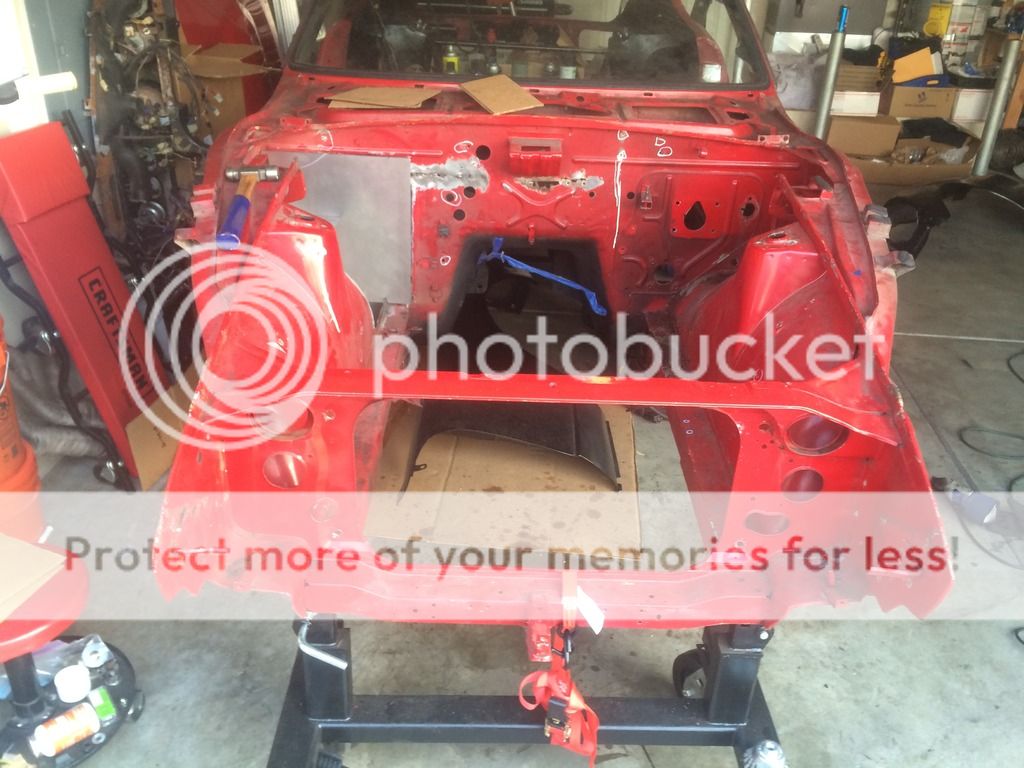

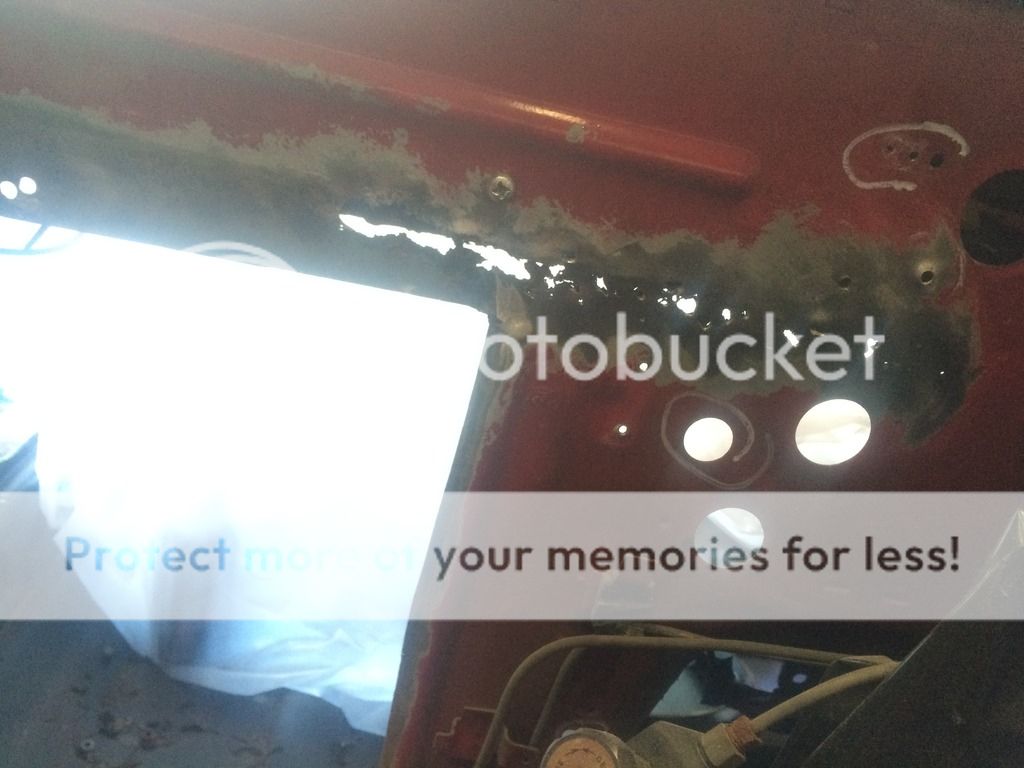

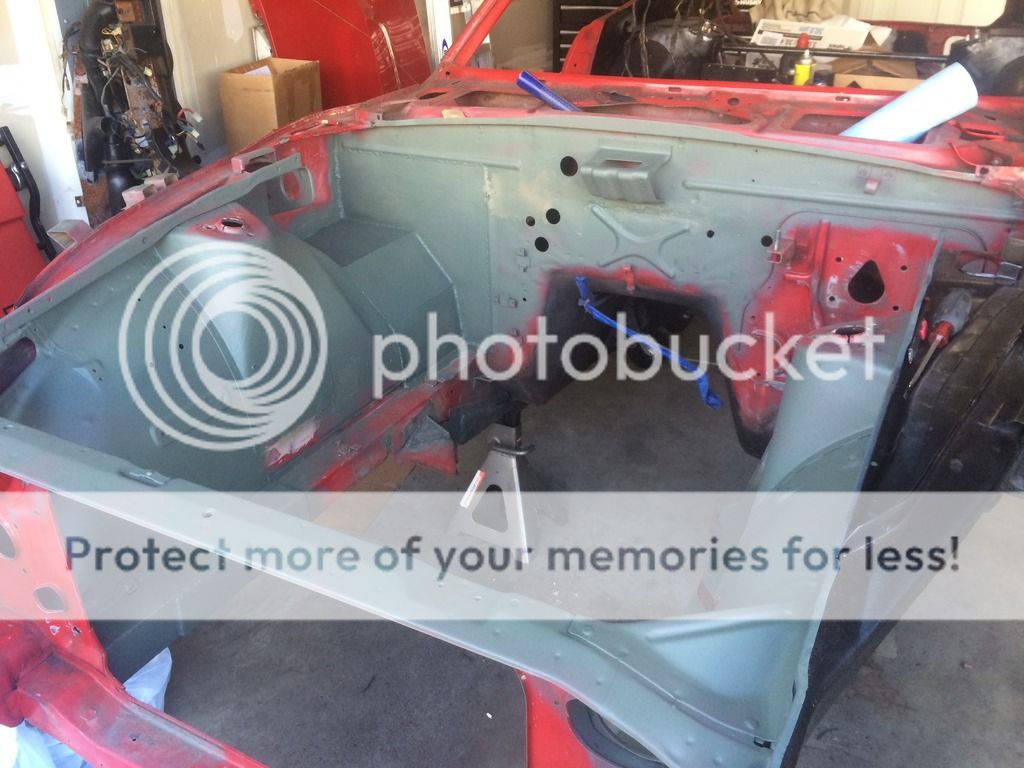

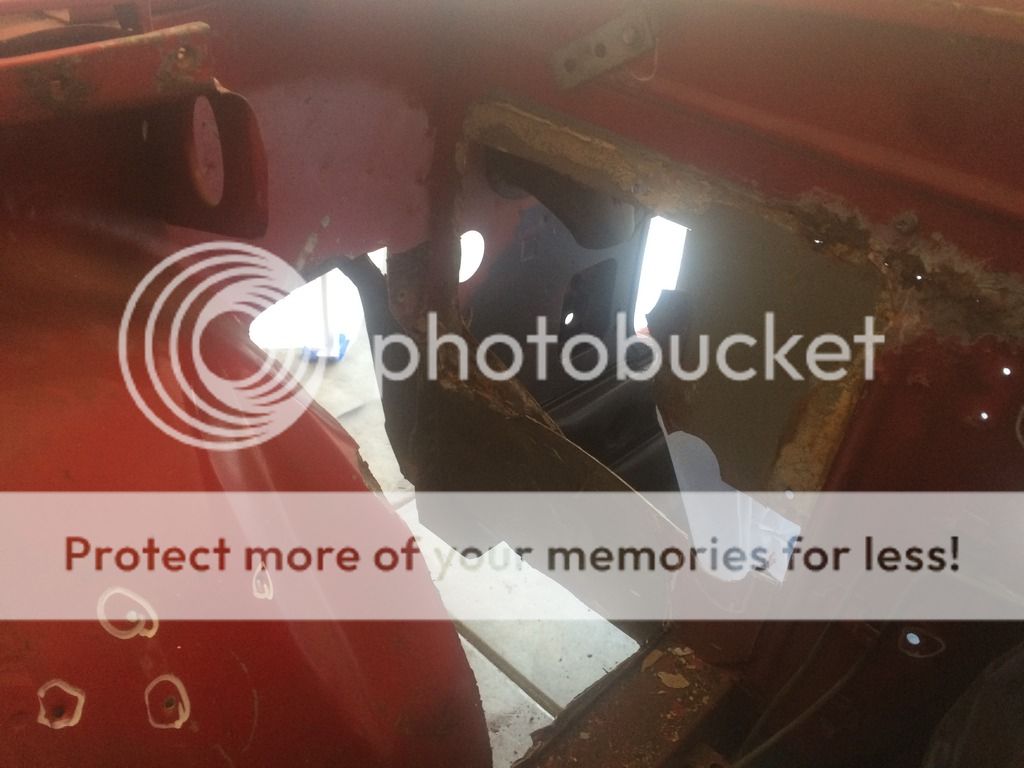

after the rear was done I got the engine bay ripped apart. some of the, "fixes" that had previously been done were questionable at best. all had to be cut out.





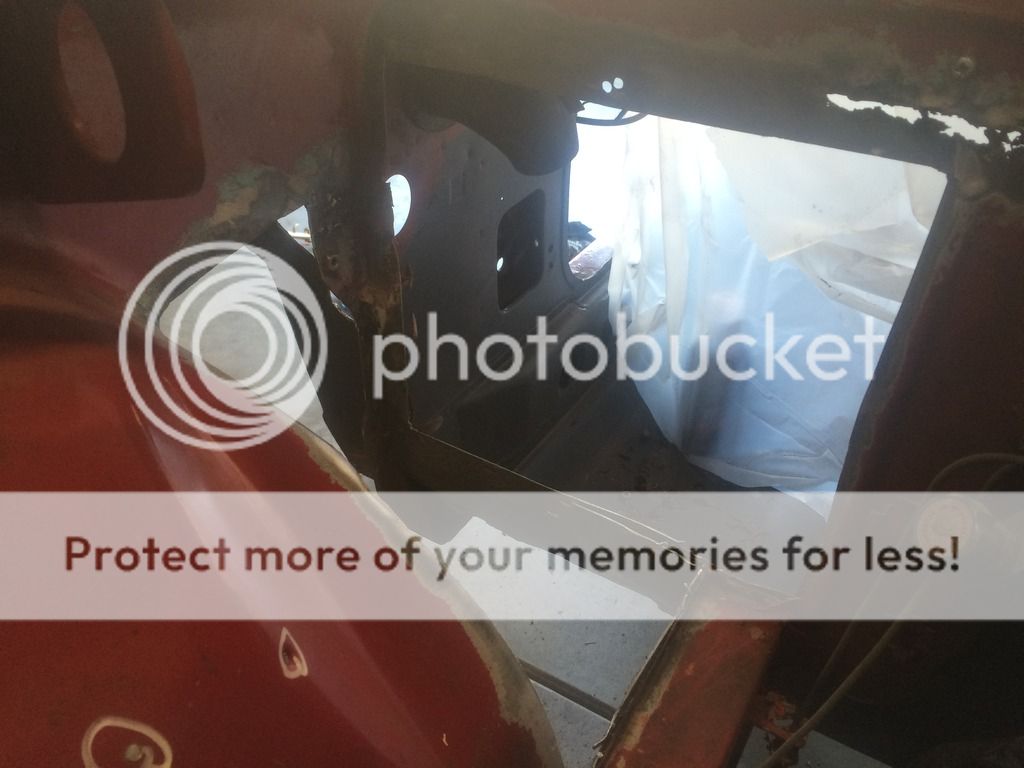

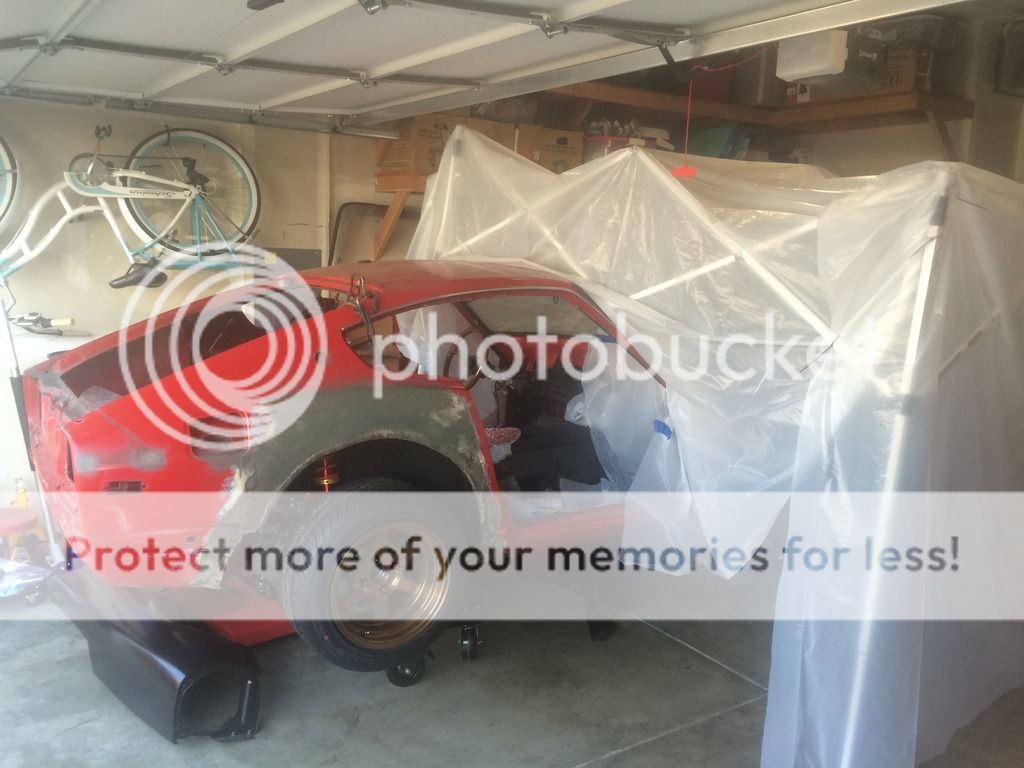

C4731B19-F2B5-43C7-95F5-12748F6E26DD_zpsCE69EF1C-DFBA-41D9-B418-786E64D98938_zpsEAB580E9-D0A0-4367-BB42-1B0432DCFD9B_zpsBDF65188-B73B-44CA-A1C4-AF4F322FB63F_zps





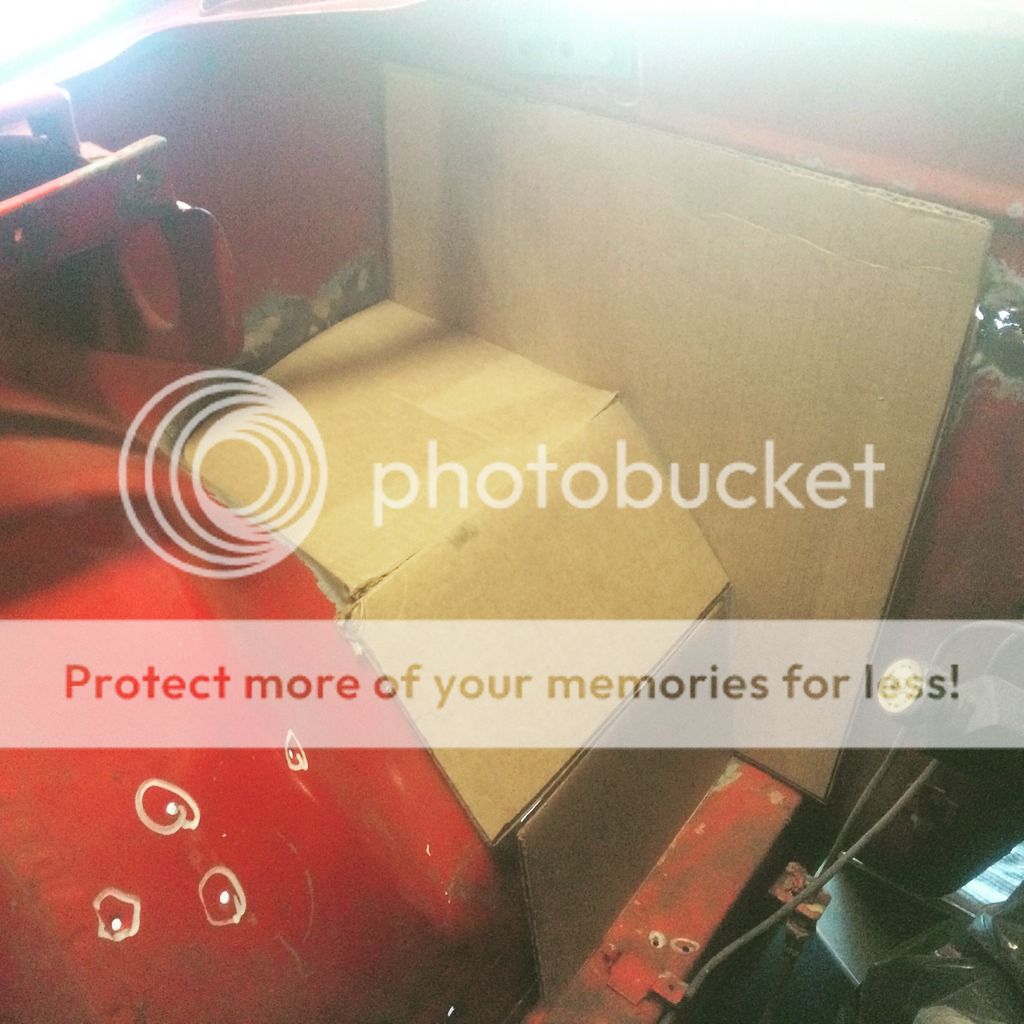

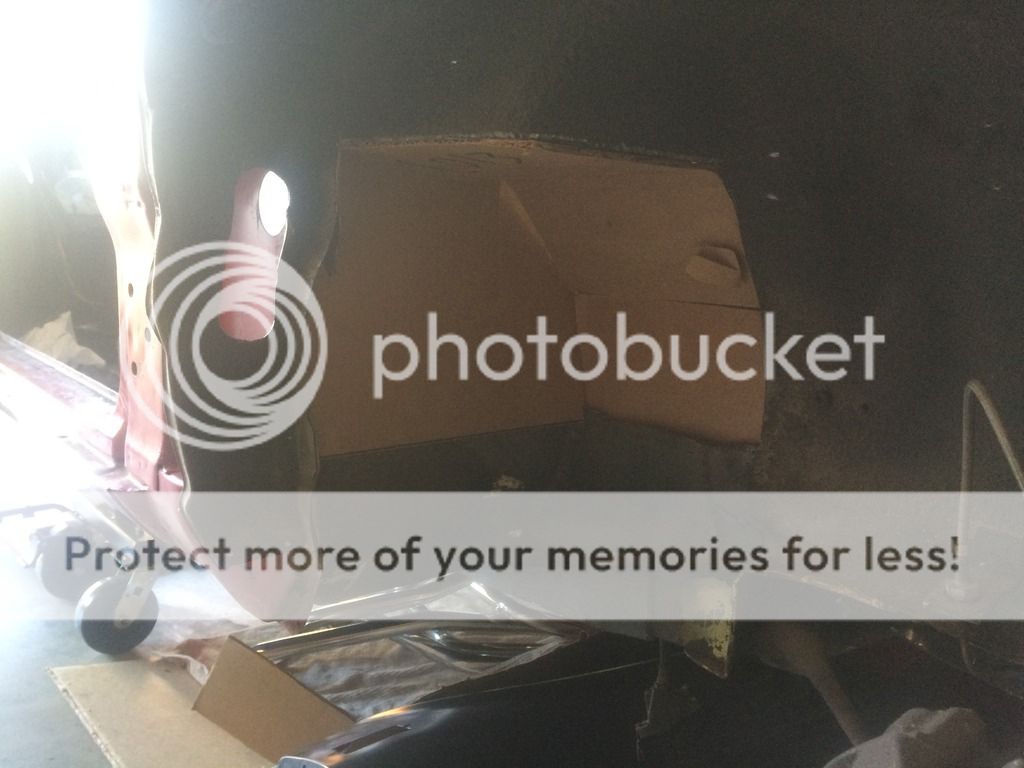

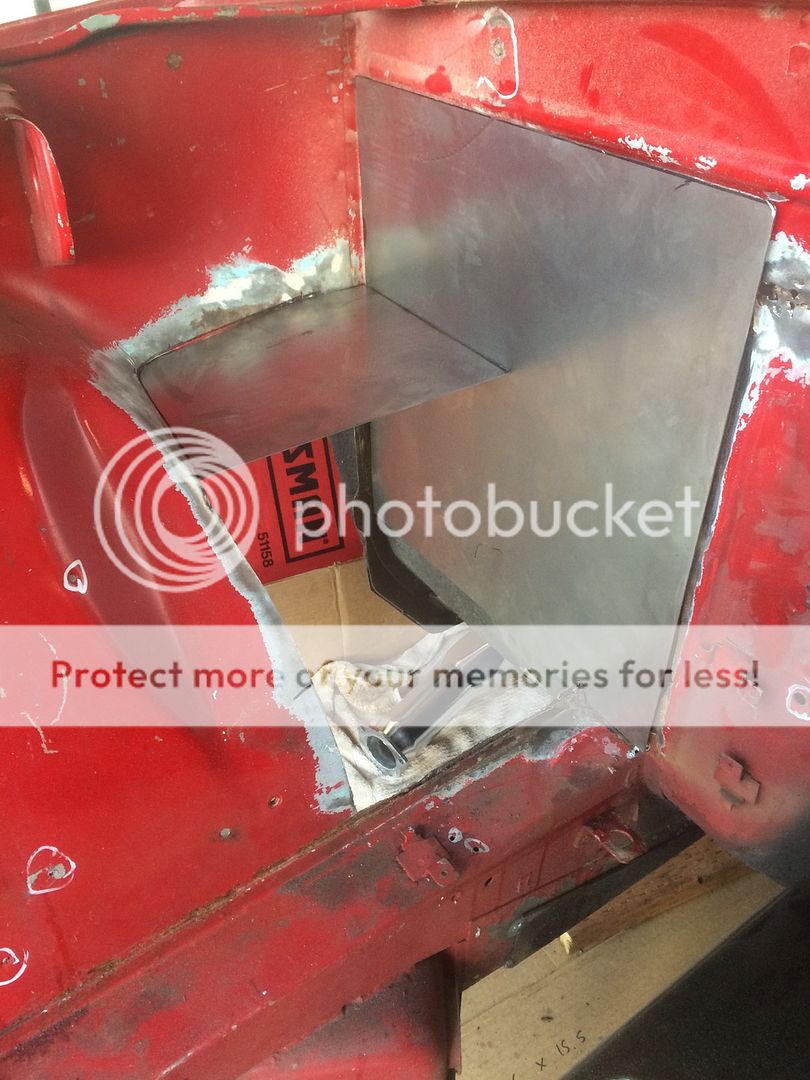

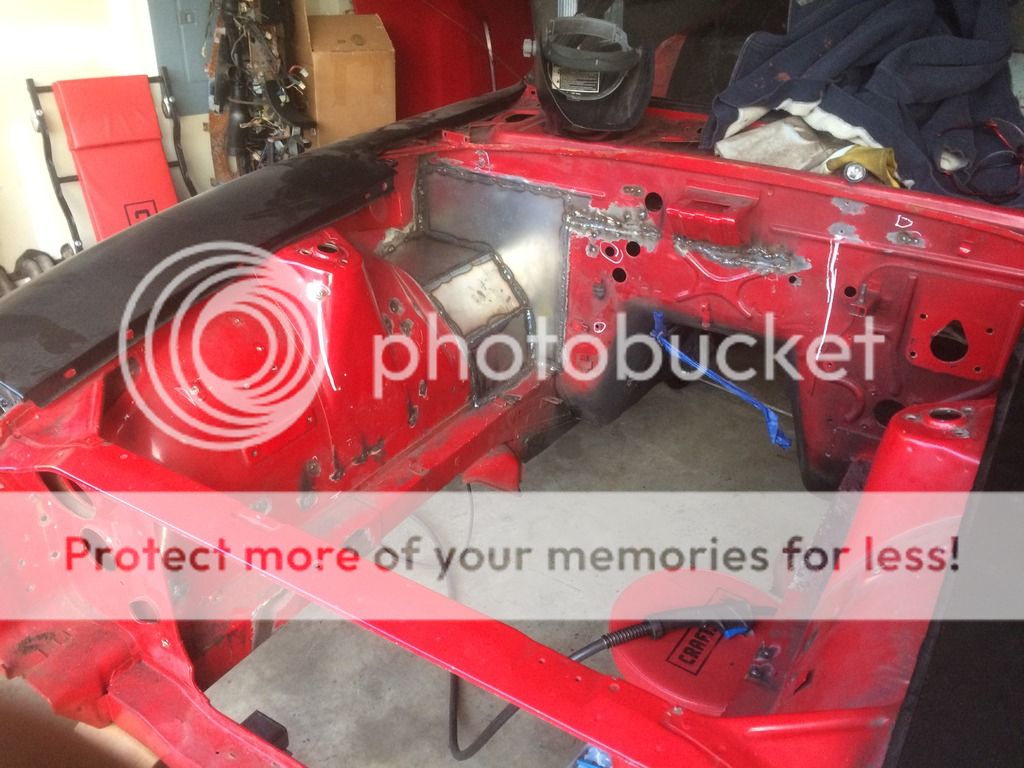

started making repair panels



12D5B6AF-13AD-41AD-915C-D845FF5867AF_zpsAB5B72C4-77A2-4F3A-844E-745CD7BA1E4D_zps12EAFAB7-6C68-4356-82DE-F1B7A24F5327_zps2FEDAC1D-B3F7-4C31-A084-41643BF8C6C8_zps2F6ABBF3-F532-4285-811E-5EE729115B97_zps70702A20-AA26-44EA-B4F0-734B1217A2D4_zps



#8 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 20 October 2015 - 09:05 AM

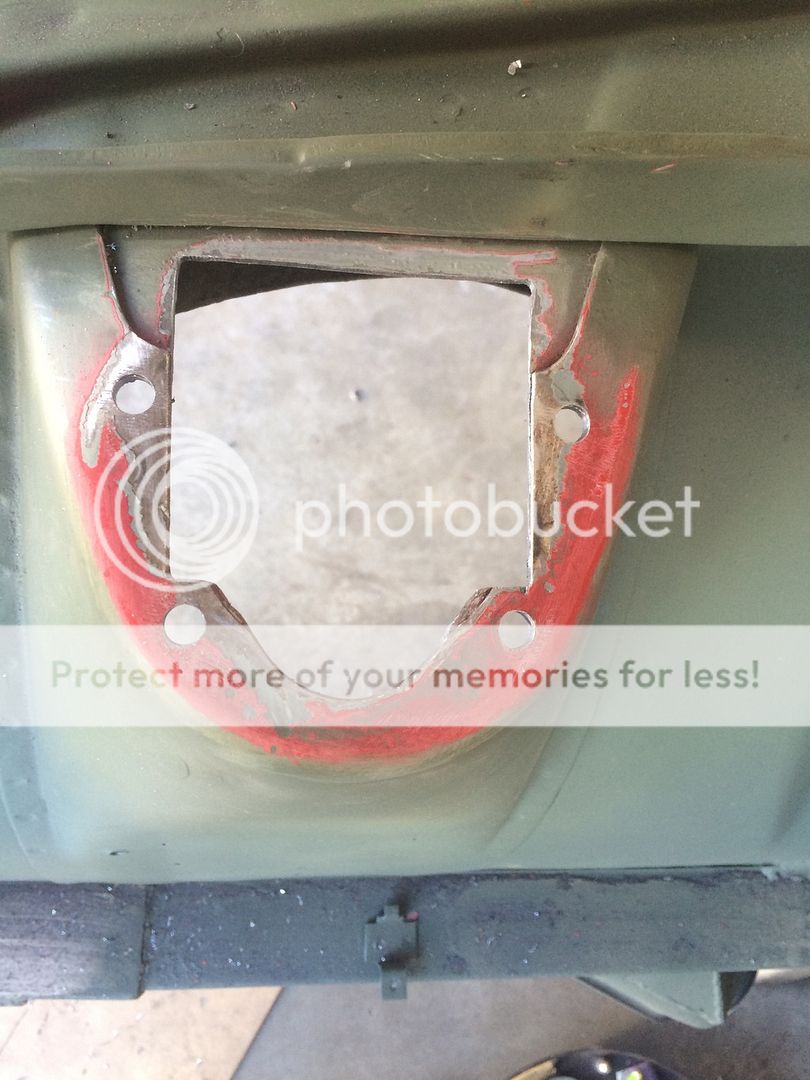

body and finish work



B8D434C9-024E-4176-8828-F60924DB24F2_zps3EDA3A82-98F9-40BB-BA61-FFB200BE3390_zps46A57408-157D-4B5A-A01E-584937C0B6D0_zps666146AE-E845-4C36-93C7-CC48A780A8C4_zps3A8CD50F-4719-4651-BEA5-DE2F63CA310C_zps429B547F-B90F-4043-8629-CE58C0E88B10_zps



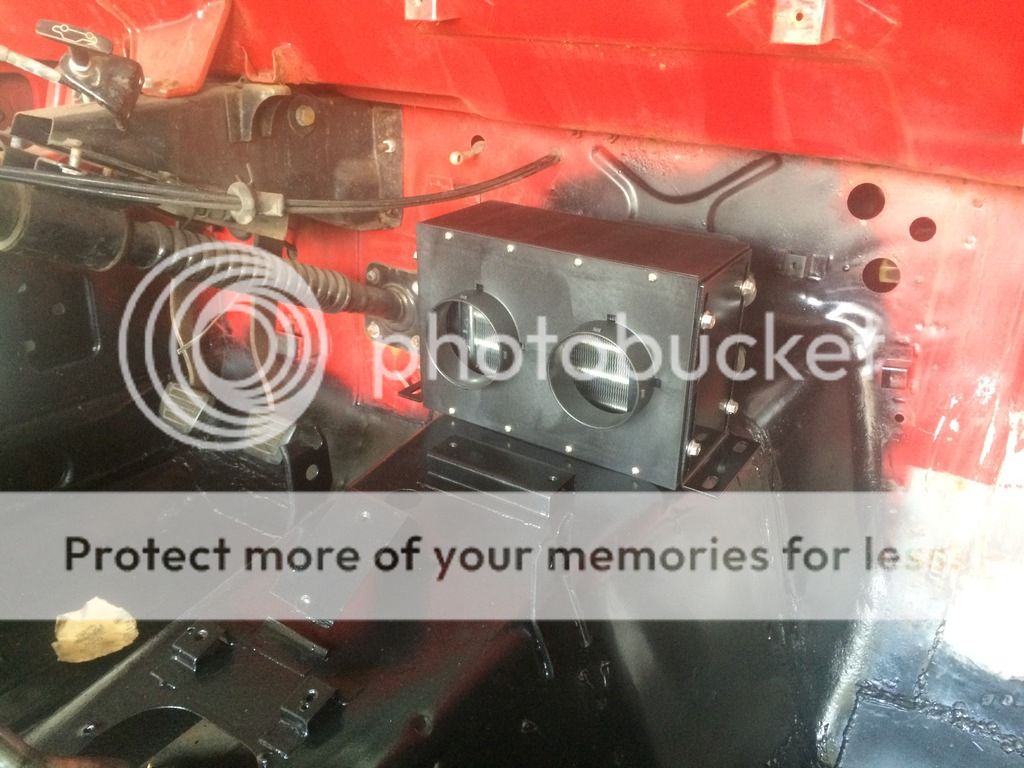

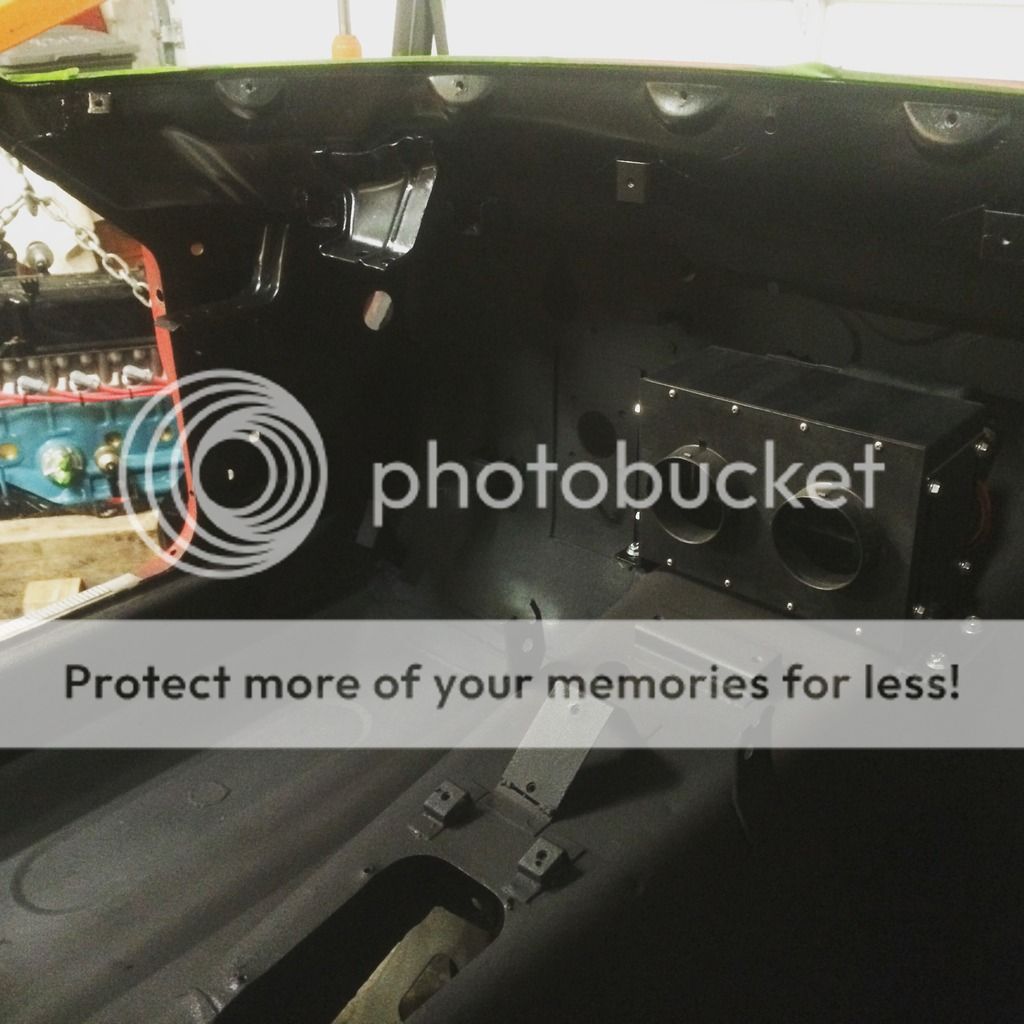

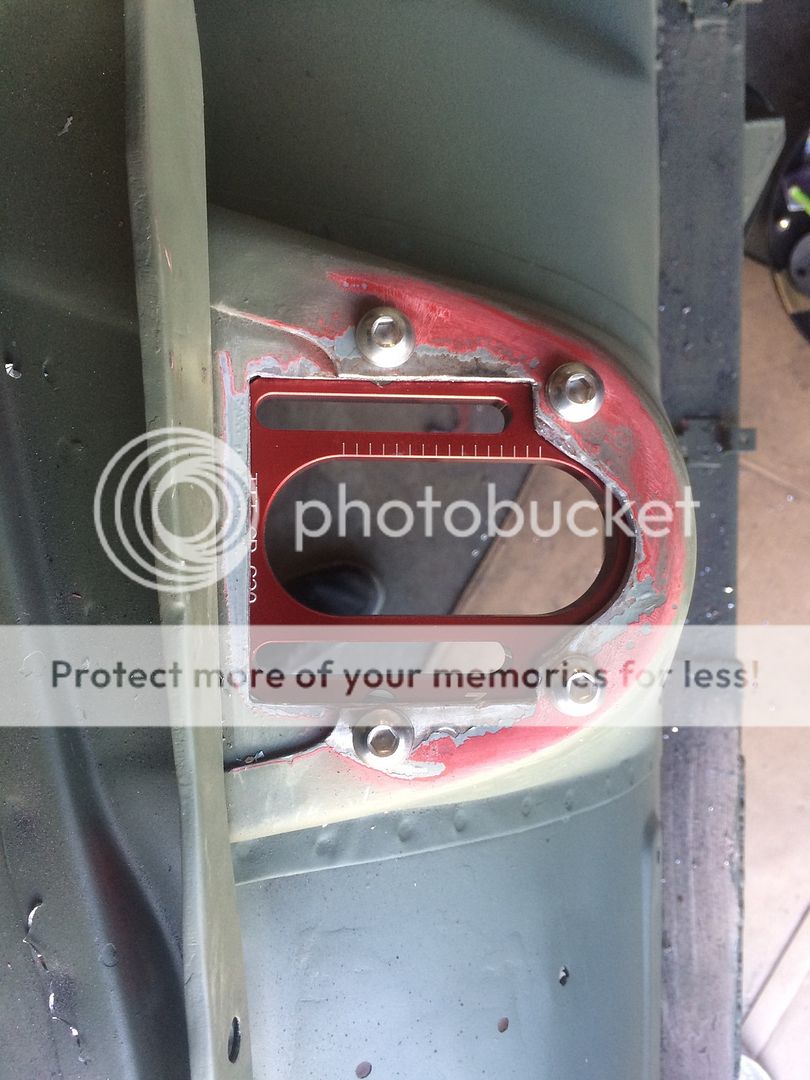

also got the brackets for the new heater welded in



0732C91A-7D19-4FAF-A6DD-B31BEDB8929C_zps



#9 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 20 October 2015 - 09:11 AM

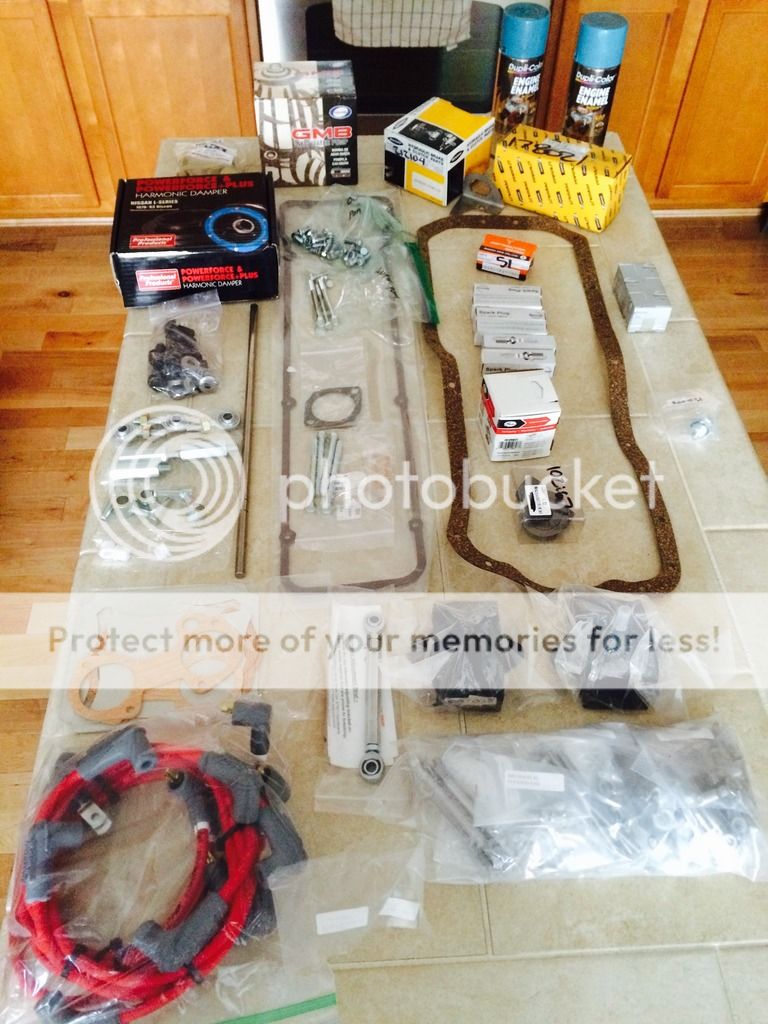

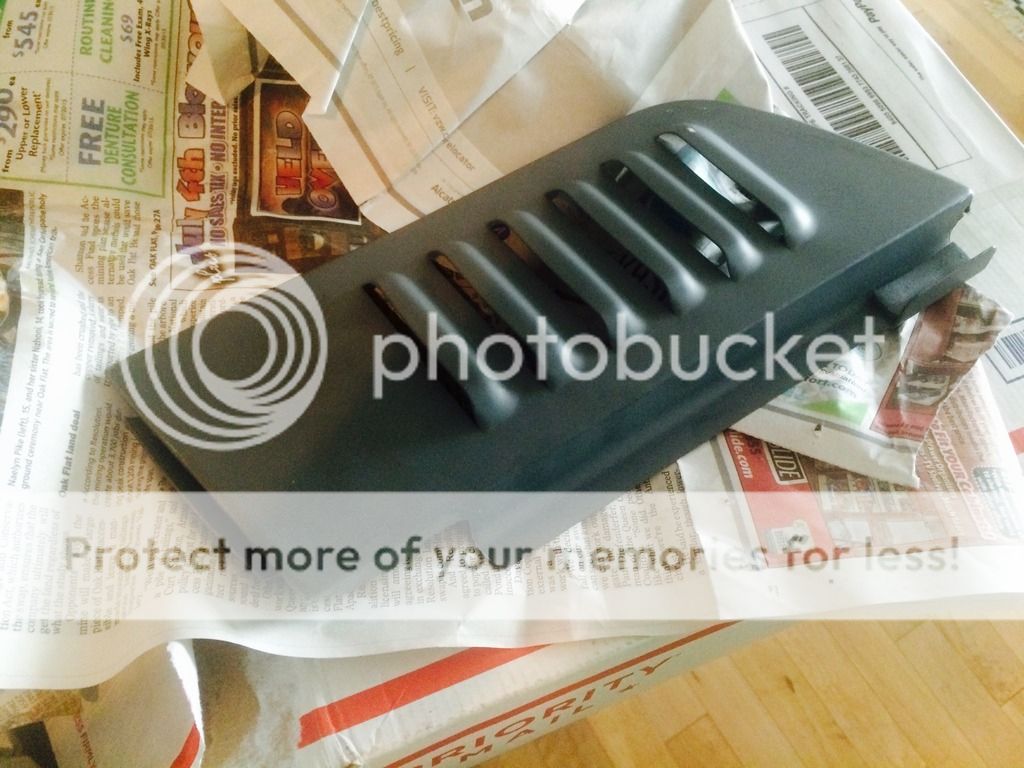

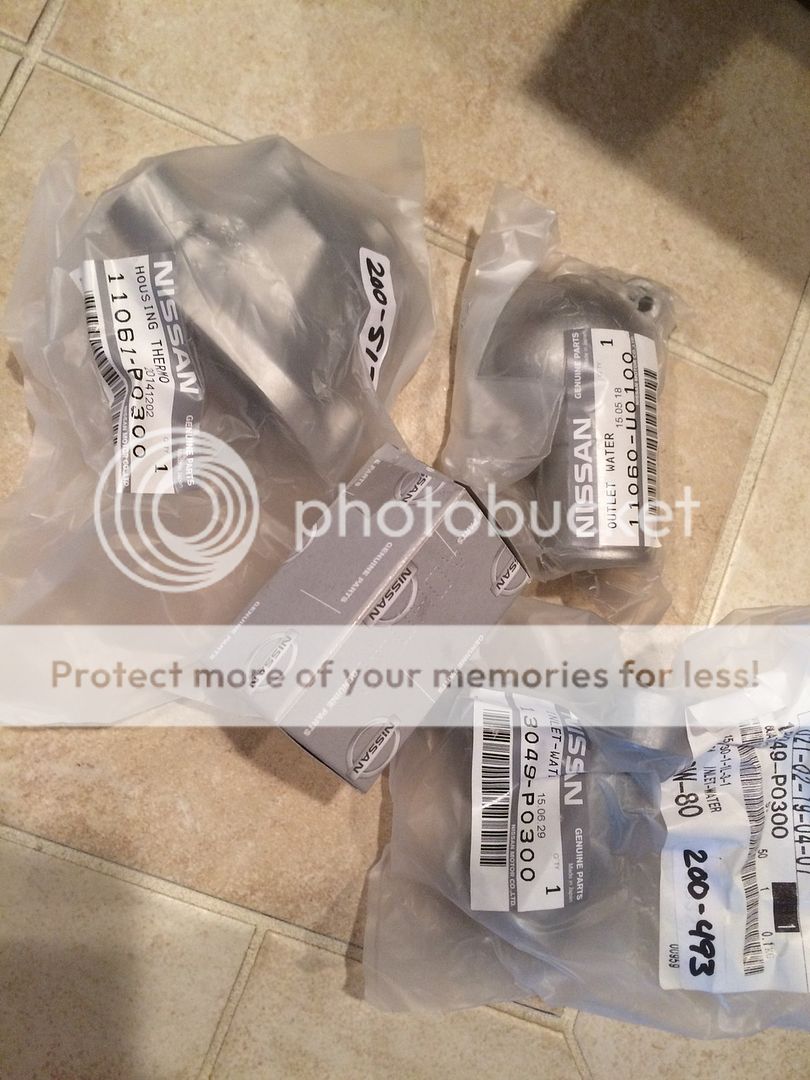

more new parts came in



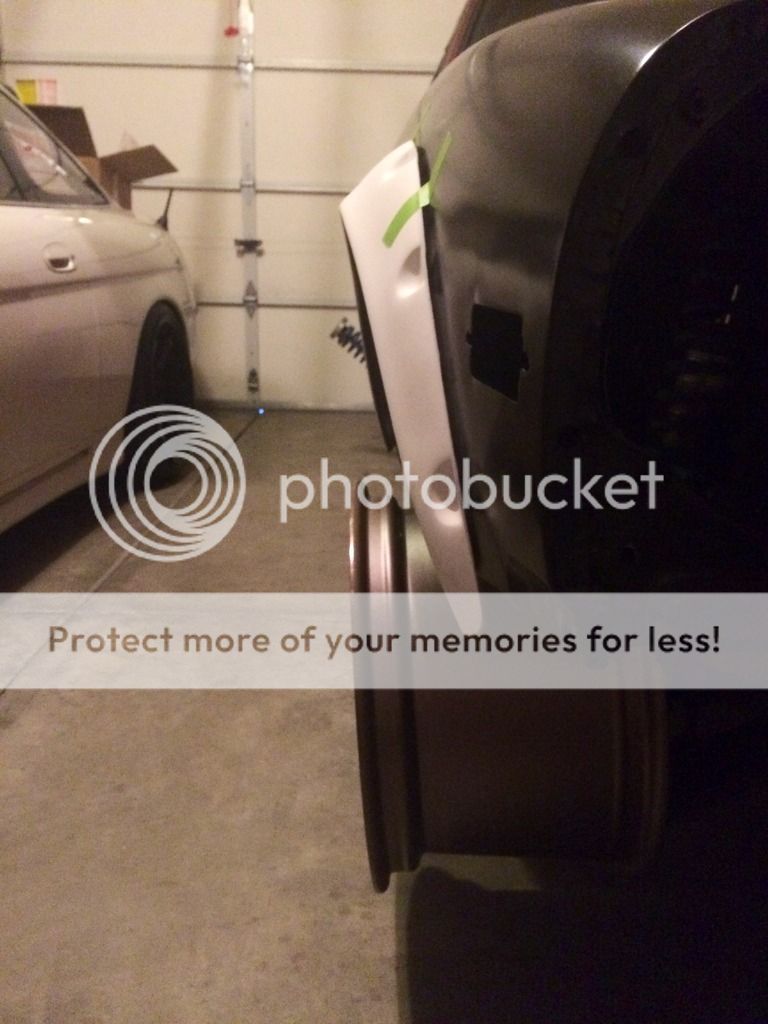

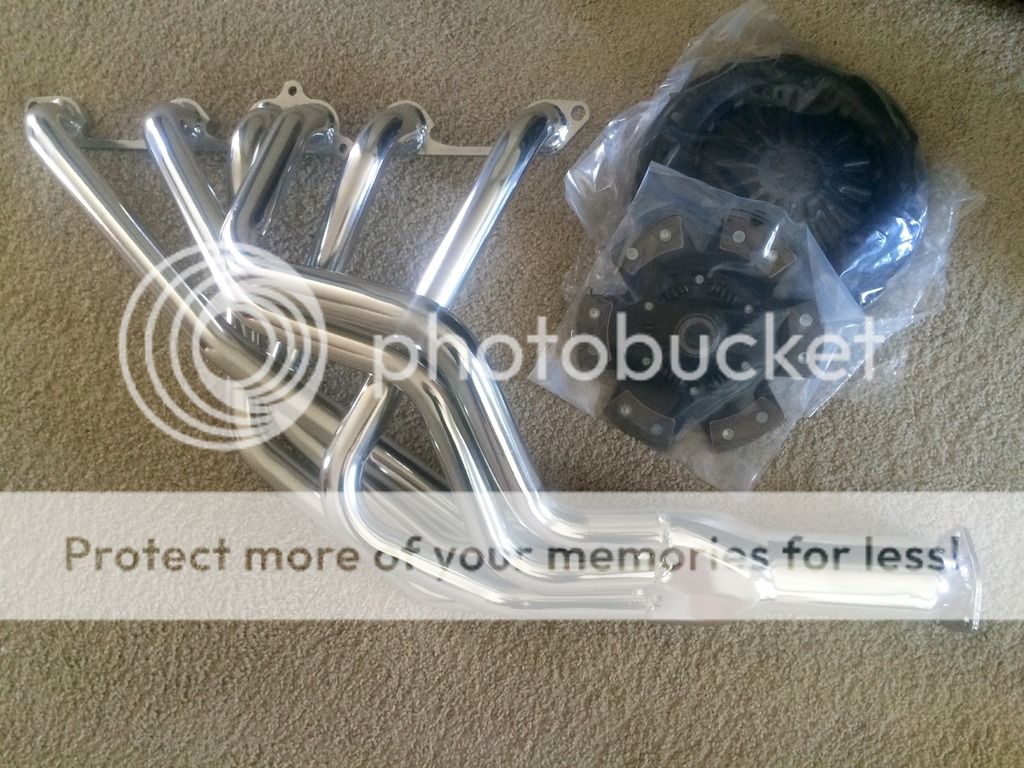

0D95DDF7-B9AD-4AEA-ACC5-DA94A437B4F1_zps8C707093-7FC1-46D2-A700-F4EAE0BF985A_zps48DCD62A-0DE7-4579-A63E-D05F767EEB14_zps40C01FAC-A4D1-4A77-89DE-4BAB186BECA9_zpsA9C9DC15-53D3-4E0F-80F1-37DAD4CC94FF_zps





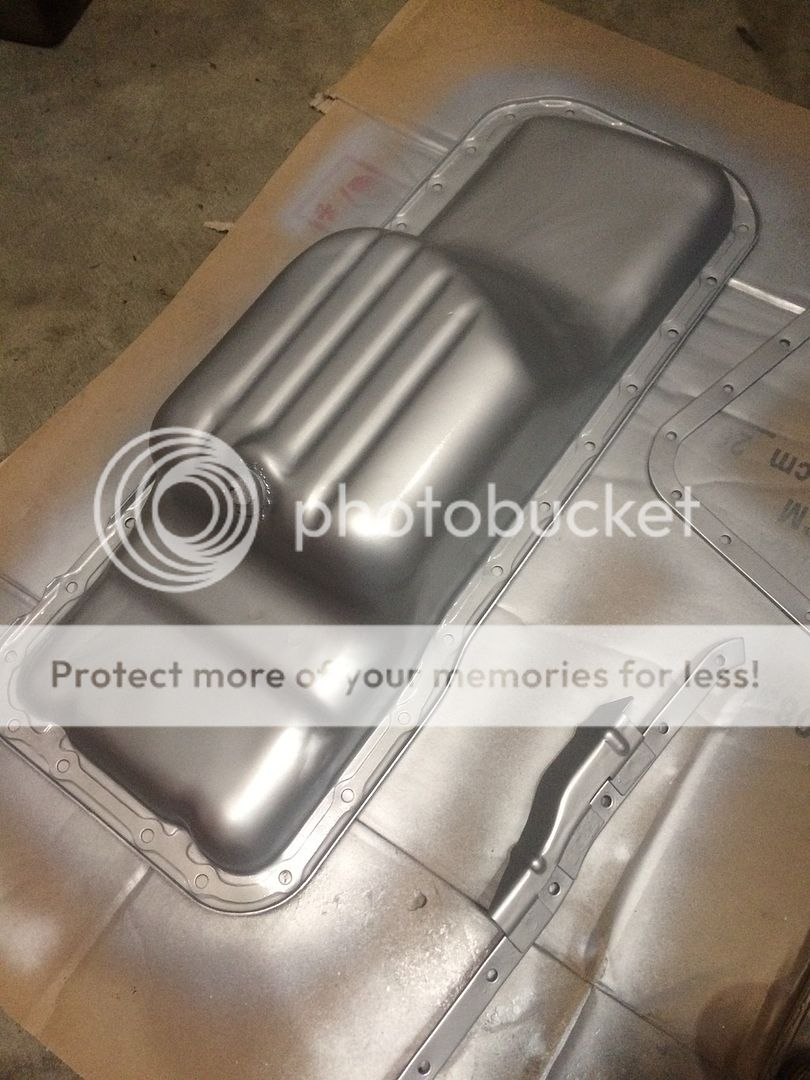

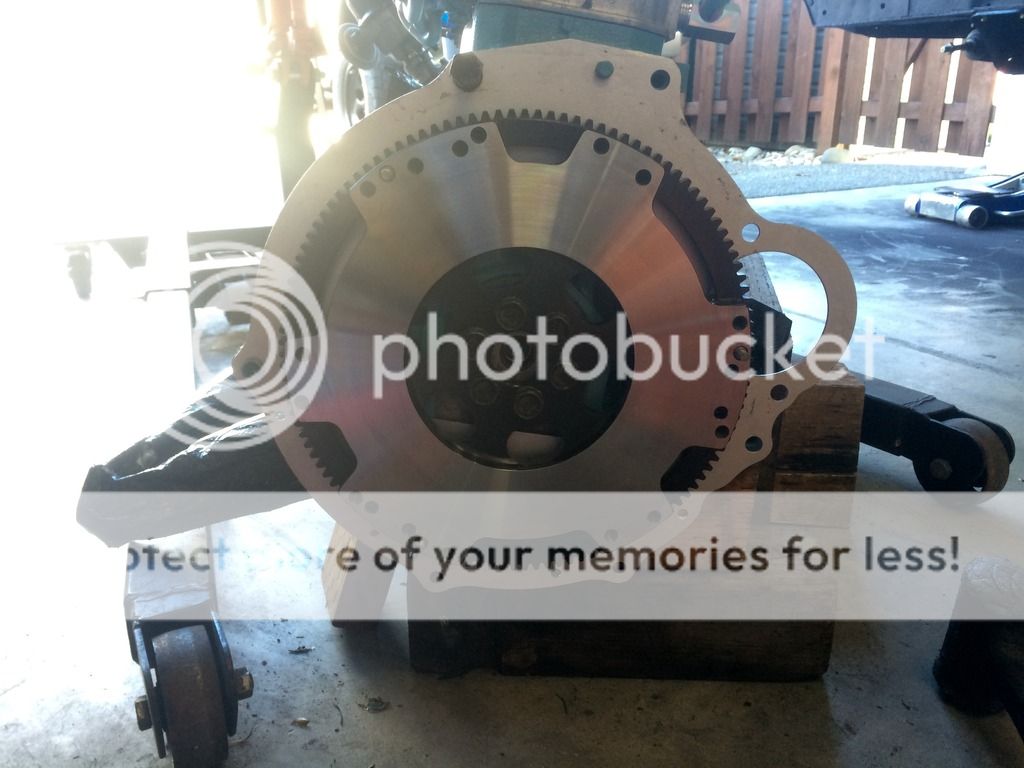

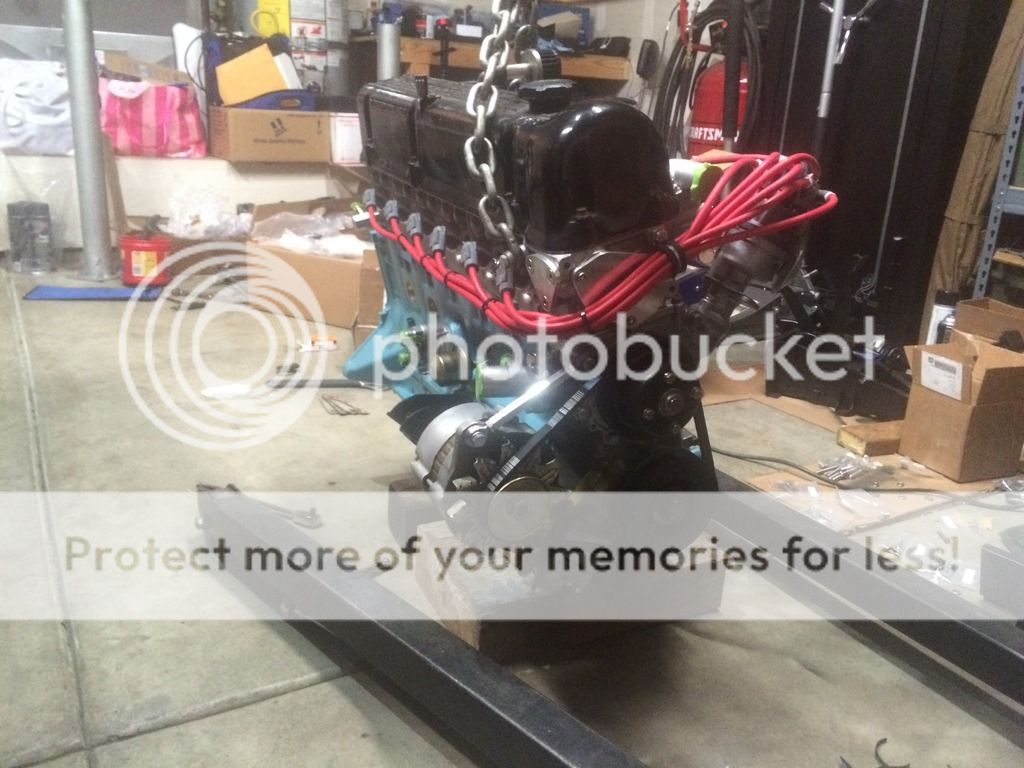

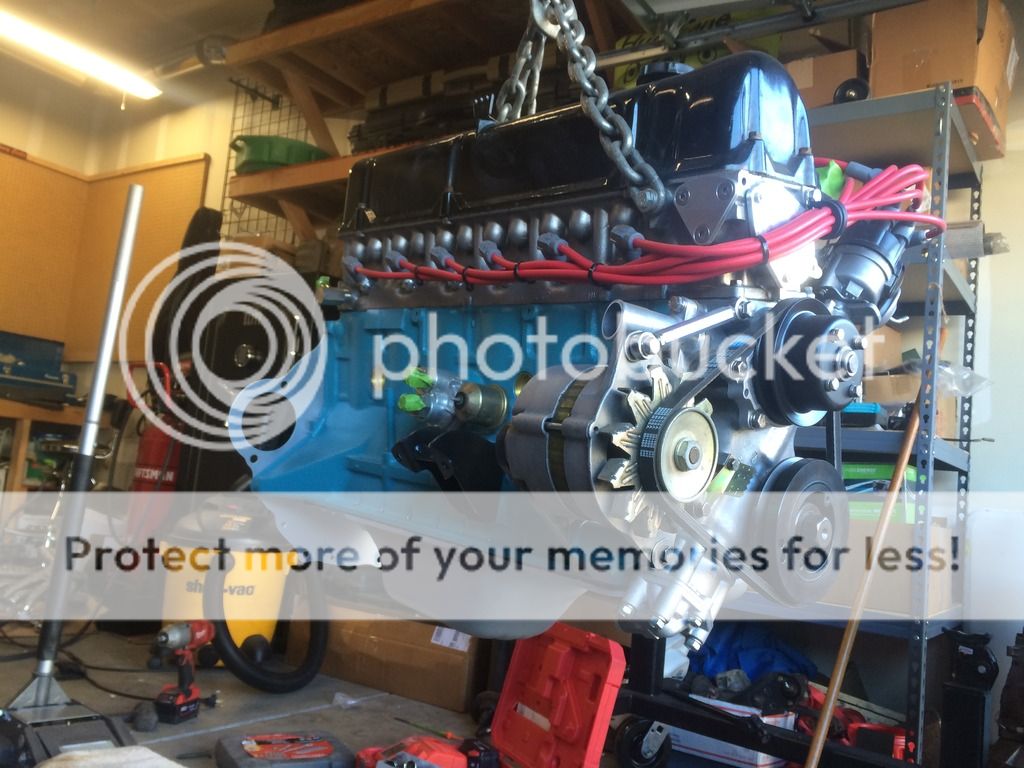

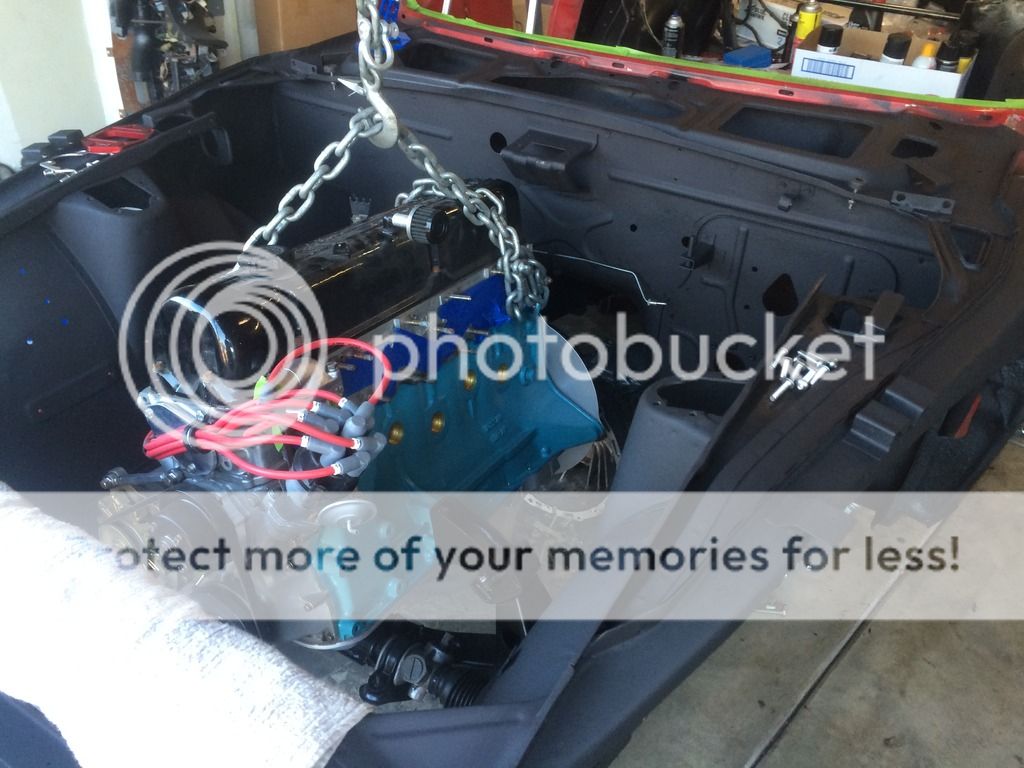

then a refresh on the motor and start rebuilding/replacing and reinstalling



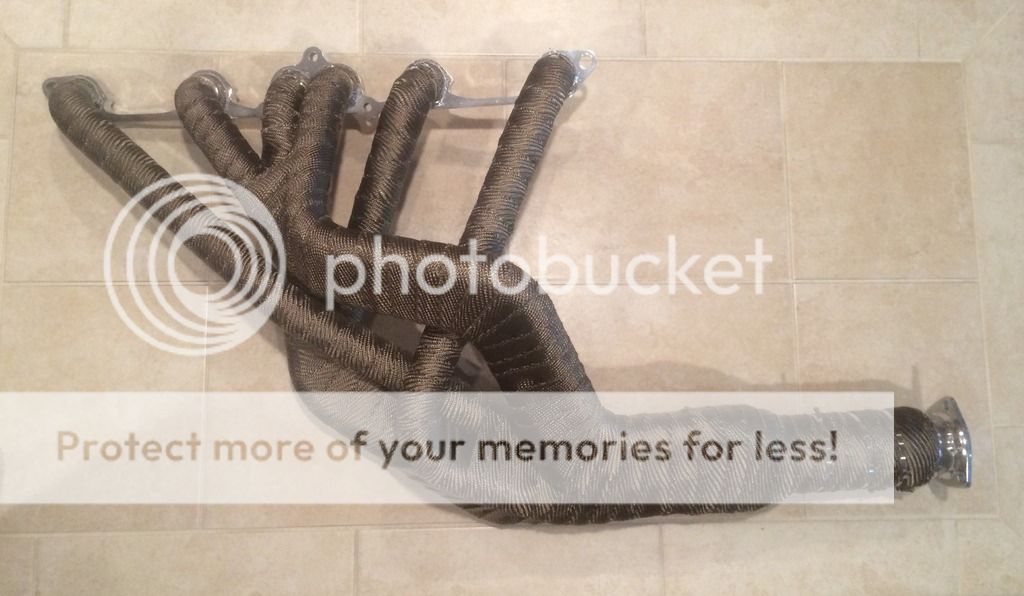

4838347B-28D6-4F6E-A628-F82FA752C62E_zpsA45053B6-F06E-404F-90E9-1DA574E68E50_zpsCBE2D4C9-7C92-43DE-A8D4-C7C522F02AFF_zps762D21F6-2CDD-4D8B-A813-9EB9676C7B70_zpsE709FAF6-4CF9-4F09-85CD-9EA8F28FDA88_zps7A0FEBEB-C462-461F-B1A7-8CB70CD7D2B8_zps





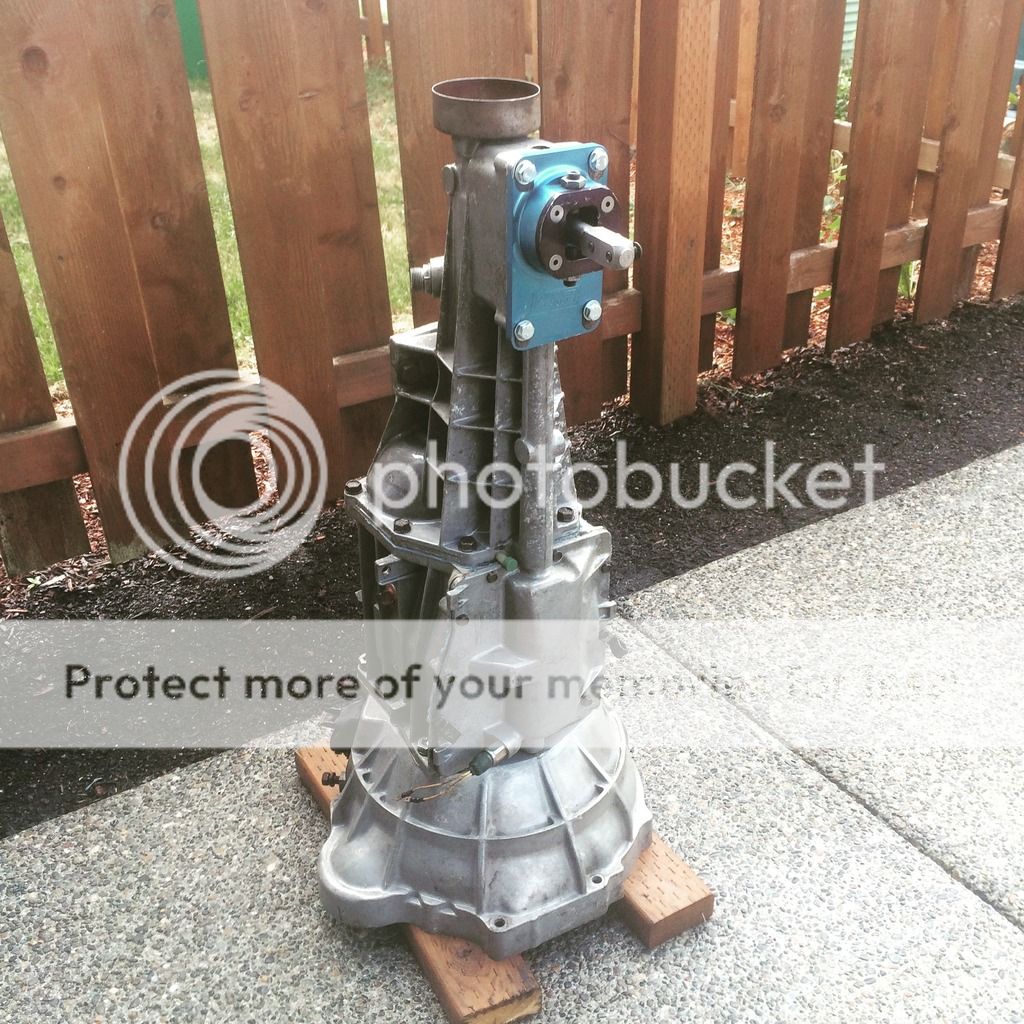

T5 Borg warner with B&M pro ripper shifter



CCE2BE0E-B209-4667-981C-B12CE2DE5592_zps



#10 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 20 October 2015 - 09:17 AM

More progress



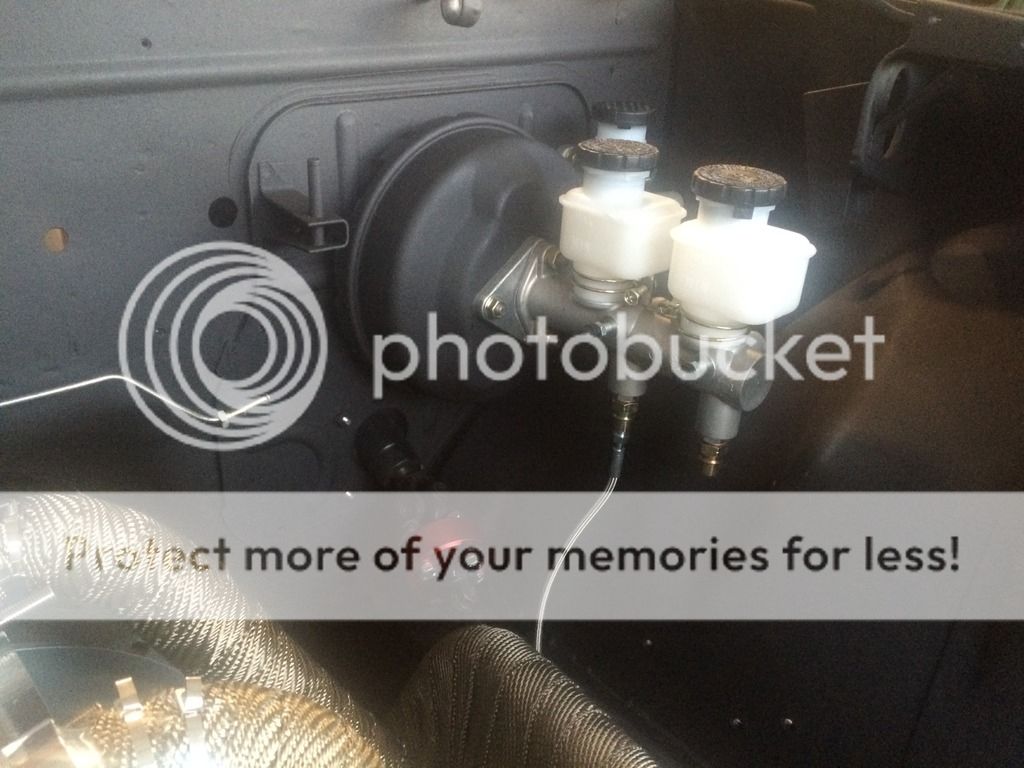

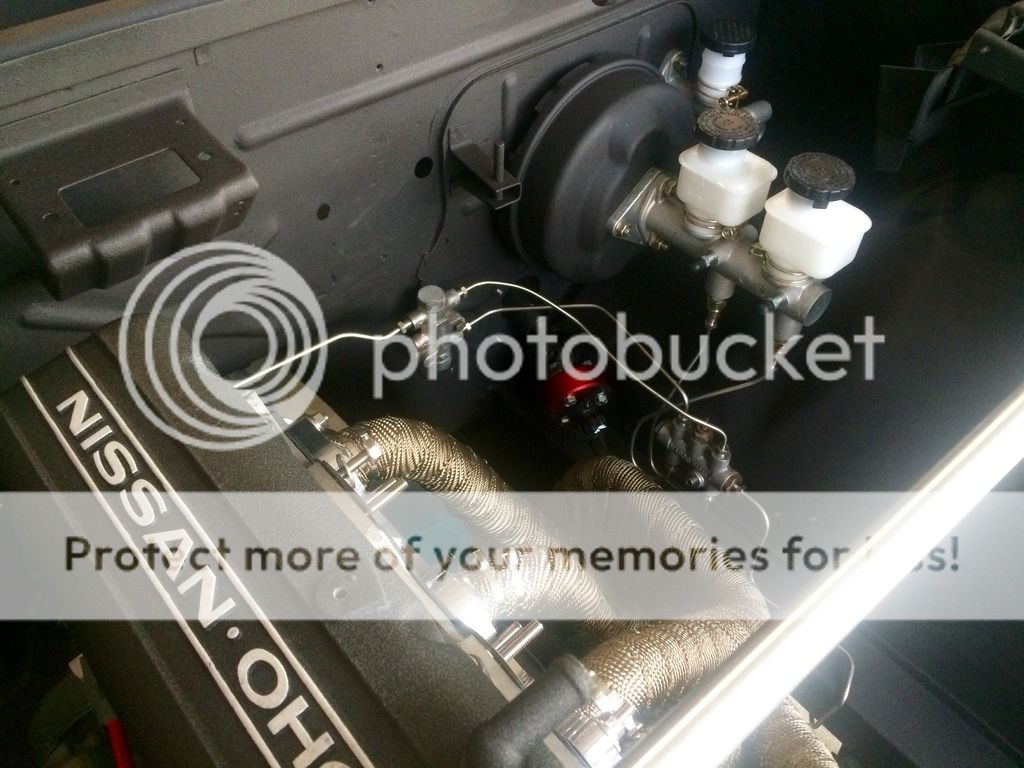

33884085-978E-449E-A44F-16C22B6ABB7E_zpsBAD01BB8-2990-45A4-BAC8-70196C4C6928_zps6F09B18A-C72F-4847-A4FA-BF1C96EE70E0_zps7D60668B-4EEB-49A6-A1B0-E936A5A0DCEA_zps59DEADB2-71E0-4DEC-9830-B61E918EF6B1_zps85373272-012E-4D3C-B86C-9B038BCE799E_zps32A4019E-DB3A-4A3A-AF84-85FD40050A88_zps12488A0F-7780-425D-8374-ED215F02678D_zps12E62806-08B4-4398-8DB9-1E22A22130F5_zpsE3E65B9B-F034-4E2B-8B7E-7A1BB261220D_zps





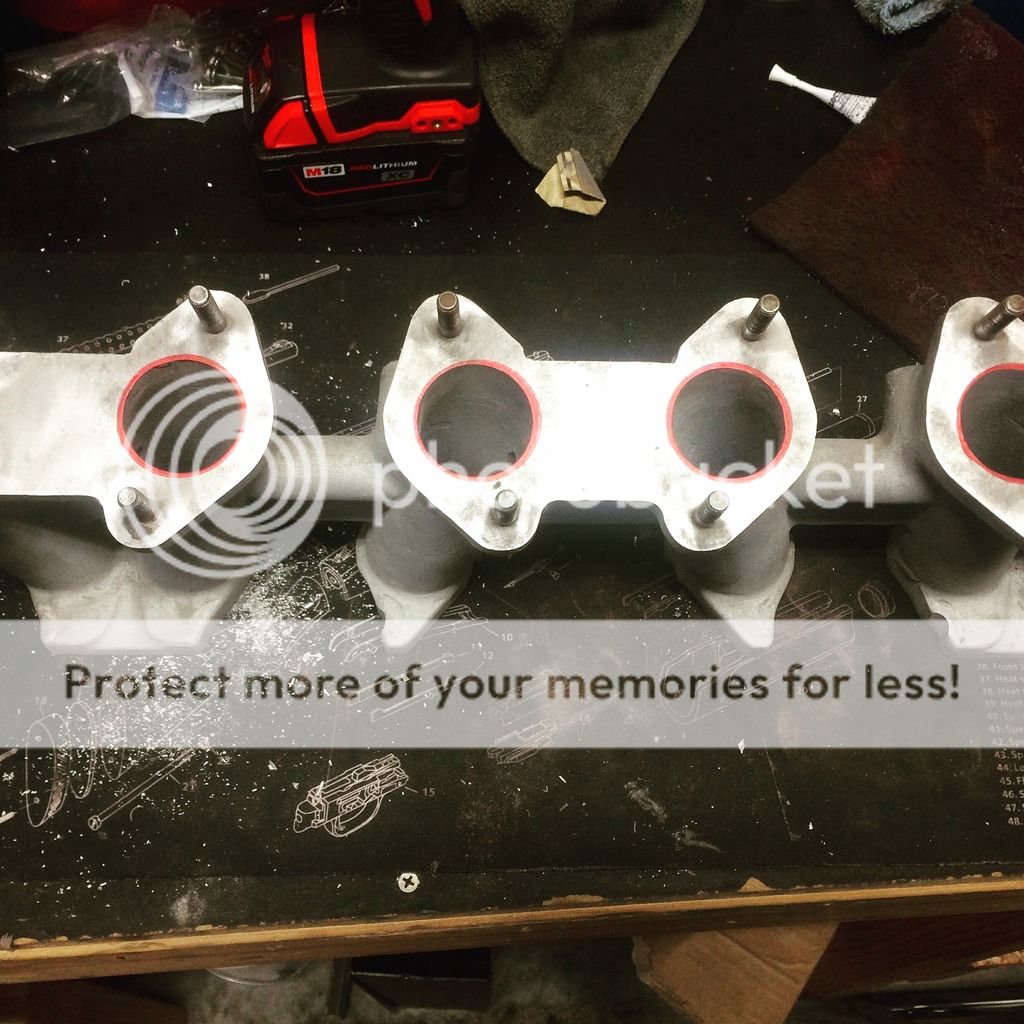

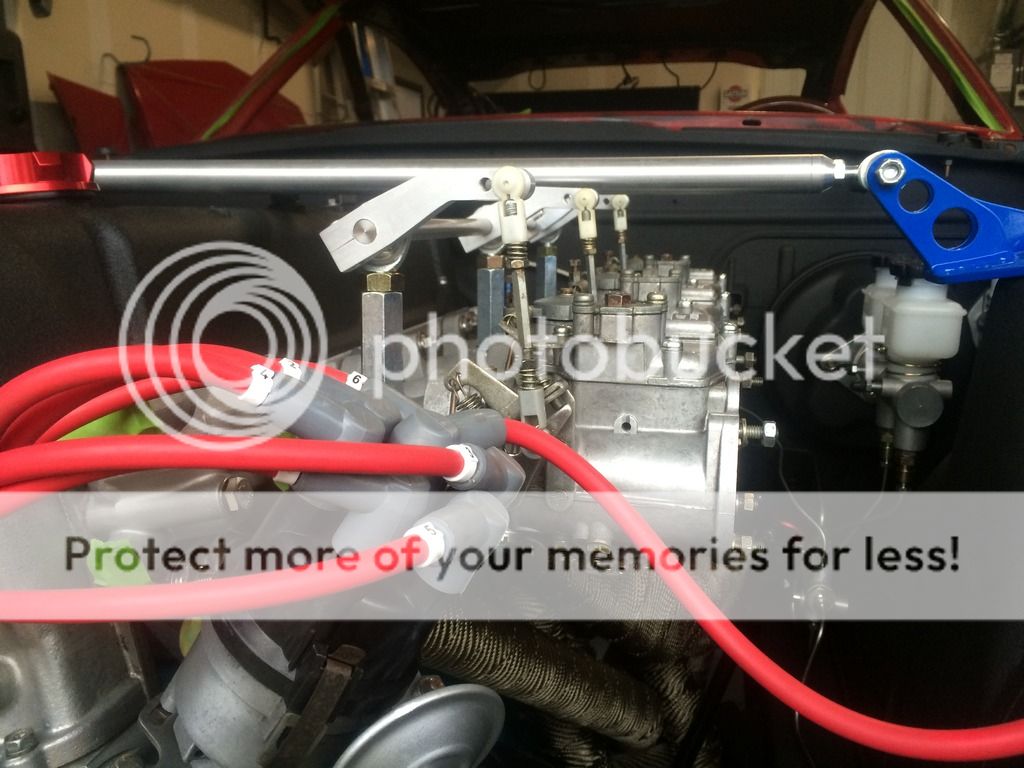

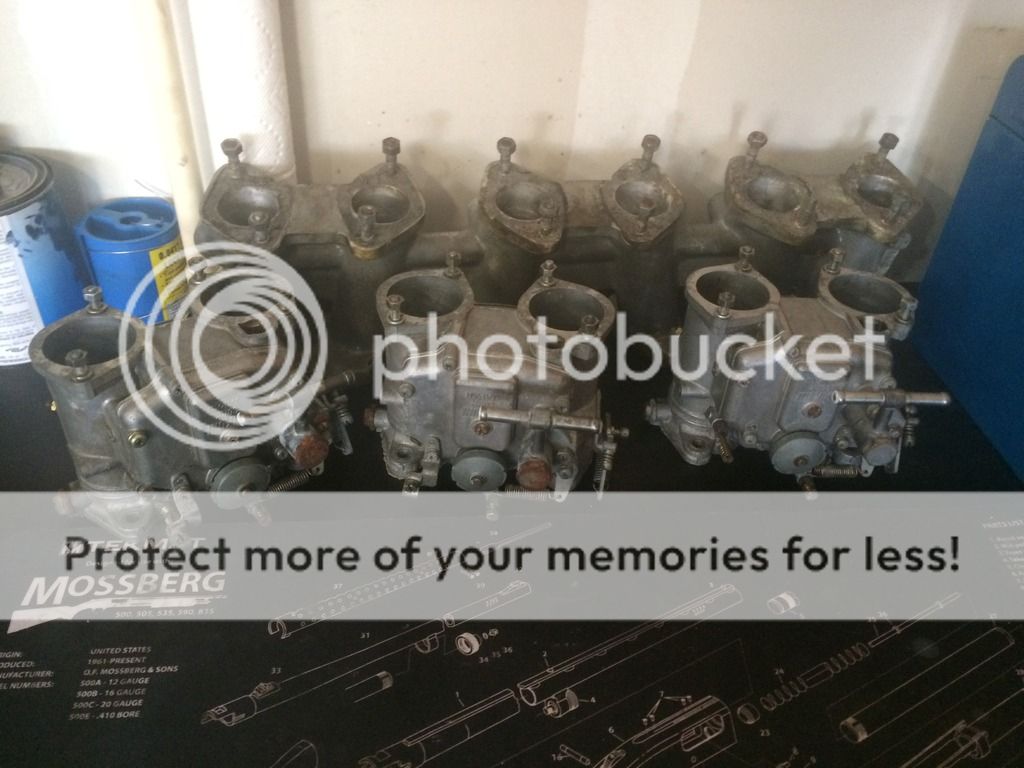

Carbs are Mikuni 44mm but the manifold was a 40mm cannon.



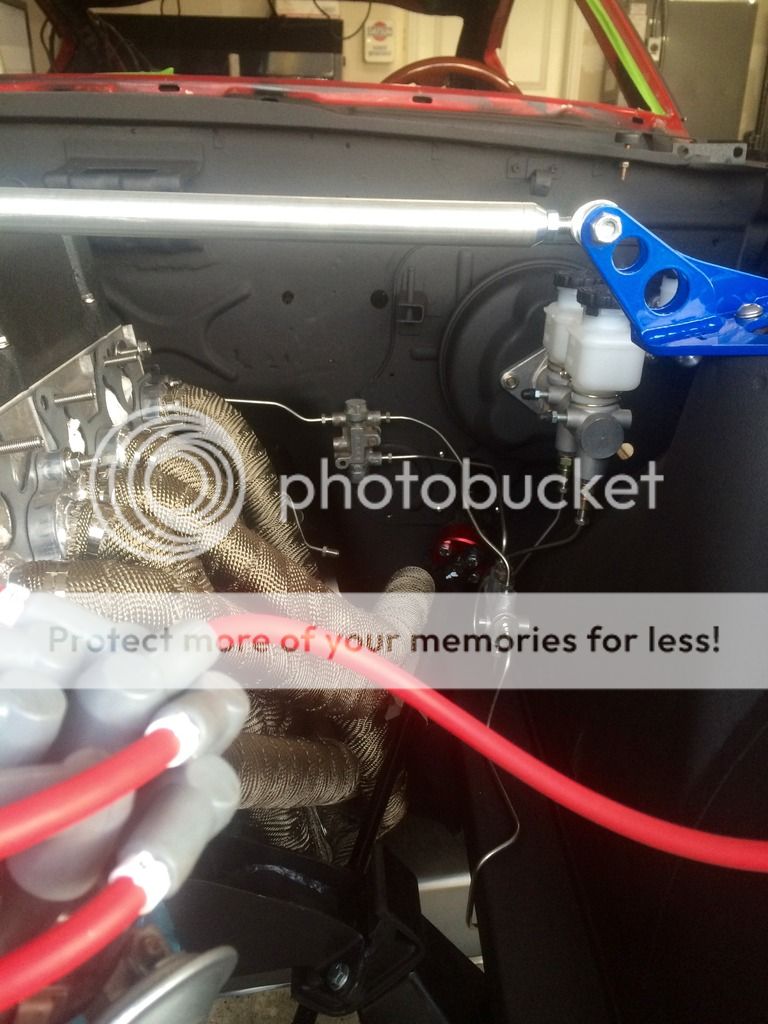

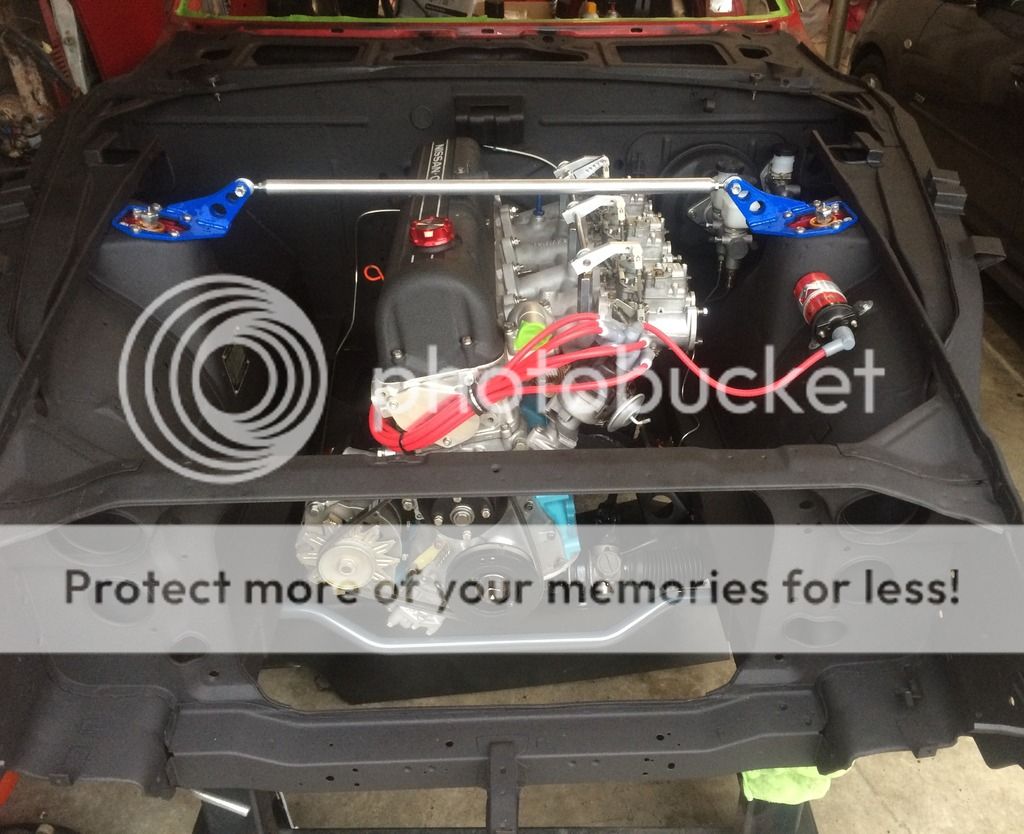

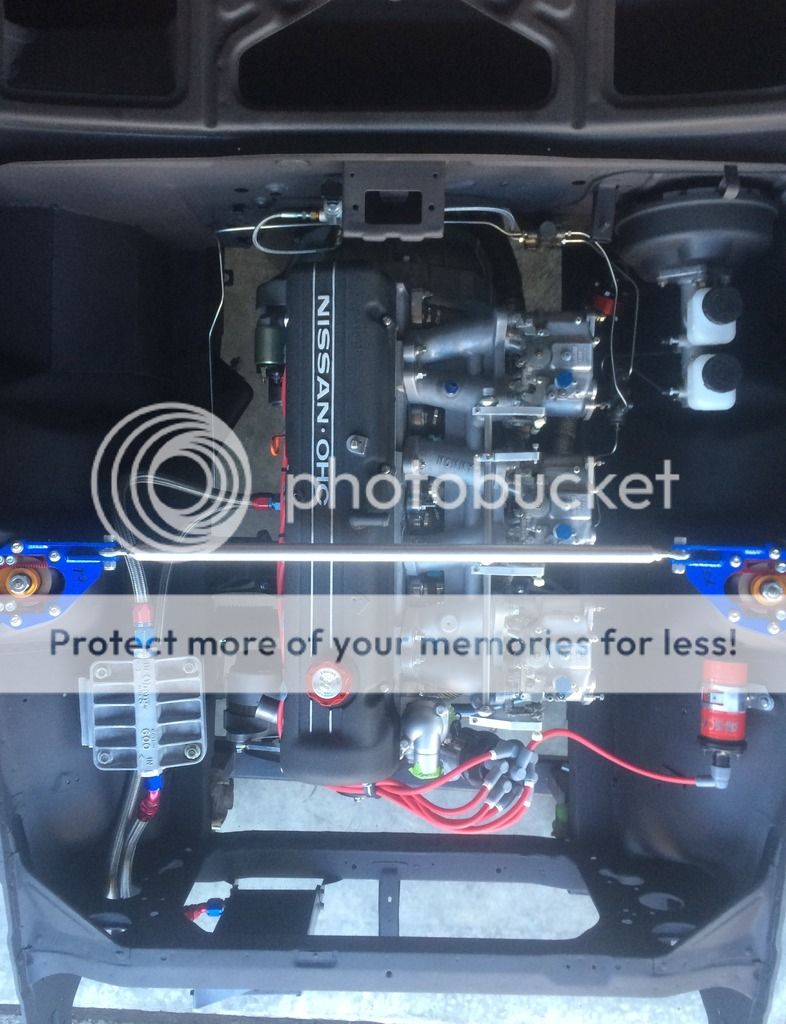

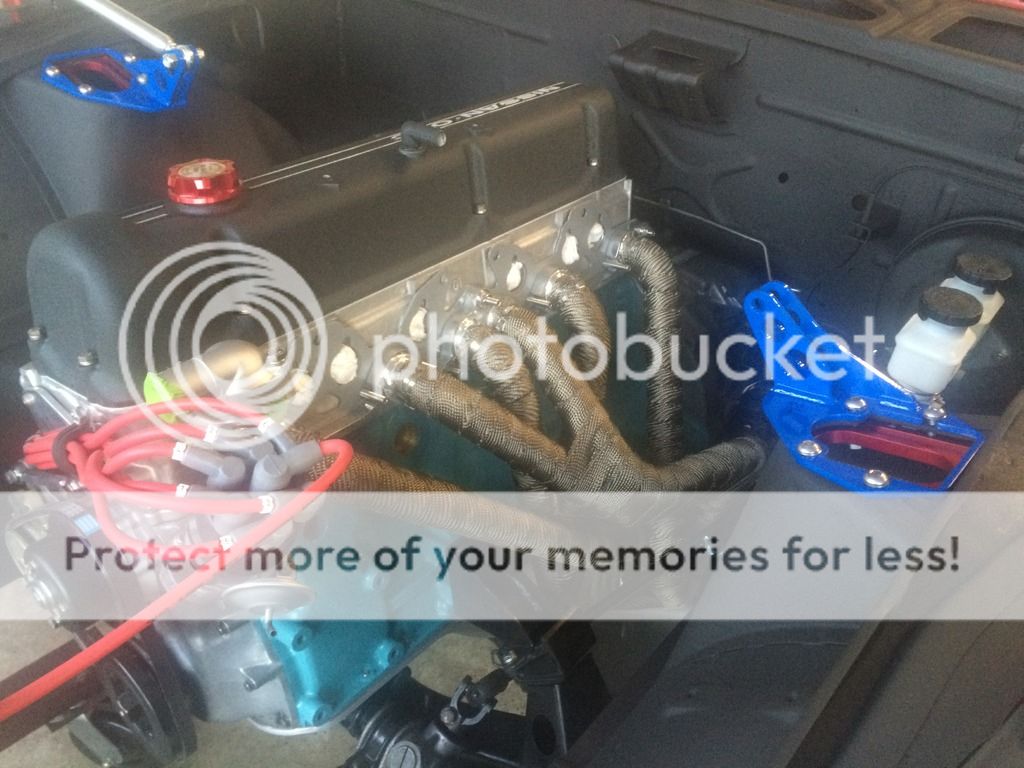

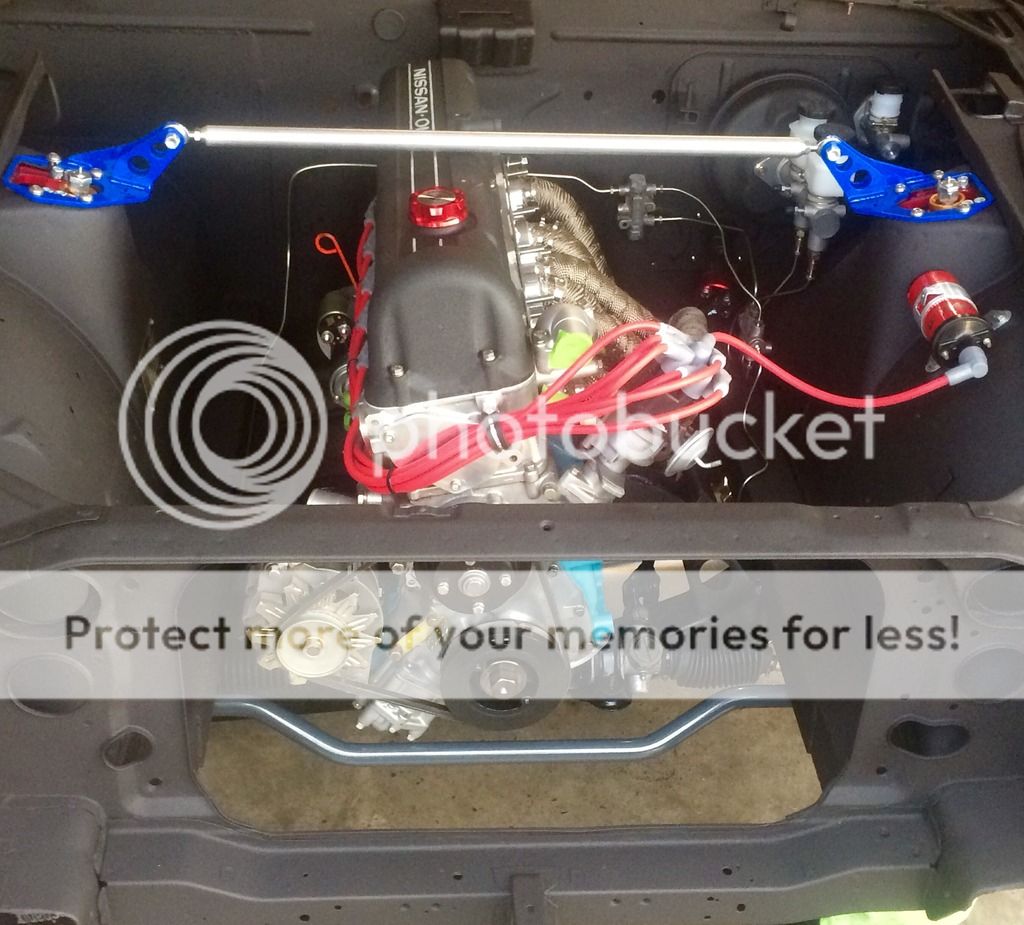

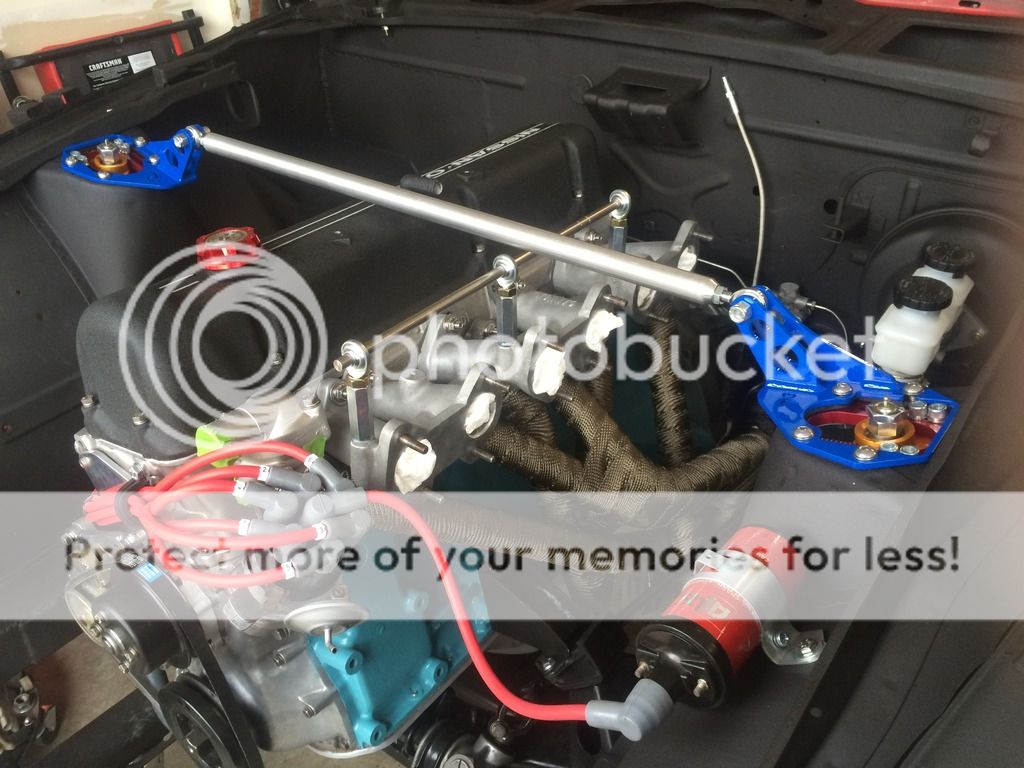

2B1997DC-7A94-45D7-8CE1-4CB7DD1E6195_zps869E1669-7C38-4CCB-A2A7-E835DCA569CD_zps04A62FC9-4065-4EA1-BF39-F861416ED2BD_zps6BAE522E-CE16-4AB5-87C9-F5918E069696_zps65F90594-6A78-4416-9F93-E49D78A22CFB_zps9EF73FC2-1A28-4E1E-A758-DE98AFC68B5A_zps





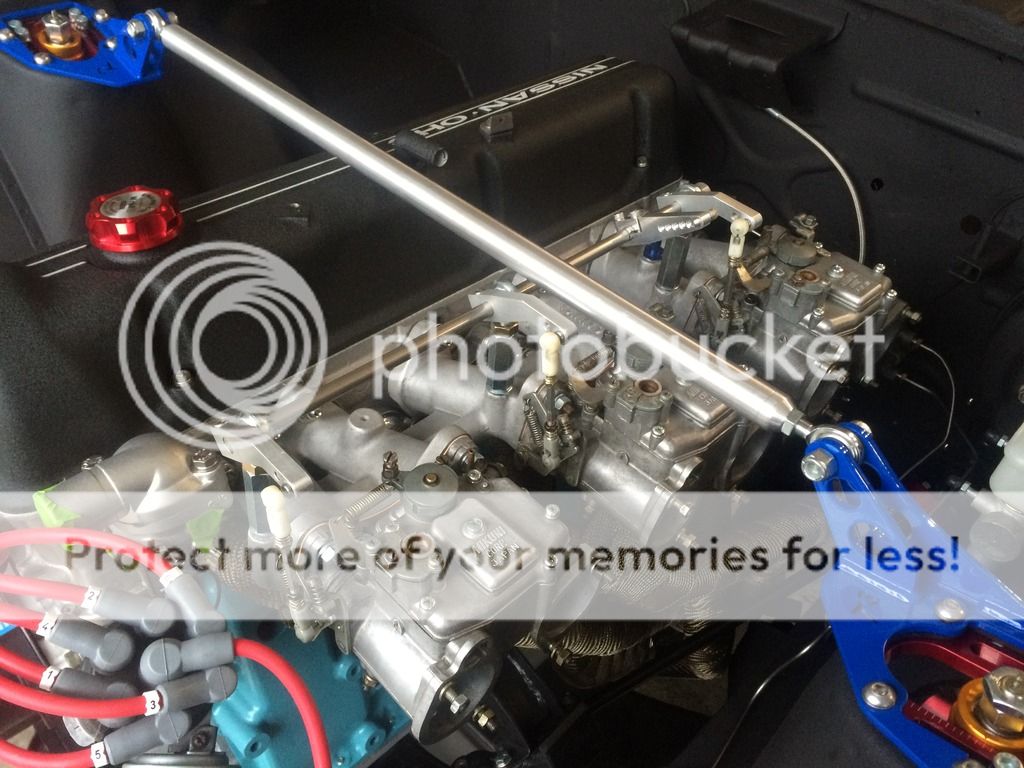

Thats where it sits today, still working a lot of small stuff here and there in the engine bay.



#11 Zetsaz

Zetsaz

    Always Here

  • Members
  • PipPipPipPip
  • 252 posts
  • LocationLogan, Utah and Seattle Area

Posted 20 October 2015 - 01:57 PM

What did you line the underbody and floors with? And the engine bay? The project looks really great so far!



#12 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 21 October 2015 - 04:19 AM

Its 3M undercoat. inside just the floors and tunnel are done. In the engine bay I was using POR15 chassis black top coat but it would not lay even and i did not like how it came out. So i did the 3M over top and I think it looks good.



#13 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 22 October 2015 - 04:57 AM

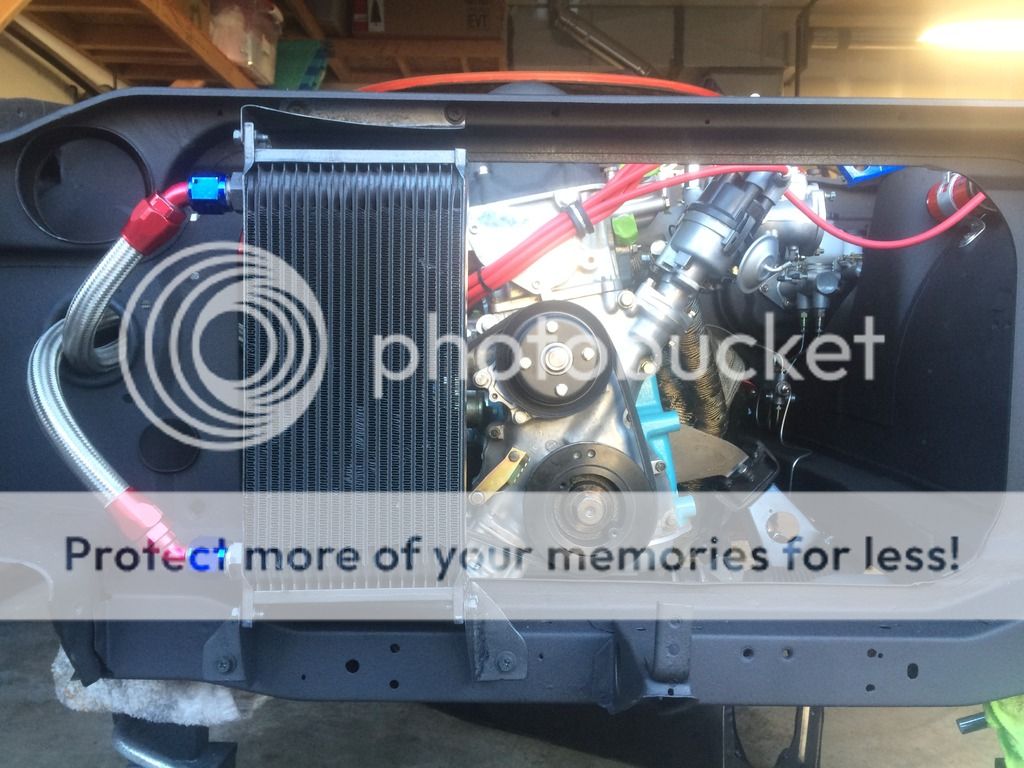

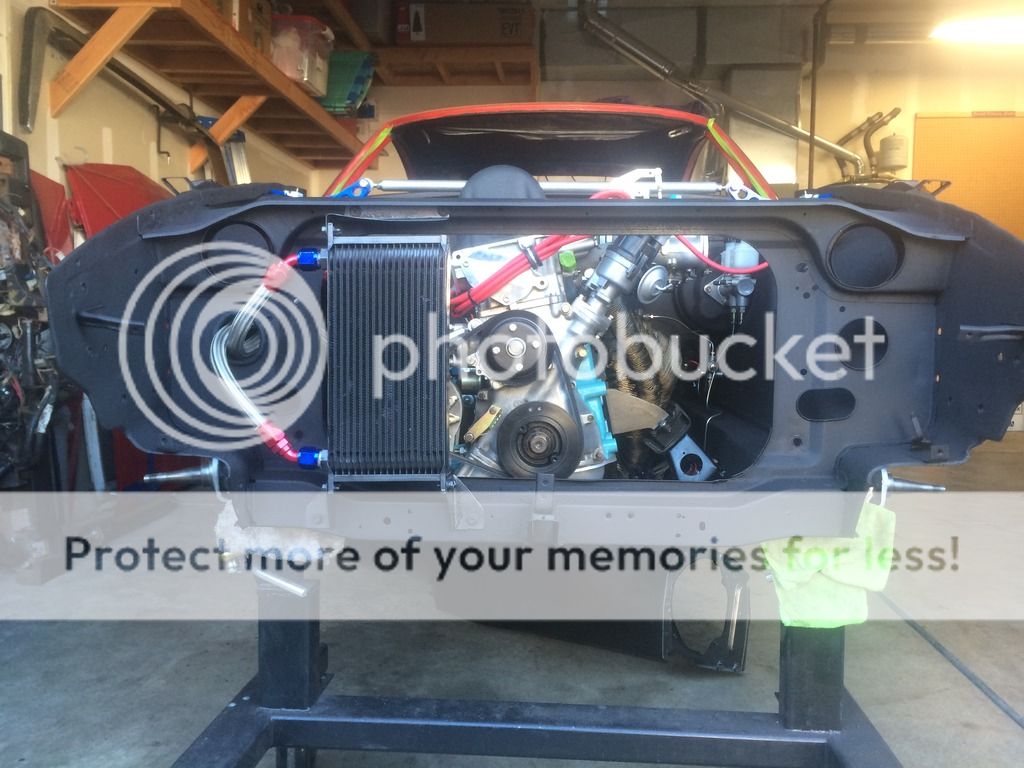

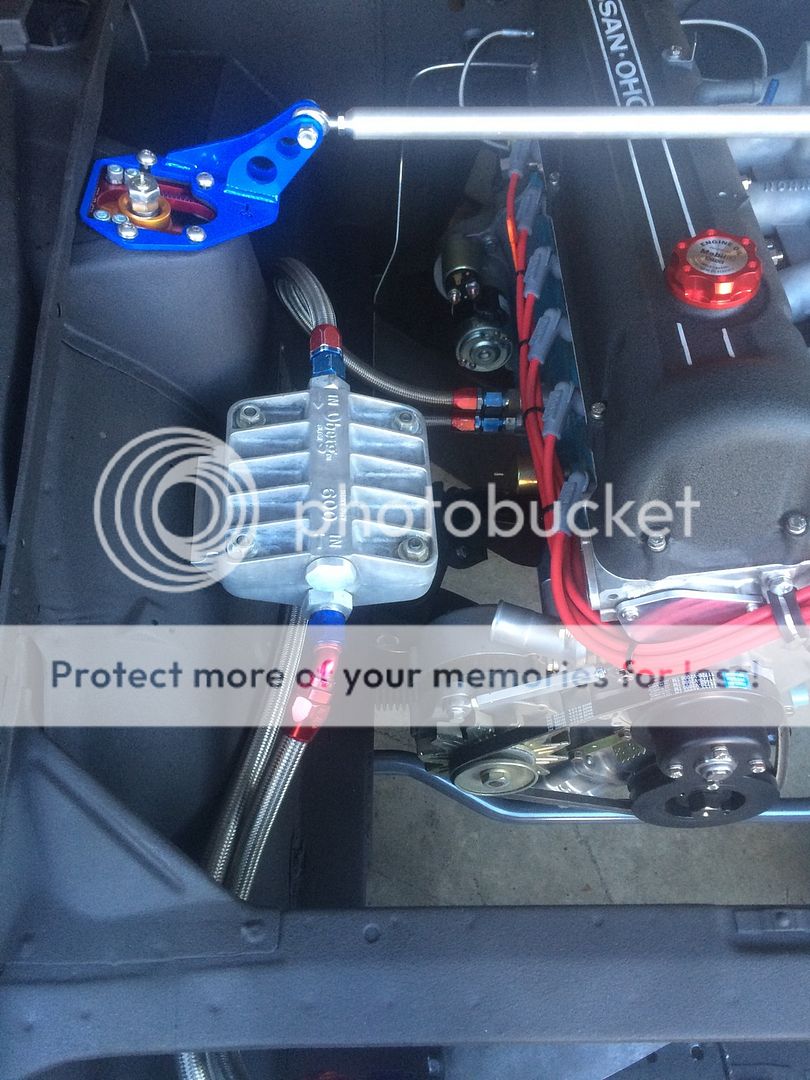

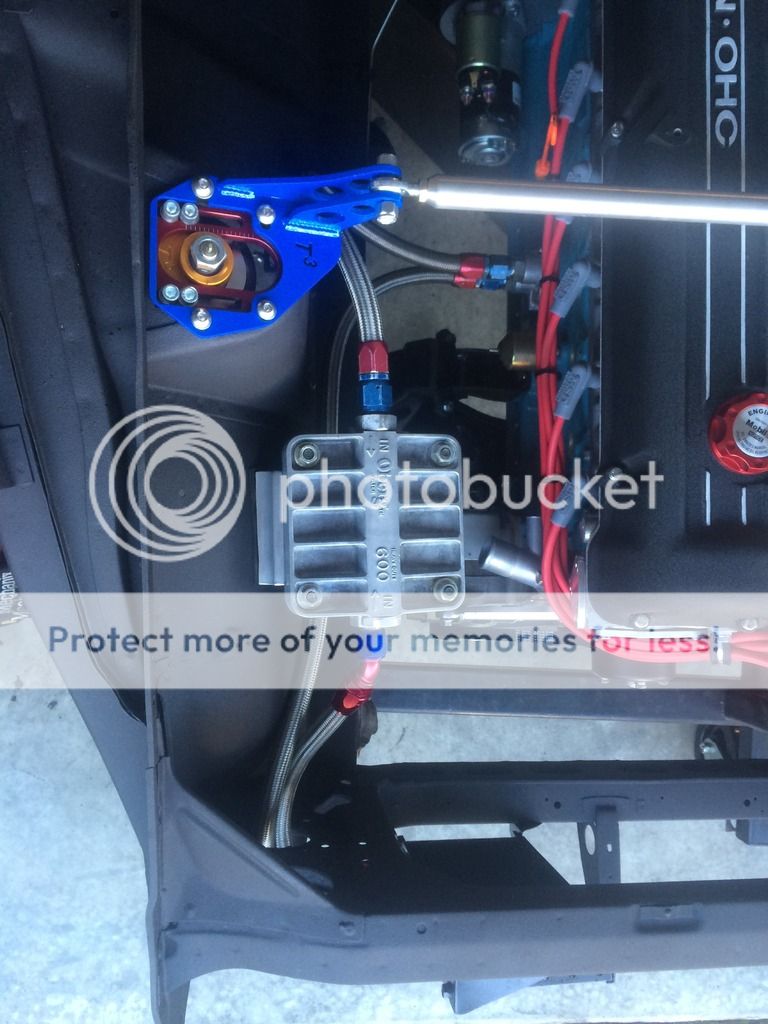

got some more work done yesterday. gor the oil cooler set up and oberg oil filter in and mounted. also got the more of the brakes together



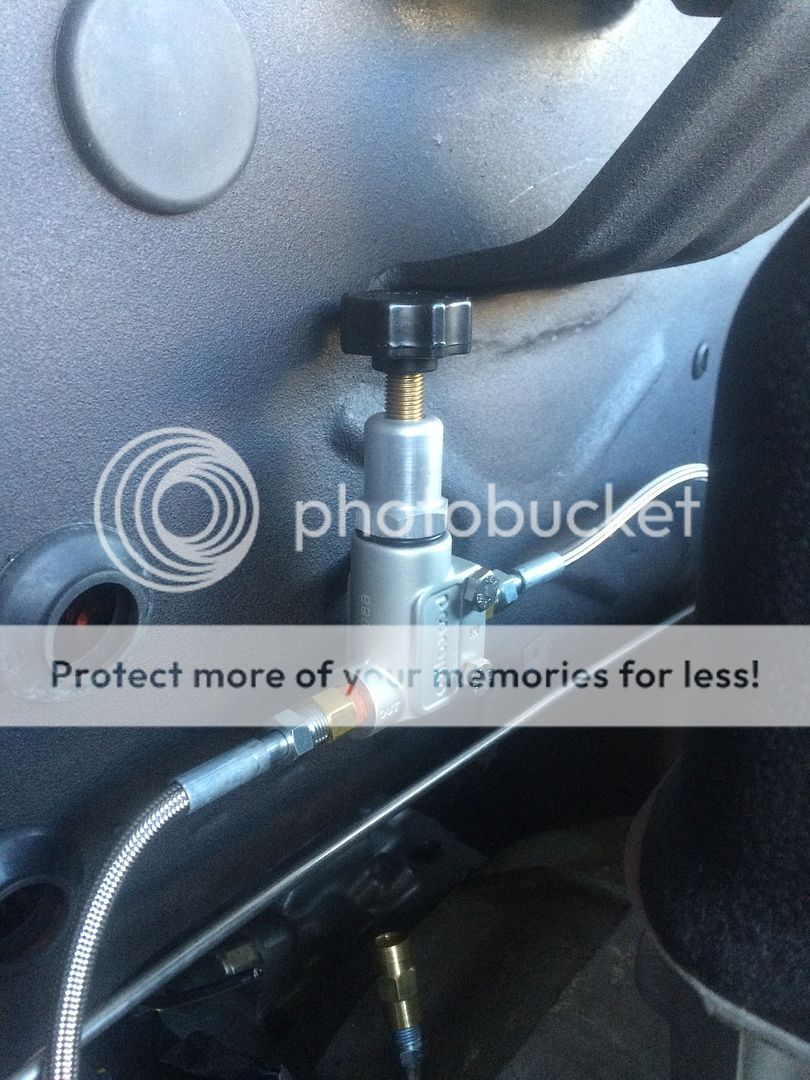

A658C975-D92F-477C-B8E6-4302EDBDB1FA_zps736DF2B5-9DA9-4B72-AA91-58ED7E00A983_zps00BAE857-E96E-4B96-9664-141640E01011_zpsF9B42BEE-4E28-4634-82FE-28988FE29BF4_zpsD4FECF89-EB19-4B72-83D7-A96C84637D0C_zpsFF35D441-DCE5-4E44-8FD5-E4E1B1808887_zpsA687F20C-1909-4226-A100-87294A5A7F50_zps



Then fedex man dropped off a package



D47691CC-4C02-416E-A8A7-093664BB6E3E_zpsC4B4AFA6-711B-4A3D-8D90-F2FA13123D7F_zps



#14 OldAndyAndTheSea

OldAndyAndTheSea

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 764 posts
  • LocationHenderson Harbor, NY

Posted 22 October 2015 - 05:42 AM

Fantastic project! Looking great!





I want your rear differential.



:o


PM me for any composites related inquiries.


#15 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 06 November 2015 - 05:18 AM

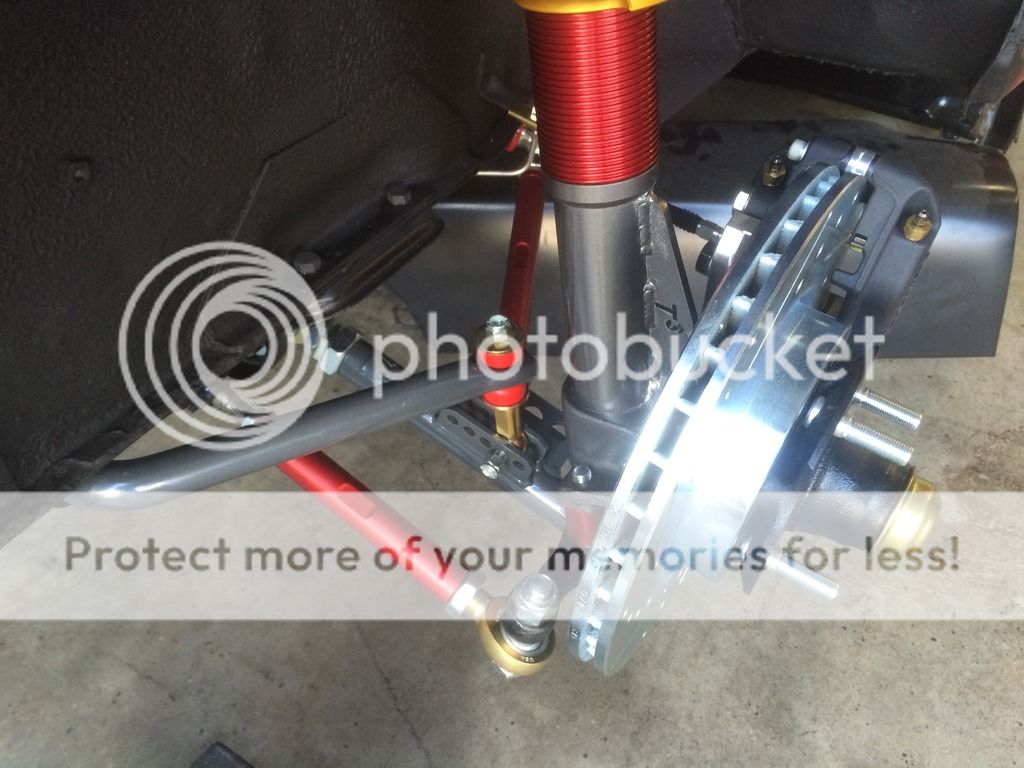

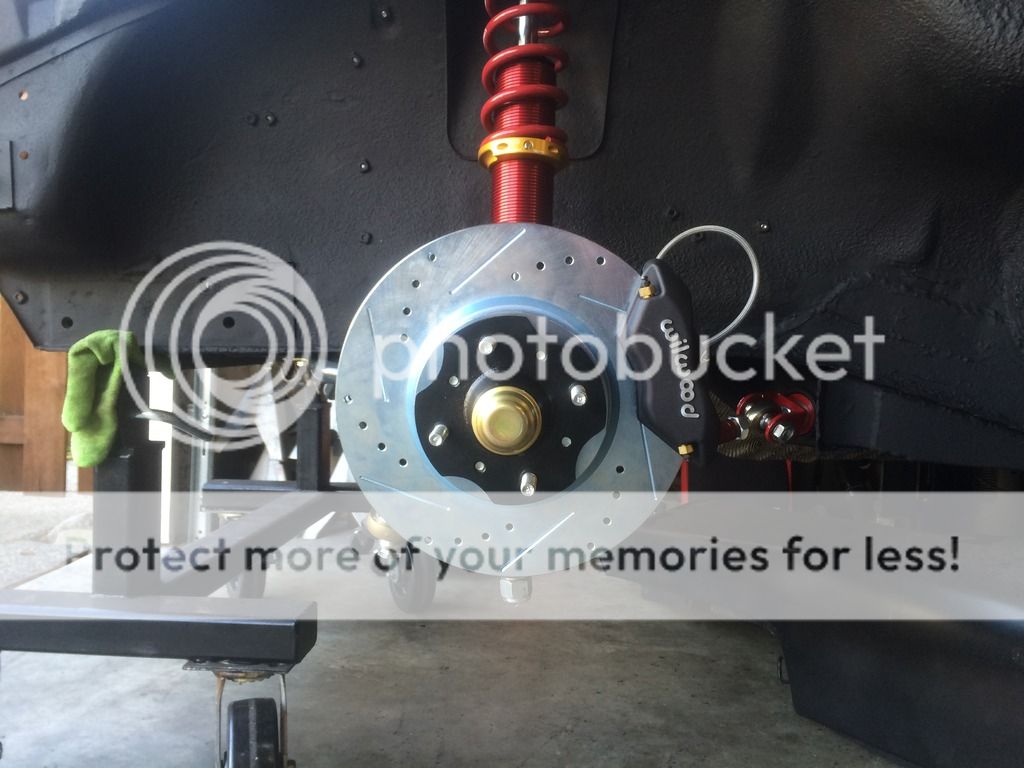

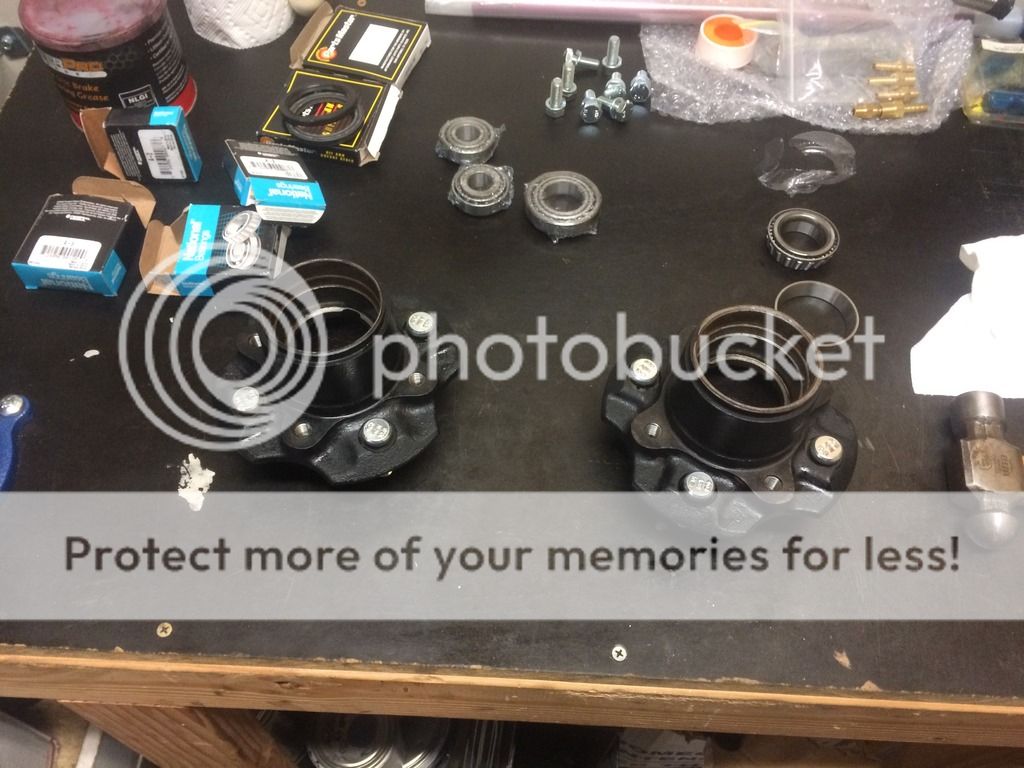

Last week i got the hubs all rebuilt and on the car.



56BF8A83-DBFF-4330-873F-F733CA49E6B4_zpsv71BBBF72-6806-4221-B183-280D28773400_zpsECA436AF-C796-4CEE-A351-272B21E710A5_zps7B9F2F7E-0768-49B9-8B6A-7F3341524017_zps



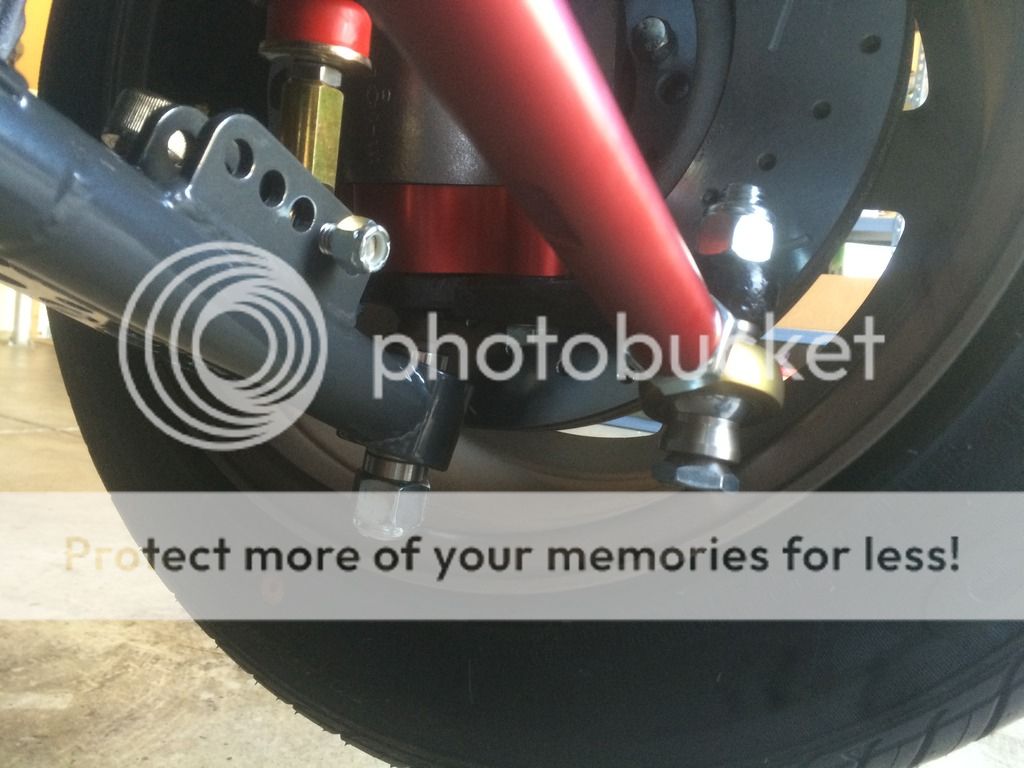

I had a issue with the wheels clearing the T3 LCA and outer tie rods. I talked to someone who said they removed the RCA and it cleared, I did not want to have to do that so i opted to order the NCRCA from T3 and hopefully i can pull out enough camber with the camber plates. Possibly bigger wheels are needed in the future.



#16 Stock Car Mafia

Stock Car Mafia

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 500 posts
  • LocationMinneapolis, MN

Posted 06 November 2015 - 08:40 AM

Man, this car is looking so sharp!  Is that diff a R180 and do that make that LSD for the R200 in the 280Z's?


Loose is fast and on the edge of out of control.


#17 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 06 November 2015 - 10:53 AM

Man, this car is looking so sharp! Is that diff a R180 and do that make that LSD for the R200 in the 280Z's?


yes it is a R180, but its a "K stamp" so its out of the early S12 not a z. it has a 115mm ring gear where the R180 out of the z is a 110mm. i have only seen the OS giken in the 115mm R180, but i know that quaife makes one for the R200.

Edit: they do make the OS giken for the R200

Edited by 73Fairlady, 06 November 2015 - 02:41 PM.


#18 Nelsonian

Nelsonian

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPip
  • 730 posts
  • LocationSan Diego, CA

Posted 06 November 2015 - 11:11 AM

Love this build!, and it's coming along at a good pace. Where did you get the vented inspection doors from? I had MSA do mine many years ago, but they only had 4 vents added to them.


Nelsonian, San Diego, CA.

#19 73Fairlady

73Fairlady

    Regular

  • Members
  • PipPipPip
  • 69 posts
  • LocationSeattle, Wa

Posted 06 November 2015 - 01:06 PM

Love this build!, and it's coming along at a good pace. Where did you get the vented inspection doors from? I had MSA do mine many years ago, but they only had 4 vents added to them.


I found them on eBay, there is a guy on there that does it and sells them. User name arizonas30 and there well priced and no core is required. But he will buy your old ones too.

#20 V-Fib

V-Fib

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • LocationTacoma, WA

Posted 06 November 2015 - 10:55 PM

Hey just realized that you're from Seattle! Welcome aboard. Very slick build - looks like you're clipping along at a pretty steady pace.

Tuned in for the progress.
