Disappointing L28 Dyno Results

L28 dyno weber hp

  • Please log in to reply
17 replies to this topic

#1 jenks

jenks

    Junior Member

  • Members
  • Pip
  • 8 posts
  • LocationFort McMurray, Alberta

Posted 02 September 2016 - 05:07 PM

Hey guys,



I just got my car back from the dyno and I was a bit underwhelmed with the results - 156hp and 161ft/lb at the wheels (curves with AFR attached).  The long block was assembled by a pretty reputable builder with the following specs:



Bored out L28 to 2.95L

F54 block with a N47 head

11.3:1 CR

290° cam with 0.490" lift



Then I came along and messed something up with the following:



MSA 6-1 header into 2.5" exhaust

MSD 6AL-2 programmable ignition box triggered by a 280zx dizzy

Cannon intake manifold

Weber DCOE40s

36mm chokes

160 main

160 air correction

F2 emulsion tube

3.5 A/V

55F9 idle



The timing curve was initially dialed in by the tuner to eliminate knock with the 94 octane that I delivered the car with.  The dizzy is locked out at 35°BTDC and the timing map they arrived at is attached.  After the 1st round of results, I asked them to run some higher octane to get in all the timing that I thought was left on the table to control the knock.  With 108 octane the car didn't pick up any power from advancing the curve that was developed with the 94.  I found that a bit odd, but not sure how you argue with the data.



The dyno was an eddy brake Land and Sea Dynomite axle hub set up.



Let me know what your thought are on where I could look next, or if you think something is really bottlenecking the output. From all the searching I've done, it seems like all the hardware should support 200+whp, but we're not even close.



Thanks!

Attached Files



#2 Roberto260Z

Roberto260Z

    Newbie

  • Members
  • Pip
  • 4 posts
  • LocationAustralia

Posted 02 September 2016 - 05:19 PM

Has the head been ported? 40mm Webers with 36mm chokes will restrict top end hp on this motor.
Roberto
1974 Datsun 260Z
RS30-001060 (2-seater)

#3 jenks

jenks

    Junior Member

  • Members
  • Pip
  • 8 posts
  • LocationFort McMurray, Alberta

Posted 02 September 2016 - 05:29 PM

I don't believe too much was done in the way of significant port work.  More just cleaning it up and smoothing things out as opposed to a lot of material being removed.



You're definitely not the first person that has mentioned that the carbs are too small, but I didn't think they choke things up that much.  Seen a few guys with SUs making a decent amount more. I suspect the 40s would outflow the SU set up although I haven't actually seen the data to validate that assumption.



#4 grannyknot

grannyknot

    Always Here

  • Members
  • PipPipPipPip
  • 201 posts
  • LocationOntario

Posted 02 September 2016 - 05:35 PM

I only dabbled with triples for a year or so but isn't your air corrector jet way too small in relation to the main? By the general rules of sizing your ACJ should be 215-220



#5 jenks

jenks

    Junior Member

  • Members
  • Pip
  • 8 posts
  • LocationFort McMurray, Alberta

Posted 02 September 2016 - 05:43 PM

Normally I would agree, but I think at the end of the day the AFR curve should trump whatever I think the jets should be.  If they were in fact too small, wouldn't the curve be way too fat on the top end?  I'll pop one out tomorrow and have a look.  Maybe the tuner was mistaken on which ones ended up in there.



So did you give up on the triples and go FI?


Edited by jenks, 02 September 2016 - 05:44 PM.


#6 Nismospek

Nismospek

    Junior Member

  • Donating Members
  • Pip
  • 23 posts
  • LocationDenver, CO

Posted 02 September 2016 - 06:00 PM

Everything I have always heard is that the money is in the head work when it comes to unlocking HP in L Series engines. There are 300 hp race engines still on 2.8 liters.


Edited by Nismospek, 02 September 2016 - 06:01 PM.


#7 NewZed

NewZed

    Clandestine Moderator

  • Members
  • PipPipPipPipPipPipPipPip
  • 5264 posts
  • LocationWashington County, Oregon

Posted 02 September 2016 - 06:22 PM

Not an expert but the shape of your torque curve shows a steep drop at 5800 RPM.  Seems like it might be a sign of just not enough air flowing in to the cylinders.  Choked off somewhere in the path.  Probably obvious, but I thought I'd go ahead and state it.



If I read your timing curve right it shows 6 degrees pulled, from 35, so 29 degrees total advance at 6500 RPM.  26 total at 5000, and 25 at 4000.  Most L series tuned for power are set to max advance are 34 at 2500 and above, thereabouts, from what I've seen.  So timing seems retarded, overall.



Might just need a few tweaks and some more tuning.  You only gave two numbers on the cam profile, bit didn't indicate if it was degree'd properly or maybe it was just put on a timing chain sprocket notch number.  Just another small detail.



Seems like the cam profile should push much higher.  A comparable Schneider cam shows a 3500 - 7500 working range (however they figure that). http://schneidercams...stsunL6_NA.aspx



#8 jenks

jenks

    Junior Member

  • Members
  • Pip
  • 8 posts
  • LocationFort McMurray, Alberta

Posted 02 September 2016 - 07:21 PM

Yep, you're reading the timing curve right.  I was thinking the same thing you were, so I had asked them to run some 108 octane and put the timing curve back in that the car that it was delivered with (33° all in by 3000). That timing curve only made 149ft/lb.



This is the only L-series I've seen that needs only 26° to make peak torque.  Seems a bit odd... :confused:



I'll double check the cam and make sure it's installed straight up as per the builders recommendation.  I didn't actually check this before sending it off to the dyno as it was set by the builder.  Maybe I shouldn't have assumed, but I'll check it.



I'm with you guys on the 'not enough air' theory based on how the torque falls off a cliff at 5000.  Having said that, I think the carbs should be good for a bit better than 156hp, but given my lack of experience with these engines, what I 'think' doesn't exactly carry a lot of weight.  I'll go do some more searching and see how people have been doing with the N47 head as well.



Thanks for your comments guys.



#9 NewZed

NewZed

    Clandestine Moderator

  • Members
  • PipPipPipPipPipPipPipPip
  • 5264 posts
  • LocationWashington County, Oregon

Posted 02 September 2016 - 07:40 PM

I would check all of your timing associated items.  Make sure you really know where TDC is, degree the cam, don't use a hole in a sprocket, verify that the MSD program is actually creating those advance numbers (the curve you showed is what's supposed to happen, but might not be what is), that kind of stuff.  There have been a couple of posts recently from people who got cams that din't match the profile cards.  Not sure where they ended up.  You might not even have the cam profile you think you have.  Don't trust - verify.



#10 Andreas

Andreas

    Regular

  • Members
  • PipPipPip
  • 72 posts
  • LocationSweden

Posted 03 September 2016 - 12:55 AM

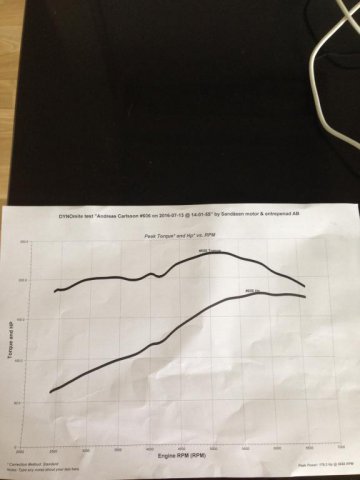

Attached File  image.jpeg   33.26KB   0 downloads
