Steel hose barb to AN fitting


  • Please log in to reply
18 replies to this topic

#1 grannyknot

grannyknot

    Always Here

  • Members
  • PipPipPipPip
  • 219 posts
  • LocationOntario

Posted 17 December 2016 - 02:53 PM

Trying to retrofit and older 80's fuel rail with 5/16" steel hose barbs and up date it to AN fittings,

is there way convert without welding? All the AN fittings I see seem to be made only to lock onto PTFE/Teflon hoses.

Thanks,

Chris



#2 Miles

Miles

    Miles ahead!

  • Donating Members
  • PipPipPipPipPipPip
  • 1888 posts
  • LocationSacramento, CA

Posted 17 December 2016 - 05:59 PM

Edit: 2:43pm 12/18 16 using a different link



If you mean  adapt to 5/16 fuel line then this will work:



https://www.holley.c...parts/165056ERL


Edited by Miles, 18 December 2016 - 02:43 PM.

“Life is like arriving late for a movie, having to figure out what was going on without bothering everybody with a lot of questions, and then being unexpectedly called away before you find out how it ends.”    -Joseph Campbell


#3 TimZ

TimZ

    OG Member

  • Members
  • PipPipPipPipPipPipPip
  • 2388 posts
  • LocationDearborn, MI

Posted 18 December 2016 - 07:25 AM

If you mean  adapt to 5/16 fuel line then this will work:



https://www.summitra...56erl/overview/

Does that link go to some weird search engine for anybody else, or do I need to go searching for malware?  I checked other links on this site and did not have the same issue.



Tried creating the correct link and got the same issue...



The link was trying to point to Earl's Fittings part number 156056er


Edited by TimZ, 18 December 2016 - 07:28 AM.

Posted Image

Information is not knowledge
Knowledge is not wisdom
Wisdom is not truth
-FZ, Joe's Garage

#4 LanceVance

LanceVance

    There are some who call me... Tim?

  • Members
  • PipPipPipPipPip
  • 635 posts
  • LocationEl Paso, Texas

Posted 18 December 2016 - 07:50 AM

Goes straight to Summit Racing for me...
2011 Subaru Impreza STI Limited Sedan - Daily Driver
1973 Datsun 240z - Running tripples, getting the L28ET!
1975 Datsun 620 Pickup - Future SR20/Ratrod project

#5 TimZ

TimZ

    OG Member

  • Members
  • PipPipPipPipPipPipPip
  • 2388 posts
  • LocationDearborn, MI

Posted 18 December 2016 - 07:59 AM

Goes straight to Summit Racing for me...

Hmmm.  Well, crap.


Posted Image

Information is not knowledge
Knowledge is not wisdom
Wisdom is not truth
-FZ, Joe's Garage

#6 Chickenman

Chickenman

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 639 posts
  • LocationCanada

Posted 18 December 2016 - 12:30 PM

Link does a redirect to VG-link for me. FireFox 50.10.



#7 Chickenman

Chickenman

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 639 posts
  • LocationCanada

Posted 18 December 2016 - 12:36 PM

Trying to retrofit and older 80's fuel rail with 5/16" steel hose barbs and up date it to AN fittings,

is there way convert without welding? All the AN fittings I see seem to be made only to lock onto PTFE/Teflon hoses.

Thanks,

Chris

Picture of said fuel rail ends? Are hose barbs removable? IE: Pipe thread? If not, cut the barbed end off and use a AN Tube  adapter fitting. You can either use a SS compression fitting or a flared collar fitting. Male or Female fittings available.  Easy Peasy.



These are compression fittings, with aluminium ends. . This link should work just as an example.:



https://www.summitra...-size-2/5-16-in



Test: https://www.summitracing.com/



XRP carries a good lin of special purpose fittings. Good quality and American made:



Link to XRP full catalog. PDF format. Page 36 part # 992005 would likely work.



http://www.xrp.com/w...uct-Catalog.pdf



You can get  compression tube adapters and AN ( flare style ) SS Tube collar adapters as well. I saw some in a post about a week ago. I'll see if I can find the link.


Edited by Chickenman, 18 December 2016 - 01:30 PM.


#8 Chickenman

Chickenman

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 639 posts
  • LocationCanada

Posted 18 December 2016 - 01:21 PM

Frack Me!! I don't know WTF is going on, but I keep getting redirected to that damned VIGLINK search site.



Edit: Just did a search and it looks like VIGLINK is an affiliate to some Forums for advertising...  It's popping up all over the place. Something for the Forum administrators to address???



Edit2 : Just started a thread on the Forums " Website problems " asking about this....



Edit3: Might have been the new Video Card or Game I just installed. VIGLINK seems to be associated with Google advertising and Google Drive. Interesting because my new Gigabyte GEForce 1050TI graphics card wanted to install Google Chrome, Toolbar and Google Drive. I opted out but it seems it still installed this advertising and tracking software. It was either the video card drivers or an old version of Splinter Cell. Either way, it's a PITA!!!


Edited by Chickenman, 18 December 2016 - 02:31 PM.


#9 Miles

Miles

    Miles ahead!

  • Donating Members
  • PipPipPipPipPipPip
  • 1888 posts
  • LocationSacramento, CA

Posted 18 December 2016 - 02:48 PM

I changed the link above from Summit to Holley.



Also here is the Holley Earl's page.  https://www.holley.com/brands/earls/



Or you can plug the Earls p/n 165056ERL  into Google


Edited by Miles, 18 December 2016 - 02:54 PM.

“Life is like arriving late for a movie, having to figure out what was going on without bothering everybody with a lot of questions, and then being unexpectedly called away before you find out how it ends.”    -Joseph Campbell


#10 Chickenman

Chickenman

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 639 posts
  • LocationCanada

Posted 18 December 2016 - 06:27 PM

Miles, your first Link worked fine after I went to the VIGLINK site and opted out of their Tracking system. First time I've run across this.



#11 TimZ

TimZ

    OG Member

  • Members
  • PipPipPipPipPipPipPip
  • 2388 posts
  • LocationDearborn, MI

Posted 18 December 2016 - 10:20 PM

Miles, your first Link worked fine after I went to the VIGLINK site and opted out of their Tracking system. First time I've run across this.

Okay, so I'm not crazy (at least not over this :mrgreen: )...


Posted Image

Information is not knowledge
Knowledge is not wisdom
Wisdom is not truth
-FZ, Joe's Garage

#12 Ben280

Ben280

    Always Here

  • Donating Members
  • PipPipPipPip
  • 112 posts
  • LocationPortland OR

Posted 18 December 2016 - 10:30 PM

Well after an exciting jaunt through the bowels of the internet and it's weird tracking nonsense, I'll post up another solution for 5/16 hardline to AN.



You can use a -5AN Tube Nut and a -5/-6 Female Union. Similar to the previous solution, but one I'm personally familiar with.



Either way you will need to do a 37º flare on the fuel line. Summit makes a tool for this, but I HIGHLY recommend the ratcheting RIGID tool.



https://www.amazon.c...l/dp/B001HWNS40 (for the love of pete, PLEASE go to the right link)



Yes its spendy, BUT a good clean flare is essential to a quality fit and avoiding fuel leaks.



#13 Chickenman

Chickenman

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 639 posts
  • LocationCanada

Posted 19 December 2016 - 02:34 AM

Found the link for SS fittings ( if you need them for high pressure ) . It's a Swagelock #500-6-5AN. . Which is what I assume Chris wants to do. The VW/Audi guys are using this Swagelock part on the 8mm ( 5/16" ) factory 1.8T fuel rails.  I'm thinking they must be using -6 hose as well.



Only issue I can see is how do you go from a -5 female coupling that mates with this to a -6 nipple that fits -6 AN AA braided hose. Might be more trouble than it's worth.



http://forums.vwvort...3#post102021753





Edited by Chickenman, 19 December 2016 - 02:48 AM.


#14 TimZ

TimZ

    OG Member

  • Members
  • PipPipPipPipPipPipPip
  • 2388 posts
  • LocationDearborn, MI

Posted 19 December 2016 - 08:45 AM

Found the link for SS fittings ( if you need them for high pressure ) . It's a Swagelock #500-6-5AN. . Which is what I assume Chris wants to do. The VW/Audi guys are using this Swagelock part on the 8mm ( 5/16" ) factory 1.8T fuel rails.  I'm thinking they must be using -6 hose as well.



Only issue I can see is how do you go from a -5 female coupling that mates with this to a -6 nipple that fits -6 AN AA braided hose. Might be more trouble than it's worth.



http://forums.vwvort...3#post102021753





I was originally thinking tube nut and flare, but the oddball  -5an size was what kept me from suggesting it.



That Swagelock part is a good idea if you can find a -5 female to -6 male adapter.  The Swagelock part is probably all stainless, whereas I'm 99% sure the Earl's piece uses a brass compression ring, which is less desirable if you want to run E85 (otherwise it's fine though).


Posted Image

Information is not knowledge
Knowledge is not wisdom
Wisdom is not truth
-FZ, Joe's Garage

#15 z240

z240

    Junior Member

  • Members
  • PipPipPipPip
  • 374 posts
  • LocationCalgary AB, Canada

Posted 19 December 2016 - 02:52 PM

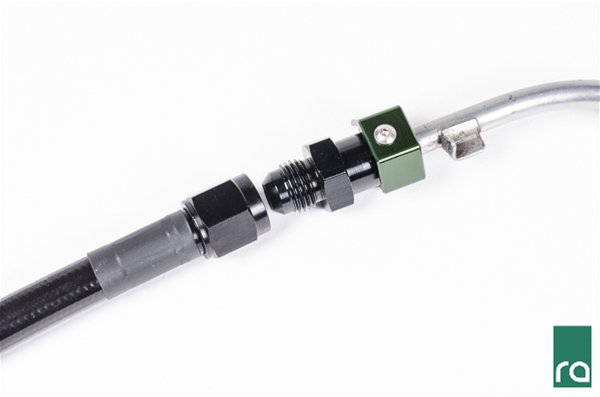

How about these?

http://www.radiumaut...tings-P409.aspx

Attached File  CC8BFDB1-3C40-4621-BA32-E1FF92A85951-32440-0000135E3AB4FDA8_tmp.png   66.13KB   0 downloads

Edited by z240, 19 December 2016 - 02:53 PM.


#16 grannyknot

grannyknot

    Always Here

  • Members
  • PipPipPipPip
  • 219 posts
  • LocationOntario

Posted 19 December 2016 - 03:46 PM

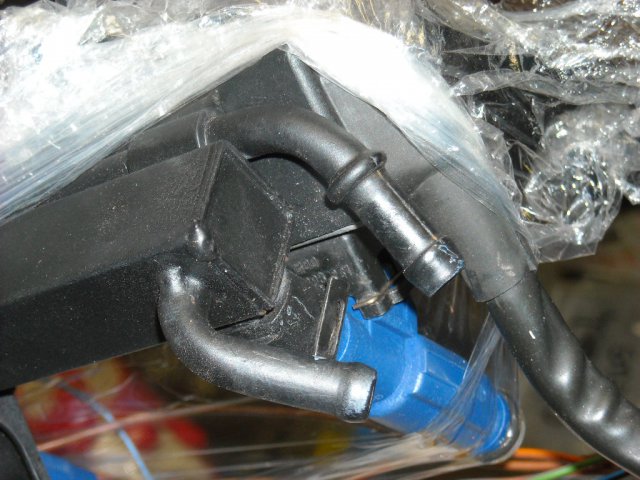

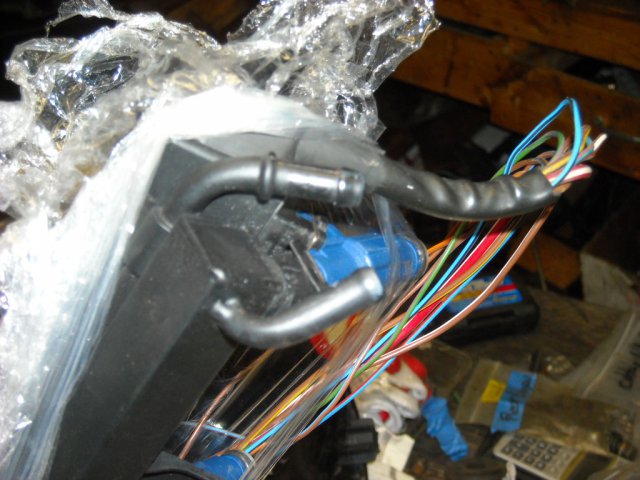

Well, there does seem to be some options, the barbs on the ends of the steel fuel lines that come from the fuel rail are pretty short and stubby, I think I will only have one chance to get it right.

Attached File  DSCN0944.JPG   231.3KB   0 downloadsAttached File  DSCN0943.JPG   231.17KB   0 downloads



Thanks for the ideas.



#17 Ben280

Ben280

    Always Here

  • Donating Members
  • PipPipPipPip
  • 112 posts
  • LocationPortland OR

Posted 19 December 2016 - 08:49 PM

After seeing the images, tube nuts won't work, and I don't think anything that requires a flare to be put on the end of the line will be possible. You might be better off welding fittings onto the rails.



#18 grannyknot

grannyknot

    Always Here

  • Members
  • PipPipPipPip
  • 219 posts
  • LocationOntario

Posted 20 December 2016 - 04:59 AM

The real reason I would like to install AN fittings is so I can replace all the rubber/Neoprene (EPDM or NBR) fuel lines with the newer PTFE / Teflon fuel lines, they don't emit fuel vapour, are not effected by all the additives that are in gasoline these days and are said not to  degrade over time like regular fuel line.

Do you think  PTFE/Teflon hose will slip over the barbs of the fuel lines pictured in post#16 and be able to be sealed with a hose clamp or permanent pinch clamp or is the line just too ridgid?



#19 Chickenman

Chickenman

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 639 posts
  • LocationCanada

Posted 20 December 2016 - 06:12 PM

You can get high Quality fuel hose from XRP, Goodridge  and Earls.  Should not have any  issues with modern fuel or alcohols. It's the cheap brands from  offshore brands that have issues. ( Personally I don't like Russel products ). You don't really need PTFE lined hoses for modern pump fuels ( including E85 )  with quality hoses.... IMHO. CPE lined Nitrile fuel hose should not have any permeability issues. ( Synthetic CPE can handle Methanol and Nitromethane...so Ethanol E85 and modern pump fuels should be no issue )



With that in mind you could go to something like XRP's crimp lock CPE hoses. Would push over your stock fuel nipples, secure with fully banded SS worm clamp or crimp clamps. Makes life a lot easier.



http://www.xrp.com/w...uct-Catalog.pdf



Even Earl's cheaper line of Super Stock hose has been reformulated to handle modern fuels including E85.



https://www.holley.c..._and_hose/hose/



Goodridge hose lineup. Type 200 with synthetic CPE  is good for Methanol and Nitro Methane.



http://goodridge.bra...-hose-types.php


Edited by Chickenman, 20 December 2016 - 06:18 PM.
