Project Chuck '71 Scarab


Recommended Posts

Project: Chuck Norris

1971 240Z Scarab Kit



13934867_1234761569876549_1090616379194813907014_1234761593209880_8374454029962414022155_1234761599876546_85520148600739

14051800_1234761659876540_16441345063459



14053992_1234761763209863_33525087284072



14067657_1234761779876528_56787398176614

13938377_1234761736543199_4578547990501713962487_1234761719876534_3997147579232514067688_1234761669876539_78630195151197

13962671_1234761623209877_3173742406023613912716_1234761636543209_33587742138127



What a MESS!

The car consists of some Weld Racing Drag Light wheels, Konig Rewinds, R200 rear end with cardan joint axles, a TH350 Automatic transmission with a shift kit and a stall converter, a 010 4 bolt main 350 sbc with some of the Scarab parts like the Hooker headers, a roll cage with pigeon shit welds, 1 plastic bucket seat, gutted gash with minimal gauges, no sway bars, mismatched springs and shocks, a driveshaft loop, stock brakes, a Northern Radiator with an electric fan, and some old safety harness belts.



First get it to run!



The Accel Distributor hit the trash can first off. I ordered up a cheap Chinese HEI knockoff!

12376219_1096986633654044_75780715283716



Much cleaning!

12400828_1096985973654110_75580925533979



The Alt Belt was having a hard time staying on. But at this point I knew the engine was still good and in fairly good shape. Turned out I had a raelly healthy 5.7 with a Holley 480CFM 4 barrel with vacuum secondaries! It was a fresh carb too!

The original exhaust though was a simple Collector DUMP!

So off I went to get exhaust done.



12540905_1096985986987442_5875939552225912509120_1096985983654109_2619616985472012495178_1096985980320776_5284424225462112509903_1096985976987443_76837417022746





It wasnt ear deafening now!



Change the oil time... Shit that filters a bitch to get to... remove #1 header pipe which slip fits as 2 pieces and the original header has a slip fit  collector as well!.



12439044_1096985280320846_9130245826468712523025_1096985273654180_91642852732036





I purchased a cheap oil filter re-locator kit. What a mistake. That thing was a leaky SOB! I ended up going to CAT and having O-ring faced Parker lines made up, and chasing all the cast aluminum housings before it would seal... It ended up being close to $300 in total for oil line crap!



And then it was time to make it streetable again, as this was setup as a cheap 1/4 mile car, probably because the last time it was registered it had to be smogged and well... there was no BAR label so it went off highway use only.

12438963_1096985270320847_42254932230534

Heres the old converter!



Here comes a 4L60e!

I purchased the Holley carb TPS kit, a TBI ECU wired up as a TCU only, and all the associated sensors including a DRAC module.

12548854_1096984410320933_21982588095741



I also painted components under the car as well as the cleaned and painted the underside of the car!

12508908_1096984406987600_27365623370882



Enjoy the wood props

12548852_1096984403654267_3008898531294012438951_1096984396987601_61856756945635



No stinkin telescoping transmission jack!... and engine held up with 2x6 boards. I man handled the TH350 out... um... well that 4L60e was a bit to much for me to man handle in!



12439017_1096983646987676_28883577030069

12541056_1096983640321010_27975751317959





So I opted to use ratchet straps!

While it was down, I also pulled that 3/8" aluminum hardline dragging on the bottom of the car and installed a GM hardline with GM filter from a 94 Burban!

944088_1096983643654343_873694266353523812549114_1096983636987677_90397879507283

968985_1096982746987766_1330500783187463

1935500_1096982740321100_835618520771497



Oh Yeah, I did!

12507259_1096982750321099_54281763725217



Once in I had to make a new mount!

12400897_1096982743654433_12966339150590



Turns out old Bronco Spare tire holder parts make good scrap for mounts

12510299_1096982000321174_59477446887520

12573868_1096982006987840_83412380473142

12573076_1096982010321173_19208546662884

12417845_1096982013654506_59080010067022



Note that I added a Full Boar Single Chamber muffler in the center as well as a flex coupler!

I also installed GM horns, and a brand new XENON air dam.



The Exhaust required modifications after this though

12573090_1096979526988088_14670429125370



With the 4L60E I also changed out the rear drums for disc brakes

12540800_1096982736987767_37858637783323

12508679_1096980220321352_18383115302652

And some Toyota 4 piston calipers

11140038_1096980213654686_59530786846118



Wiring up a 4L60e

12400624_1096981156987925_65614128823037

Also the engine bay was sprayed with flat black!

12509613_1096981160321258_80800610835096

1917603_1096981153654592_774259066362966



12507671_1096980216988019_91007107124392

Very busy in there now.



And then it was time to install Autometer Sports Comp Gauges.

12439262_1096980223654685_31331399364350

Not all of these were electric, and it took me some time to switch them all over to electric.



The Hood had to go!

I found a nice cowl hood! Then I was off to the HybridZ BBQ put on by Gollum at San Pablo Dam Recreation Area and found another Scarab!

12400788_1096979056988135_84626405445387

You know, one with a number plate and the "special package parts"

12507448_1096979050321469_24193593471390







No sooner than I have the whole 4L60e in and running well than a T56 plops in my lap for $125!

12573733_1096978333654874_73936471760978



CLEAN IT!



12552782_1096978346988206_22072057400947



I mean do I really have a choice? I pose it that I do not!

1929818_1096978343654873_760983971178953



Parts gathering phase initiated!

12376381_1096978336988207_40335457828144



Tilton Clutch Master, Tilton Starter, Centerforce Flywheel, MacLoed Clutch disc, GM pressure plate, 3AN SS braided hydraulic line with all the related fittings, and a stock LT1 Slave.

12439335_1096977546988286_14117679795895

Out with the old!





12552638_1096977543654953_63101624102067



Using wood again... super janky I know



12509287_1096977550321619_62803429745430

12510391_1096977540321620_71505453430788

Man that is close!

12509892_1096977553654952_14715334309043

More Bronco Spare tire carrier scrap put to use!

Fords are good for something... hehehehe



12510434_1096976870321687_90165160594661



12510378_1096976883655019_14435778351042

12522923_1096976236988417_68677896514181

12540621_1096976230321751_78297793190699

12439235_1096975673655140_42342410571996



It was time for seats!

12509544_1096976226988418_94317349149318

BMW Recaro with Thigh Bolsters. I love these seats!

12573176_1096975676988473_31920725088508

5406_1096975666988474_155159261335510883

946136_1096974553655252_1734538766955546





12592305_1096975680321806_44872485056056



Back to the Exhaust Shop

12522998_1096975670321807_43625585977559

12573197_1096976240321750_50296207173127

12553047_1096976233655084_59627650085594







12417947_1096974550321919_1818481054908612573119_1096974110321963_26243041292679

Ready for Marina AutoX! One of the last few UFO AutoX meetups.

12510517_1096974103655297_64519205452291

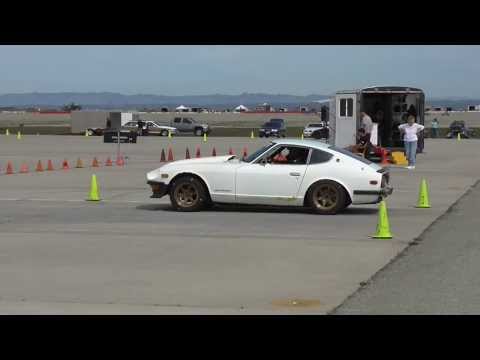

It was my first ever AutoX driving. It was a BLAST! I spun out on the 3rd run after greasing the tires up... man... the car was called "The White Pig" by TonyD!



Chuck Norris AutoX Run 1

Chuck Norris AutoX Run 2

Chuck Norris AutoX Run 3

Chuck Norris AutoX Run 3

Link to comment
Share on other sites

The Next phase was obvious... Deal with the Body.



The paint was rapidly peeling and rust bubbles forming!



So the engine came out!

12508941_1096973423655365_71187470366077



12507195_1096973420322032_193340544297038149_1096973416988699_648091880355684634

12509113_1096972773655430_61327984101891



I purchased a rear sill plate from Motorsports Auto!

12512810_1096972786988762_28985122887515

12439336_1096972053655502_37029942822028



I knew I should have removed those front fenders.... what a mistake! Always clean these out!

12439266_1096972783655429_68727398510371

12565339_1096972776988763_15166384204063

12400513_1096972043655503_1016271634198412508991_1096972780322096_81502894328692

12572981_1096972046988836_18430915211654

12548943_1096972040322170_76013765098209



1935307_1096971353655572_31440149448907411140277_1096971350322239_1821448366689612509241_1096971343655573_91218561552044

Link to comment
Share on other sites

12592558_1096969996989041_82935526039253



And then stuff started going off to the body shop!

12510293_1096970623655645_74120895817222

12512316_1096971356988905_37774500207933

12509765_1096971346988906_81128464180213

12417714_1096970620322312_7838780383954412540748_1096970616988979_6643622312009712592326_1096970613655646_330796681994119147_1096970610322313_73300864841345262112401022_1096970003655707_78260749560889

12509061_1096969990322375_59260673699299

12523911_1096969360322438_4229590122355912548837_1096969356989105_88444796698092



over a year later... I picked it back up!

12418089_1096969363655771_49026277817948

12573955_1096969353655772_1520097916325312552688_1096969350322439_2816572753612212565338_1096968136989227_78589992138928



And I slowly put it back together!

12565533_1096968133655894_70748865202210

12417702_1096968130322561_4833238090421612552593_1096968126989228_3714562813201212439085_1096968123655895_76029690874846

12510295_1096967430322631_75415431381632



I sold the 96 Burb and got a 01 Yukon XL... mistakes...

12508709_1096966116989429_27843027466900



About this time I was moving up to Sacramento... and I finally realized I had all new suspension and could start going through the engine!

12508922_1096967440322630_16333386298987

12494687_1096967436989297_57784653492941



OMG, the OVERSPRAY!



12508939_1096967433655964_62399081209311

12509317_1096967426989298_91515023912529

12509522_1096966866989354_3379978279999212495190_1096966863656021_4606645130081312540760_1096966860322688_70685519246660

At its new home at Fitted Garage in Sacramento!

12508943_1096966856989355_55167793989914

12509903_1096966123656095_36017093187067

12573840_1096966120322762_63908002111741

12523158_1096965386989502_19717490823652



Cleaning the Overspray

12512801_1096965383656169_42567952542339

12494942_1096965380322836_9037067788281412510291_1096965376989503_3222932886964812540968_1096964636989577_1124167551199612552996_1096964633656244_7658280612681112509056_1096964626989578_7044294314417212510384_1096964623656245_75574301328873

One of the significant changes... Yellow Octopus Pioneered this for me.

96 Mustang GT Hydroboost

12573714_1096964120322962_4051992978860112494830_1096964116989629_90722809390419

First Wash

12573758_1096964110322963_31679334921525

12573068_1096963443656363_44529957707242

Link to comment
Share on other sites

Techno Toy Tuning parts incoming!

12495226_1096964106989630_73048271724868

12549090_1096963450323029_32210913047482



Look at all this interior

940941_1096962203656487_907824746288691012494877_1096961566989884_80732649694308

Camber plates in!

5433_1096961563656551_817182196441126850

Rear Sway bar! and Ron Tyler Diff mount!

12553084_1096958233656884_83842957270461

12009572_1096958230323551_27506826340053

T3 First Aluminum Drop Bars!

944034_1096958223656885_1722259332381334

12552983_1096961556989885_42447162992887

12376398_1096951876990853_24539880028880



12400828_1096962216989819_29577256288125

12565391_1096963456989695_70278972705166

12541156_1096957540323620_83096708475756

Mess of wires



12507552_1096957530323621_73693718221273

DIY Autotune MicroSquirt going it!

12493513_1096957526990288_73372645353614

12524005_1096956750323699_79763579818431

Bosche 300LPH@5Bar Pump.

12552691_1096956746990366_6452993048870312510363_1096956743657033_8375693768942312495195_1096956196990421_6040290505149912524059_1096955243657183_711632047807291916693_1096955240323850_115988836112012

12510488_1096955233657184_7316054461684612573212_1096955230323851_64597579538825



Engine Building

12548990_1096966853656022_1806451188419612509840_1096966130322761_7082944108130112510462_1096966126989428_34953399828472

12417954_1096961016989939_715570606355881914356_1096959440323430_14219913513829512507287_1096959436990097_4023729400352212573778_1096959433656764_1032303117912112509193_1096958236990217_73764110305263

12512719_1096955236990517_47189843664714

12321225_1096954473657260_78860862389829



12540671_1096954483657259_65149910447844

1937210_1096954470323927_725205552175222

12524212_1096953890323985_44756421589613

12553040_1096952446990796_9170058659530012510473_1096953886990652_3134284498135212509522_1096954480323926_3279635174654912507576_1096954476990593_31206551429017

12507521_1096953300324044_5850974169221512549003_1096953296990711_4545825115813112522975_1096953290324045_9080088445783212523045_1096953286990712_6807823424009512552668_1096952450324129_82901478847594

12573927_1096952436990797_73941542797391

12509444_1096952440324130_56945421161767



12509118_1096952443657463_25093902563689

12509577_1096951103657597_54579982159650





I replaced the Radiator with a nice newer Northern Unit

12509447_1096951110324263_38072030526982

12552779_1096951100324264_35849561545960

15578521_1356607074358664_3286968757782615420850_1356606987692006_5672650148164815542277_1356606944358677_37015953723979





You can see the huge by large oil cooler Im installing below. Pirtex is going to come over and get all my hyrdraulic lines taken care of!

12417585_1096948743657833_4699214968323411140091_1096948733657834_27689443118280



And this needs 2nd gear synch replaced!

12376338_1096953893657318_33976132315500



12573899_1096950676990973_48256882464786



Thats all for now.

I just got my Flex Fuel composition sensor in, and a new power brake pump brackets(PS pump).

I also made a large order from Black Dragon this past Nov and got about half of what I ordered. So there will be slow steady progress here soon.

Transmission is off with a friend getting completely gone through!
