1971 Datsun 240Z - L33 - Twin Turbo - 4L80e


  • Please log in to reply
31 replies to this topic

#1 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 05:38 PM

This will take me a few days to get together.



Summer 2015 I pick up one of my all time favourite cars, a 240Z.



Cars looks great.



10252162_10152353196620470_4996141075171

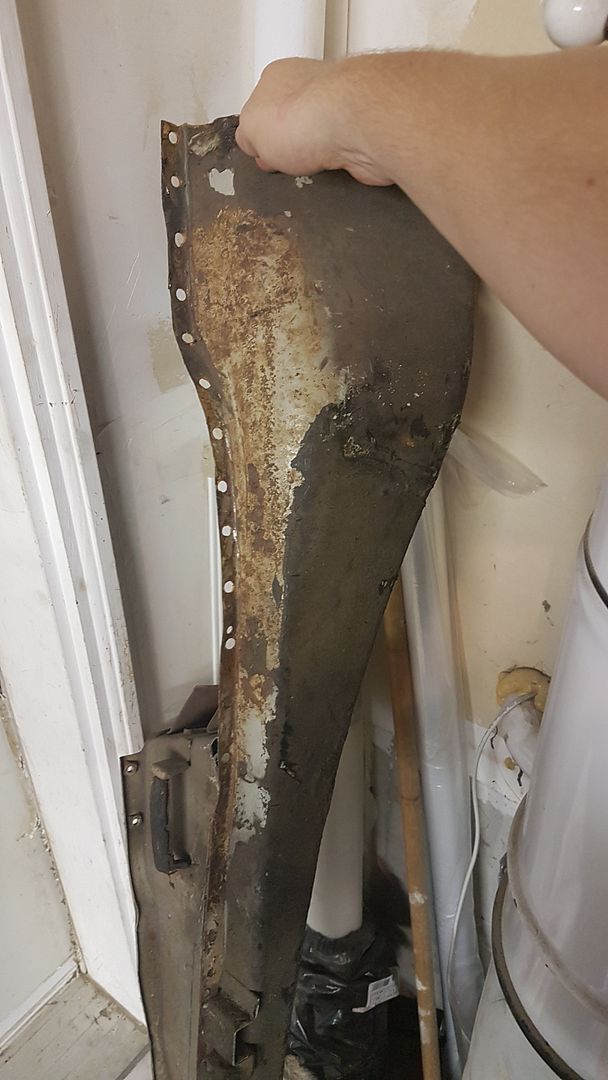

But scrape away all the BS hiding everything and it has some serious cancer. Frame rails, engine bay, firewall, inside rockers, batter tray, and a ton more.



10612866_10153158202405470_3217472171910



PART_1484336865673_IMG_20170112_075939_z





Edited by Ryan Merrill, 02 March 2017 - 05:46 PM.


#2 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 05:52 PM

To top is all off the motor came with a rebuilt head but the rest of the L24 was junk. It has no compression and smoked like a tractor with proper weight oil in it. The wiring was held together with house marettes. I ripped it all out and stripped the engine bay. Gas tank was rotting from the inside. Removed that as well.






#3 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 05:57 PM

Decided to go 2JZ route but short change to LS because of the price performance and ease of finding parts.



Engine found. L33 Aluminum block 5.3 $800 JY motor with under 100K kms (70k miles).

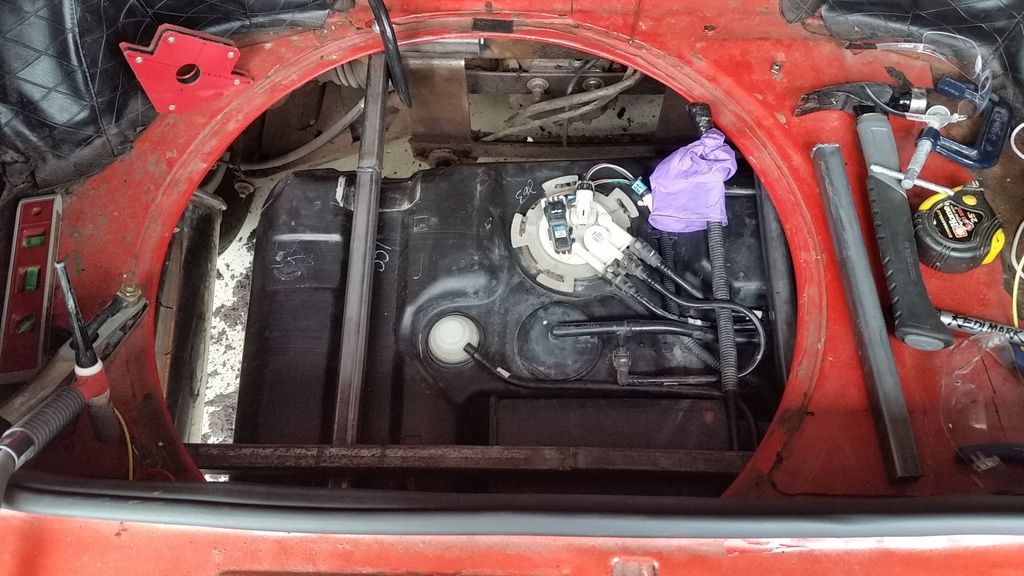

Cut the tire well out and planned to install the LS fuel tank






#4 trackzpeed

trackzpeed

    Always Here

  • Members
  • PipPipPipPip
  • 473 posts
  • LocationRedding

Posted 02 March 2017 - 05:58 PM

Let the journey began...... sorry you got a rusted out Z.  It looked clean at first glance



#5 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:01 PM

I have been told "You can't polish a turd". I agree, but you can paint it gold and add an LS1 intake, .600" lift cam (tsp torquer V2), fuel rails, and forward facing headers.






#6 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:07 PM

T-56 are hella expensive and I live near Toronto so play in a ton of stop and go traffic. I hit the wreckers and found a 4L80e for $400 CAD (about $11 US)








Dump oil all over yourself and the driveway and then wire wheel the bastard 80e. Steal all the cat litter in the house for the driveway, call it a day






#7 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:11 PM

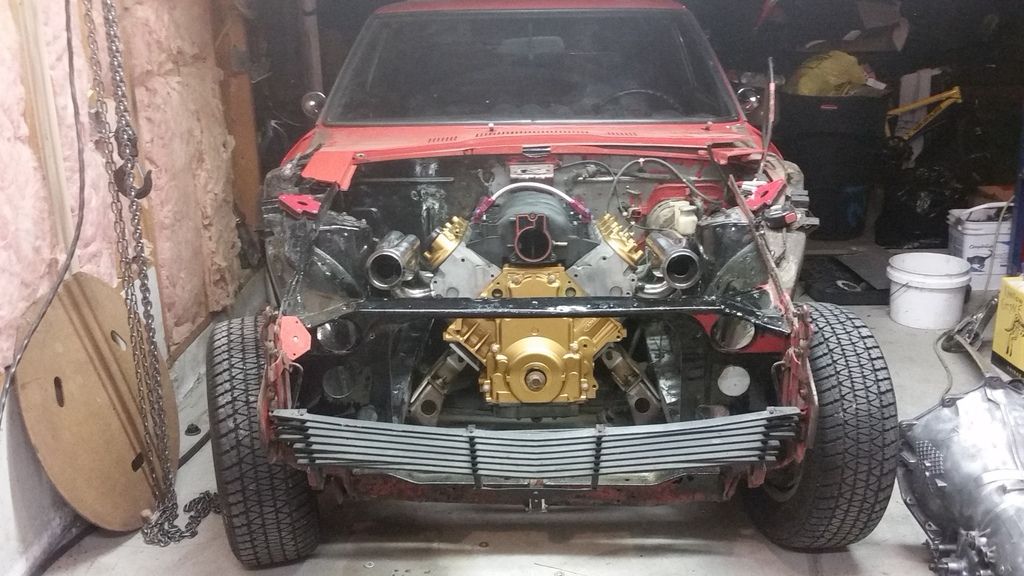

Test fit time! Picked up some CS mounts. Truck pan was too deep so it was replaced with a $50 C5 batwing pan! (Score!)















#8 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:14 PM

Find an old wiring harness, work night shift and hide from foreman so you can build this madness (priorities!) cut it apart, remove shit, sort it, add a few wires for fan control, boom, stand alone. majic!














Edited by Ryan Merrill, 02 March 2017 - 06:15 PM.


#9 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:23 PM

Sick of the rusties? me too.

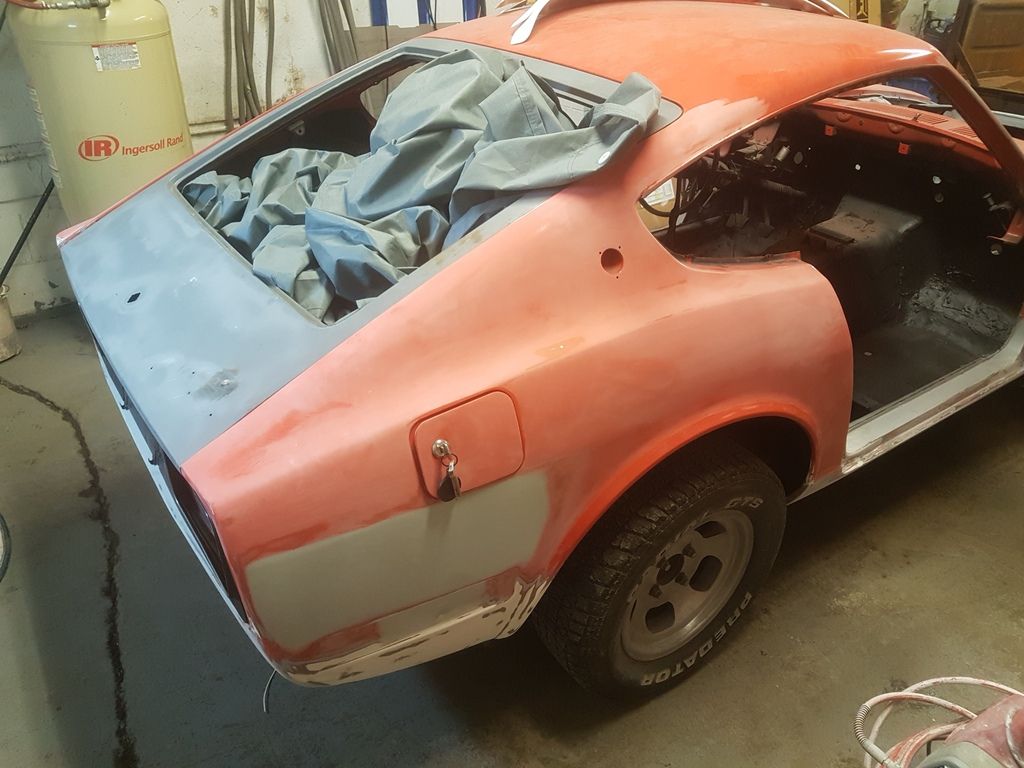

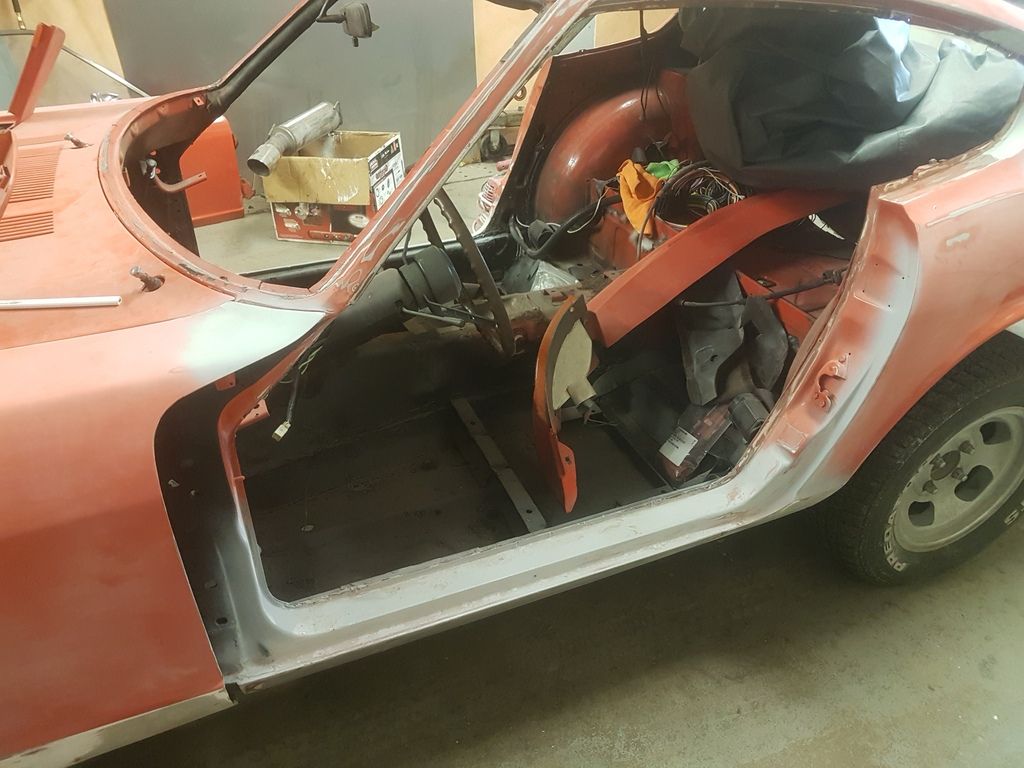

Buy some replacement parts, weld so much you deplete the local area or argon, get new doors and hatch because the old one are full bondo (grrrrr). Strip the car to a rolling shell (suspension will come later in the build). buy some flares, contemplate fender mirriors and start sanding






PART_1481674289857_IMG_20161213_182312_z












#10 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:25 PM

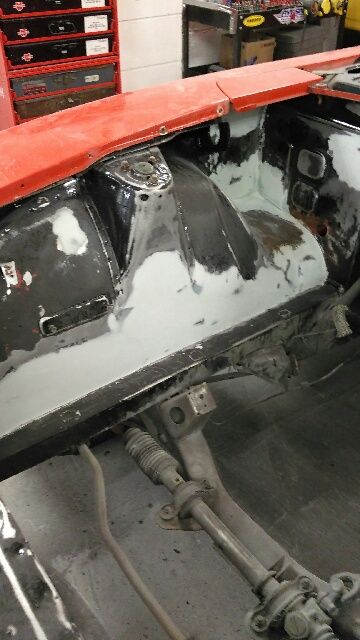

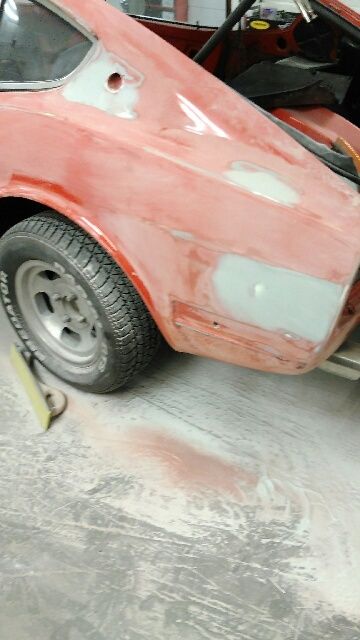

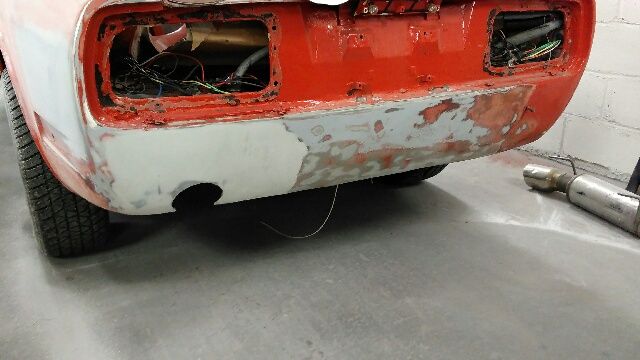

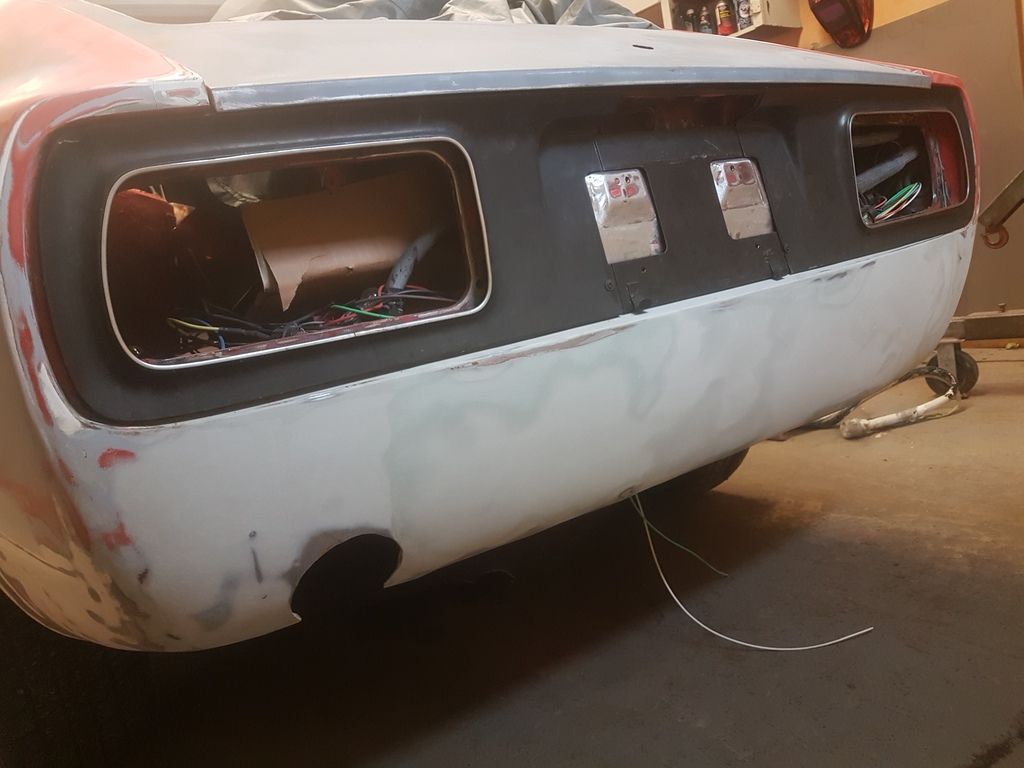

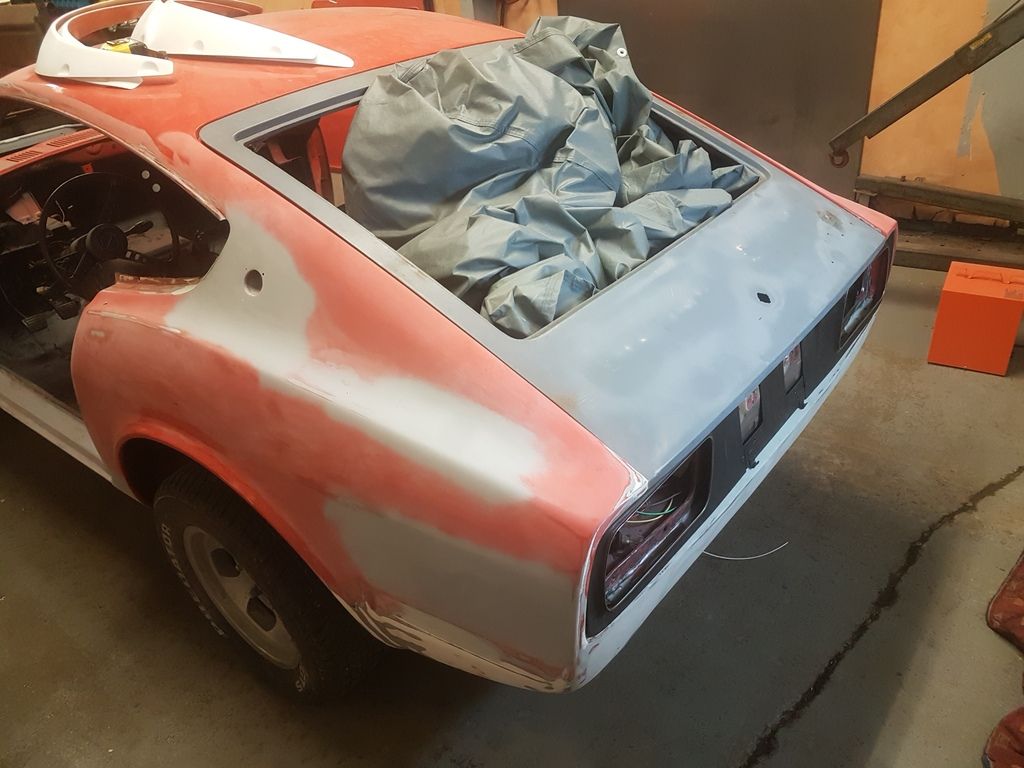

Keep sanding!



PART_1484666556899_IMG_20170117_102216_z



PART_1484336794210_IMG_20170112_164202_z



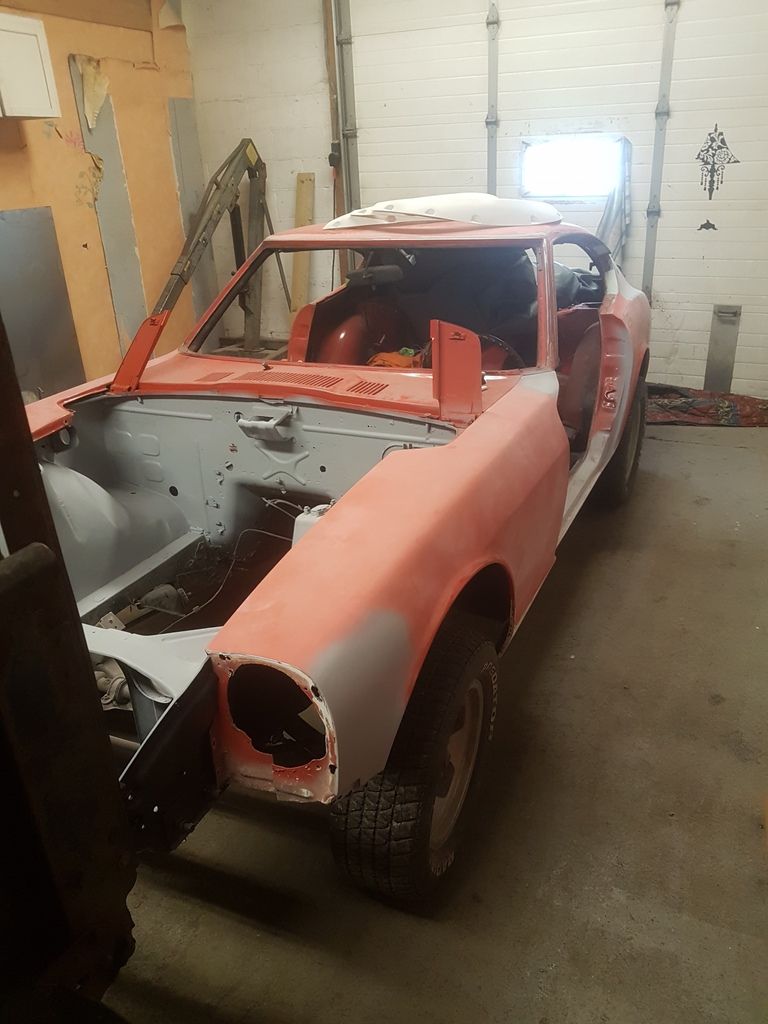

I said sand!

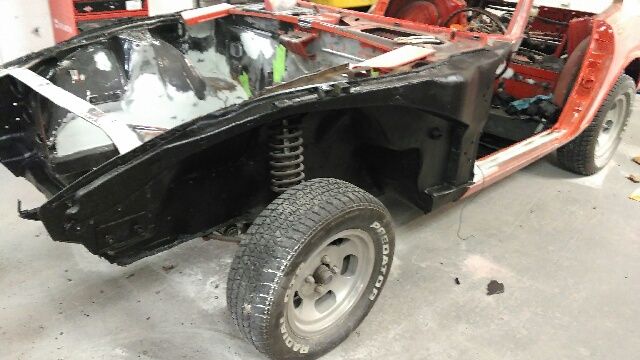

PART_1484336773139_IMG_20170112_164152_z



PART_1484336826952_IMG_20170113_143447_z



PART_1484336832473_IMG_20170113_143456_z



#11 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:30 PM

Back to more freaking body work. Seriously pay someone to do this abuse, its inhumane.



























#12 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:30 PM

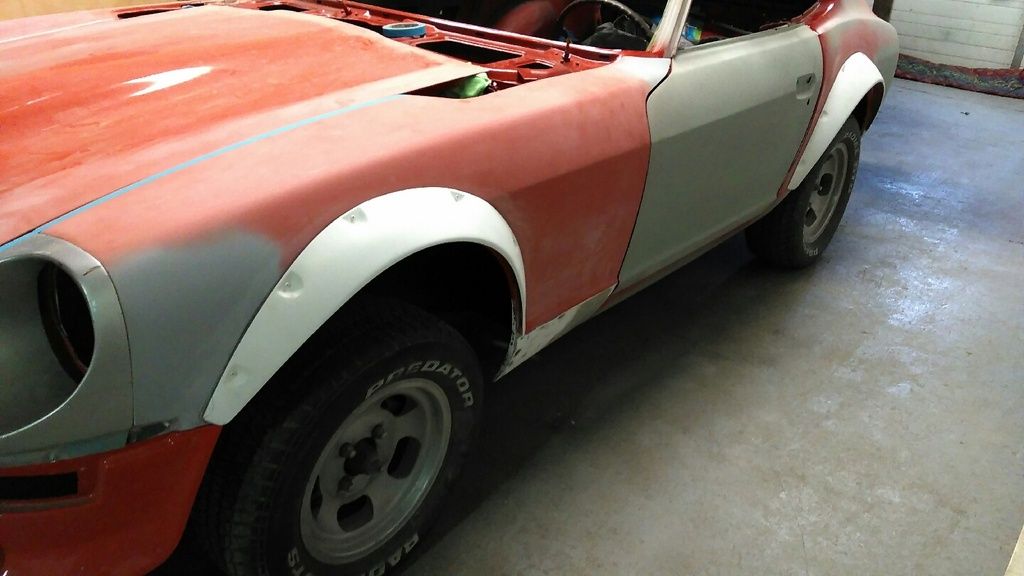

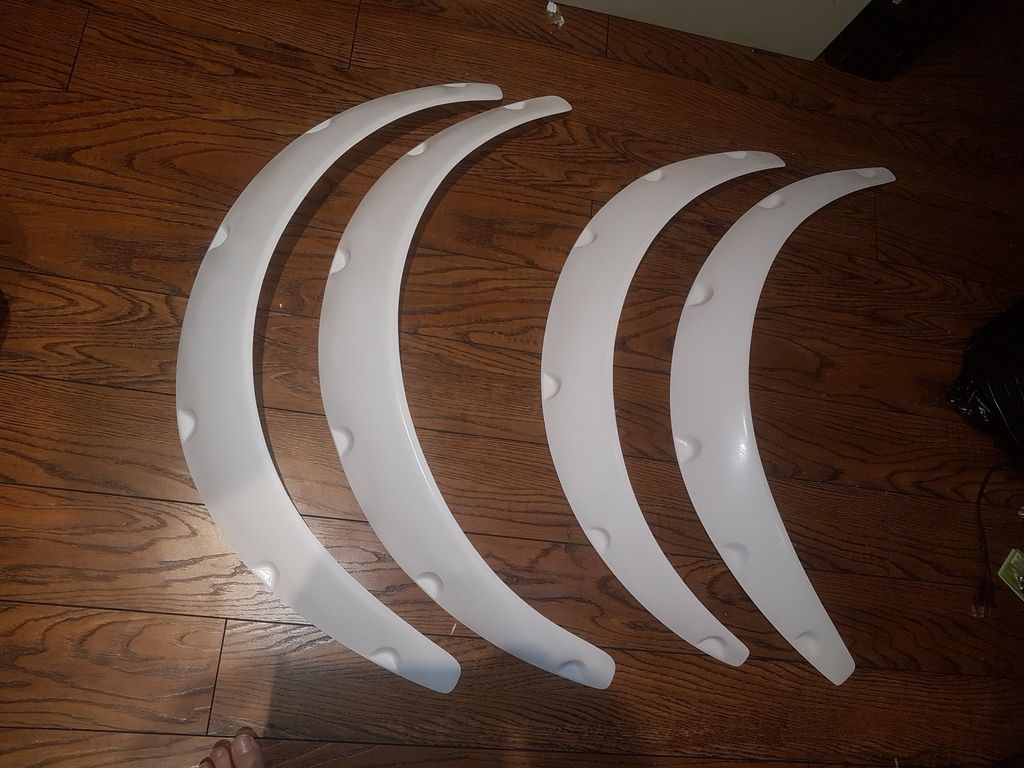

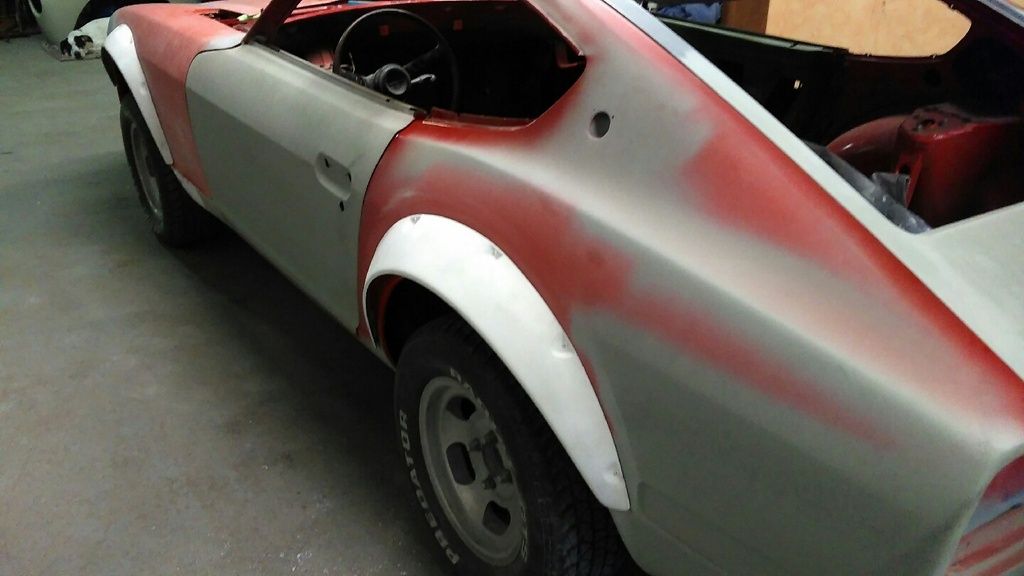

Yeah flares! wide ones!!



PART_1487342804712_IMG_20170217_094530_z



PART_1487342812499_IMG_20170217_094540_z



#13 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:34 PM

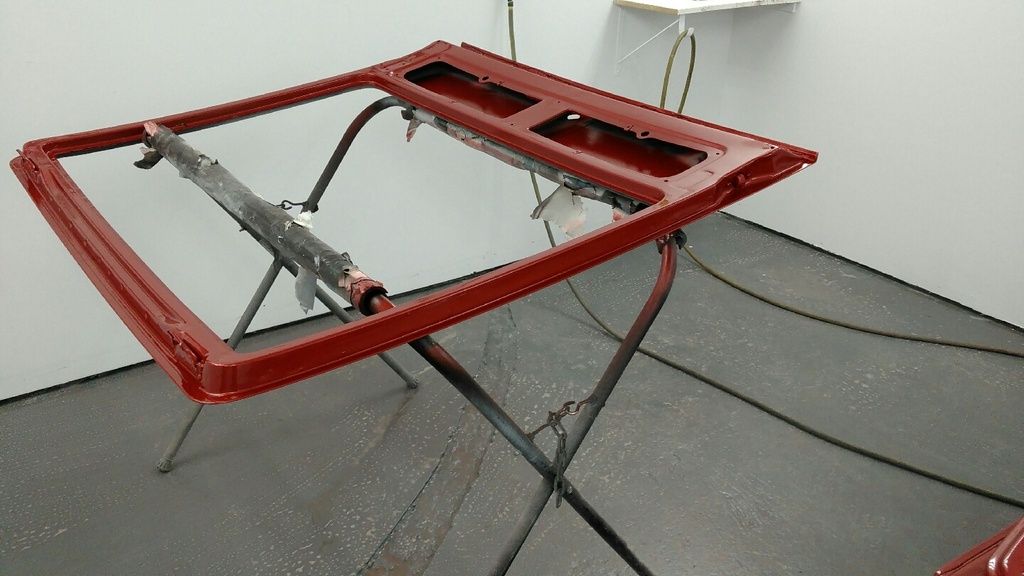

Take 2 months to decide on a pain job. I want gold. Wife corrects me and lets me know I dont want a gold or a white Datsun. Find the colour while checking out hot girl from BMW. Sakhir Orange it is! Crazy amount of pearl and gold flake in this stuff BTW.

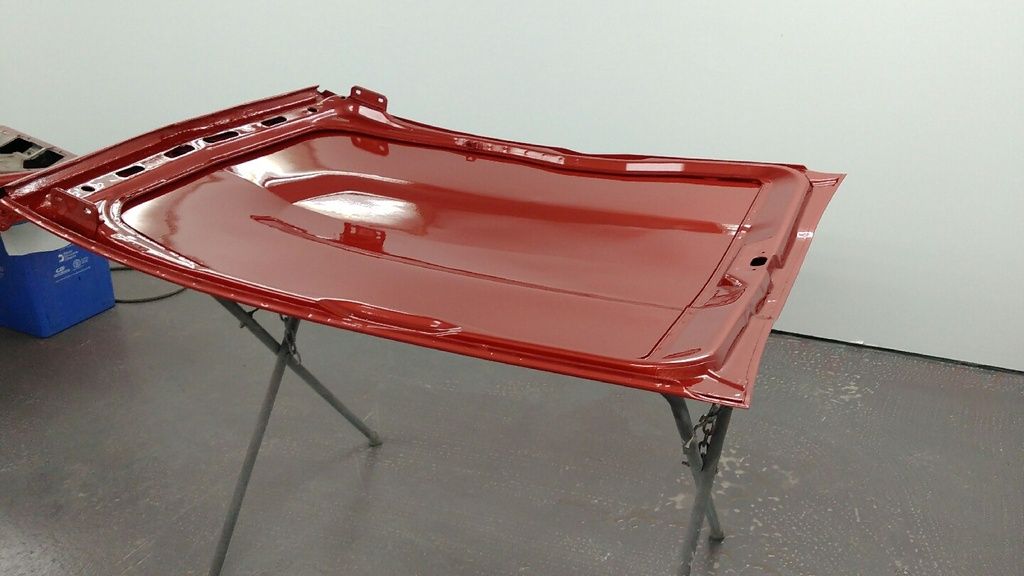

hit some test pieces



PART_1486227140504_IMG_20170204_115044_z



PART_1486227083011_IMG_20170204_115037_z



PART_1486227089037_IMG_20170204_115048_z



#14 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:35 PM

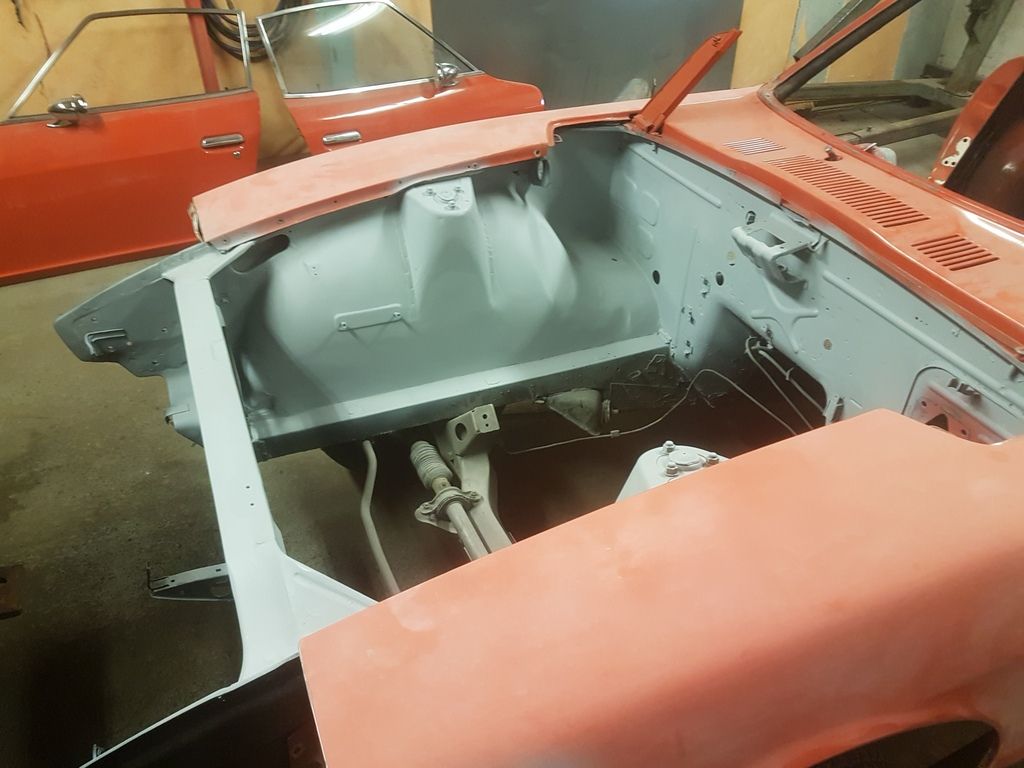

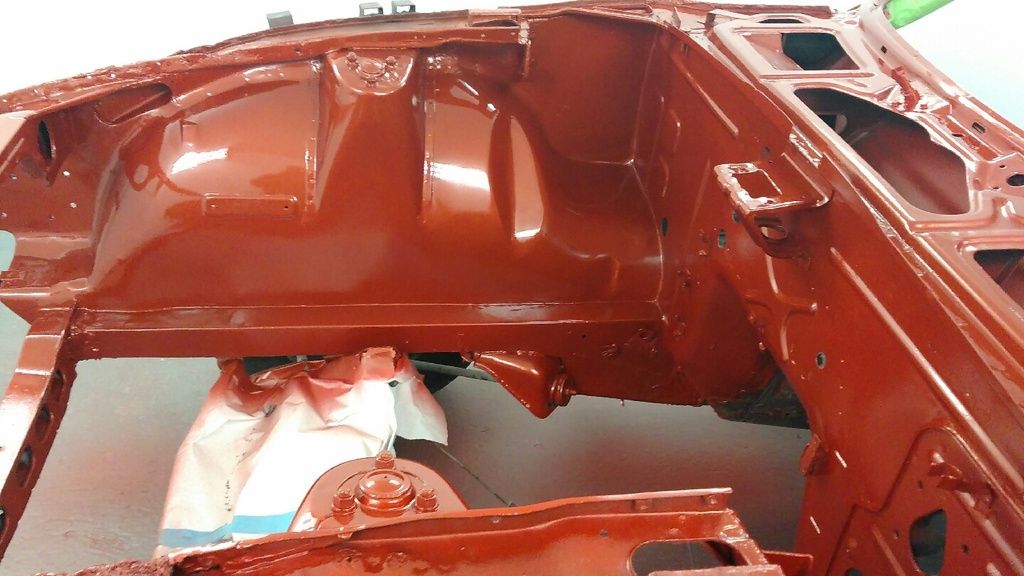

Hit the engine bay with some paint.



PART_1486303922370_IMG_20170205_090941_z



PART_1486303916257_IMG_20170205_090949_z



#15 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:37 PM

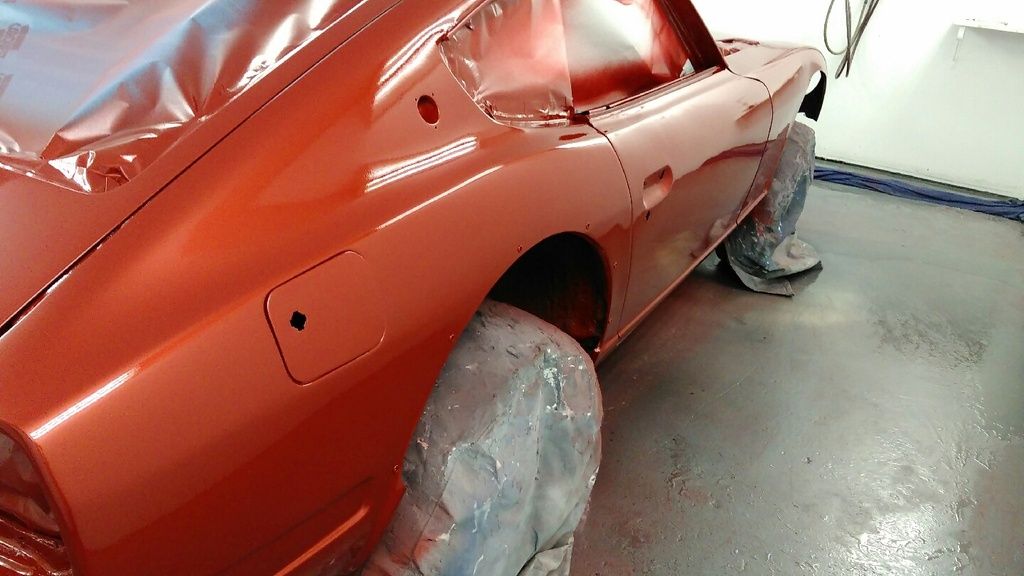

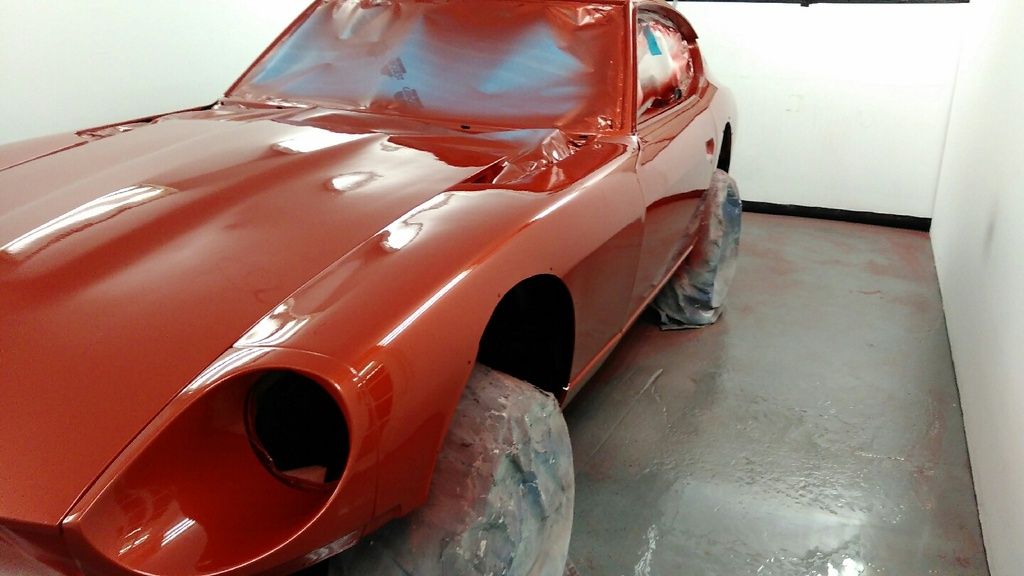

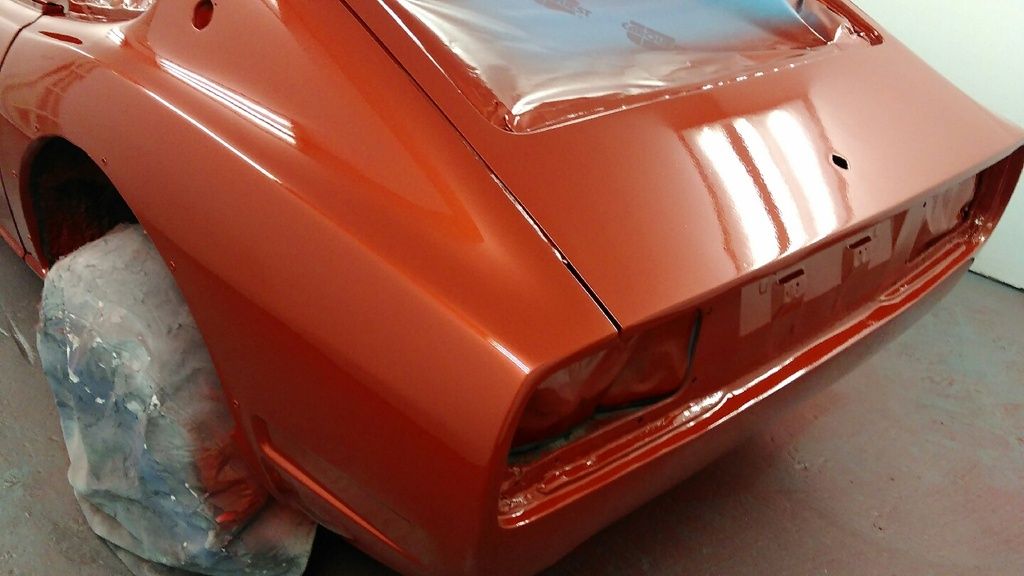

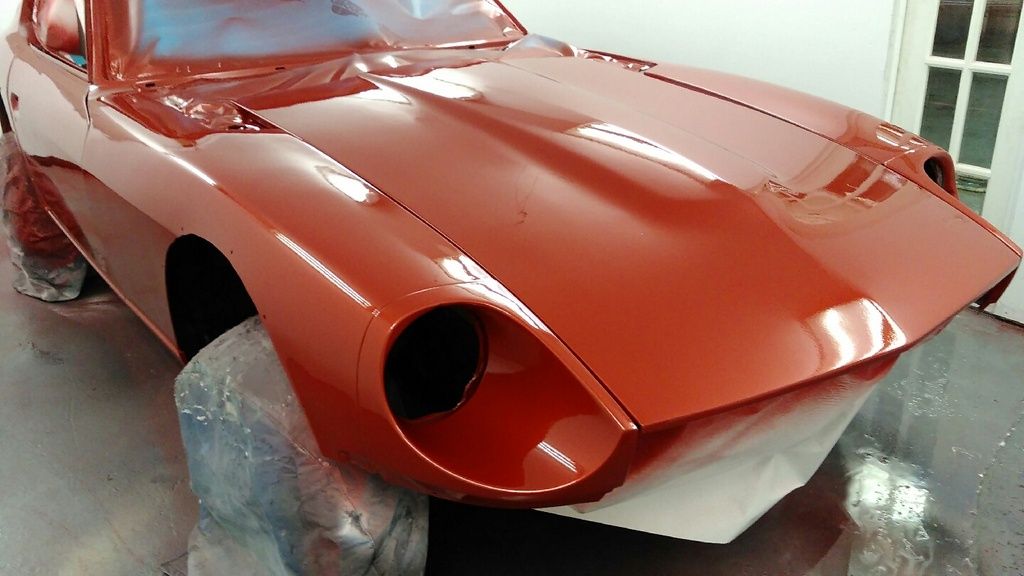

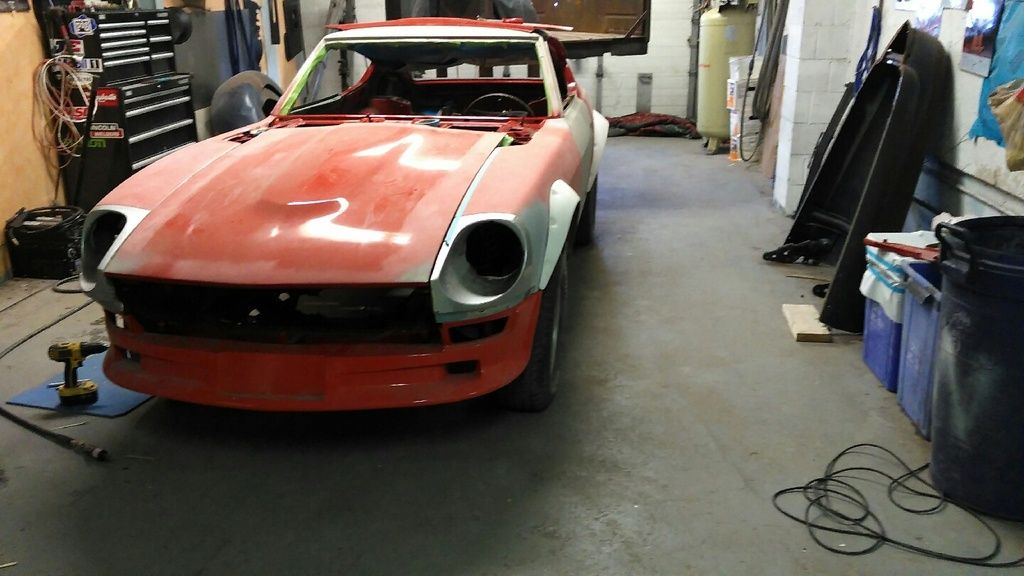

Car prep time!



PART_1487342853043_IMG_20170217_094718_z



PART_1487866221843_IMG_20170223_110905_z



PART_1487866190839_IMG_20170223_110826_z



PART_1487866196531_IMG_20170223_110845_z



PART_1487866202474_IMG_20170223_110837_z



#16 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:39 PM

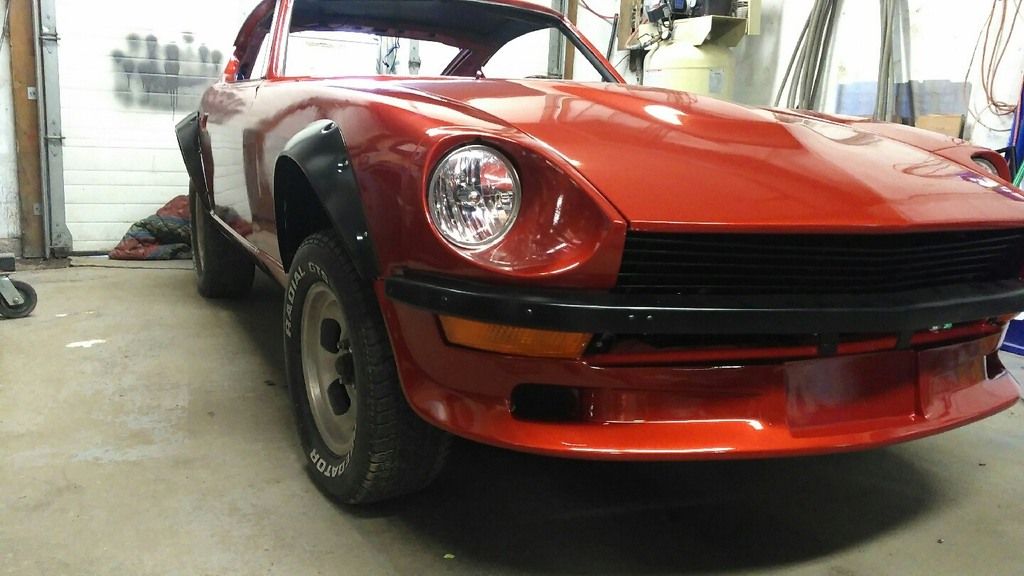

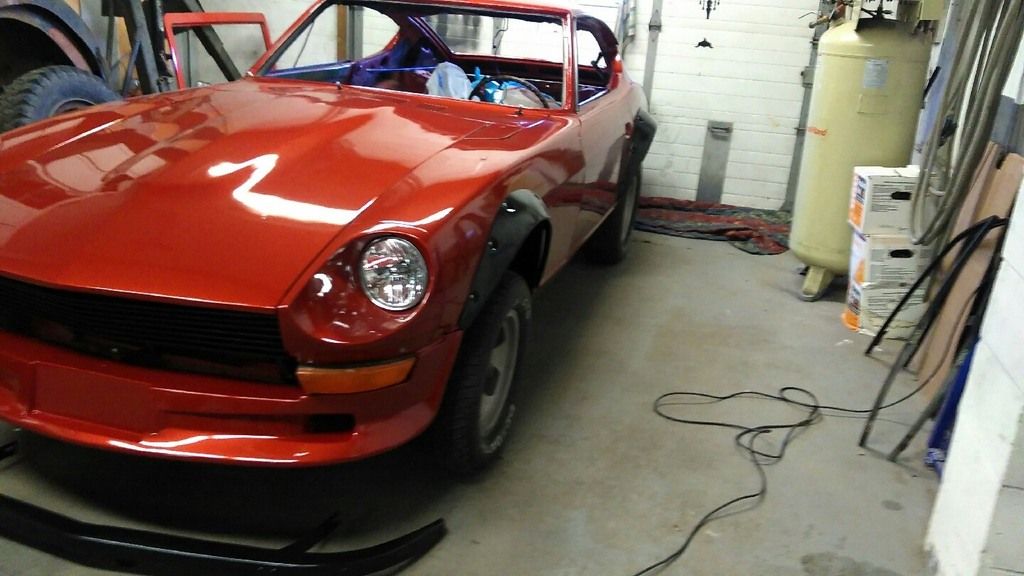

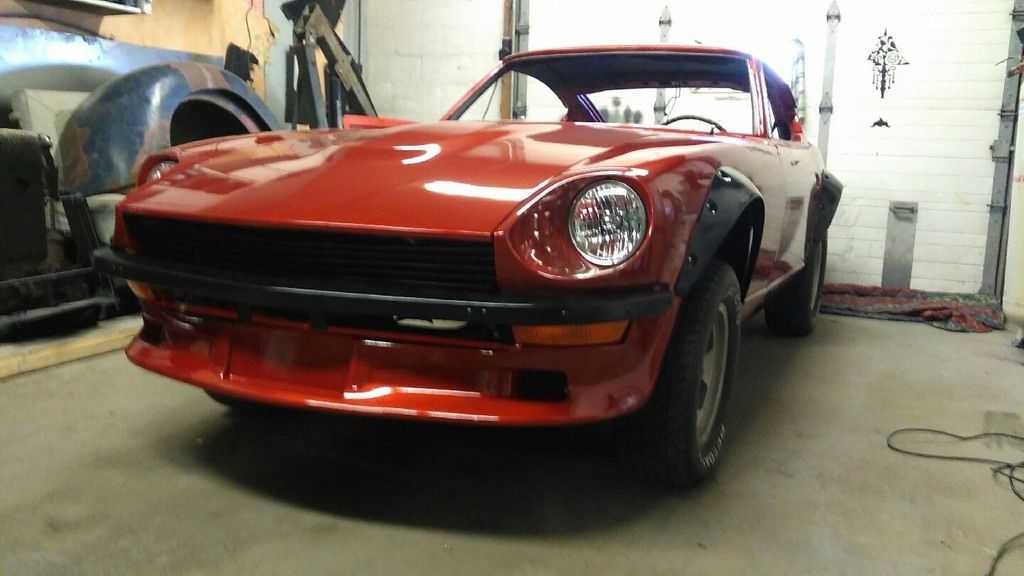

WTB: 4x4 stickers, cause ot looks like it has a 6" lift kit. Paint the flares, and start the reassembly, and pray for coilovers.



PART_1488223155218_IMG_20170227_141840_z



PART_1488223162681_IMG_20170227_141852_z



PART_1488223169870_IMG_20170227_133855_z



#17 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:44 PM

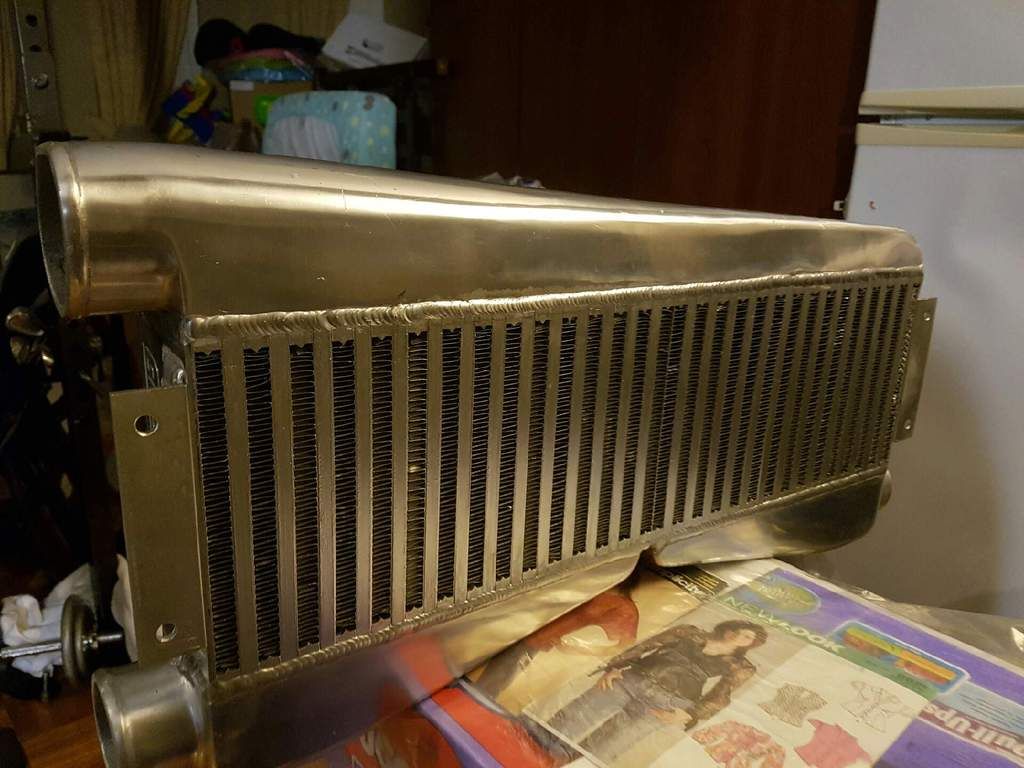

Realize you absolutely going to need more than 400 HP in a 2500 lbs tin can of a car after you watch Mean Z's car on you tube. That's right, turbo bitches......two of them. H-Series 66mm T4's to be exact. Buy an intercooler that supports a mystery amount of hp from a sketchy friend with tattoo's that works on Porsche's.









#18 Ryan Merrill

Ryan Merrill

    Always Here

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationNewcastle Ontario

Posted 02 March 2017 - 06:45 PM

And that is where I am currently in the build. I will continue to update this as the build continues.
