1977 280z wires identification


  • Please log in to reply
4 replies to this topic

#1 mforget

mforget

    Newbie

  • Members
  • Pip
  • 7 posts
  • LocationCanada

Posted 09 April 2017 - 12:33 PM

Hi, i am currently restoring a 280z.



The engine runs great but i found several wires cutted/disconnected.



I would need some help to identify them.

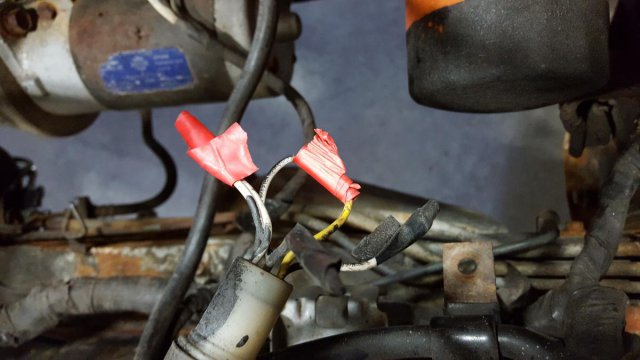

Blue/yellow wire on first picture.

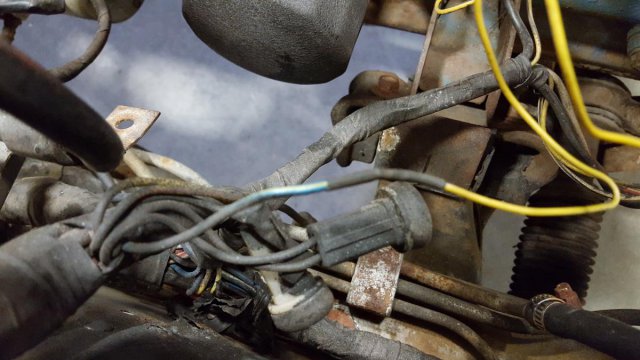

And all the wires on the second picture plug.





Thanks in advance!

Attached Files


Edited by mforget, 09 April 2017 - 01:04 PM.

'77 280Z


#2 KevvinG

KevvinG

    Moving Up

  • Members
  • PipPip
  • 39 posts
  • LocationMississauga, Ontario, Canada

Posted 09 April 2017 - 01:22 PM

If you could take the pictures from a bit farther away it would help to get an idea of what we're looking at.



On the second picture that looks like it's the wiring that would normally go to the mechanical voltage regulator.  It's a common upgrade to change to the 280ZX internally regulated alternator, when you do that you need to bypass the old voltage regulator by jumping the two wires that are taped off. I've done that on my car and it's great.  There should be a pretty big black box type thing on the passenger side between the strut tower and the battery area, if that's removed then you know you've got the ZX alternator mod.


Edited by KevvinG, 09 April 2017 - 01:23 PM.

'77 280Z w/ 3x 40DCOE18


#3 mforget

mforget

    Newbie

  • Members
  • Pip
  • 7 posts
  • LocationCanada

Posted 09 April 2017 - 01:36 PM

If you could take the pictures from a bit farther away it would help to get an idea of what we're looking at.



On the second picture that looks like it's the wiring that would normally go to the mechanical voltage regulator.  It's a common upgrade to change to the 280ZX internally regulated alternator, when you do that you need to bypass the old voltage regulator by jumping the two wires that are taped off. I've done that on my car and it's great.  There should be a pretty big black box type thing on the passenger side between the strut tower and the battery area, if that's removed then you know you've got the ZX alternator mod.



Hey, great infos there!



Ill go back to the car and take a look at this!



I will also take another picture farther away for the other blue/yellow wire.



Its near the same place as the regulator wires, passenger side, a little more toward the front of the car.....


'77 280Z


#4 mforget

mforget

    Newbie

  • Members
  • Pip
  • 7 posts
  • LocationCanada

Posted 11 April 2017 - 07:02 AM

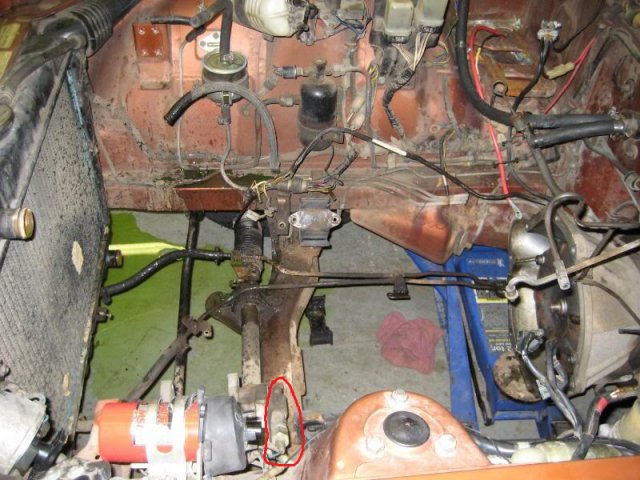

Also, what is that thing circled in red on that picture?



I just found that blue wire disconnected on my car....



Thanks a lot!

Attached Files

  • Attached File  430.jpg   174.9KB   0 downloads

'77 280Z


#5 Lengeo

Lengeo

    Junior Member

  • Donating Members
  • Pip
  • 15 posts
  • LocationLakeland, Florida

Posted 3 weeks ago

Attached File  77_ZCAR-WIRING_big.jpg   145.35KB   0 downloads



You are going to need this.

Good Luck!


"I will not go quietly" - Don Henley
---------------------------------
Restomod 1977 280Z - Carbed L33 - ST10 4 speed
