Project 1973 240z, LS/T56, S14 Suspension, Tube Chassis


  • Please log in to reply
14 replies to this topic

#1 Turbo6.0

Turbo6.0

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationUtah

Posted 4 weeks ago

I started with a 1973 240z for the body, LS1 & T56 out of a 2002 Camaro, 240sx (S14) front and rear suspension and will be building a tube chassis to tie it all together.



Here is the car the day I got it. Relatively rust free and very complete.


Attached File  Picture1 (2)_LI.jpg   103.4KB   0 downloadsAttached File  Picture2 (2).jpg   113.03KB   1 downloadsAttached File  DSC06520 (2).JPG   119.52KB   1 downloadsAttached File  DSC06519 (2).JPG   128.13KB   1 downloads

I decided to build a chassis table out of an I-beam and 3 x 3 square tube. I will also be adding casters to the table at some point.

Attached File  20150719_105627.jpg   69.8KB   1 downloadsAttached File  20150720_195317.jpg   100.32KB   1 downloadsAttached File  20150722_205528 (2).jpg   83.23KB   1 downloads


After a substantial amount of cutting on the car I mounted it to the table with some simple pinch weld clamps.


Attached File  20150729_210722 (2).jpg   131.77KB   1 downloadsAttached File  20150729_210733 (2).jpg   111.29KB   1 downloadsAttached File  20150806_204750 (2).jpg   116.03KB   1 downloads





Edited by Turbo6.0, 2 weeks ago.

1973 240Z LS1/T56

#2 grannyknot

grannyknot

    Always Here

  • Members
  • PipPipPipPip
  • 201 posts
  • LocationOntario

Posted 4 weeks ago

Subscribed! This looks like a very promising project, you obviously know what you're doing.



#3 trackzpeed

trackzpeed

    Always Here

  • Members
  • PipPipPipPip
  • 467 posts
  • LocationRedding

Posted 4 weeks ago

+2. Looking forward to your build.

#4 AkRev

AkRev

    Always Here

  • Members
  • PipPipPipPip
  • 189 posts
  • LocationUtah

Posted 4 weeks ago

Looks like a great start!



Excited to see you get this knocked out.



#5 Turbo6.0

Turbo6.0

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationUtah

Posted 4 weeks ago

I built an adjustable fixture to hold the 240SX subframe at ride height.


Attached File  20170425_164850 (2).jpg   135.54KB   0 downloads

Tires are Nitto NT05 275/40 front and 315/35 rear.

Attached File  20150702_121027_LI (3).jpg   142.34KB   0 downloads Attached File  20150926_182950 (2).jpg   64.29KB   0 downloads

For wheels I went with a set of the American Racing VN477 with reverse barrels and custom offset. 17 x 9.5 up front and 17 x 11 in the rear.

Attached File  20150822_192138 (2).jpg   128.26KB   0 downloads Attached File  20150822_192132 (2).jpg   128.54KB   0 downloads Attached File  20150822_192121 (2).jpg   120.43KB   0 downloads



The current plan is to build a set of 911 style flares out of steel and weld them or out of aluminum and rivet them in place.


1973 240Z LS1/T56

#6 1969honda

1969honda

    Always Here

  • Donating Members
  • PipPipPipPip
  • 317 posts
  • LocationNear: Logan, Utah, United States

Posted 4 weeks ago

Nice, you might look at these flares from ss worx too.

http://ssworxs.com/p...ares_240z_260z/

#7 rturbo 930

rturbo 930

    Porschephile

  • Donating Members
  • PipPipPipPipPipPip
  • 1576 posts
  • LocationNJ

Posted 4 weeks ago

I don't think I would have had the heart to cut that car up. Nevertheless, it looks like you know what you're doing, and I already like where it's going. Clever little body mounting system you came up with there.


Owen | 1976 280Z | 1986 Jetta | 1953 CJ3B

A car is a hole in the air, suspended there by four rubber doughnuts which you can not eat.
Into this hole, you throw money, which you will never see again.

Buy my stuff: CLICK HERE


#8 Turbo6.0

Turbo6.0

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationUtah

Posted 3 weeks ago

Nice, you might look at these flares from ss worx too.

http://ssworxs.com/p...ares_240z_260z/



Thanks for the link



I don't think I would have had the heart to cut that car up. Nevertheless, it looks like you know what you're doing, and I already like where it's going. Clever little body mounting system you came up with there.



I will admit that I kind of felt bad cutting up a such a solid car but I got over that quickly! I did save all of the good metal to sell or to use on a future project.


1973 240Z LS1/T56

#9 skyline240z

skyline240z

    Member

  • Members
  • PipPipPipPip
  • 112 posts
  • LocationVancouver BC

Posted 3 weeks ago

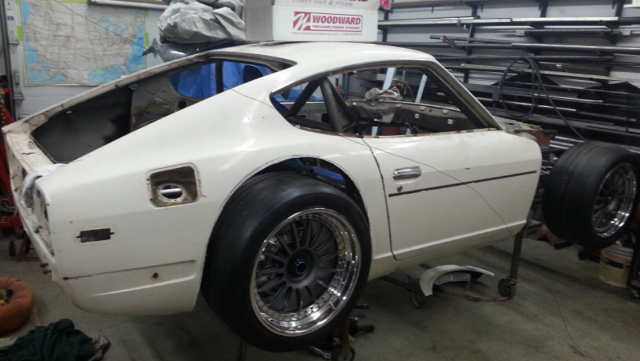

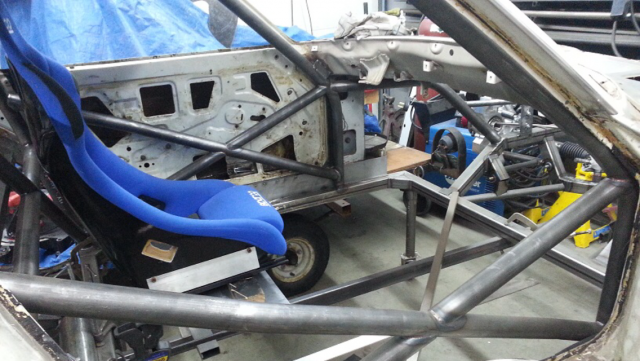

Same goes with my project, my 70 Z was mint with NO rust. Wanted to do this project for many years, didn't want to look for another shell and deal with all the rust.

Attached Files



#10 jt1

jt1

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPip
  • 1562 posts
  • LocationNorth Carolina

Posted 3 weeks ago

Those are some nice looking wheels.  Did you weigh them?


"OK, we'll see what he's selling, then shoot him."
"Good plan."

#11 Turbo6.0

Turbo6.0

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationUtah

Posted 3 weeks ago

Same goes with my project, my 70 Z was mint with NO rust. Wanted to do this project for many years, didn't want to look for another shell and deal with all the rust.



That was my reasoning as well and I feel no remorse! Killer build you got going there! Skyline motor?



Those are some nice looking wheels.  Did you weigh them?



I have not weighed them but they are on the heavy side. I will have to find a scale and post up the weight.


Edited by Turbo6.0, 3 weeks ago.

1973 240Z LS1/T56

#12 skyline240z

skyline240z

    Member

  • Members
  • PipPipPipPip
  • 112 posts
  • LocationVancouver BC

Posted 3 weeks ago

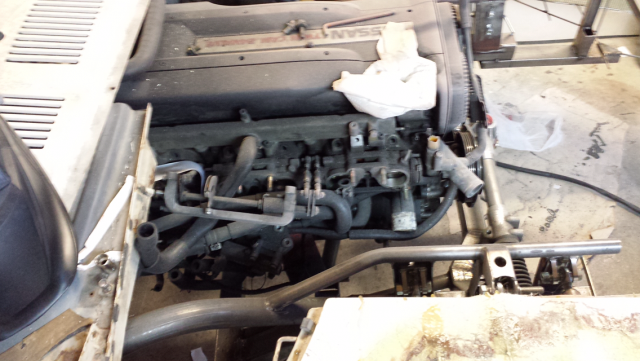

Got that car 10 years ago for $1500, so didn't feel too bad about it. Yes, it's going to be a RB26 motor .

Attached Files


Edited by skyline240z, 3 weeks ago.


#13 skyline240z

skyline240z

    Member

  • Members
  • PipPipPipPip
  • 112 posts
  • LocationVancouver BC

Posted 3 weeks ago

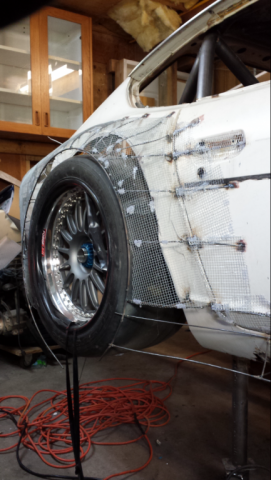

My wheels are forgelines centre locks, 18 x 11 fronts and 18 x 12 rears.

My wheels are forgelines centre locks, 18 x 11 fronts and 18 x 12 rears.

Attached Files


Edited by skyline240z, 3 weeks ago.


#14 Turbo6.0

Turbo6.0

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationUtah

Posted 3 weeks ago

I started building the front frame rails with 2.5 x 2.5 square tube. I decided to build a new front crossmember to fit the 240SX control arms and a mustang steering rack. I will need to build a new bracket for the alternator to clear the steering rack but everything else seems to fit nicely and the motor sits almost completely behind the front crossmember!


Attached File  20170425_165450 (2).jpg   108.82KB   0 downloadsAttached File  20170425_165506 (2).jpg   119.24KB   0 downloadsAttached File  20170503_180854 (2).jpg   153.86KB   0 downloads


I also picked up a set of drop spindles.


Attached File  20170503_174608 (2).jpg   119.88KB   0 downloads




1973 240Z LS1/T56

#15 Turbo6.0

Turbo6.0

    Regular

  • Members
  • PipPipPip
  • 63 posts
  • LocationUtah

Posted 5 days ago

I cut out the rusted rocker panels and installed a new/modified set from Z-car depot. I filled the inside of the new rocker panel with 18 gauge sheet metal to allow it to sit flush against the new 1.5” x 3” rectangular frame rails.



Attached File  20170524_153255 (2).jpg   152.46KB   0 downloadsAttached File  20170524_153242 (2).jpg   98.26KB   0 downloadsAttached File  20170524_153149 (2).jpg   144.42KB   0 downloadsAttached File  20170524_153115 (2).jpg   141.74KB   0 downloads



I finally bought a tube bender! It's a JD squared model 32.



Attached File  20170524_153707 (2).jpg   50.74KB   0 downloads



Now that the perimeter of the frame was in place I started on the trans tunnel using 1.5” DOM tubing.



Attached File  20170524_153600 (2).jpg   127.55KB   0 downloads



I tied the trans tunnel to the perimeter rails with more 1.5” DOM.



Attached File  20170524_154504 (2).jpg   131.91KB   0 downloadsAttached File  20170524_154234 (2).jpg   54.14KB   0 downloads



The front and rear tubes fit to the underside of the frame rails and will also act as jack points.



Attached File  20170524_154339 (2).jpg   96.24KB   0 downloadsAttached File  20170524_154359 (2).jpg   74.44KB   0 downloads



The center tubes are bent so that the end is flush with the bottom of the frame rails.



Attached File  20170524_154748 (2).jpg   105.07KB   0 downloads
