After doing some reading.. I blocked off the upper grill *pics*


  • Please log in to reply
145 replies to this topic

#1 proxlamus©

proxlamus©

    I need a hug...

  • Members
  • PipPipPipPipPipPipPip
  • 2107 posts
  • LocationAurora, Colorado

Posted 21 May 2007 - 03:51 PM

Well after looking at TitaniumZ's front end mod with decreasing the opening to the radiator and reading the data on the Aerodynamics data chart..

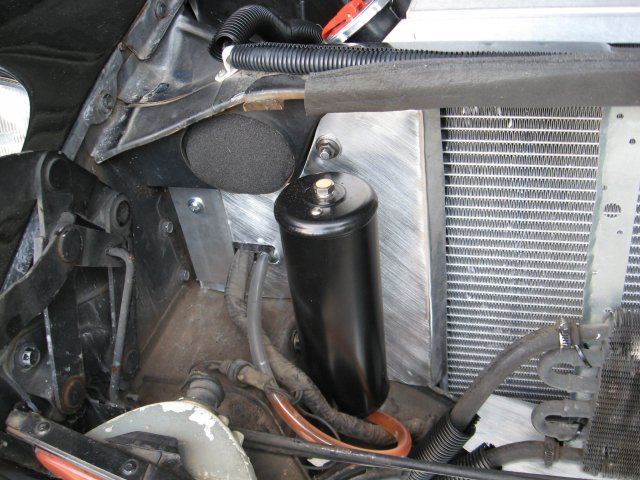

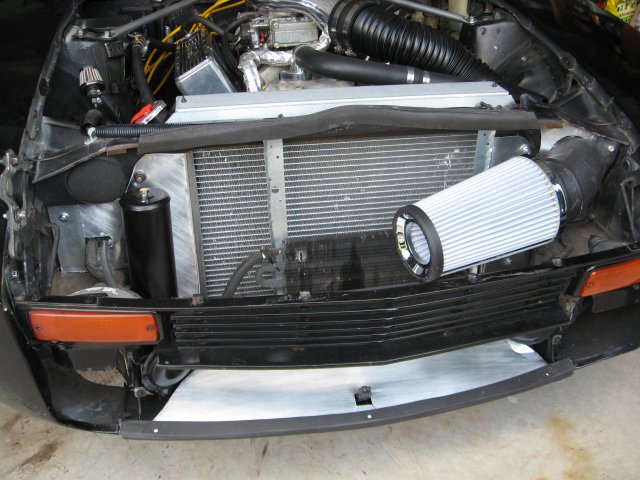

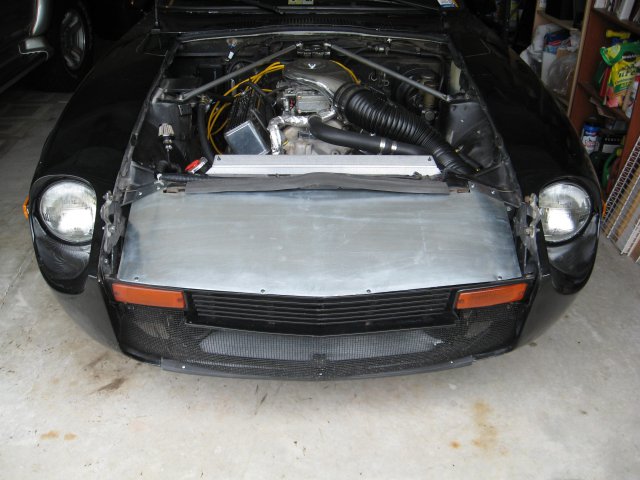

I decided to block off the upper grill from the bumper line to the hood.. and I also blocked off the sides of the grill so no air is wasted in the monster opening of the Z's mouth.

I just welded on some sheet metal from Home Depot behind my grill..

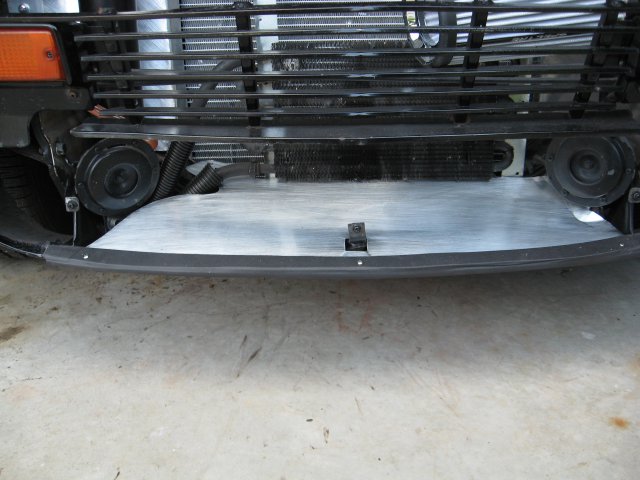

and added a piece of sheet metal from the air dam to the radiator support.. and an upper piece of sheet metal from the grill, across the intercooler and to the radiator.

I am just experimenting with different things right now.. yes its ugly but Function over Form.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

Excuse the poor quality.. i misplaced my camera.. so its camera phone time
Currently on a rotisserie for a full restoration - L28 with 9mm rods, 88mm Ross pistons (3.0L), 8.5:1 CR, Schneider Stage II cam, Holset HY35W, Megasquirt, Suzuki GSXR ITB's and home made intake plenum, Z32 transmission, Fidanza aluminum flywheel, ACT stage II clutch and pressure plate, coil-overs, vented 4x4 front brakes, 240sx rear brakes, Corbeau FX1 Pro seat, (soon to be half cage) and still debating the paint.. hurm

#2 JMortensen

JMortensen

    Retired Admin.

  • Donating Members
  • PipPipPipPipPipPipPipPipPipPip
  • 12439 posts
  • LocationSeattle area, WA

Posted 21 May 2007 - 04:01 PM

Need to SEAL the airdam to the rad core support and close up all the holes that allow air to divert around the radiator.

Jon Mortensen, owner/operator www.petdoorstore.com


#3 Slow_Old_Car

Slow_Old_Car

    Member

  • Members
  • PipPipPipPip
  • 233 posts

Posted 21 May 2007 - 04:06 PM

any driving reports of temp operations? perhaps a engine log of a 10min drive w/ a few 1st through 4th pulls?

#4 proxlamus©

proxlamus©

    I need a hug...

  • Members
  • PipPipPipPipPipPipPip
  • 2107 posts
  • LocationAurora, Colorado

Posted 21 May 2007 - 04:14 PM

Good call Jon..

I was planning on finishing everything up tomarrow..

just some pics and hopefully a brief discussion on what would be the best thing to do =)
Currently on a rotisserie for a full restoration - L28 with 9mm rods, 88mm Ross pistons (3.0L), 8.5:1 CR, Schneider Stage II cam, Holset HY35W, Megasquirt, Suzuki GSXR ITB's and home made intake plenum, Z32 transmission, Fidanza aluminum flywheel, ACT stage II clutch and pressure plate, coil-overs, vented 4x4 front brakes, 240sx rear brakes, Corbeau FX1 Pro seat, (soon to be half cage) and still debating the paint.. hurm

#5 TitaniumZ

TitaniumZ

    Junior Member

  • Members
  • Pip
  • 21 posts

Posted 21 May 2007 - 05:18 PM

You've made great strides towards increasing your downforce and reducing drag.I know people freak out about small radiator openings,but if the details are managed[hood vents and such],the system works.The SDI blue Z in the tunnel tests has run the same nose seen in there for about twos years.Many events are run in the hot stick Southern Summer.25 to 30 minute session.I have NO FAN.We run the CSR Electric Water Pump,and the temp's have never gone over 185 degrees...Except when I forget to turn on the pump.OOPS!

#6 DavyZ

DavyZ

    Super Moderator

  • Super Moderators
  • 5367 posts
  • LocationCharlotte, NC

Posted 21 May 2007 - 05:29 PM

Need to SEAL the airdam to the rad core support and close up all the holes that allow air to divert around the radiator.


Jon, I have been thinking about the seal in particular and was wondering what to use in this case. Tape? It may sound stupid, but what material comes to mind? The only thing I can think of is gaffer's tape or maybe aluminum tape. Anyone have better suggestions? *please*

Davy

#7 e_racer1999

e_racer1999

    Pink Pearl

  • Members
  • PipPipPipPipPip
  • 645 posts
  • LocationSantee, CA

Posted 21 May 2007 - 05:31 PM

i was thinking silicone or gasket making material
Jason King
JGoldPerformance@gmail.com
6/72 240Z / HLS30 89646 (Yellow)

#8 proxlamus©

proxlamus©

    I need a hug...

  • Members
  • PipPipPipPipPipPipPip
  • 2107 posts
  • LocationAurora, Colorado

Posted 21 May 2007 - 06:19 PM

I will be using a exterior caulking/sealant with some "extreme temperature" ducting tape. The tape is aluminum with a strong adhesive and should withstand cold and hot temperatures and is waterproof!

Everything I am using is from Home Depot.. since I work there I have alot of spare time to wonder around and look at the product haha

So far this has cost me $22. $12 for a 4x8 sheet of sheet metal
(Home Depot offers 3 types. Galvanized in the plumbing/ducting aisle. The steel is 26 guage for $11. Steel in the hardware department which is way overpriced. $18 and its 22 guage. The third type is 22/24 guage steel in the gutter/roofing aisle used for flashing. This was $12 and much thicker than the galvanized metal in plumbing)

I used 3/16 aluminum rivets and washers =)
Currently on a rotisserie for a full restoration - L28 with 9mm rods, 88mm Ross pistons (3.0L), 8.5:1 CR, Schneider Stage II cam, Holset HY35W, Megasquirt, Suzuki GSXR ITB's and home made intake plenum, Z32 transmission, Fidanza aluminum flywheel, ACT stage II clutch and pressure plate, coil-overs, vented 4x4 front brakes, 240sx rear brakes, Corbeau FX1 Pro seat, (soon to be half cage) and still debating the paint.. hurm

#9 proxlamus©

proxlamus©

    I need a hug...

  • Members
  • PipPipPipPipPipPipPip
  • 2107 posts
  • LocationAurora, Colorado

Posted 21 May 2007 - 07:23 PM

thanks for the kind words titanium Z!

couldnt of done it without your ingenious works!
Currently on a rotisserie for a full restoration - L28 with 9mm rods, 88mm Ross pistons (3.0L), 8.5:1 CR, Schneider Stage II cam, Holset HY35W, Megasquirt, Suzuki GSXR ITB's and home made intake plenum, Z32 transmission, Fidanza aluminum flywheel, ACT stage II clutch and pressure plate, coil-overs, vented 4x4 front brakes, 240sx rear brakes, Corbeau FX1 Pro seat, (soon to be half cage) and still debating the paint.. hurm

#10 Slow_Old_Car

Slow_Old_Car

    Member

  • Members
  • PipPipPipPip
  • 233 posts

Posted 22 May 2007 - 07:51 AM

for a seal, somthing a little more servicable and clean would be preferable. if when cutting, the lengths were accomidated to allow for a half inch tab on the end that you bend up w/ a brake or some pliers, that would give room to use adhesive backed pressure stripping like modern vehicle window/door seals. just order in a roll of the stripping, cut to length, and remember to keep that .5" padding in your measurements.

then the part can be removed for vehicle service w/ out looking like a colligen injection gone horredly wrong.

#11 Tony D

Tony D

    Wiki D

  • Donating Members
  • PipPipPipPipPipPipPipPipPip
  • 9966 posts
  • LocationReno NV & Lucena Quezon, Philippines

Posted 22 May 2007 - 09:31 PM

Just an FYI, the USAF uses that adhesive backed "aluminum tape" as stock in their ABDR Trailers (Air Battle Damage Repair). They fair in riveted panels' leading edges with it, it's both sticky, persistent, and won't peel back off if applied to a clean surface at speeds well over what we will be acheiving in a four-wheeled vehicle. It is the tape of choice in "Tony's Z Graveyard" behind the house for sealing the edges of P.O. installed Sunroofs, windshields that are cracked, or have sealing problems with the cracked and weathered seals... Some of that stuff I applied in 1991, and it's STILL stuck on the root of a Fairlady Z, hasn't lifted yet!

So if you are thinking of using aluminum tape to finish your sealing, I'd say it will probably deliver Yoeman Service in that duty!

Duct Tape, on the other hand, is very disapointing, even the good stuff made in the US of A. Won't last more than a year, and even less when exposed to direct sunlight.

#12 DemonZ

DemonZ

    Member

  • Members
  • PipPipPipPip
  • 244 posts
  • LocationWA

Posted 22 May 2007 - 10:24 PM

That 500mph tape is good stuff...

#13 Corzette

Corzette

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPip
  • 814 posts
  • LocationJAPAN

Posted 22 May 2007 - 11:49 PM

thanks for the kind words titanium Z!

couldnt of done it without your ingenious works!



Prox thats looks awesome...also gotta love Home Depot..yours is much neater than mine...good job!!
http://www.picturetrail.com/corzette 10.97 @ 122.78 150 SHOT SBC 357 AFR190s HR RETROFIT
1973 240Z V8 SBC 1975 280Z V8 BBC 1971 Hakosuka 2001 C5 Corvette Convertible 13.06 at 106.38 with intake bolt ons

#14 bjhines

bjhines

    HybridZ Supporter

  • Members
  • PipPipPipPipPipPip
  • 1905 posts
  • LocationCary, NC

Posted 23 May 2007 - 06:37 PM

I would just like to comment that sealing the inlet area to the radiator is first priority. Blocking off the inlet area comes after the inner sealing is perfected.

If you block off a significant portion of the frontal area without sealing the inlet. You might significantly reduce flow through the radiator.

I only say this because I know that some people will jump in and block off the frontal area without addressing the inlet sealing. That will likely lead to overheating.
Definitely on the Dark Side

#15 Daeron

Daeron

    DON'T PANIC

  • Members
  • PipPipPipPipPipPipPip
  • 2129 posts
  • LocationWPB, Florida USA

Posted 26 May 2007 - 07:33 AM

You should be able to get some bulb vinyl similar to what is used to seal your sliding glass doors in the "shut" position.. and MAYBE even some "track" to pull it through.

As the mental gears and noggin cogs start spinning more and more rapidly... MWAHAHAHAAA
Fusible Links blow.

1-5-3-6-2-4, counter-clockwise from 9 o'clock when viewing from driver side fender

There's something about a white Nissan......
Wisdom is knowing how much you do not know.
"Indeed, if fish had fish-lore, and Wise-fish, it is probable that the business of anglers would be little hindered." -JRR Tolkien

ALL YOUR BOOST ARE BELONG TO US

#16 Dragonfly

Dragonfly

    Member

  • Members
  • PipPipPipPipPip
  • 637 posts
  • LocationSan Diego, CA

Posted 04 June 2007 - 12:15 PM

Heres a couple of pics of my mock ups for the front/radiator.

Posted Image

Posted Image
The opening for the radiator is 12" wide by 4" high and is between the air dam and the bumper. Also note the judicous use of 500 mph tape to seal everything up in the front.

At this time they are cardboard and sheetmetal but after I get everything worked out the way I want I will make everything from aluminum sheet and it will all be painted.

As a side note I actualy took it on a test drive with the cardboard and it worked great up to about 110 mph when the cardboard got flatened against the radiator. I ran the car through city traffic and at typical freeway speeds with no over heating issues (had to use the low speed side of the fan a couple times while stopped in traffic), it was after I was done testing that I decided to see how fast I could go before the cardboard gave out.

Dragonfly
Former Prez. Z Club of San Diego

If you take a short cut you will allways miss something.

3.0L n/a 240z

#17 proxlamus©

proxlamus©

    I need a hug...

  • Members
  • PipPipPipPipPipPipPip
  • 2107 posts
  • LocationAurora, Colorado

Posted 04 June 2007 - 03:09 PM

that is very impressive Dragonfly

I am still trying to figure out a way to seal the intercooler and radiator with the opening I have.. its very very difficult to get right and ALOT of time to get it sealed perfectly.
Currently on a rotisserie for a full restoration - L28 with 9mm rods, 88mm Ross pistons (3.0L), 8.5:1 CR, Schneider Stage II cam, Holset HY35W, Megasquirt, Suzuki GSXR ITB's and home made intake plenum, Z32 transmission, Fidanza aluminum flywheel, ACT stage II clutch and pressure plate, coil-overs, vented 4x4 front brakes, 240sx rear brakes, Corbeau FX1 Pro seat, (soon to be half cage) and still debating the paint.. hurm

#18 ZR8ED

ZR8ED

    Member

  • Members
  • PipPipPipPipPip
  • 942 posts
  • LocationToronto GTA

Posted 04 June 2007 - 04:16 PM

Ok so I got my act together again. I have got the "while I'm at it syndrome, and decided to do more extensive work to direct air into the rad and i/c

I already had a lower piece that joined the top of the air dam, to the rad. I then put in an upper piece that joined the top of the grill to the rad to stop air from going over the rad.

It worked great. The wind tunnel testing has got me interested in making changes on either side of the i/c to make sure air gets better directed.

I am going for a cross between form and function here. The little vertical pieces were a real PITA to build and make a decent fit to the upper "pan"

Well this post is useless with out pics so here goes.
Posted Image

Posted Image

Finished.

Posted Image

Scott.
Posted Image
1986 Porsche 944 Cabriolet, Gemballa Bodykit, mild mods
1978 280Z VG30ET Intercooled T3/T4, MS&S, 300RWHP 350ft/lbs SOLD

#19 proxlamus©

proxlamus©

    I need a hug...

  • Members
  • PipPipPipPipPipPipPip
  • 2107 posts
  • LocationAurora, Colorado

Posted 04 June 2007 - 04:37 PM

WOW!!

Scott that looks incredible!!

Everyone is shown me up! LoL.. mine was a ghetto 1 hr project.. haha

very impressive! I have some work to do!!
Currently on a rotisserie for a full restoration - L28 with 9mm rods, 88mm Ross pistons (3.0L), 8.5:1 CR, Schneider Stage II cam, Holset HY35W, Megasquirt, Suzuki GSXR ITB's and home made intake plenum, Z32 transmission, Fidanza aluminum flywheel, ACT stage II clutch and pressure plate, coil-overs, vented 4x4 front brakes, 240sx rear brakes, Corbeau FX1 Pro seat, (soon to be half cage) and still debating the paint.. hurm

#20 rags

rags

    Member

  • Members
  • PipPipPipPipPipPip
  • 1215 posts
  • LocationWestwood, NJ

Posted 04 June 2007 - 06:00 PM

Scott,

What guage is the sheetmetal? Is it aluminum? And lastly, where did you buy it?

Joe
