Well guys, welcome to project 600zx. I've been setting on this car for a while thinking on how to build it.



At first I was planning on doing a mild build up on the stock W-series VG30ET 3.0 sixer adding a stealthy V-mount aftercooler and a Pathfinder upper intake manifold etc.



After careful consideration and much searching, I've decided against the factory power plant for several reasons.

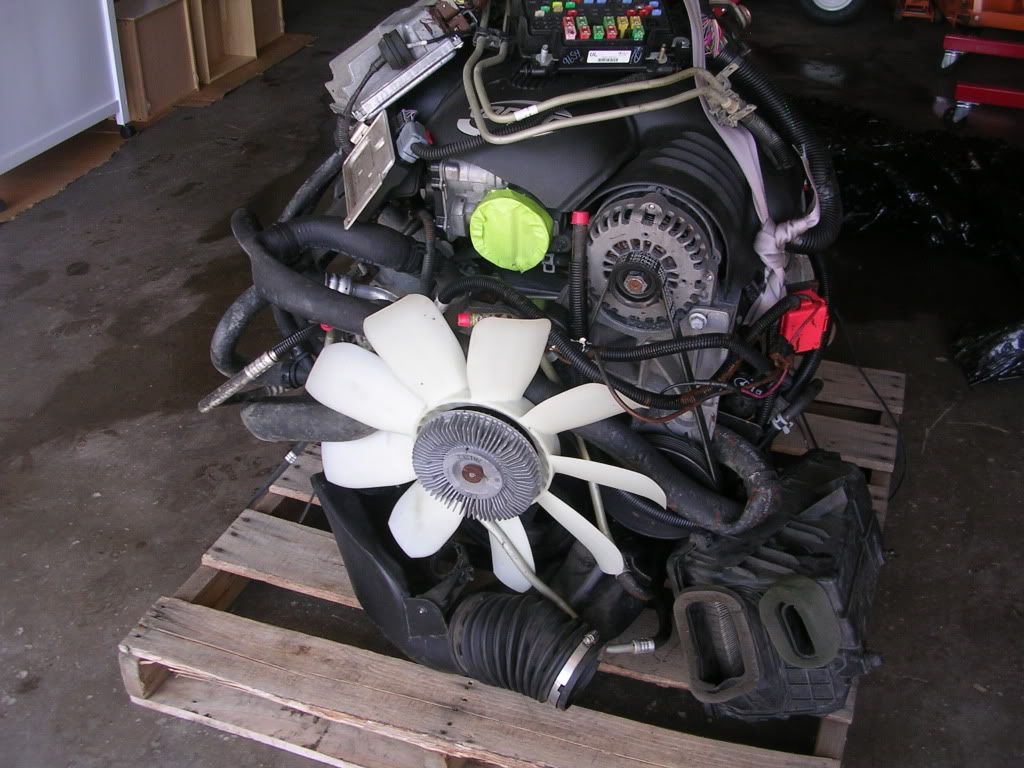

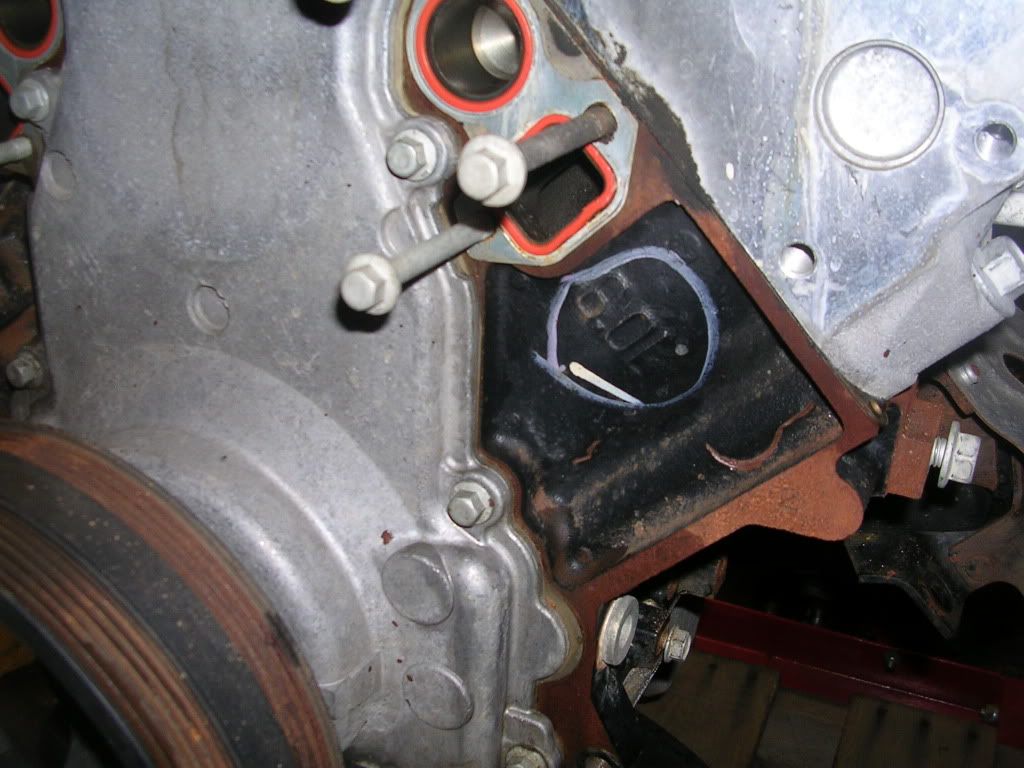

What I finally chose to go with is a 6.0 liter V8 LQ9 engine from GM.






As far as current progress it's mostly been a story of pulling parts and cleaning, but it's progress none the less.

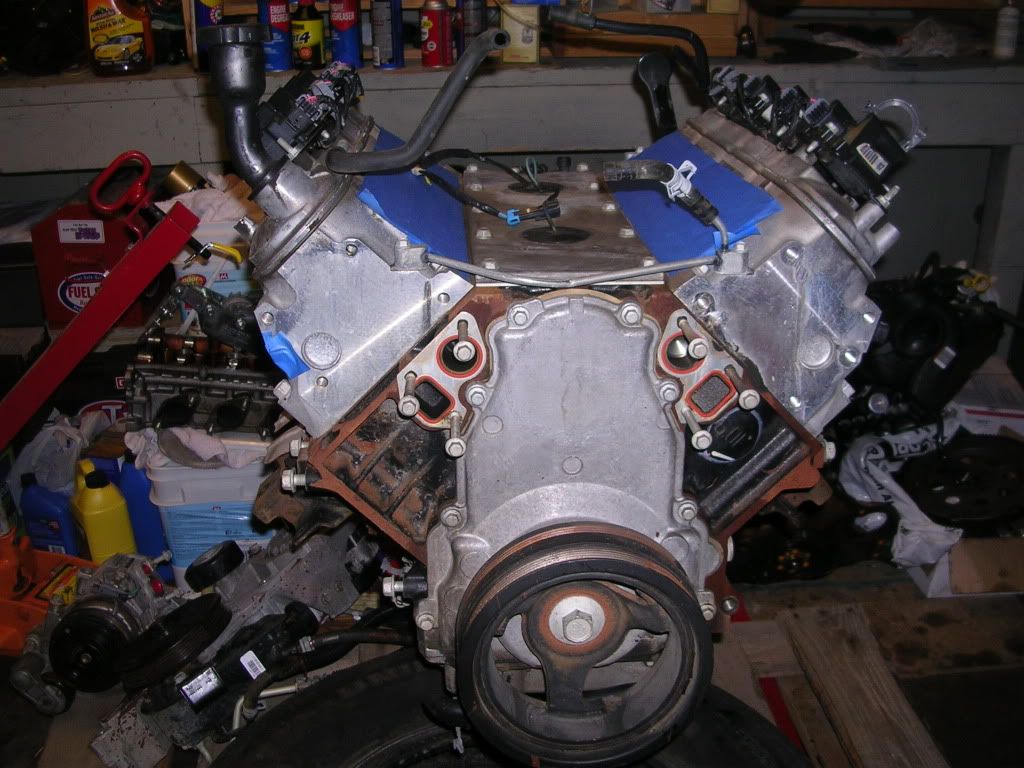

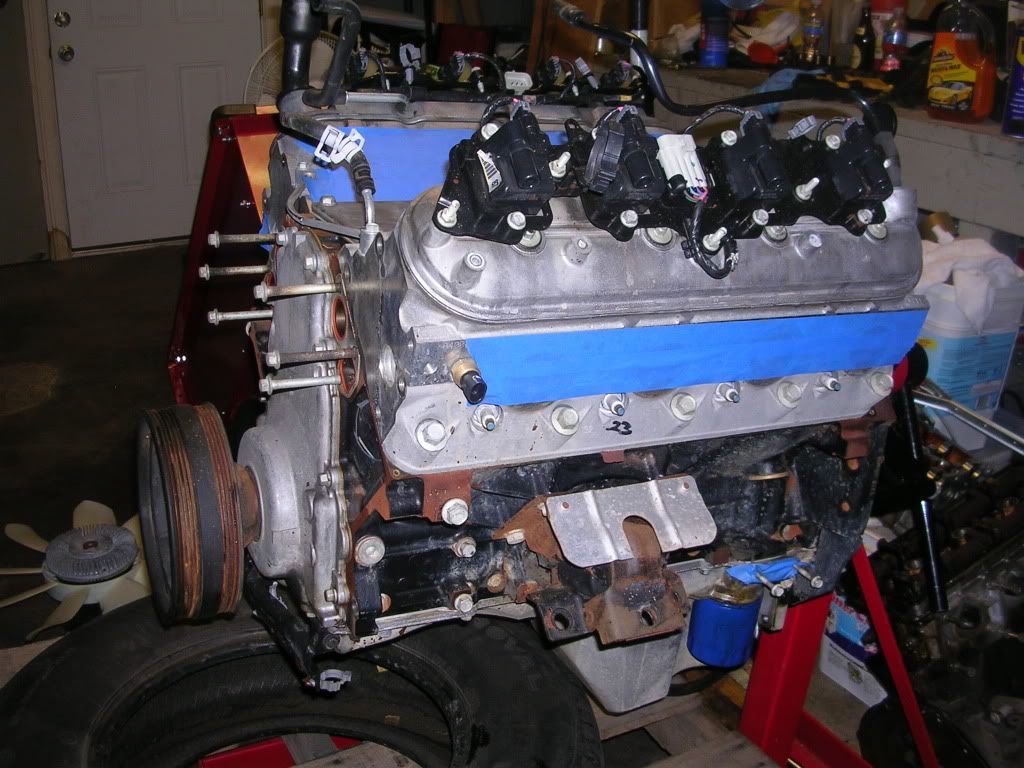

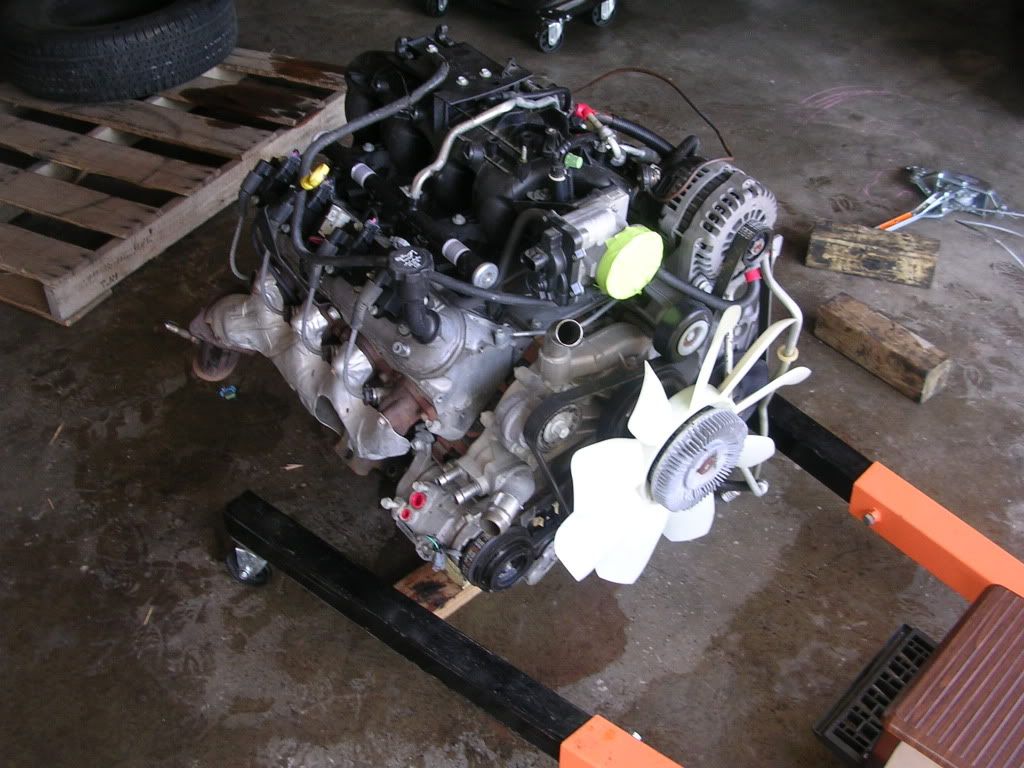

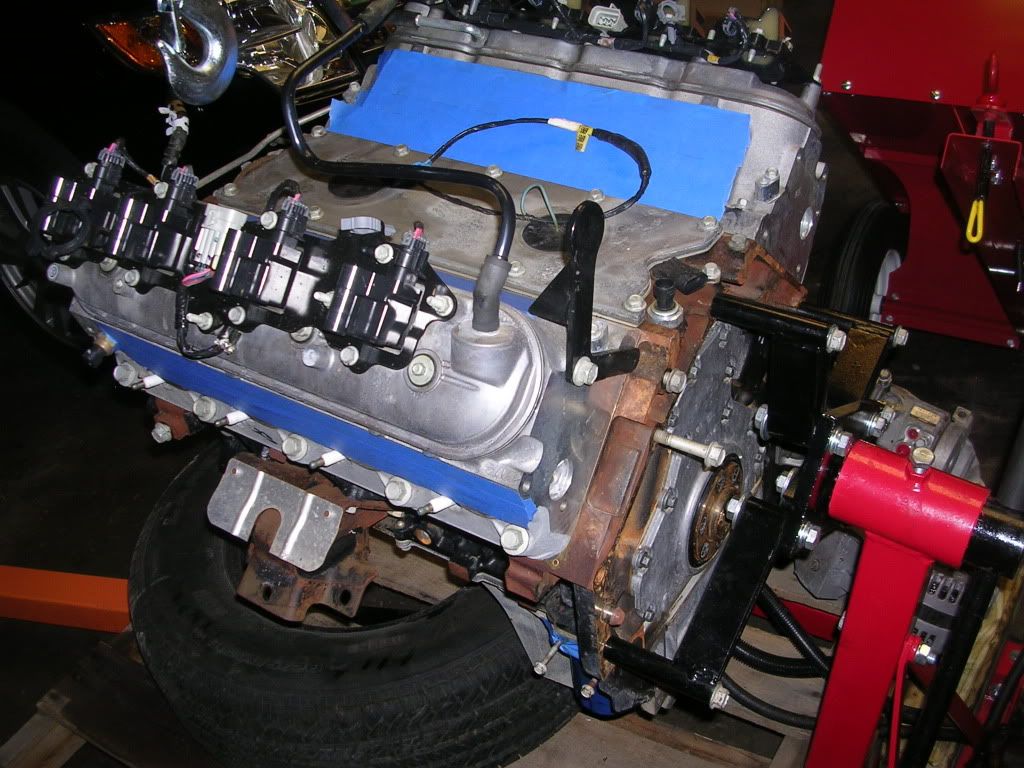

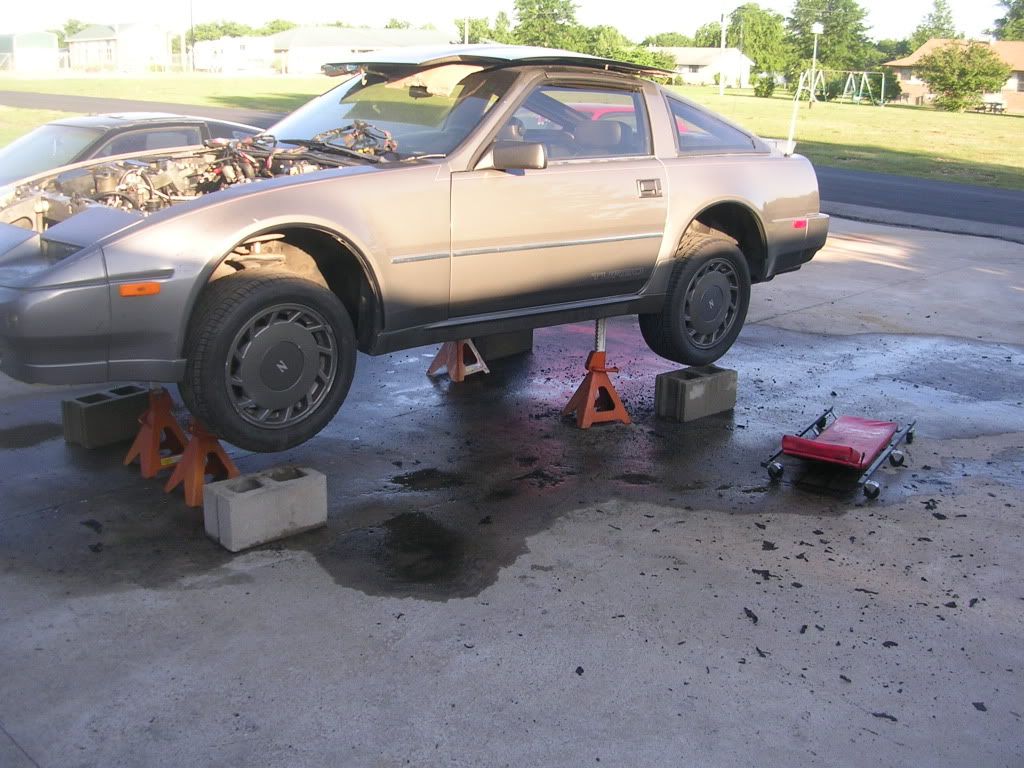

Here is the story in pictures:















It was so covered with oil and grease, it nearly slid out on it's own.








Share this post


Link to post
Share on other sites

Note to all Turbo owners: DO NOT DRIVE WITH A LEAKY OIL LINE!!!



This next series of pictures shows how I've had to clean what must have been 10lbs of caked on oil/grease off the engine bay and underside of this car.

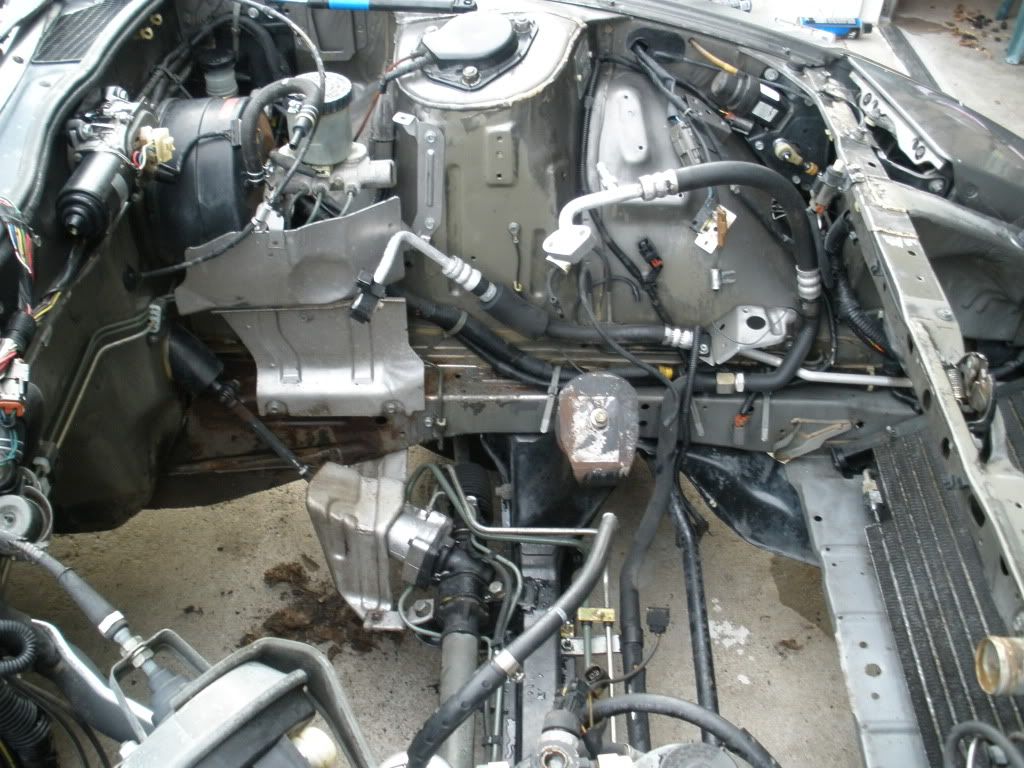

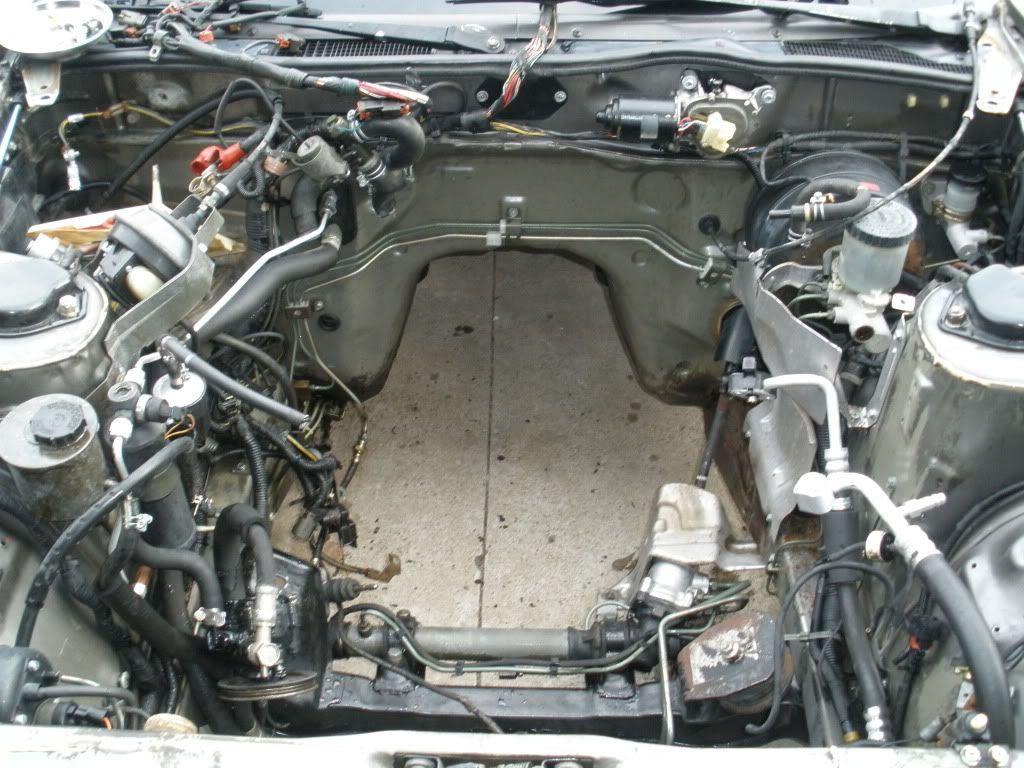

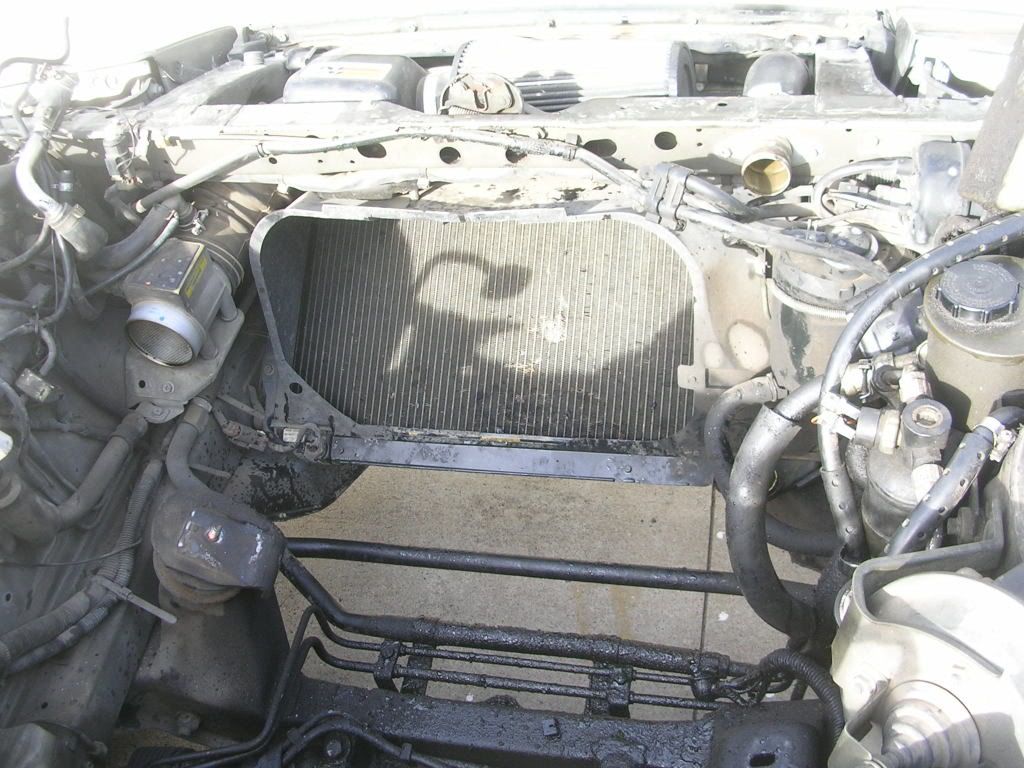

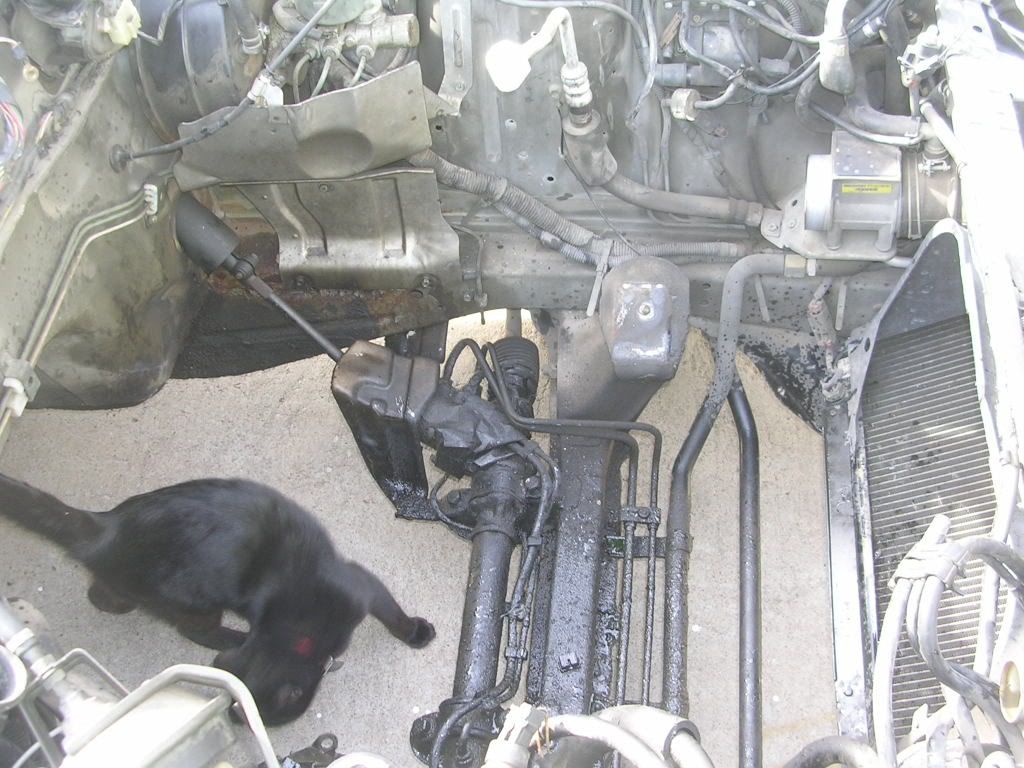

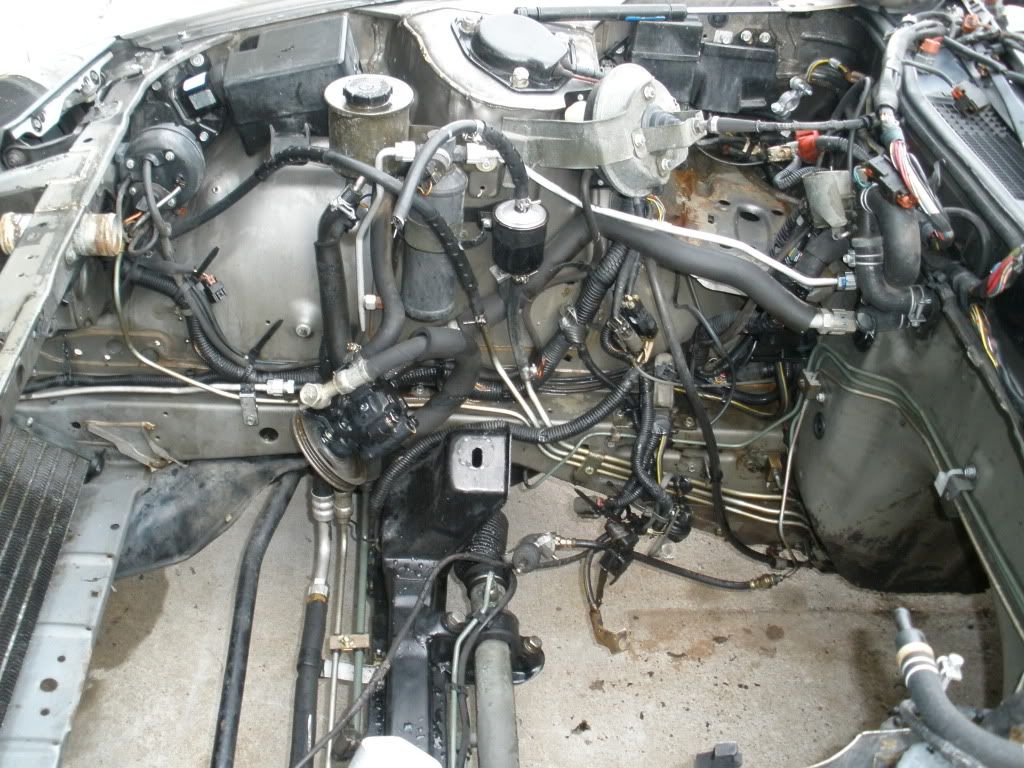

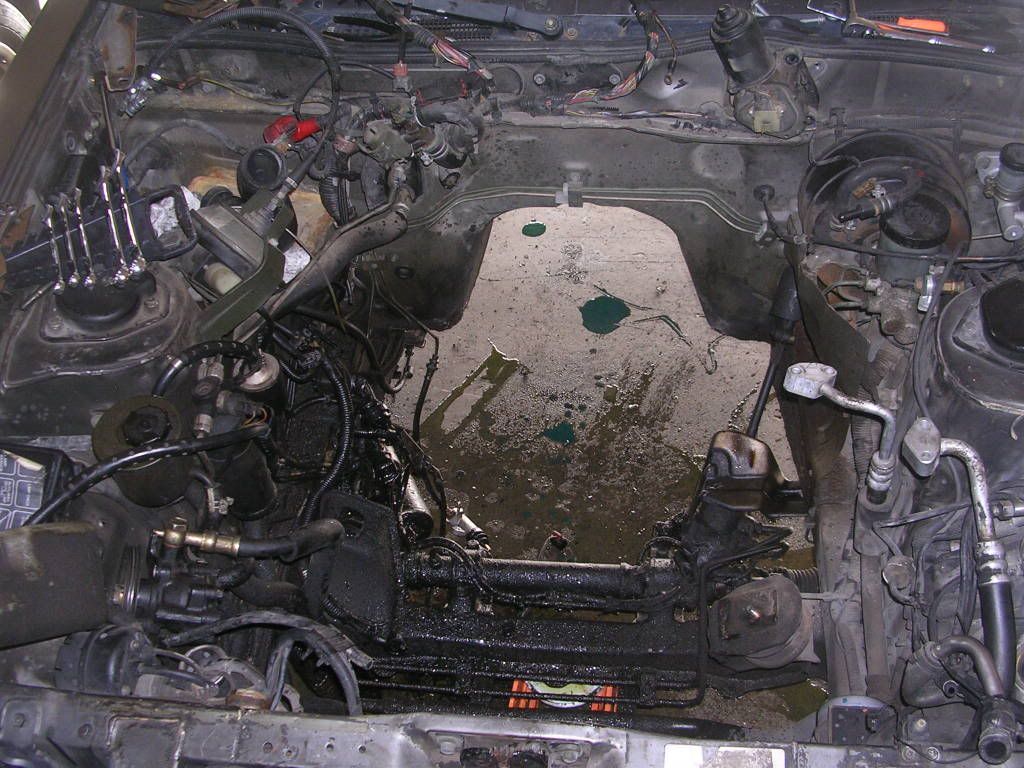

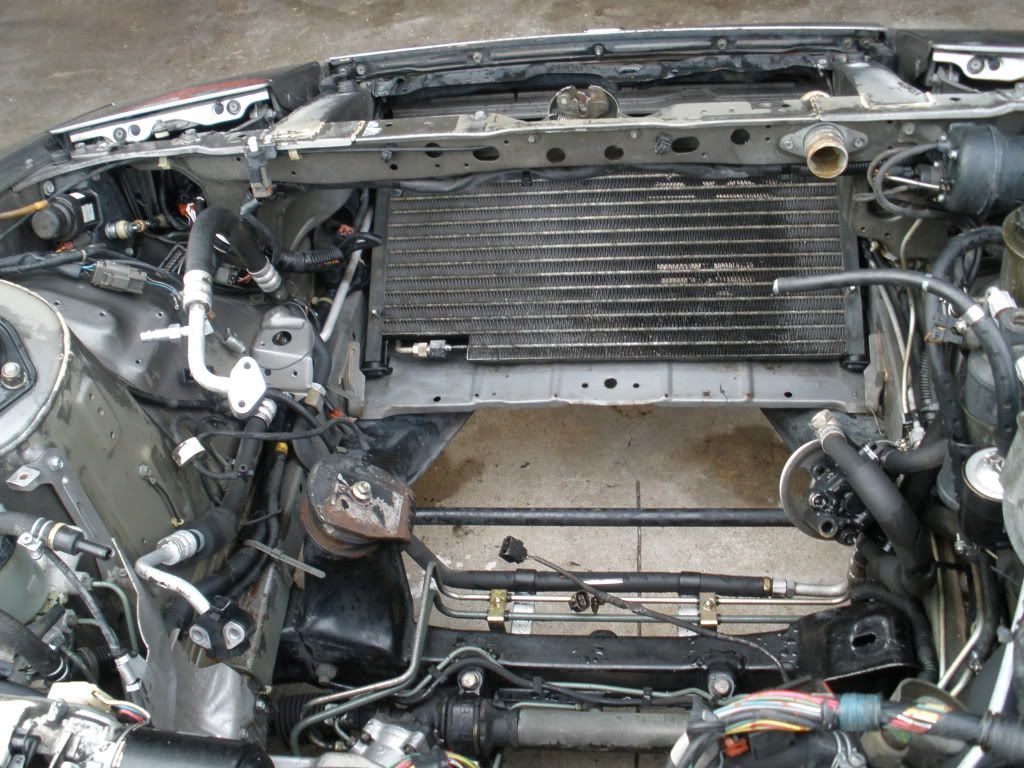

Engine bay...



Before:




After:






Before:




After:






Before:




After:






Before:




After:


Share this post


Link to post
Share on other sites

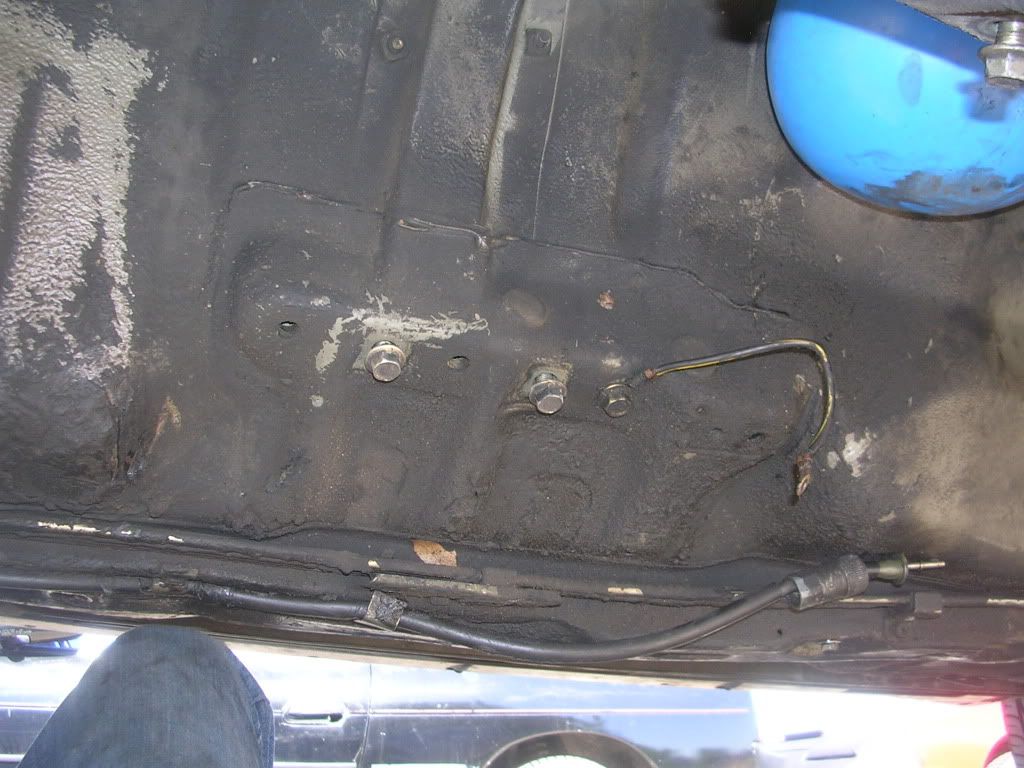

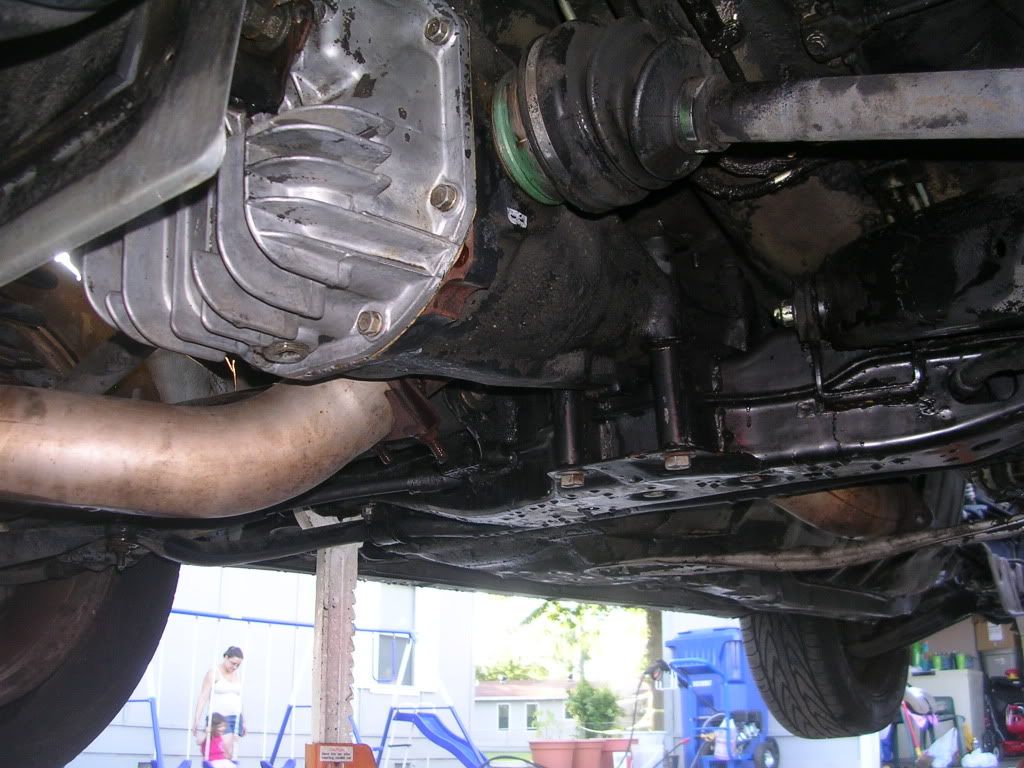

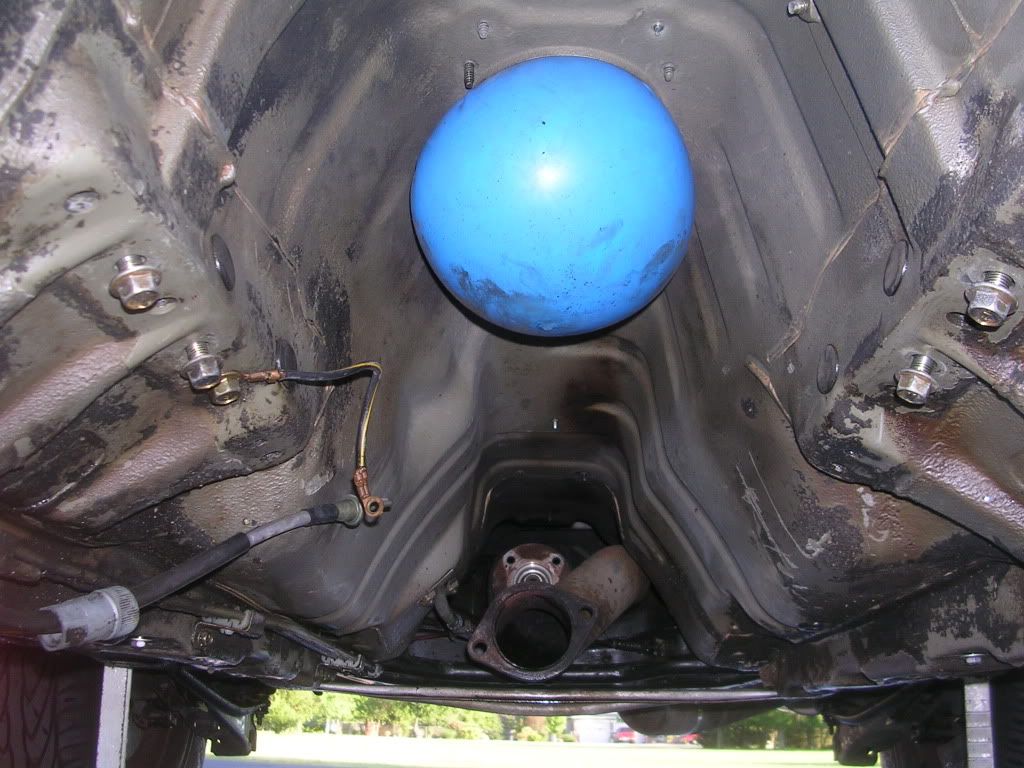

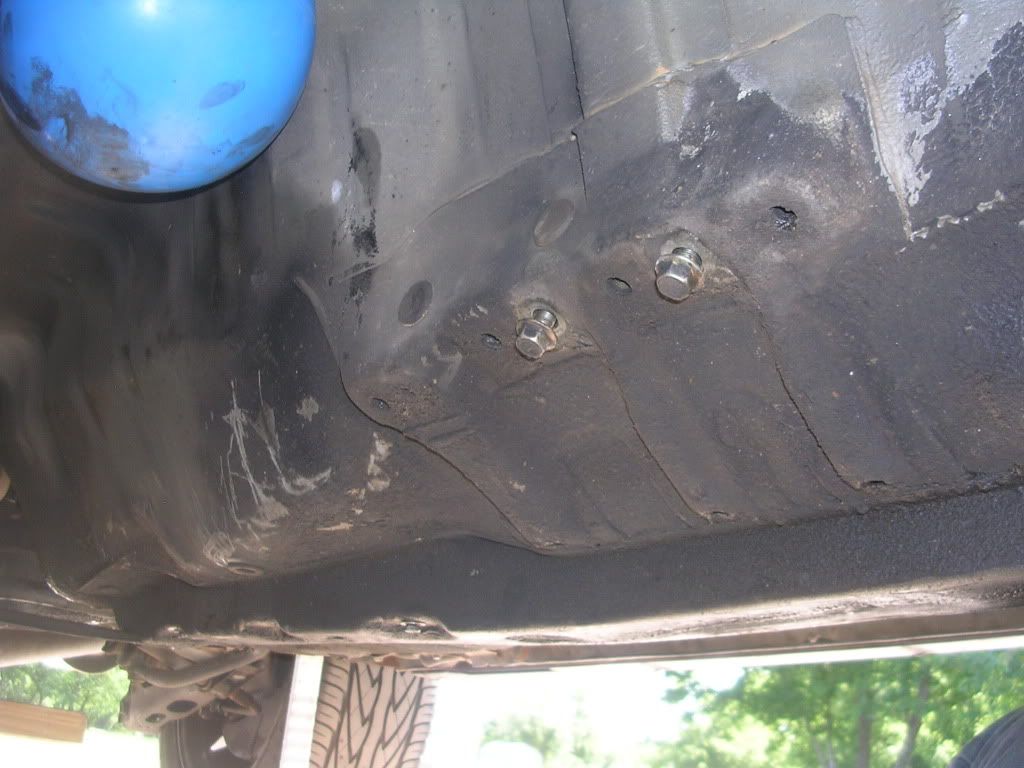

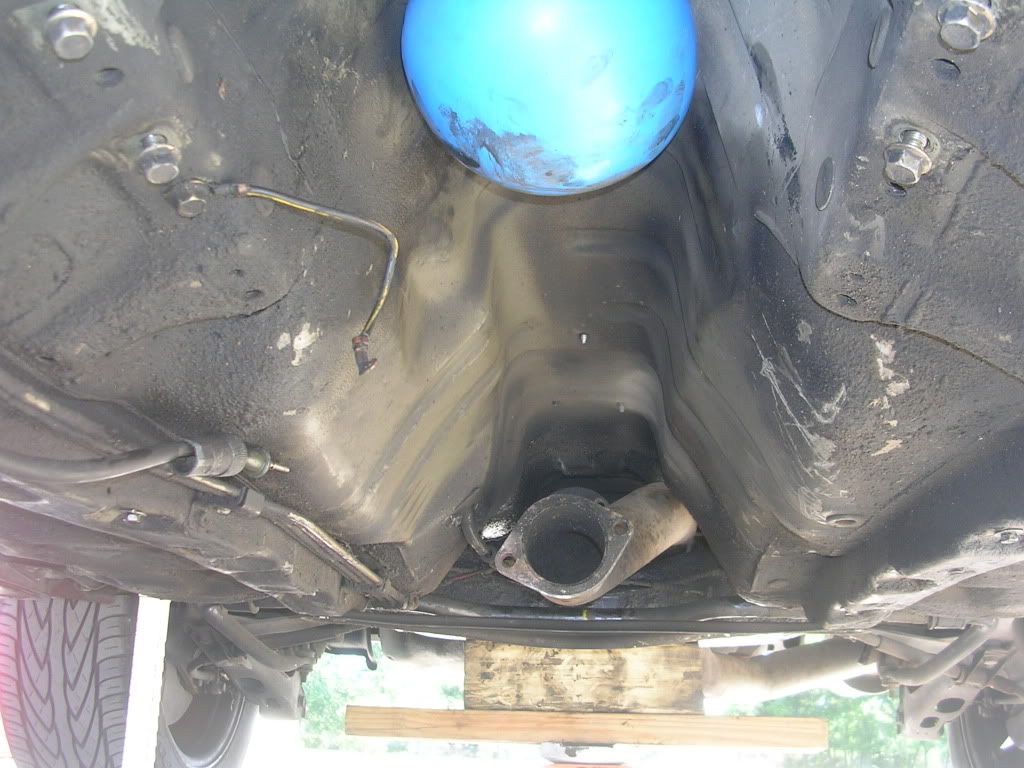

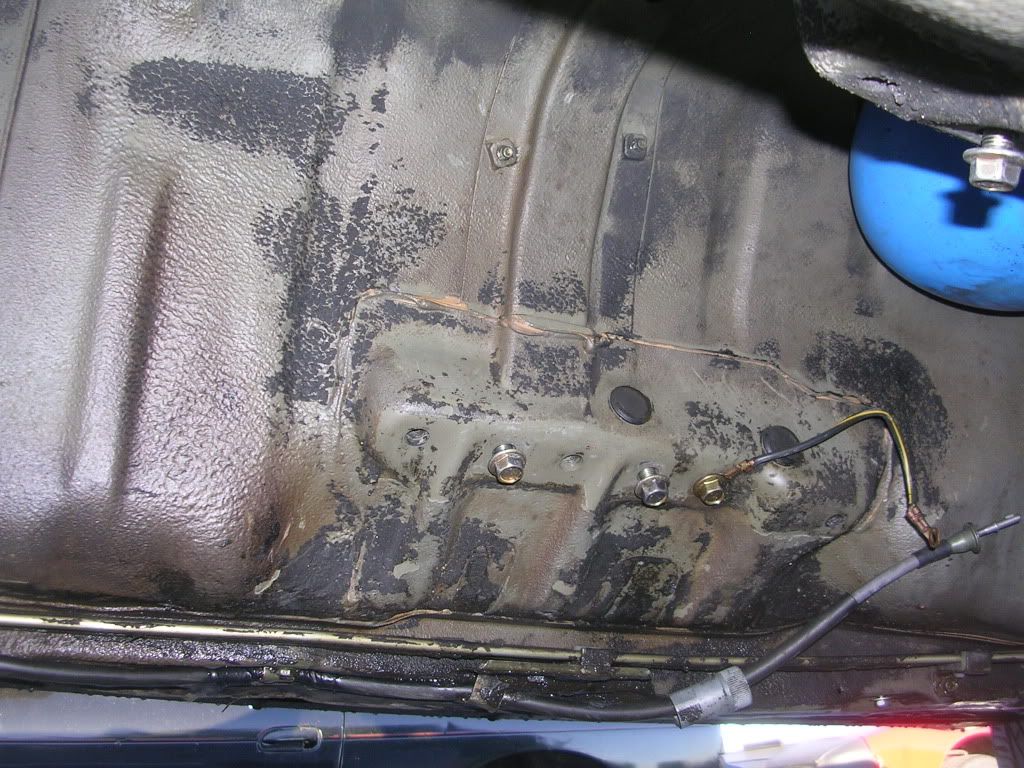

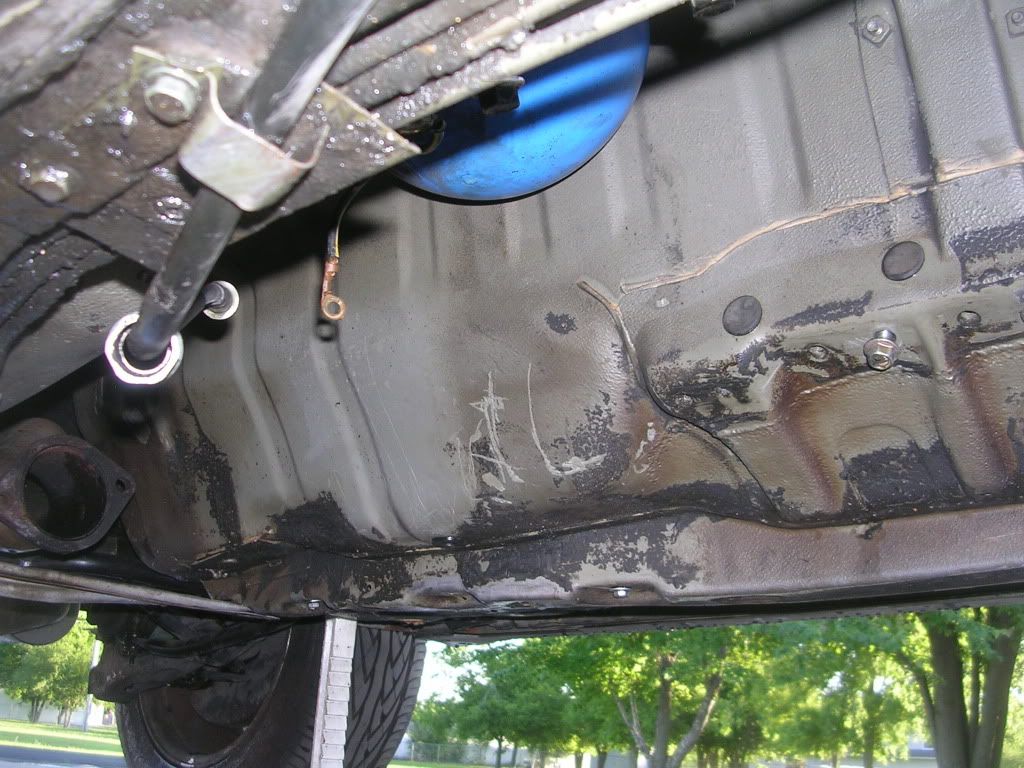

Underbody...



Before:




After:






Before:




After:






Before:




After:






Before:




After:

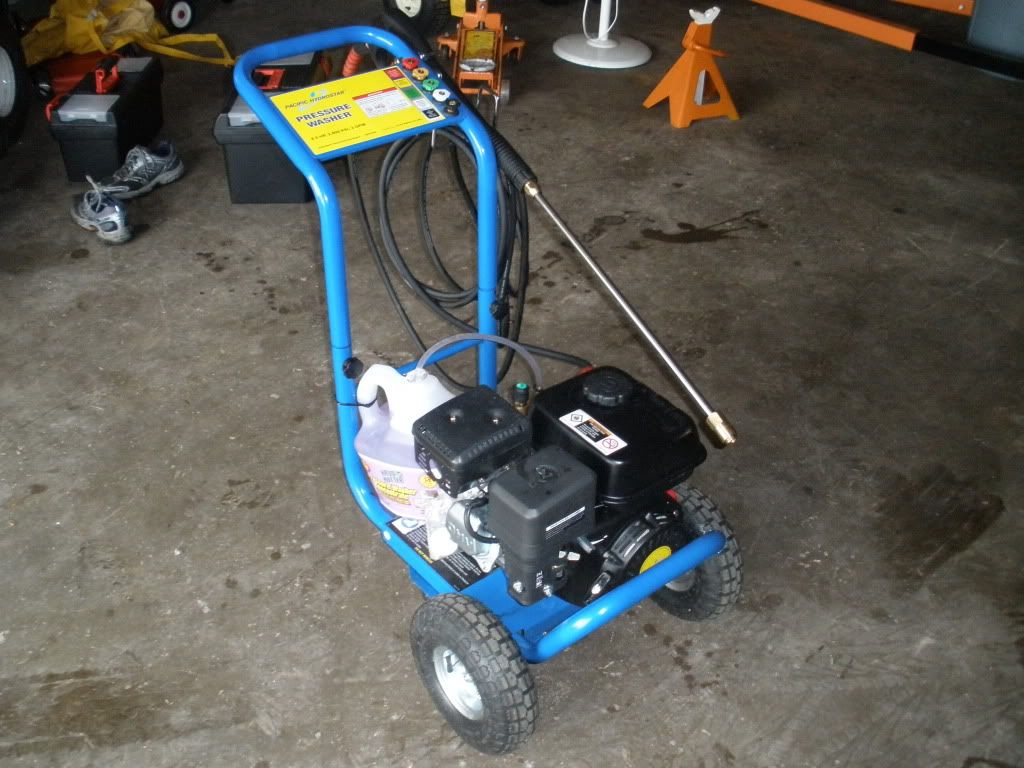

It took me two weekends to get this car cleaned up, this was just from cleaning the underside:


The end of my driveway looks like an Prince William Sound, Alaska on March 24, 1989...





Worth every dime:






I've weighed the original engine, transmission, and clutch assembly to keep track of what my exchange will be. They seem to weigh more than the listings I've found posted on the web by quite a bit. Listed as follows:



W-series VG30ET Engine w/starter, no A/C: 473lbs dry (oil and water drained)

FS5R30A Transmission: 139lbs dry (oil drained)

Stock Flywheel (resurfaced) and Clutch assembly (exedy OEM Spec): 41lbs



Total weight: 650-655lbs



The scale was Zeroed out between each weighing and for the chains/cables used.

Share this post


Link to post
Share on other sites

Timeline for this build is going to be... quite a while. I had to save for a while just to get the engine/harness.



If anyone knows of a completed Z31 GenIII SBC build please let me know. I've searched everywhere I can think of and haven't turned up much of anything to reference. The only thing I can think of to go off of so far is Z32 GenIII SBC builds and the challenges they've encountered. I don't know how similar the Z31 and Z32 chassis are in regards to the engine bay and firewall are except in pictures. Maybe someone has owned both and can speak to this?



I dunno, I'll find out in process and all. I just know I can't possibly be the first to do this swap, so I'd like to get pointers where I can.



Thanks!



Aaron D.

Share this post


Link to post
Share on other sites

I'm in the process of doing a 5.3/TKO600 swap on my 88' NA Z31. My driveline is hanging in the car and I'm still coming up with ideas for my mounts. I'll try to get you some pictures this weekend. I wanted to wait until the engine was mounted to start a build thread, but I guess this works.



As for information, I have looked everywhere and found absolutely nothing. I pieced together what I could from the Z32 guys and figured the rest out on my own. Here's what I know so far:



The truck intake and oil pan won't fit. The intake will pop up about 5 inches past the hoodline and the oil pan almost hits the ground. The F-body pan and LS1 intake fit, but I had to do some serious hammer work to the firewall to make the engine sit back far enough to clear the steering rack with my bellhousing. The throttle body still won't clear, but I may be able to run the intake backwards to make room (I really want the sleeper look, not a big cowl scoop).



The alternator bracket for the truck holds the alternator up nearly as high as the funky intake, so I'm probably going to have to fab up a custom bracket for the alternator, and I want to run the stock Z power steering pump (if you use the Z alternator's pulley, it has the same ribbing as the LSx A/C belt).



The engine is in the way of my A/C evaporator, so I doubt I'll be using A/C. The heater core lines are a tight fit, but should be workable.



The TKO600 and bellhousing fit well (just got it in late last night, so I'm not 100% on how much clearance I have. A hydraulic throwout bearing setup looks like the only option at this point). The shifter comes up through the stock hole as I have it now, but its a little too far foreward. A little grinding and a custom shifter should do the trick.



There isn't much room for an exhaust. I'll be having a friend of a friend build me a custom exhaust and headers.



That's all I can remember right now. I'll try to keep you updated.

Share this post


Link to post
Share on other sites

Thank you very much for posting i r teh noobz. I realize it may be a little early to call my project a "build", but i know I'm committed to it and have done several V8 swaps before so I know I'm not in over my head.



Good news to hear about the power steering pump ribbing, that'll be one more thing I won't have to convert or have to really have to figure out since I do know the pressure output on the pumps are different.



I do plan on keeping/making all the creature comforts work including A/C in my car without sacrificing steering geometry by lowering the steering rack to make this engine fit, so using a custom oil pan, aftermarket bell housing, custom headers, etc. are things I accept as part of the price for this swap.



I didn't figure the truck intake or oil pan would work out based on my measurements, but thanks for confirming that. I was planning on running the camaro accessory brackets and pulleys.



As for having to hammer the firewall for clearance, I’m curious to find out what exactly for? Was it for engine clearance or bellhousing clearance? I may be able to borrow a buddy’s T56 for mock up purposes and answer many of these questions for myself, but any pictures or input you can share is welcomed!



As far as exhaust options, this thread Braap had going might be of interest to you:

http://forums.hybridz.org/showthread.php?t=144469&page=4

Share this post


Link to post
Share on other sites

Looks like you're off to a good start. Even though I don't have any experience with Gen III engines, but any encouragment or faulty advise I can offer just let me know. Until I looked at your pictures, I had forgotten how much crap I have thrown away. Its really great to see someone doing a late model block in a Z31. Here is how I got around the clearance problem on my gen I 350. I'm still having some headaches with clearing the top of the magneto.



1. Front clip removal, or how I cleaned the engine bay.

2. Firewall and floor removal. or getting the crap off the underside of the car.

3. The chassis.

4. Like you said, Worth every penny

5. Home made engine plates solved my motor mount issues.

front clip off 1_thumb.jpg

body on chassis front_thumb.jpg

14847_thumb.attach

14848_thumb.attach

engine polished2_thumb.jpg

Share this post


Link to post
Share on other sites

Little update!

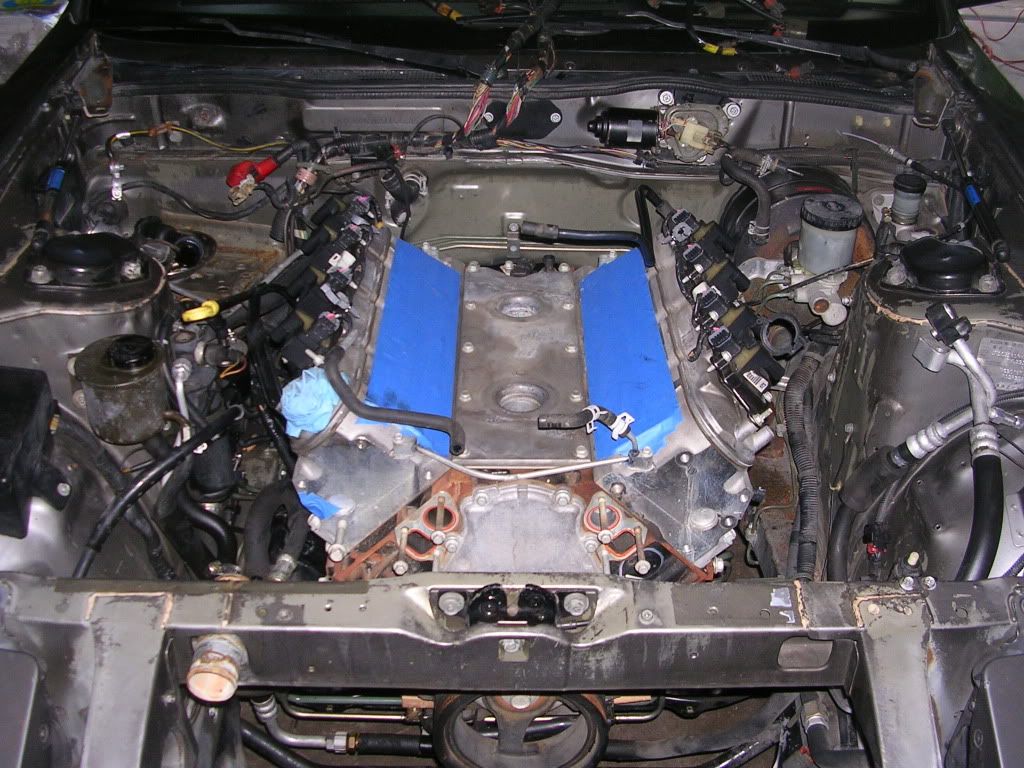

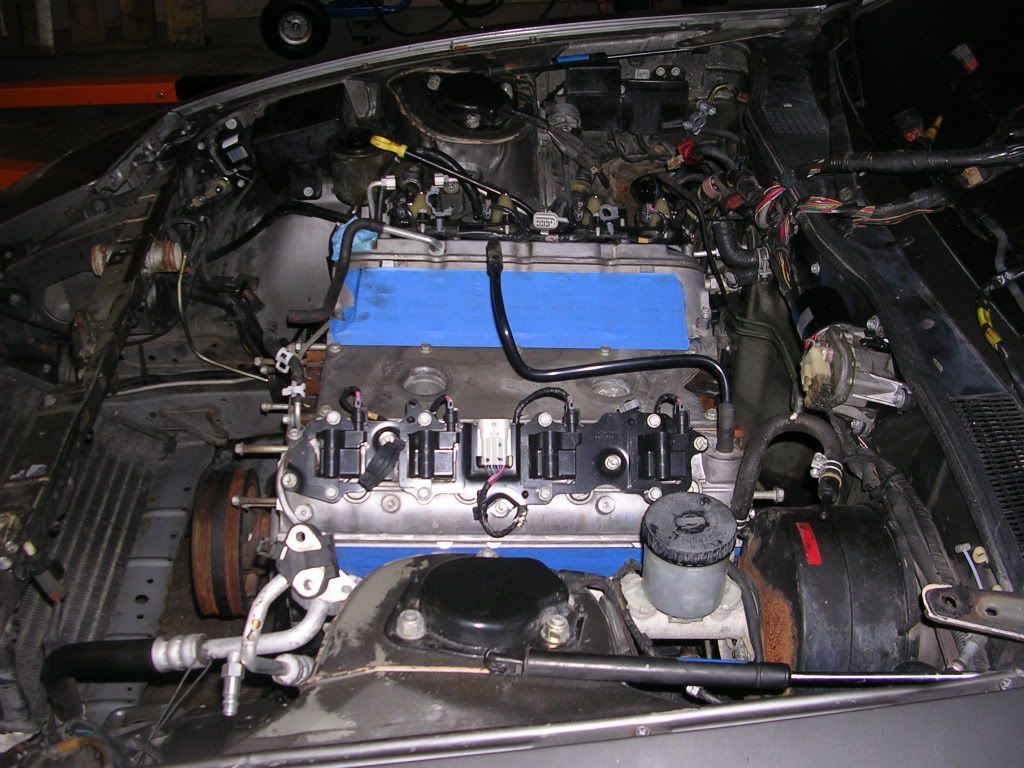

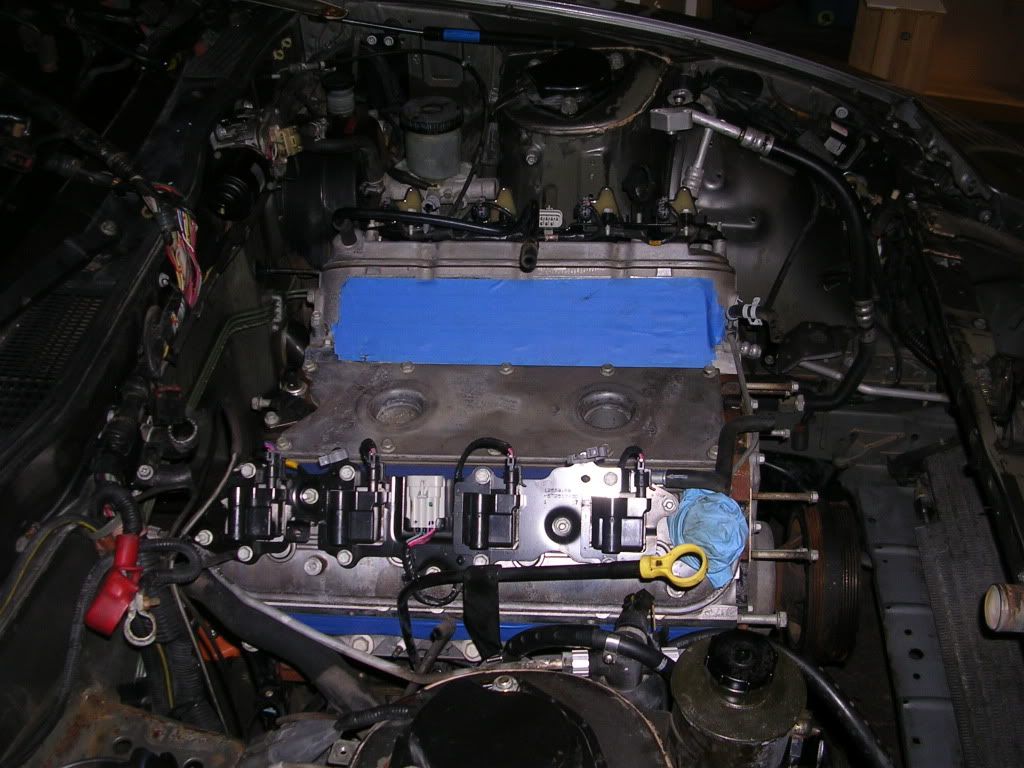

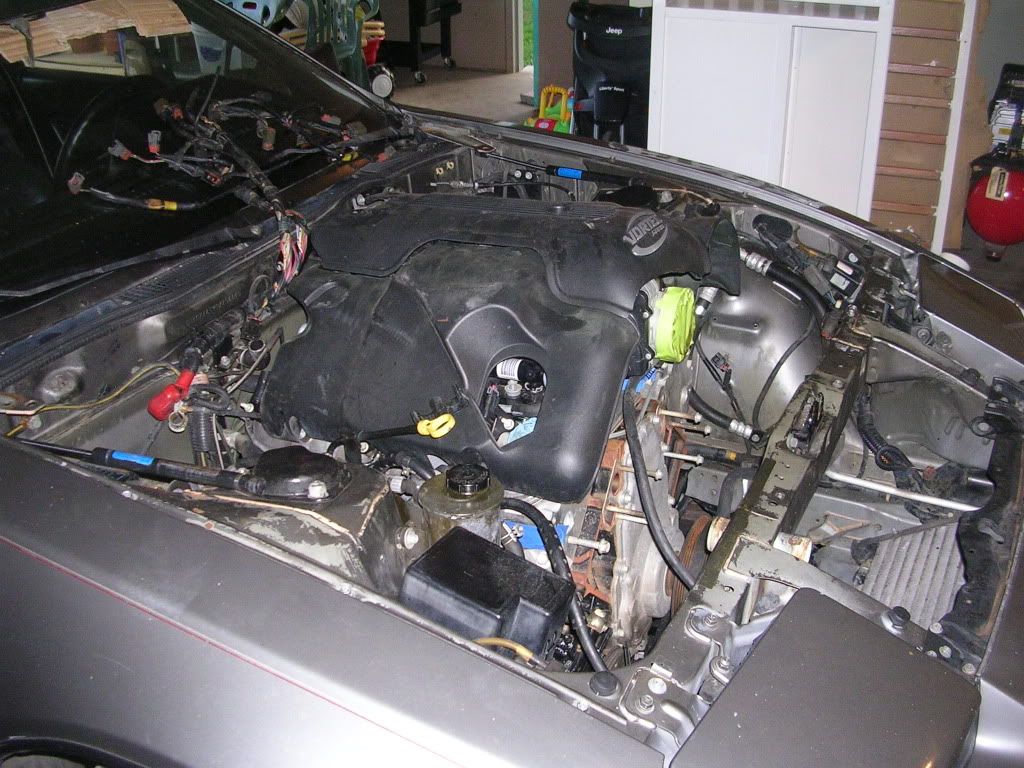

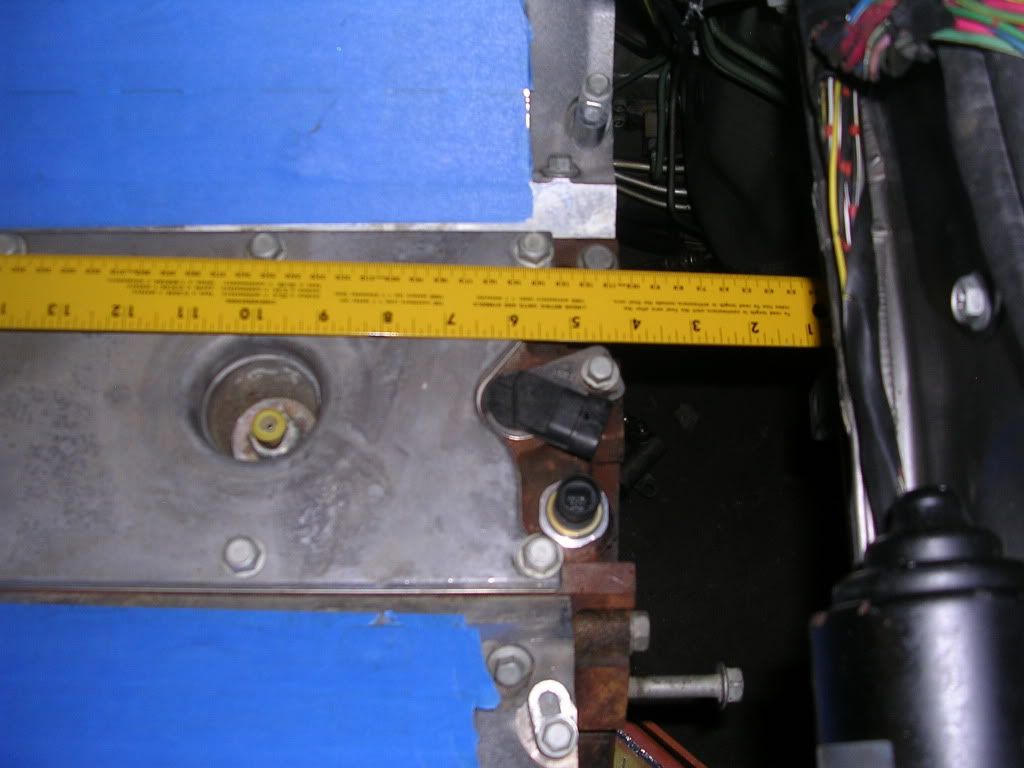

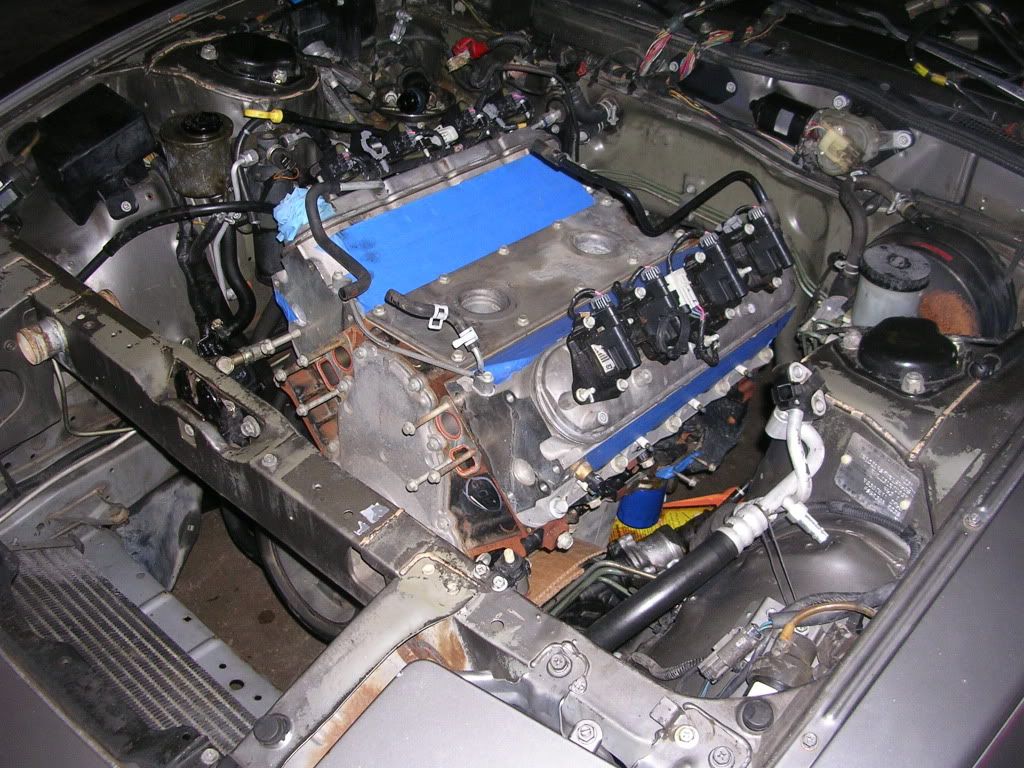

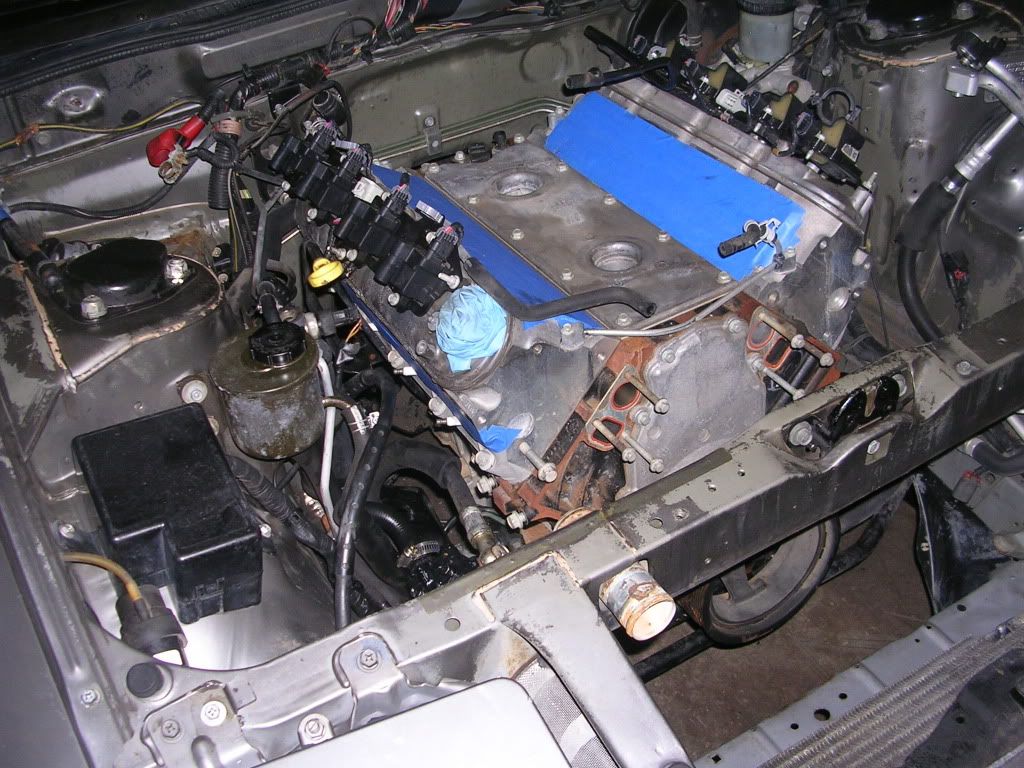

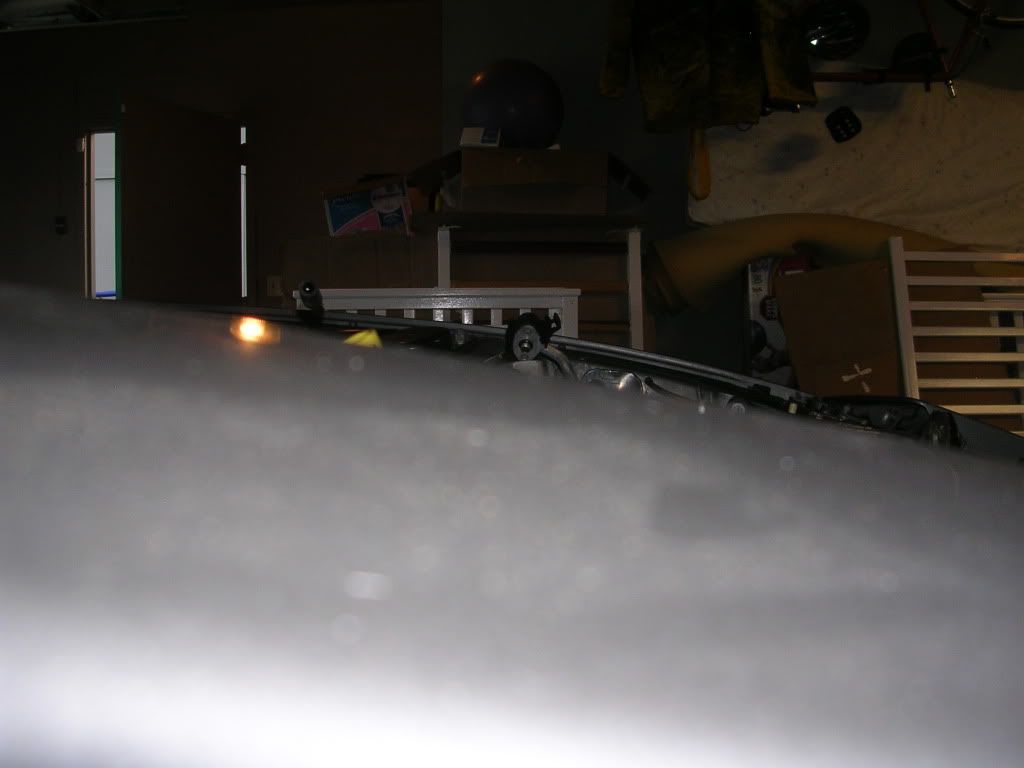

Did a little mocking up today:

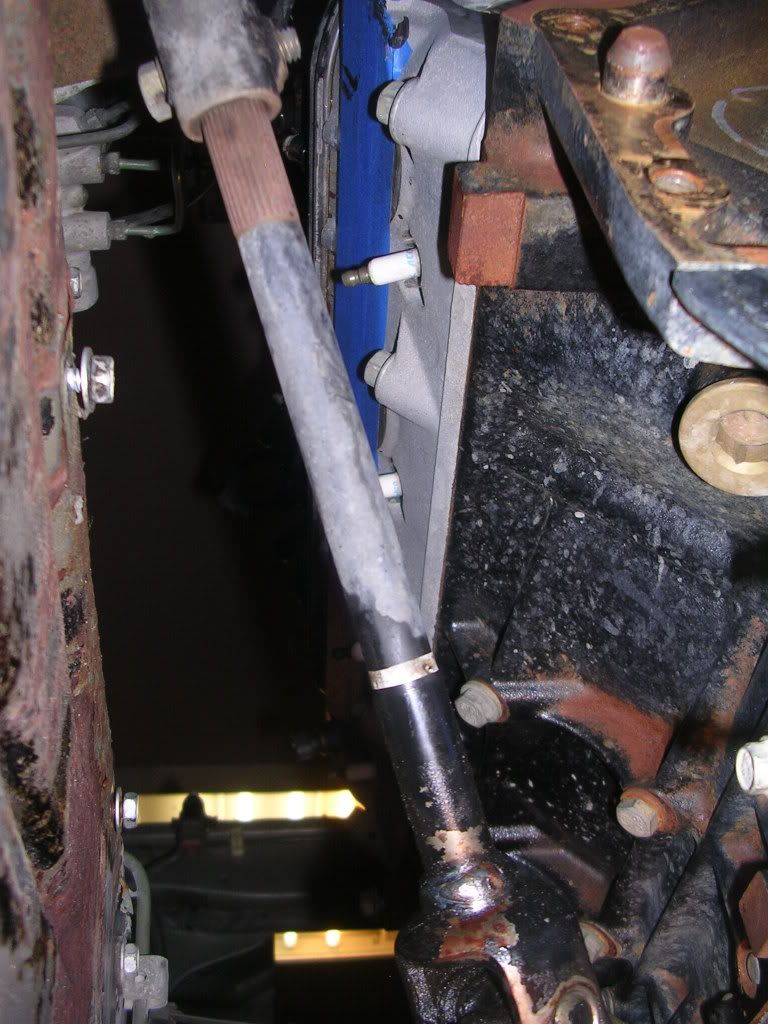

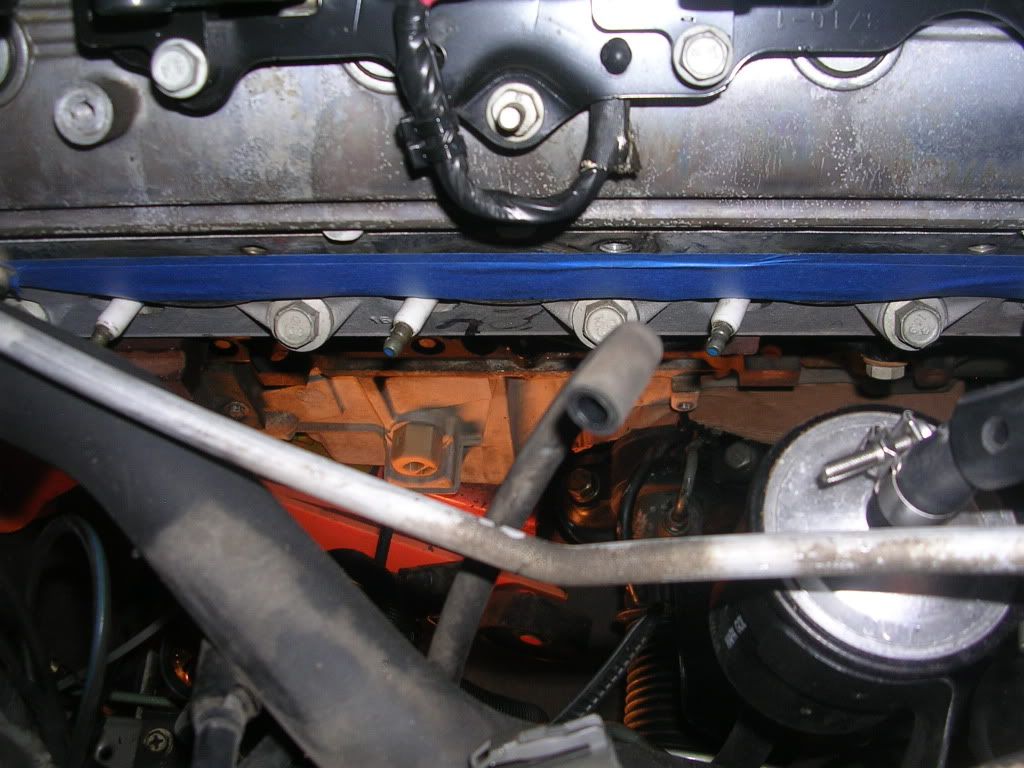

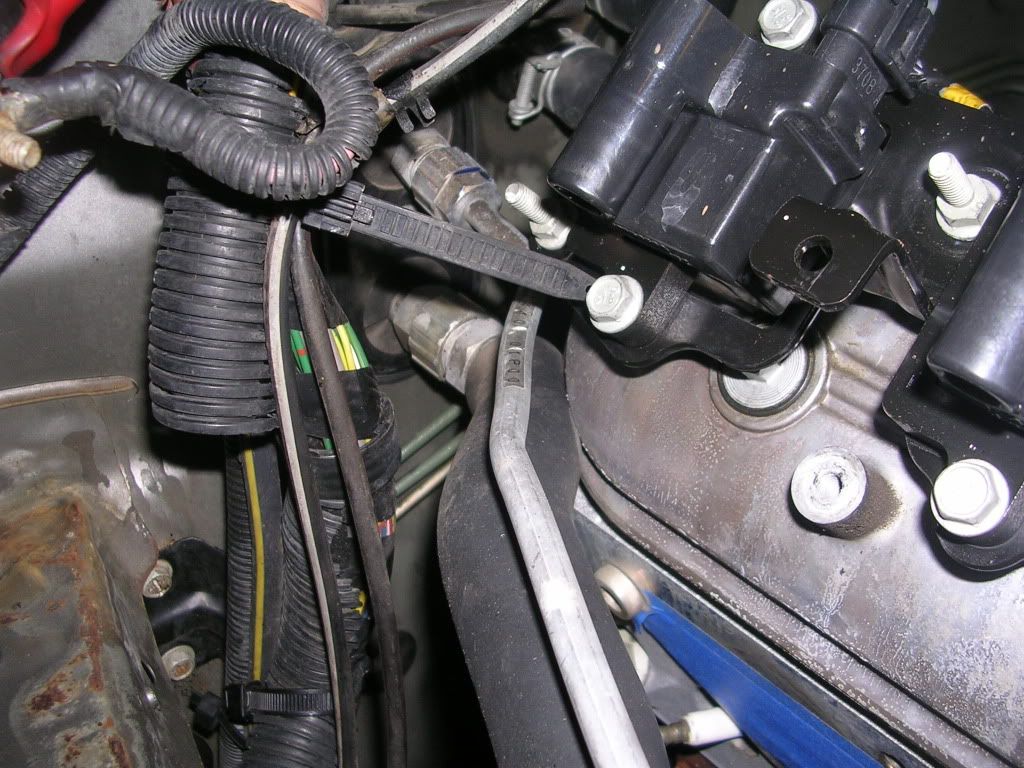

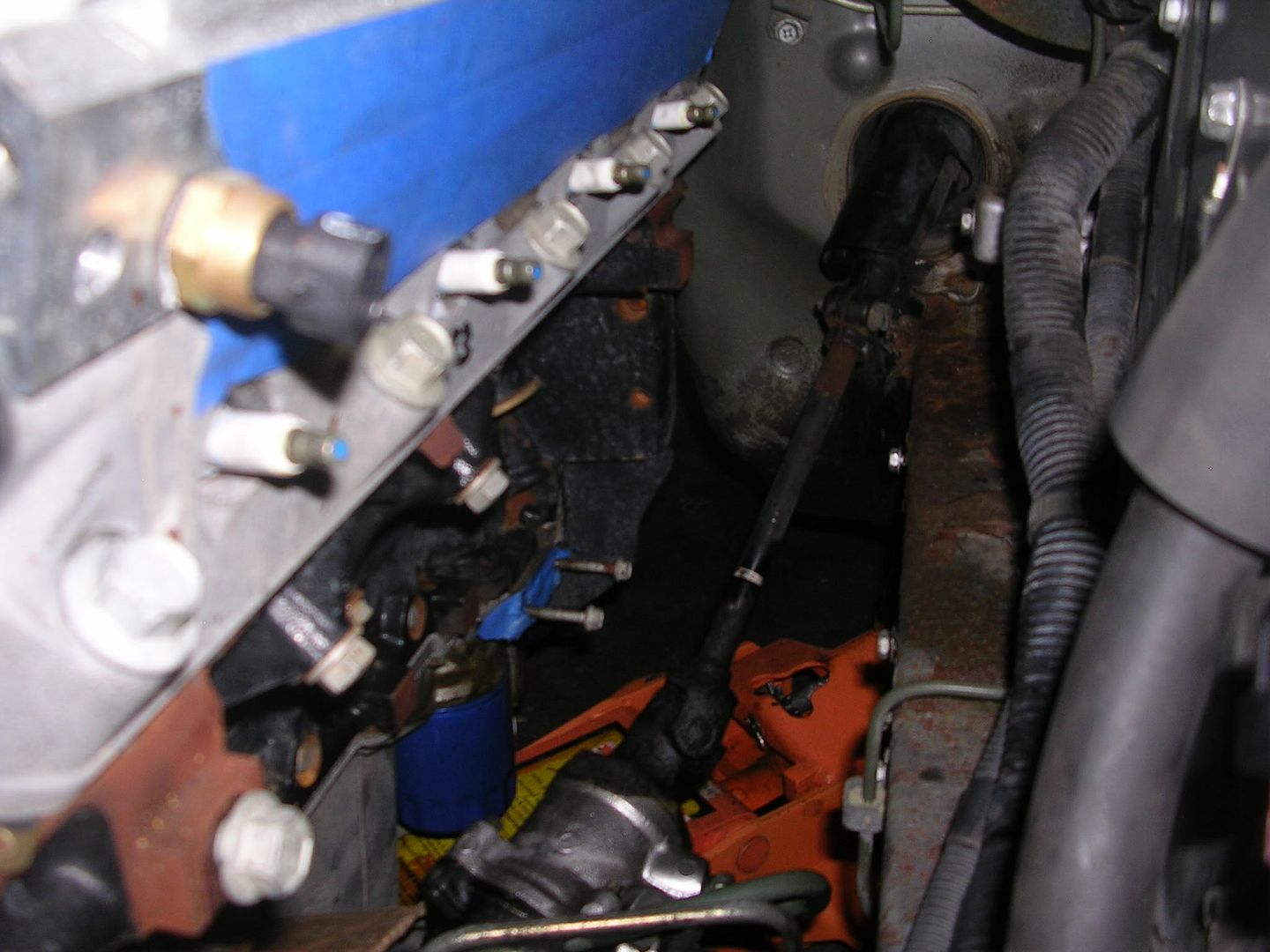

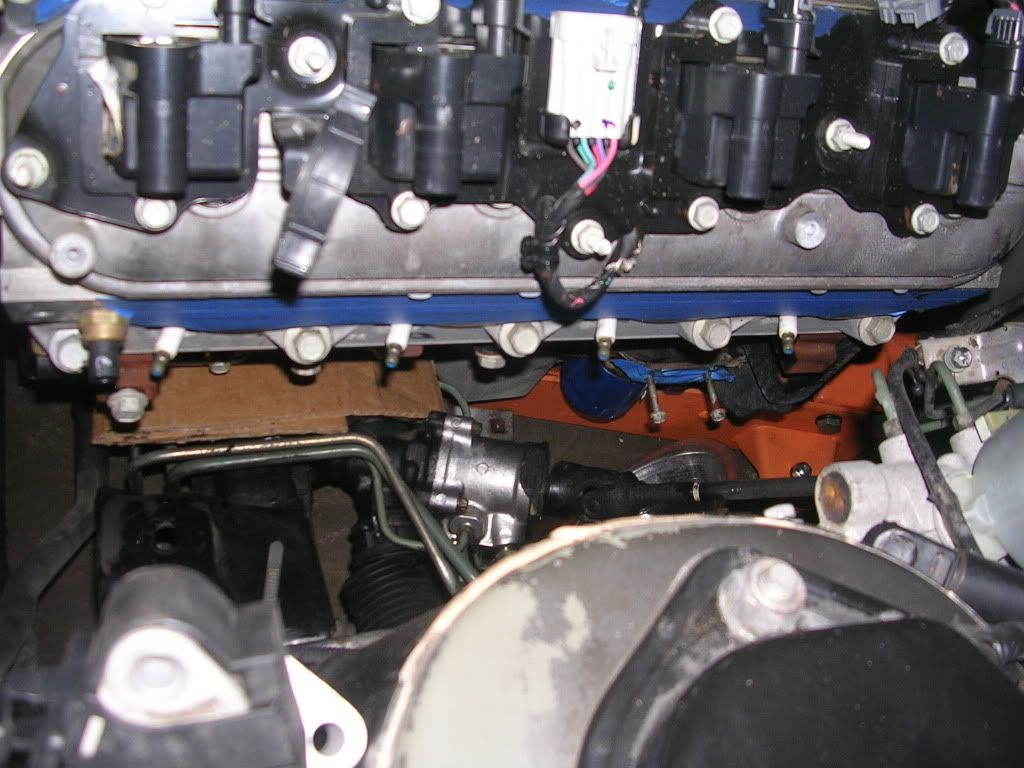

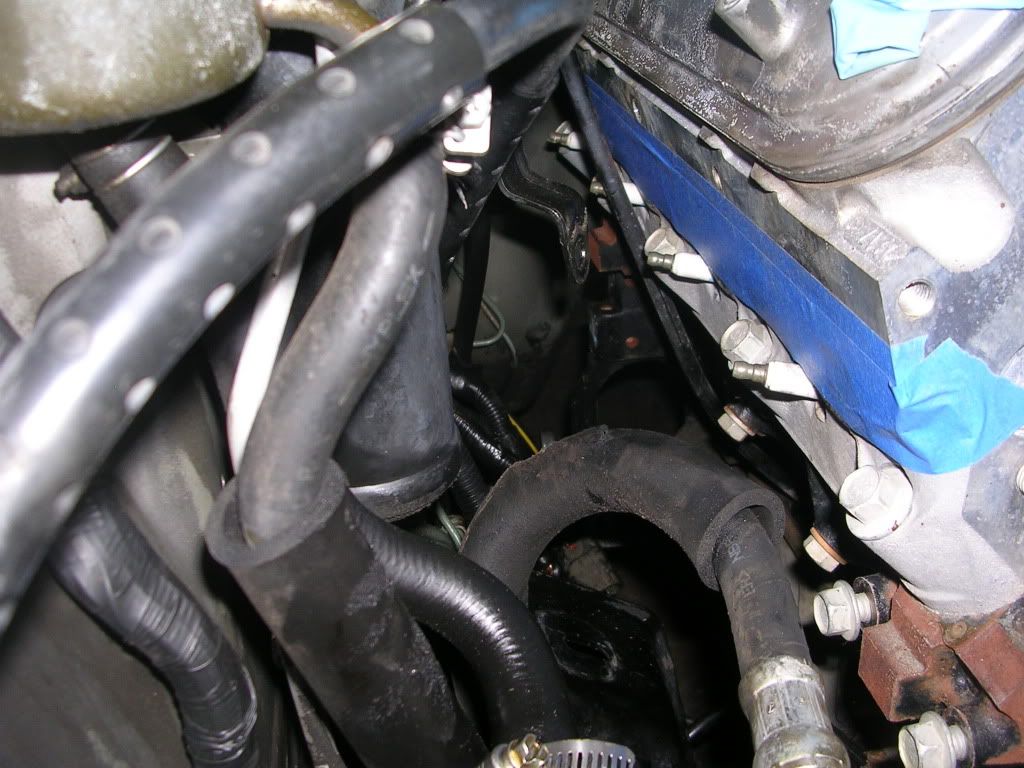

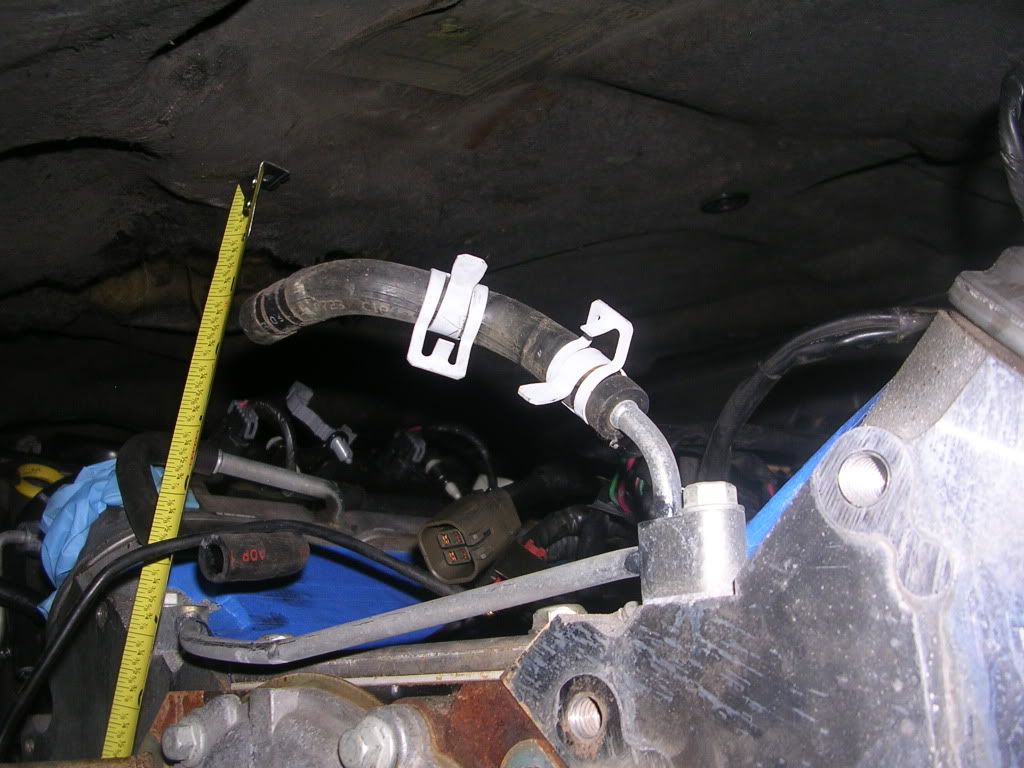

My only real rubbing issue topside so far (A/C line):

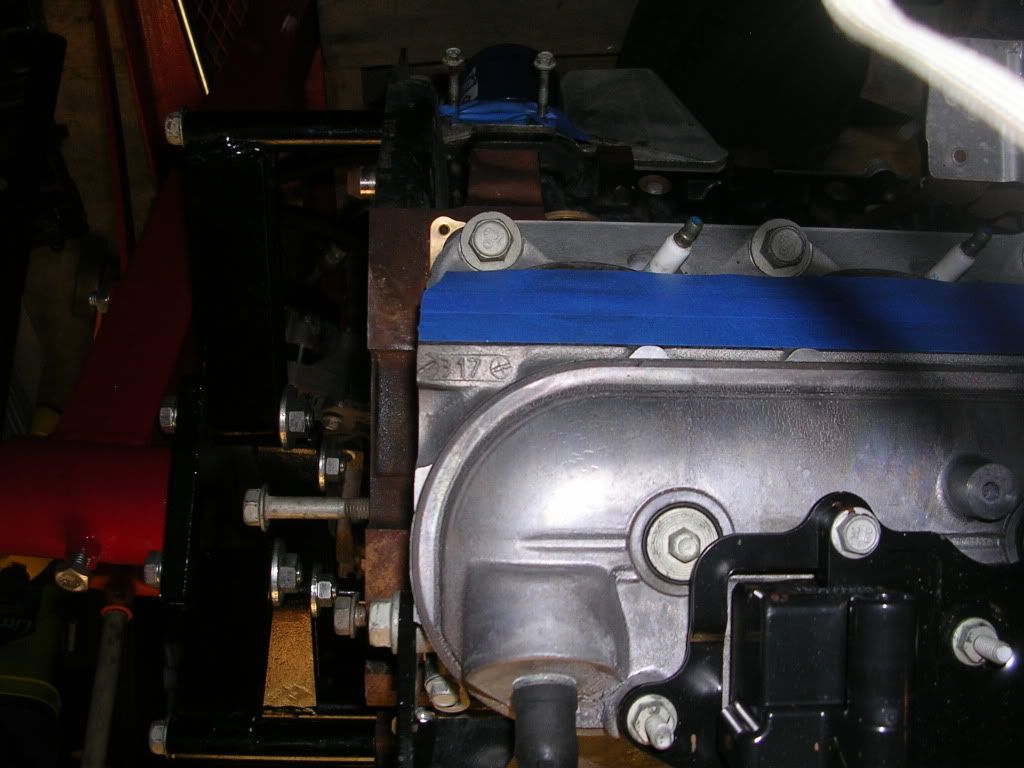

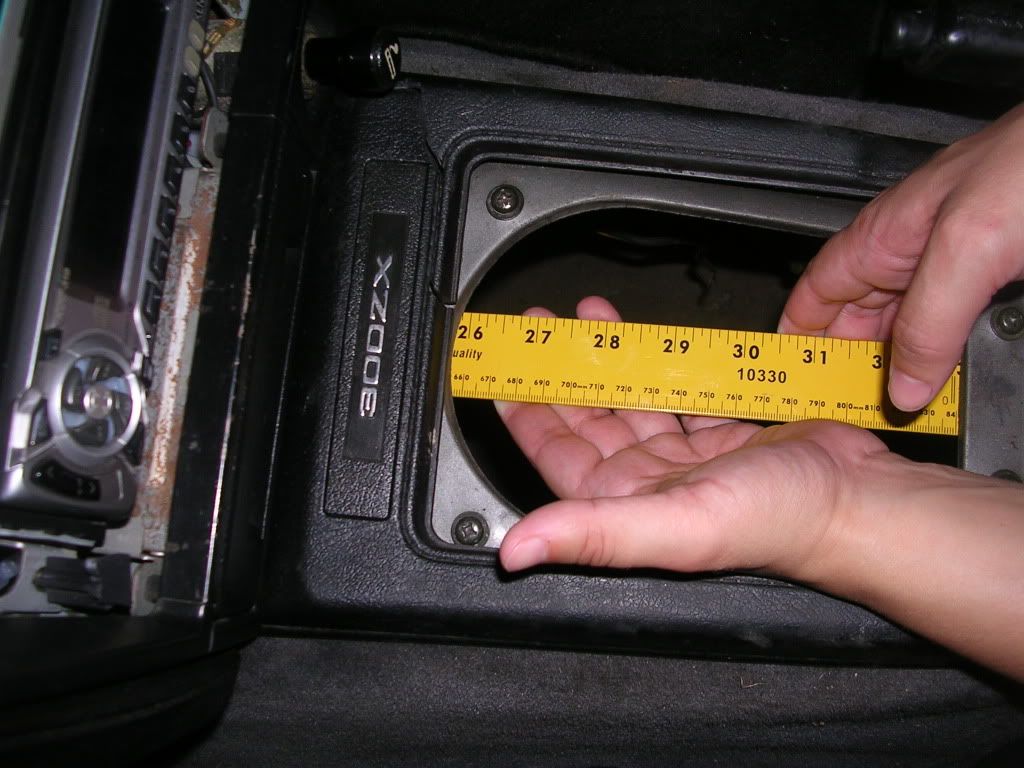

The engine is by no means in it the final location, I don't even have a transmission on it. The bell housing for a T56 is 5.5" long:




And a T56 shifter baseplate starts about 26" from the bellhousing flange (Wife's helping hands :-)):


Share this post


Link to post
Share on other sites

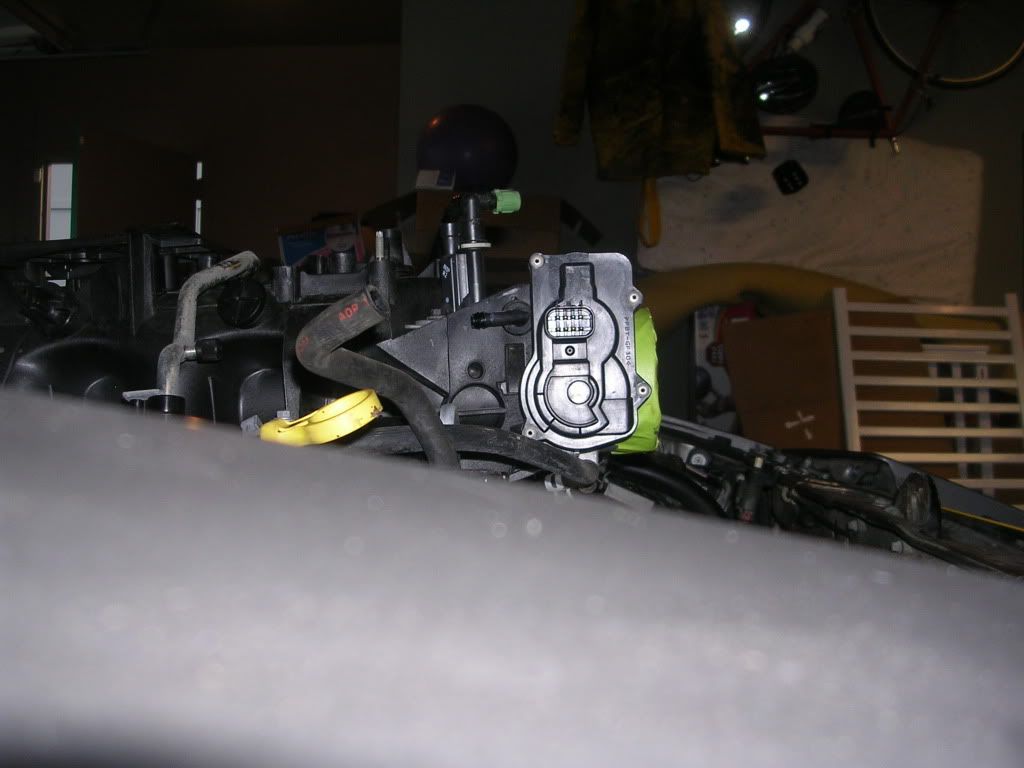

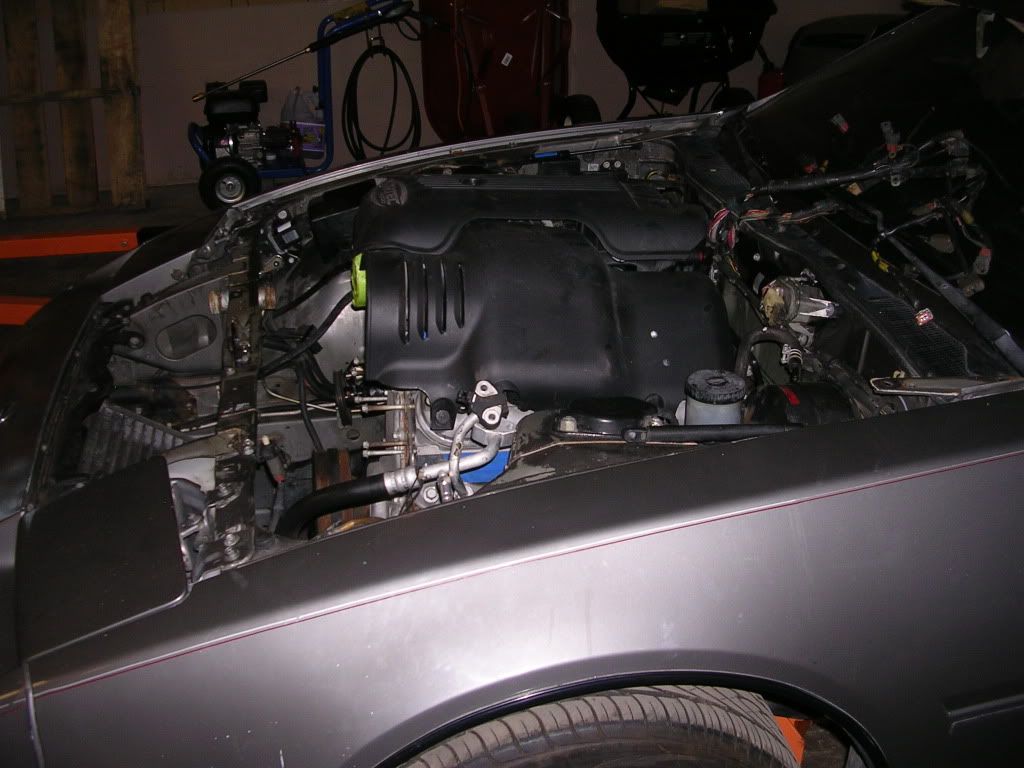

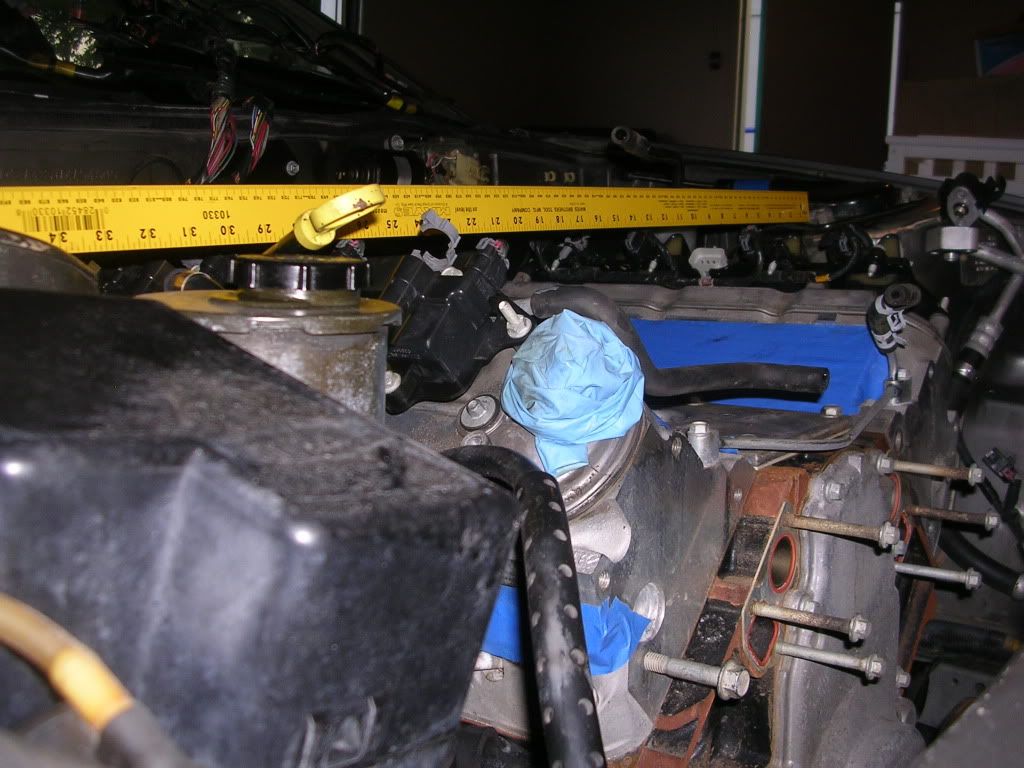

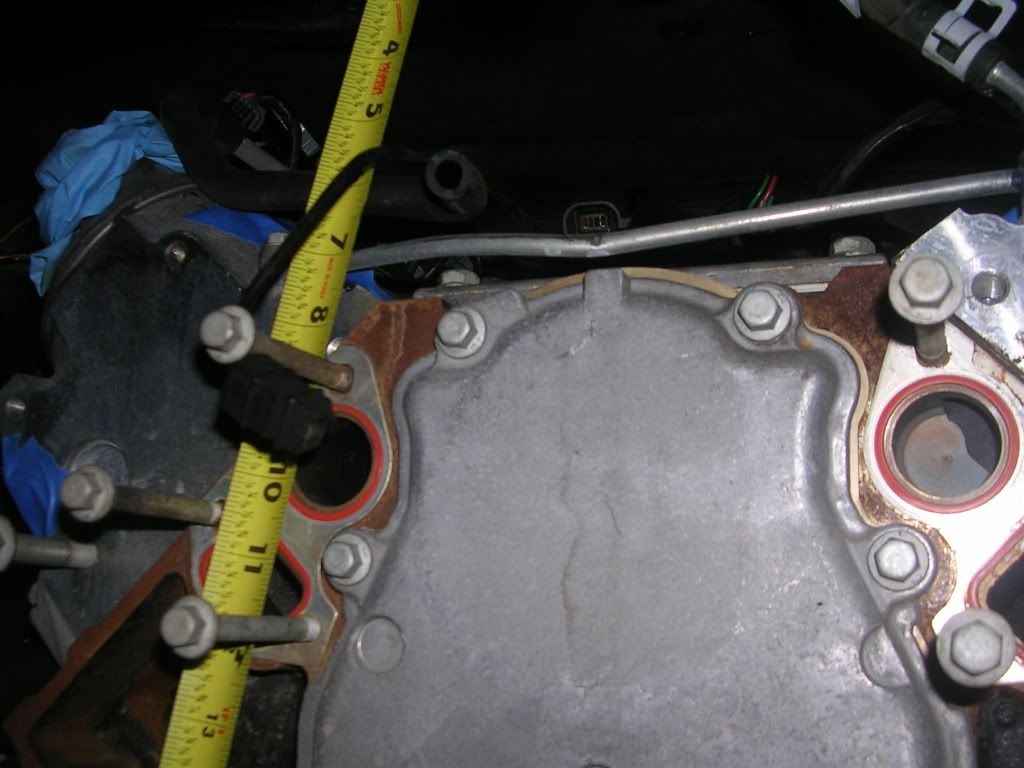

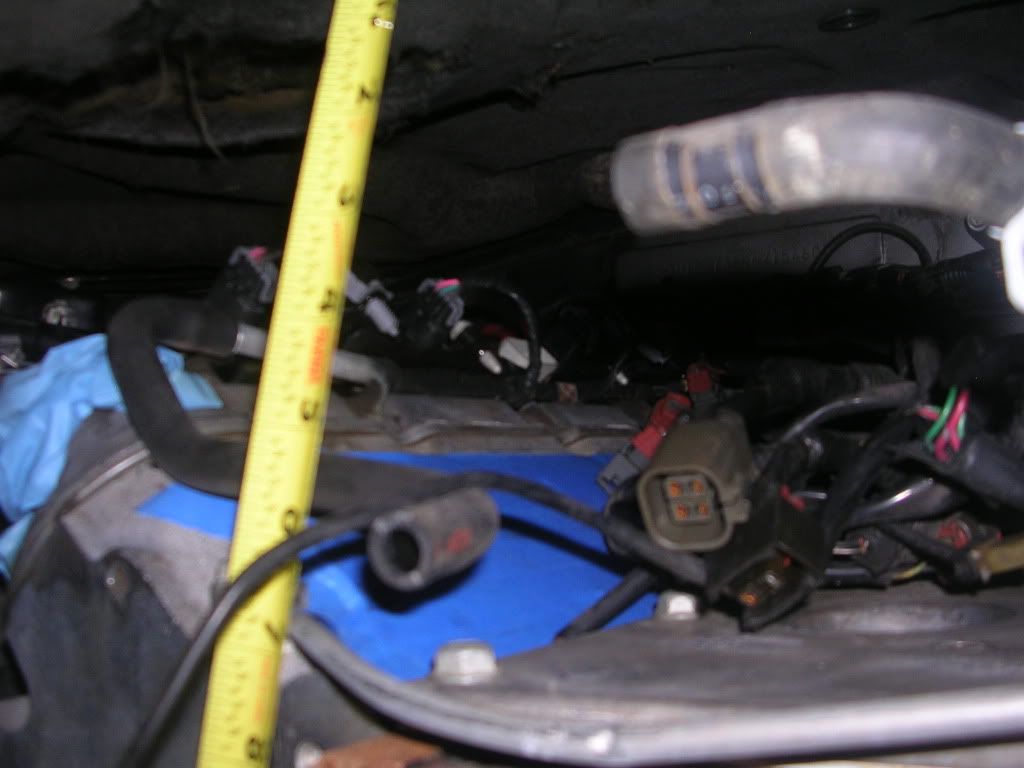

Intake room is going to be tight:

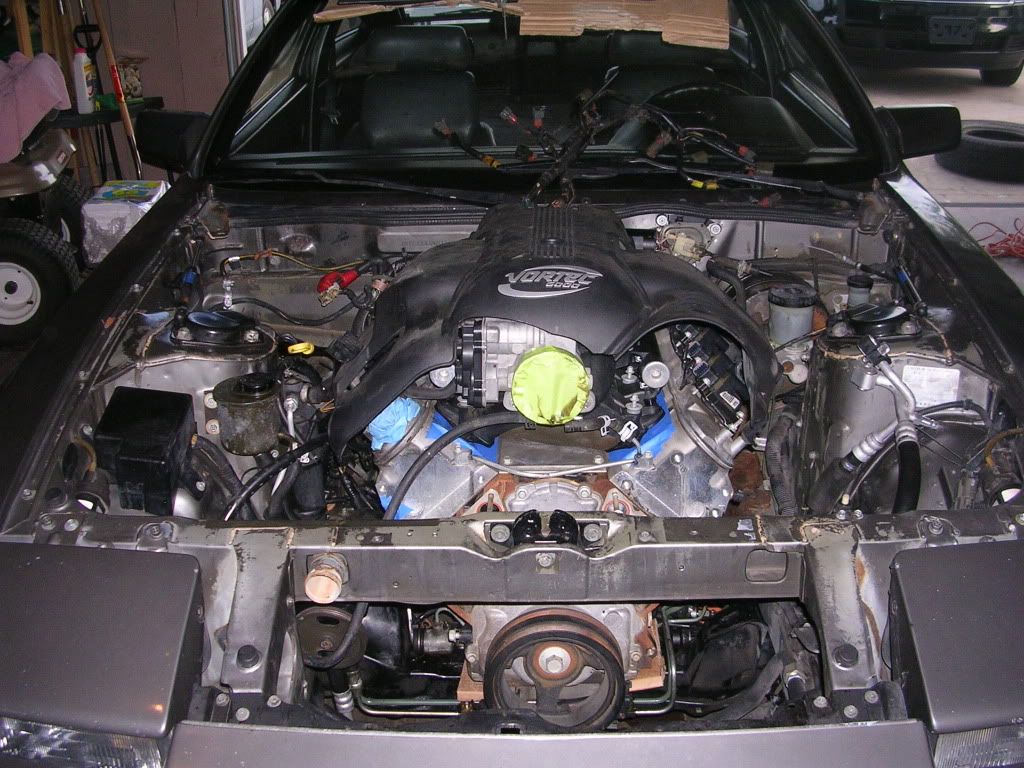

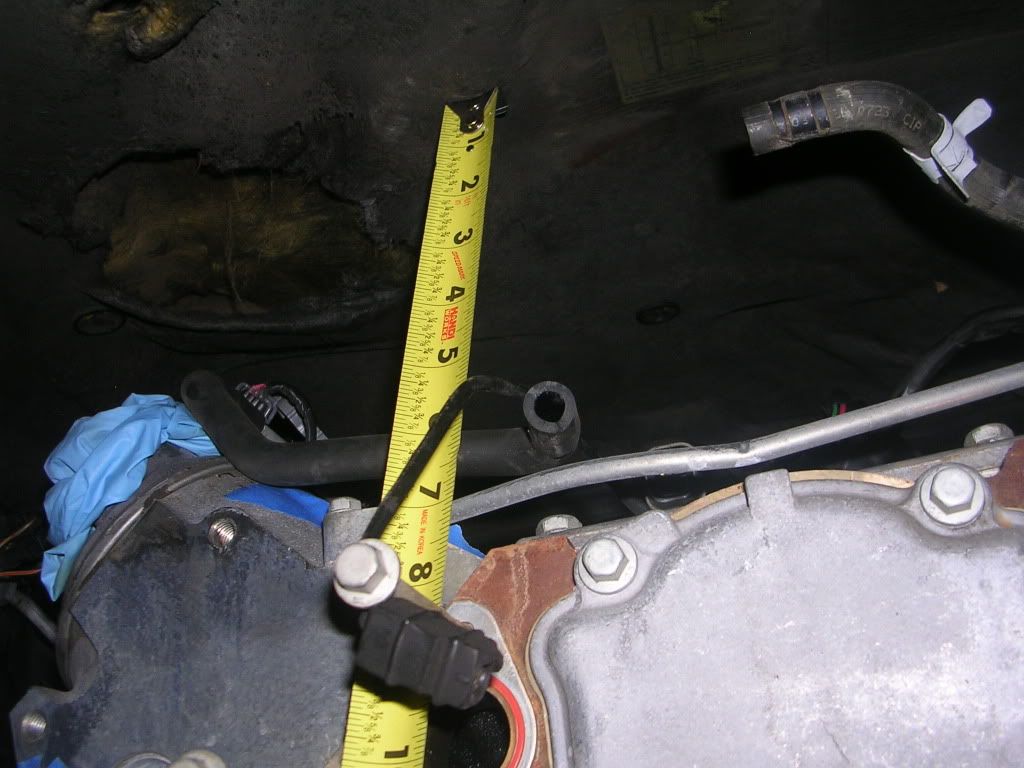

No way is the truck intake set up is going to clear:




I originally thought it would be cool to have some other cladding on the engine other than the typical LS valve covers on it...














Yeah, no chance on the oil pan either:


Share this post


Link to post
Share on other sites

Wow, Chaparral2f that is a mega-over the top build compared to this. I had considered motor plates though! I don't think I'll need to go that route in the end. Looks like just some home built ones or even some off the shelf universal kits will work fine.



Young Z: I'm pretty sure all the VG stuff I'm pulling out of this car is going to my buddy Greg in NW Arkansas. Thanks for asking though.

Share this post


Link to post
Share on other sites

The truth is, the build is rather accidental. If there is one piece of advise that I can truly offer it's this: Beware of the "While I'm at it..." bug. You're doing a great job of documenting your project, and I'm looking foreward to seeing it come together for you.

Share this post


Link to post
Share on other sites

The hammer work was for the bellhousing. I was able to move the engine/bell combo back about an inch and a half after pounding the tunnel and removing a pivot ball mounting boss from the the bell (I'm planning on running a hydraulic throwout setup). I'm not sure how the T56 bell compares to the old 4 speed bell.

Share this post


Link to post
Share on other sites

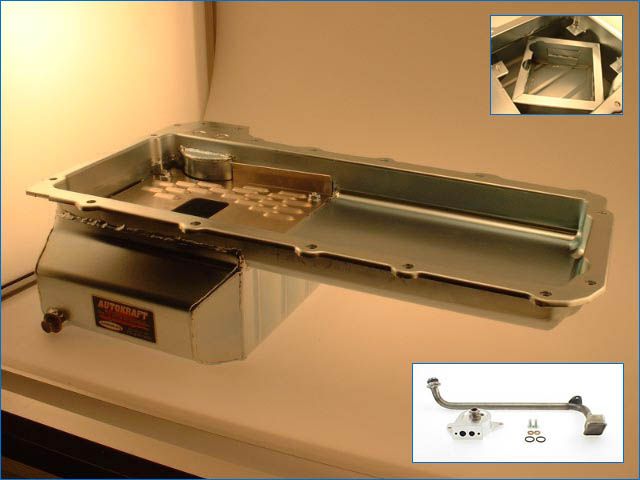

Think I may have the oil pan situation figured out. There are several makers of an oil pan for 1st Gen Camaro/LSx swaps that seems to fit my application perfectly. This pan may prevent any issue with the intake clearing the hood or the bell housing hitting the firewall. Either way, based on my measurements, no factory oil pan will suit me.






All factory pans listed here:

http://www.gmtruckhq.com/lsx-discussions/ls-engine-oil-pans-all-them-2720.html

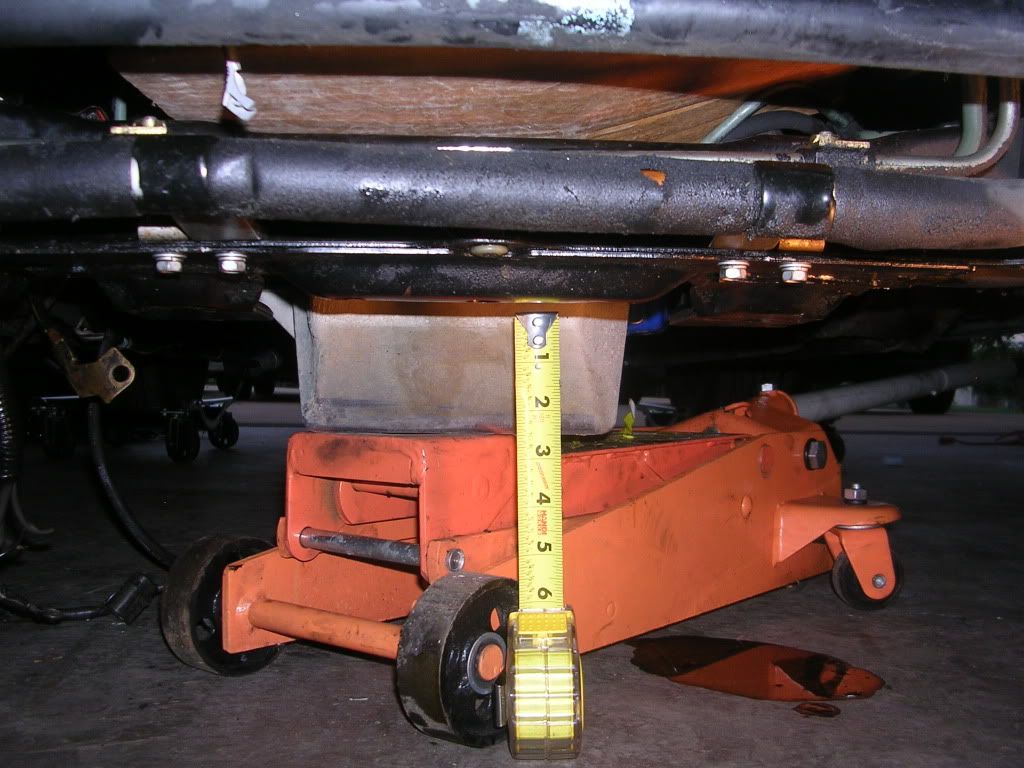

My current truck pan is sticking down about 3" past the cross member. I want the engine to set as low as possible for obvious reasons and I want the ability to scoot the engine forward if I have to to keep from having to modify the firewall or having to buy that expensive bellhousing. This pan may be the ticket to all that. IF it does all that, then one $280-$400 pan would be a steal if that's the only custom part I have to pay for in this swap aside from a driveshaft.

Share this post


Link to post
Share on other sites

If you'll look back through the pictures in post #12 I have a picture of my oil pan. The car is setting on car skates, so you can't really appreciate just how low to the ground the pan would be setting, but it would only be about an inch or two from scrapping.

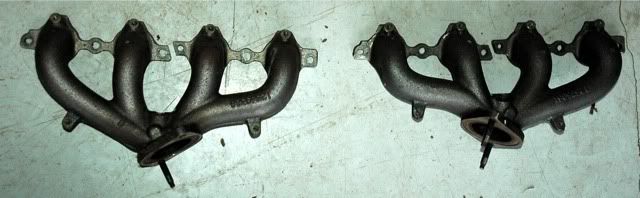

As far as the exhaust, I plan on using these LS2 C6 manifolds in the short term:



(thanks to Braap's Z32 build page for photos)




Routing from there *should* be ok. If not, there are several other factory manifold options or even custom headers if all else fails. It's kind of hard to appreciate in my photos, but there really is a ton of room on the driver side for exhaust routing. The passenger side is going to be the tough side, the starter is going the obstacle.

Share this post


Link to post
Share on other sites
If you'll look back through the pictures in post #12 I have a picture of my oil pan. The car is setting on car skates, so you can't really appreciate just how low to the ground the pan would be setting, but it would only be about an inch or two from scrapping.



As far as the exhaust, I plan on using these LS2 C6 manifolds in the short term:







Routing from there *should* be ok. If not, there are several other factory manifold options or even custom headers if all else fails. It's kind of hard to appreciate in my photos, but there really is a ton of room on the driver side for exhaust routing. The passenger side is going to be the tough side, the starter is going the obstacle.



Really...with the SBC the trouble side is the driver side. The easy side for me is the passenger. That oil pan looks huge. Mine isnt nearly that deep. Good luck with everything.

Share this post


Link to post
Share on other sites

After posting that last night I went searching for some LS2 specs and found an article about an LQ9 build up. VERY interesting to me! My goals are about 400hp/400tq with good idle if I can get it. After reading this article, I think my goals are going to be quite achievable!

http://www.hotrod.com/techarticles/engine/hrdp_0710_6l_ls_series_small_block/index.html



They went on to do two more build ups on this engine that were way over the top for me, but show that this engine can take quite a bit of abuse even with cast aluminum pistions:

http://www.hotrod.com/techarticles/engine/hrdp_0711_6l_hop_up_pt_2/index.html



http://www.hotrod.com/techarticles/engine/hrdp_0712_blown_alky_ls/index.htm

Share this post


Link to post
Share on other sites
Think I may have the oil pan situation figured out. There are several makers of an oil pan for 1st Gen Camaro/LSx swaps that seems to fit my application perfectly. This pan may prevent any issue with the intake clearing the hood or the bell housing hitting the firewall. Either way, based on my measurements, no factory oil pan will suit me.






All factory pans listed here:

http://www.gmtruckhq.com/lsx-discussions/ls-engine-oil-pans-all-them-2720.html



My current truck pan is sticking down about 3" past the cross member. I want the engine to set as low as possible for obvious reasons and I want the ability to scoot the engine forward if I have to to keep from having to modify the firewall or having to buy that expensive bellhousing. This pan may be the ticket to all that. IF it does all that, then one $280-$400 pan would be a steal if that's the only custom part I have to pay for in this swap aside from a driveshaft.





if you didnt get around to getting this AutoKraft oil pan then take a look at my build. i have all the dimensions of that pan shown. you can be sure if itll fit. i got it and it looks great. the pickup fits perfect and everything. it is post #38 on page 2 here ---> click



great write-up so far though. keep up the good work!

Share this post


Link to post
Share on other sites
if you didnt get around to getting this AutoKraft oil pan then take a look at my build. i have all the dimensions of that pan shown. you can be sure if itll fit. i got it and it looks great. the pickup fits perfect and everything. it is post #38 on page 2 here ---> click



great write-up so far though. keep up the good work!



I've definitely been keeping tabs on your build and noted your oil pan measurements! My build is on hold for a while right now. 1) My exhaust manifolds have been on back order for 3 weeks now. and 2) I lost my job Thursday! Yay recession! haha.



So, right now I'm job hunting. Let's hope the project doesn't have to go!

Share this post


Link to post
Share on other sites
