Blown77Z

SPAL Power Window kit install

Recommended Posts

I thought I would do a detailed write up on the SPAL universal power window kit I just finished installing today :mrgreen:. I took pictures of the entire install including a good place to run the wires through. So, here we go !

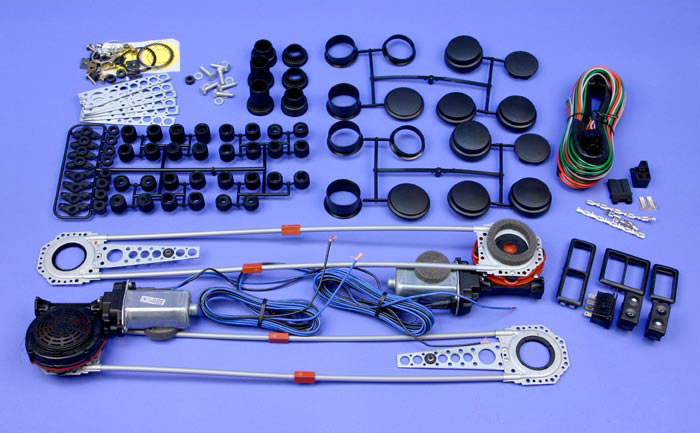

KIT used: SPAL Deluxe kit 3300-0030

Place of purchase: http://www.a1electric.com/Merchant2/merchant.mvc?Screen=PROD&Store_Code=AEOS&Product_Code=3300-0030-0147



First you select the proper crank gear adapter and install it. For my 77 280z the correct one was stamped with a 1.





This is the outer crank gear and its snap ring before/after it was put together.



Share this post


Link to post
Share on other sites

This is what the crank gear mechanism looks like fully assembled and installed ! Notice the small screw the holds the inner and outer gears together, very important !






Now on to mounting the motor assembly. The key part of this part is to make sure NOTHING hits the motor assembly. Test the window and track movement numerous times to make sure !



Here's the motor assembly installed.


Share this post


Link to post
Share on other sites

Now on to the wiring portion. Here's what I did to install the wiring through the door and into the cabin of the car.



First I found a hole already on the chassis for the wires ! However, you must remove your fenders to get to it, lol. I was fortunate enough to be in the process of painting my car, so my fenders were already off.



This is a rubber grommet with a 9/16s outer diameter and a 7/16s inner diameter




This is a plastic snap grommet I used on the door side because the metal was thicker and the rubber grommet gave me problems. Again, a 9/16s outer diameter and a 7/16s inner diameter.




Both sides installed. I used 7/16s fuel hose for my wiring boot.


Share this post


Link to post
Share on other sites

Now on to the switch plugs and wire harness. I used diagram 3 to wire it. There is 1 wire loom with 3 wires in it; Red, Brown, Grey. Red is for power (25 amp fuse comes with kit), brown is ground, grey is for your light. So, first thing you have to do is wire the other switch plug. You need to add 2 wires in order for it to operate the other motor. I used the extra grey and red wires from the other wire loom with 4 wires. MAKE SURE you cut the right ones! You can see what the plug looks like here, notice the red and grey wire with the BLACK mark on it, those are the wires I had to add to the switch plug for the other motor.




Here's the diagram:


Rinse and repeat for ther other side !



Finished install :)


Edited by Blown77Z
Added diagram

Share this post


Link to post
Share on other sites

Yes, they fit behind the stock door panels. The driver's side works GREAT on the mock up test I did earlier. I haven't tested the passenger's side yet, however I will test the motor out before everything gets put back together ;) It'll be awhile before the car gets driven again, it's in paint jail so to speak :fmad:

Share this post


Link to post
Share on other sites

Here's what the door plugs look like before/after they are installed.



Here's the plug combo set I used. They give you 3 grommets to choose from. My grommet was the thinnest one in the kit. The actual plug or cap I used was also the thinnest one in the kit. A 1.5 inch hole saw bit was used to cut through the door panel.




You also have a retaining ring that holds the grommet to the door.




Here's the plug or cap installed.







The door panels fit perfect just like stock form.

Edited by Blown77Z
Added pictures

Share this post


Link to post
Share on other sites

Could you tell us about how much it weighs altogether?



I should look into the shipping weight of the box or something, maybe.



Weight is a big concern for me, but I do love power windows. This system looks pretty streamlined.

Share this post


Link to post
Share on other sites
lol I think managing what you eat for lunch will have a bigger impact on your car's weight than this kit...



Just spent 30 minutes on the elliptical machine this morning! :ugg:



Need to get back down to racing weight.



Some OEM power window assemblies are pretty heavy. I just wanted to avoid that. The motors look really small, so I'm guessing this one isn't so bad.





Anyway, this is an awesome write-up. Great job.

Share this post


Link to post
Share on other sites

The whole kit weighs in at roughly 3-5 lbs, if that....



I did look into the door jamb wire boots on their website. However, $10 PLUS another $8 for shipping = $18 for a set of rubber boots :rolleyesg



I spent $2.50 on my "custom" wire boots :mrgreen:





Thanks for the compliments on my write up !
