Splitter idea


  • Please log in to reply
87 replies to this topic

#1 JMortensen

JMortensen

    Retired Admin.

  • Donating Members
  • PipPipPipPipPipPipPipPipPipPip
  • 12367 posts
  • LocationSeattle area, WA

Posted 19 February 2010 - 03:00 PM

I keep thinking about this pitch sensitivity on splitters and I've come up with an idea, and I guess I'm looking to see if anyone has done this before or knows in advance why it wouldn't work.

Here it is: As an example, imagine a 6" deep splitter mounted fairly high off the ground, maybe 4" or 5" high, with an air dam skirt on the leading edge that hangs down basically on the ground. I was looking at Competition Car Aerodynamics and it's clear that with both an air dam and a splitter you have a low pressure on the underside/backside. In theory the splitter have less pitch sensitivity and still have a nice pressure differential between the top and bottom of the splitter. As a side bonus it would be a lot easier to load a car on a trailer with 4" of ground clearance in front.

I know the pressure differential doesn't look as high for the air dam in CCA's diagram on p 65 so the splitter may be less effective, but I still think this might work reasonably well and solve the pitch sensitivity issue and might be an improvement over a traditional splitter on a relatively low speed car that is relatively softly sprung. I see guys putting splitters on cars with relatively soft suspensions, and I can't help but thinking that the splitter is probably doing as much harm as good as it bounces up and down at the front of the car.

Jon Mortensen, owner/operator www.petdoorstore.com


#2 tube80z

tube80z

    Super Moderator

  • Super Moderators
  • 1137 posts
  • LocationRickreall, Oregon

Posted 19 February 2010 - 03:11 PM

I have experience with two Z cars that ran splitters. Both were quicker with them than without and neither had problems with porpoising. The level of downforce that we generate is a lot less compared to a sports racer that has a flat bottom and front and rear diffuser sections.

I think your idea will work but I'm not sure I'd spend too much effort on it based on my past experience. In both XP and EM you can't run a diffuser section on the splitter and this is what seems to increase the pressure gradient and cause the bouncing.

I would recommend that you make the splitter so that it is hinged and can move up when it comes into contact with the ground. That will save a lot of wear and if you do it right you can even leave it on while loading on a trailer.

Cary
Tube80z
"A little knowledge is a dangerous thing
So is a lot"

#3 JMortensen

JMortensen

    Retired Admin.

  • Donating Members
  • PipPipPipPipPipPipPipPipPipPip
  • 12367 posts
  • LocationSeattle area, WA

Posted 19 February 2010 - 03:15 PM

So I guess if you hinge it you need to run cables instead of rod ends at the front. I know about Dave's car. What was the other Z that you ran with a splitter?

Jon Mortensen, owner/operator www.petdoorstore.com


#4 johnc

johnc

    Administrator

  • Administrators
  • 9739 posts
  • LocationLa Habra, CA, USA

Posted 19 February 2010 - 04:19 PM

I built a splitter for my Z and had aero issues at speed. It needed to be much closer to the ground then where I had it.

Posted Image
----- John Coffey, Fabricator at Benton Performance, LLC

#5 tube80z

tube80z

    Super Moderator

  • Super Moderators
  • 1137 posts
  • LocationRickreall, Oregon

Posted 19 February 2010 - 04:43 PM

So I guess if you hinge it you need to run cables instead of rod ends at the front. I know about Dave's car. What was the other Z that you ran with a splitter?


You can run cables or you can build a frame that pivots at the back and everything bolts to this. You can even use that idea to independently set ride height and splitter height. I have a really cool video somewhere of the tripple 8 Ford falcon's setup (aussie V8) and how it worked.

The other car was Morgan Smith's. He also road raced his car and commented how much more planted the nose was in higher speed corners. It was solidly mounted and would occasionally rub the ground fairly hard.

Cary
Tube80z
"A little knowledge is a dangerous thing
So is a lot"

#6 JMortensen

JMortensen

    Retired Admin.

  • Donating Members
  • PipPipPipPipPipPipPipPipPipPip
  • 12367 posts
  • LocationSeattle area, WA

Posted 19 February 2010 - 06:32 PM

I built a splitter for my Z and had aero issues at speed. If needed to be much closer to the ground then where I had it.

Posted Image

Your splitter is what gave me the idea. Put a dam on the end and maybe it would have worked.

Jon Mortensen, owner/operator www.petdoorstore.com


#7 heavy85

heavy85

    Member

  • Members
  • PipPipPipPipPipPip
  • 1136 posts
  • LocationIllinois

Posted 19 February 2010 - 07:18 PM

I'm outside anything I have first hand experience of but have derived Bernoulli equation back in school .... so that make me an expert right ;) Anyway, I think it depends on how you are trying to use it. It seems there are two potential phenomenon. First is creating a stagnation point right above the splitter while preventing air from going underneath the car. This creates a high pressure area above the splitter that effectively pushes the splitter down thus creating downforce. Your idea would accomplish this. I'm guessing you would want the splitter to be flat or even slightly down for this. The more advanced but difficult to implement function would be to use the splitter to increase the speed of the air going under the car. As the air speeds increases the pressure goes down (Bernoulli) effectively 'sucking' the car down. This is where flat undertrays and diffusers are required to make this more effective. This also makes the angle of attack critical to get the air to accelerate like you want it to. If the angle is too steep it may actually cause lift due to mechanical forces of trying to push extra air down. Then again I could just be all wet.

Cameron

#8 JMortensen

JMortensen

    Retired Admin.

  • Donating Members
  • PipPipPipPipPipPipPipPipPipPip
  • 12367 posts
  • LocationSeattle area, WA

Posted 19 February 2010 - 07:51 PM

I'm outside anything I have first hand experience of but have derived Bernoulli equation back in school .... so that make me an expert right ;) Anyway, I think it depends on how you are trying to use it. It seems there are two potential phenomenon. First is creating a stagnation point right above the splitter while preventing air from going underneath the car. This creates a high pressure area above the splitter that effectively pushes the splitter down thus creating downforce. Your idea would accomplish this. I'm guessing you would want the splitter to be flat or even slightly down for this. The more advanced but difficult to implement function would be to use the splitter to increase the speed of the air going under the car. As the air speeds increases the pressure goes down (Bernoulli) effectively 'sucking' the car down. This is where flat undertrays and diffusers are required to make this more effective. This also makes the angle of attack critical to get the air to accelerate like you want it to. If the angle is too steep it may actually cause lift due to mechanical forces of trying to push extra air down. Then again I could just be all wet.

I think you basically have it right. This would give up on the idea of the speeding up of the air underneath, but you should still get a pretty good low pressure area under the splitter due to the air dam, and you still have the high pressure on top, hence a pressure differential to work with which would be greater than just the force on top pushing down. The difference I guess is that the air that doesn't go under the splitter has to go around the car, which is why I would think it would be less effective than a perfect splitter setup.

I'd love to see that video, Cary.

Jon Mortensen, owner/operator www.petdoorstore.com


#9 Zmanco

Zmanco

    Member

  • Members
  • PipPipPipPipPipPip
  • 1570 posts
  • LocationCastle Rock, Colorado

Posted 19 February 2010 - 10:48 PM

I thought the primary purpose of a splitter was to efficiently separate the air that flows under the front of the car from the rest of the air that flows around and through the radiator. If you add an air dam below the splitter, what is the benefit of the splitter?

I can imagine that the pressure above the splitter might be a little greater than below it, but I'm wondering if that would amount to a significant amount of downforce. Seems like there wouldn't be much difference if you ran the same front end but without the splitter part.
Daniel
'73 240Z

"As to methods there may be a million and then some, but principles are few. The man who grasps principles can successfully select his own methods. The man who tries methods, ignoring principles, is sure to have trouble."
- Ralph Waldo Emerson

#10 260DET

260DET

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2796 posts
  • LocationWarwick, Q, Australia

Posted 20 February 2010 - 12:57 AM

I'm outside anything I have first hand experience of but have derived Bernoulli equation back in school .... so that make me an expert right ;) Anyway, I think it depends on how you are trying to use it. It seems there are two potential phenomenon. First is creating a stagnation point right above the splitter while preventing air from going underneath the car. This creates a high pressure area above the splitter that effectively pushes the splitter down thus creating downforce. Your idea would accomplish this. I'm guessing you would want the splitter to be flat or even slightly down for this.......................................................................................................

Cameron


Thats the way mine is set up, its a road car so there are limits as to what can be done. All I can say is that by 150KPH I have no understeer even with a rear wing. Much under that and there can be understeer, perhaps the wing starts to work before the front does.

#11 23zed

23zed

    Newbie

  • Members
  • Pip
  • 12 posts
  • LocationMelbourne, Australia

Posted 07 March 2010 - 01:33 PM

This may be of interest, I recently made a new front splitter and under tray with a diffuser for my track 240Z.
On the first outing it worked so well that it pulled the bottom half of my G nose down and started scraping on the ground!!
I only realised this after my engine blew up and I got out of the car after stopping on the track!!
Some pictures of the spoiler and also of the hole in the engine block, the engine is a RB26.

cheers,

Attached Files



#12 gnosez

gnosez

    HybridZ Supporter

  • Donating Members
  • PipPipPipPip
  • 347 posts
  • LocationMassachusetts

Posted 07 March 2010 - 07:58 PM

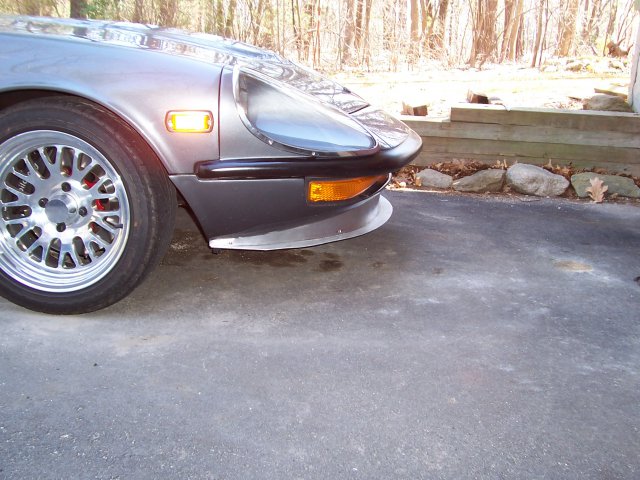

Have had my gnose up to 130mph with no effect (ie., nothing fell off) after I installed this Roostmonkey made splitter but I realize that it really needs to be several inches lower to work effectively. Oil spots are from my old Ford Exploder (can you say "clunker").

Poor road conditions and the fact that I trailer it on occasion limit how low I would place it. I'm thinking of a lower FG skirt that would be removable but that's just in the planning stages at this point.

Attached Files

  • Attached File  129.jpg   945.51KB   33 downloads

"you're only young once, but you can stay immature indefinitely"

#13 260DET

260DET

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2796 posts
  • LocationWarwick, Q, Australia

Posted 07 March 2010 - 08:24 PM

Good to see some more posts on this topic, my car has developed a high speed understeer problem so I've been looking for some aero answers. Perhaps some dive plates on the front but they do not look like they would do much. This linked site has some basic aero info http://www.superhach...eory/downforce/

For those who trailer their race cars and are worried about low front clearance, I have seen removeable splitters/air dams used. They can eg slide on to a couple of solid pin mounts and be retained with a few Dzus fasteners.

23zed, whats the theory behind your recessed undertray design? I'm thinking of doing something like that but with the recess immediately behind the splitter. Am not sure which way the floor should slope though. I was thinking from high at the front to low at the back but yours is the other way around.

Edited by 260DET, 07 March 2010 - 08:26 PM.


#14 23zed

23zed

    Newbie

  • Members
  • Pip
  • 12 posts
  • LocationMelbourne, Australia

Posted 07 March 2010 - 08:49 PM

260DET, all the literature I have read and real world examples have the diffuser the way I have it.

#15 260DET

260DET

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2796 posts
  • LocationWarwick, Q, Australia

Posted 07 March 2010 - 10:19 PM

23zed, the sketch below, taken from the link I posted, appears to recommend a high front, low rear floor. It may be just the way he has done the sketch but I think he is illustrating a narrowing volume for the air as it moves rearwards. Which would speed up the air and lower its pressure.

If that is right yours would still work but the effect would be limited to the area where the air comes under the splitter in a high speed/low pressure state.

Attached Files



#16 23zed

23zed

    Newbie

  • Members
  • Pip
  • 12 posts
  • LocationMelbourne, Australia

Posted 08 March 2010 - 12:22 AM

260DET, in the drawing you refer to he is only talking about the function of the splitter.
Take a look at the final drawing, in it he shows a diffuser, notice that it opens up as it goes back.
Do a search for a picture of a V8 Supercar front splitter/diffuser and you will see what I mean.
My splitter/diffuser is a copy of a early version VR Commodore.

#17 johnc

johnc

    Administrator

  • Administrators
  • 9739 posts
  • LocationLa Habra, CA, USA

Posted 08 March 2010 - 10:22 AM

There's some terminology confusion here. The term splitter generally refers to the horizontal lip extending forward from the bodywork/air dam/spoiler that divides the airflow between the upper body and lower undertray. From there you have three main underbody sections:

1. The front undertray which can include a diffuser(s).
2. The mid undertray which is generally flat.
3. The rear undertray which can include a diffuser(s).

In general racing practice the front undertray has two diffusers which exhaust to the front wheel wells - which are designed as low pressure areas. The rear undertray generally has one diffuser exhausting out the back of the car with the rear wing positioned to act as a pump on the rear diffuser increasing its efficient by a significant amount.

Splitter angle (up, parallel, or down) depends on the front undertray design. If there is no front undertray then the splitter needs to be parallel or pointing down a couple degrees. If there is front undertray then the front undertray design and intended function will determine the splitter angle.
----- John Coffey, Fabricator at Benton Performance, LLC

#18 JMortensen

JMortensen

    Retired Admin.

  • Donating Members
  • PipPipPipPipPipPipPipPipPipPip
  • 12367 posts
  • LocationSeattle area, WA

Posted 08 March 2010 - 11:03 AM

Front diffusers aren't legal in many SCCA classes, including the one my car will be in, X/Prepared. The increase in drag from the front diffuser shown above may be worth the extra downforce it helps to generate even if there isn't a full undertray, I suppose you would have to measure that on a case by case basis. That splitter is pretty high off the ground. Wondering if it might be working under braking when the suspension compresses to get it closer. Not sure on that, but it would be interesting to see if it worked in the wind tunnel at the ride height shown. I would suspect that it doesn't.

Jon Mortensen, owner/operator www.petdoorstore.com


#19 260DET

260DET

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2796 posts
  • LocationWarwick, Q, Australia

Posted 08 March 2010 - 09:39 PM

260DET, in the drawing you refer to he is only talking about the function of the splitter.
Take a look at the final drawing, in it he shows a diffuser, notice that it opens up as it goes back.
Do a search for a picture of a V8 Supercar front splitter/diffuser and you will see what I mean.
My splitter/diffuser is a copy of a early version VR Commodore.


I understand how a diffuser works, the final drawing concerns the rear of a car where air flows out the back. If it couldn't the diffuser would not work. With a diffuser under the front of and in the middle of the car the air has no clear exit path like it does at the back, which is why I'm wondering how your undertray section works, the splitter part looks fine.

Can't find any VR SC info on the www, did you personally see one and copy it to make yours? I'm just trying to square aero principles with your design to satisfy myself that it should do whats required if I use the concept to make one for my Z.

Edited by 260DET, 08 March 2010 - 09:47 PM.


#20 260DET

260DET

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2796 posts
  • LocationWarwick, Q, Australia

Posted 08 March 2010 - 09:46 PM

.......................................................................

In general racing practice the front undertray has two diffusers which exhaust to the front wheel wells - which are designed as low pressure areas...........


Ah that info fills in a blank, have seen them and wondered what they were for, they often incorporate strakes.
