Post your Intercooler setup.


  • Please log in to reply
128 replies to this topic

#1 goodoldjam

goodoldjam

    Junior Member

  • Members
  • PipPipPipPip
  • 198 posts
  • LocationPortland OR

Posted 18 July 2010 - 10:11 AM

I know i was wondering, What do I buy and what setup will actually work.
I ended up going with a Center to Center a 22"x12"x3" Treadstone core, end to end it's 29" went this route because for some reason it was only $140 shipped.
Ended up buying a cheap ebay pipe kit which was
2 x Straight Aluminum Pipe
2 x Aluminum Pipe 45 Deg
2 x Aluminum Pipe 75 Deg
2 x Aluminum Pipe 90 Deg
6 x Silicon Hose, Straight
2 x 90 Degree Elbow Hose
16 x Matching Stainless Steel Clamp
The tubing is about 17 1/2" long
And bought a 2" to 3" 90 Deg couple and had a foot of straight 3".
I haven't used either Straight tube yet and i still need to take care of some issues, like the long coupler and the Intercooler definitely needs to be adjusted. I haven't pounded the wheel well and may need to get a better angle to the 90 deg coupler on the passenger side.

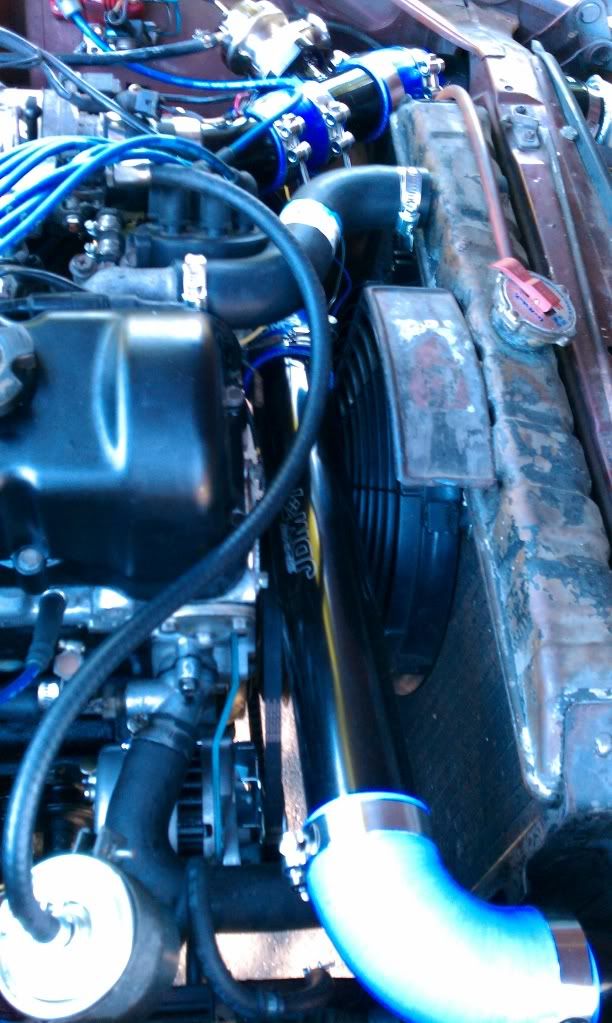

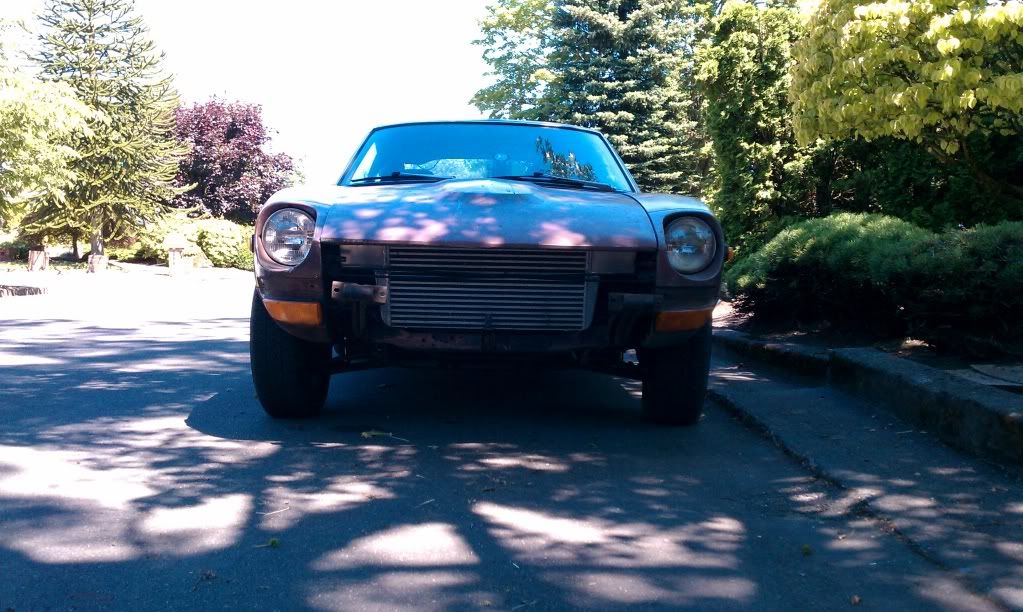

This is what I've roughed in.
Posted Image
Posted Image
Posted Image

Show us your setup.

Edited by goodoldjam, 18 July 2010 - 10:13 AM.

72 240z L28et megasquirted

#2 jacob80

jacob80

    Member

  • Members
  • PipPipPipPipPipPip
  • 1026 posts
  • LocationWahoo, NE

Posted 18 July 2010 - 12:48 PM

Posted Image

I believe this is a 24" unit IIRC

1973 Datsun 240z | 2JZ (Under Construction)

1973 Datsun 510 | KA24DE Turbo


#3 lowrider

lowrider

    Member

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationKnoxville, TN

Posted 18 July 2010 - 02:30 PM

Here is mine, i ran the hot side under the oil pan like ktm. The pipe routing keeps the engine bay from being too cluttered. lol
A 24x12x3 ebay intercooler
3" ebay piping kit



Posted Image
Posted Image

Edited by lowrider, 18 July 2010 - 02:36 PM.

74 260z - n42/p90, TEP cam, holset HX35, ms2 extra, R200, 3" stainless exhaust, and AC.
Check out my build thread HERE


#4 LoneStarS30Z

LoneStarS30Z

    Junior Member

  • Members
  • PipPipPipPip
  • 301 posts
  • LocationDallas ---> Okinawa

Posted 18 July 2010 - 04:07 PM

One thing I was always wondered, do you guys have noticeable amount of lag with all that piping?

I was wanting to go with another same sided intercooler to replace my Porsche one but have always considered the set ups you guys have. Just seems like there's a ton of piping involved.

Posted Image


#5 lowrider

lowrider

    Member

  • Members
  • PipPipPipPip
  • 360 posts
  • LocationKnoxville, TN

Posted 18 July 2010 - 04:15 PM

One thing I was always wondered, do you guys have noticeable amount of lag with all that piping?

I was wanting to go with another same sided intercooler to replace my Porsche one but have always considered the set ups you guys have. Just seems like there's a ton of piping involved.

I dont have much lag at all, ofcourse I have never ridden in a same sided intercooled car with minimal intercooler piping.

74 260z - n42/p90, TEP cam, holset HX35, ms2 extra, R200, 3" stainless exhaust, and AC.
Check out my build thread HERE


#6 Nelsonian

Nelsonian

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPip
  • 741 posts
  • LocationSan Diego, CA

Posted 18 July 2010 - 05:28 PM

I have the same sided inlet/outlet Treadstone "kit" put together by member 240Hoke. Austin left everything in the front of the car(intercooler, some piping)flat black, and everthing inside the engine bay a brushed appearence. It has a Tial blowoff valve, and the piping fits up to a 60mm throtle body.
One of the intercooler pipes runs below the front vertical radiator support/structure, but causes no issues as mentioned by him. I imagine the short length of piping has got to have some advantages over running behind the radiator. I have not installed or ran it myself as my car is completely stripped and receiving lots of rust repair. There was/is a video I believe of his former setup in action, iirc. Included are some pictures that Austin took of his car's previous setup which is relevant to mine, as I am using his turbo(rebuilt), intercooler kit, and downpipe.

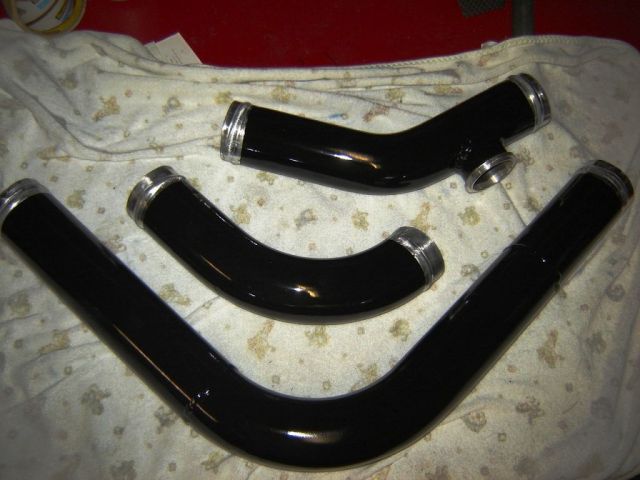

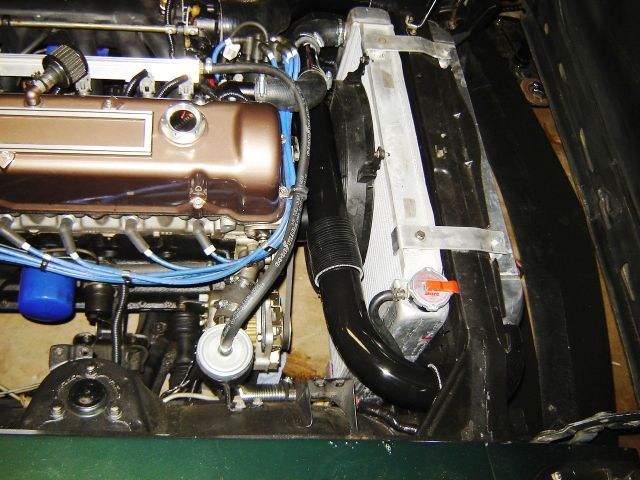

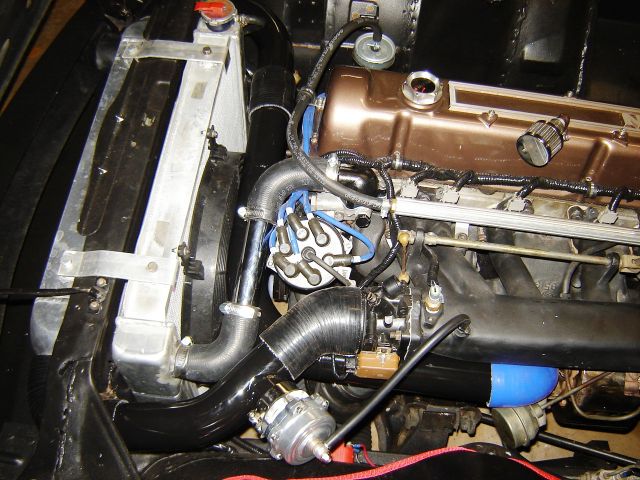

Attached Files


Nelsonian, San Diego, CA.

#7 wigenOut-S30

wigenOut-S30

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPip
  • 1097 posts
  • LocationMobile AL

Posted 19 July 2010 - 07:39 AM

Here is my setup. 2.5" aluminum piping, I made the cold side as short as possible to avoid any heat soaking before going into the TB. I get really no "lag" at all with this setup boost comes on fast and lineal. I think the IC is 12x24x3.

Posted Image

Posted Image

Posted Image

This pic shows my IC size and how my old piping was ran. I see much better AIT with having the piping the other way.

Posted Image

1977 S30: L28 turbo/intercooled:385rwhp 390TQ:11.56@122



#8 goodoldjam

goodoldjam

    Junior Member

  • Members
  • PipPipPipPip
  • 198 posts
  • LocationPortland OR

Posted 19 July 2010 - 10:27 AM

I remember talking about pipe length a long while back and the time it takes to fill was far less important than endtank design and inlet/outlet location. Obviously extra bends in the piping have a effect, also how sharply the turn the air takes.

http://www.dvdtfab.c...olertestlab.pdf
This is a very interesting read, you can get a idea how placement and design effect how efficiently the core is used.
This is also helpful
http://www.extremein...s.com/tech.html
72 240z L28et megasquirted

#9 sq_creations

sq_creations

    Member

  • Members
  • PipPipPipPip
  • 429 posts
  • LocationAlbuquerque NM

Posted 20 July 2010 - 02:08 PM

Posted Image

Posted Image
73 240z - LQ4, BW S480, AEM EMS, Glide, Moser 8.8 - 770whp/703wtq - 9.56 @ 147mph
97 Integra - Built B16, SC61, SQC Chip - 11.8@125 (sold)
97 Buick Regal GS - Supercharged Daily
http://www.sq-creations.com/240z.html - My Turbo V8 240z build

#10 slownrusty

slownrusty

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2260 posts
  • LocationHouston

Posted 21 July 2010 - 04:11 AM

There is already a very exhaustive thread on this. How is that Jacobs ignition working? If you do a search you will see a 4+ page thread on this with pictures.
Ole skool "wouldn't have it any other way"

#11 goodoldjam

goodoldjam

    Junior Member

  • Members
  • PipPipPipPip
  • 198 posts
  • LocationPortland OR

Posted 21 July 2010 - 08:37 AM

There is already a very exhaustive thread on this. How is that Jacobs ignition working? If you do a search you will see a 4+ page thread on this with pictures.

Jacobs kit doesn't really work to well because it's the EZ kit, I picked it up at a swap meet for $20. It needs a second coil to trigger the box, so I just use the coil. It did put out some major energy though, you definitely wouldn't pull a plug wire while it's running.

I've searched, I did see the "show your engine bay" but that's in the L6 section. I certainly like to see other swaps to.
Unless your talking about a different thread.
72 240z L28et megasquirted

#12 letitsnow

letitsnow

    Discarded Member

  • Members
  • PipPipPipPipPip
  • 872 posts
  • LocationRochester, NY

Posted 06 August 2010 - 12:40 PM

There is already a very exhaustive thread on this. How is that Jacobs ignition working? If you do a search you will see a 4+ page thread on this with pictures.


Most of the pictures in that thread don't work anymore, that tends to happen after 5+ years. Some were probably lost in the switch to IPB.

'89 Firebird.......'77 280z.....'90 Firebird.....'88 300zx

#13 Daphur280

Daphur280

    Member

  • Members
  • PipPipPipPip
  • 256 posts
  • LocationSalem OR

Posted 06 August 2010 - 04:01 PM

Started out with a 31x12x3 core, the in/out were too wide for me to be able to put on 90o couplers so I had the endtanks changed a little. For the price not sure if it was worth it, but it holds all the pressure you can throw at it.

Posted Image

Posted Image

Posted Image
'73 240z L28ET BMF-FMIC, z31 ECU/MAF/WIRING + t3/t04e Swap in progress

#14 JSM

JSM

    Giggigty Giggity Giggity

  • Donating Members
  • PipPipPipPipPipPip
  • 1427 posts
  • LocationOrlando, FL

Posted 07 September 2010 - 06:41 PM

goodoldjam Curious to why you mounted your BOV right off the Turbo as you did?

1971 240z Project
2002 Nissan Frontier

2006 Toyota Sienna


#15 BluDestiny

BluDestiny

    Member

  • Members
  • PipPipPipPipPipPipPip
  • 2287 posts
  • LocationCedar Rapids, IA

Posted 23 September 2010 - 09:10 AM

Does anyone have a pic for their S130's? need some ideas.
Posted Image
We race from 120MPH rolls...
Moderatio est figmentum

Le mieux est l'ennemi du bien

#16 hughdogz

hughdogz

    dogZhuge

  • Donating Members
  • PipPipPipPipPip
  • 738 posts
  • LocationPortland, Orygun

Posted 24 September 2010 - 05:55 PM

Does anyone have a pic for their S130's? need some ideas.



I have an S130 IC setup using a 24x12x3 core "straight" endtanks and 2.25" piping. I ran the IC pipes through the stock airbox holes and through the headlight buckets. You can see the details in my build thread.

Posted Image

This is a really old photo, my engine bay looks quite a bit different now, but this shows the routing.

#17 stony

stony

    RB Moderator

  • Super Moderators
  • 4286 posts
  • LocationSyracuse Utah

Posted 24 September 2010 - 07:02 PM

heres mine

Attached Files


5.3 truck motor, BTR stage 2 cam, BWs480, custom intercooler, AEM Infinity, 2 speed powerglide, Fully built Ford 8.8, 4:56 gears/spool, 4 link suspension.


#18 PR280z

PR280z

    Member

  • Members
  • PipPipPipPipPip
  • 514 posts
  • LocationSan Sebastian, Puerto Rico.

Posted 25 September 2010 - 05:37 AM

Here`s mine. I cut the rad/core support a bit and ran all the pipes to one side. Had to mod the Isuzu NPR intercooler. I ran the 3`` intake pipe in front of the IC unit so cold airflow hits the pipe while the car is in motion. The 2/12 turbo pipe runs straight through with no bends to the IC. This works fine for me.
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

Edited by PR280z, 25 September 2010 - 09:35 AM.

Z E T T O - B A S T A R D

#19 LoneStarS30Z

LoneStarS30Z

    Junior Member

  • Members
  • PipPipPipPip
  • 301 posts
  • LocationDallas ---> Okinawa

Posted 25 September 2010 - 05:44 AM

Maybe its just me, but that doesn't look very efficient at all.

Posted Image


#20 PR280z

PR280z

    Member

  • Members
  • PipPipPipPipPip
  • 514 posts
  • LocationSan Sebastian, Puerto Rico.

Posted 25 September 2010 - 05:58 AM

Maybe your right, i just thought the idea of direct cold air flow would be helpful since the engine bay does get quite hot.

Edited by PR280z, 25 September 2010 - 06:11 AM.

Z E T T O - B A S T A R D
