A/C fan circuit for Vintage Air a/c

strotter

By strotter

 Share

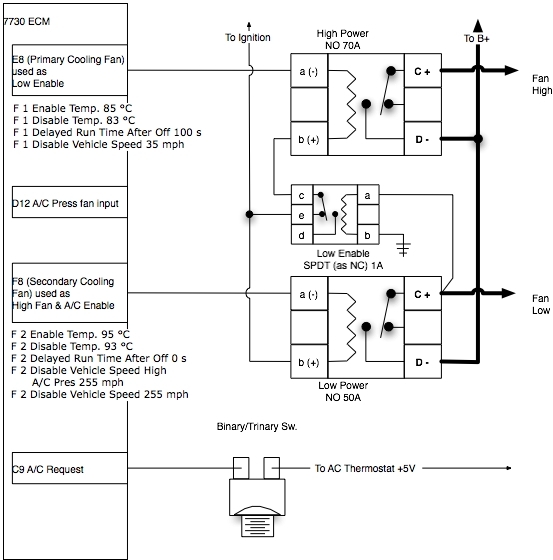

Diagram of circuitry to use a GM 7730 ECM to drive a Taurus fan, Hi and Low speed, as well as enable Hi speed fan operation when a Vintage Air a/c system is on. Circuitry prevents both Hi and Low circuits being on simultaneously.
