takayuki Posted June 14, 2013 Share Posted June 14, 2013 I'm trying to wire my speedhut gauges on my car. I currently have the dash out and the car id in million pieces so I am trying to wire this based in the schematic provided by the FSM. Right now, I'm a little confused with nissan's wiring on the dash lighting part. When I follow the wires on the schematic, both wires for the gauge light bulb seem like it puts out 12v. The two wires im talking about is the green and white wire and red and blue wire. so which wire do I connect the 12v gauge light power supply for the speedhut? Quote Link to comment Share on other sites More sharing options...

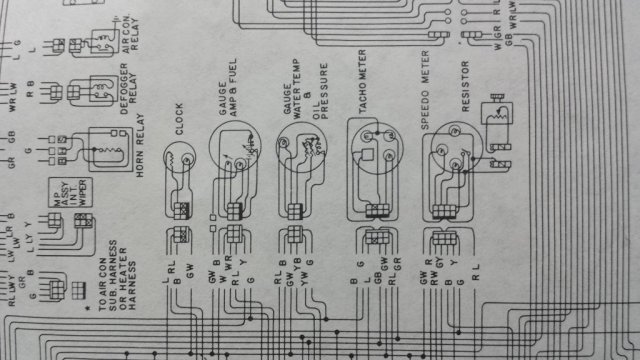

takayuki Posted June 14, 2013 Author Share Posted June 14, 2013 Here is a part of the schematic Quote Link to comment Share on other sites More sharing options...
z240 Posted June 14, 2013 Share Posted June 14, 2013 GW is +12 from light switch, RL gets grounded via the rheostat FSM has a nice diagram of just the Illumination system on page BE16. Quote Link to comment Share on other sites More sharing options...
takayuki Posted June 14, 2013 Author Share Posted June 14, 2013 Ahh great! Thanks jim! I guess I should take a close look at the fsm too!! Quote Link to comment Share on other sites More sharing options...
