Alsil mount clarification


Beau M

Recommended Posts

So, I think that this is the plan for the Alsil mounts correct?

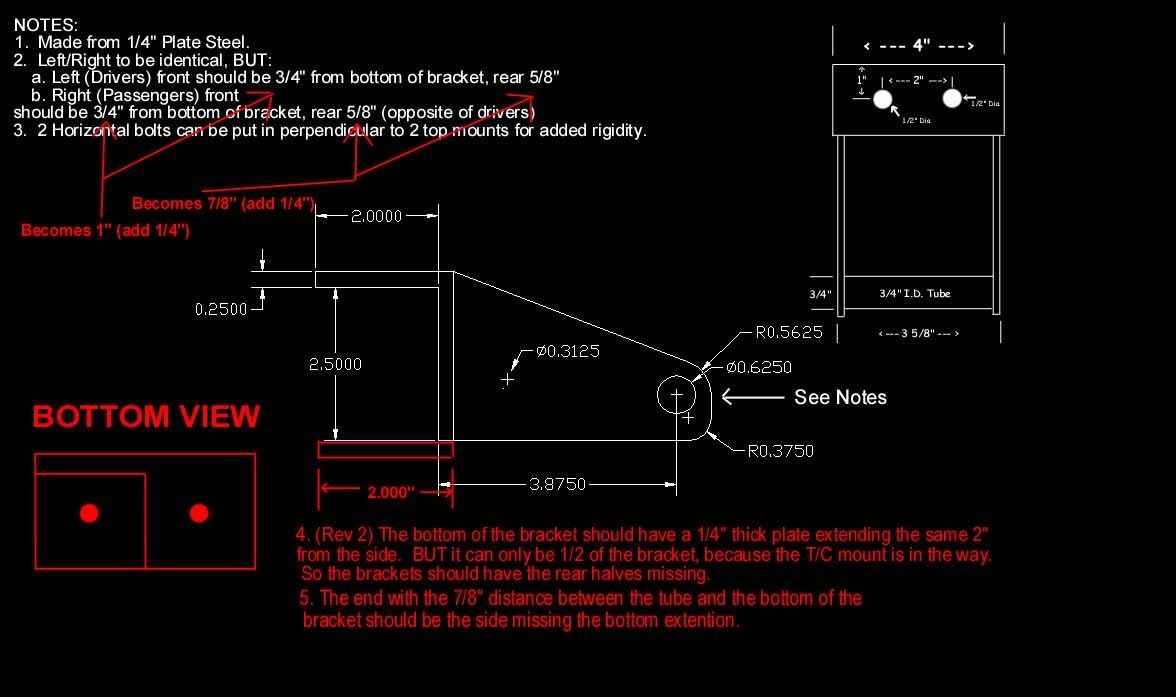

My question is about the "notes". Can someone explain them? What is supposed to be 1" and 7/8" away from what? The hole from the bottom of the bracket? I take it this will tilt the engine a bit?

Link to comment
Share on other sites

All the notes in white are mine. The notes in red were added by someone.

This is an old design, and after the engine sat on the frame rails for a little bit it began to twist the rails, and the engine dropped almost 1". I designed a new one with 4" square tubing that just used the rail to bolt to.



I wouldn't use the seperate mounts unless you reinforce the frame rails substantially.
