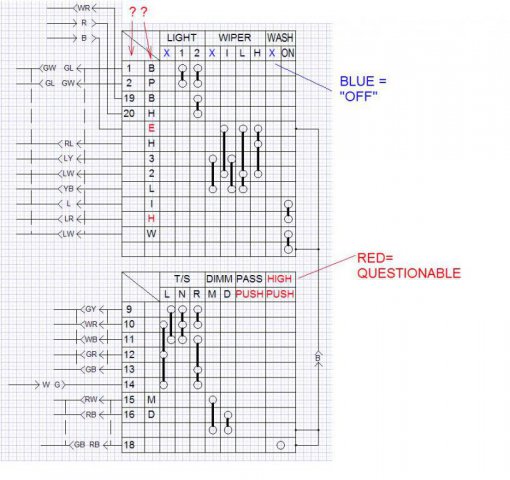

  1. I've done quite a bit of searching, but have not come up with an answer to this... I have a 73 240, I have the factory service manual, as well as the downloadable version that someone was nice enough to post on a different site. Here's my questions: The FSM wiring diagram for a car with a manual transmission (page BE-5) shows Fog Lamps, which I understand was not a U.S. option, so I am not surprised to find no wiring for them in my car, but the diagram also shows "step lamps" (right and left hand), which I can't find any evidence of my car having. I am assuming that these were not a U.S. thing either. I am wondering what else this wiring diagram is showing me that does not exist on a US spec car. Does anyone have any insight on this? Here's another thing, I am trying to decipher what the diagram is showing me for the combo switch/turn signal switch. My manual is a little blurry on some parts of that "chart". I have redrawn it (see attached graphic) with the questionable bits in red, and I put blue X in place of the word "off" (since the word was too long to fit in my graphic). Also, does anyone have any idea what the numbers in the left column are for. I'm thinking the letters in the second-to-the-left column must relate to things like H=high, L=low, I-intermittent, etc. but some of those letters are not making sense to me. With all the electrical topics discussed on this site I'm kind of surprised that there isn't a dedicated electrical section!
×
×
