Is this the correct way to wire for edis&vr sensor

[wickiewicked240z]

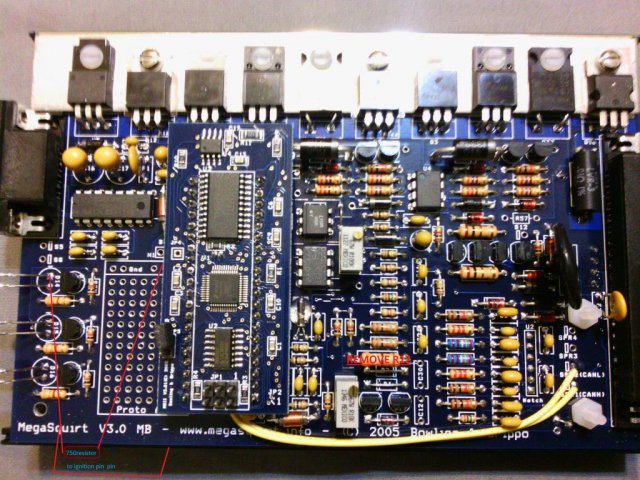

is this the correct way to activate EDIs on a MS2 3.0 board

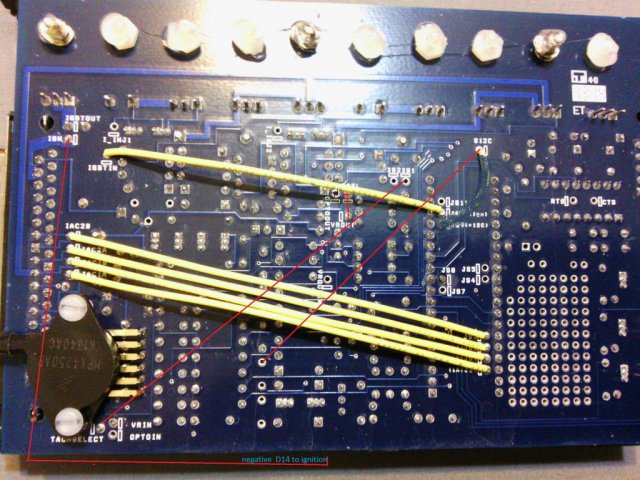

The red is what needs to be done correct? On the wiring guide it says to

jumper tach select to XG1(but theres all ready jumpered tachselect to vrin) do i add another wire from tach select to xg1

Jumper opto out to tsel

But to wire the vr sensor it says to tachselect to vrin(which it is already)
wire TSEL to VROUTINV on the other section of the guide it says to wire it to opto out





[dexter72]

Look up DIY Auto.com They have a writeup for running MS2 3.0 for EDIS..  From what i read, MS2 3.0 are pre-wired to run edis out of the box, if its from DIY. That may be why yours has already been jumpered.



Just wondering, are you going to use a crank trigger wheel??..

Edited February 18, 2015 by dexter72

[wickiewicked240z]

Yes I bought it from diyauto tune but had it wired for direct ignition coil. But know I'm going to run edis with crank trigger wheel.

[Matt Cramer]

There are multiple ways to wire the unit for EDIS, but using D14 for the SAW output is not supported on MS2. See the EDIS notes starting here for the latest recommendations.



http://www.msextra.com/doc/pdf/html/MS2V30_Hardware-3.3.pdf/MS2V30_Hardware-3.3-111.html

[wickiewicked240z]

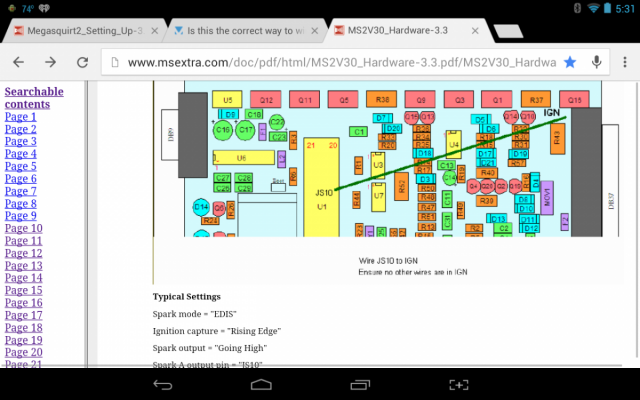

So my ms2 is already wire for vr sensor. I would need to remove q16 and wire js10 to ign and make sure no other wire is at ign. Correct?

[Matt Cramer]

That would do it.



Alternatively, you could add two more spark outputs and skip the EDIS module.

[wickiewicked240z]

Thanks Matt for the help. I all ready purchase most of the stuff to make the conversion to edis.
