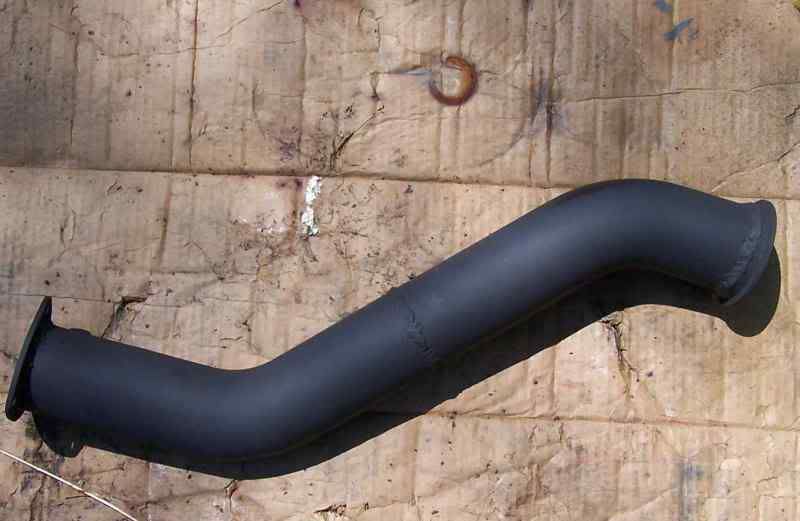

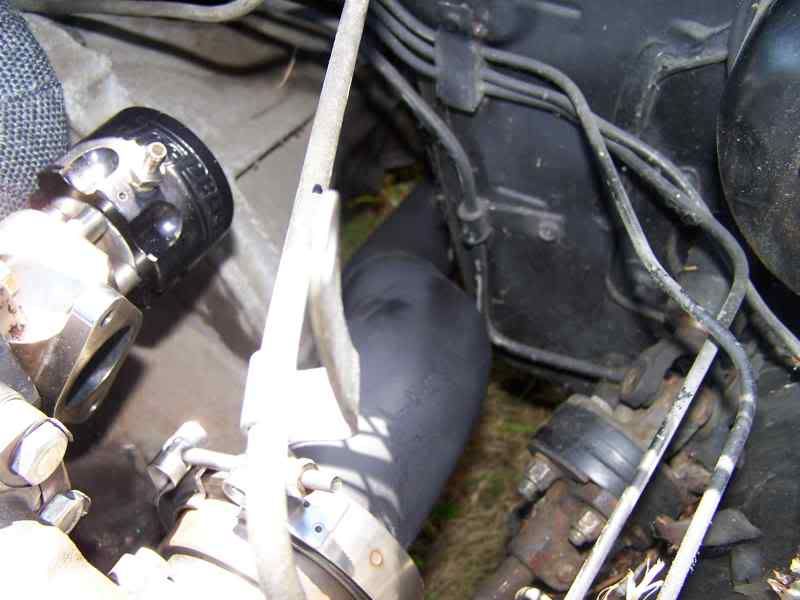

goodoldjam Posted July 29, 2010 Share Posted July 29, 2010 (edited) Wasn't sure if this was going to work out, but test fitting is looking good. So finished the DP with 2 45deg and fitted a straight pipe. Then the straight to a 45 and I'm going to leave it kinked out the back...Hopefully, I'm trying to get that fitted right now. Finished DP. Better picture of how it is routed between the fire wall and tranny, It's not touching either. Biggest pain is going to be making a screamer pipe, the wastegate outlet flange is pointing towards the DP. Edited July 29, 2010 by goodoldjam Quote Link to comment Share on other sites More sharing options...

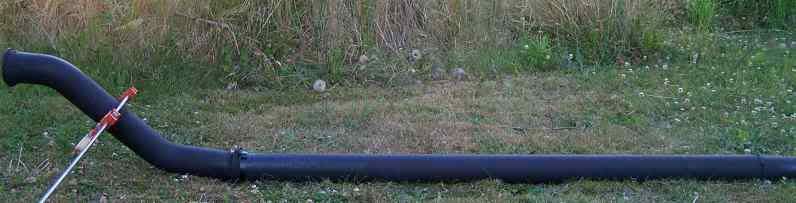

goodoldjam Posted July 30, 2010 Author Share Posted July 30, 2010 (edited) This is close to the actual orientation of the exhaust. DP to exhaust. Not quite just 3 45s, had to make some slight adjustments to clear the tank. Edited July 30, 2010 by goodoldjam Quote Link to comment Share on other sites More sharing options...
Challenger Posted July 30, 2010 Share Posted July 30, 2010 Looks awesome. Whered you get the materials? Quote Link to comment Share on other sites More sharing options...
goodoldjam Posted July 30, 2010 Author Share Posted July 30, 2010 (edited) Looks awesome. Whered you get the materials? Here's where i got the bends http://www.mandrel-bends.com/catalog/. I did spend more then I thought. $38 for the 3 45deg bends. I bought the straight pipe from NAPA, I got 7 feet of straight for $32. The 3 bolt universal flanges are cheap. Ebay V-band kits are not bad, though the clamps are cheaply made. Edited July 30, 2010 by goodoldjam Quote Link to comment Share on other sites More sharing options...

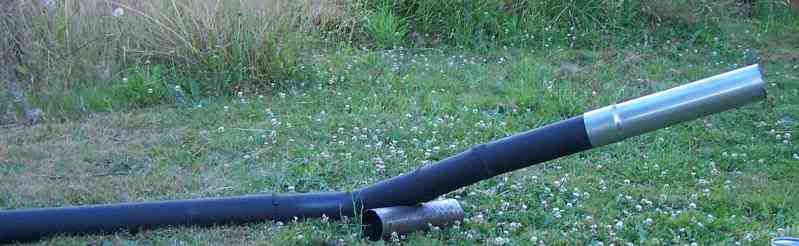

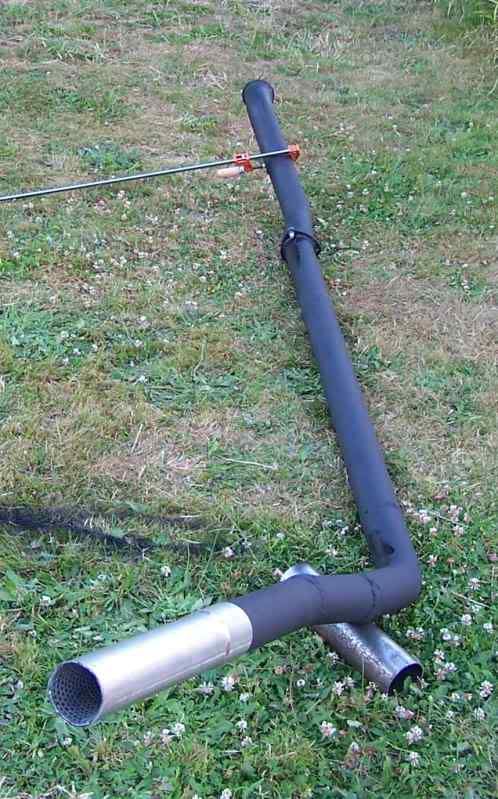

goodoldjam Posted July 31, 2010 Author Share Posted July 31, 2010 Last couple pics. Screamer Pipe routing Bad picture of wideband o2. Muffler. Quote Link to comment Share on other sites More sharing options...
