AtlantaZ Posted December 20, 2010 Share Posted December 20, 2010 I have a webbed/EGR manifold from a 1983 280ZX that I started to clean up, but I'd rather just buy someone else's and save myself the trouble and expense. I'd take either the N42 or N47 intake manifold, as long as the EGR is absent/capped and there's no webbing. As partial trade, I'd be happy to send my 1983 N47 webbed/EGR manifold and a stock J-pipe. I could have them sandblasted and powdercoated in the color of your choice too! Quote Link to comment Share on other sites More sharing options...

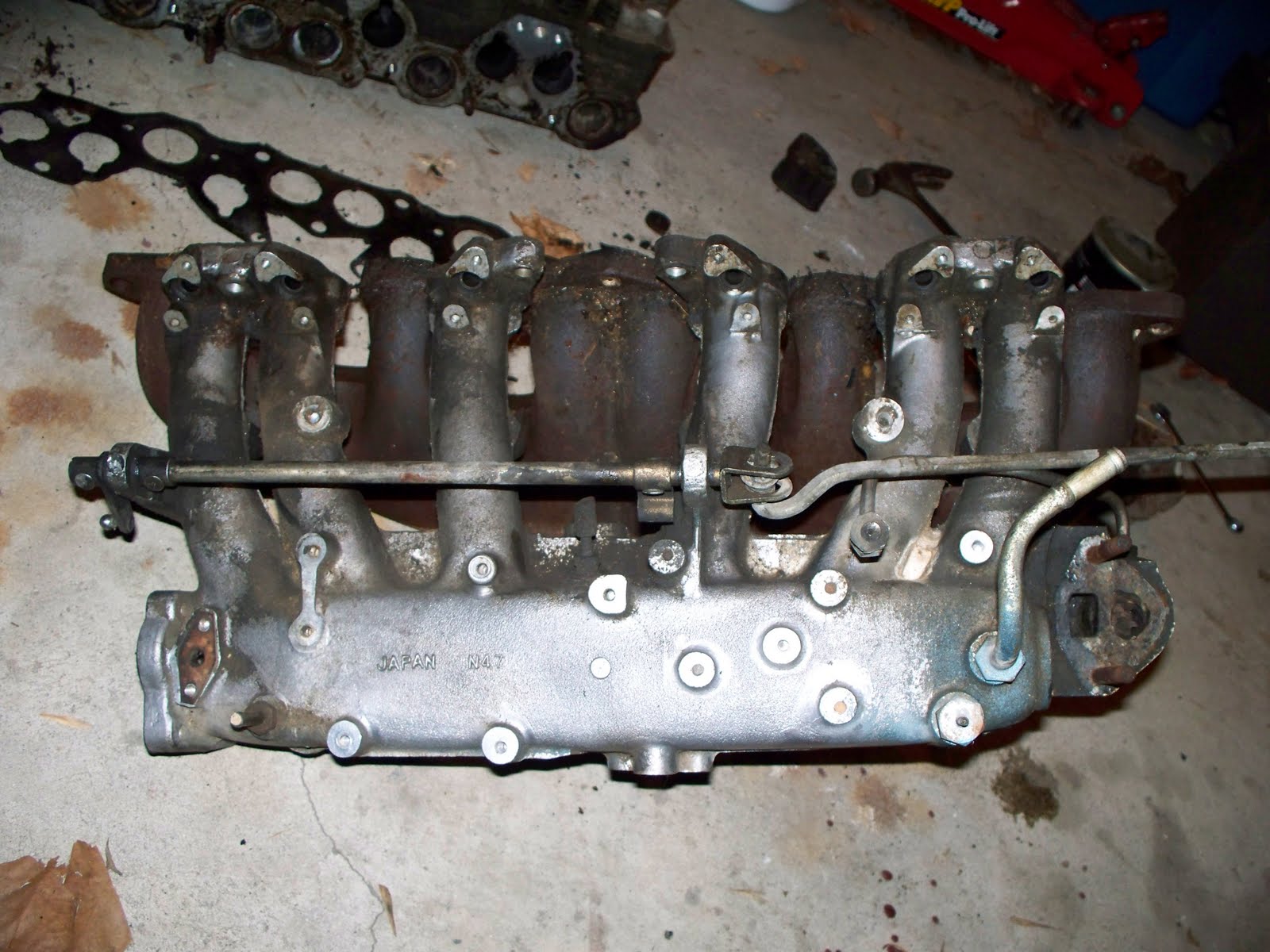

Administrators BRAAP Posted December 20, 2010 Administrators Share Posted December 20, 2010 I recently machined an N47 intake to accept the more common 14mm O-ring injectors, (will not accept the stock Z car injectors unless you find some thick wall O-ring. O-ring injectors shown are not included, you'll have to build/source your own fuel rail). Bare intake, all threaded holes are good, all machined surfaces are good, only issue is the fitting for the stainless tube is broke off in the EGR boss, (green circle/arrow in pics). EGR is not plugged. If the current interested party backs out, it's available, $150 plus shipping. Will hopefully know for sure soon. Quote Link to comment Share on other sites More sharing options...
AtlantaZ Posted December 20, 2010 Author Share Posted December 20, 2010 Definitely appreciate the offer! But I've already got my 11mm rail standing by, and the price is a bit northward of my target. Quote Link to comment Share on other sites More sharing options...
Administrators BRAAP Posted December 20, 2010 Administrators Share Posted December 20, 2010 Definitely appreciate the offer! But I've already got my 11mm rail standing by, and the price is a bit northward of my target. Quote Link to comment Share on other sites More sharing options...
MikeBZ Posted December 20, 2010 Share Posted December 20, 2010 I have a non webbed N47 for sale but it has the EGR. I'm looking for 60 shipped to you http://forums.hybridz.org/index.php/topic/96628-turbo-parts-and-n47-manifold/page__p__907908__fromsearch__1#entry907908 Quote Link to comment Share on other sites More sharing options...
AtlantaZ Posted December 20, 2010 Author Share Posted December 20, 2010 I think I messaged you already about yours. Unless I can find someone who can cut and weld the EGR for me, this might not be the right one for me. The whole goal here is to blow away the EGR... I wonder if I could use JB Weld on it? Quote Link to comment Share on other sites More sharing options...
Administrators BRAAP Posted December 20, 2010 Administrators Share Posted December 20, 2010 Just throwing this out in case it helps. Another option for plugging EGR is remove the steel plugs from the bottom, (cutting/machine off the entire bottom section of the EGR plenum greatly simplifies this as the plugs are usually so corroded they don't want to come out conventionally), then tap the transfer ports that lead into the runners for pipe plugs or have them welded. Then just cut off the EGR boss for a visually cleaner looking intake. Here is a customers N47 EGR intake we did using that method above; Quote Link to comment Share on other sites More sharing options...
AtlantaZ Posted December 20, 2010 Author Share Posted December 20, 2010 I bet that does look cleaner! I wish I had metalworking tools... I hate outsourcing this sort of stuff. But I'm not set up to cut/weld metal, and the local guys charge the usual rates. Quote Link to comment Share on other sites More sharing options...
cockerstar Posted December 20, 2010 Share Posted December 20, 2010 PM sent Quote Link to comment Share on other sites More sharing options...
ransomnotes Posted December 21, 2010 Share Posted December 21, 2010 The whole goal here is to blow away the EGR... I wonder if I could use JB Weld on it? I used JB Weld on mine, and it's held up for over a year now. Even with all that turbo heat. Trick was to use a good amount of aluminum shavings (from porting the manifold), and mix them with the JB Weld. I cut the EGR off with a sawzall, cut a piece of thin steel to cover the hole, and applied quite a bit of the JB Weld/aluminum mixture inside and out. Make sure the surface is clean, and use a coarse sandpaper to give it some texture before applying the mix. I inspect mine every couple of months to make sure the heat hasn't gotten to it, and so far so good. Better to have it welded, or get an N42, but I was pretty much in the same boat as you when I did mine. Low on funds, and couldn't find an N42 for a good price. Had an extra N47, and figured I'd give it a try. My mom has an N42 intake in one of her parts cars, and I've been trying to get her to sell it to me for two years now. Quote Link to comment Share on other sites More sharing options...
AtlantaZ Posted December 21, 2010 Author Share Posted December 21, 2010 Sounds promising. Maybe I can find a friend or neighbor with a sawzall they'll loan me. Quote Link to comment Share on other sites More sharing options...
NCchris Posted December 21, 2010 Share Posted December 21, 2010 Definitely appreciate the offer! But I've already got my 11mm rail standing by, and the price is a bit northward of my target. What would you be willing to pay, you've seen mine. Make offer! chris Quote Link to comment Share on other sites More sharing options...
AtlantaZ Posted December 21, 2010 Author Share Posted December 21, 2010 Chris - PM'd reply! Quote Link to comment Share on other sites More sharing options...
AtlantaZ Posted December 26, 2010 Author Share Posted December 26, 2010 Decided to shave my N47 manifold, so feel free to delete. Or not, as it includes some interesting technical advice for modifying the manifolds... Quote Link to comment Share on other sites More sharing options...
