Pertronix HEI III - MSD and rev limiter in a 4 pin module (and a flashy LED light)


NewZed

Recommended Posts

Just came across this new Pertronix product.  Lots of words but only one number - two, for two sparks per combustion event.  Anyone know anything about it?  I've thought that Pertronix was mostly hype these days, but this would be something if it was real.  But I would also expect a real engineering-based form to show some data.



http://www.pertronix.com/prod/new/details.aspx?ID=164





http://www.ispot.tv/ad/7meo/pertronix-flame-thrower-hei-iii-ignition-performance

Edited by NewZed
Link to comment
Share on other sites

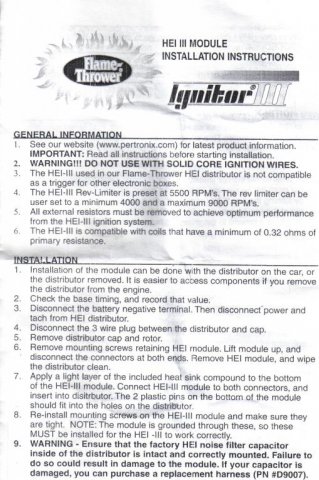

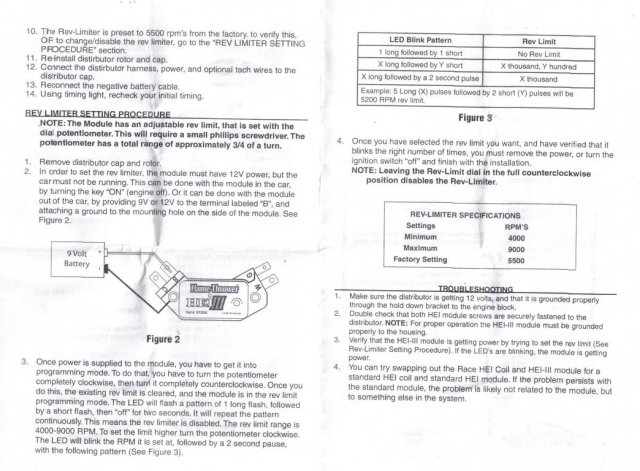

No one is interested in this fantastic new HEI multispark (2 sparks!) product in a super-small form factor?!  I sent Pertronix an e-mail asking for specifications and instructions and these two files are all I got.



I wonder if they accidentally got two sparks when they finished the rev-limiter algorithm and couldn't get rid of the second one.  Can't have two strong sparks from a system that's already at its limit for multi-cylinder high-RPM.  Must be two half-strength sparks.



Just carrying on with my cynical views...
