Medic8 Posted June 24, 2016 Share Posted June 24, 2016 I am looking for a pair of rear sway bar mounts for my 77 280z. The ZCARSource is out of them and is not getting any more. I did not see them in Black Dragon, TheZstore, etc.... Quote Link to comment Share on other sites More sharing options...

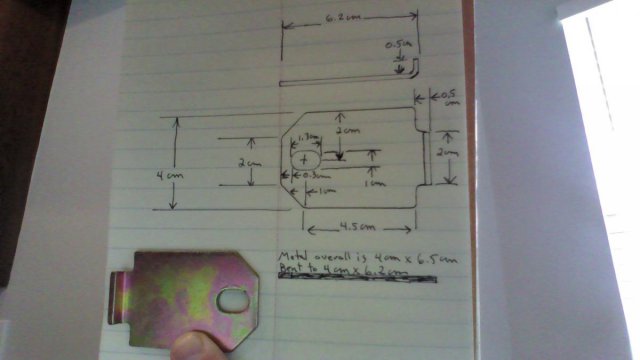

Medic8 Posted July 3, 2016 Author Share Posted July 3, 2016 It was a little bit difficult finding these mounts, so when I got them, I measured them. It would be so much cheaper to make them, but since I didn't have the measurements ..... Attached, please find the drawing and measurements. I hope it is clear enough, been almost 30 years since I did drafting, lol. Quote Link to comment Share on other sites More sharing options...
torynich Posted July 3, 2016 Share Posted July 3, 2016 What is the thickness of the metal used? Quote Link to comment Share on other sites More sharing options...
Medic8 Posted July 3, 2016 Author Share Posted July 3, 2016 I think it is 12 gauge. It is almost 0.3 cm thick Quote Link to comment Share on other sites More sharing options...
