datsun280zx81 Posted March 15, 2007 Share Posted March 15, 2007 To use an external wastegate what do I need to do to the turbo? Do I have to make a block off plate for the internal wastegate hole? Do I have to block off the air hole in the cold side that goes to the actuator? Where do I place the external wastegate flange? Any help would be much appreciated. Quote Link to comment Share on other sites More sharing options...
240hoke Posted March 16, 2007 Share Posted March 16, 2007 http://forums.hybridz.org/showthread.php?t=108785 Quote Link to comment Share on other sites More sharing options...

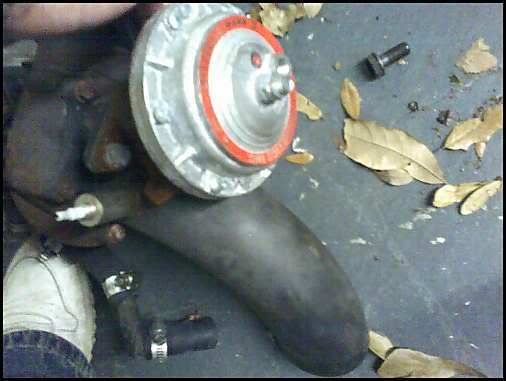

CarJway Posted March 16, 2007 Share Posted March 16, 2007 That is a great write up by Austin. Here are a few other shots to give you a few more ideas. I did not dump the wastegate exhaust gases to the atmosphere, I recurculated it back in: Shown here Here is a shot of the external wastegate flange coming off of the stock manifold here. The block off plate you speak of, you can purchese that with either a V-Band already welded on, as I did Here or just buy the plate and weld on as needed. I assume the hole you are refferring too on the compressor side is the reference port; you can reuse that, and connect that to the external waste gate. Quote Link to comment Share on other sites More sharing options...
datsun280zx81 Posted March 16, 2007 Author Share Posted March 16, 2007 Thank you both for your replies. They will make installing this new turbo and wastegate very easy. Quote Link to comment Share on other sites More sharing options...
Shadytrixta1 Posted March 17, 2007 Share Posted March 17, 2007 Picture of my setup, used the T3 5 bolt flange adapter.Seemed a little easier. Quote Link to comment Share on other sites More sharing options...
proxlamus© Posted March 17, 2007 Share Posted March 17, 2007 shadytrixta1's setup is nice for low boost applications.. problem comes with high boost, that wastegate outlet from the turbo is so so small, it would require some porting to open up and prevent creep. Quote Link to comment Share on other sites More sharing options...
Doug71zt Posted March 18, 2007 Share Posted March 18, 2007 I'm using the same plate style as shady with a 38mm Tial gate, holds anywhere from 8 psi to 22 psi with a 60 trim T04E compressor, Stg 3 .82 exhaust wheel. I opened up the turbine housing hole to around 1.5" Doug Quote Link to comment Share on other sites More sharing options...
