Hear is the test data from my detailed LS1 coil measurements using Megasquirt (MS) to trigger the coils. These are the coils that Ron Tyler has used on L6s with a Wolf ECU as the trigger source. These coils have the igniters built in, which makes for a much easier install. They are used on late model Camaros, Firebirds, and GM trucks.

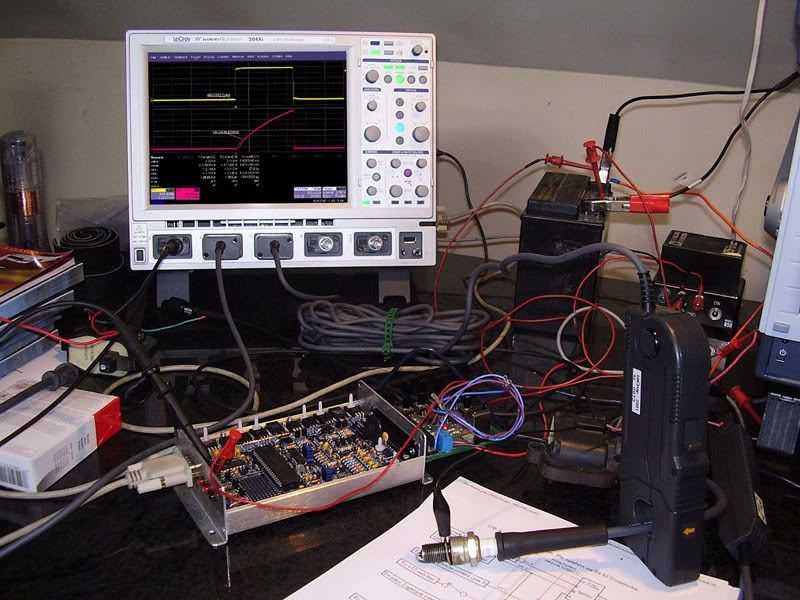

Hear is what my test setup looks like:






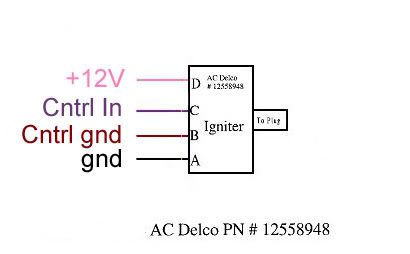

Hear is the coil pinout:








Let's start with the input to the coils. The coils require a positive input pulse, the width being the coil charge time. One important thing to note is that the MS output pulse width for the ignition outputs does not correlate directly to the dwell time you set in Megatune (MT). Not sure if this is a firmware bug or not.

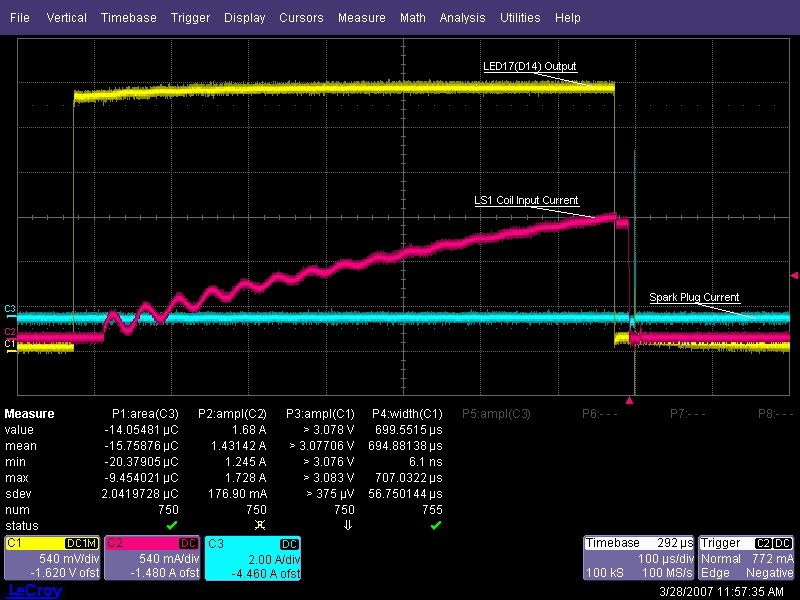

When I set the dwell to 1ms, the actual output pulsewidth is around 690us (0.69ms). The following screen shots show the output pulse from the MS (C1, yellow), and the input current to the LS1 coilpack (C2, red). So you can see that as soon as the MS output pulse goes high (C1), the coil current starts to charge (C2). It reaches full charge when the MS output pulse goes low. There are three measurements which include statistics: amplitude of C1, pulsewidth of C1, and amplitude of C2. The most important statistic is the mean, or average value for these tests.

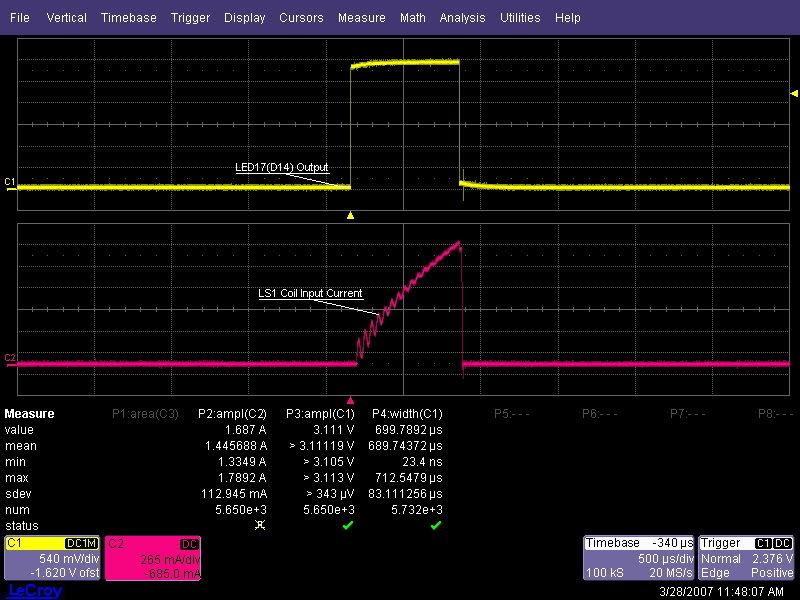

1ms dwell:






2ms dwell:

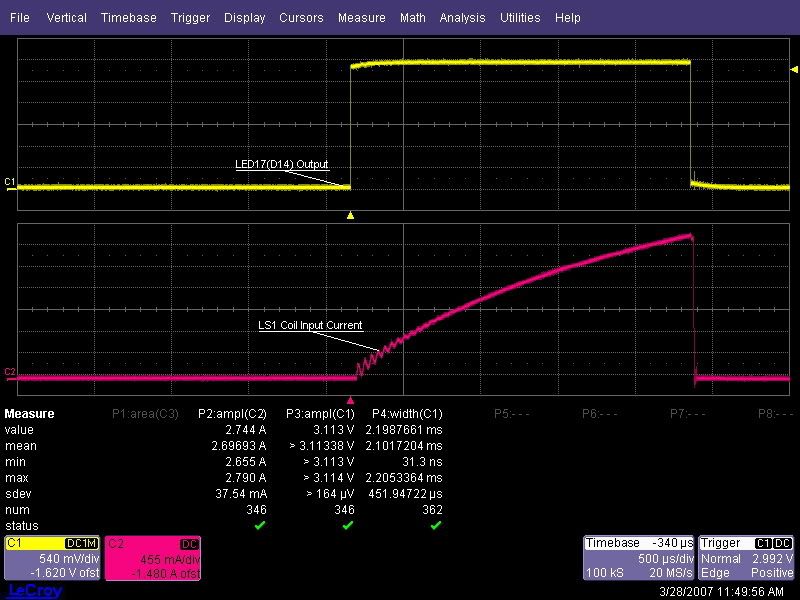

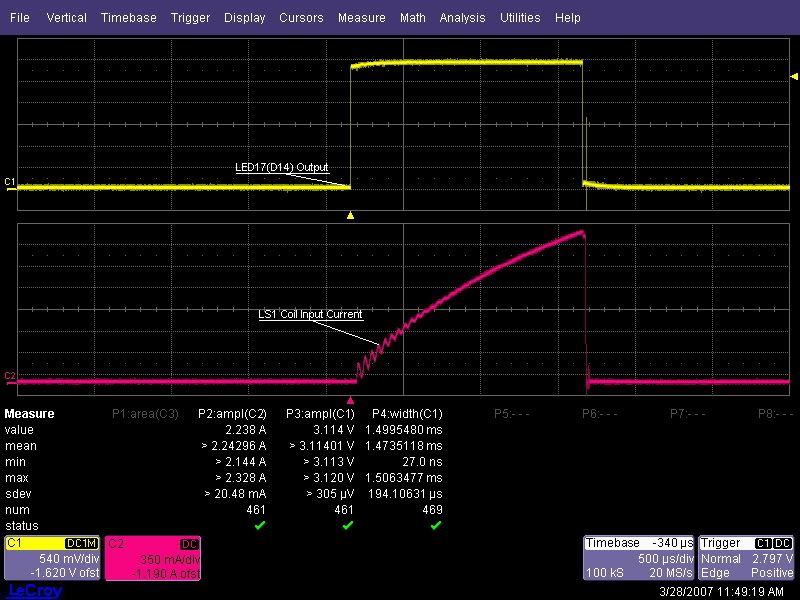

3ms dwell:






4ms dwell:






So from all this data, if you look at the mean amplitude for C1, you see that it is consistently in the 3V range. This means that the LS1 coils can fire at that voltage. The mean pulsewidth of C1 is always about 70% of what you program into MS. This must be a firmware bug, I will post this on msefi.com.

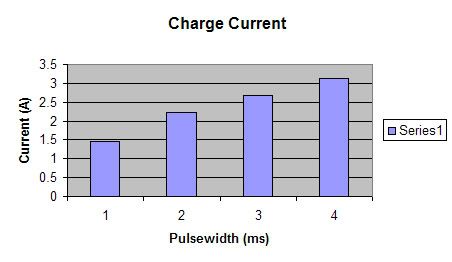

If you plot the charge current you get this:






We know what went into the coil pack, now lets look at what comes out. The next measurements I made was the output current from the LS1 coil pack. Instead of measuring peak current, I set up a measurement to measure the area under the current pulse. Current per unit time is measure in Coulombs. In this case micro Coulombs (uC).

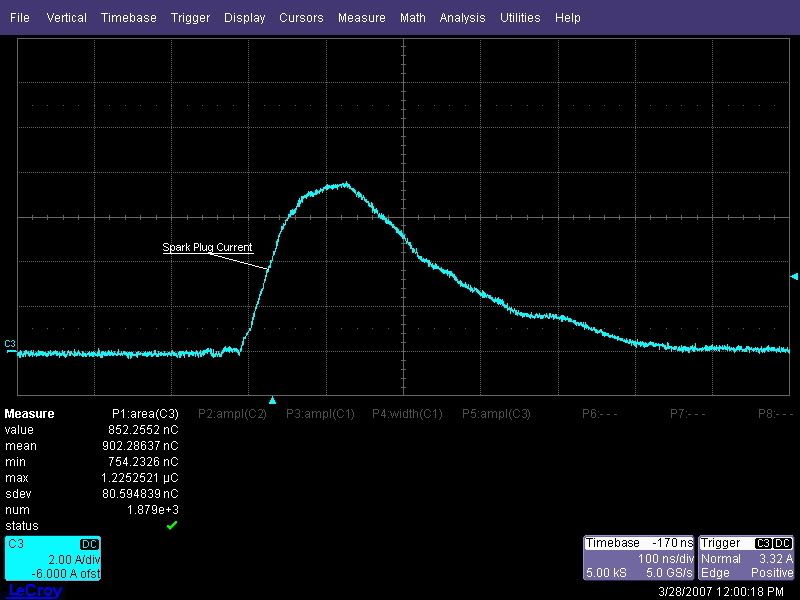

1ms dwell:

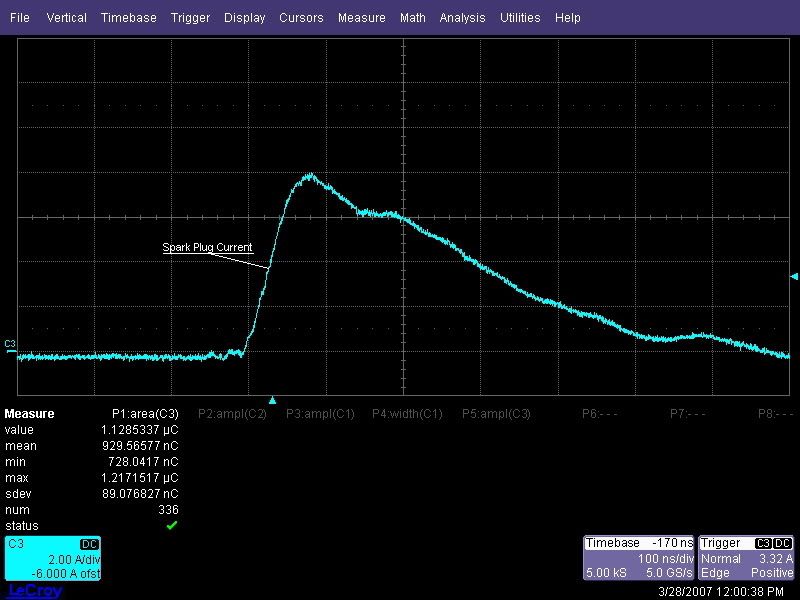

2ms dwell:

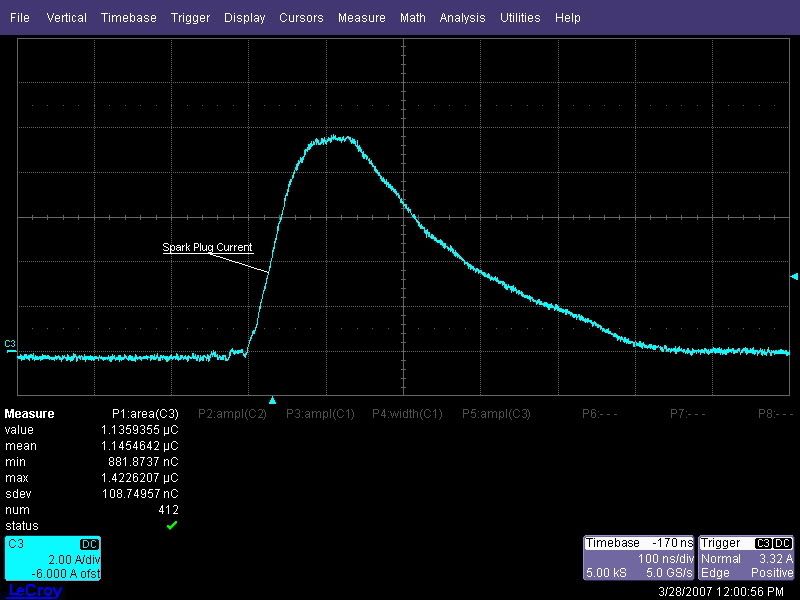

3ms dwell:

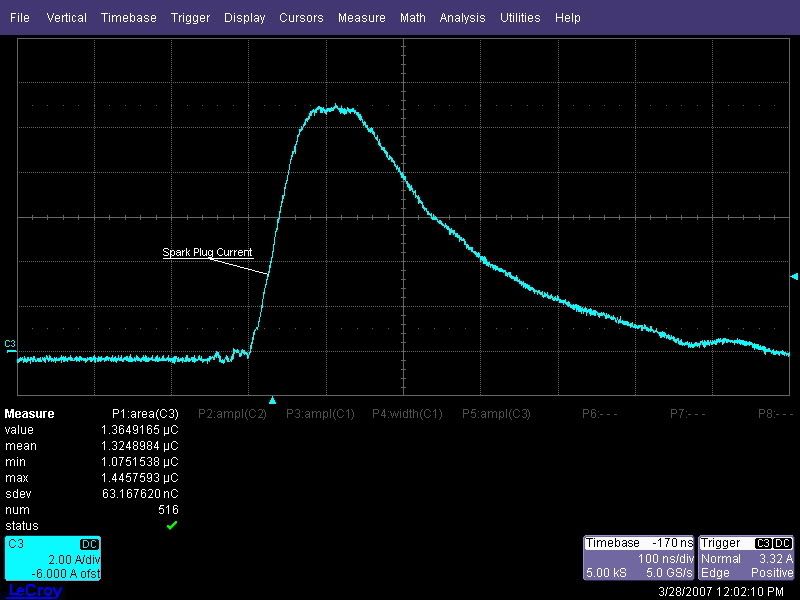

4ms dwell:

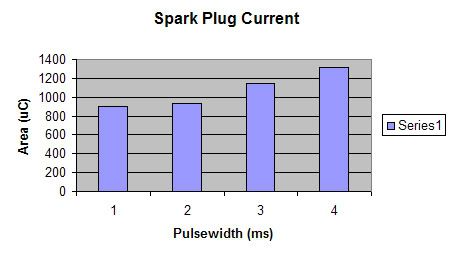

Again, if we plot the area vs dwell time (pulsewidth), we get this:






Hear is a shot of all three signals on the same grid. The trigger pulse (yellow), charge current (red), and coil output current (blue).








Conclusions from all of this:



As you would expect, as the dwell time increases, the peak coil charge current increases linearly. The coil output current is not as linear, and at 4ms charge time, it has not hit coil saturation point. This is where no additional output current is created when the peak input charge current continues to increase. This is when things will start to get hot! I will take more measurements at 5, 6 and 7ms to see what the effects are.



The other important fact is that the LS1 built in coil igniters (the amplifier that drives the coil) will track input pulse width. So setting some nominal dwell time will not get you the optimal spark. This is where a scope comes in handy.



Lastly, the MS LED output can easily drive two of these LS1 coils. Driving two coils, no reduction in input voltage was observed. It stayed in the 3V range, and fired both coils reliably. So you can fire three pairs of LS1 coils using the three LED outputs on the MS. Yes, this is a wasted spark configuration, but unlike coil packs with dual outputs, the LS1 coils will provide equal spark energy to each cylinder.




Share this post


Link to post
Share on other sites

Nice work! :rockon:



What voltage are you supplying the ignitors with?



It would be nice to see similar testing with low voltages, say around 10v, to simulate starting conditions.





4ms charge time, it has not hit coil saturation point.[/Quote]



I undertstand saturation with those coils hits around 5.6 to 5.8ms. I'd like to see that confirmed/denied.







This is where no additional output current is created when the peak input charge current continues to increase.[/Quote]

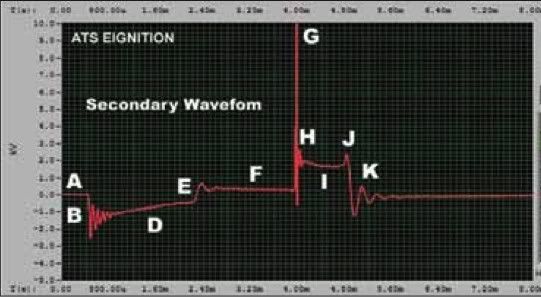

Another way to say it... where the ringing stops and the curve flattens, per this diagram, area D, yes?
