emaster Posted May 19, 2009 Share Posted May 19, 2009 I just got my transmission back in and I cant remember which cable goes where... I have a picture of my starter, which you probably shouldn't need. Basically I forgot which cable goes on which part of the starter, or at least where my cables should go. Negative/ positive on top or bottom... thanks oh and there is another cable that goes on one of the terminals as well and it has a plug as well, does that go top/bottom and does it go with the negative battery cable? Quote Link to comment Share on other sites More sharing options...
citjet Posted May 19, 2009 Share Posted May 19, 2009 Hope this helps. Quote Link to comment Share on other sites More sharing options...
emaster Posted May 20, 2009 Author Share Posted May 20, 2009 the photo is currently unavailable, could you do that again?? sorry haha Quote Link to comment Share on other sites More sharing options...

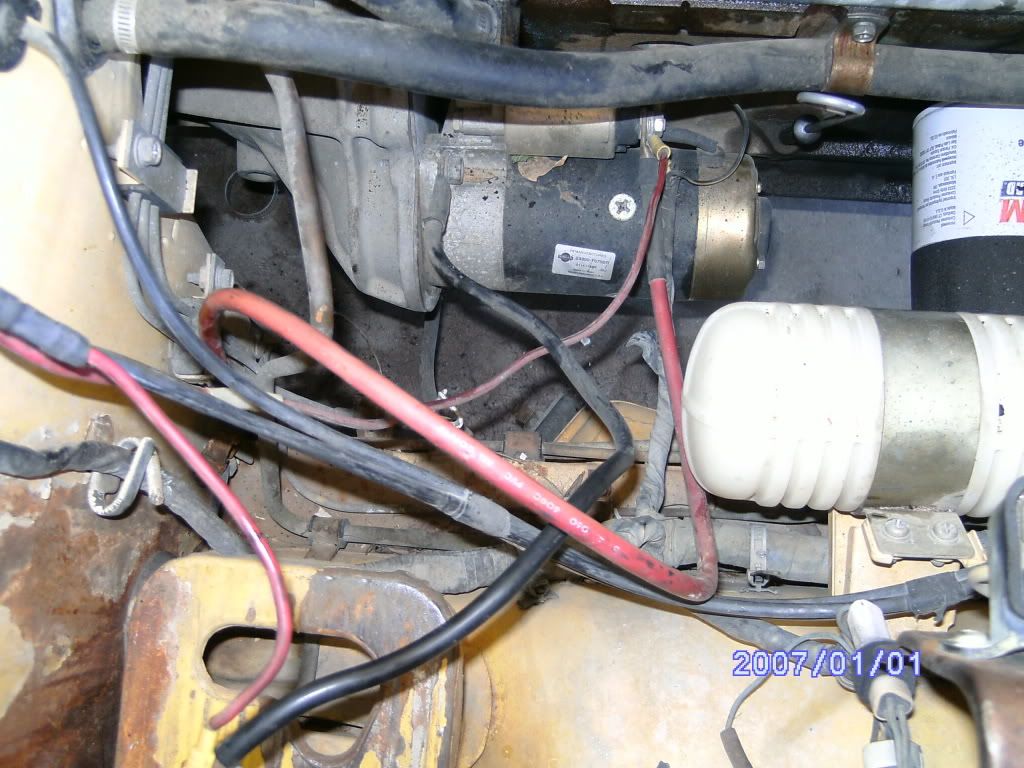

Mr.Roboto Posted May 21, 2009 Share Posted May 21, 2009 maybe this picture will help you.... Quote Link to comment Share on other sites More sharing options...
Mr.Roboto Posted May 21, 2009 Share Posted May 21, 2009 oh and does anyone know what the things is on the right that looks like a waterbottle Quote Link to comment Share on other sites More sharing options...
Pharaohabq Posted May 21, 2009 Share Posted May 21, 2009 oh and does anyone know what the things is on the right that looks like a waterbottle It's the Vacuum Reservoir. Basically it holds a little vacuum so that the car can actuate some of the larger vauum solenoids. Quote Link to comment Share on other sites More sharing options...
citjet Posted May 21, 2009 Share Posted May 21, 2009 Try this one. EDIT: Sorry just noticed other picture, funny the first one still shows up on my machine for some reason. Quote Link to comment Share on other sites More sharing options...
emaster Posted May 22, 2009 Author Share Posted May 22, 2009 Thanks so much! I was totally about to F that up and probable give it a short circuit haha that would have been bad. Thanks!!! Quote Link to comment Share on other sites More sharing options...
emaster Posted May 23, 2009 Author Share Posted May 23, 2009 so red cable is positive battery cable and black one is negative battery cable right? Quote Link to comment Share on other sites More sharing options...
emaster Posted May 24, 2009 Author Share Posted May 24, 2009 haha okay I normally would not have asked that question but when I put it to start nothing happened, I just realized that I probably painted over where the cables connect to so it probably got insulated... yeah. Time to pull out the paint remover! Quote Link to comment Share on other sites More sharing options...
cockerstar Posted May 24, 2009 Share Posted May 24, 2009 Just clean it up with some sandpaper Quote Link to comment Share on other sites More sharing options...
Comrade_Charlie Posted May 24, 2009 Share Posted May 24, 2009 2 positives on the starter solenoid, 1 for power, 1 for ignition, the ground goes on the starter bolt. Quote Link to comment Share on other sites More sharing options...
