Wedge Posted April 17, 2013 Share Posted April 17, 2013 (edited) Hi, I posted in the Chris Rummel how to but didnt get an answer. On the RB26 harness im trying to find the pin number for the Air regulator and the wire colors. In the GTR FSM I cant find it and on google the pin outs pictures dont contain them anywhere ? Any help is welcome. Edited April 17, 2013 by Wedge Quote Link to comment Share on other sites More sharing options...
Chris Duncan Posted April 17, 2013 Share Posted April 17, 2013 (edited) Where is the "air regulator" on the car, what does it look like, and is that the factory name for it? I have access to a skyline clip that's still together. Edited April 17, 2013 by Chris Duncan Quote Link to comment Share on other sites More sharing options...

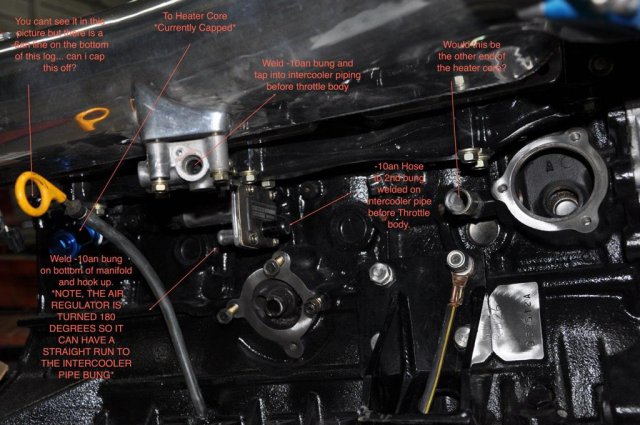

EZpickenZ Posted April 18, 2013 Share Posted April 18, 2013 From what i can tell the colors are B/Y and B. The B is a ground and the B/Y goes through plug Q and into the main harness and then to the Fuel Pump control modulator and fuel pump relay. I will have to look at my paperwork to know exactly. I attached a PP showing the route in the FSM. I believe that it is on the underside of the Intake manifold. The wiring is attached to the knock sensors and AAC valve harness. If anyone knows different please let me know, but I'm pretty sure it's there. Sry ZT-R I had to jack a pic. One of the 2 parts attached to the manifold should be it, but I'm not sure which yet. I still have to check it on the engine. Air reg diag.ppt Quote Link to comment Share on other sites More sharing options...
Wedge Posted April 20, 2013 Author Share Posted April 20, 2013 Ok then I guess by giving power to AAC and fuel pump relay it should have power i think ill try to put a small voltage thru it then probe the regulator for a reading. Thank you. Guys. Quote Link to comment Share on other sites More sharing options...
ZT-R Posted April 21, 2013 Share Posted April 21, 2013 You can hook it to 12v+ and i think the ecu controls the ground. Quote Link to comment Share on other sites More sharing options...
Wedge Posted April 21, 2013 Author Share Posted April 21, 2013 You can hook it to 12v+ and i think the ecu controls the ground. The regulator wire directly ? Cut from the plug shown in EZpickinZ photos and hooked to 12v+? Quote Link to comment Share on other sites More sharing options...
ZT-R Posted April 22, 2013 Share Posted April 22, 2013 Yea thats how mine is, i think its on the ACC power and not switched, not sure if it really matters, not sure how fast the motor works, but the ground is by the computer... Quote Link to comment Share on other sites More sharing options...
Wedge Posted April 22, 2013 Author Share Posted April 22, 2013 Good thanks ZT-R. Quote Link to comment Share on other sites More sharing options...
