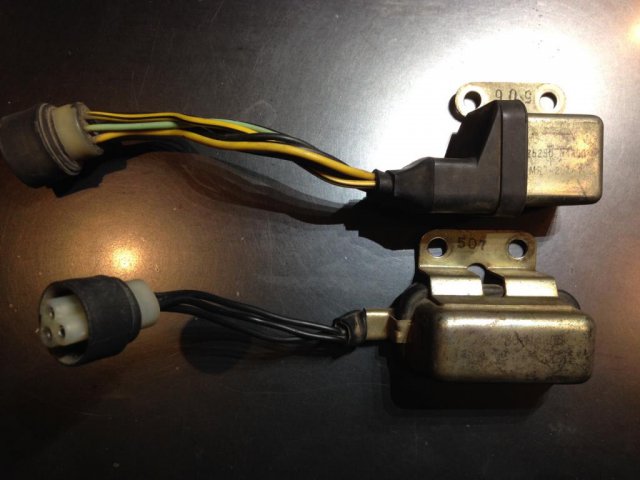

str8pipez Posted February 5, 2014 Share Posted February 5, 2014 I just upgraded to a GM alt. and while searching for a place to mount my MS relay board I can across these 2 dudes attached to the bracket that the ext. voltage reg. was bolted to. Anyone know what they do? I went through the FSM but no luck. Quote Link to comment Share on other sites More sharing options...
NewZed Posted February 5, 2014 Share Posted February 5, 2014 (edited) Body Electrical is the chapter. Relays are boring. If you can't find the shape of the relay, go through the diagrams and match the plug. The pattern and pin number is usually unique to the relay. Each diagram has a drawing of the connector and its pins. Edited February 5, 2014 by NewZed Quote Link to comment Share on other sites More sharing options...
str8pipez Posted February 5, 2014 Author Share Posted February 5, 2014 Cool. Thanks. Quote Link to comment Share on other sites More sharing options...
tightywhitey185 Posted February 15, 2014 Share Posted February 15, 2014 What year is the car?I could be wrong but the top one looks similar to an EGR relay.The bottom one could be a seatbelt interlock(if you have a 260Z)AnAC relay,Rear defogger relay,ETC.Read the Factory service manual. Quote Link to comment Share on other sites More sharing options...
