How-To: Front Belly Pan

[mr_han_solo]

Overview:

I was inspired to make my own body pan after seeing a combination body pan/splitter on the "Datsun Parts and Needs" Facebook page. I like the stock look so I wasn't interested in the splitter part. Due to this my body pan is  plastic instead of the aluminum. Looking back I could have probably got away with aluminum due to the fact that the body mounting as a lot more level than I expected. Note this was used with a MSA Type 1 style Air Dam. Front measurements my vary depending on what other air dams you use.



Parts List and Prices:



Polyethelylene Plastic Sheet (Black) .080 48"x60" - Online Metal Supply - $25

AAF-ALL18548-10 Threaded Nut Insert (Needed to Mount to Bumper) - Summit Racing - $21.99

1/2" Steel Conduit (Needed to make spacers)



Belmetric.com:

4x WSI10SS Internal Star Washer

6x WFE10X30SS Fender Washer SS

2x M10 Bolts and Fender Washers (Not Stainless)



McMaster-Carr:

2x 25mm M10 Stainless Bolt

2x 70MM M10 Stainless Bolt

10x 18-8 Stainless Steel Button-Head Socket Cap Bolts, 1/4"-20, 5/8" Long





The Process:



My First step was to cut the conduit to the the length needed to make it level with the bottom of the air dam and the cross-member. Once it's cut, weld it up to the end of the front frame rails. Now sure what originally went in these holes but they are perfect. Then I took the two non-stainless washers and nuts and welded them into the round holes in the cross-member (There are four holes in the bottom of the cross-member, the nuts are welded onto the outermost holes on each side). I now had 4-points to mount my belly-pan.



Now I had to make a cardboard template and cut it to make sure everything lined up.  I used a awl to find my two mounting holes on my cross-member, and the two mounting holes where the spacers are now at. I also had to place a hold where my radiator drain is at. (Here is my template with the dimensions).







Next I transferred this onto the plastic and cut it out:

Note that I did not cut the entire wheel well area out. I left the "flaps" because I read that rolling the belly pan itself up into the wheel well would help with aero.



Unfortunately, I didn't read or account for this before I marked out out and took the measurements on my template. I have added this photo showing that it is possible given the improved measurements. I don't know if this would be possible if you choose to use aluminum.



After I have the initial part cut I did a quick fitment test: (Notice that I cut part of it too narrow around the front a-arms. I welded some more back on at a later point.)



Next, I removed the bumper and slid the body pan up into the position where it would sit inside the lip of the bumper itself. I then took a drill and drilled the 1/4" holes necessary to put the thread inserts in. The thread insert flanges need to be trimmed down due to how shallow the bumper lip is:



Inserts Installed and Body Pan mounted. Just waiting on front bumper:

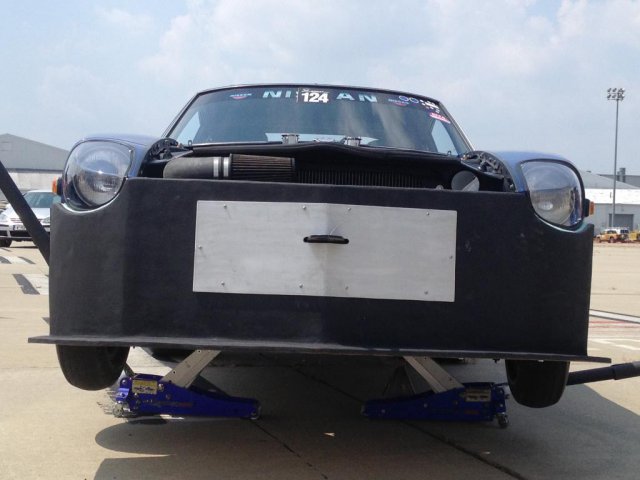

Don't really have a good photo of the finished product. If I ever get the car on the lift I will add a photo. It pretty much looks just like the mock-up photo above except with button cap screws on the bumper.



Hope everyone enjoys, and feel free to ask any and all questions.



Edited May 17, 2016 by mr_han_solo

[LLave]

How rigid is the material once installed? I imagine it it subject to a sizable force at speed.

[RebekahsZ]

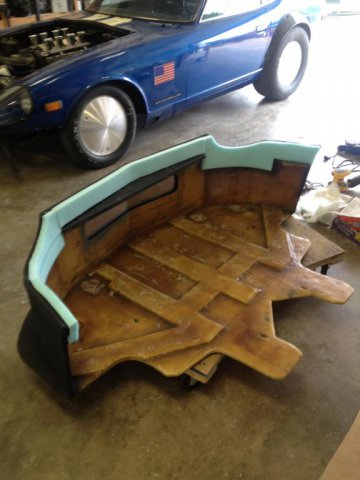

Here's mine. Fiberglass over foam sheeting from Lowe's.

Edited June 1, 2016 by RebekahsZ
