Chewievette Posted December 3, 2006 Share Posted December 3, 2006 I would really appreciate if someone could take a couple of measurements for me off of a triple weber manifold. My main concern is the port spacing of the carb end, I need center to center on all six ports. I want to modify one for itb and I need this info to know if it will work. I'd rather not waste the money if its not going to work. Thanks. Quote Link to comment Share on other sites More sharing options...

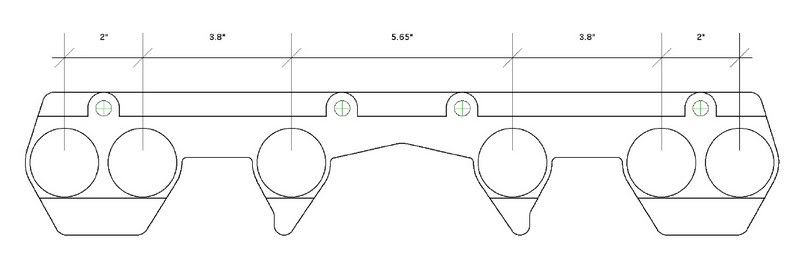

Administrators RTz Posted December 4, 2006 Administrators Share Posted December 4, 2006 Here is half of your answer... . . Sorry... I can't help with the ITB centerlines. Quote Link to comment Share on other sites More sharing options...
OlderThanMe Posted December 4, 2006 Share Posted December 4, 2006 sweetness... looks like that is part of a blueprint for a sweet billet intake... But that is just me Quote Link to comment Share on other sites More sharing options...
Administrators RTz Posted December 4, 2006 Administrators Share Posted December 4, 2006 sweetness... looks like that is part of a blueprint for a sweet billet intake... Unable to comment at this time Quote Link to comment Share on other sites More sharing options...
Chewievette Posted December 4, 2006 Author Share Posted December 4, 2006 Nice! Now I just need the other end... Quote Link to comment Share on other sites More sharing options...
Sven Posted December 4, 2006 Share Posted December 4, 2006 Somebody give this man a tracing of a triple carb intake! (sorry I can't help, mine is quite literally on the other side of the country) Quote Link to comment Share on other sites More sharing options...
OlderThanMe Posted December 4, 2006 Share Posted December 4, 2006 Unable to comment at this time Oh well...I guess we will NEVER know Ron...You just do all this cool stuff and then don't tell us about it... Quote Link to comment Share on other sites More sharing options...
Chewievette Posted December 4, 2006 Author Share Posted December 4, 2006 I'm not in a hurry or anything I just figured that if anyone had one sitting around, a minute or two with a tape measure might save me a ton of grief. Quote Link to comment Share on other sites More sharing options...
Administrators RTz Posted December 4, 2006 Administrators Share Posted December 4, 2006 Oh well...I guess we will NEVER know Ron...You just do all this cool stuff and then don't tell us about it... Do I really do that? Give me an example??? Since you've made me feel guilty... Yes, I have a large percentage complete of a custom L6 manifold. Saturday we base-lined the donor car (Mustang Dyno) for reference. At this time, I will not share pictures. My drawings are all 2D so I'd be forever trying to explain it. You'll have to wait a little longer... I assure you pics will be posted. Quote Link to comment Share on other sites More sharing options...
OlderThanMe Posted December 4, 2006 Share Posted December 4, 2006 I am sure the wait will be plenty worth it... Quote Link to comment Share on other sites More sharing options...
Administrators RTz Posted December 4, 2006 Administrators Share Posted December 4, 2006 Thanks. Quote Link to comment Share on other sites More sharing options...
srgunz Posted December 5, 2006 Share Posted December 5, 2006 I have a mikuni manifold that I measured the carb end. Center to center is as follows. 90mm - 112mm - 90mm - 112mm - 90mm (Using the Ron Tyler drawing as reference) Hope this helps. Quote Link to comment Share on other sites More sharing options...
Chewievette Posted December 5, 2006 Author Share Posted December 5, 2006 Thanks much! That's exactly what I wanted to know. It might be a little close, I was hoping for 4in (96mm) between runners but I might be able to figure something out. Thanks again! Quote Link to comment Share on other sites More sharing options...
