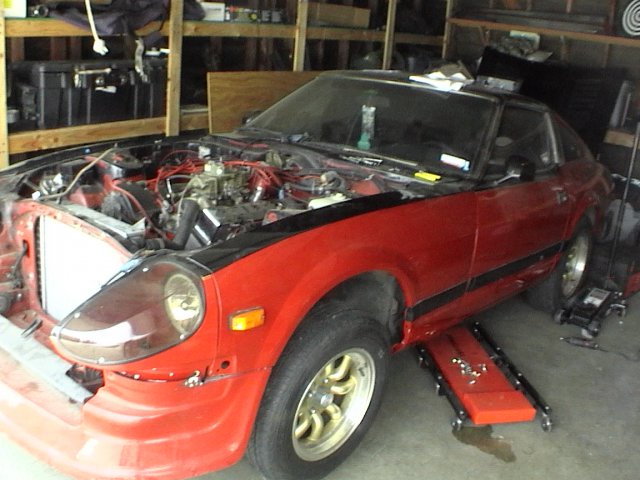

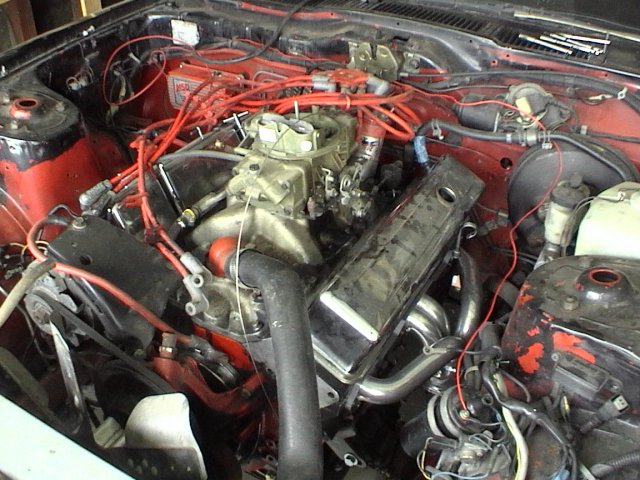

shawn83zxt Posted September 12, 2009 Share Posted September 12, 2009 (edited) Whats up everyone? Got some pics to share with you, as well as some questions about some wiring! So my 83 ZX has been through a lot these past few years. Initially I swapped in a T3/T4 E , along with a few other goodies, and was going the megasquirt route. Eventually lost interest, and decided to drop in a 350. I purchased two long blocks from a guy who worked on base, and put new gaskets on the cleaner one. I got deployed shortly after that, and when I got home, I found a good deal on a decent setup. GM crate motor Trick Flow 23 degree aluminum heads Scorpion 1.5 anodized roller rockers Edelbrock performer RPM intake Holley 3310 vacuum carb 750cfm Comp Cams 268XE cam/lifters MSD pro billet distributor MSD 6AL box MSD plugwires Rebuilt TH350 and a Hughes 22-2500 stall converter. (pics are attached) First question is as follows, MSD 6AL , from looking at a couple wiring diagrams, there seem to be a couple different options for my IGN source. I think I'll go with the hot wire to the old IGN coil. Does this make sense to anyone other than me? haha. Secondly, Should it be a problem if I modify the original alternator harness to fit the GM alternator? It seems simple enough, and that is what I plan on doing. Finally, If you look at one of the pictures, you will see I am using an engine driven fan. There is not a lot of room , so I will not be using a shroud. Will a short distance between the radiator and the fan eliminate the need for a shroud? I know it would probably be better to have a shroud, but this vehicle is going to be used in the northeast, and it doesn't exactly get over 100 here Thanks for reading guys, any help would be awesome! This thing is almost done! Shawn Edited September 12, 2009 by shawn83zxt Grammar Quote Link to comment Share on other sites More sharing options...
shawn83zxt Posted September 14, 2009 Author Share Posted September 14, 2009 Trans X-member is bolted in, drive shaft needs to be cut to length, gear reduction starter, alternator wiring, exhaust, fuel and coolant plumbing are all that's left! Oh, and throttle linkage! So excite! Quote Link to comment Share on other sites More sharing options...
Smokescreen Posted September 14, 2009 Share Posted September 14, 2009 Nice work. I now have a 350 for my 79 Zx. I am excited to see your car making this kind of progress. Keep the updates coming and I'll keep lookin'. I may have some questions when I get into the actual swap. Lookin good!!! Quote Link to comment Share on other sites More sharing options...
shawn83zxt Posted September 14, 2009 Author Share Posted September 14, 2009 For sure, I'm down to help with any questions you have! Quote Link to comment Share on other sites More sharing options...

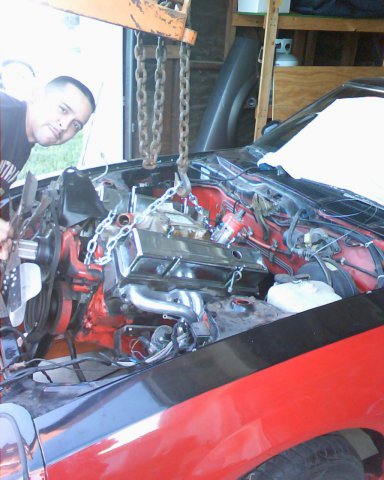

shawn83zxt Posted September 14, 2009 Author Share Posted September 14, 2009 Pic of the engine going in and my roomy helping... Quote Link to comment Share on other sites More sharing options...
shawn83zxt Posted October 18, 2009 Author Share Posted October 18, 2009 Very excited! As soon as my battery has a quick charge, I should be able to start the car! Not 100% yet, but will be good enough to record and post up! Quote Link to comment Share on other sites More sharing options...
280zwitha383 Posted October 20, 2009 Share Posted October 20, 2009 I have my ignition hooked up to the stock + for the coil and I also have the stock - hooked up so the factory tach will work. I also have the alternator hooked up to the factory wiring but I have the 1 wire alternator. I do have an additional wire hooked up so the factory batter gauge works though. I'll try and remember tomorrow to look and see which one and what terminal it goes to. Good luck on the first fire up! Quote Link to comment Share on other sites More sharing options...
joesephus Posted November 13, 2009 Share Posted November 13, 2009 i am in odessa and have a 260 with sbc luv to come see yours if possible or vice versa Quote Link to comment Share on other sites More sharing options...
DavyZ Posted November 13, 2009 Share Posted November 13, 2009 Have you started a build thread in the member's project forum? You can always catalog your progress and pics there. The only downside is that other members cannot post replies. Davy Quote Link to comment Share on other sites More sharing options...
shawn83zxt Posted November 13, 2009 Author Share Posted November 13, 2009 Thanks for the suggestion, I think I'll start one this evening. Quote Link to comment Share on other sites More sharing options...
Pyro Posted November 13, 2009 Share Posted November 13, 2009 Looks like a nice setup. flex fans are noisy and suck hp. You will be better off with an electric fan. A stock Ford fan or a Black Magic Fan will both work well. Used ford fans can be had for 25.00 at your local junk yard. Fans from 90's T-bird or a Taurus. Black magic fan can be had from summit racing. Need a big relay to run these fans. 50 or 60 amp would work the best. Can easily get by with a 40 amp if you only use the low speed part of the ford fan. do a search of the ford fan. A 40 amp relay will work on high for awhile but will fail with in 6 months. what turbo did you have? want to sell it? Quote Link to comment Share on other sites More sharing options...
hoov100 Posted November 15, 2009 Share Posted November 15, 2009 Need a big relay to run these fans. 50 or 60 amp would work the best. Can easily get by with a 40 amp if you only use the low speed part of the ford fan. do a search of the ford fan. A 40 amp relay will work on high for awhile but will fail with in 6 months./quote] the 40 amp relay on my taurus fan for the high function, lasted 10 years, before i rewired my car from scratch. Quote Link to comment Share on other sites More sharing options...
Pyro Posted November 15, 2009 Share Posted November 15, 2009 I have seen three 40amp relays fail in the past 1 to 1.5 years on a ford fan. Glad you are getting better results. Quote Link to comment Share on other sites More sharing options...

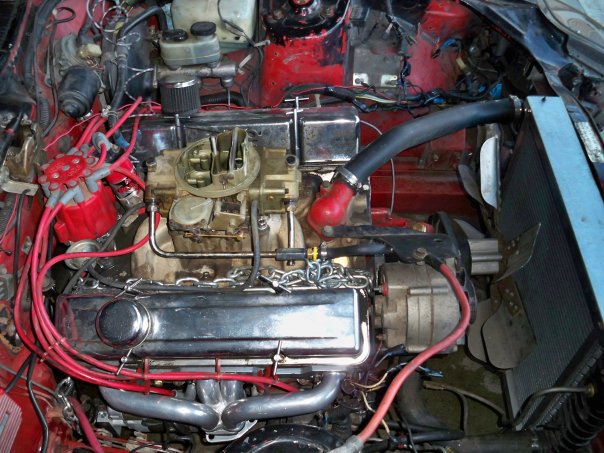

shawn83zxt Posted November 22, 2009 Author Share Posted November 22, 2009 Thanks for the input on the relays. I wonder if anyone here can help with this alternator? In particular, the spade terminal. I know one is signal, the other goes to an indicator light. Anyone know which is which? I've been looking at diagrams online for a while, but can't really determine which spade needs the 12v. This may sound dumb. Sorry! Quote Link to comment Share on other sites More sharing options...

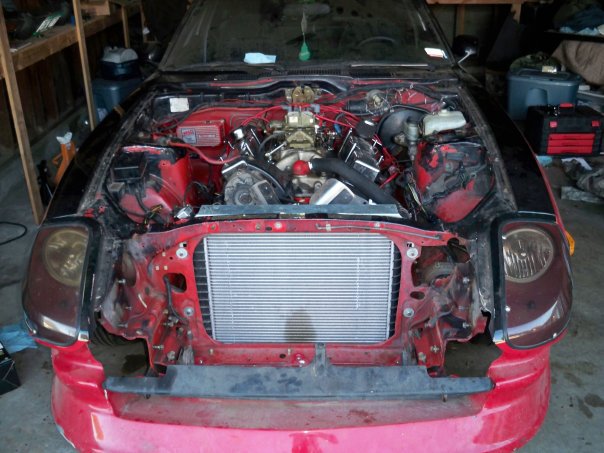

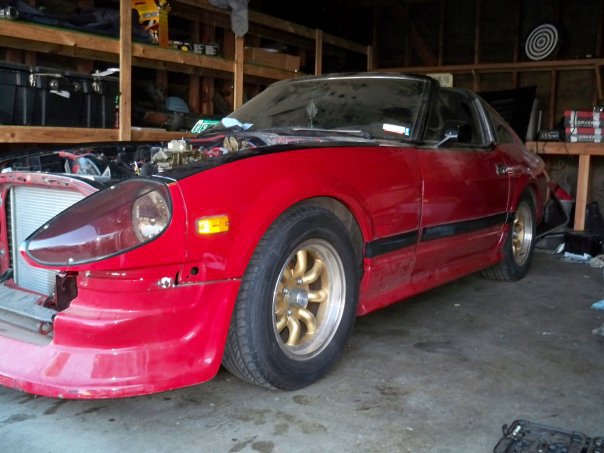

shawn83zxt Posted November 22, 2009 Author Share Posted November 22, 2009 Here are some pictures! Quote Link to comment Share on other sites More sharing options...
280zwitha383 Posted November 25, 2009 Share Posted November 25, 2009 I'll try to look tomorrow about the alternator wiring. I'm sorry I didn't get back to you about it before, it completely slipped my mind. Quote Link to comment Share on other sites More sharing options...
280zwitha383 Posted November 26, 2009 Share Posted November 26, 2009 Well I looked at the wiring today and totally forgot to look at which terminal it goes to on the alternator. Anyway, the thick white wire goes to the "s" terminal I believe (should be your main charge wire) and the small blue wire goes to one of the terminals that have a connector that go in the top (this gives you the correct effect on your gauge with the light, ie if the alternator isn't charging your voltmeter will show your actual volts and the light will come on saying it's not charging). I'm sure this is common knowledge somewhere on here because I certainly didn't figure it out myself so I would think a search would put you in better shape than my poor memory. Quote Link to comment Share on other sites More sharing options...
