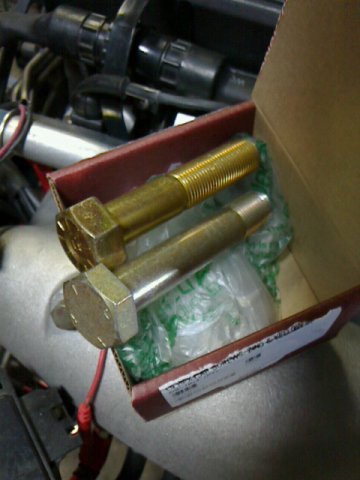

Got 5/8"-18 3" length 9T bolts for LCA and TC-rod pivots from Amazon.com because the AN bolt in similar length at Pegasus auto racing is stupidly expensive ($40/bolt).

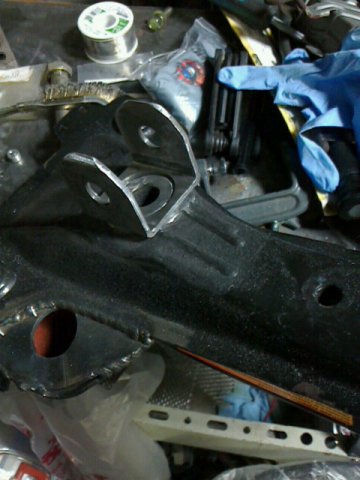

LCA bracket was welded on the E46 cross member.

post-106-0-82830900-1449931484_thumb.jpgpost-106-0-61112500-1449931493_thumb.jpgpost-106-0-96954300-1449931503_thumb.jpg

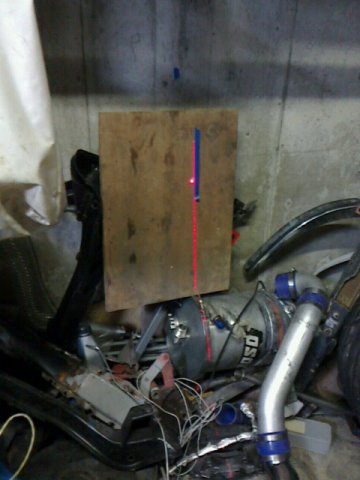

The bump steer was projected on wood board. Laser pointer works fine and the test revealed bump out. Because the tie rod end is already located top of the adjustment of the bump steer stud, rack was moved down 1/2".

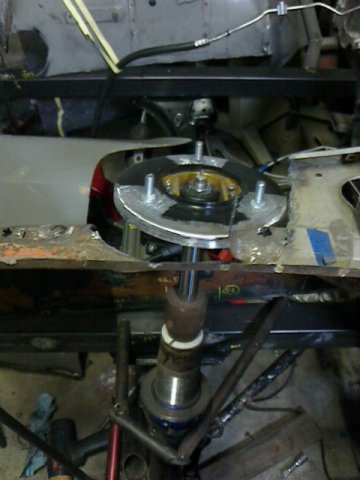

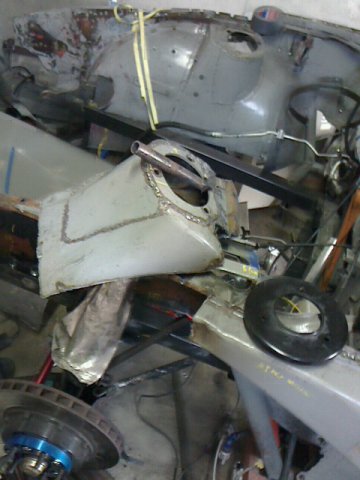

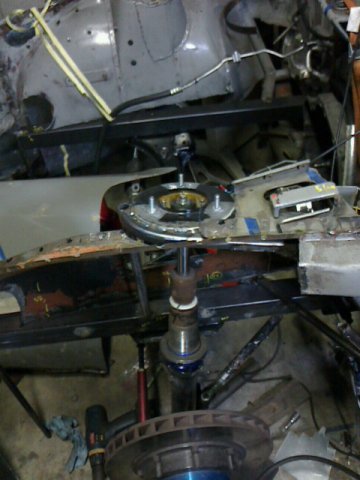

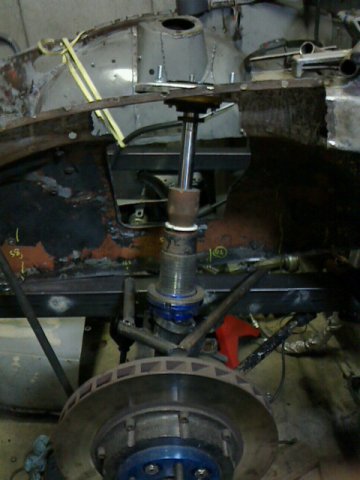

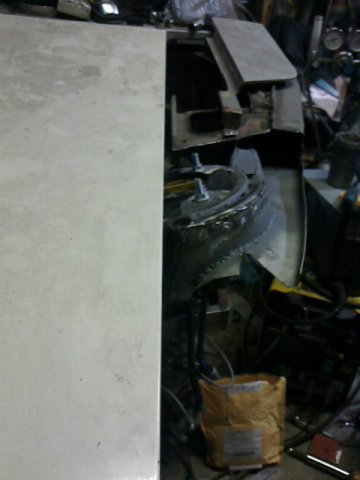

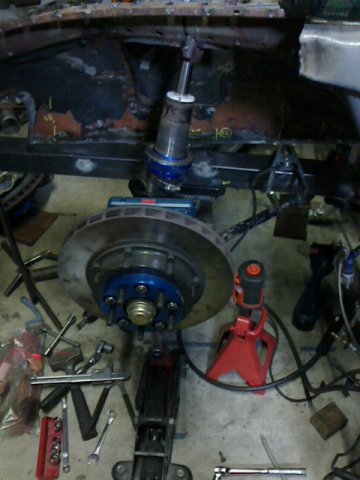

Strut upper mount sheet metal was cut out by plasma. The strut was temporary welded to the frame.

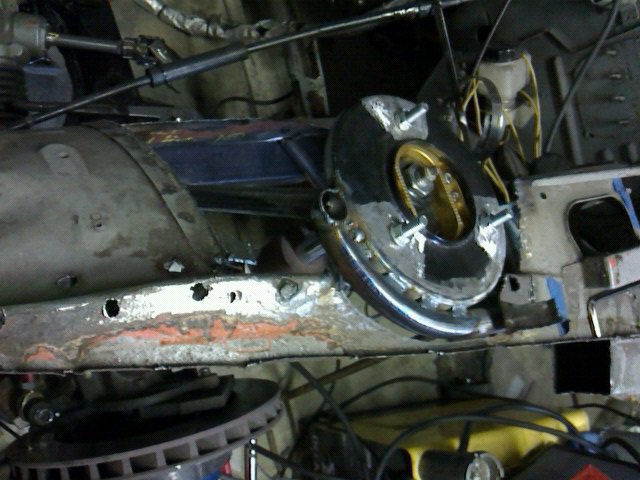

The strut top mount ring was welded to bent tube. The ring is genuine BMW parts.

post-106-0-78882900-1449932321_thumb.jpgpost-106-0-27844000-1449932328_thumb.jpgpost-106-0-89125400-1449932335_thumb.jpg

Link to comment
Share on other sites

  • 2 weeks later...

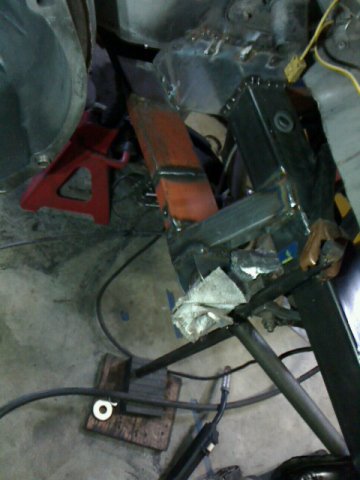

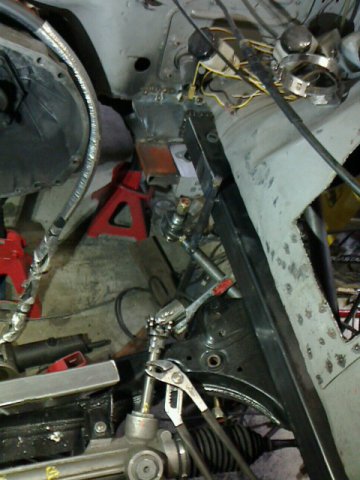

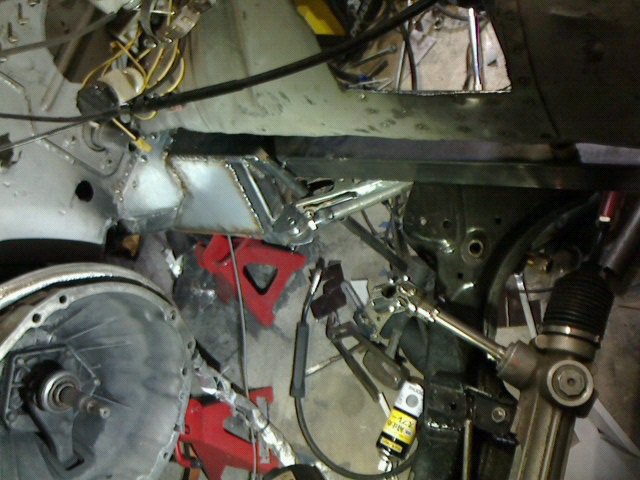

TC-rod bracket was cut from square tube and welded to the engine compartment frame and the floor rail.

post-106-0-59729900-1450880064_thumb.jpgpost-106-0-09738300-1450880113_thumb.jpgpost-106-0-84012400-1450880078_thumb.jpg

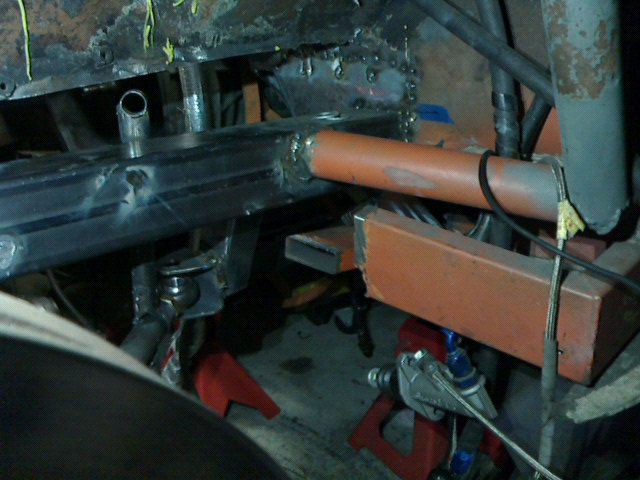

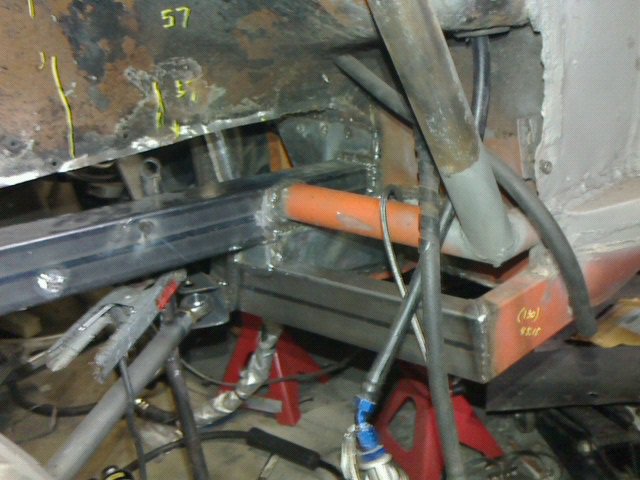

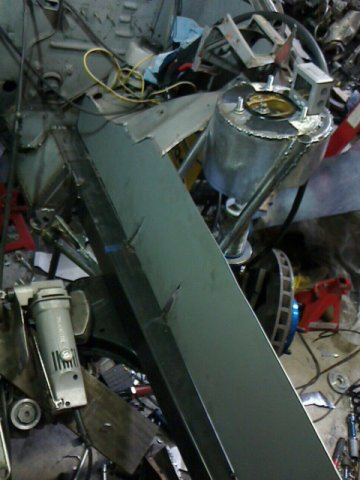

The rectangular tube which connects the TC-rod bracket and the side sill tube was replaced.




The area between the frame and floor rail was closed from both sides. I couldn't do this before because I had floor-mount pedal master cylinders there. That arrangement considerably affected the chassis rigidity.


Link to comment
Share on other sites

  • 2 weeks later...

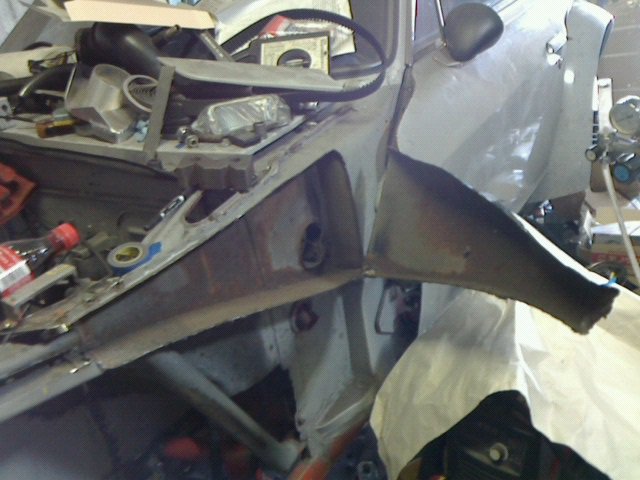

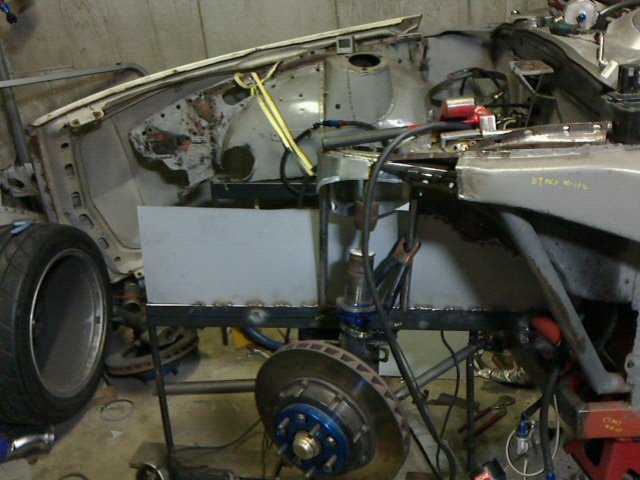

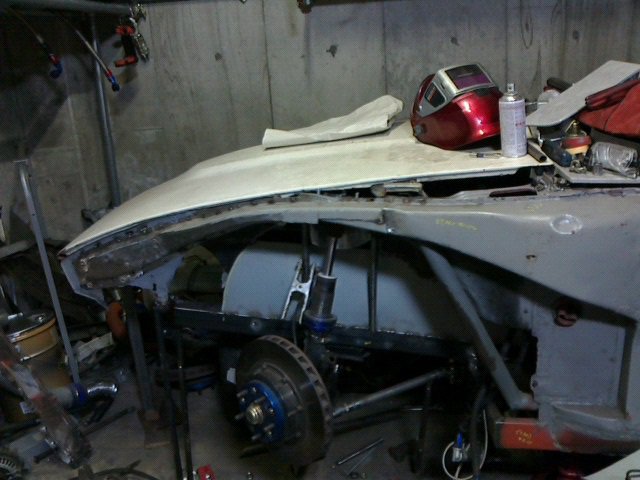

My bad. The chassis center was not the body center. The strut upper mounts are half an inch off to the left.






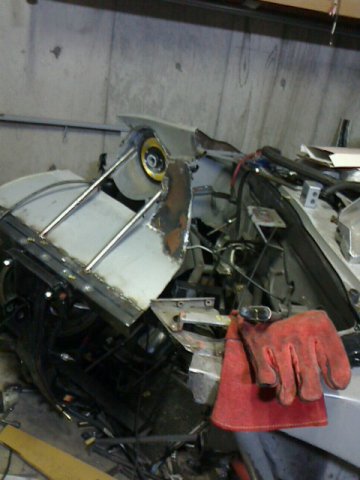

The frame was cut between cross member and the TC rod brackets.






The clip was replaced to the right and welded.




Link to comment
Share on other sites

  • 1 month later...

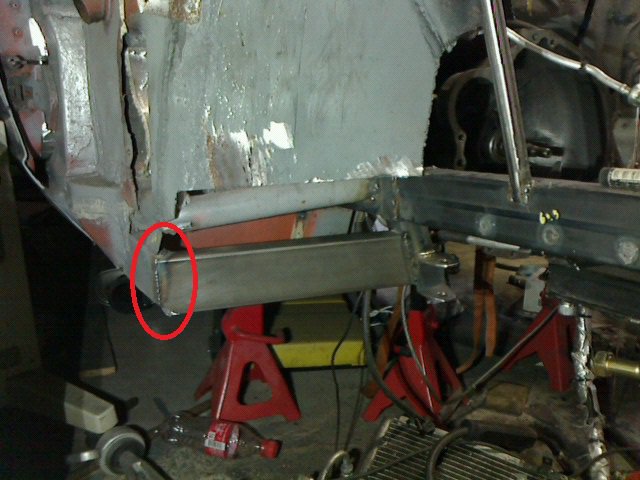

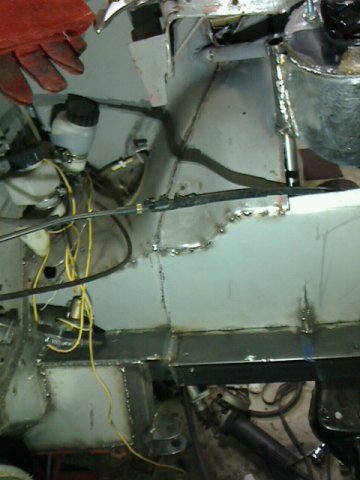

I don't have car lift so there are hard to be welded areas. For someone may not be realized where the pic is shown, showing is the behind the passenger side front wheel area. I could not see the other side of the rectangular tube mating weld.




I use an inspection mirror for welding there and it worked fine at least for me.




I doubt this area was painted as a new car.




I estimate the chassis repair will take one more month.




I'm interested in CAE ultra shifter. Shift lever without side play. Meanwhile in my car, play prevents quick shifting because of the bad connecting rod design:




If you do not familiar with CAE shifters, search on YouTube. They are expensive ($900- ), and there is no CAE or equivalent shifter for Nissan/Datsun.

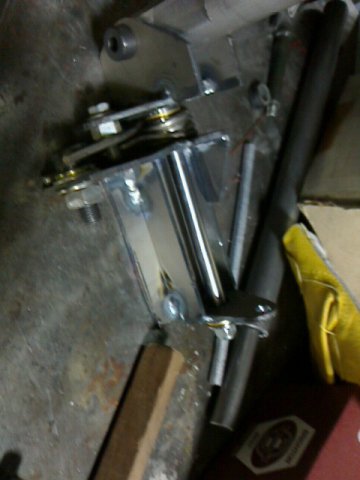

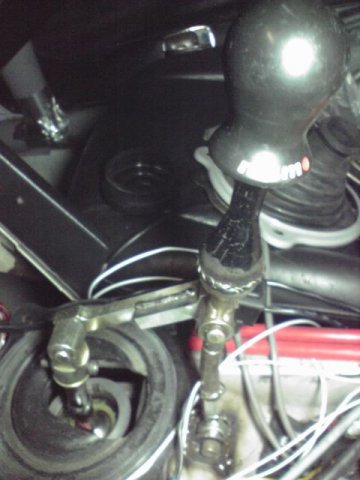

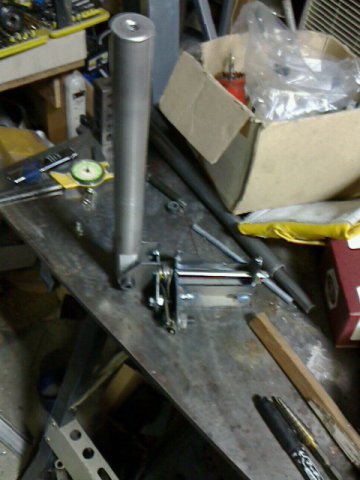

So I fabricated a test assy for my car


The shift rod is from Hayabusa handle bar :mellow:



The most important part of this is the side to side centering spring. Bent a spring by using TIG torch.

post-106-0-54850300-1456745508_thumb.jpgpost-106-0-40567100-1456745490_thumb.jpgpost-106-0-24008100-1456745496_thumb.jpg









Link to comment
Share on other sites

  • 2 weeks later...

RB25 is in.



I'll fabricate a brace between the cross member and TC-rod pivot.




I've ordered a Threadstone TR10C intercooler. It will be mounted horizontally.

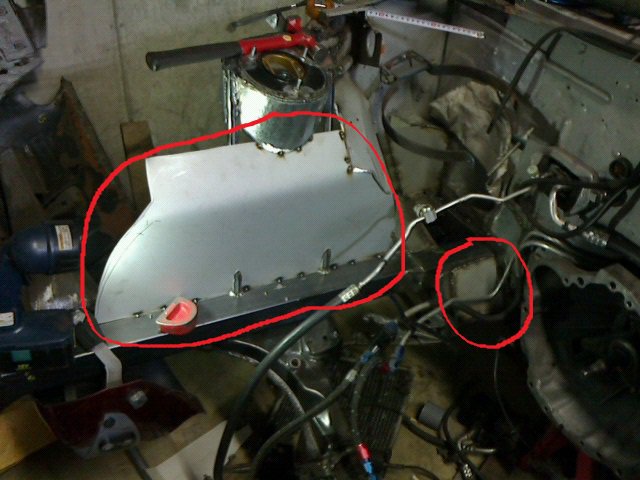

The compressor outlet to intercooler piping will route top of the engine bay, so the air filter and turbo intake pipe should be relocated. I cut whole radiator core support and relocated the frame laterally 2". There is plenty room for the straight intake pipe. Also, the scavenge outlet hose end doesn't interfere with the frame anymore.




The other side is still crowded. The CPC connector on the wall should be rotated 90 degree clockwise.




The left side inner fender reinforcement was welded. There is no reference point anymore so I used outer fender and stock hood as guides. The other side warped badly but I decided to repair. The strut upper mount area was cut and the rust was removed.


Link to comment
Share on other sites

  • 1 month later...

Slant mount was not good. Radiator assembly was too bulky because this car has condenser and its cooling fan. Also the slant mount radiator requires electric fans. There was no room for oil cooler.

post-106-0-31811200-1461253399_thumb.jpgpost-106-0-15168900-1461253386_thumb.jpgpost-106-0-45590400-1461253508_thumb.jpg



Radiator was placed in an ordinary fashion. The intercooler inlet/outlet hose elbows leave no room for hood hinges. So I welded an aluminum elbow on the right side and ordered an elbow for left side.

post-106-0-38294400-1461253417_thumb.jpgpost-106-0-47776000-1461253426_thumb.jpgpost-106-0-87939900-1461253448_thumb.jpgpost-106-0-43141100-1461253455_thumb.jpgpost-106-0-98144200-1461253472_thumb.jpg

Link to comment
Share on other sites

  • 3 weeks later...

Intercooler elbow of the other side had been welded.




I could not find any good zero-pressure radiator cap for the expansion tank setup with regular USDM radiators. Once I got a zero-pressure cap from Summit Racing and found out that zero-pressure = can not seal any coolant pressure. So I bought JDM filler and Trust GReddy breather tank seal cap.



I cut the filler portion of Griffin radiator. The filler can not be welded because this is spun aluminum, too thin to be welded there.




I welded AN4 male there for air bleeding.




Lower hose fitting had been modified using RB25NEO engine water inlet. The expansion tank return AN6 male and coolant drain were welded so the lower hose can be connected directly.

post-106-0-83893800-1462634853_thumb.jpgpost-106-0-76337000-1462634871_thumb.jpgpost-106-0-73498400-1462634879_thumb.jpg



I could not form the radiator brackets very well. It should be replaced by thick aluminum.




Oil cooler is located under the radiator.




I fabricated a swirl pot. The coolant filler is there, welded from underside. End plates were formed using shop press.

post-106-0-95651200-1462634838_thumb.jpgpost-106-0-48284300-1462635027_thumb.jpgpost-106-0-51487600-1462635046_thumb.jpgpost-106-0-39608700-1462635052_thumb.jpg


Link to comment
Share on other sites

  • 3 weeks later...

Three AN4 male bungs were wedled on the coolant expansion tank.




AAC valve boss was cut from RB25 intake pipe.

post-106-0-32683400-1464443479_thumb.jpgpost-106-0-49805100-1464443489_thumb.jpgpost-106-0-96528700-1464443509_thumb.jpg



Compressor outlet to intercooler pipe was made from A6061. Better than stock RB26 outlet, at least for my car. The stock RB26 outlet blocked the access to the air conditioner gas port.

post-106-0-89062100-1464443585_thumb.jpgpost-106-0-47146900-1464443613_thumb.jpgpost-106-0-93071400-1464443638_thumb.jpgpost-106-0-38752700-1464443646_thumb.jpgpost-106-0-39878300-1464443678_thumb.jpgpost-106-0-52441700-1464443697_thumb.jpgpost-106-0-67759600-1464444677_thumb.jpg

Link to comment
Share on other sites

  • 2 weeks later...
  • 2 weeks later...

The floor-mount master cylinders were located between the frame rails and the TC rod bracket. After the last year's collision, I found that such arrangement weakened the chassis considerably. Reverse-mount box will be fabricated. Master cylinders will be located under the heel plate.






Edited by KAZU
Link to comment
Share on other sites

  • 4 weeks later...

The reverse mounted masters are better than I thought before. Easy to adjust the balance bar. The brake pedal doesn't interfere with the steering shaft.




I fabricated a prototype shifter. Final piece will be made from bicycle pedal spindle.


Link to comment
Share on other sites

  • 1 month later...

I found a right angle gearbox for brake balance remote control. Less than half price of the Tilton's. Must parts for floor mount pedal. Without it, the remote dial doesn't turn smoothly.




I decide to paint with 2K. I bought dual action sanders and HVLP gun. Bosch GEX 125AVE was better than air sanders because of its vibration reduction mechanism. I don't want to hold the air sander more than a couple of minutes.

post-106-0-34527700-1473095443_thumb.jpgpost-106-0-66619900-1473095740_thumb.jpgpost-106-0-93769500-1473095453_thumb.jpg



Four-state oil pump inlet fittings interfere with the BMW rack. I place the pump 1" upward. Air-con compressor is also relocated.




Then I remove the twin electric puller fans from the radiator. Coupling fan blades were trimmed as they hit radiator inlet/outlet.




Blow-off valve return piping is required to pass the inspection.


Link to comment
Share on other sites

  • 3 weeks later...
  • 2 weeks later...

Paint top coat didn't bind to primer-surfacer. The color layer can be easily peeled by using a heat gun and scraper for head gasket.






Windshield has been removed. I thought the weatherstrip should be cut, but it has been there only a year since replaced so it came out in 5 minutes without cutting. I'll  reuse it.






Engine is out and old paint has been stripped.




Link to comment
Share on other sites
