240zBoy Posted January 26, 2011 Share Posted January 26, 2011 My Z is a 1972 240z, I have a bunch of loose wires in my column thanks to the P.O. Well first of all I see many wires near the back of the turn signal unit not attached to anything so if I could get a clear picture of that it would be really welcomed. I just need to see the back as to what colors are soldered to where. Also a broad picture of the complete column wiring would be great just to help with some more loose ends I have. I have searched everything and the wiring diagram but they do not help when it comes to getting wire re soldered and what not. Did work well if they were unconnected from the plastic connector clips. Not to mention I can learn and figure out much more with a visual picture. If anyone could help that would really make my week as my search button has been on overload. Quote Link to comment Share on other sites More sharing options...
Leon Posted January 26, 2011 Share Posted January 26, 2011 Take a look at the FSM, section BE-2. Download FSM at xenons30.com, under references. Quote Link to comment Share on other sites More sharing options...
Miles Posted January 26, 2011 Share Posted January 26, 2011 Take a look at the FSM, section BE-2. Download FSM at xenons30.com, under references. I recall that Dave Irwin over at ClassicZ has posted pictures of the column wiring. He rebuilds the headlight and TS switches. You may want to PM him for wiring info. Quote Link to comment Share on other sites More sharing options...
240zBoy Posted February 24, 2011 Author Share Posted February 24, 2011 Alright I have had a little help with the fsm but there are still quite a few loose ends. The loose wires with pink arrows to them are my problem and if anyone could help that would be great. Quote Link to comment Share on other sites More sharing options...

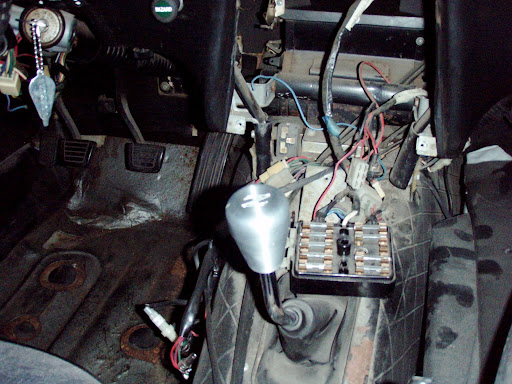

240zBoy Posted February 24, 2011 Author Share Posted February 24, 2011 (edited) If someone could take a picture just like this link shows it would help me out more than anything. I did figure out where pic #2 went though. http://lh4.ggpht.com/_GKlDb1xNbNg/TMZhZBotSKI/AAAAAAAAAsw/qzCOAEU-KlY/s512/P1010003.JPG Edited February 24, 2011 by 240zBoy Quote Link to comment Share on other sites More sharing options...
Miles Posted February 25, 2011 Share Posted February 25, 2011 The bottom picture is the brake switch. Quote Link to comment Share on other sites More sharing options...
240zBoy Posted February 25, 2011 Author Share Posted February 25, 2011 Yea but I can not find the wires that connect to it. There seems to be none even near it. Quote Link to comment Share on other sites More sharing options...
240zBoy Posted March 6, 2011 Author Share Posted March 6, 2011 (edited) Alright got the brake switch working. But I have an issue with my turn signal part of the harness at the steering column not working. I believe it has to do with the green spade connector because that is hooked up to nothing right now. It would be a life saver if someone could just send me a picture of what there steering column wiring looks like. I have been searching everywhere from google pics to here and can not find a good picture of someone's steering column. BTW it is a 72 240z. Edited March 6, 2011 by 240zBoy Quote Link to comment Share on other sites More sharing options...
