Windtunnel Test Data


  • This topic is locked This topic is locked
4 replies to this topic

#1 Mikelly

Mikelly

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPipPip
  • 6285 posts
  • LocationVirginia, United States of America

Posted 12 May 2007 - 05:17 AM

Gang, Here's the Data in JPEG. Also, I will be linking the video to the article later. I'm trying to get as much to you folks as quickly as I can, so be patient!

The numbers on the left under each test title will correlate to the article I wrote.

How to “read” the data being provided… A little explanation of the fields…
C coefficient (of)
D drag
F front
L lift
M moment
R rear
C LF front lift neg # = lift, pos# = down force on front end
C LR rear lift neg # = lift, pos # = down force on rear end
Y M yawl moment pos # = right side down, neg # = left side down
Q down pressure on entire car measured near center of roof
C PM pitch moment pitch of car front to back neg # = front is down pos
# = rear down
C S side force neg # = left side drag pos # = right side drag
C RM = roll moment (Not as applicable to our cars)
Drag HP horse power needed to overcome drag
Drag lb coefficient of drag expressed in lbs for both front and rear

Mike

Posted Image
Posted Image

Edited by RTz, 27 November 2009 - 02:18 PM.

Follow me on FB at Mike's Hobby Shop!



I will not be a spectator in the sport of life!
mjk 1994


#2 Mikelly

Mikelly

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPipPip
  • 6285 posts
  • LocationVirginia, United States of America

Posted 13 February 2008 - 02:45 PM

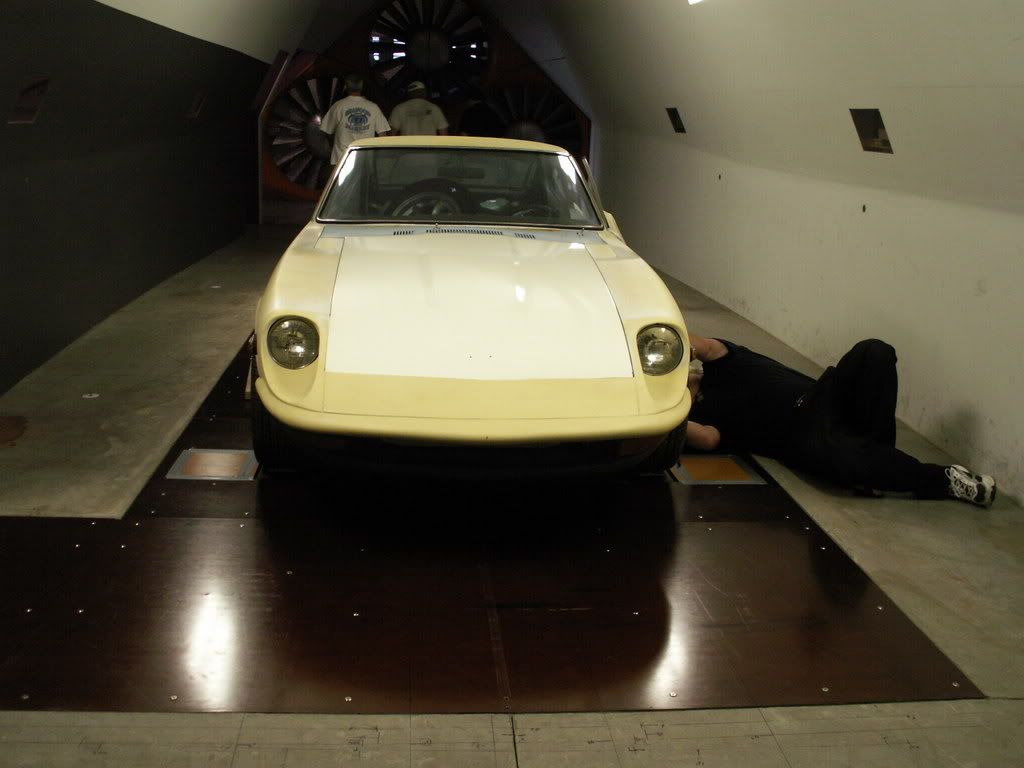

John Tedder's Gnoze Zcar in the tunnel - Test Number 1
Posted Image

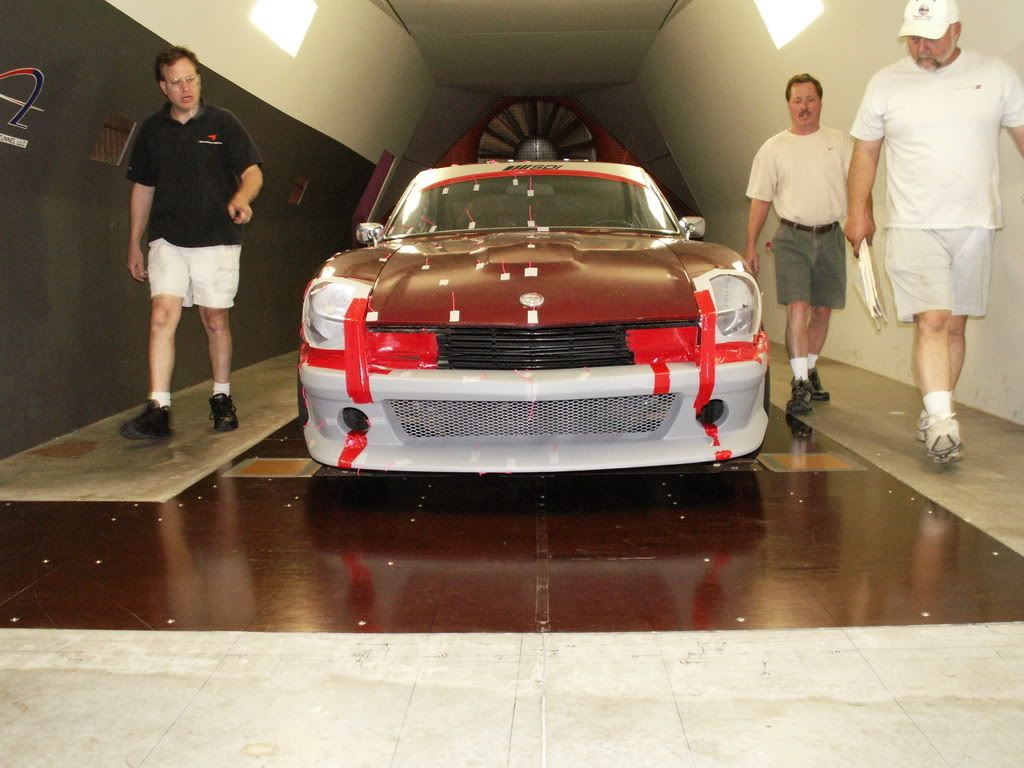

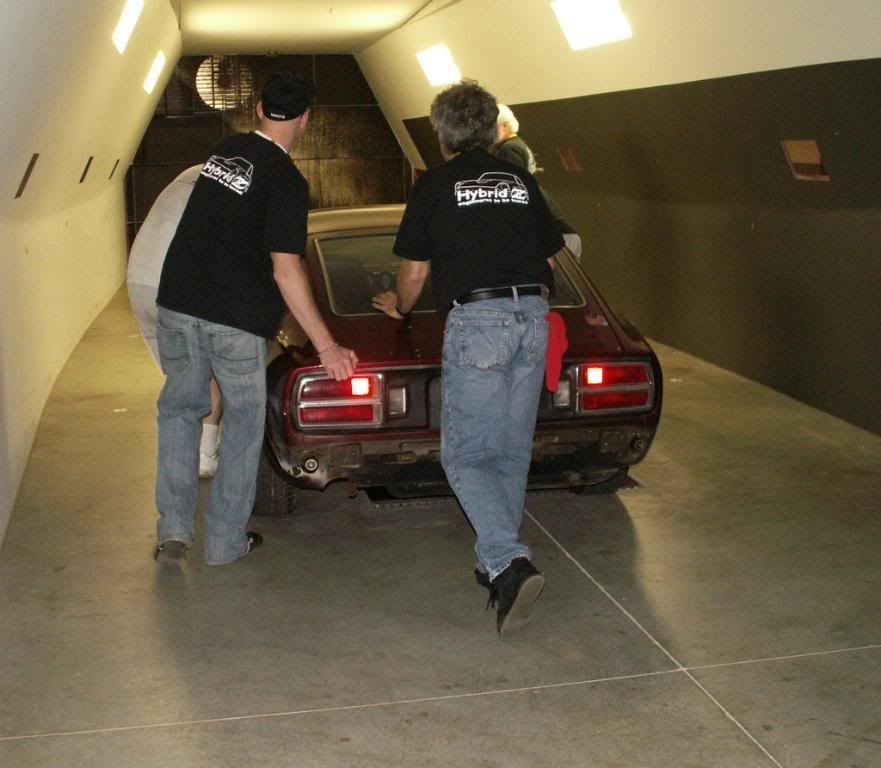

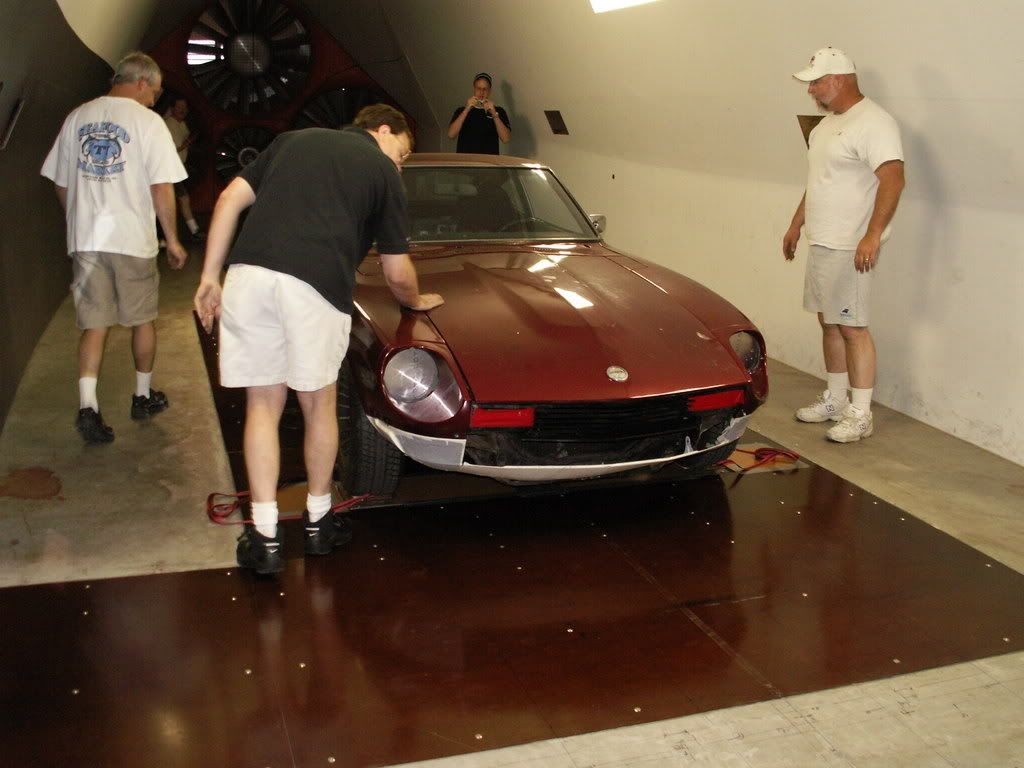

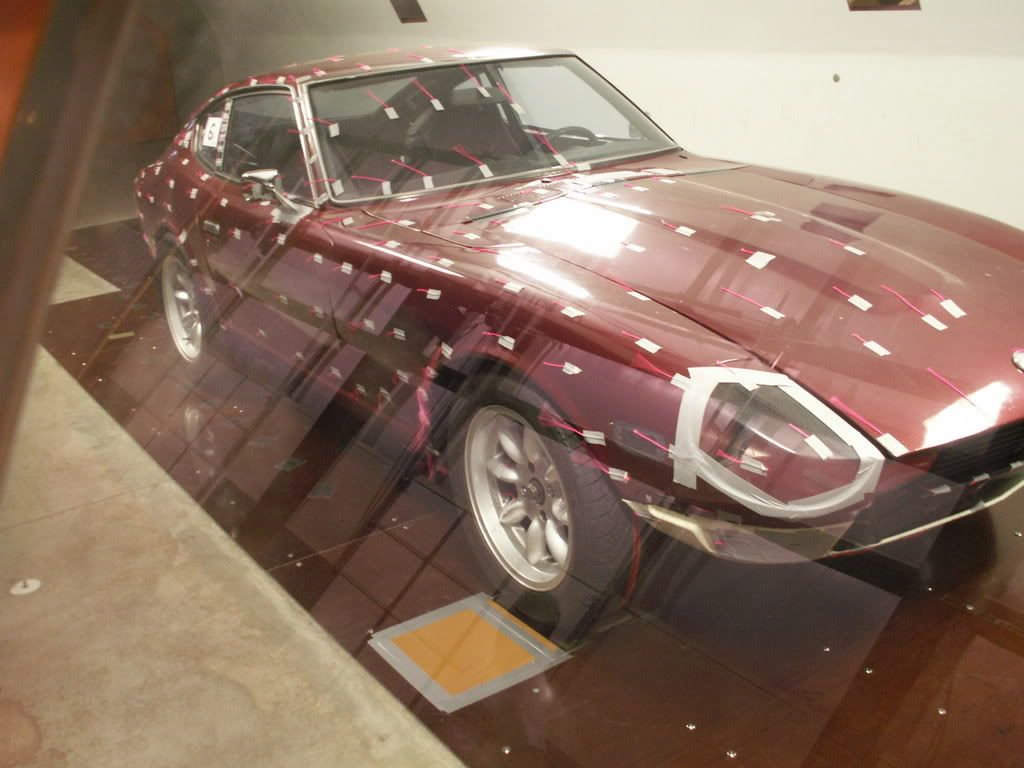

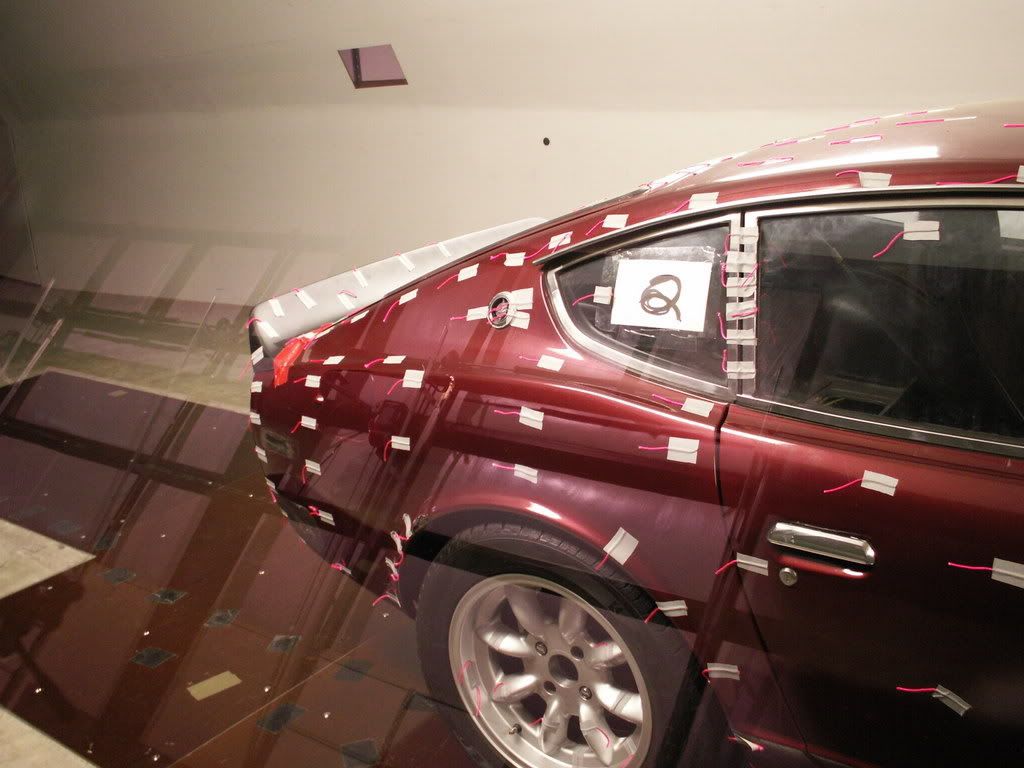

The red Test Mule in the tunnel - Test #2
Posted Image

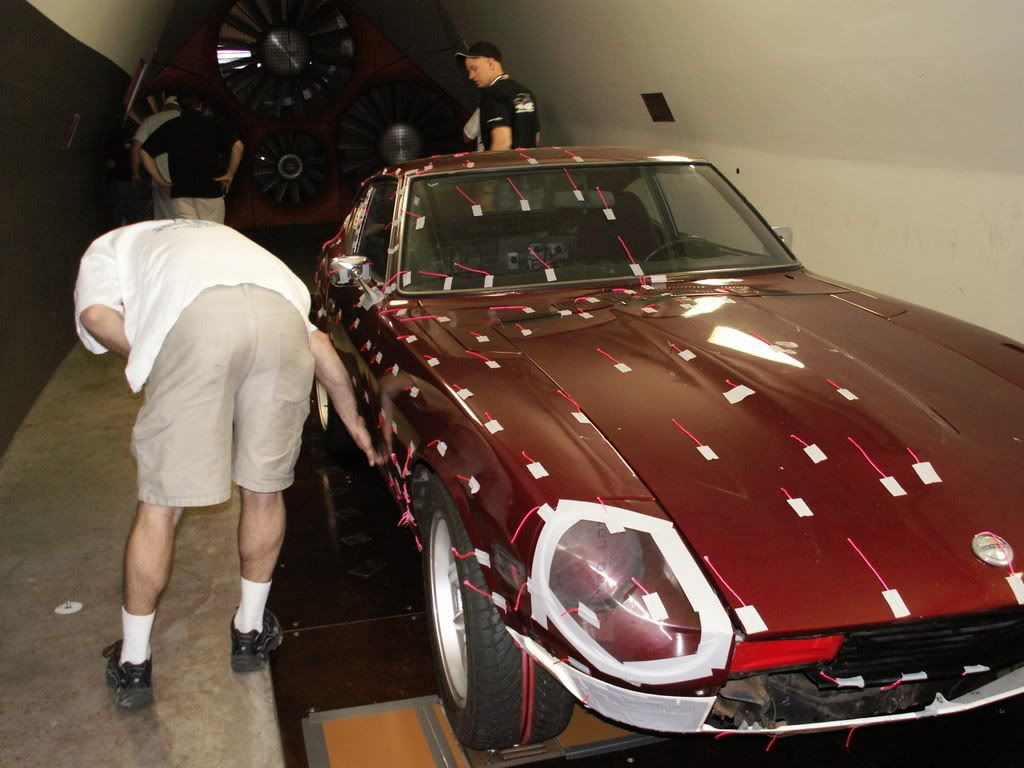

Headlight Covers - #3
Posted Image

16inch wheels - Test Number 5
Posted Image

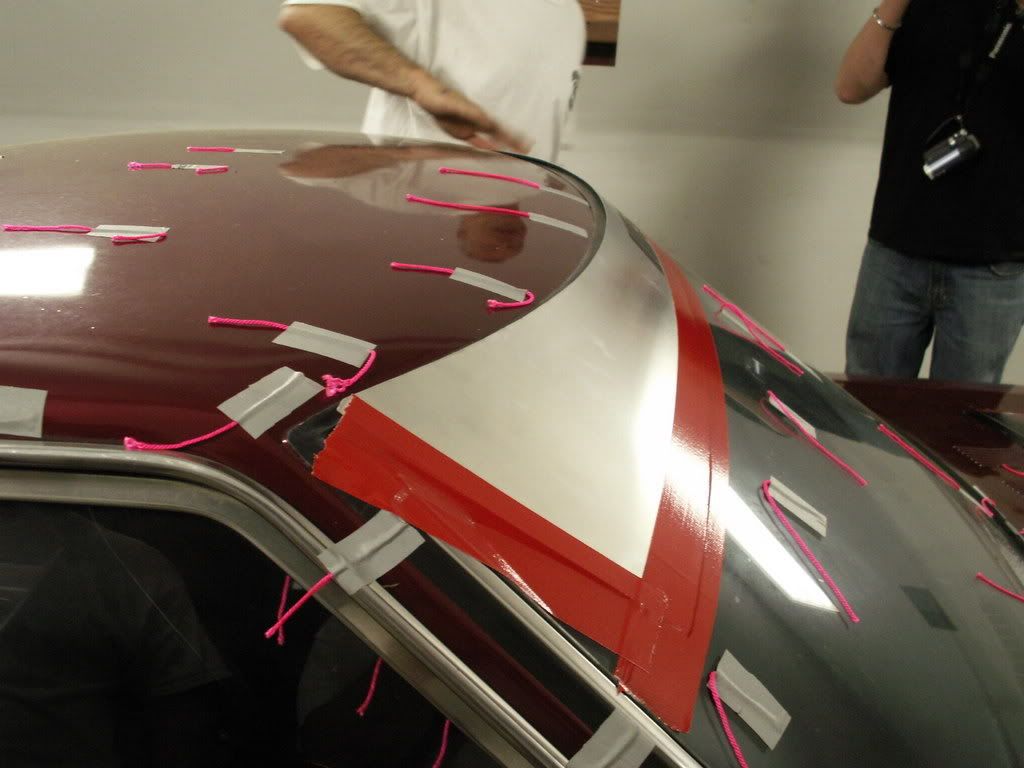

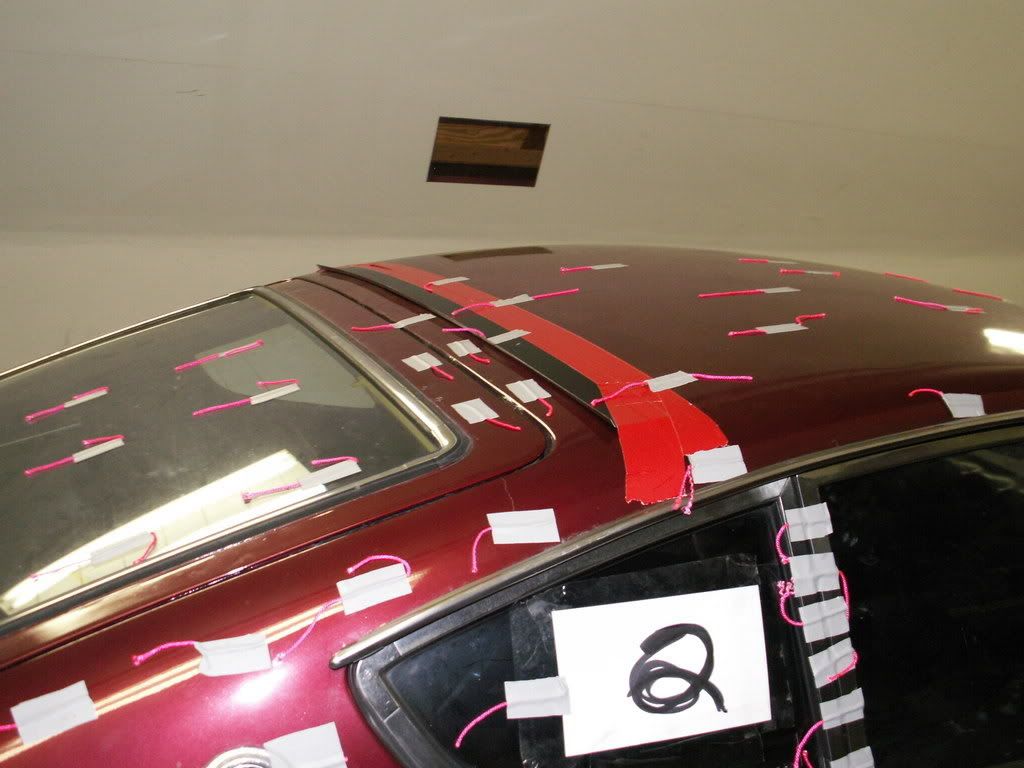

Rear Hatch Trip Strip - Test #7
Posted Image

Windshield Trip strip -Test #8
Posted Image

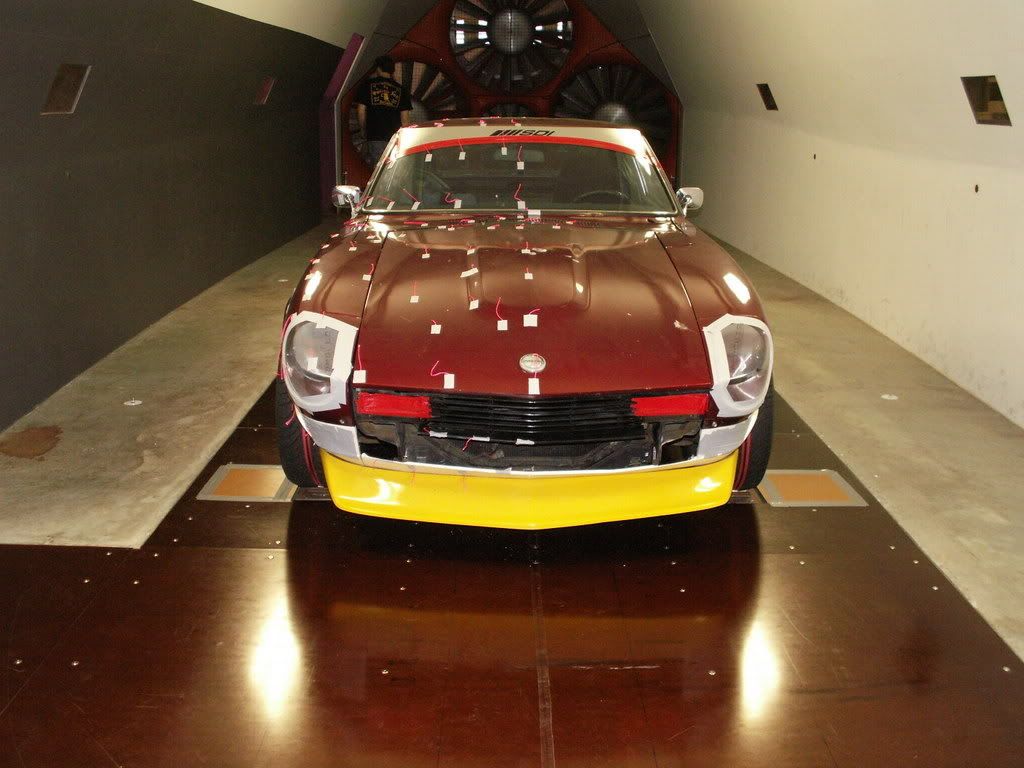

BRE Chin Spoiler - Test #9
Posted Image

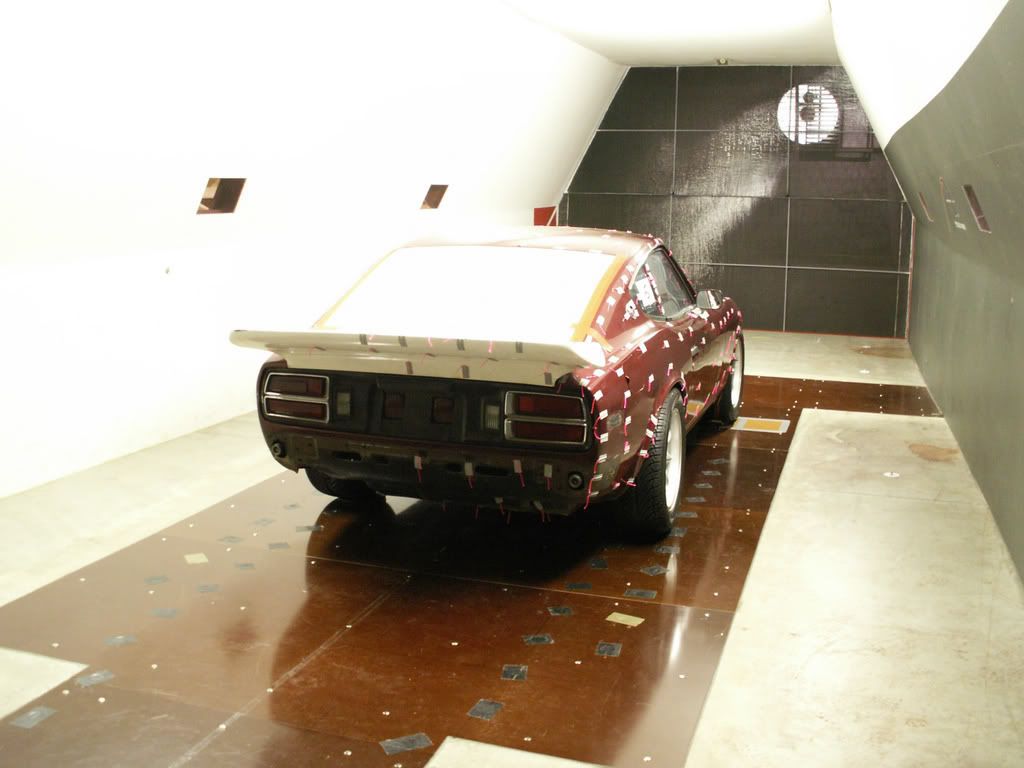

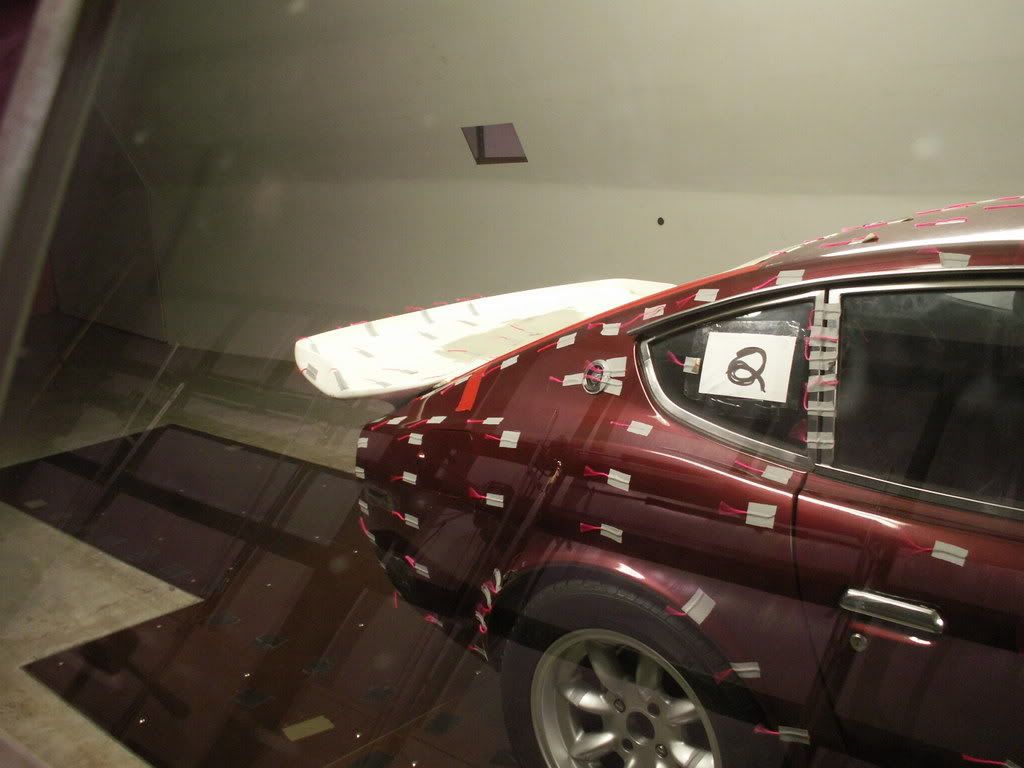

Whale Tail Spoiler - Test #10
Posted Image

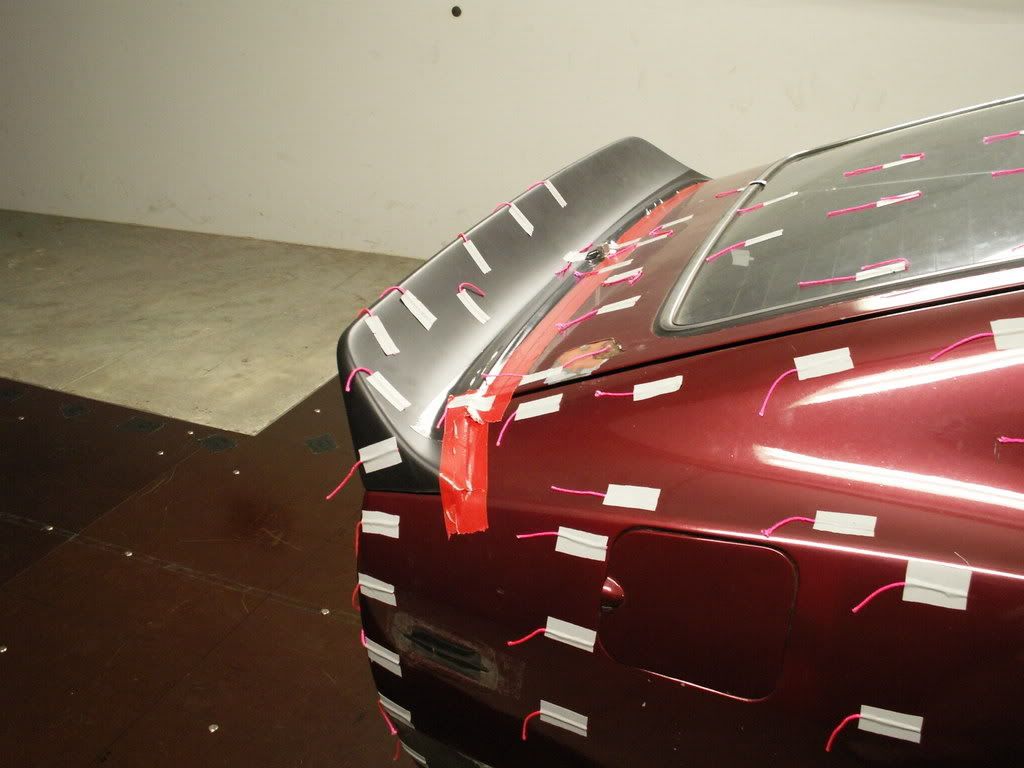

MSA Short Spoiler - Test #11
Posted Image

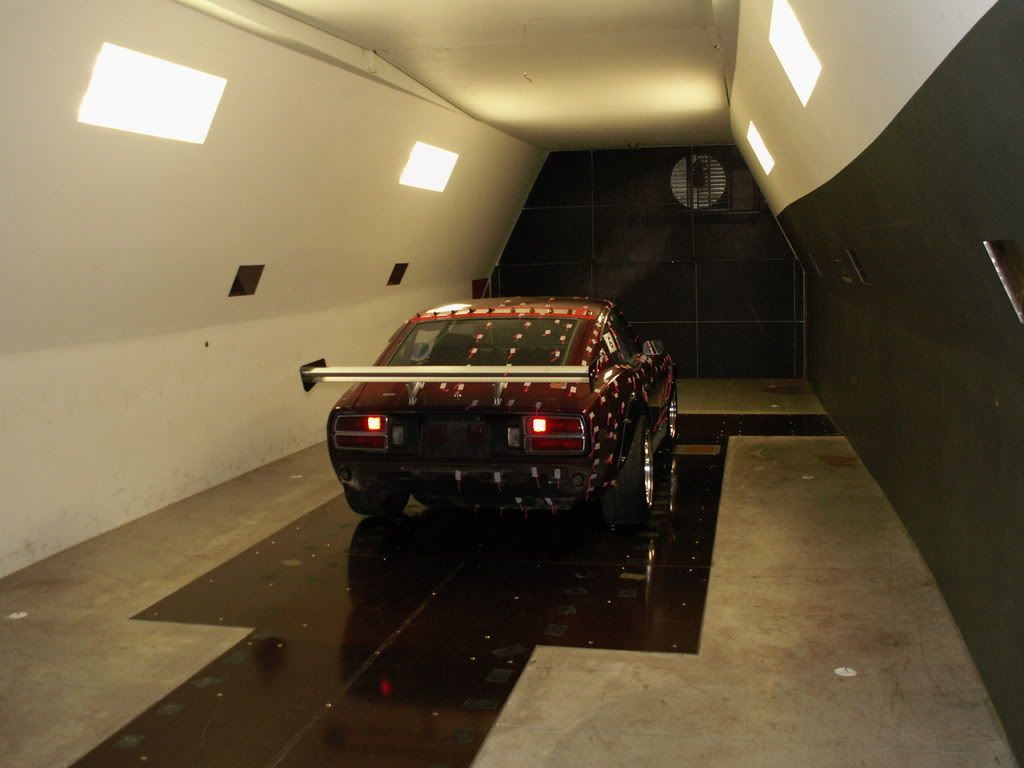

5.25 Tall Spoiler - Test #12
Posted Image

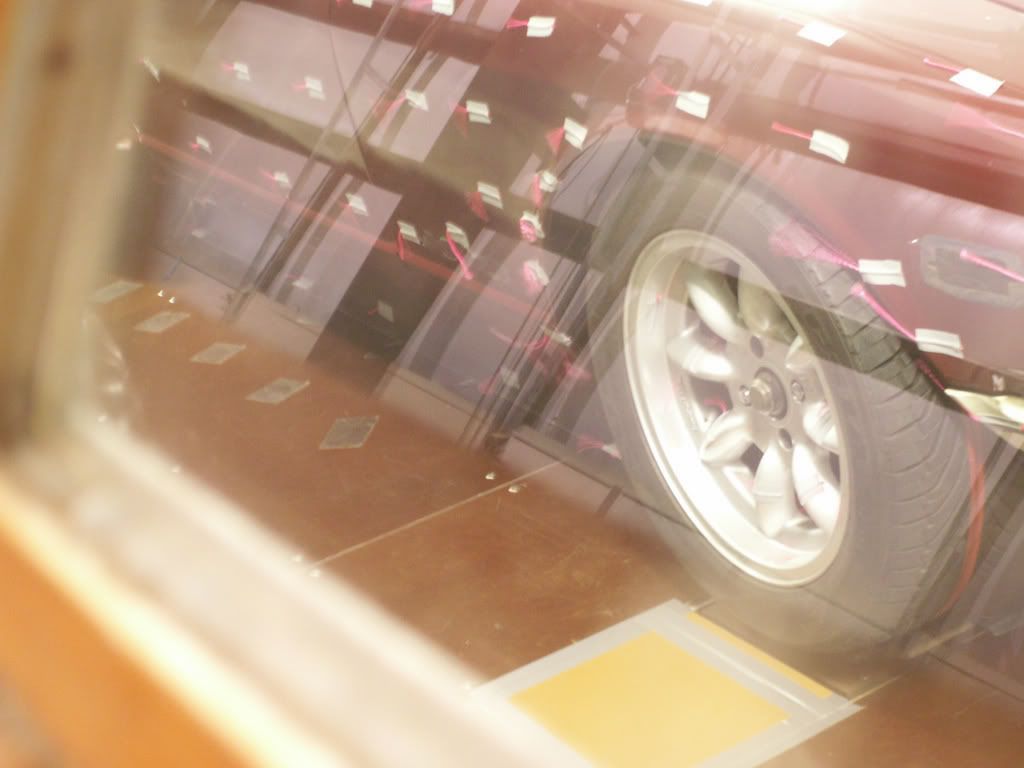

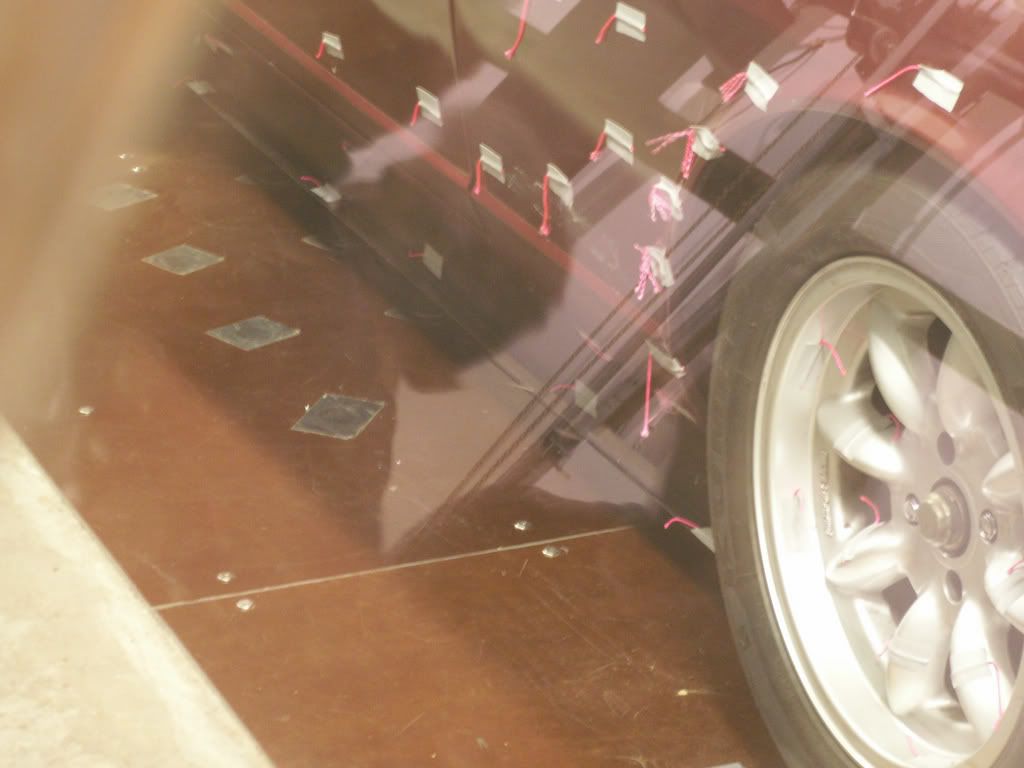

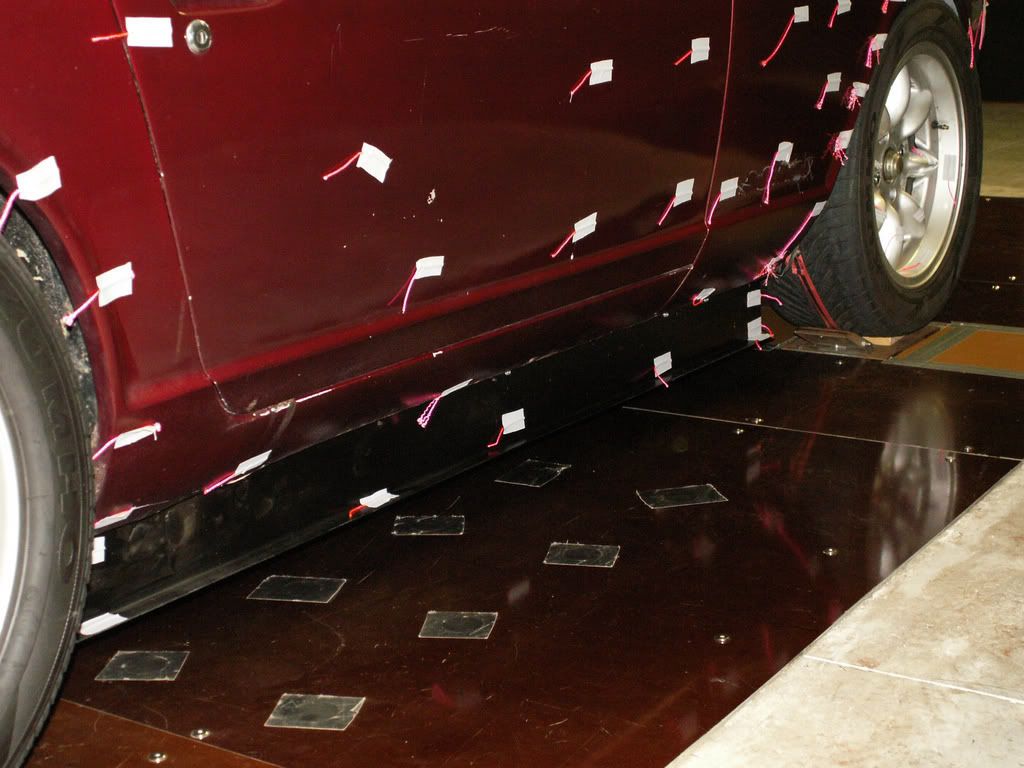

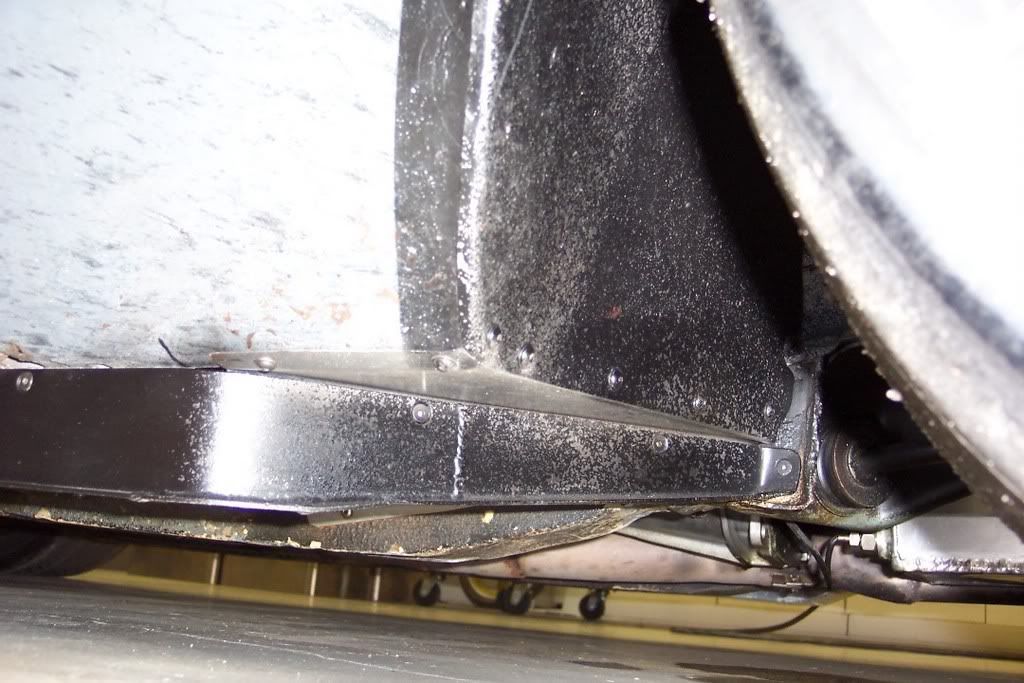

SDI - 4inch side skirts - Test #13
Posted Image

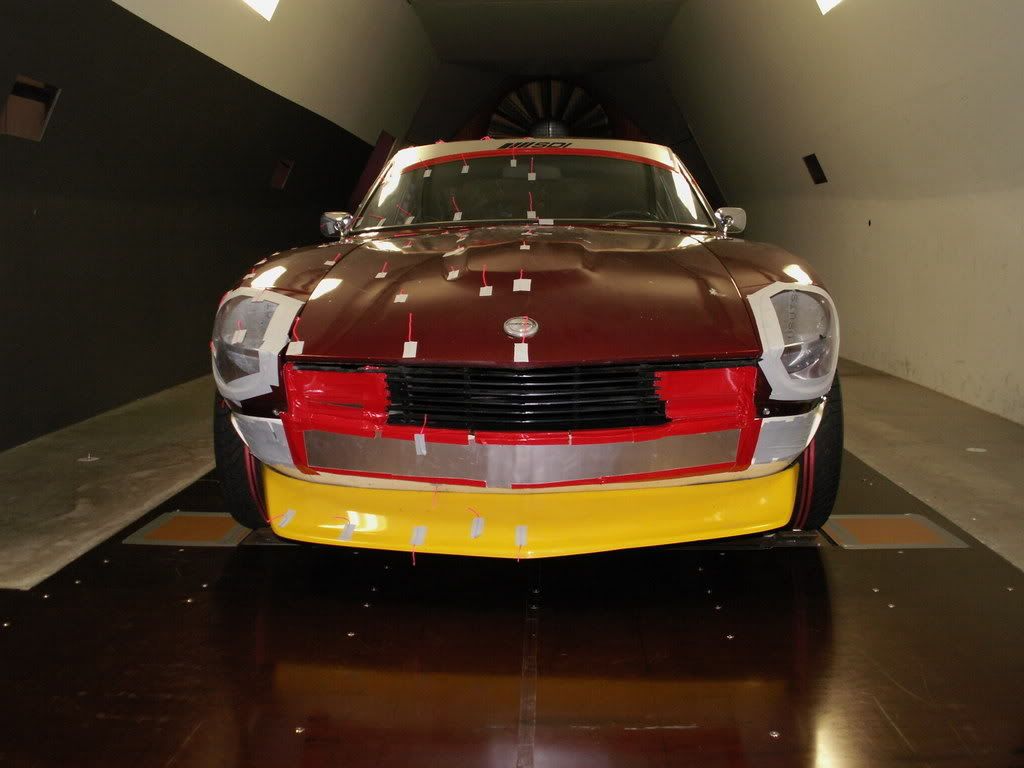

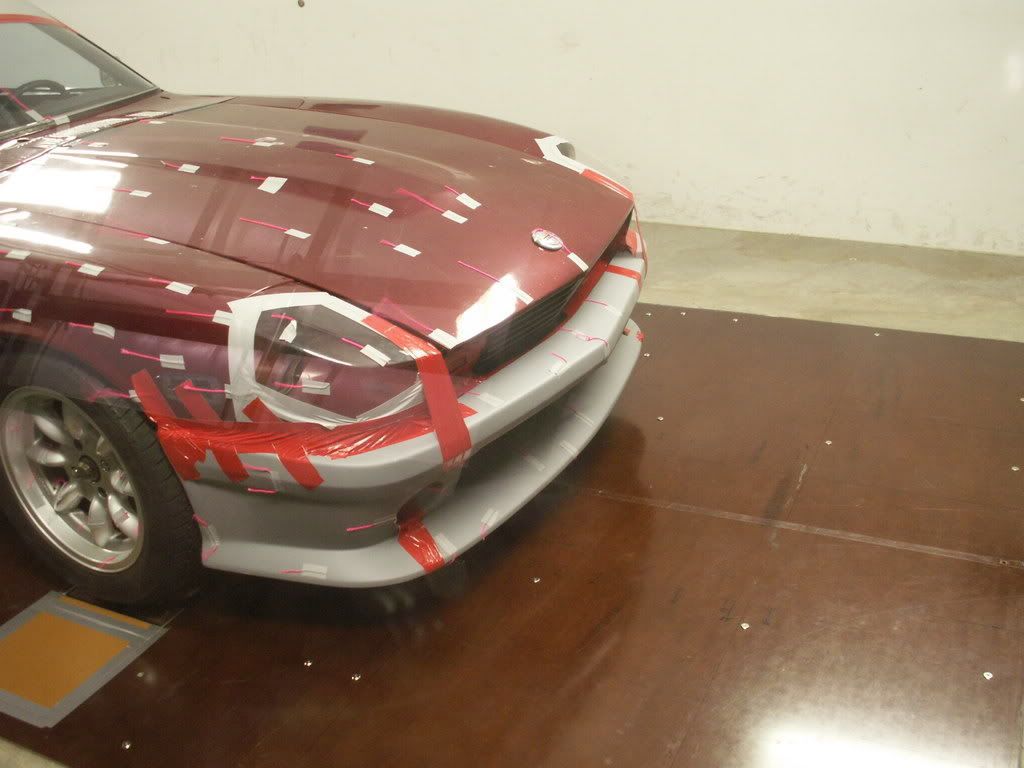

Blocked off lower Spoiler Opening Test #14
Posted Image

Edited by RTz, 27 November 2009 - 02:38 PM.


#3 Mikelly

Mikelly

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPipPip
  • 6285 posts
  • LocationVirginia, United States of America

Posted 13 February 2008 - 03:04 PM

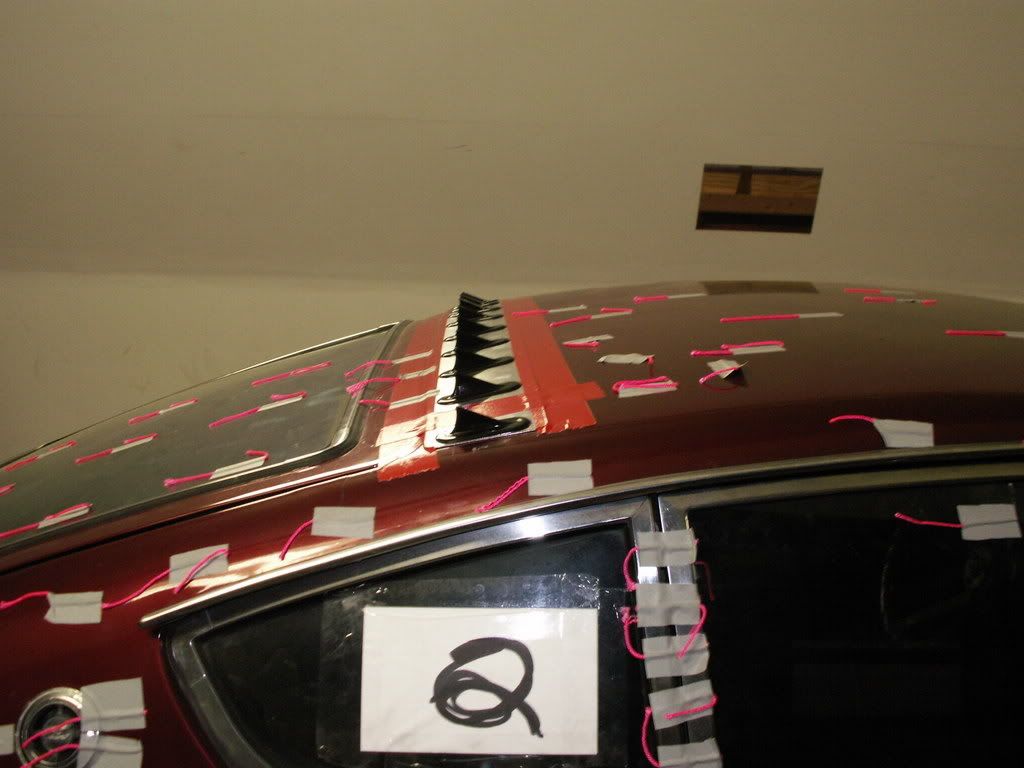

Added Vortex Generators - Test #15

Posted Image

MSA Type 3 - Test #16
Posted Image

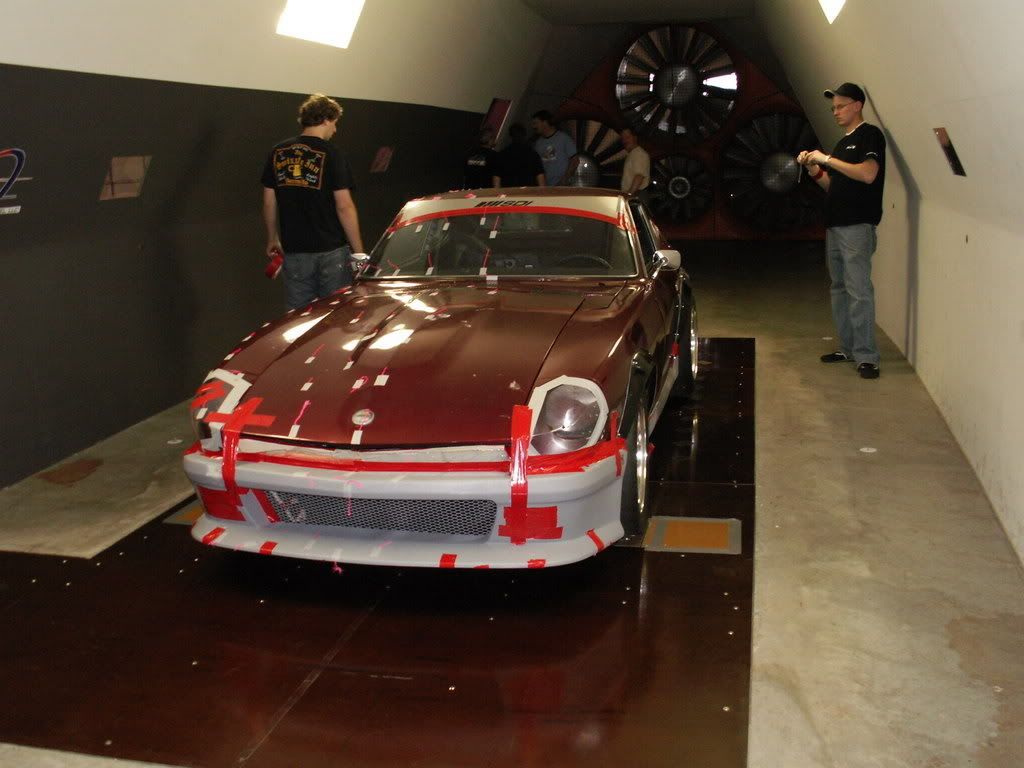

Blocked upper grill - Test #17
Posted Image

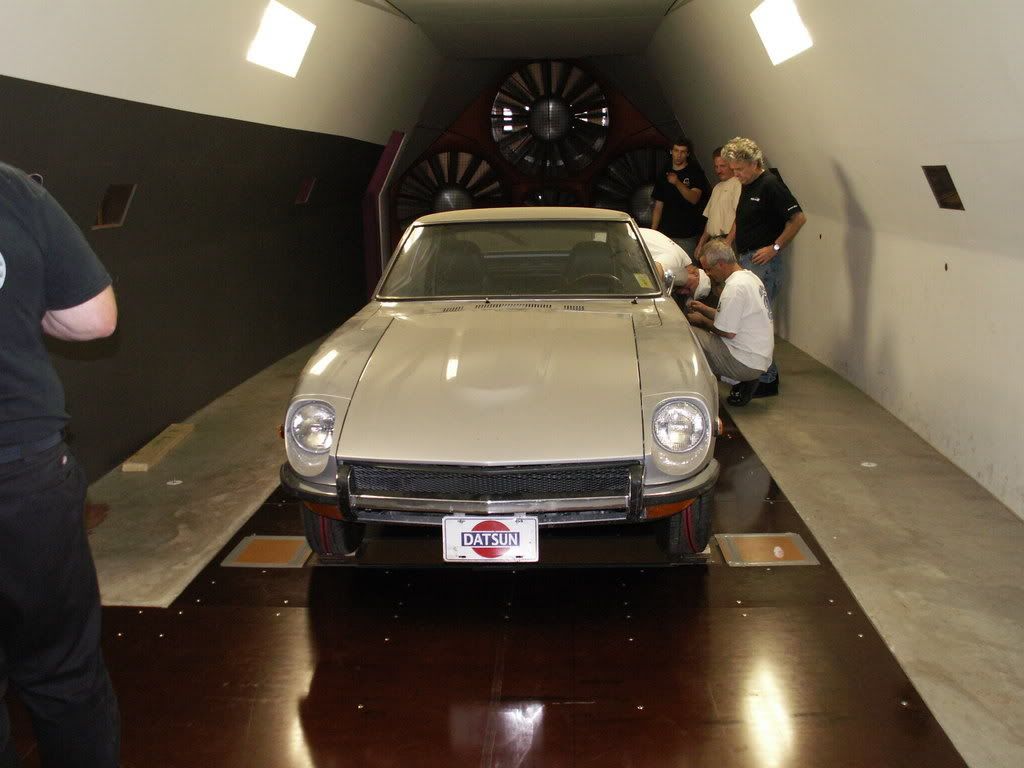

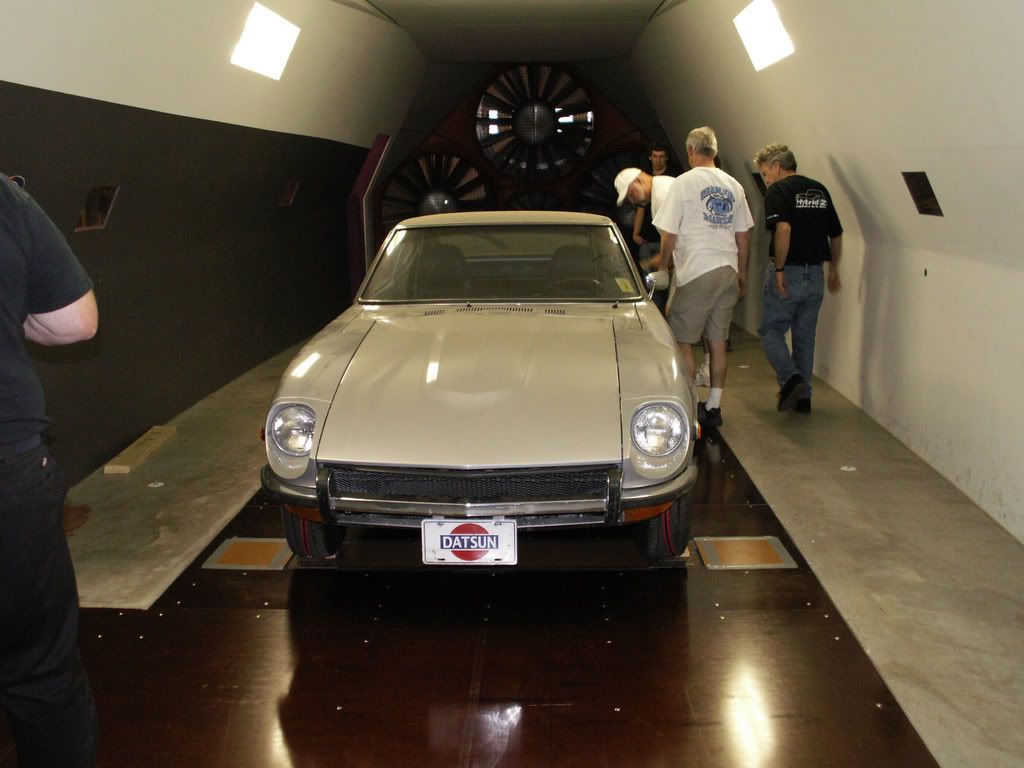

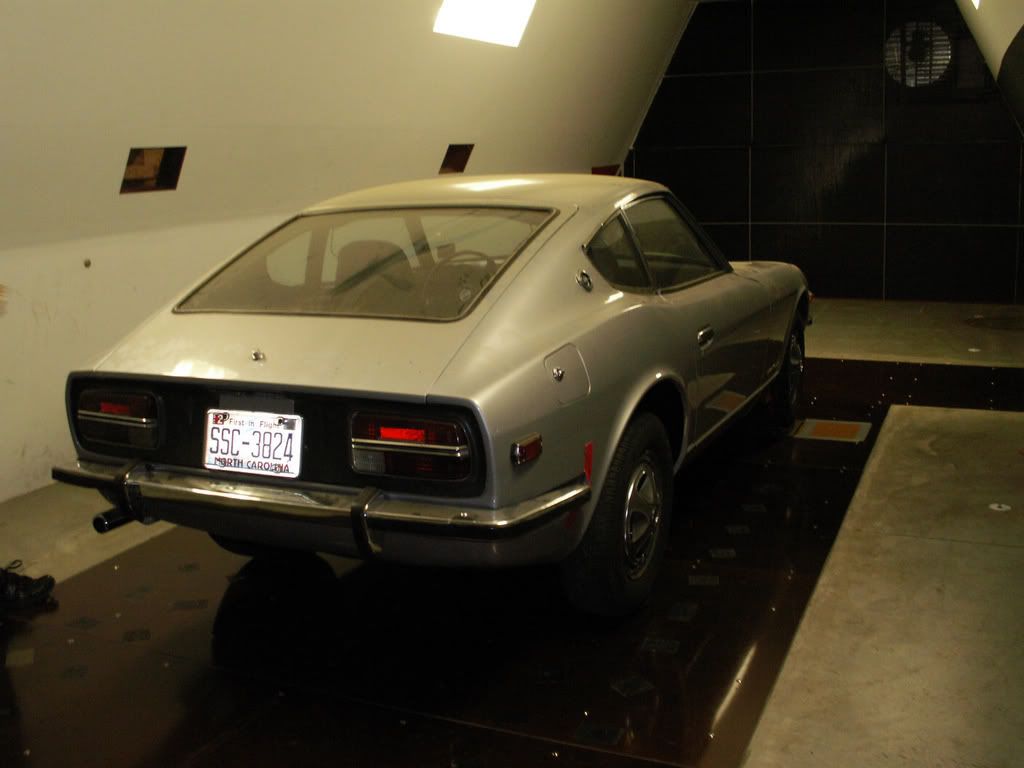

Base model 240Z - Test#19
Posted Image

Posted Image

Test Mule with Flares - Test #21
Posted Image

Test Mule tests - #21-23 settings...
Posted Image

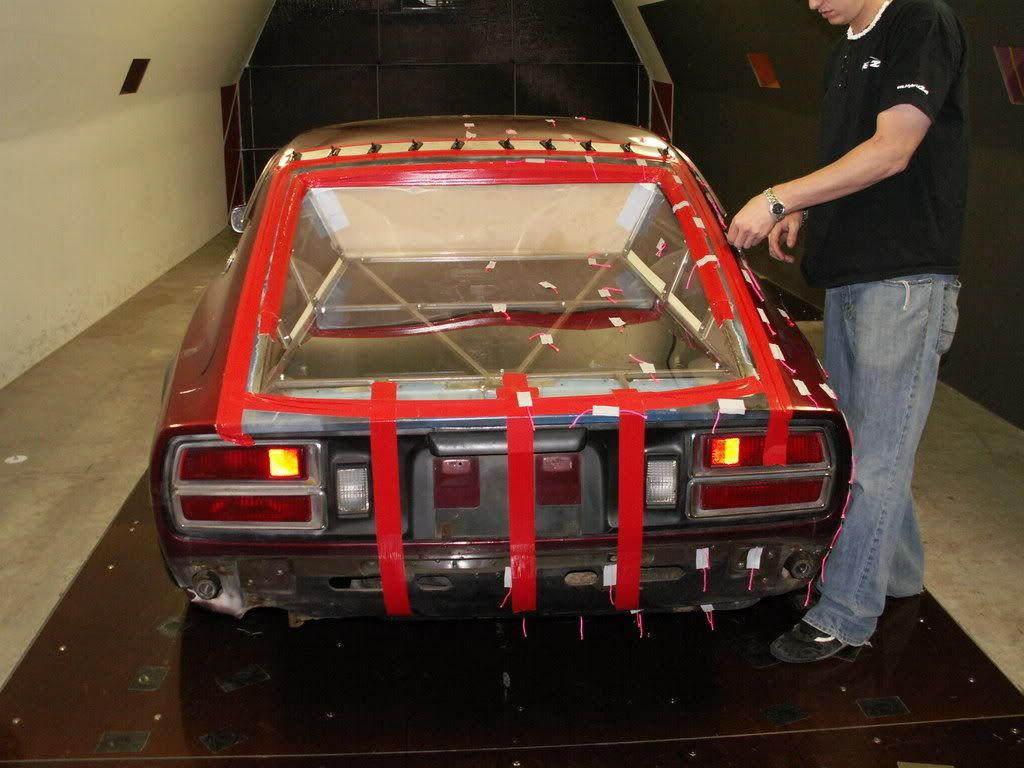

Pantera Hatch - test #24
Posted Image

Edited by RTz, 27 November 2009 - 02:47 PM.

Follow me on FB at Mike's Hobby Shop!



I will not be a spectator in the sport of life!
mjk 1994


#4 Mikelly

Mikelly

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPipPip
  • 6285 posts
  • LocationVirginia, United States of America

Posted 13 February 2008 - 03:17 PM

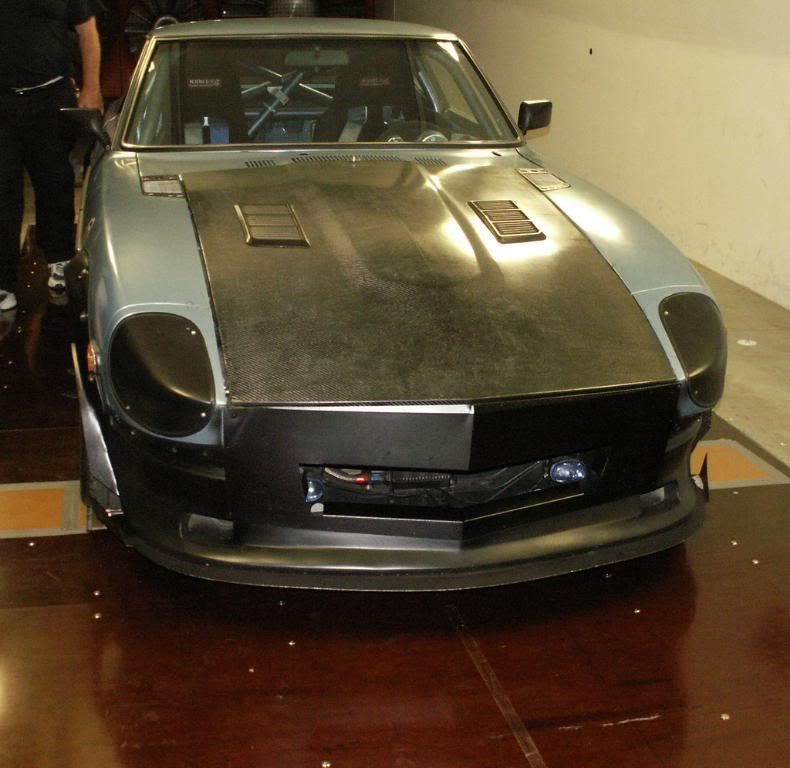

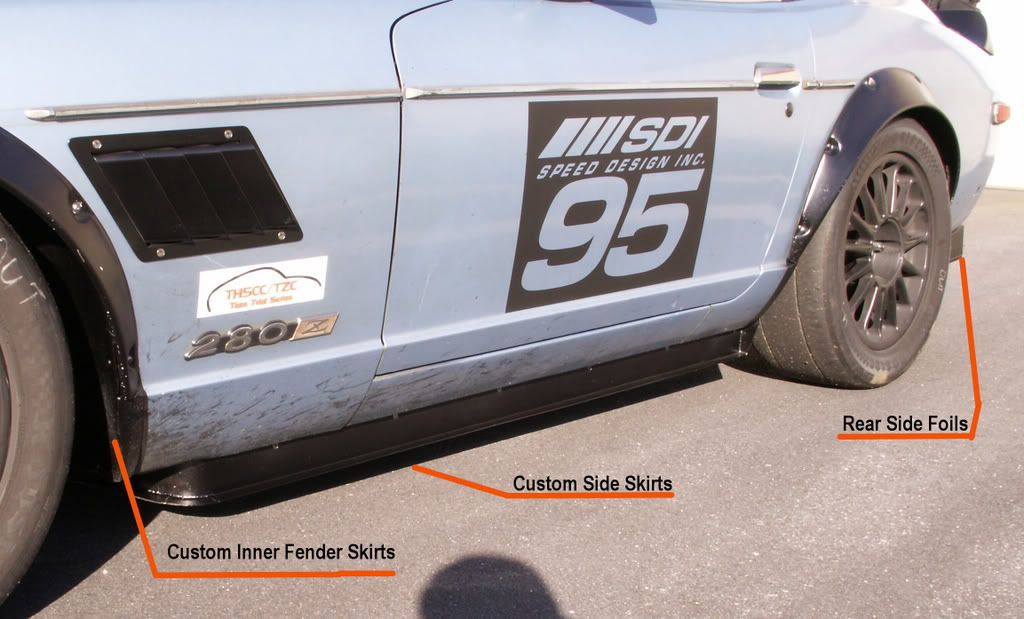

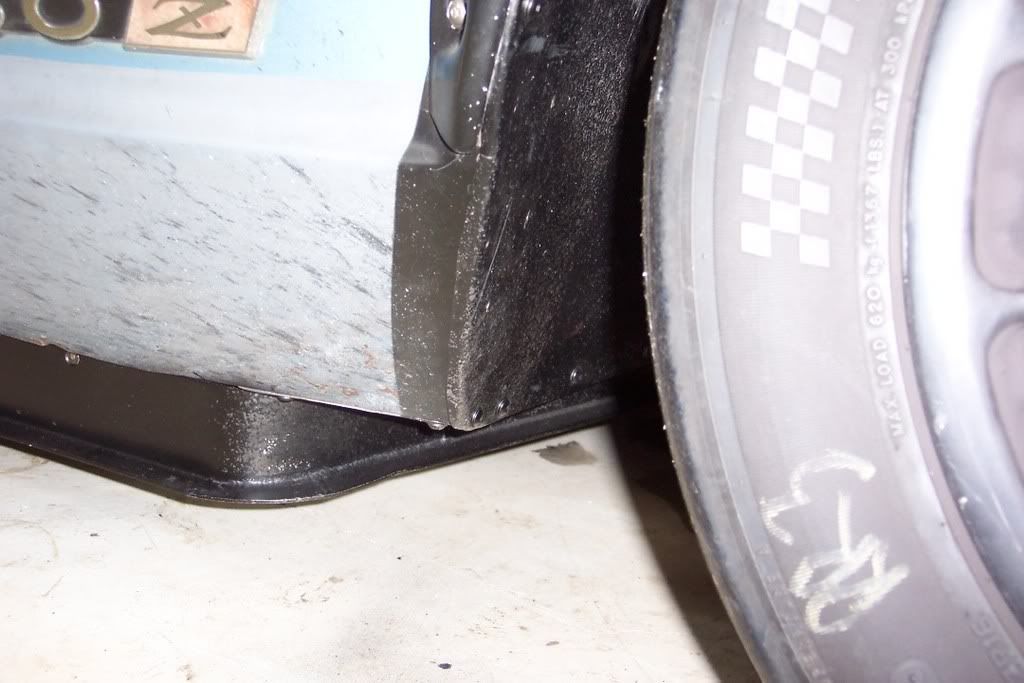

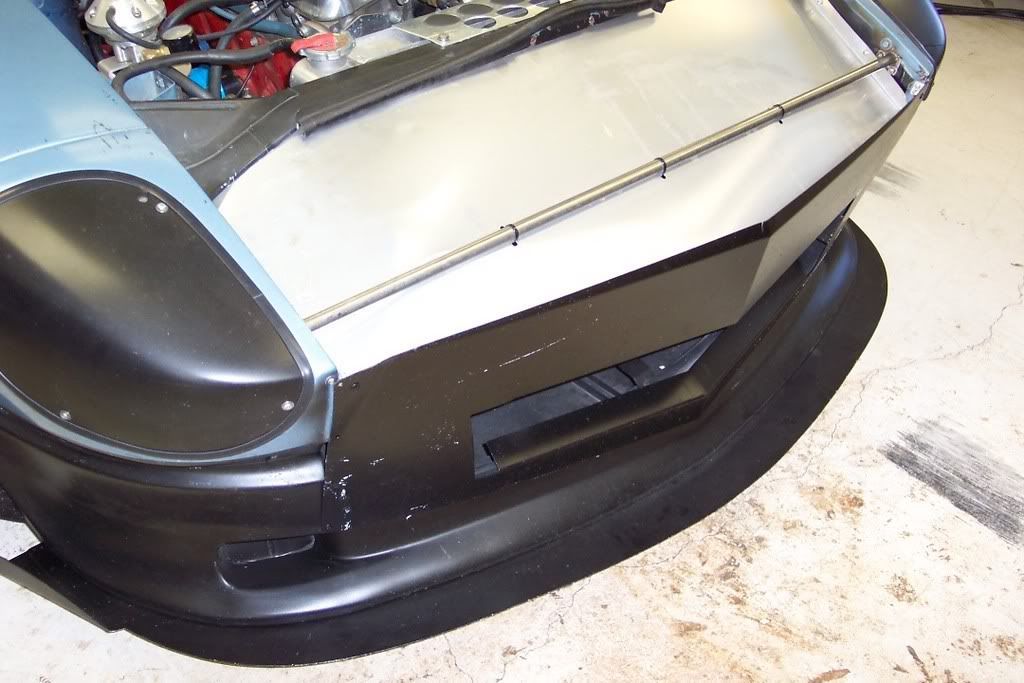

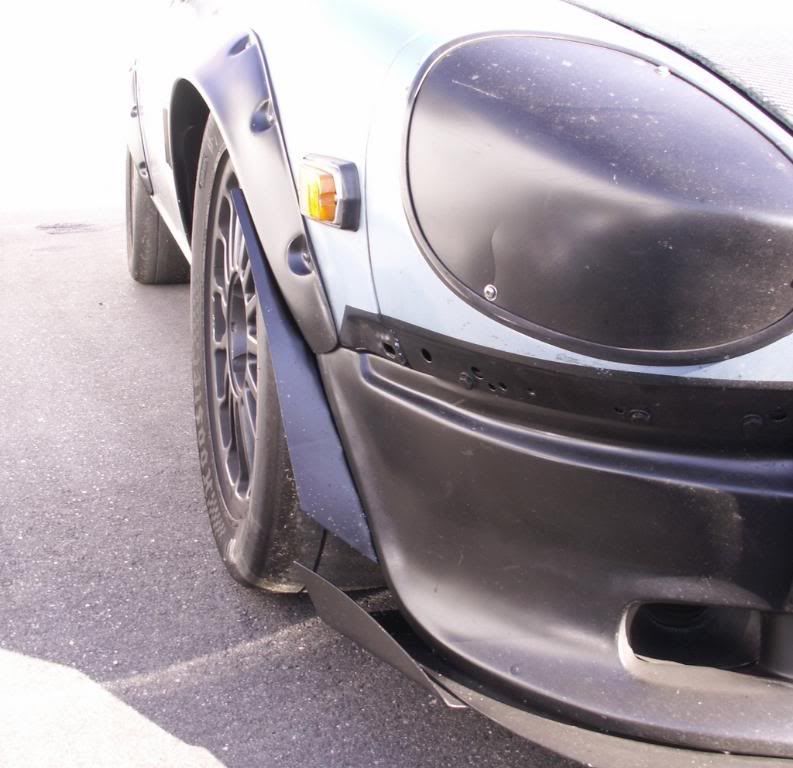

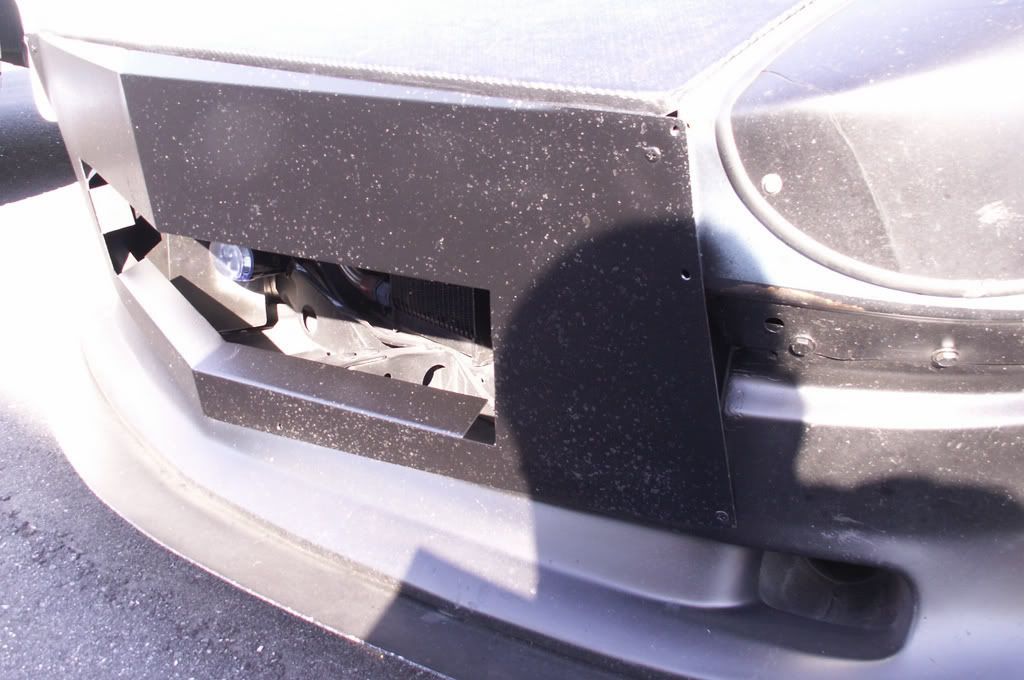

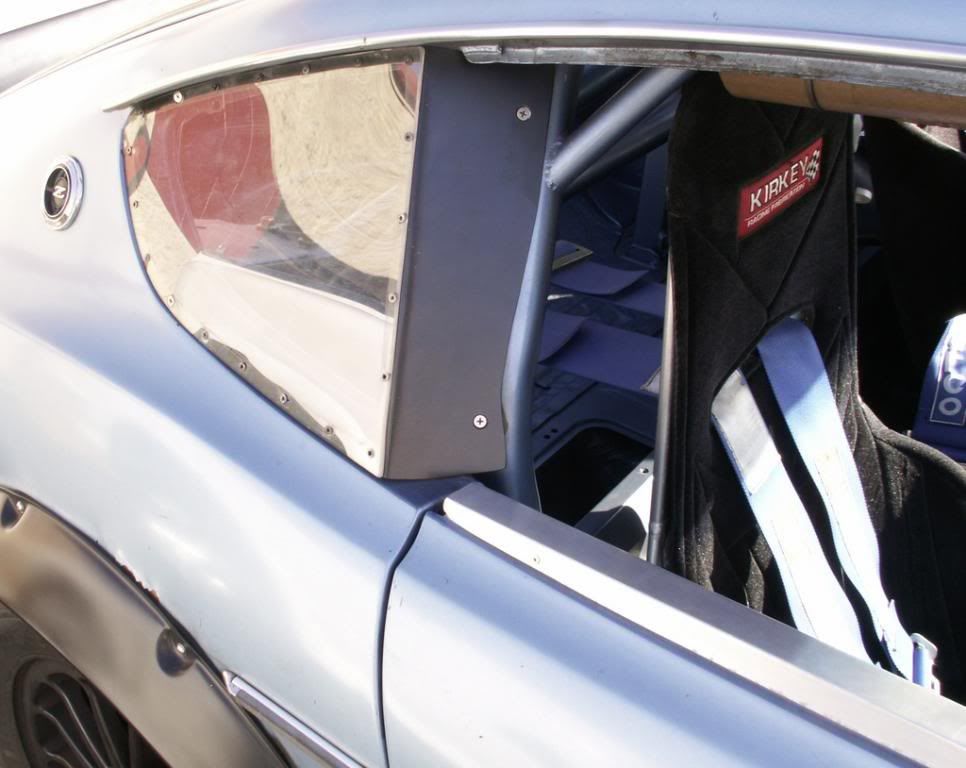

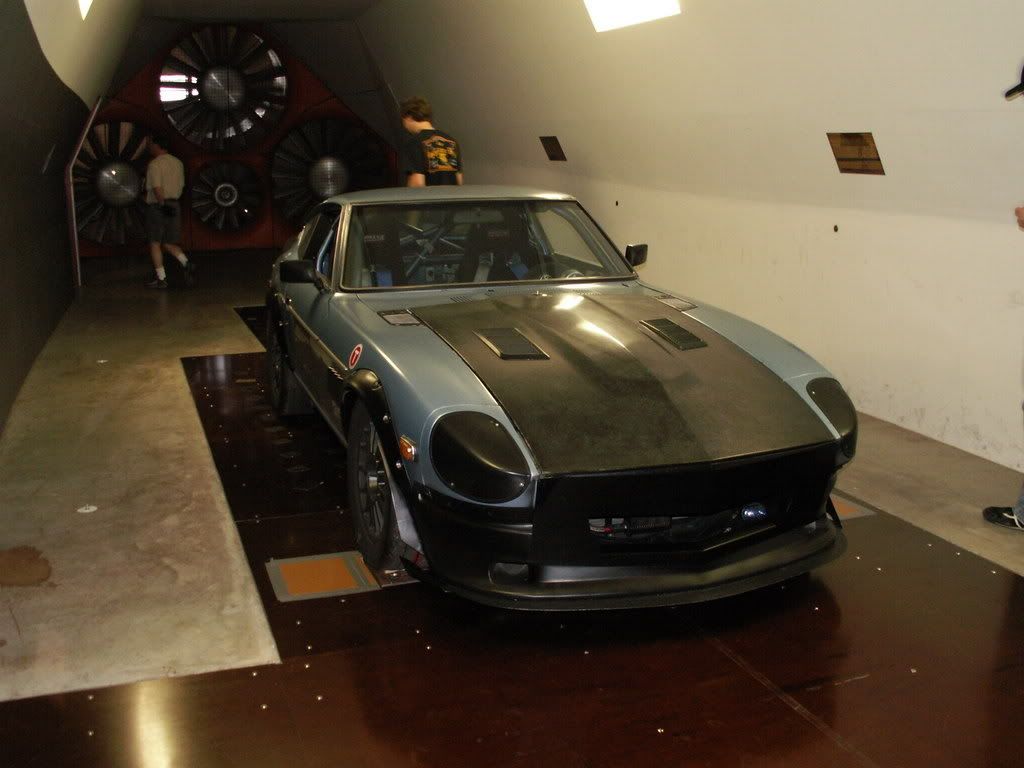

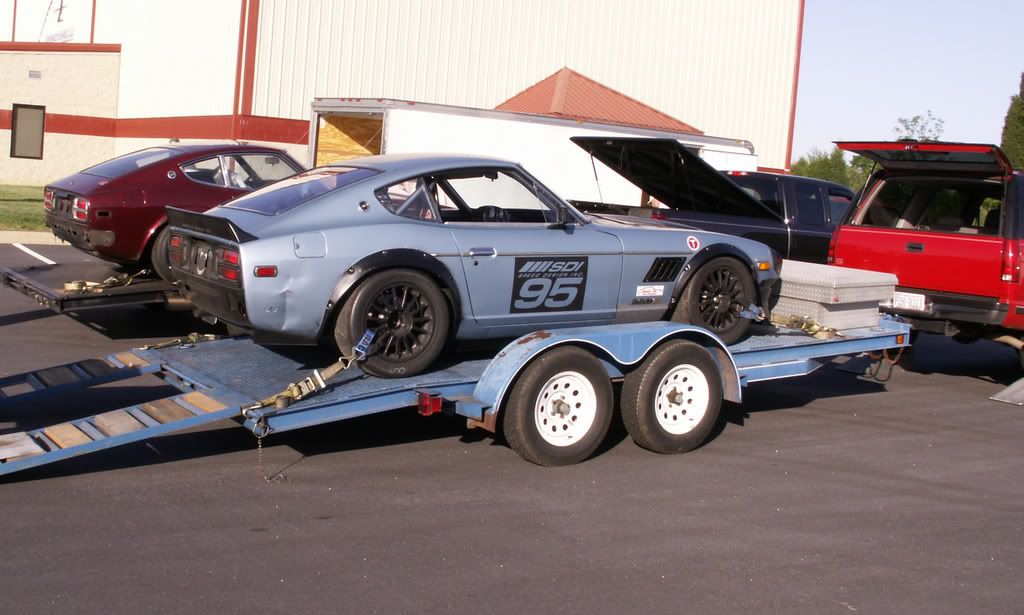

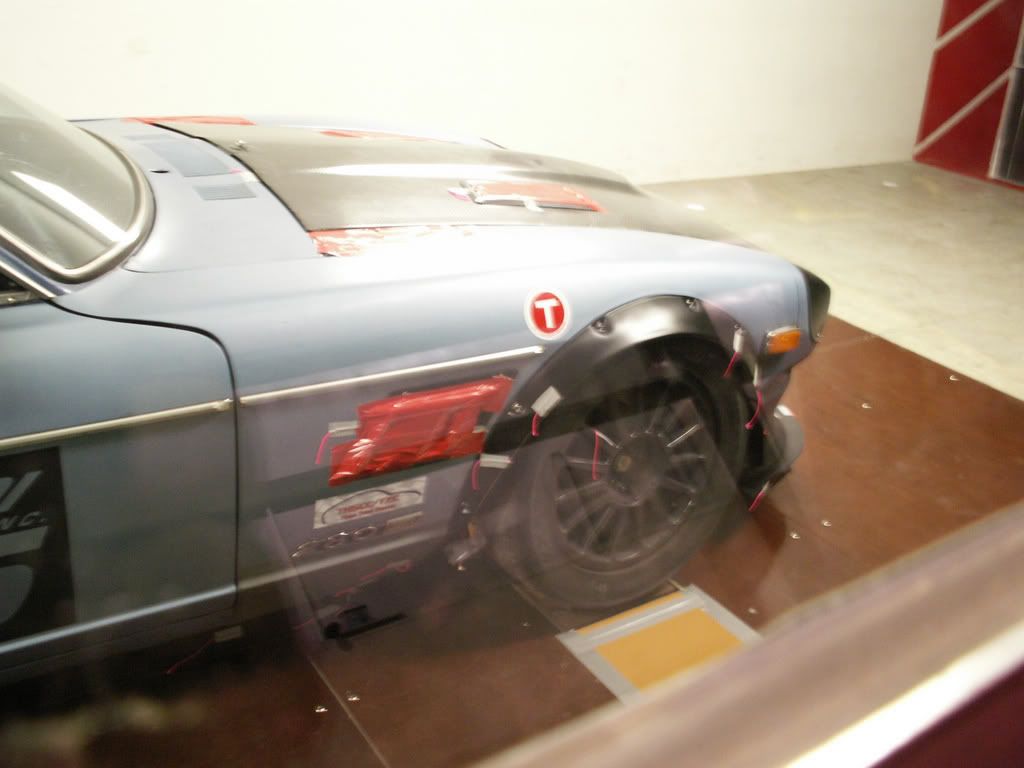

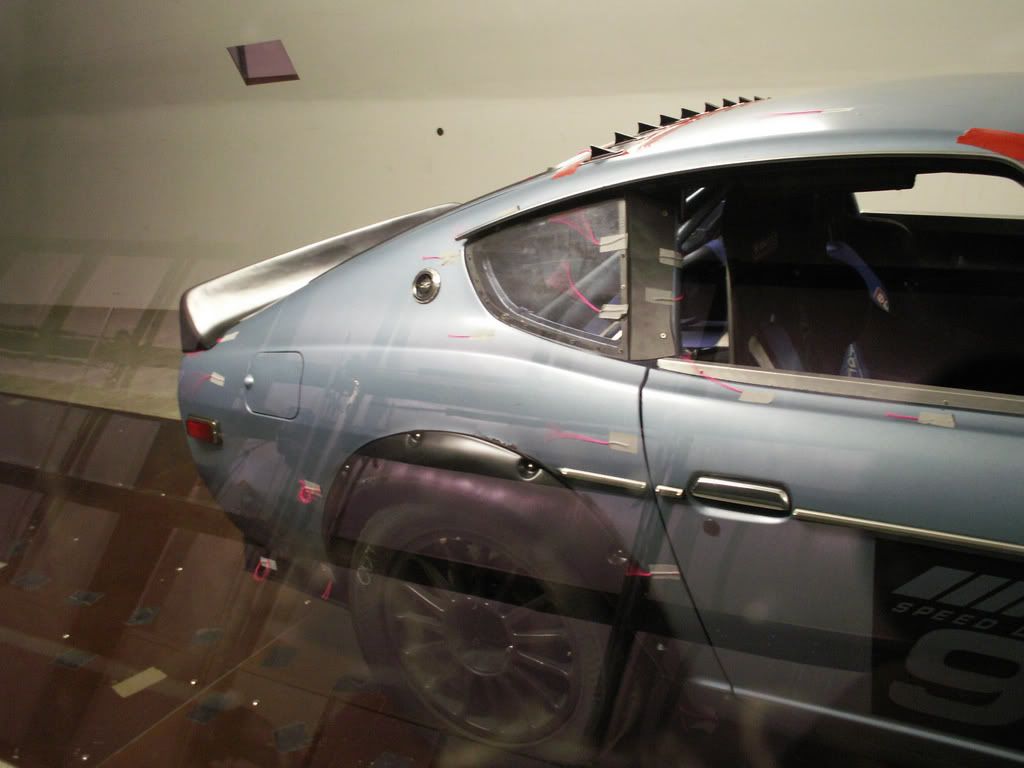

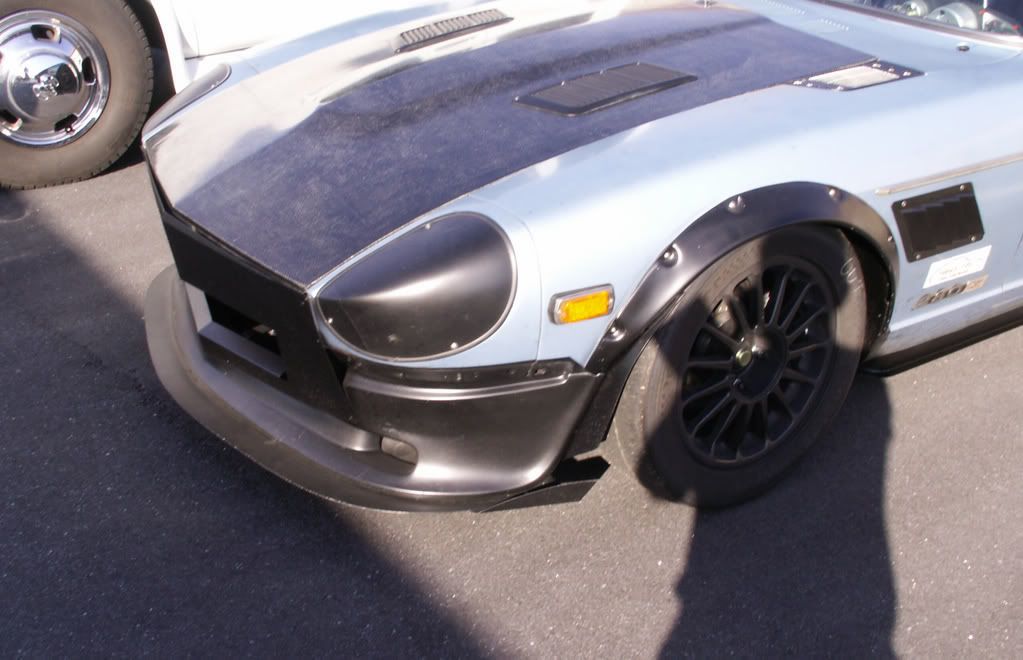

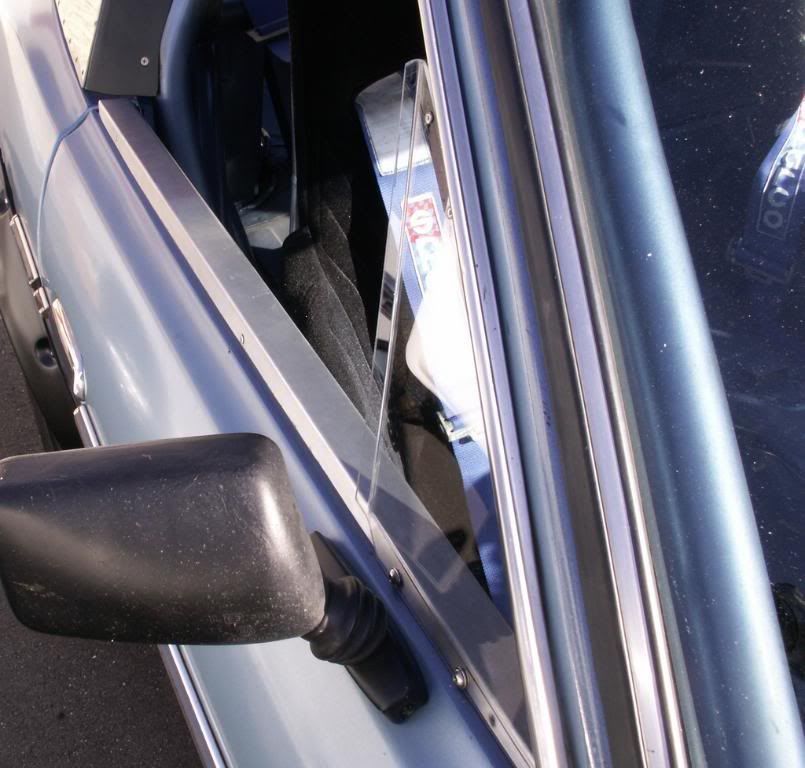

Tests #25-28 are the SDI Blue Zcar of Roddy Sugg.

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Edited by RTz, 27 November 2009 - 02:54 PM.

Follow me on FB at Mike's Hobby Shop!



I will not be a spectator in the sport of life!
mjk 1994


#5 JMortensen

JMortensen

    Retired Admin.

  • Donating Members
  • PipPipPipPipPipPipPipPipPipPip
  • 12432 posts
  • LocationSeattle area, WA

Posted 01 December 2008 - 11:19 PM

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image




Got you covered Mike. I started a new photobucket album which I don't intend to use, just to host these images. I then fixed all the links, and also posted more pictures which were on Mike's site but were not posted the first time around. If there are more pictures you would like to send to me, I'd be happy to post them all. You have my email.

Edited by RTz, 27 November 2009 - 03:09 PM.

Jon Mortensen, owner/operator www.petdoorstore.com
