This guy saved me some heartache. My setup -Stock 1jzvvt Inlet, outlet and TB locations -2.5" Boost piping, 3" inlet piping -Black silicone couplersrs -27x12x3 CX racing Intercooler. 2.5" inlet and outlet -2.5" Elbows for intercooler (with this setup, they are perfectly aligned with the fresh air vents in the core support, no modification needed) -Various reducers and couplers to cope with the fact that literally EVERYTHING is a different size. the only two that are uniform are the turbo inlet and the TB which are 2.75" -Crappy blue 3" filter i had laying around Total materials purchased -24" Straight section of 2.5 -2.5" 180* mandrel bend x2 -18" straight section of 3" -3" 180* mandrel bend so far ive only used about half of the bends, i probably could have gotten away with a shorter piece of 2.5 and only 1 bend, but im glad i had the extra beaded sections A disclaimer, i cannot stand having millions of couplers, i think it looks like shit, so i broke out my tig welder and made these bitches solid, unfortunately, my aluminum welding skills still require some work, so theyre not as pretty as i would like, but for a pretty much first time, theyre turning out well. i will post pics of them completed when i have them finished up

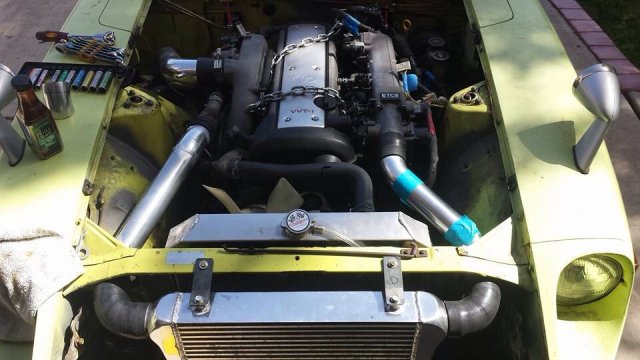

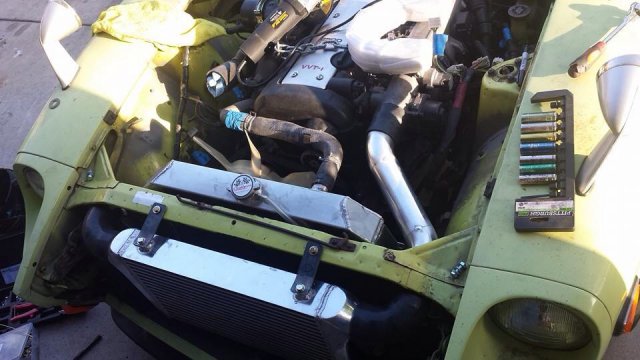

I got my hot side pipe tacked and mocked up. my 90* coupler for the Inlet should be here tomorrow, and then I'll mount my filter and maf and get my intake made and I can get everything welded up I also modded the outlet of my radiator to point straight backwards instead of turning up. It would have contacted the fan the way it was so it will work much better this way. I got my radiator hoses sorted as well. This week I thi k I will tackle the wiring debacle and figure out what to do for my heater.

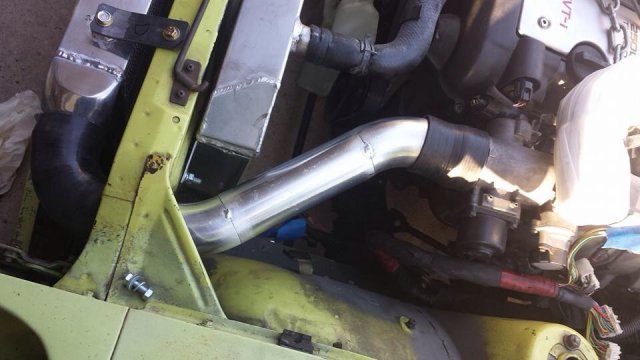

Here are the pics that it wouldn't let me attach on my phone. Also, something worth noting, the upper radiator hose off the 1j is damn near a perfect fit, but about an inch too short on the radiator side, Lower needs some modification because the fan is incredibly close to the lower outlet...

I got some work done today -Driveshaft measured and is currently being made at my driveshaft shop, unfortunately the stock driveshaft wasn't long enough to donate it's tubing and the stock celica driveshaft had a staked in u joint so I had to just buy a new slip yoke, but it's all sorted -I got my intercooler mounted up, it's got 3 mounts and is very sturdy -started on my ic pipes, got the cold sie pipe tacked together, up next is the hot side and the Inlet and then I can get everything finish welded

De struck. yes, trans mount got made yesterday and today. it's kind of ugly but it does its job. I would be down but I don't have any notes to speak of, just a minor vvt wiring guide that I'm playing with. We will find out if it's enough soon I guess.

Sorry man, wasn't my trans.

small update, I've got the motor mounts built. This is after my first iteration, I had to re make the passenger side mount because I misjudged something and the motor ended up tilted, but they're done. up next o's the trans mount.

good to hear man, just out of curiosity, did you buy any parts from efrain at suspicious garage? he had mentioned someone in AZ doing the same swap.. do you have a build thread? i need some inspiration,,,

More text based updates. I'm terrible at taking pictures. I'll make sure to grab some next time I work on the car The l28 is out, I'm currently working on engine bay stuffs -removed the hood latch mount, and prepped some other holes to weld, which will happen next week. -reinforced the frame rails between the crossmember and the tension control rod box with some 1/8 stock on the top, inside and bottom. -I will be stitch welding the length of the frame rail seam and around the strut tower. Monday once I grind down the welds on my rail reinforcements and get my stitch welding done, real work on the mounts will happen

Block code will be on the opposite side from the head stamping(under the manifolds behind the PVC boss). If it says f54 you have an l28et

if youd be able to replicate it based off measurements, youre probably better off just fabricating one in the car with the motor in there and making it to suite your own needs . IIRC the frame rails are about 27" apart, but thats the only set info that i know of.

Well, my longtime belief that FedEx is the worst ******* company in the world has been verified. Somehow, they lost a goddamn oil pan, a big chunk of metal in a big box, nowhere to be found. luckily it was insured, i am getting a refund from the company and i am getting one locally tomorrow. its not in brilliant shape but it will do the job. I will probably clean it up tomorrow, and then i have 4 days of work, and ill be spending monday going on a long road trip with a buddy to pick up another car for him. HOPEFULLY, that means that Tuesday will mark the start of my swap. Current plan Day 1: -L28/5 speed out -1jz Mounts at the very least thought up, if not roughed in Day 2 -Finish mounts -paint engine bay -Measure and send out for a driveshaft -hopefully install the motor permanently Day 3 -Wiring Wiring Wiring -Build IC Pipes Hopefully that will cover getting the bitch running to get it out of my garage so the mini and my dads car dont have to fight over turf for too long. Most likely all the small shit will take a few days after that to get finalized, but we should be good to go. Im more than likely going to pick up a big brake kit for the front as well, you know, to not die. Im leaning towards a wilwood 4 pot setup that is sold by a relatively local company for too much money, but im a sucker for pretty aluminum calipers. The company also sells a Wilwood 4 piston vented rear setup that im really tempted to grab. Unfortunately that will require some thinking and an extra set of calipers on my part to get a functioning e brake. Or i can run a hydraulic e brake that i have laying around. the car wont be a drift car and im not a poser like that, so probably wont happen.

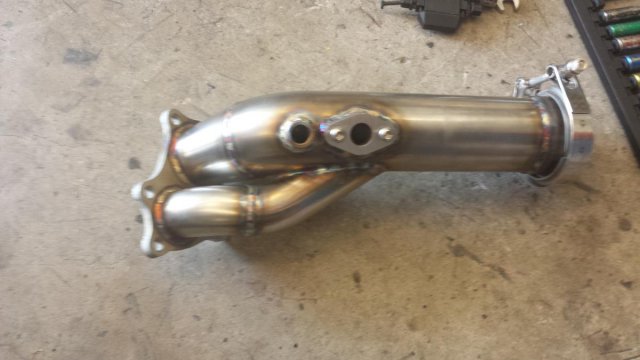

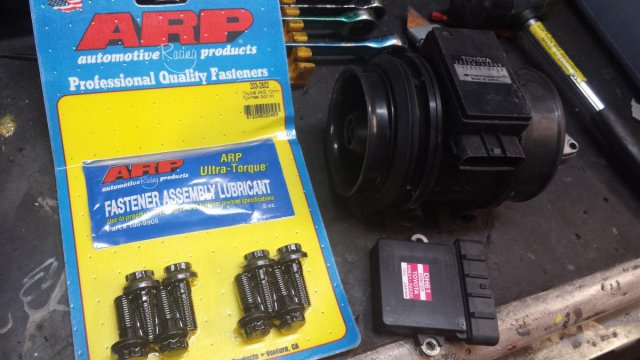

Well, the pan isn't here. so my plans of motor swappage are nill, I can't seem to get any real Info on where it is either. so we will see how that goes. In any case. my downpipe showed up, as well as my missing maf, ignitor and flywheel bolts. Time for my rant. I'm a bit annoyed at toyota, it appears that they could not for the life of them make all of the intake attachments a common size MAF inlet. 3" MAF outlet. 3.25" turbo inlet, 2.75" turbo outlet, 2.25" throttle body. 2.75" I got bad info on the turbo inlet, and didn't have the maf when I ordered my couplers, so I've had to get two more separately, it was quite frustrating.

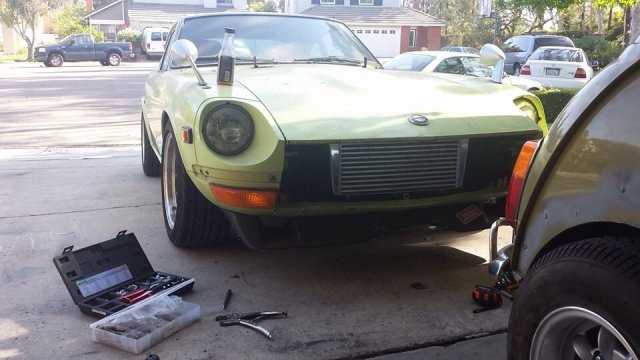

I went off of a single picture i saw in the "post your intercooler setup" that looked like it fit like a glove, With two 90* silicone tubes on the inlet and outlet line up almost 100% perfectly with the existing holes in the core support for the fresh air vents. looks like ill need to either delete or relocate my horns to get it into my desired position, and it will be a perfect fit. Doesnt quite fill the grille like the NPR IC i used on my ET build, but it looks good. A few more parts showed up today Spec Stage 2 clutch, 310 Ft LB capacity (2jzGE clutch) AEM UEGO the last coupler i needed (got bad info on the size of the turbo inlet, i should have measured but i wasnt home at the time) Pressure plate bolts. I MEANT to order the Stage 2+ clutch, which has a 350 FT lb capacity, but i noticed after i ordered it that it was the 2, i tried to change the order but by the time Customer service got back to me, it had shipped. i Figure that in a nearly 1000 LB lighter car, 310 Ft lbs will be more like 400 Ft lbs, so ill be alright, In any case, the Used flywheel i got has a lot of heat spots, so this is more of a temporary solution anyway, i will upgrade to a better clutch and a lighter FW in the future. ALSO, My Rear sump oil pan and new downpipe should be here tomorrow, That makes wednesday my designated "rip this bitch apart and make it fast" day, plan is currently just to get the L28 and 5 speed out, and get the motor mounts made. The rest of the bits should fall into place fairly quickly thereafter destruck, thats funny, gotta love spare parts.

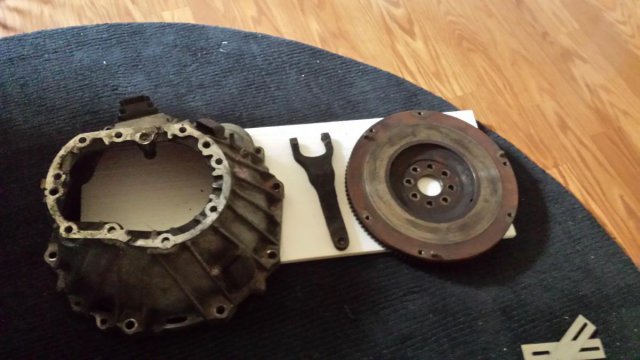

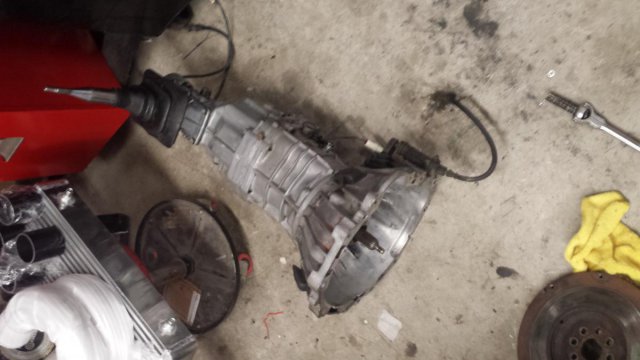

I got my intercooler, piping, bellhousing and flywheel, mock up should come next week, then it's only a matter of time till I get to have fun with boost.

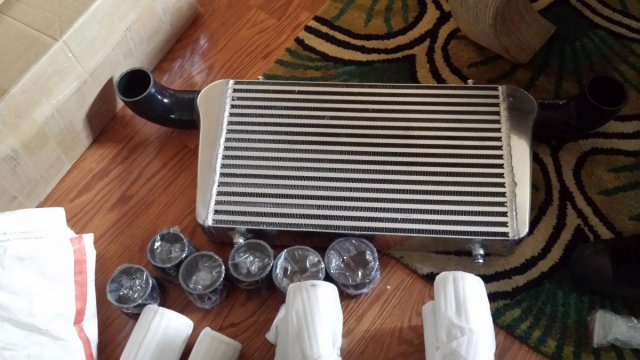

Alright, so money is mostly spent. Parts on order -27x12x3 CXracing intercooler (cheap, but i dun care) -a lot of aluminum IC pipe, silicon hoses and clamps -Spec Stage 2 2jzGTE (i meant to order a 2+, as the stage 2 only has a 310 ft lb capacity and the 2+ is 350. Hopefully i can exchange it, as it hasnt shipped yet, but if not ill deal with it. Some other things i need to get, which i will order in the next few days -Exhaust bits, mostly a V band to hook up to that downpipe, probably 8 ft of straight pipe, a UJ or two, and some sort of muffler, we will see... -Somesort of wideband and gauge, probably going to go for an AEM UEGO.

I thought so, how do you have that thing running? In any case, i have a small update, Tax refunds are evil, mostly because im literally about to spend all of it, and i just deposited it into my account. Parts to come. IC and piping, Clutch kit and exhaust bits.

Destruck, you bought my l28et off me didn't you? The car literally has every techno toy suspension piece on it, however I don't think I'm going to be doing the miata suspension, and if I do it won't be any time soon, if it does happen literally everything will be for sale. Sig is pretty out of date ATM.

Somehow I knew you would be the first to respond to this daniel, lol. the fmic and the downpipe are going to be the only mods for now, maybe a bit more boost but the ecu and that crap is going to stay completels stock. I need moarboost lol
