LMoore56 Posted April 6, 2014 Share Posted April 6, 2014 A 351W / 5.8L will clear the hood, you just have to lower it down a little. I'm going to be running a 387 Clevor in mine. A 3.85 stroke with a standard bore, Boss 302 pistons and heads, with the Edelbrock intake to match, then a 750 Holley, and long tube headers that have reworked to clear my frame rails. Quote Link to comment Share on other sites More sharing options...
yellowoctupus Posted April 6, 2014 Share Posted April 6, 2014 (edited) Old school cool with the Clevor. I thought about it on my Mustang, but figured they'd hurt my tight engine bay worse than the stock heads do already. I didn't realize Edelbrock was making a manifold for the old Cleveland heads. What's the advantage of the Cleveland heads over say the GT40's? Edited April 6, 2014 by yellowoctupus Quote Link to comment Share on other sites More sharing options...
LMoore56 Posted April 7, 2014 Share Posted April 7, 2014 Well the GT40's have smaller ports and valves. They are 1.84"/1.54" where the heads I'm going with have or are going to have are 2.19"/1.73". I have one set of Boss 302, one set Quinch 4V 351C, one set Open 4V 351C, and a couple of the 2 barrel heads. Then I have two sets of the forged TRW 10.5:1. and one set forged TRW 12:1 pistons. I've been sick for awhile, so I haven't had a chance to check the clearance on the piston skirt yet. If it doesn't, i'll buy a new set of SRP pistons for the Boss 302 that I've found. I'm going to use the 6.03" rods from the 302C from Austrailia. I have two sets of those, or I may buy a set of the 6.00" SBC H beam rods, and have my crank turned to match them. I want to check the clearance on the skirts before I buy any thing. My dyno program shows around 550hp & 540 tq at the flywheel. Quote Link to comment Share on other sites More sharing options...
amuscato77 Posted September 23, 2014 Share Posted September 23, 2014 (edited) Hey I just picked up a 351/WorldClass T5 combo for my 260z how did you mount the motor in the bay? did you go the SBF truck mount route? Or did you custom fab the mounts. EIther way very nice build and I can't wait to see more of it Edited September 23, 2014 by amuscato77 Quote Link to comment Share on other sites More sharing options...
LMoore56 Posted September 23, 2014 Share Posted September 23, 2014 Yes I used the 94 F150 sbf mounts with a custom fabbed cross member out of 1 1/2" x 3" tubing, the mounting points out of 1/4" plate. I have made so many changes, it's getting hard to remember them all. I just had Right shoulder surgery, so it's going to be awhile before I can get back,on the car, with too many health problems slowing me down. Quote Link to comment Share on other sites More sharing options...
Datsun#1 Posted November 6, 2014 Share Posted November 6, 2014 Nice Quote Link to comment Share on other sites More sharing options...

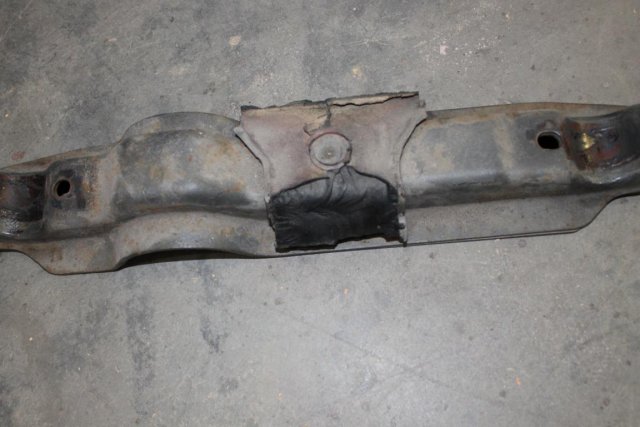

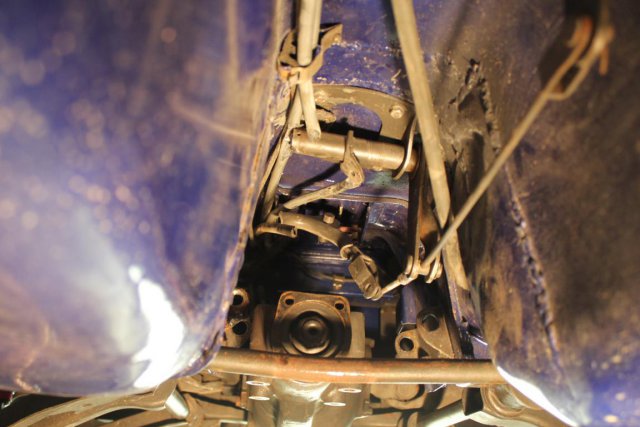

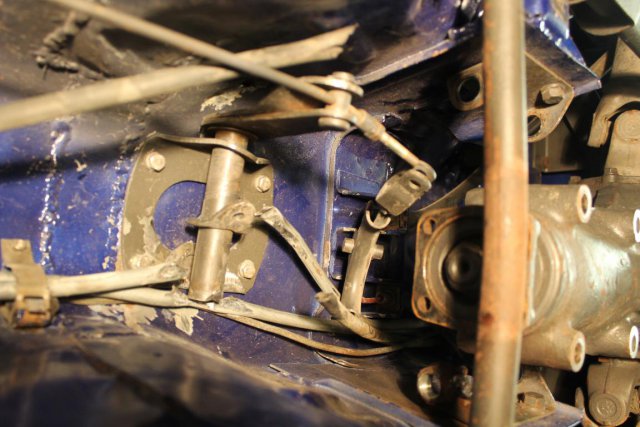

Ga. piddler Posted December 24, 2014 Author Share Posted December 24, 2014 Oops I keep finding weak spots. But I correcting them as they show up. Quote Link to comment Share on other sites More sharing options...
F240GT Posted April 23, 2015 Share Posted April 23, 2015 Another year down! lets see that Z! Quote Link to comment Share on other sites More sharing options...
F240GT Posted April 23, 2015 Share Posted April 23, 2015 I retract my previous statement. Didn't load but still would like to see where you're at. Quote Link to comment Share on other sites More sharing options...
fordfan882 Posted October 13, 2015 Share Posted October 13, 2015 Do you have a shot of each side? I currently have a 5.0/t5 in my z and i'm looking to go to a 351W (turbo)/4r70w. I am curios how much clearance there is on each side of the engine for turbo headers. Quote Link to comment Share on other sites More sharing options...
