p-factor

Headlight relay for 260-280?

Recommended Posts

The only upgraded headlight relay I've seen works only on the 240 with the square plugs. I already bought the H4 bulbs to put in the car but there's no relay harness available for my 260, and I can't even find instructions to wire them up on my own. Help?

Share this post


Link to post
Share on other sites

Get 2 bosch 30 amp relays and make your own.

A very basic and simple circuit.






That diagram will not work.

The 280Z headlights turn on and off the 12+ and switch the grounds for high/low, so you have a 12v input and 2 grounds, one for low and one for high. If you do that, the lights will never turn on because the relays need 12+ to activate and they only get ground.

Share this post


Link to post
Share on other sites

That diagram will not work.

The 280Z headlights turn on and off the 12+ and switch the grounds for high/low, so you have a 12v input and 2 grounds, one for low and one for high. If you do that, the lights will never turn on because the relays need 12+ to activate and they only get ground.



It's a Relay.

Use the diagram as a Guide. If you don't know how to wire it so it works.....

You need a basic education on electrical circuits. ;)

Share this post


Link to post
Share on other sites

It's a Relay.

Use the diagram as a Guide. If you don't know how to wire it so it works.....

You need a basic education on electrical circuits. ;)






Ya, I know. BUUUT I bet someone out there would try it and then say it does not work. There are some people that are completely clueless when it comes to electrical stuff. I have a friend who is a board certified Anesthesiologist who can not wrap his head around how to wire a light switch in his house.



So, I played with MS Paint

fixedheadlightdiagram.jpg[/img]



EDIT: While I am being so precise, I should point out the 12V on/off switch is the headlight on/off switch.

Edited by Geking

Share this post


Link to post
Share on other sites

I run an upgraded harness made by Dave. I got a 280Z. He has post available for the harness on ClassicZCar and I think on here as well. They cost a bit but are great and totally worth it you may need to supply him with the plugs though. I had both the Black Dragon one and Daves. Dave's is of higher quality in my opinion and is a direct plug and play.

Edited by Midnight-280Z

Share this post


Link to post
Share on other sites

I run an upgraded harness made by Dave. I got a 280Z. He has post available for the harness on ClassicZCar and I think on here as well. They cost a bit but are great and totally worth it you may need to supply him with the plugs though. I had both the Black Dragon one and Daves. Dave's is of higher quality in my opinion and is a direct plug and play.



Who the heck is Dave?

Share this post


Link to post
Share on other sites

Dave Irwin aka "Zs-ondabrain". He is an electrical guru when it comes to S30's. Dave hangs out on Classiczcars.com

Dave Irwin is Zs-ondabrin at classic zcars.com.

He can make a harness fo260 & 280Z. You just need to supply him with 3 plugs. He made a harness for my 76 280Z and it installed in about 15 minutes. It was extremely easy, no cutting or splicing was involved. The workmanship is excellent. He also makes a parking light harness and can refurbish turn signal/headlight combo switches at a very reasonable price.



The harness for 240Z's on the MSA site are made by Dave.



Dave Ruiz

Share this post


Link to post
Share on other sites

Just got the BlackDragon harness in the mail and I'm a bit dismayed that the plugs are totally incompatable and there's only limited instructions on the back of the box.

I'm going to keep it because I don't feel like sending it back and waiting but I have no idea where to start cutting and splicing. Hell, I don't even know how to get the darn headlights OUT.

Does anyone know of a link with specific instructions or care to help a new guy out?

Share this post


Link to post
Share on other sites

Just got the BlackDragon harness in the mail and I'm a bit dismayed that the plugs are totally incompatable and there's only limited instructions on the back of the box.

I'm going to keep it because I don't feel like sending it back and waiting but I have no idea where to start cutting and splicing. Hell, I don't even know how to get the darn headlights OUT.

Does anyone know of a link with specific instructions or care to help a new guy out?

I wired up some relays on my 240. No big deal. But...I had good advice from Dave (Zs-ondabrain) and others. I'd recommend you send the other one back and get the appropriate plugs and send them to Dave to make you a harness. Plan B would be to do it yourself. It doesn't sound like the kit you bought is worth keeping.

If you can't remove the headlights then you need a factory service manual or a Haynes manual before you go any further.

http://www.xenons30.com/reference.html

Share this post


Link to post
Share on other sites

Just got the BlackDragon harness in the mail and I'm a bit dismayed that the plugs are totally incompatable and there's only limited instructions on the back of the box.

I'm going to keep it because I don't feel like sending it back and waiting but I have no idea where to start cutting and splicing. Hell, I don't even know how to get the darn headlights OUT.

Does anyone know of a link with specific instructions or care to help a new guy out?



Under the fender there are 3(I think 3) screws (Phillips) that hold the bucket to the front of the fender.

Then there are (I think again) 3 screws that holds the chrome light retaining ring. Be careful as there are 2 other screws that if messed with will throw your headlight out of alignment.

Share this post


Link to post
Share on other sites

I know this is an old post but I did a relay mod today that worked. I wanted to use LED H4s but they were internally restricted to low beam OR high beam. The 78 280z doesn't turn the low off when high beam is selected so I did a two relay mod that corrected this. worked out great.

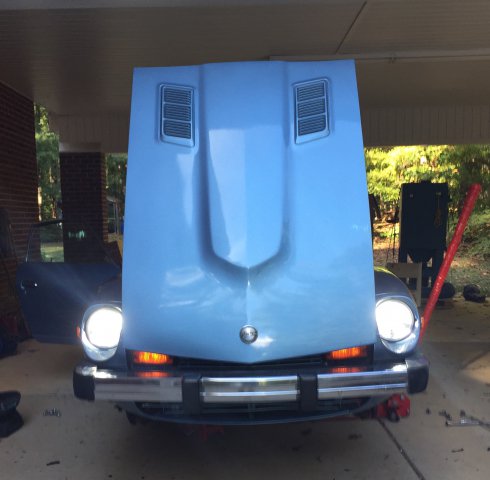

78 Z headlight mod1.jpg

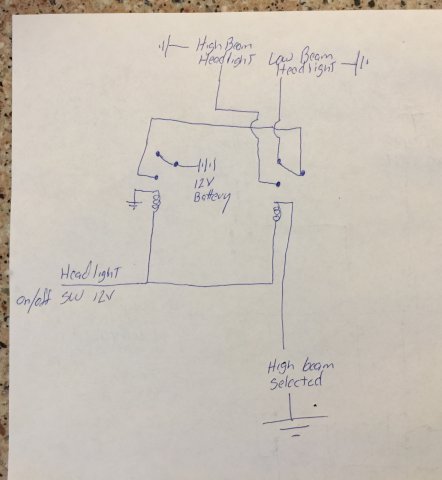

78 Z headlight mod.jpg
