Turbo heat shields experience


  • Please log in to reply
9 replies to this topic

#1 Timecode

Timecode

    Regular

  • Members
  • PipPipPip
  • 65 posts
  • LocationSimi Valley, CA

Posted 14 January 2013 - 09:09 PM

I'd like to see some pics of people's heat shields on their turbo setups and find out how well they work.
I have a 71 z with a l28et. T3/T4, stock intake/exhaust manifold, and 3" exhaust (heat shields examples with a similar setup would help a bunch.
Im more interested in the sheet metal type shields but any opinions/experience on coatings and wraps would help as well.
Any custom shielding for brake/ fuel lines would be appreciated as well.
Thanks

TC

#2 skirkland1980

skirkland1980

    Junior Member

  • Members
  • PipPipPipPipPip
  • 880 posts
  • LocationMarietta, GA

Posted 21 January 2013 - 06:26 PM

I have a video of mine...I have since made an air box for my filter.


:1983 280zx turbo, L28ET, custom cam grind, 96 saab 900 intercooler w/2.50" piping, 3" mandrel bent exhaust, megasquirt II v3.57, 540cc injectors, walbro gsl392 255lph fuel pump, aeromotive regulator, -6 supply lines, custom fuel rail, MSD ignition wires, MSD 8202 coil, homemade boost controller, Garrett TC4305 turbo, 70mm throttle body, Godzilla BOV, Turbonetics wastegate, custom intake, custom turbo header, Cooling Mist H2O/meth injection, 20psi boost, all stock body, stock interior and weld draglite wheels, TH350 trans 4000 stall with B&M 'street stick' shifter and hughes trans brake, nitto nt555R drag radials, best 1/8 mile of 7.53@ 98 mph

#3 ryan95i4

ryan95i4

    Always Here

  • Members
  • PipPipPipPip
  • 210 posts
  • LocationFL

Posted 22 January 2013 - 12:26 PM

I just have a blanket over the turbine, and then the downpipe is wrapped.  The blankets are pretty amazing, i can drive the car for hours and still touch the blanket with bare skin.



Not my video, but an example:


73 240Z, Haltech powered L28ET
95 Avenger, Holset HX40 @ 26psi
06 CTS-V

HRFy1aL.jpg Promo code DATSUN10 to save 10% at DapperLighting.com


#4 Timecode

Timecode

    Regular

  • Members
  • PipPipPip
  • 65 posts
  • LocationSimi Valley, CA

Posted 22 January 2013 - 12:48 PM

Does anyone with a turbo blanket notice faster turbo wear over time? Some people say it does some say it doesn't. I'd like to hear from the horses mouth.

#5 OldAndyAndTheSea

OldAndyAndTheSea

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 766 posts
  • LocationHenderson Harbor, NY

Posted 22 January 2013 - 09:46 PM

Yeah, I've got a blanket on my turbo, wrapped manifold, and wrapped downpipe. I'm hoping that will be enough.








Won't know til Spring (hopefully) though...


Edited by OldAndyAndTheSea, 22 January 2013 - 09:47 PM.

PM me for any composites related inquiries.


#6 24OZ

24OZ

    HybridZ Supporter

  • Donating Members
  • PipPipPipPip
  • 349 posts
  • LocationEngland

Posted 22 January 2013 - 10:59 PM

My turbos are old and not water cooled, the blanket hasn't seemed to have done them any harm. Very effective, I can't see a heat shield doing a better job on keeping the heat in and away from your engine bay.

#7 Tony D

Tony D

    Wiki D

  • Donating Members
  • PipPipPipPipPipPipPipPipPip
  • 9978 posts
  • LocationReno NV & Lucena Quezon, Philippines

Posted 25 January 2013 - 05:42 AM

Look to F1 and the old CART cars, they combined NASA-Grade honeycomb foil blankets and wraps along with secondary shielding at critical components, with airflow ducting.

The 280ZXT had that NACA Duct, which when the car was moving directed heavy airflow down to the turbo and out under the car. When you came to a stop that grille behind the NACA Duct allowed radiant heat from a highway run to rise straight up from under the hood and out.

Blankets are GREAT when you need to keep heat in, and not get nearby components hot. There are very effective blankets, the grey cloth units are used extensively on steam turbines for personnel protection. The foil stuff is even higher efficiency!
Misanthropic Anthroparion Class 5 Hoarder, aspiring to posthumous fame as my containers are cut open and the market floods with crap I've squirrelled away over the years! I endeavour to persevere...

#8 Randall

Randall

    Always Here

  • Members
  • PipPipPipPip
  • 154 posts
  • LocationSan Antonio

Posted 07 March 2013 - 10:37 AM

Yeah, I've got a blanket on my turbo, wrapped manifold, and wrapped downpipe. I'm hoping that will be enough.


[img]http://i524.photobucket.com/albums/cc327/twofortyz/photobucket-11729-1358632183256.jpg[/img]

Won't know til Spring (hopefully) though...


I have been trying to fit a heat shield from the N/A manifold but I really like the blankets. Did you modify your blanket to fit the stock wastegate or did you plumb a hole? If so where did you get it?

76' 280z (Blue) L28et (T04E '50' w/ stock T3 Turbine, 440cc Injectors, MS2) Goal 350 rwhp
77' 280z (Green) Mostly Stock (Daily Driver)
My Cars and Projects:
http://forums.hybrid...-turbo-project/


#9 OldAndyAndTheSea

OldAndyAndTheSea

    Can Charge Rent

  • Members
  • PipPipPipPipPip
  • 766 posts
  • LocationHenderson Harbor, NY

Posted 07 March 2013 - 05:42 PM

The company that makes the shield is called "Thermal Zero"



I did in fact have to modify it slightly to accept the external wastegate actuator, as seen here.





PM me for any composites related inquiries.


#10 Timecode

Timecode

    Regular

  • Members
  • PipPipPip
  • 65 posts
  • LocationSimi Valley, CA

Posted 03 February 2017 - 09:02 PM

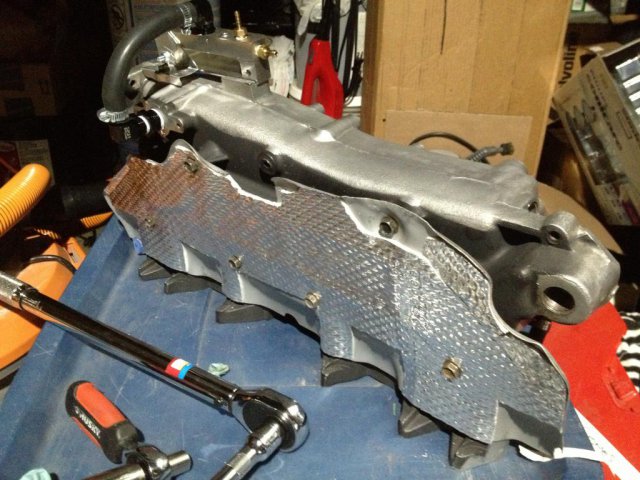

 I found a solution!! I got a factory heat-shield and bought a really nice sticky heat-shield to put on the underside of it.  When I got the sticky one ($50 for 2 sqft) it was so thin and cheap I figured I could make it myself so I whipped up some cheap heat shields that not only work, but work very well.

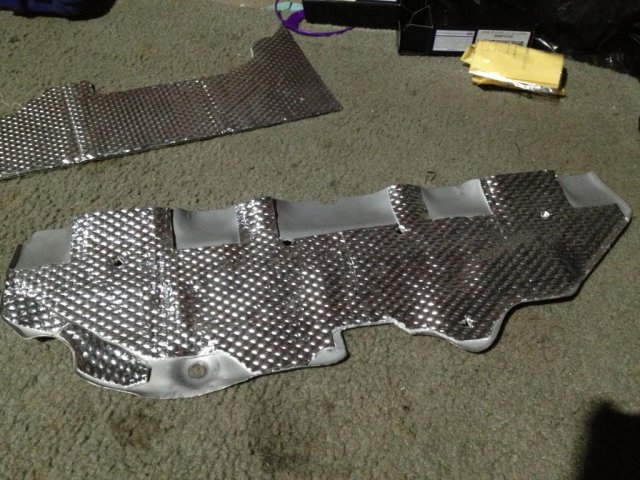

 I bought some 99 cent store 1/2" tall aluminum trays, they come in two packs I think. Then I pounded the edges flat with a rubber hammer, took 1 piece of soft fiberglass sheet and cut it a little smaller than the tray and put another flattened tray on top (a fiberglass sandwich with aluminum tray buns).  Folded all the edges and hammered them down, folded again, hammered, folded, and hammer. Whats left is a rigid, light, pliable, and turns out quite durable heat shield that can be bolted any where.

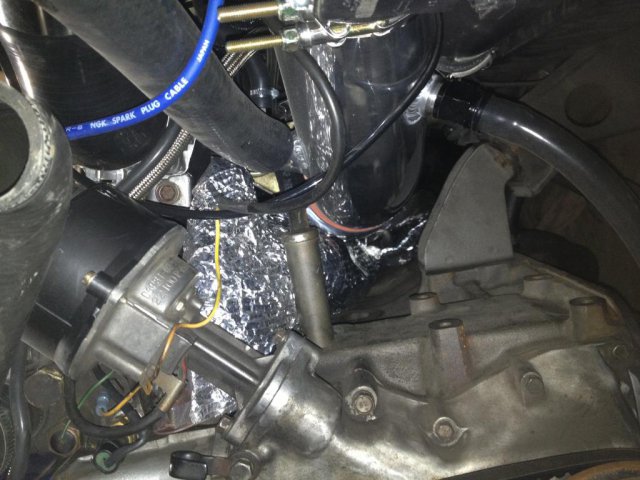

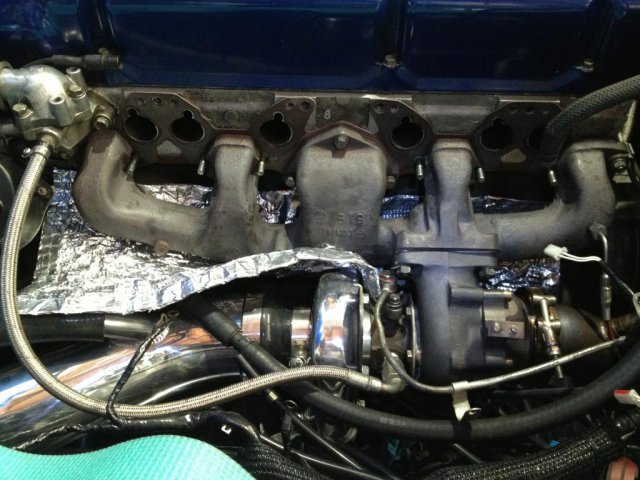

On my stove top, with the big burners at full blast, I recorded 330f temps on the bottom side and 80f max on the top side, even with over a minute of direct flame contact.  They didn't discolor or suffer at all from the test.  I bolted these heat-shields around the exhaust manifold (encapsulating it) and turbo.

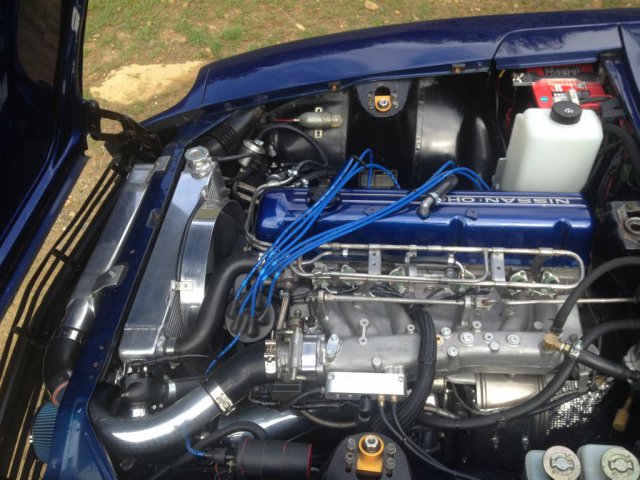

Before all this the car suffered a bad case of vapor lock. My intake manifold was too hot to touch after any type of driving but now the car starts up every time and my manifold is the temp of my intercooler after HARD driving. It only gets warm right next to the head now. I'm amazed!  I accidentally cut the sticky shield incorrectly but nobody will ever see that.

Attached Files


Edited by Timecode, 04 February 2017 - 02:55 PM.
