Z Virtual Tape Measure


  • Please log in to reply
15 replies to this topic

#1 The Woj

The Woj

    Member

  • Members
  • PipPipPip
  • 90 posts
  • LocationTemple City, CA

Posted 26 July 2006 - 12:45 AM

Well, I was looking for intercoolers on ebay a few days ago and realized I didn’t know what would fit my Z without a tape measure and my car in front of me. So, I decided to create a cheat sheet with the dimensions of my ’73 240z’s engine bay and seats. I figure these might be useful to other people, so I’m posting it here.

If any of the measurements are hard to understand just ask and I'll explain what I was measuring.



[Update] 7 years later, Mark was right. Thankfully, I never delete anything. I re-hosted the pics on my personal website because I am having issues uploading to HybridZ right now.

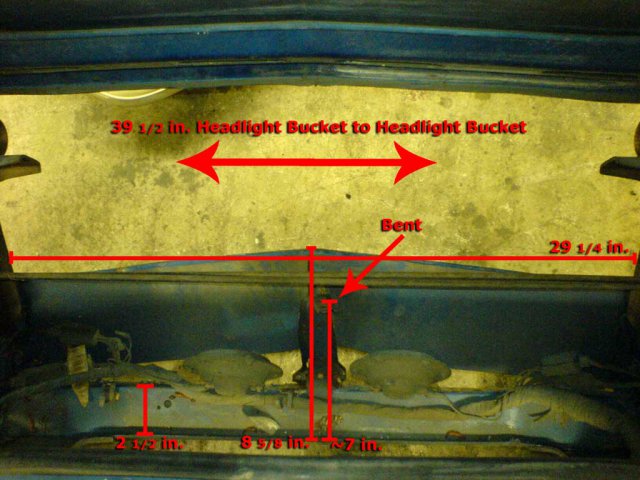

Overhead View of the Engine Bay




Firewall

Passenger Fender

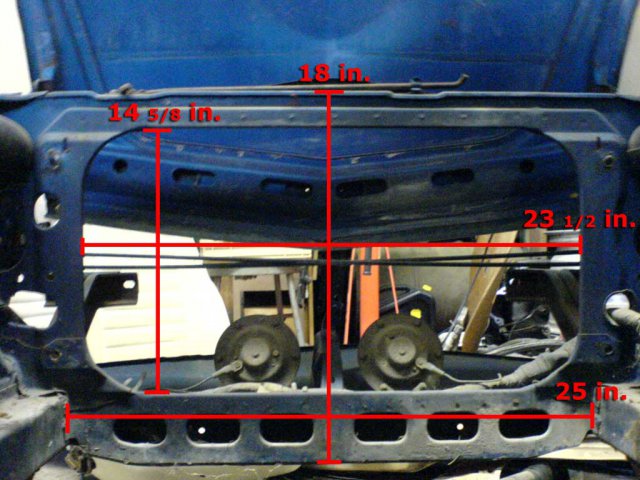

Radiator Support


Radiator Support, Driver’s Side

Radiator Support, Passenger’s Side

Overhead View in Front of Radiator Support

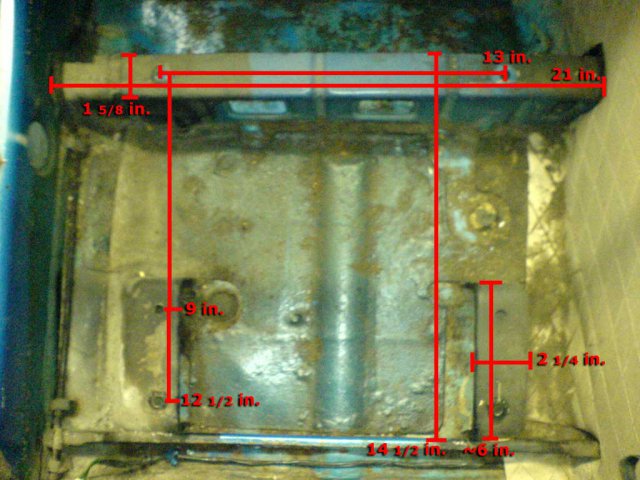

Overhead View of Seat Rails

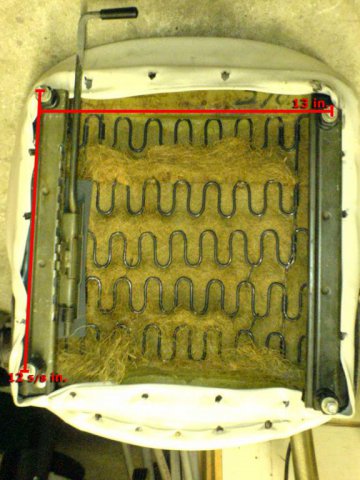

Side of Seat

Bottom of Seat


Edited by The Woj, 19 June 2013 - 09:34 PM.

-1975 280Z with BBC 7.6 // 4L80E
-1973 240Z with SBF 5.0 // T5
-1979 280ZX with SBF 5.0 // AOD - Smog Legal! For Sale!

-1974 Porsche 914 with air-cooled 2.5 flat-4 // 901 5-speed

-2007 Volvo V70R with 2.5 I-5 // Slushbox






#2 mark

mark

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPip
  • 1427 posts
  • LocationNorth Carolina

Posted 26 July 2006 - 03:39 AM

I vote for a sticky. Great info. Just need to host the images on this site and dump image shack.
Mark

IF I HAD ALL THE MONEY I'VE SPENT ON CARS, I'D SPEND IT ON CARS.

#3 veritech-z

veritech-z

    Mad Max Zed

  • Members
  • PipPipPipPipPipPip
  • 1600 posts
  • LocationTampa/Orlando, FL

Posted 26 July 2006 - 04:03 AM

Yeah, that's a really great idea. I vote sticky as well. You ought to measure it with the hood hinges in place though if you are looking for intercooler fitment. I couldn't tell if they were there in the one you used in front of the core support.
-Max


www.maxacree.com
www.360ed.com

"I put on my robe and wizard hat.."




#4 The Woj

The Woj

    Member

  • Members
  • PipPipPip
  • 90 posts
  • LocationTemple City, CA

Posted 26 July 2006 - 07:24 AM

Yeah, the hood was still on but I forgot to include the hinges in the measurements. Oh well, can't be much more than 2 inches for both of them I guess.
-1975 280Z with BBC 7.6 // 4L80E
-1973 240Z with SBF 5.0 // T5
-1979 280ZX with SBF 5.0 // AOD - Smog Legal! For Sale!

-1974 Porsche 914 with air-cooled 2.5 flat-4 // 901 5-speed

-2007 Volvo V70R with 2.5 I-5 // Slushbox






#5 mull

mull

    Resurrected 7/2014

  • Members
  • PipPipPipPip
  • 445 posts
  • LocationSweden

Posted 28 July 2006 - 03:54 AM

Oh, how I wish the units were millimeters instead of those crappy inches... : )

Great work nontheless!

Philip | Project; N1-RB26 240z aka. Hugo
» http://forums.hybrid...ad.php?t=106731



#6 veritech-z

veritech-z

    Mad Max Zed

  • Members
  • PipPipPipPipPipPip
  • 1600 posts
  • LocationTampa/Orlando, FL

Posted 28 July 2006 - 02:10 PM

There are all kinds of measurement converters online...just google "standard to metric" or something like that. I do it all the time.
-Max


www.maxacree.com
www.360ed.com

"I put on my robe and wizard hat.."




#7 The Woj

The Woj

    Member

  • Members
  • PipPipPip
  • 90 posts
  • LocationTemple City, CA

Posted 28 July 2006 - 03:18 PM

I just remember 25mm to an inch (though I just googled it and it is actually 25.4).

Google makes unit conversions really easy too. For example, search for "25 inches to mm" and it will give you the conversion at the top. This works for almost any unit of measurement, including some really obscure ones.
-1975 280Z with BBC 7.6 // 4L80E
-1973 240Z with SBF 5.0 // T5
-1979 280ZX with SBF 5.0 // AOD - Smog Legal! For Sale!

-1974 Porsche 914 with air-cooled 2.5 flat-4 // 901 5-speed

-2007 Volvo V70R with 2.5 I-5 // Slushbox






#8 AK-Z

AK-Z

    Member

  • Members
  • PipPipPipPipPipPip
  • 1648 posts
  • LocationAlaska

Posted 28 July 2006 - 04:29 PM

Are there measurements for the front strut towers, as in angles and such? Doesn't look like they are perpendicular to the front rails.
[URL="http://www.zippyvideos.com/70747806453375.html"]

"Sorry, this sig picture is larger than the allowed maximum of 500 x 100 pixels."

[/URL]

#9 mull

mull

    Resurrected 7/2014

  • Members
  • PipPipPipPip
  • 445 posts
  • LocationSweden

Posted 28 July 2006 - 04:30 PM

Umm... Thanks for the links.

Just to clarify; I'm lazy - not stupid ; )

Philip | Project; N1-RB26 240z aka. Hugo
» http://forums.hybrid...ad.php?t=106731



#10 The Woj

The Woj

    Member

  • Members
  • PipPipPip
  • 90 posts
  • LocationTemple City, CA

Posted 28 July 2006 - 07:08 PM

Are there measurements for the front strut towers, as in angles and such? Doesn't look like they are perpendicular to the front rails.

The base of the strut towers are 29 5/8 inches apart, the top outer edge is 31 1/2 inches apart. They are 15 1/2 inches tall.

That means that they run 1 7/8 inches inward over 15 1/2 inches of height. Seems to calculate out to about a 6.5 degree run at a little over 15.6 inches going up the side of the strut tower (according to a triangle calculator).

Umm... Thanks for the links.

Just to clarify; I'm lazy - not stupid ; )


Well, I didn't learn how to convert inches to mm until my senior year in high school (in Chemistry for some reason). They didn't even teach it in Physics, oddly enough.

I swear I fell asleep during all the important classes in elementary school or something.
-1975 280Z with BBC 7.6 // 4L80E
-1973 240Z with SBF 5.0 // T5
-1979 280ZX with SBF 5.0 // AOD - Smog Legal! For Sale!

-1974 Porsche 914 with air-cooled 2.5 flat-4 // 901 5-speed

-2007 Volvo V70R with 2.5 I-5 // Slushbox






#11 primeral

primeral

    Newbie

  • Members
  • Pip
  • 17 posts
  • LocationHouston, TX, USA

Posted 27 July 2015 - 01:58 PM

It's been 9 years since the original post and the pictures are no longer working. Did anyone happen to save these to reshare?



#12 Milenko2121

Milenko2121

    Always Here

  • Members
  • PipPipPipPip
  • 166 posts
  • LocationNV

Posted 08 April 2016 - 09:53 PM

Just checking in to see if anyone has these again.


1977 280zt with '87 Z31t ECU, CLSD and S14 SR Transmission

#13 makaofox

makaofox

    Always Here

  • Members
  • PipPipPipPip
  • 268 posts
  • LocationNew Jeresy

Posted 09 April 2016 - 08:21 AM

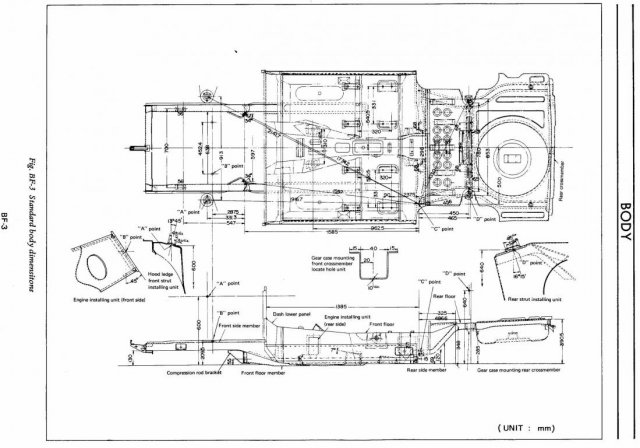

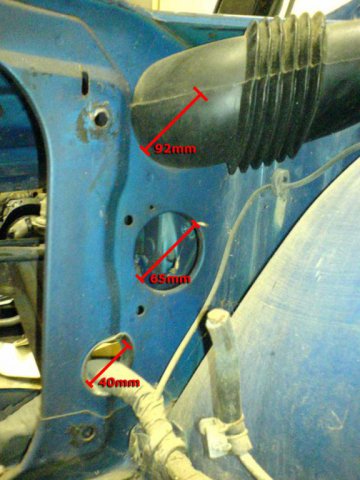

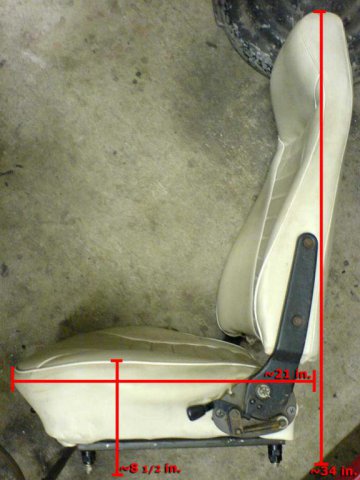

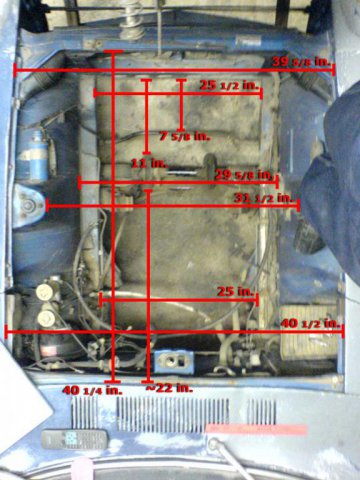

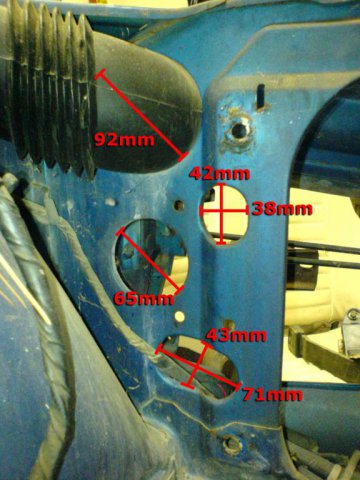

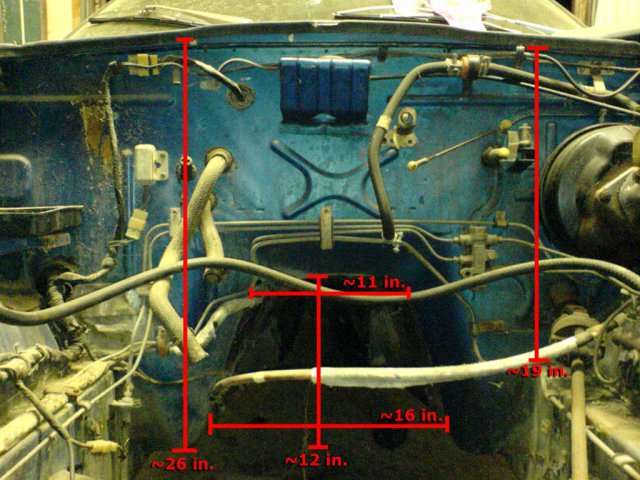

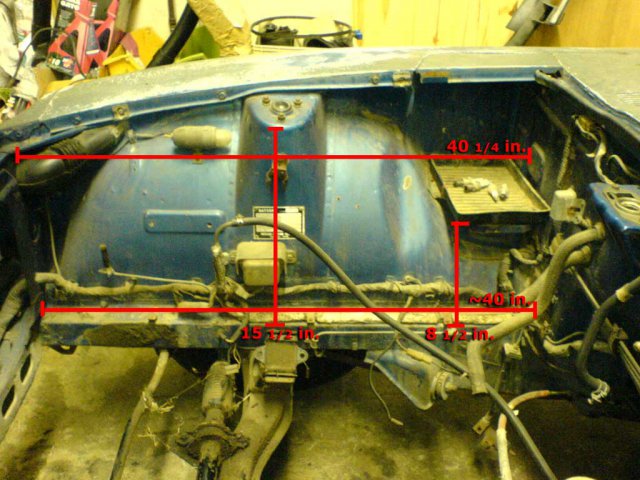

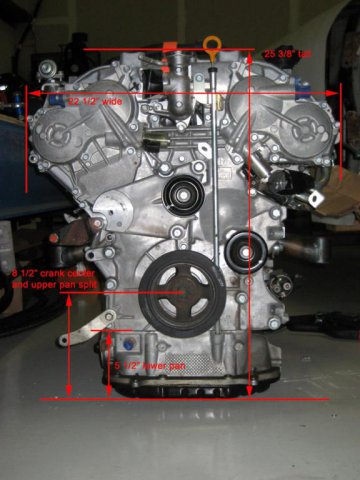

Here are the pics. Luckily I saved them :D

Attached Files



#14 Milenko2121

Milenko2121

    Always Here

  • Members
  • PipPipPipPip
  • 166 posts
  • LocationNV

Posted 09 April 2016 - 08:24 AM

Thank you!


1977 280zt with '87 Z31t ECU, CLSD and S14 SR Transmission

#15 Sven

Sven

    HybridZ Supporter

  • Donating Members
  • PipPipPipPip
  • 274 posts
  • LocationNM

Posted 09 April 2016 - 09:32 AM

Here are the pics. Luckily I saved them :D


Vote for HybridZ most useful humanitarian post of the year!
Sometimes nothin' can be a real cool hand...
'73 240z 3.1 Mikuni,Mikuni,Mikuni - the OD Green Z
'73 240z "The Driver", soon to steal engine from ^^^
'77 280z -spread across three states in pieces, SBF'ed eventually
'85 500SEC I refuse to drive nothing but the very best! (of 1985...)
'00 F250 7.3 PSD mostly in one piece
'91 Mustang Coupe - Dust collector, forgotten step child


#16 makaofox

makaofox

    Always Here

  • Members
  • PipPipPipPip
  • 268 posts
  • LocationNew Jeresy

Posted 09 April 2016 - 11:36 AM

^ Lol!
