Chevy SBC, BBC, 90 Deg V-6 V-8 dimensioning


  • Please log in to reply
15 replies to this topic

#1 BRAAP

BRAAP

    Administrator

  • Administrators
  • 4166 posts
  • LocationOregon

Posted 25 September 2007 - 02:44 PM

Per request, dimensioning prints of a few Chevy engines. The SBC, BBC and the 90 degree V-6.

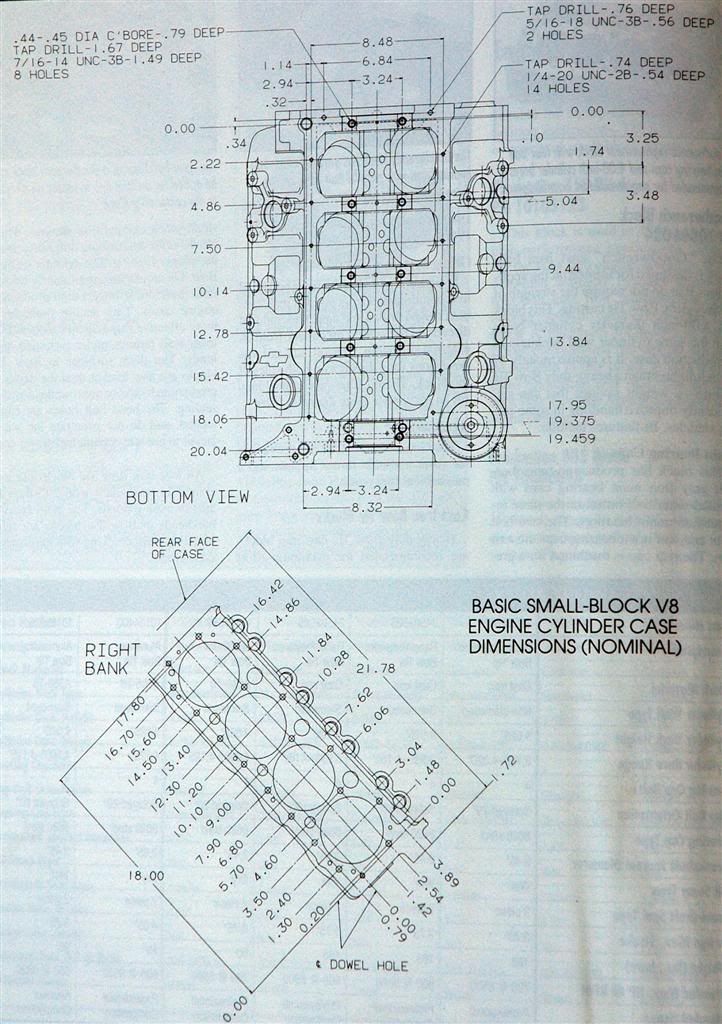

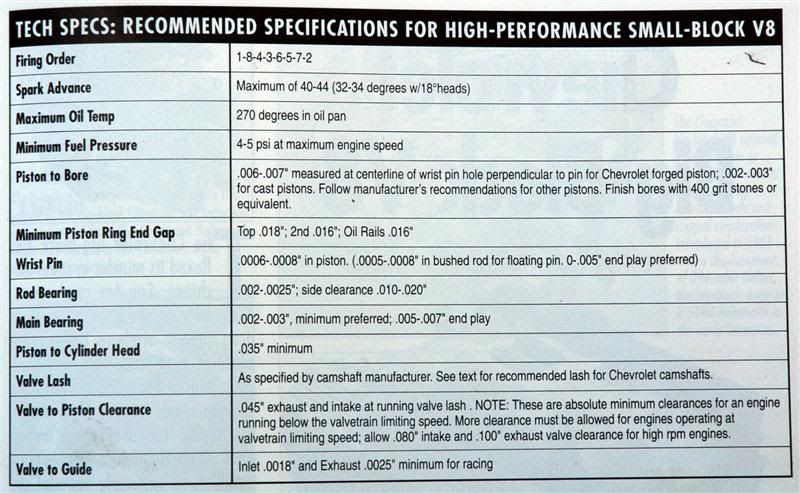

Up first, the SBC…

Posted Image

Posted Image

Posted Image


Posted Image

Posted Image

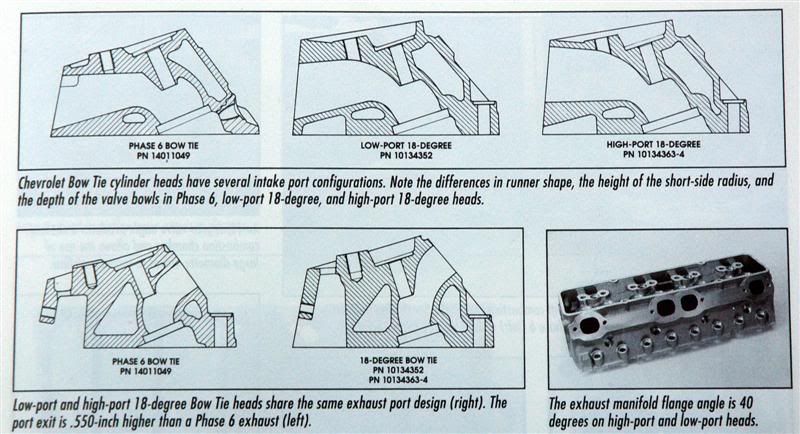

18 degree heads..
Posted Image

Posted Image


Posted Image

#2 BRAAP

BRAAP

    Administrator

  • Administrators
  • 4166 posts
  • LocationOregon

Posted 25 September 2007 - 02:54 PM

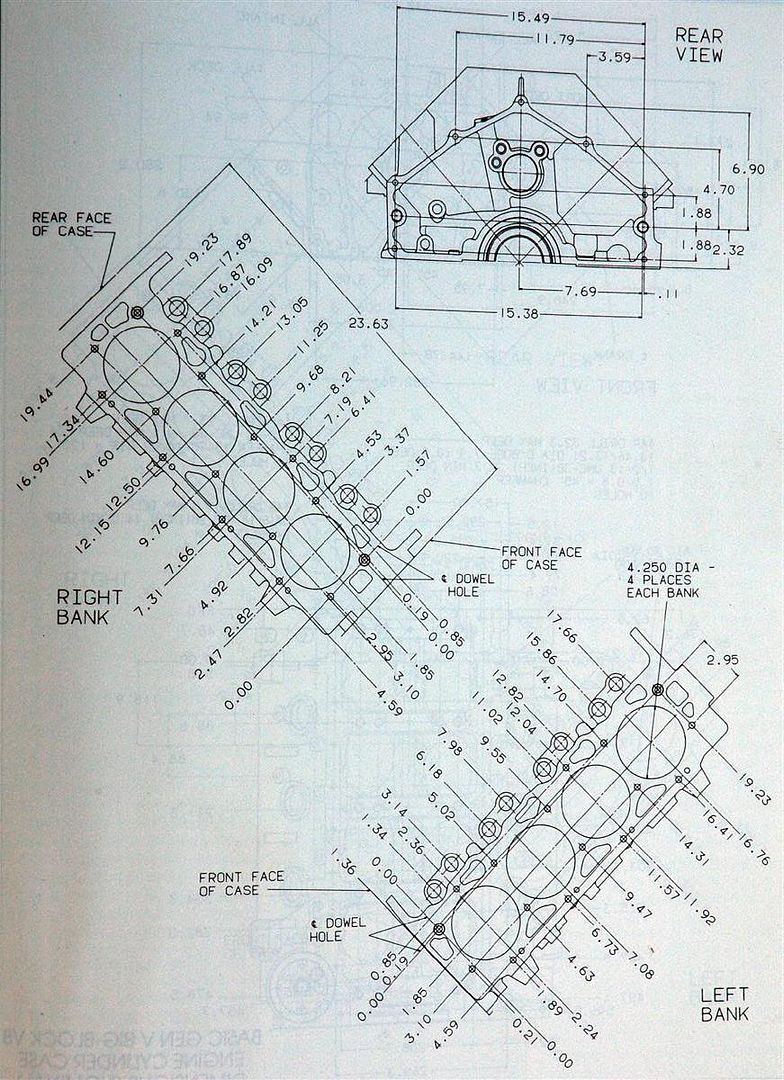

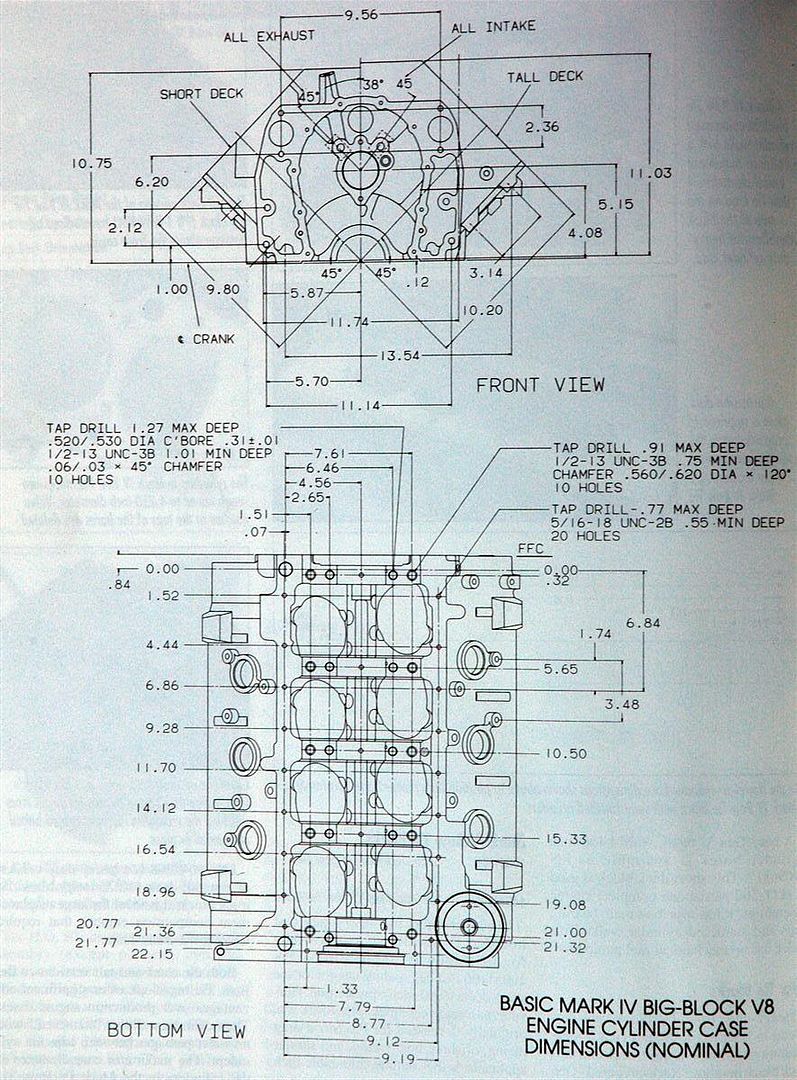

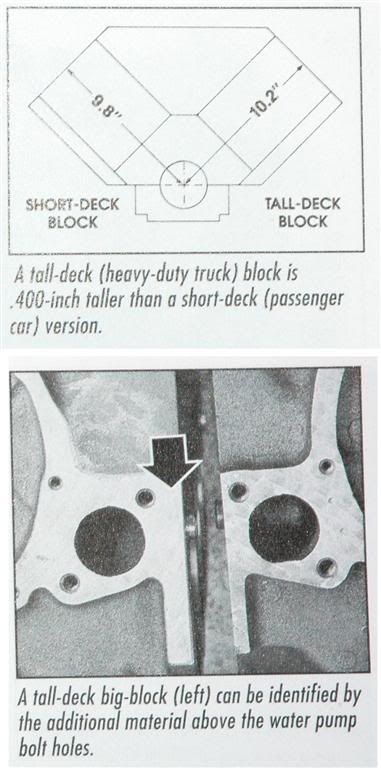

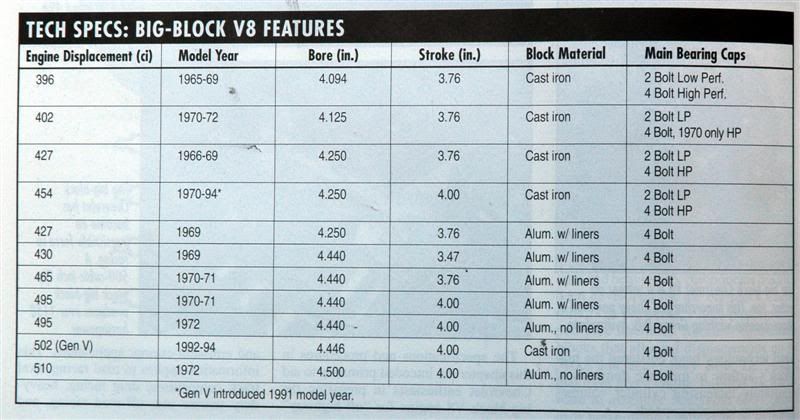

The BBC, Mark IV and Mark V

Posted Image

Posted Image

Posted Image


Gen IV…
Posted Image

Posted Image



Gen V…
Posted Image

Posted Image

#3 BRAAP

BRAAP

    Administrator

  • Administrators
  • 4166 posts
  • LocationOregon

Posted 25 September 2007 - 02:58 PM

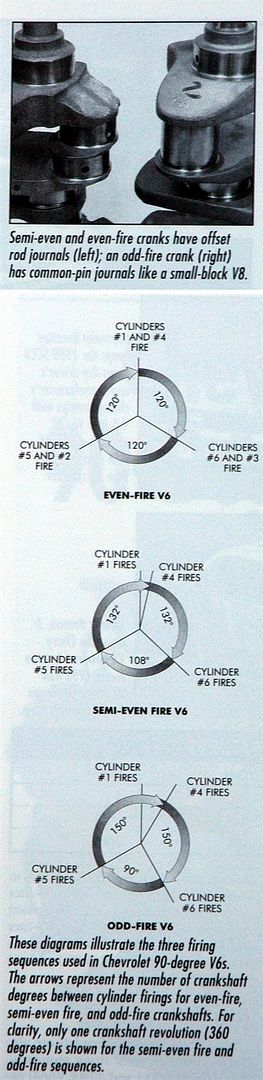

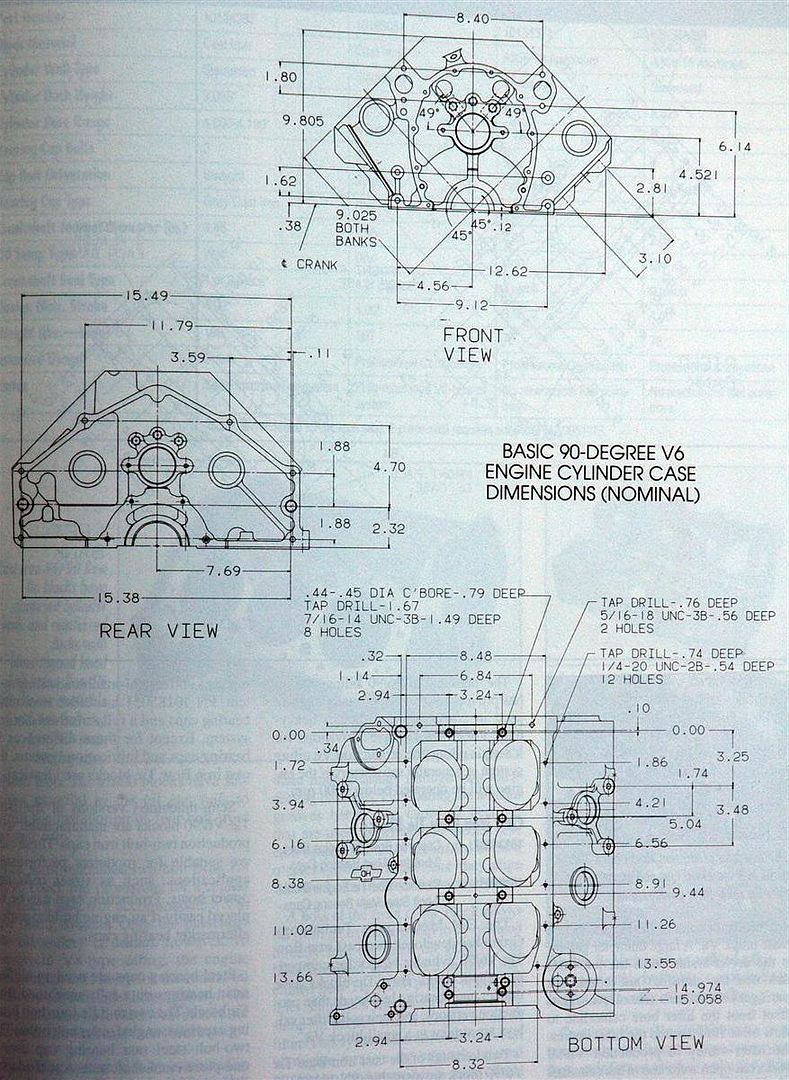

The 90 degree V-6


Posted Image

Posted Image

Posted Image

#4 grumpyvette

grumpyvette

    Moderator

  • Members
  • PipPipPipPipPipPipPip
  • 3566 posts
  • Locationloxahatchee florida

Posted 25 September 2007 - 03:12 PM

IM IN AWE! and AMAZED! THANKS!!!!!!!!!
" IF YOU CAN'T SMOKE THE TIRES FROM A 60 MPH ROLLING START YOUR ENGINE NEEDS MORE WORK!"

#5 BRAAP

BRAAP

    Administrator

  • Administrators
  • 4166 posts
  • LocationOregon

Posted 25 September 2007 - 03:16 PM

IM IN AWE! and AMAZED! THANKS!!!!!!!!!


Grumpy,
Glad you like it and I am glad I had something to offer to you in return for all the info you have given us over the years.

Thank you,
Paul

#6 Tombarace14

Tombarace14

    Member

  • Members
  • PipPipPipPip
  • 167 posts
  • LocationHarrisonburg, VA

Posted 25 September 2007 - 04:29 PM

Thanks alot for this Paul, alot of info I didnt know.

76' 280Z VQ35DER in progress - 80' VW Rabbit "DRTYBNY" - 72' 240Z Scarab -  05' Yamaha FZ6 - 90' Chev 3500 Crewcab long bed tow rig


#7 BRAAP

BRAAP

    Administrator

  • Administrators
  • 4166 posts
  • LocationOregon

Posted 25 September 2007 - 04:31 PM

Grumpy,
Here is the book this info comes from..

Posted Image

#8 280zwitha383

280zwitha383

    :-) Smiley Emoticon :-(

  • Members
  • PipPipPipPipPip
  • 738 posts

Posted 25 September 2007 - 05:23 PM

Braap, you have awed and amazed grumpy. You must indeed be DA MAN!


#9 staledale

staledale

    Member

  • Members
  • PipPipPipPip
  • 238 posts
  • LocationBellwood, Pa

Posted 26 September 2007 - 06:15 AM

Braap, Great post, you will make this a sticky won't you? Thanks for the great info.

Staledale
Staledale

#10 nine2five

nine2five

    Junior Member

  • Members
  • Pip
  • 7 posts

Posted 04 October 2007 - 11:06 PM

Your the man i love this!! thanks so much

#11 mikedc528

mikedc528

    Member

  • Members
  • PipPipPip
  • 51 posts
  • LocationNewark, NJ

Posted 09 April 2009 - 06:24 PM

http://paceperforman...n=Custom&ID=586


This website has dimensions and pictures as well...compares LS series to GEN2 and BBC.

#12 archangel

archangel

    Junior Member

  • Members
  • Pip
  • 1 posts

Posted 15 December 2009 - 08:15 PM

The info on this thread is amazing!!

I can't help but ask if those who supplied the blueprints have access to others?

I am looking to put together a Buick 215 Aluminum V8 and either a Ford C4 automatic, or a Power glide.

All I need are the bolt pattern blueprints for both engines showing the crankshaft centerline like the ones posted here.

Can anyone help me?

BTW, the Chevy prints are saved for future projects.

#13 kiwi303

kiwi303

    Window licker

  • Members
  • PipPipPipPipPip
  • 748 posts
  • LocationTasman District, Nelson, NZ

Posted 15 December 2009 - 08:24 PM

for the buick 215, I suggest asking on v8forum.co.uk since the Buick 215 was soon dropped in the US, while the Rover V8 is still being made today in low numbers but was used in lots of rover and Landrover vehicles over the years.
I wanna go faster!

Sarcasm, among other things, can be hard to detect over the internet.


#14 jsarnold

jsarnold

    Junior Member

  • Members
  • Pip
  • 1 posts

Posted 31 December 2009 - 09:09 AM

The 90 degree V-6



My bro and I want to adapt a GM 3800 V6 with the "Small Corporate/S10" bolt pattern to a 200R4 trans. Do you have the dimensions for the Small Corp/S10 bell housing? We haven't found that info anywhere. Thanks for any help.

#15 Nealio240z

Nealio240z

    Member

  • Members
  • PipPipPipPip
  • 119 posts
  • LocationRedding, CA

Posted 08 March 2010 - 05:02 PM

wow! great info!!! Thanks =)
It takes many screws to build a crib,
but only one to fill it...

#16 Kaarle

Kaarle

    Newbie

  • Members
  • Pip
  • 1 posts
  • LocationAshburn, NJ, US

Posted 14 March 2016 - 04:41 AM


You can more get information about LS series
