berton

It doesn’t like my images hopefully this google image link works https://photos.app.goo.gl/GfKMSguQd2BaYS4H7 the order is different then I mentioned but should be obvious

I’m pretty sure the ctsv shifter is unique to itself and puts the shifter pretty far back. I had to cut the trans tunnel. I will retry posting pics. The first one is just from google of the shifter linkage. And the second two are where it landed in my z

Not sure if this is still needed or relevant but here are the pics!

I have ls and t56 out of a 04 ctsv in my z. I have the apex crossmember and the engine is maybe 2-3” away from the firewall. I have only mocked up the factory shifter linkage and it looks like it’s going to be in a pretty comfortable position. However I will have to cut up the trans tunnel. I will try and post pictures Monday to give an idea where about the factory shifter lands

He’s on Instagram, corrupttbuilds, he also built an older mustang with a Ferrari engine

Hey guys my project this week is the rack. Today I tore down the steering rack got all the old grease out got and got it cleaned up. Once it was clean I noticed inside the housing where the pinion inserts it looks like what I am assuming is wear. Has any one else noticed this if you’ve opened you rack? It wasn’t easy to get a good shot but you can kind of make out what one taking about

That link you posted need to be stickied somewhere that is the holy grail of chassis Reinforcement!!

Any progress on this!?

Hey guys Im restoring my 240 and I have it completely stripped ready for blasting so my garage is full so I need to try and get rid of some things I won’t use. I am curious if the wheels can at lease be sold? And is there anything else that is wanted or needed that is possible to sell to the z community!?

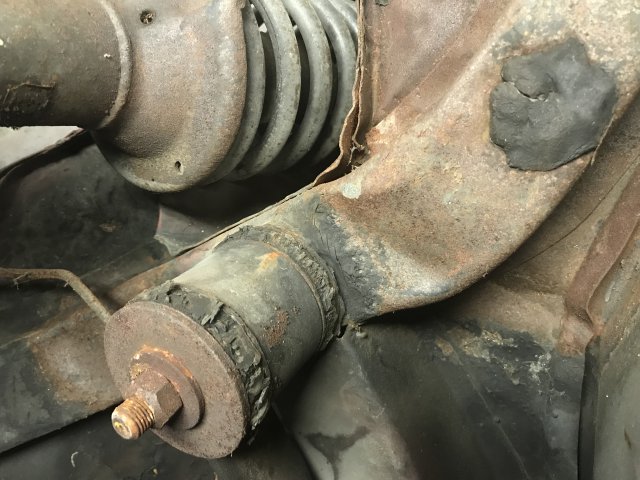

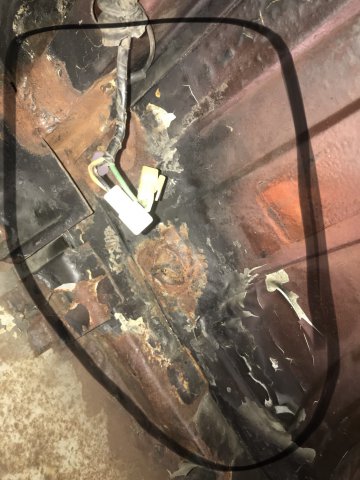

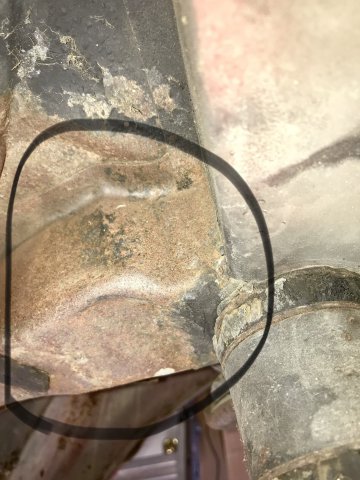

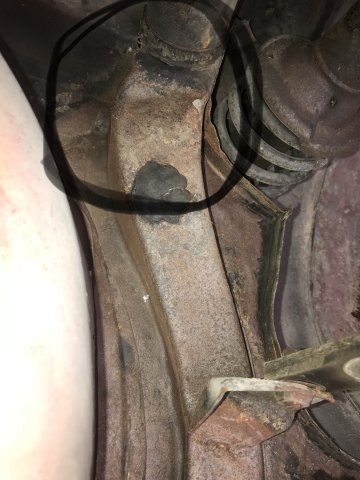

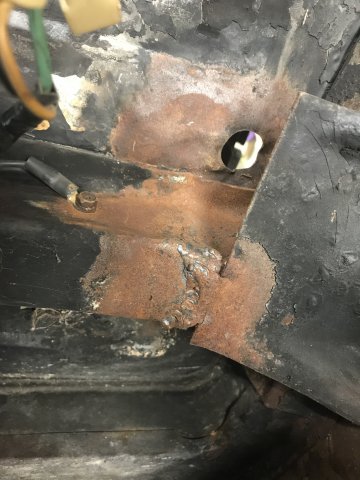

So I decided to stop being lazy and get in the garage and removed the gas tank and the motor. once I dropped the tank I crawled underneath and took some photos and hopefully you guys could help me decipher what I see! It looks like there is some welding on the frame rail to the rear bumper/tow hook mount in the first two photos. The next three photos show the rear rails looking almost buckled? is this normal or do you think it could have been hit from the back? not pictured but I saw after my phone died the rear pass rail is separating from the body. so my main question is if I am going to replace the frame rails how do I support the car? The rotisserie would be mounted to the thing i need to replace, jack stand or cart also going to be resting on metal that would need to be replaced? And the last photo almost looks like there could have been a fire?

any updates!?

Those seats are really cool!

I just read all 18 pages and now I feel confident swapping in a rb! We do needs updates when you can!!

is there any way to look into these cars history? i am curious if the original color was red or the blue that is on the outside. it came with original 1970s blue and yellow plates and i know they dont have modern 17 digit vin but can i use that to find any info?

was the plan always to go blue? the black looked really mean.

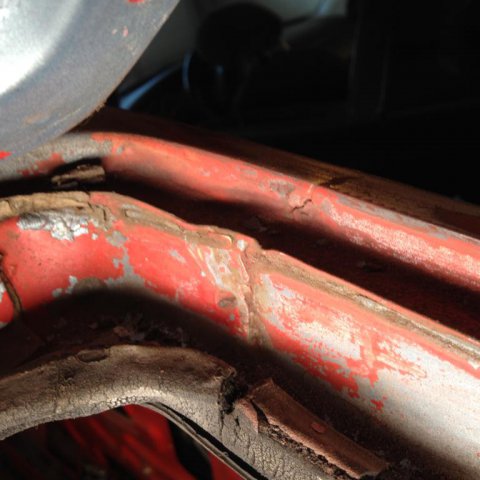

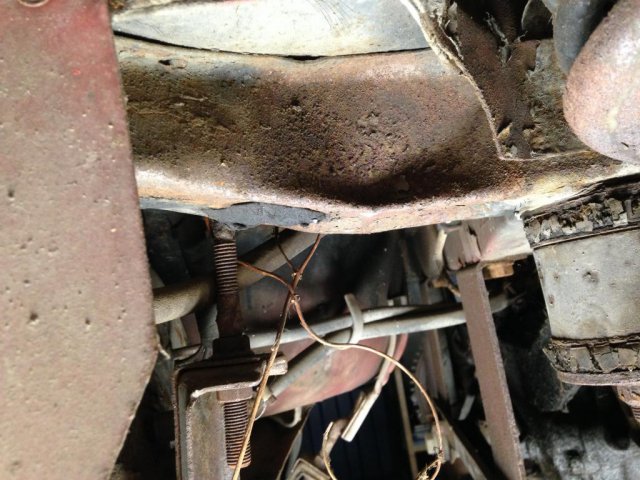

Ok I also saw this while i was looking at the wheel well. Are these pinches in the rails normal??

Thank you again your comment is reassuring! I'll make sure to stay updated with what i do there's just so much help here!

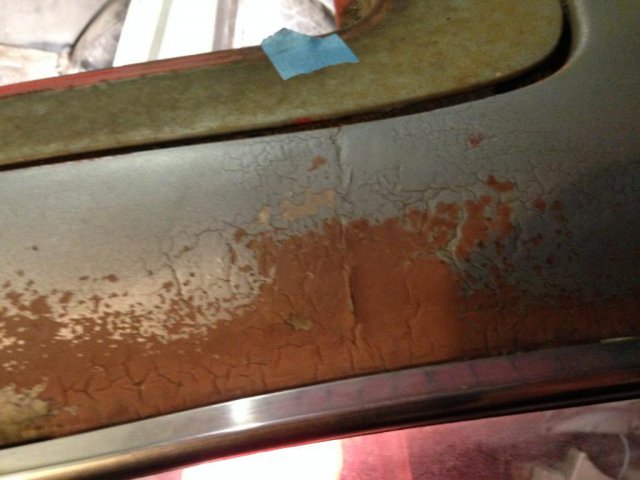

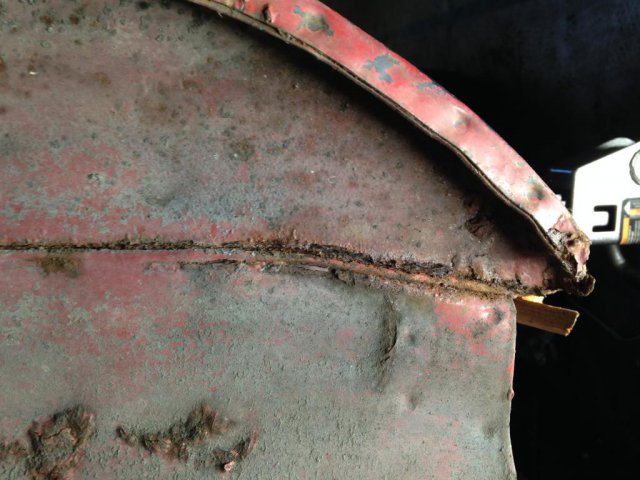

I've uploaded couple pictures of the rear end where it look rock have been hit. The inner of the passenger side wheel well. Then the pass c pillar I took some 100 grit to it to a re who whens under he cracked paint and I think what's there's is not good. It looks to have the similarities on the driver side just not as bad. But it looks like the might have replace do the entire rear section? Isn't that thing!? Should I keep going with this rust bucket!!???

Thank you guys for the responses! I was in the garage for a few hours earlier today so that I will be posting some more pictures. But I bought it about two weeks ago and I live in socal so that's a yes to the heat. I believe there might have been a hit from the back side the area where the exhaust tip comes out is damaged, and I can see what looks like bondo on the other side, I will post a picture of that shortly! And I appreciate you all pointing out these things that is why I brought my problem or project here! And the area by the tool storage I thought was interesting too, it's like a wave of wrinkles. But thank you guys for your input much appreciated!!!

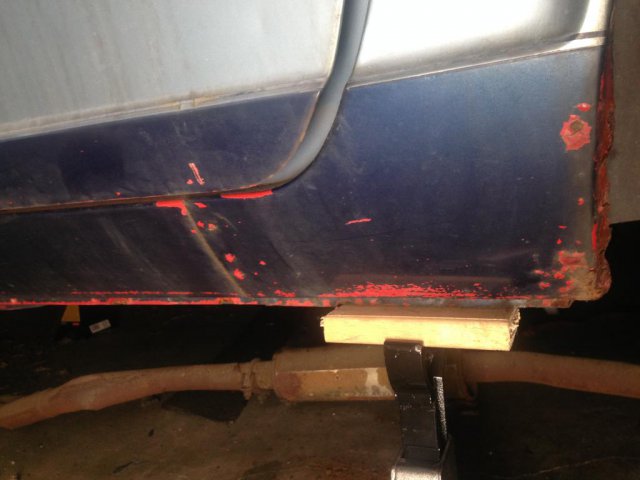

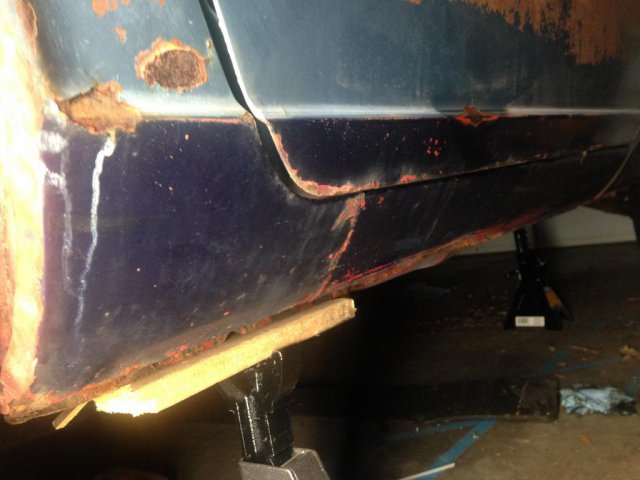

And here are a few of the dog leg

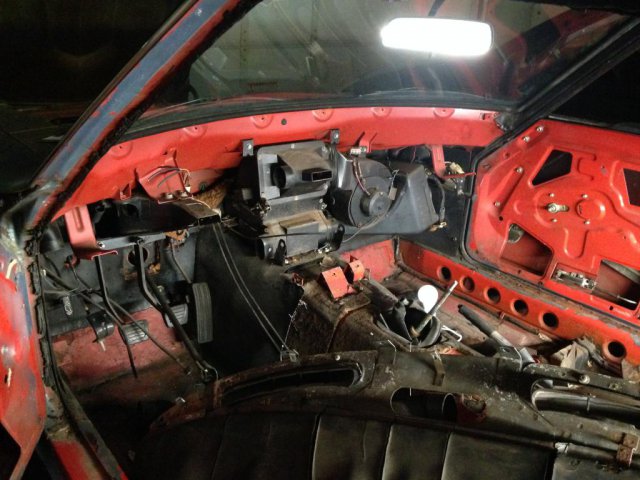

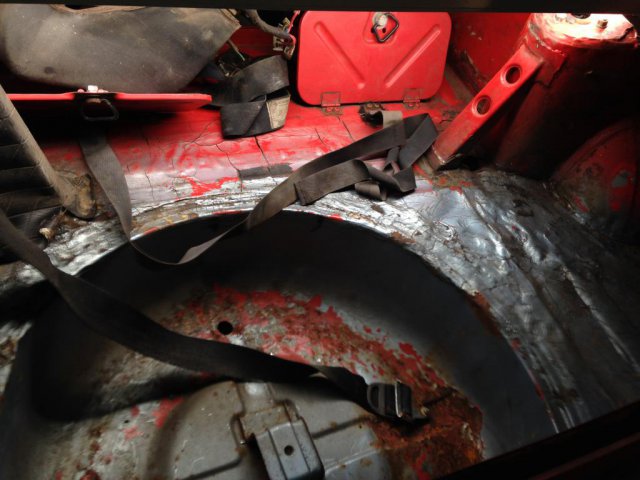

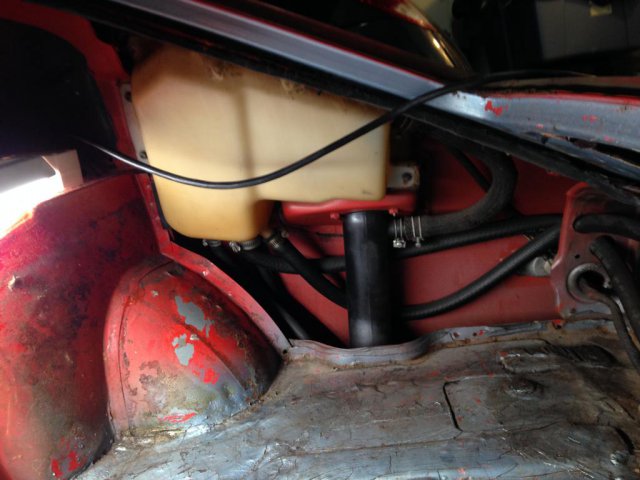

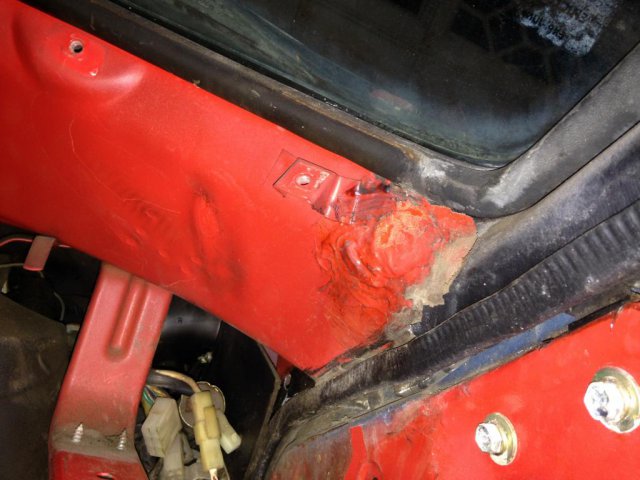

I uploaded some more photos. Some of the spare tire compartment, the dash with no dash, inner a pillar has some suspicious looking metal, as well as the c? Pillar on the outside almost looks like it could have been welded under the paint. So if you guys see anything bad or worry some or even want to give me pointers as to where to start first I'm all ears! Thank you guys again!

Thank you guys for the fast replies! I will be posting more pictures later today!

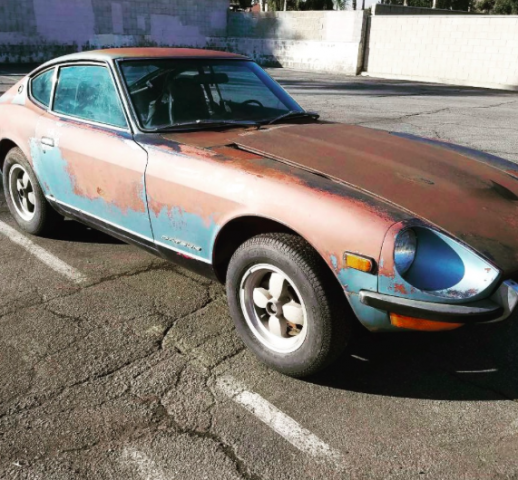

hello hybridz! I've finally found my project z! I have some ideas in the direction I want to go but I'm not 100% set on every detail. i still have a lot of work to do before i can ever start making it a drivable car again. i bought it from a guy in chino ca that sells old cars. he had another one for sale but it seemed like even more work then this one. there is rust in the floor pans. it looks like it got repainted and has some serious surface rust but the frame rails looks solid, the battery tray looks good and the wheel arches are still in one piece. i know this will probably take me years because i want to do most of the work my self to learn and to save money. i work at a car fab shop so i have experience building cars and making things work that shouldn't but when it comes to the power train i will have to recruit my friends and local shops. i am really excited to get into my z and make this race car fun again. i know i don't know a lot about zs so if you guys see anything obvious or something that stands out please let me know! i am very open to opinion and critic. i appreciate all the knowledge here and can't wait to build this car with you all!! http://s38.photobucket.com/user/Datsun-240z/library/six%20post there are more pictures at the link in the photos is the door vin plate. i have one question, with the production date being 4/71 is it a 71 or 72? over all shot of the rust bucket as i bought it. third photo is the passenger side wheel well as seen from the interior, does any one have any idea as to what this could be? and last pic is just a shot of the frame rails.
