Arif Posted December 31, 2012 Share Posted December 31, 2012 Alright! It's been awhile coming and I'm sure your excited! Quote Link to comment Share on other sites More sharing options...
steve260z Posted January 5, 2013 Author Share Posted January 5, 2013 I got it going at 11:30pm on New Years Eve!!! Plenty loud. No big deal, fireworks rattling the neighborhood anyway. I'll get a video once I get my problem figured out.. See here: http://forums.hybridz.org/topic/110692-stroker-start-up-problems/ Quote Link to comment Share on other sites More sharing options...
steve260z Posted January 5, 2013 Author Share Posted January 5, 2013 (edited) Got the electronic issue figured out. The Crane Engine Control Module had an iffy connection running to the distributor. I drove the car to the gas station and blasted around the neighborhood. Geez....What a ton of torque!!! Totally flat torque curve from 1200 rpm to 5K. Didn't go any higher at this point. Need to continue breaking the motor in. Actually pulls like a muscle car. Awesome!!!!! Video attached. I'll apologize now for the crappy sideways video. I rarely use my I Phone for video. You can tell.. I put another up once the motor has a few more miles on it. Wow...2 1/2 years on this deal. ss IMG_0382.wmv Edited January 5, 2013 by steve260z Quote Link to comment Share on other sites More sharing options...
Leon Posted January 7, 2013 Share Posted January 7, 2013 Congratulations!!! Sounds healthy. Quote Link to comment Share on other sites More sharing options...
steve260z Posted May 28, 2013 Author Share Posted May 28, 2013 After getting the stroker running I quickly decided that the SUs are too small. Got some used triples. 40s. I'll update all the jets and setting once I get the tuning done. But, it rips and sounds awesome.: IMG_0688.MOV Quote Link to comment Share on other sites More sharing options...
78zstyle Posted May 28, 2013 Share Posted May 28, 2013 I couldn't tell, but did the throttle hang on the first blip? Quote Link to comment Share on other sites More sharing options...
steve260z Posted May 28, 2013 Author Share Posted May 28, 2013 Ya, it still is. I can "blip" it down from the drivers seat too. I'm going to get a second "helper" spring this week. I had problems getting the idle down to something reasonable. Did a bunch of tweaking on that and still have that little hang up to fix. Quote Link to comment Share on other sites More sharing options...

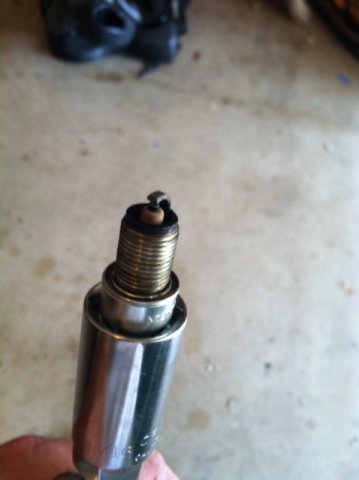

steve260z Posted June 2, 2013 Author Share Posted June 2, 2013 Been tweaking the webers. Got the idle around 900 and idle mixture screws adjusted. Need to sync the carbs. Running well at 12 degrees BTDC. Plug used to be a bit rich. Looks alot better now. Made about a 15 mile run. Just need to remember to screw the K&N filters housing screws tight....Lost one and ran over it...... Quote Link to comment Share on other sites More sharing options...
Charles Patterson Posted June 5, 2013 Share Posted June 5, 2013 Steve, I have been looking at a build like this for a long time but every one seems to believe it will cost 4-5k. In round numbers what do you have in the engine? Just the long block not induction or exhaust. I have 2 cranks currently but would probably go turbo before I spent 5k or more on a stroker... Charles Quote Link to comment Share on other sites More sharing options...
steve260z Posted June 5, 2013 Author Share Posted June 5, 2013 Yeah, I see that cost as well. My numbers: Block: $250 Head:$150 Crank: $550 Rods: $150 Pistons: $200 Head Gasket: $300 Bearings: $60 Gasket Kit: $60 Machine Work: $500 Stuff I forgot: $600 That's about $2,900 there including the V07. That's the most expensive piece and since you have two, use one and sell the other. Quote Link to comment Share on other sites More sharing options...
Charles Patterson Posted June 5, 2013 Share Posted June 5, 2013 Thanks for the quick reply. In reality I probably have the first 4 items on your list. So it might be possible to build one for less than 2k. I would have that in any other motor I might build maybe more in a turbo motor because I would have to buy pistons (forged). Thanks for the info. Do you plan on any dyno time in the future? Charles Quote Link to comment Share on other sites More sharing options...
steve260z Posted June 5, 2013 Author Share Posted June 5, 2013 No Dyno plans but certainly 1/4 mile. ss Quote Link to comment Share on other sites More sharing options...
Charles Patterson Posted June 6, 2013 Share Posted June 6, 2013 look forward to those numbers C Quote Link to comment Share on other sites More sharing options...
steve260z Posted June 15, 2013 Author Share Posted June 15, 2013 Webers are coming along. Just bought 36mm Chokes. Better low end power and smoother running engine. Most of the tuning issue are posted on the tripple webers forum page. I ran a compression test for the 1st time. Pretty pleased. #6 is certainly strong for some reason. Have about 150 miles on the motor. #1:170lbs 2: 166 3: 175 4: 168 5: 175 6: 200 steve Quote Link to comment Share on other sites More sharing options...

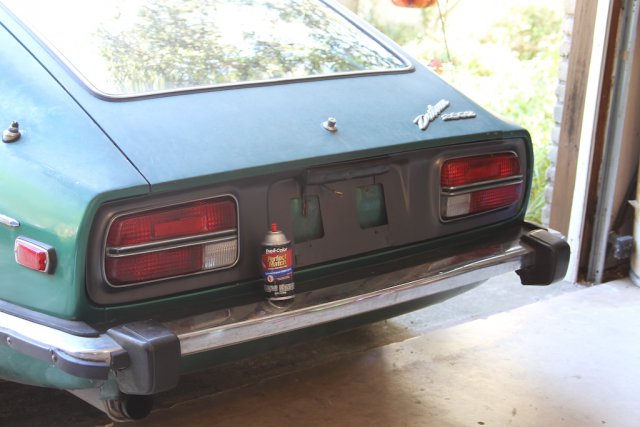

steve260z Posted October 6, 2013 Author Share Posted October 6, 2013 After searching for a decent price on 240z rear tails lights, I found a set, cleaned them up and installed. Look great. Installing these on a 260 or 280 requires cutting some metal and getting new gaskets (or making your own which I did). After looking at many different pictures to deterime the original color for the tail light housings I found "Dupli-Color" at Autozone. The "Duplicates Original Honda colors" appears to match the original Datsun color right on or at least close enough for me. Here's video on doing an install: http://forums.hybridz.org/topic/111501-video-how-to-install-240z-taillights-into-a-280z/ Quote Link to comment Share on other sites More sharing options...
steve260z Posted November 6, 2013 Author Share Posted November 6, 2013 Stroker is getting over 500 miles since the build. Running a lot smoother. The rings and bearings must be settling in. The plugs still look good. After looking up my distributor, which was a 260 unit, I've swapped it out for a ZX unit with more appropriate total timing. I've set the timing at 35 degrees and no pinging. I was running around 40 degrees and got pinging at WOT around 3K. Just need to do more tuning and get the reverse lights working so I can pass inspection. Quote Link to comment Share on other sites More sharing options...
steve260z Posted April 27, 2014 Author Share Posted April 27, 2014 Got the car on the Dyno. Good torque numbers but HP falls off after 4,500. HP is about 150 and Torque is 185. Certainly need an O2 meter. Spent the day at Harris Hill Raceway http://harrishillroad.com/ which was rented by the local Z Club. Drove the car hard for 45 minutes and no problems!!! Even made it back to San Antonio. This was by far the toughest test for the motor. I'm beginning to think all is well with the build. Dyno clean graph.pdf Quote Link to comment Share on other sites More sharing options...
steve260z Posted May 2, 2014 Author Share Posted May 2, 2014 Here's the Dyno run. Engine is cutting out from about 5k to 6k. Just ordered a Wide Band to see what's going on...Maybe its fueling or something electrical. Quote Link to comment Share on other sites More sharing options...
FlawleZ Posted May 2, 2014 Share Posted May 2, 2014 Steve, I remember your dyno, it seemed to be a bit rich where it was sputtering. I remember seeing some black smoke too. Have you pulled the plugs since the dyno? You'll be glad you ordered a wideband. Once you have one its hard imagining driving/tuning a modified car without one. You're literally driving blind. Quote Link to comment Share on other sites More sharing options...

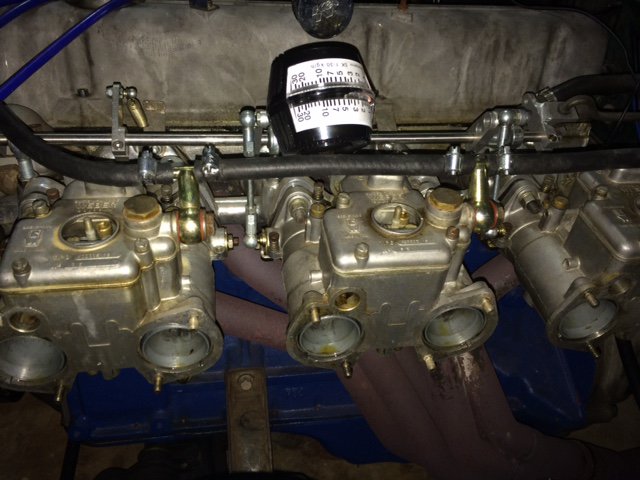

steve260z Posted January 25, 2015 Author Share Posted January 25, 2015 Wow.. What a learning curve on DCOE carbs. Huge thanks to Frank at Side Draft Central and the guys at http://forums.hybridz.org/topic/28318-weber-jetsall-who-live-for-their-triples-please-read-this/ Can't thank everyone enough. So, setting the floats at 25mm and syncing the carbs with the SK tool. Installed a very nice O2 meter and making progress every weekend. Quote Link to comment Share on other sites More sharing options...
