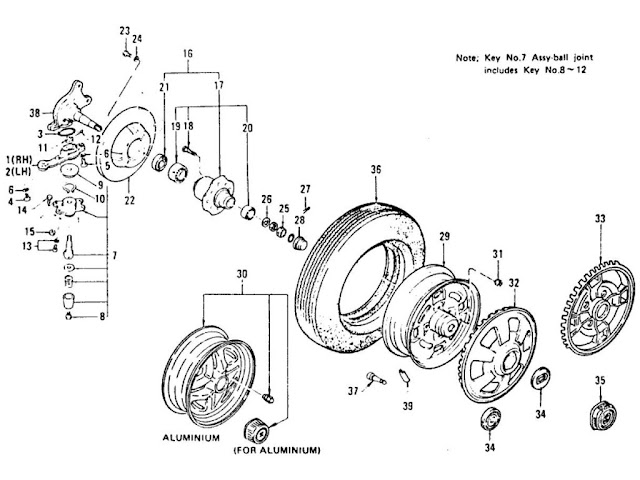

tamo3 Posted April 29, 2013 Share Posted April 29, 2013 I Slivermine brake spacer for slotted rotor with Toyota 4x4 conversion. Also I got Quest Studs. Part number at napa was 6412785 for 83-89 Nissan Quest Rear Studs. Now I need longer bolts to connect rotor and hub since I put spacer. Does anyone know where can I get that? Longer version of Part #23 http://www.carpartsmanual.com/datsunS30/DatsunZIndex/Axle/FrontAxle/tabid/1728/Default.aspx http://forums.hybridz.org/topic/63877-big-brake-kits-240z-260z-280z/ Thanks, tamo3 Quote Link to comment Share on other sites More sharing options...
cgsheen Posted April 29, 2013 Share Posted April 29, 2013 And you don't really need Quest rear studs - the rear studs on every early Z are the about the same length as the Quest - I used rears for the front too... We have a really well stocked - been here since the stone age - Ace Hardware near here that carries a huge variety of bolts & nuts. We found longer bolts for the rotors there. Or any good bolt and nut supplier. I can't remember the thread and pitch, but you have the orginal bolt, and the spacer adds about 3/8", right?... Quote Link to comment Share on other sites More sharing options...
tamo3 Posted April 29, 2013 Author Share Posted April 29, 2013 Thanks for the information. I will check out local ACE and OSH. I heard rear s30 stud is 40mm where Quest stud is 45mm. http://forums.hybridz.org/topic/97317-extended-wheel-studs/?p=914442 Anyway, removing stud from rear extremely painful (I need to remove rear hub too.) and I already got Quest Studs. Yes, you are right. The thickness of the rotor hub is 3/8" for 280z. I exchange my 240z version spacers with member in this forum since I sold my 240z and got 280z. 280z = .375" = 3/8" (280z hubs only)240z = .5" = 1/2" (240z hubs only) http://forums.hybridz.org/topic/88620-toyota-4-piston-caliper-spacer-size/?p=841786 Thanks, tamo3 Quote Link to comment Share on other sites More sharing options...
beermanpete Posted April 30, 2013 Share Posted April 30, 2013 If you cannot find the screws at a local hardware store try McMaster-Carr http://www.mcmaster.com/# Quote Link to comment Share on other sites More sharing options...
tamo3 Posted April 30, 2013 Author Share Posted April 30, 2013 Thanks beerman Pete. If I couldn't find I will shop from there. Quote Link to comment Share on other sites More sharing options...
nish Posted May 28, 2013 Share Posted May 28, 2013 They are most likely .125 pitch and even McMaster doesn't carry them in larger sizes. Try looking for JIS spec automotive hardware. Quote Link to comment Share on other sites More sharing options...
tamo3 Posted May 12, 2019 Author Share Posted May 12, 2019 For my memo, Nissan Quest long bolt is Dorman 610-404. M12-1.25, 4.5cm length. https://www.dormanproducts.com/p-2578-610-403.aspx https://www.oreillyauto.com/detail/b/dorman-autograde-3358/tire---wheel-16779/lug-nuts-and-studs-25062/wheel-lug-stud-12672/fb26df11d790/dorman-autograde-m12-1-25-thread-wheel-stud/610404/4181308 Quote Link to comment Share on other sites More sharing options...
Mike Mileski Posted May 14, 2019 Share Posted May 14, 2019 Here's some 50mm long ones from Z Car Depot. https://zcardepot.com/products/wheel-lug-studs-2-extended-racing-240z-260z-280z# Mike Mileski Tucson, AZ Quote Link to comment Share on other sites More sharing options...
