L28, Fitech Throttle Body Injection

[BJSZED]

Good Morning fellow HybridZ members !



I have been a member here for a little while now and have educated myself with all the astounding contributions from this community. I can't imagine all the work in the detailed threads and builds. Unfortunately I don't have the same skill set or patience for taking pictures or video of all the steps along the way but will still try to contribute. I will warn you I take to long to explain things. Can you tell ?



History:

Picked up a 72 240z with a rebuilt stock L26 running round top SU's about 1-1/2 years ago. Loved the car, always wanted one and it ran ok when warm, terrible when cold. The previous owner looked after the car cosmetically but his mechanical skills were limited so I knew things could be much improved.

I also researched and wanted to do the easy and common driveline swaps so I found an 81 280ZX to harvest the 3.90 R200 and close ratio 5 speed from. The car was original, rusted out and had 54,000 miles. At first, I wasn't going to use the engine as the seller said it had a knock but upon inspection it had thrown one of the lash pads off due to a stuck valve from sitting so long. Anyway, I tore the head off and found perfect cylinder bores, no pitting, ring ridge etc so I figured might as well try using the L28 short block. It was original with it's flat top pistons while the L26 I had was running dished.



Induction thoughts:

I loved the look of the twin SU's but they were going to need work, although they were apparently rebuilt and properly adjusted. Now, right or wrong I didn't want to be dickin around with two carbs so my plans were to replace the intake and carbs with 4 barrel. For me this was best, can be adjusted and maintained easier and I'm a function over form guy.

I researched and decided that the manifold to use was from Arizona Z car. It was dual plenum and would provide more usable torque for the street and would also go with the recommended Holley 390 carb.



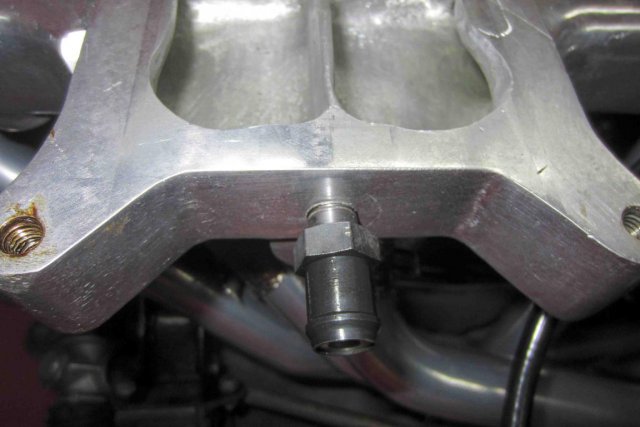

A buddy of mine is a very talented, long time drag racer and he offered to work on the intake for me. I didn't really think it would be required for a street car but his theory was that there could be some free horsepower in there and a few extra horsepower is a few extra horsepower. He went about smoothing the ports but did the most work in the plenum. The plenum divider was thinned and much time was spent carving the plenum transition to the runners. Sorry, but these are the only pics I have. Much more work was done and making a thread was never a thought at that point.



Cylinder head:

Originally I was going to use the L26 so I had decided to rebuilt the 72 E88 head. Whitehead performance did the work and confirmed that I had the early E-88 with the closed chambers. They also confirmed that the original brass seats needed replacing with steel and I decided to replace all valves with the larger size used on the L28 engines. The head needed some aluminum repair but otherwise was in exceptional shape.

I was panicky and conflicted when I decided to use the L28 F54 block as compression might be too high. And after much research and confirmation with whiteheads decided it would be ok. And if it wasn't, I would just use the L26 block.

     When I got the head back my buddy again offered his services. He smoothed the ports and bowls and did some other voodoo for another potential horsepower or two. Awesome guy! Also, a mild cam from webcam and new OEM rockers were installed.



Start up and experience with Holley:

Everything went so well. I had expected some issues but the engine roared to life and after a couple mixture and idle setting she was running like a champ. Decided, to take it around the block without the hood on to see how the 5 speed and rear end worked. I was taking it really easy but could tell things were much improved. My drag racing buddy asked what I thought and my response was " I think she really wants to go ".

     I was taking it so easy that my busy body neighbor comes over and asks me "what"s the matter with it, it doesn't seem to be running right" Guess he never heard a performance cam before. Anyway, the next day as I was backing out of the driveway the same guys coming over again so I was a little more aggressive and left him standing in a cloud of tire smoke as I'm driving up the road watching from the rearview mirror as the smoke rolls over him . It's one of the funniest things I've ever done and laughed about it for days and the 150 ft black marks are still there. Guess it was running ok after all eh, lol. Timing was set conservatively at 12 degrees idle, 30 degrees full throttle with about another 30 degrees at cruise from vacuum advance due to using the 81 280ZX dizzy and without any pinging.

     Anyway, holley was great, no hesitation, instant throttle response, very happy except for the electric choke. It sucked and couldn't be adjusted to my satisfaction so I used that as a HUGE excuse to try an EFI throttle body.



Finally, experience with Fitech EFI 4 barrel:

Overall, everything went very well but there definitely was some issues which had to be resolved. I went with fitech's fuel commander which has a few issues that I wasn't aware of at the time. I sorted them out but there was some head scratching going on.



First issue:

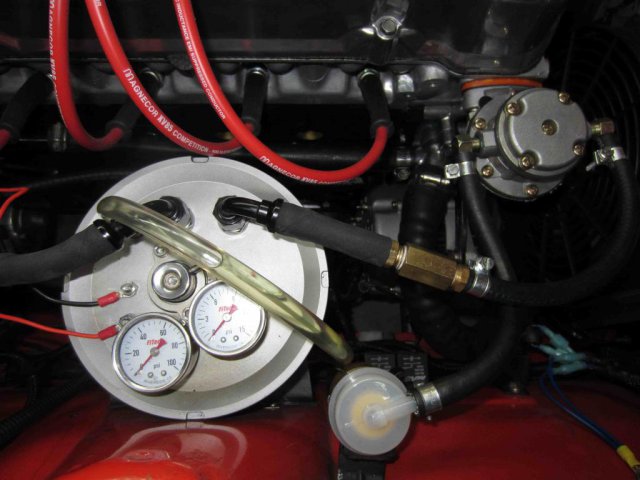

Venting the FCC center. Fitech says it has to be vented to the tank and can be t'd into a charcoal canister line or any other vent line going to the tank. I t'd  into the tank vent which runs to the two way valve which runs to the stock PCV tube coming out of the block. This should be perfect as i'm venting the FCC tank fumes into the same system that vents the gas tank....WRONG!

     What I was seeing was occasional A/F ratios which needed huge amounts of trim. The fitech system tunes itself but you can watch it from an included monitor. As an experiment, I installed a clear vent line from the FCC center to a clear apple juice container and took the car for a 30 minute ride. In that time the FCC vent was spewing out enough raw fuel to 3/4 fill the container...WTF supposed to be a vent not a fuel return. What was happening was that fuel was dumping into the gas tank vent line and being sucked directly into the intake manifold through the PCV system causing the crazy fuel trim !

     The fix was to vent the FCC into the original fuel return line which runs back to the tank which lets the gas tank vent line function as it should from the rear vapour separator to the pcv system.



2nd issue:

Was getting a momentary lean spike with momentary pinging with sudden throttle transitions from cruise or under full throttle while shifting gears and getting on and off the throttle. Never any pinging under full wide open throttle. I tried adjusting accelerator pumps shots thinking it was getting enough but that would not work no matter what I tried.

     Next I looked at the distributor function and hooked a mechanical vacuum gauge T'd into the distributor line and compared with what the fitech manifold vacuum was....gotcha, you pesky problem ! Basically no vacuum on the distributor line coming from the throttle body port vacuum circuit. The only time the line saw vacuum was for a split second during sudden throttle transitions as noted above.

     The fix would not be quick or easy. You might be thinking just put the distributor on the full manifold vacuum port and I did experiment with several versions of this. Bottom line is my engine idles best without the added vacuum advance and it worked perfect with the carb and so it should work perfect with EFI.

     A combination of things were causing the problem,

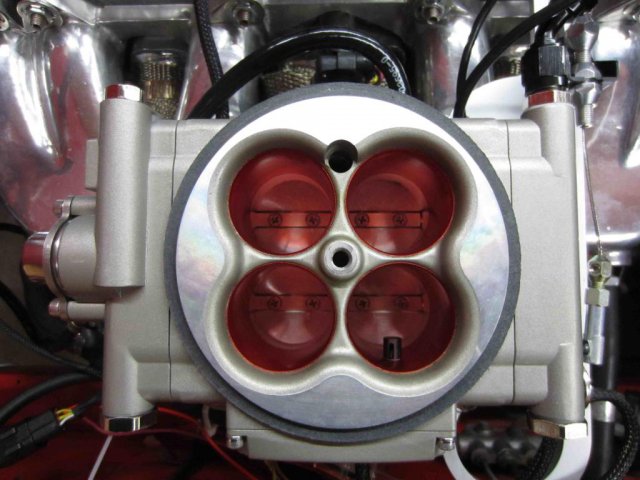

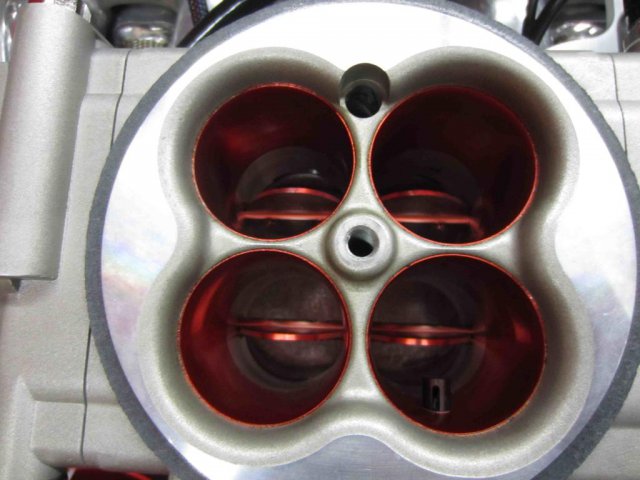

1. Throttle body is huge and is really meant for larger engines which means you need to almost completely close the throttle blades to get your IAC reading correct. This lowers the blades further from the port vacuum orifice.

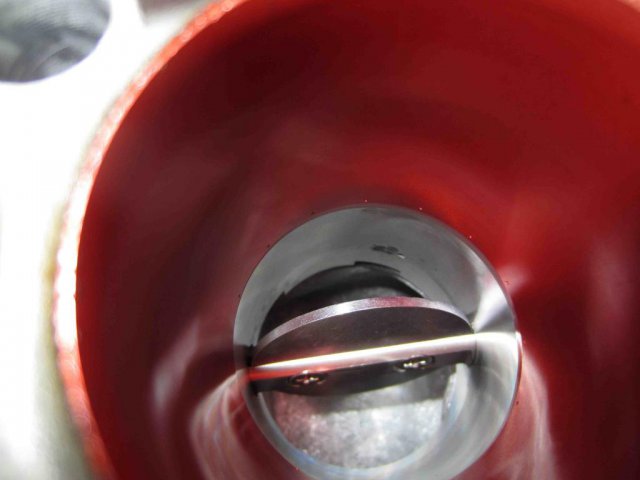

2. Throttle blade is very thick compared to the holley which means it has to move farther to uncover the hole.

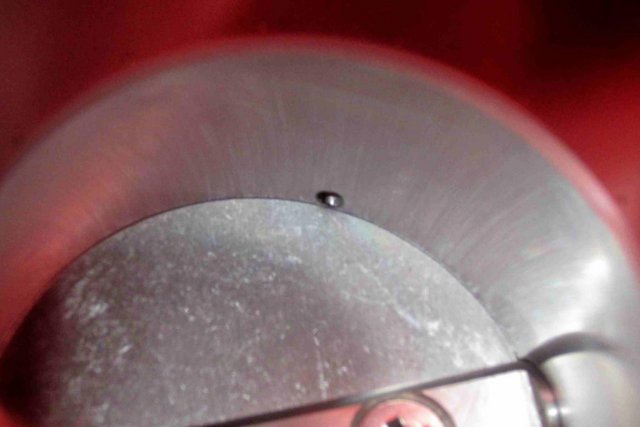

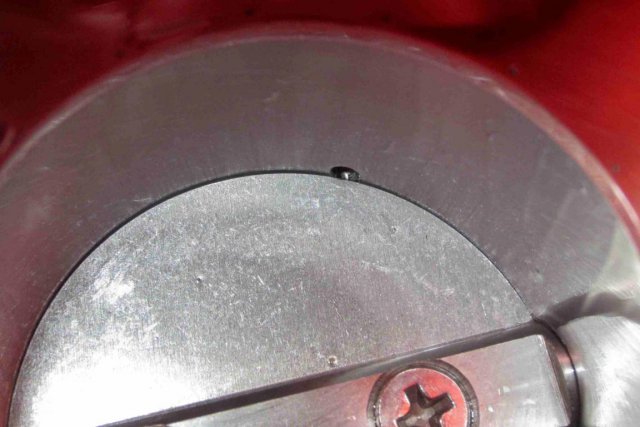

3. Fitech has the orifice too high. At approx. 6% cruise the hole is too high



The fix:

I first tried adjusting the secondary blades higher to the hole and closing the primary throttles lower but this resulted with too high an idle while getting IAC adjustment correct.

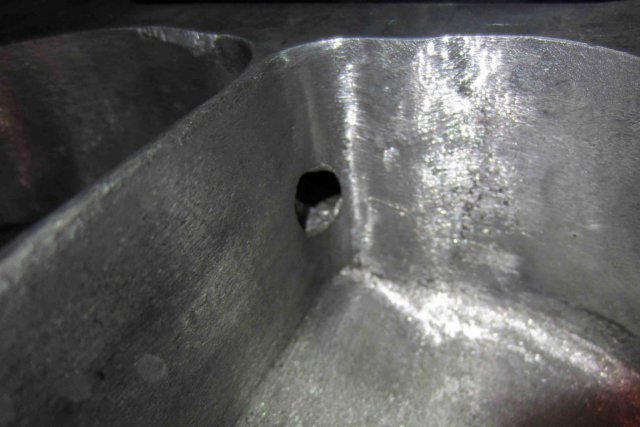

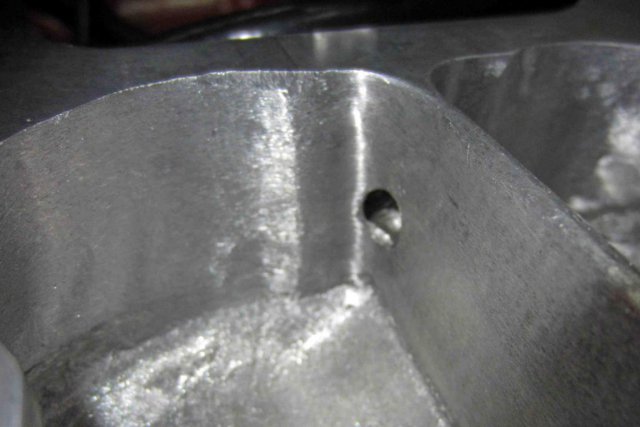

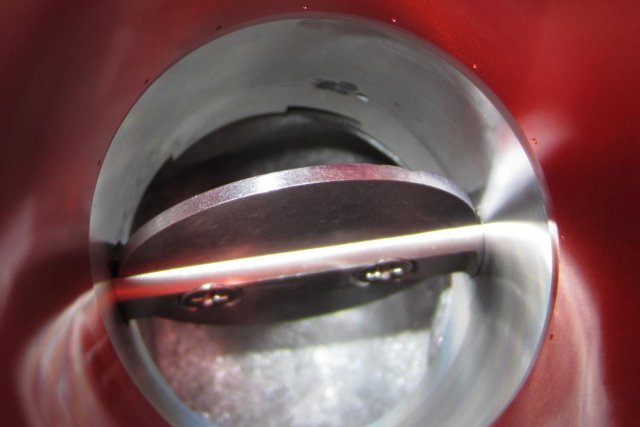

     Basically, I would have to fill the existing orifice and re-drill lower. This took a few attempts as the vaccum circuit is not drilled at 90 degrees but at an angle and had to be drilled from outside in. In the end, this worked along with thinning the throttle blade on the underside to fine tune. Port vacuum works as designed, nothing at idle and full manifold vacuum above idle. Ping on throttle transition is gone. Timing will all be fine tuned in the spring as the cars away for the winter.



Anyway, a lot of work to replace an electric choke !!!!!!!!!!!!!!!!!!



The system works very well, runs perfectly from cold, instant throttle response, excellent power. No dyno's where I live so will take it to the dragstrip this summer to get an idea of the HP.

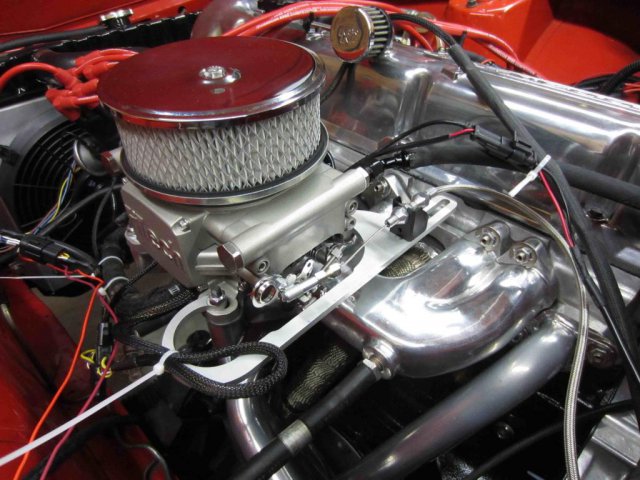

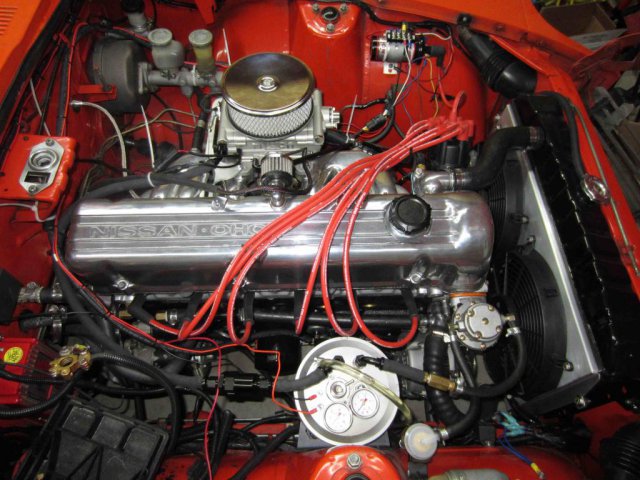

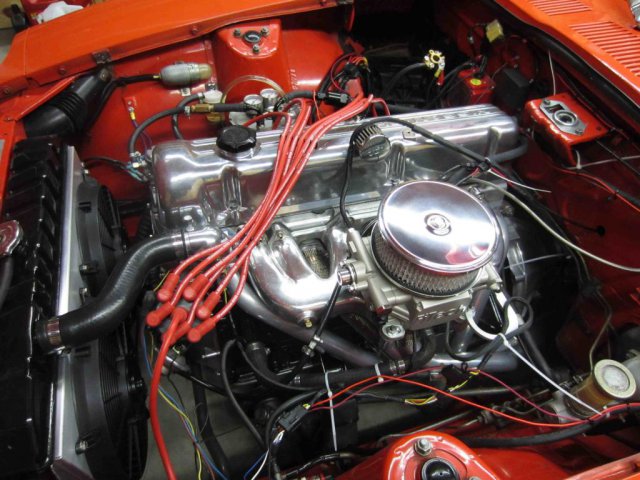

Sorry, for the messy engine bay, tie wraps etc. Has been a long experiment and the throttle body has been on and off about 30 times.



Tried to insert photos as I went, we shall see if I screwed it up.............sorry for the rambling post.



Brent



























[Chickenman]

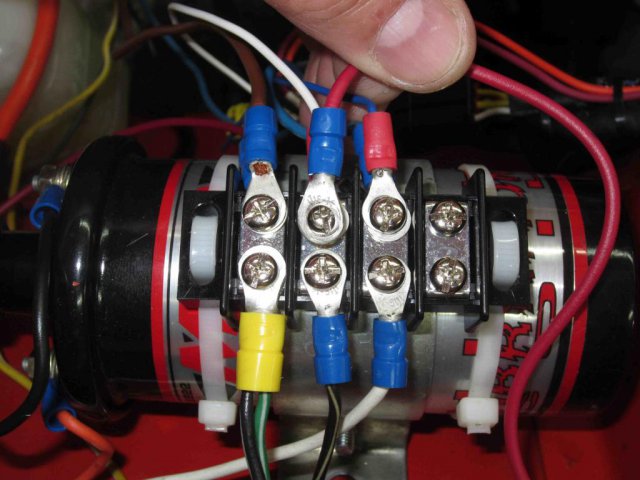

Very nice. One suggestion. Move that electrical terminal block off the Ignition coil and route the wiring further away from the coil. Ignition coils produce a lot of EMI and can create induction voltages in closely run wires. If any of those wires are the trigger wires from the dizzy or any EFI sensor wires it is particularly bad.

[BJSZED]

Thanks for the suggestion. Is there a minimum distance? That was more of a temporary way of isolating my MSD box while testing. That way I could easily return to running solely off the dizzy although I was thinking of keeping something similar in case of MSD failure. It's pretty much just the wire connections that are normally just behind the stock coil with the exception of a tach adapter while running the MSD box.



One other thing I was considering is removing the header wrap under the intake manifold. The original Bob Sharp manifold had coolant piped into and out of the area just under the plenum. The AZC manifold has the extra aluminum there but is not drilled..pic attached.

Would there be any benefit to more heat in the intake and throttle body? It wouldn't suffer any heat issues like a carb and should take care of any pooling issues while the engine is stone cold? I have protected the IAC motor by a strapped up wad of header wrap directly under the IAC as figured heat on that motor was not good long term. Maybe an aluminum heat shield under the IAC motor would have been better but the wad of header wrap was quick.

Edited March 13, 2017 by BJSZED

[Chickenman]

I've seen a few of these EFI 4BBL conversions, and they've all benefited from a large heat shield mounted directly under the TB to reflect the header heat downwards. You can run into a fuel peculation issue similar to a  Holley carburator. A sandwich style plate of Stainless steel with insulating foil on the bottom side works well.  I would also add a thin phenolic spacer under the EFI TB. Anything to isolate the TB from heat will be a benefit.



If you drive the car in Winter, you want the manifold itself to get heated, but not the carburator or Throttle body. Summer in Ontario? Not so much. The TB actually do have issues with heat soak, although not as a bad as carb with float bowls. There are still passages and chambers with fuel in them that can boil on an EFI TB.



Regarding the wiring on top of the coil. I would think a minimum of 3 inches would be OK, although I would prefer at least 6 inches from the coil. Big EMI around coil. Depends what those wires are for. Sensor wires are sensitive to EMI , and Trigger wires for Ignition are very sensitive. to EMI

Edited March 13, 2017 by Chickenman

[BJSZED]

     The manifold doesn't really get that hot or the throttle body. The headers are coated and the primary sections just under the manifold are wrapped. I run a 180 thermostat and actually was thinking of running 190 instead. The previous owner ran a 195 thermostat with the L26. I just run the car May until the first salt. At the end of the season, on the highway the temperatures would drop to 150 with ambient temps about 50f. I plan on checking fitech's temp sensor which I read can read too low. It's in the thermostat housing.

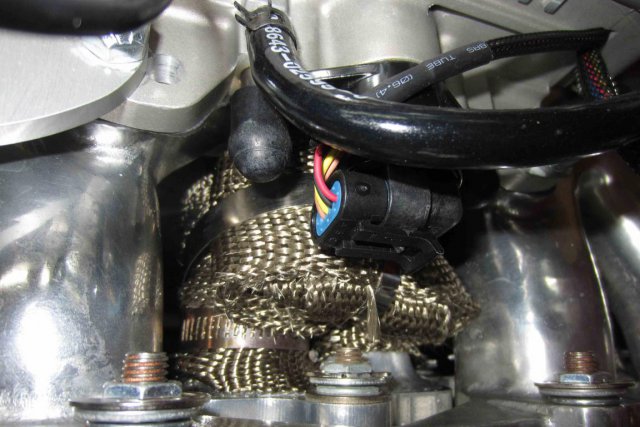

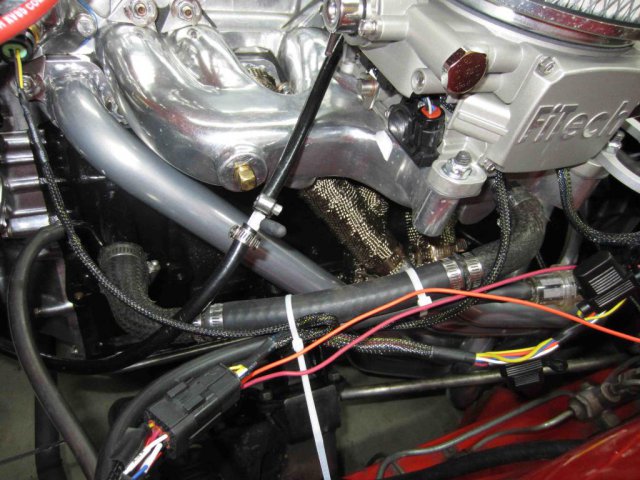

      My concern is really the IAC valve as it sits just above the header pipes.  I strapped an extra wad under the valve which seems to have worked but I may make an aluminum or stainless shield like you suggest but just under the IAC valve. Not into a big heat shield unless it proves necessary.

     System works great, basically like oem injection and once I get the timing dialed in will be perfect. Fitech offers timing control but not this model with the smaller injectors and the system is not upgradable.

     Also, if is there is a general guide to what the L28 likes for A/F ratio's. The system is disconnected now but I believe I have it set for 14.7 idle, 15.0 cruise and 12.7 full throttle. Like I said no dyno's around here so looking for L28 generalizations.

Edited March 15, 2017 by BJSZED

[Chickenman]

Personally, I'd stay with the 180 F thermostat. I believe it was Braap or Blue that found that the coolant temp between #5 and #6 runs about 20 F higher than what is measured at the Thermostat housing. N42 and N47 heads are quite prone to detonation in their stock forms and running higher coolant temps ( over 180 F )  does not help with mileage or performance.  None of the  hard core 510 or Z guys run higher than a 180 F out here in BC ( that I know of ). Dyno testing have supposedly shown HP loss with 195 vs 180 thermostats.   These are on some pretty serious 2.1 and 2.3 liter L series 4 bangers. with 160 to 170 rwhp ( Normally aspirated )  out here. Specialty Engineering motors.  Some of the the Turbo 4 bangers are running 250 to 275 rwhp



If you engine temp is 150F in 50 F ambient, it sounds like your thermostat is not operating correctly. I have a Nissan 180 stat,, three core copper rad  and my car runs a rock steady 180F if it is 50F or 100 F ambient. Some of the aftermarket stats ( including Stant ) fluctuate much more than the factory units. Been that way since everything went " Global ". Quality just isn't what it used to be....



AFR's look good for a baseline starting point. Assuming engine is stock. A bigger cammed engine will want more fuel at idle. But that's SOP.

[Chickenman]

I can see the problem with the IAC. That's pretty danged close to the exhaust pipe. If you have the room, a 1/2" or taller phenolic spacer under the TB will certainly help matters.

[BJSZED]

When I needed a phenolic fuel pump spacer and couldn't order one, I ordered a small sheet of the stuff off ebay. Was cheap but took forever to get from china, lol.  Maybe I will try to get another sheet of the stuff, could possibly make the throttle body spacer stick further out the back under the IAC.

Thanks for all the suggestions, will definately order an OEM thermostat. And yes, the current one is Stant. Appreciate your time.

Edited March 15, 2017 by BJSZED

[Chickenman]

Those square bore EFI throttle bodies are all a Holley 4150 DP base plate pattern. Phenolic carb spacers can be readily found at Summit Racing or Jeg's at reasonable prices.

[BJSZED]

Thanks, I can't have one that's too thick so I ordered some 12" x 12" sheets on ebay in 5 mm and 10 mm. The quality is good (used same before for fuel pump spacer) and its large enough for mistakes.

I'm going to shape it so it sticks out the back of the throttle body to shield the IAC valve. If it cracks over the IAC then plan B will be stainless or aluminum shield or a combo with the phenolic spacer.

I don't know what's worse, waiting for spring or waiting for something from china post.



Also, got the Nissan OEM, Aisin made thermostat you suggested and what a difference from the Stant. Very accurate opening temps ( on the stove ) and larger opening diameter.

Edited March 30, 2017 by BJSZED

[Enzo250gto]

Hi Brent,

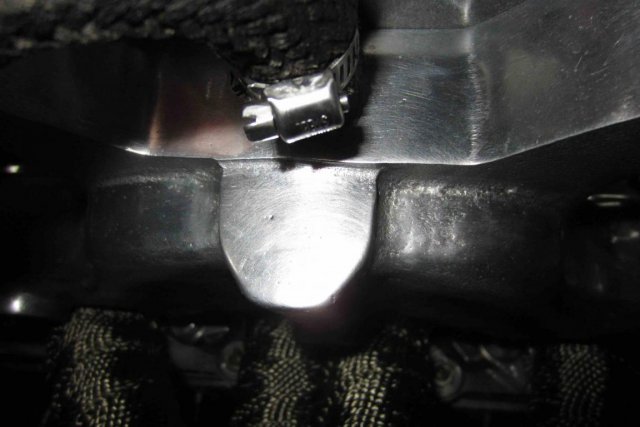

              I spoke to you recently on Auszcar about your installation. I have attached a picture of what I have done regarding the heat from the headers. I haven't included a picture of a thin stainless steel plate attached to the manifold bolts in the middle section where you have the excess heat wrapping but that is my first shield. Then is the alloy plate over the inlet manifold. Then a White Phenolic plate at 6mm which can be seen that goes back towards the valve cover. The throttle body is then placed on top. Gaskets are between the manifold and alloy plate/ phenolic plate/ throttle body. This allows a small air gap between plates. This should give maximum protection for the electrics on the back of the throttlebody from heat off the headers. Also the studs have been replaced with longer ones for the extra thickness.

Regards

David

[BJSZED]

Thanks Enzo,



That's pretty much what I was going to do when making the phenolic spacer, form it out the back like you did to shield the IAC. Probably should have a shield of Aluminum there too. I was checking out the kits Chickenman was referring to from Jegs and Summit but if I can find some flat Aluminum I could make my own.

My engine runs cool and haven't had any heat soak or similar issues but I really want to protect the IAC.



I also briefly considered turning the throttle body 90 degrees since all throttle blades open at the same time, there wouldn't be an issue with the dual plenum. The throttle cable would run straight from the firewall but I would have had to modify the intake stud hole position or the throttle body. Shield is more simple and less permanent but it would have looked better turned 90 degrees.

[Enzo250gto]

Hi Brent, Same here. Looked at rotating the throttle body but it was in the  "too hard basket". It didn't line up easily with the Arizona Z manifold. Probably a bit of overkill but with the alloy plate and extra phenolic spacer, I should have maximum shielding for the IAC. Also the back set of throttles don't seem to open the full 90 degrees. There is something in the installation paperwork about not adjusting the linkages as they are set at the factory.

[BJSZED]

Enzo,



The rear throttle plates should open 90 degrees ( mine do ) but more importantly they should open at exactly the same time as the front blades. Fitech has had been inconsistent with their factory adjustments. The fact that your rears don't open fully probably doesn't really matter as there is more than enough cfm for our little motors but on a big ass V8 it would.

Since the fuel is injected above the throttle plates, the front and rears should be perfectly in sync. My guess is your front and rears are out of sync and that can be adjusted with the secondary screw. Fitech has info on doing this on their site and it has been discussed on www.chevelles.com. The linkage itself can and sometimes needs to be adjusted as well.

This out of sync operation will also hugely affect how the ported vacuum circuit works as it is tapped above the rear throttle plates. I believe you are running manifold vacuum to your dizzy so that wont matter in your case.



Again, very happy with the operation of the fitech but like just about everything else in the automotive aftermarket, tweaking is commonly required.



Brent

Edited April 1, 2017 by BJSZED

[Enzo250gto]

Hi Brent,

              Still haven't got around to firing mine up at the moment, but have some extra info for you. You have probably already onto this, but I will repeat it anyway for people not in the know.

From FiTech:

                    1.  The pressure regulator on the Fuel Command Centre (FCC) which the original instructions said to leave open on a normally aspirated engine is now recommended to connect to manifold pressure. This can be done at the Throttle Body or direct to the manifold. This lowers the fuel pressure when at idle and cruising conditions when high pressure is not required.

                     2. The PWM number is 75 which can be dropped to 40. This allows the computer to tune itself easier.

Hope this helps. FiTech seems to be updating the system for easier use.

Cheers

David. (Enzo)

[BJSZED]

Thanks Enzo,



Also, I ran mine last summer without swapping the fuel regulator from the throttle body to the FCC center. It ran well regardless but our 400 hp units are designed to run at 43 psi and the FCC regulator is 58 psi. The instructions from fitech are to swap the regulators so the 43 psi is in the FCC center. This way the fuel trim wont be compensating for the increased pressure.

For someone running without the FCC this doesn't apply as the 43 psi throttle body regulator will function as designed because of the return from throttle body being hooked up.



I found most helpful info on facebook fitech owners groups. You gotta get her fired up ! I'm dying to get mine out again but my wife has me doing house reno's instead. Told her she has just until the end of April !
